Identification and validation of a cancer-associated fibroblasts-related scoring system to predict prognosis and immune landscape in hepatocellular carcinoma through integrated analysis of single-cell and bulk RNA-sequencing

Data collection

The flow chart of the study is presented in Figure 1. The transcriptomic and clinical data for individuals with HCC were downloaded from The Cancer Genome Atlas (TCGA) (https://portal.gdc.cancer.gov/repository) repository. The nucleotide variation matrix downloaded from the TCGA-LIHC cohort was collated using Perl scripts (V.5.32.1.1) to generate the tumour mutation burden (TMB) matrix for subsequent analysis. The transcriptomic and clinical parameter data for the HCC cohort GSE14520 were downloaded from the Gene Expression Omnibus (GEO) database (https://www.ncbi.nlm.nih.gov/). Single-cell sequencing data for the GSE166635 cohort were obtained from the Tumor Immune Single-cell Hub (TISCH) database (http://tisch.comp-genomics.org/), wherein annotations referring to the major-lineage entry in the TISCH and the existing classical cell markers were made. Immunohistochemical (IHC) staining images of proteins encoded by CAFRss-related genes ANGPT1, IGFBP4, S100A9, SERPING1, ANGPT2, SQSTM1, SPINK1, FGB, SPP1 and AKR1B10 in HCC tumour tissue were obtained from the Human Protein Atlas V.22.0 (HPA) (https://www.proteinatlas.org) (Supplementary Table 1) [18]. Finally, the set of CAFs-associated genes were obtained from The Human Gene Database (https://www.genecards.org/) [19].

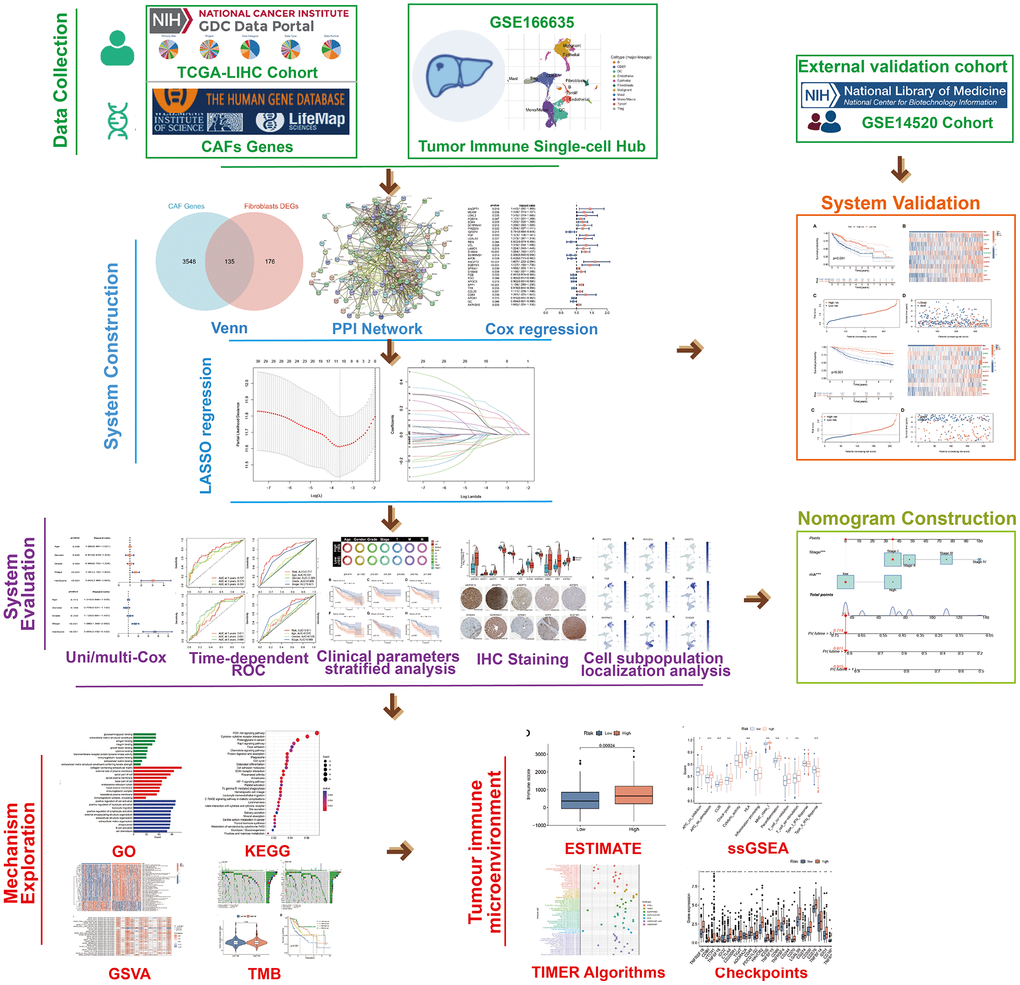

Figure 1. The flow chart of the study.

Identification of differentially expressed genes (DEGs) between CAFs and other cells

DEGs (fold change >1.5, P < 0.05) between CAFs and other cell types were extracted from single-cell sequencing data from the GSE166635 cohort. Furthermore, the R package ‘VennDiagram’ was used to draw a Venn diagram of DEGs and CAFs-associated genes to identify overlapping CAFs-associated genes. Protein interactions of the intersecting genes were mapped using the STRING platform (https://cn.string-db.org/).

Development of a CAFRss for HCC

CAFs-related genes associated with survival in the TCGA-LIHC cohort were identified using a univariate (uni-) Cox regression algorithm (P < 0.05). To avoid overfitting, the LASSO regression algorithm was employed to select the relevant genes for developing the scoring system. The risk scores for patients with HCC were calculated based on the risk coefficients of the selected genes using the following equation:

$$\text{Risk}\text{score}(\text{CAFRss})={\displaystyle {\sum }_{i=1}^n\text{Coefficient}(i)\times \text{Expression}(i)}$$

Risk stratification was performed for all patients with HCC based on the median risk score of individuals in the TCGA-LIHC cohort.

Verification and assessment of the CAFRss

Survival validation was conducted using Kaplan-Meier (K-M) curves for patients in the TCGA-LIHC and GSE14520 cohorts, utilising the ‘survivor’ and ‘survminer’ packages. The ‘pheatmap’ was utilised to generate the expression status graph of genes in the scoring system. Uni- and multivariate (multi-) Cox regression analyses were performed to assess the independent prognostic ability of the CAFRss. Additionally, the predictive performance of the CAFRss was analysed using the ‘ggplot2’, ‘grid’, ‘RcolorBrewer’, ‘reshape2’ and ‘tidyverse’ R packages, wherein Receiver Operating Characteristic (ROC) curves were drawn and compared with other clinicopathological parameters. Furthermore, K-M curves were plotted for different stratified subgroups based on various clinical parameters to evaluate the applicability of the CAFRss.

CAFRss-based nomogram construction

Cox regression identified CAFRss and TMN stage as independent prognostic predictors of HCC. These factors were incorporated into the construction of the prediction nomogram to enhance the prediction of patient prognosis. The predictive accuracy of the nomogram was evaluated using calibration curves generated by the Hosmer–Lemeshow test (method = ‘boot’). The nomogram was constructed with the packages ‘survival’, ‘regplot’ and ‘rms’.

CAFRss-based functional enrichment analysis

Gene Set Variation Analysis (GSVA) was performed using the ‘limma’, ‘GSVA’, ‘reshape2’, ‘GSEABase’, ‘pheatmap’ and ‘ggplot2’ packages to determine the the enrichment of the Kyoto Encylopaedia of Genes and Genomes (KEGG) pathways in different risk subgroups [20]. Additionally, we analysed the correlation between CAFRss-related gene expression and tumour-associated signalling pathways, constructing a correlation heat map.

DEGs between the two risk groups were determined using the ‘limma’ (fold change >2). Gene Ontology (GO) analyses were performed to explore the extent of enrichment of DEGs in biological processes, molecular function and cellular components. Furthermore, KEGG analysis was also performed to investigate the enrichment of DEGs between different signalling pathways.

Correlation analysis of the CAFRss with TMB

Simple nucleotide variation data from the TCGA cohort were collated and processed using Perl to generate a TMB matrix. The ‘limma’ and ‘ggpubr’ software packages were employed to compare and visualize the difference in TMB between the two risk subgroups. K-M survival analysis explored survival differences between different TMB subgroups and combinations of risk subgroups. Additionally, the ‘maftools’ package was utilised to generate mutation waterfalls for the 18 genes with the highest mutation frequency in the two risk subgroups.

Correlation analysis of the CAFRss and the TIME in HCC

The TIMER platform, which uses six algorithms (MCPCOUNTER, TIMER, CIBERSORT, XCELL, QUANTISEQ and EPIC), was used to estimate the level of immune cell infiltration in tumour [21, 22]. Tumour-infiltrating immune cell data were downloaded from the TIMER 2.0 (http://timer.comp-genomics.org/), and Spearman correlation analysis was conducted to determine the determined correlations between risk scores and different levels of immune cell infiltration. The process was implemented and visualised using the ‘ggplot2’, ‘ggtext’, ‘scales’, ‘tidyverse’ and ‘ggpubr’ packages.

Gene set enrichment analysis (GSEA) classifies genomes based on shared biological characteristics [23]. In this study, the single-sample GSEA (ssGSEA) was performed using the packages ‘GSEABase’ and ‘GSVA’ to quantify the degree of immune cell infiltration and immune-related function in each tumour sample from the TCGA-LIHC cohort. The ‘reshape2’ and ‘ggpubr’ packages were then utilised to generate the differential box plots for ssGSEA between the two risk subgroups.

The Estimation of STromal and Immune cells in MAlignant Tumour tissues using Expression data (ESTIMATE) algorithm is commonly employed to estimate the number of infiltrating immune cells and stromal cells in tumour tissues [24]. We utilised the packages ‘ESTIMATE’ and ‘limma’ to estimate the number of immune cells and stromal cells in the tumour tissue of each sample in the TCGA-LIHC cohort to obtain the corresponding scores. Additionally, the R package ‘ggpubr’ was employed to plot differential box plots of immune and stromal scores in the two risk subgroups. Aberrant activation of immune checkpoints inhibits the killing of tumour cells by effector immune cells and promotes immune escape of tumour cells [25]. The differences in the expression of different immune checkpoint-related genes between the two subgroups were analysed.

Analysis of clinical therapeutic drug sensitivity

The ‘pRRophetic’ package was employed to estimate tumour sensitivity to anti-tumour chemotherapeutic agents at the transcriptome expression level [26]. The IC50 values of different chemotherapeutic agents in different risk subgroups were determined using ‘pRRophetic’ to assess the potential value of CAFRss in guiding clinical pharmacotherapy in patients with advanced HCC [27].

Statistical analysis

All statistical analyses were processed using the R software (V 4.2.2), and all statistical algorithms were performed by using the corresponding R packages. K-M survival analysis was performed using the log-rank test. P-value < 0.05 indicated statistical significance.

Identification of CAFs-related genes in HCC

Cells in the GSE166635 cohort were classified into 11 types based on cell marker annotations in the TISCH database, namely B cells, CD8+ T cells, endothelial cells, fibroblasts, malignant cells, mast cells, dendritic cells, mono-macrophages, epithelial cells, regulatory T cells and proliferating T cells (Figure 2A). Additionally, the T-Distribution Stochastic Neighbour Embedding (tSNE) analysis divided the cell types into 20 clusters (Figure 2B). The pie chart presents the different cell types proportions (Figure 2C). Furthermore, the network diagram reveals the interaction between fibroblasts and other cells (Figure 2D).

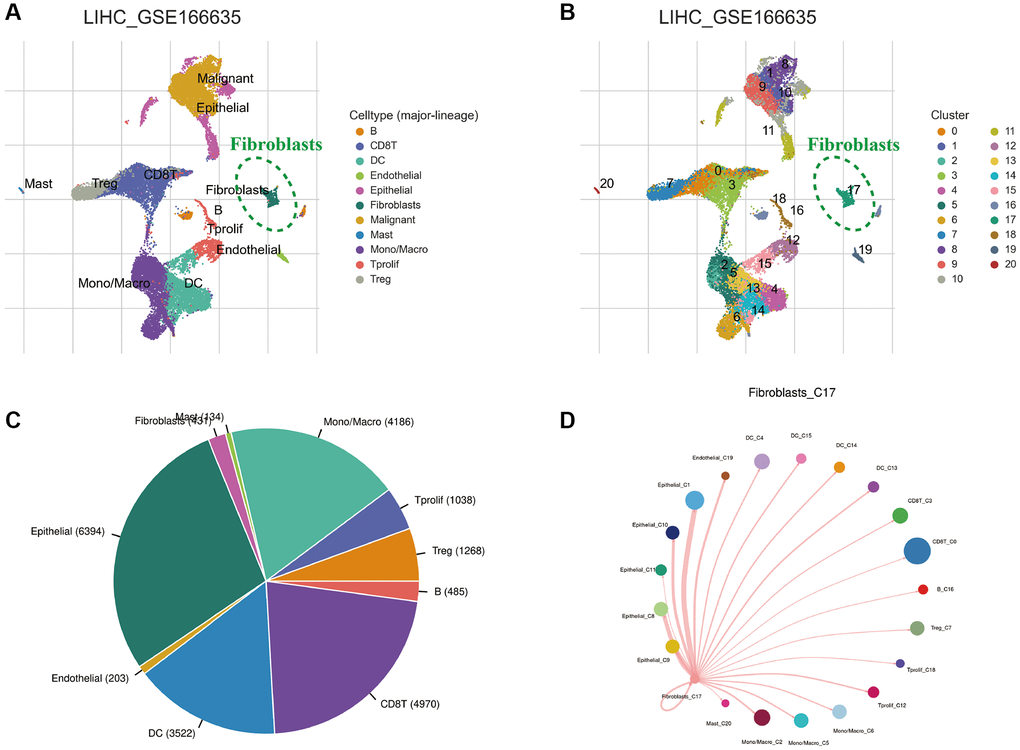

Figure 2. Single-cell sequencing analysis of HCC tissue. (A) Annotation of cell clusters into 11 cell categories. (B) Cluster classification of different cells. (C) The proportion of different cell types. (D) The communication network between CAFs and other cells.

Differential expression analysis identified 311 DEGs between fibroblasts and other cell types. Further intersection with 3683 CAFs-related genes identified 135 DEGs (Figure 3A). The protein interaction network diagram demonstrated the relationships between the intersected genes (Figure 3B).

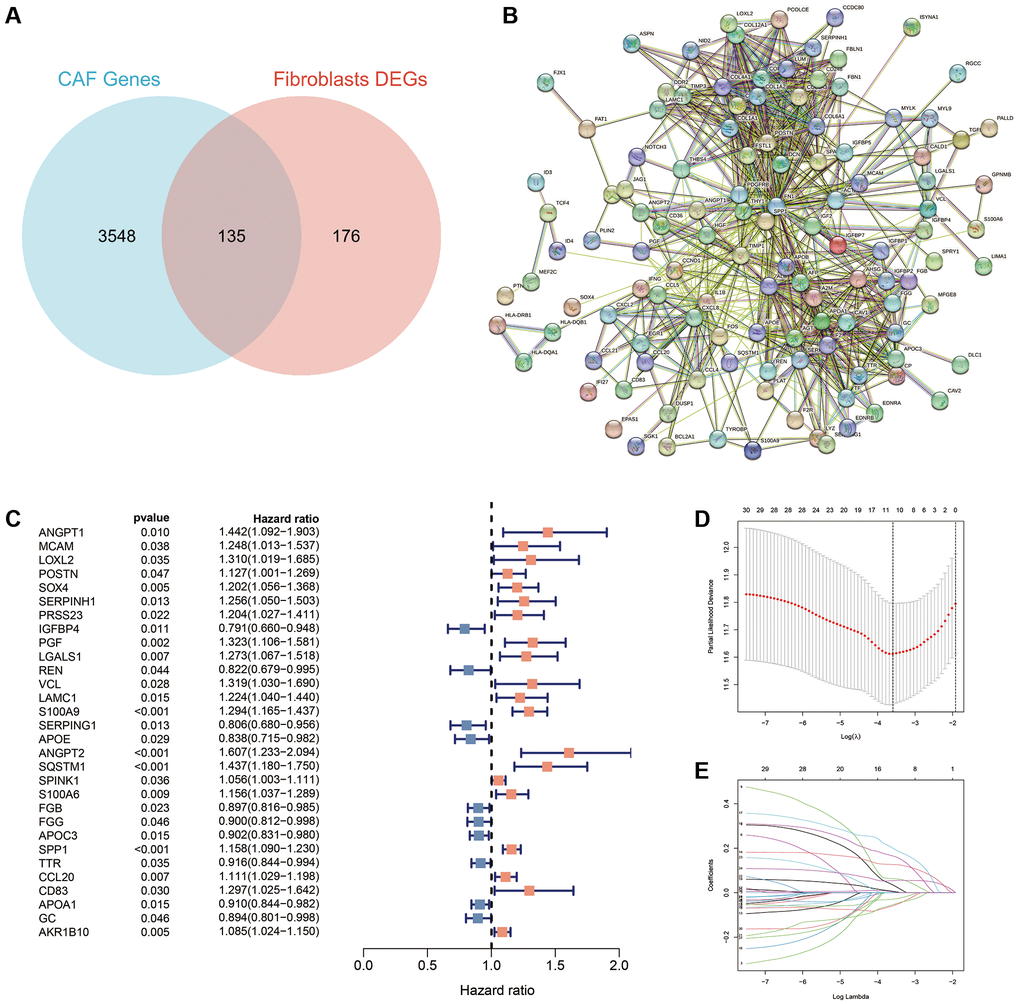

Figure 3. Identification of CAFs-associated genes in HCC. (A) A total of 311 DEGs and 3683 CAFs-related genes were overlapped to obtain 135 intersecting genes. (B) Protein interaction network map of the 135 intersecting genes. (C) A total of 30 prognosis-associated genes were obtained using uni-Cox regression. (D) The log (lambda) sequence plot of CAFs-related genes using the LASSO algorithm. (E) LASSO coefficient profiles of the eleven CAFs-associated genes.

Construction of a CAFRss

We performed uni-Cox regression on the 135 CAFs-related genes and identified 30 prognostic genes associated with overall survival (OS), including 10 protective factors and the remaining as risk factors (Figure 3C). To prevent overfitting, the LASSO algorithm further screened 11 of these prognosis-associated genes involved for the establishment of the risk-scoring system (Figure 3D, 3E) (Table 1). Among the 11 CAFRss-related genes, four were downregulated and seven were upregulated in tumour tissues compared to normal tissues (Figure 4A). Additionally, immunohistochemical images from the HPA displayed the protein expression of CAFRss-related genes in HCC tumour tissues (Figure 4B). Furthermore, the expression of the 11 scoring system genes in different cells of HCC tissue is shown in Supplementary Figure 1. Using the risk formula, we obtained a risk score for each sample in the TCGA-LIHC and GSE14520 cohorts. CAFRss (risk score) = ANGPT1 × (0.03519) − IGFBP4 × (0.05917) + PGF × (0.06325) + S100A9 × (0.12667) − SERPING1 × (0.02895) + ANGPT2 × (0.20089) + SQSTM1 × (0.16537) + SPINK1 × (0.00625) − FGB × (0.05420) + SPP1 × (0.05412) + AKR1B10 × (0.00365). Accordingly, we risk-stratified all patients into high- and low-risk subgroups according to the median risk score of the TCGA-LIHC cohort.

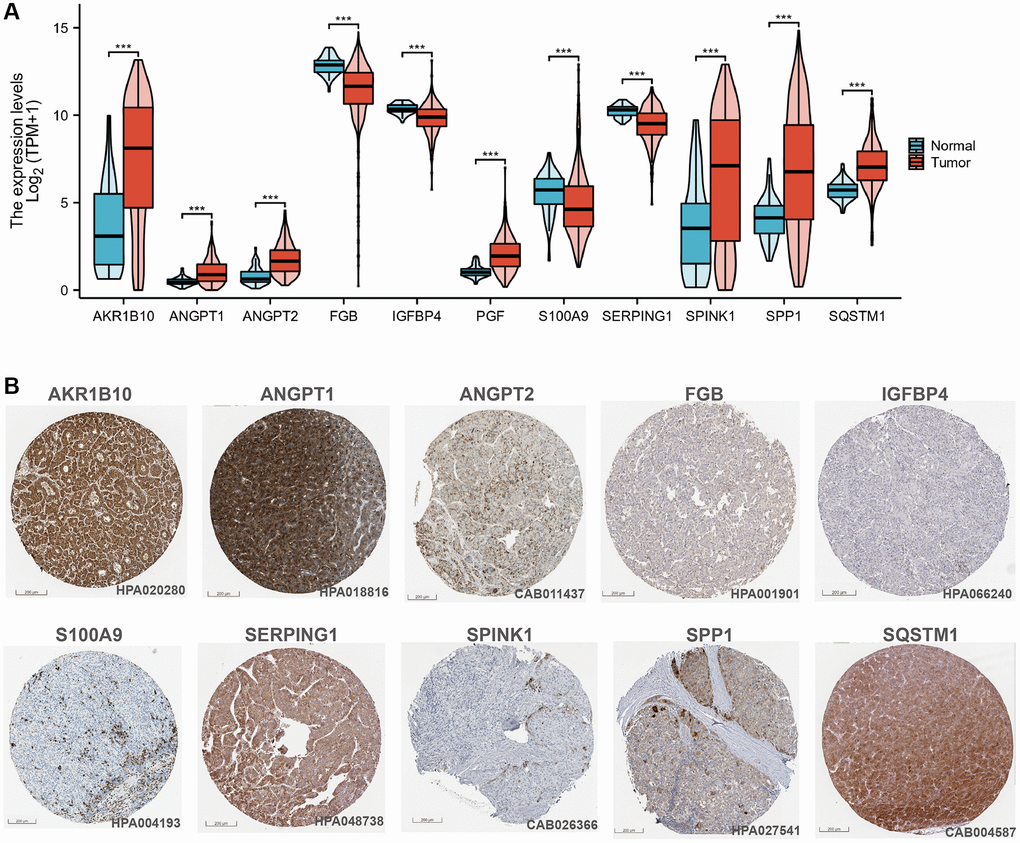

Figure 4. CAFRss-related genes in HCC. (A) Violin diagram of the expression of CAFRss genes in HCC tumour tissue and normal tissue. (B) Immunohistochemical images of proteins encoded by CAFRss-related genes in HCC tumour tissue. ^*P < 0.05, ^**P < 0.01, and ^***P < 0.001.

Validation of the CAFRss

First, we performed survival validation of the CAFRss in the TCGA-LIHC cohort. The K-M curves demonstrated that the low-risk population had significantly better OS than the high-risk subgroup (Figure 5A). The heat map displayed the expression levels of the 11 genes in the CAFRss, where the three protective factors (IGFBP4, SERPING1 and FGB) exhibited lower expression in the high-risk subgroup, while the eight risk factors exhibited higher levels of expression in the high-risk subgroup (Figure 5B). Furthermore, the risk score distribution and survival status maps for the TCGA-LIHC cohort showed an increasing proportion of individuals with mortality status as the high-risk scores rose (Figure 5C, 5D). The results were further validated in the GSE14520 cohort (Figure 6A–6D).

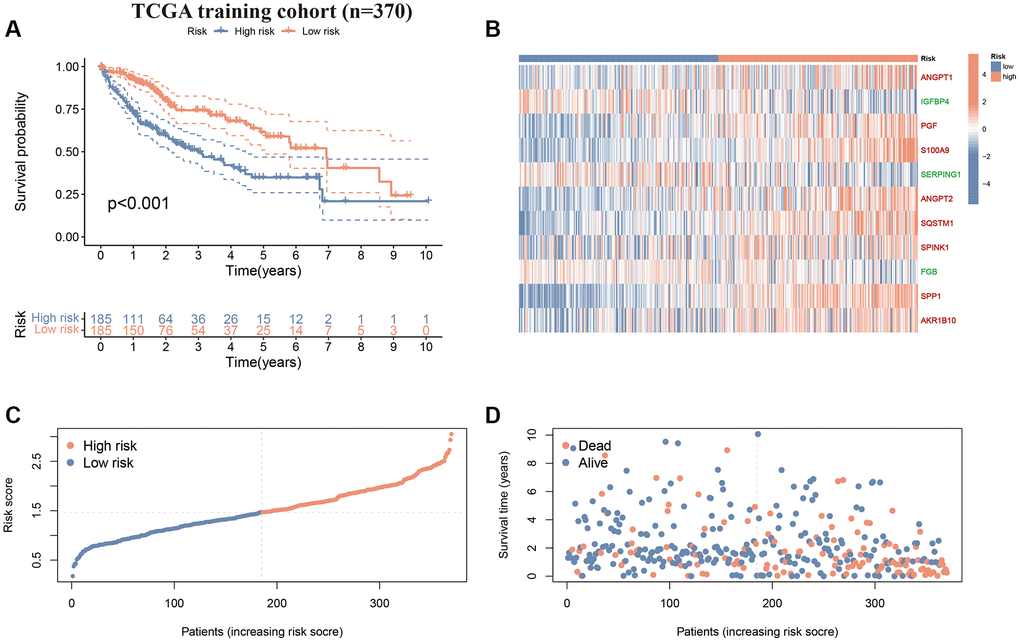

Figure 5. CAFRss in the TCGA-LIHC cohort. (A) K-M curves for OS. (B) Heat map displaying the expression levels of the 11 genes in the CAFRss (Red genes represent risk factors; green genes represent protective factors). (C, D) Risk score distribution curves and survival status plots.

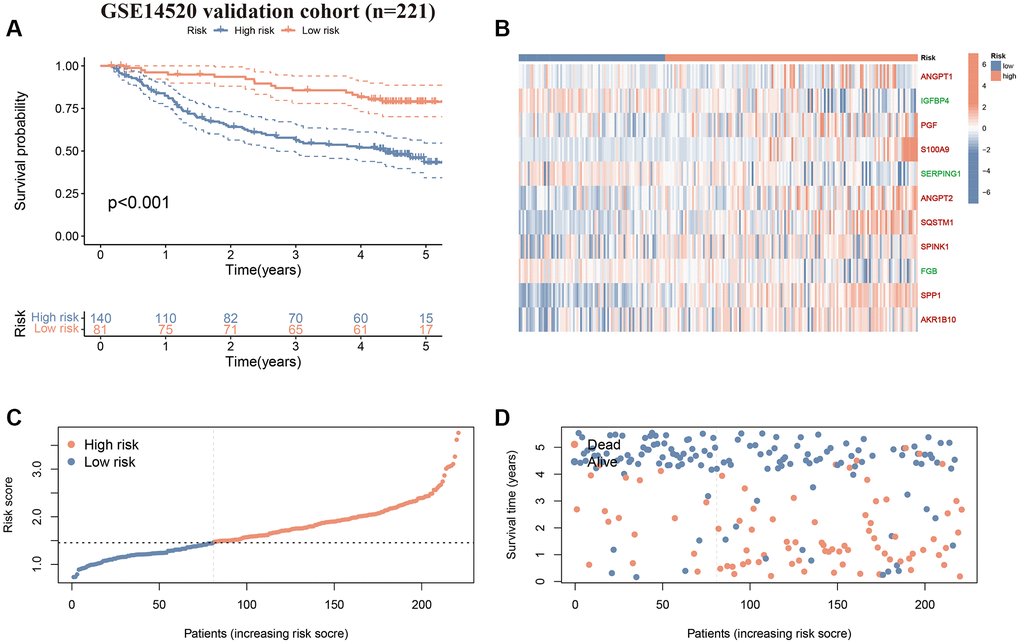

Figure 6. Validation of the CAFRss in GSE14520 cohort. (A) K-M curves for OS. (B) Heat map displaying the expression levels of the 11 genes in CAFRss (Red genes represent risk factors; green genes represent protective factors). (C, D) Risk score distribution curves and survival status plots.

Evaluation of the CAFRss

Uni- and multi-Cox regression analyses indicated that CAFRss was an independent prognostic indicator for patients with HCC, with hazard ratios of 3.654 (P < 0.001) and 3.045 (P < 0.001) (Figure 7A, 7B). Moreover, the stage was also identified as an independent prognostic indicator (P < 0.001). Additionally, ROC curves were performed to assess the predictive efficacy of CAFRss in predicting survival in the TCGA-LIHC cohort. The area under the curve (AUC) values for CAFRss in predicting OS at 1, 3 and 5 years were 0.757, 0.673 and 0.701, respectively (Figure 7C–7F). Furthermore, the CAFRss was also confirmed as an independent prognostic factor in the GSE14520 cohort (Figure 7G, 7H), with AUC values of 0.611, 0.651 and 0.686 at 1, 3 and 5 years (Figure 7I–7L).

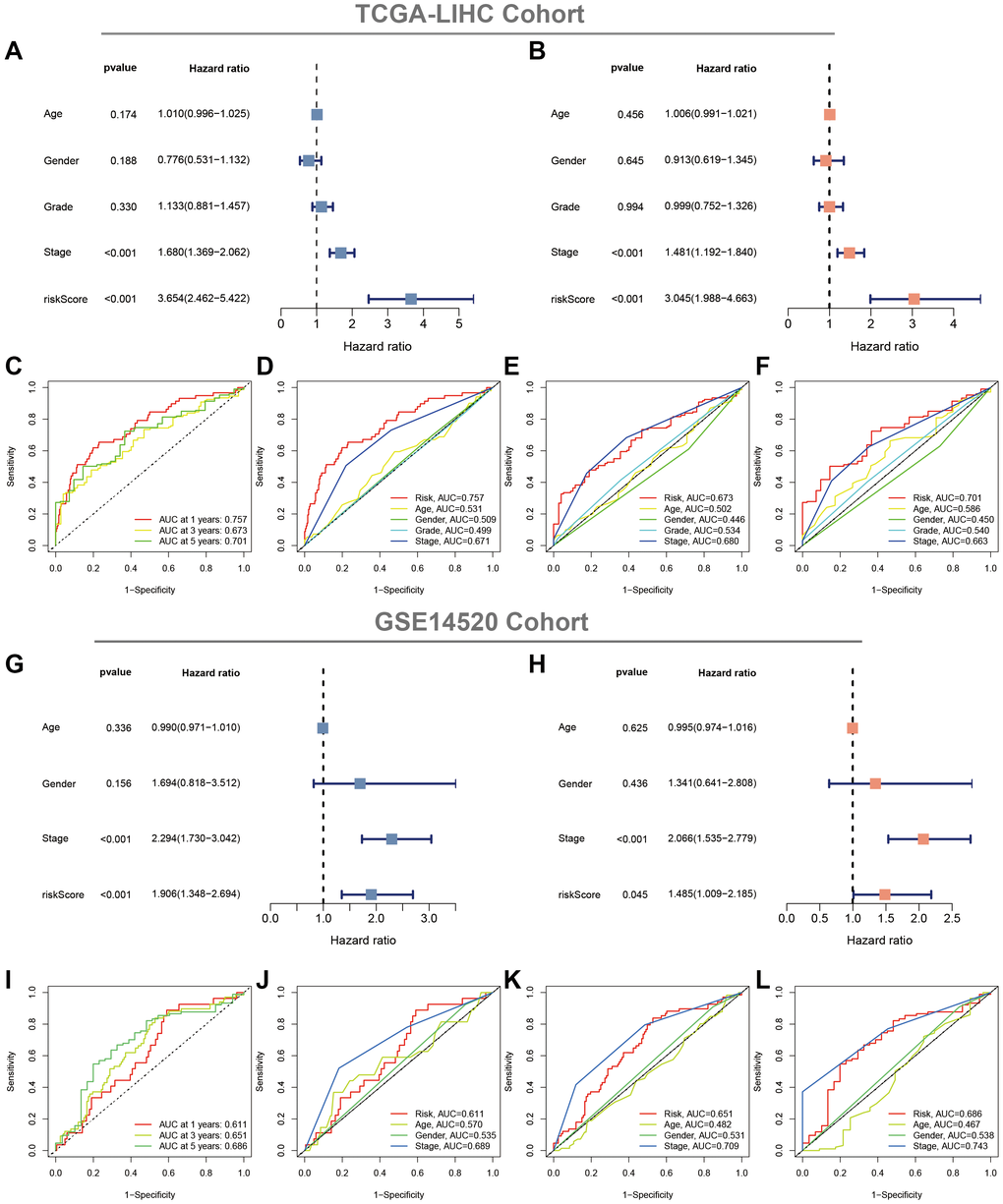

Figure 7. Evaluation of the CAFRss. (A, B) Forest plots of uni- and multi-Cox analyses of the TCGA cohort. (C) ROC curves for the CAFRss. (D–F) Comparison of AUC of CAFRss with age, stage, grade and gender at 1, 3 and 5 years. (G, H) Forest plots of uni- and multi-Cox analyses of the GSE14520 cohort. (I) ROC curves for the CAFRss. (J–L) Comparison of AUC of CAFRss with age, stage and gender at 1-, 3- and 5-years in the GSE14520 cohort.

Nomogram for HCC

Based on the multi-Cox regression results, we incorporated the CAFRss and TNM staging into the construction of the nomogram to predict the OS of patients with HCC at 1, 3 and 5 years (Figure 8A). Moreover, the calibration curves showed that the nomogram’s predictions for HCC survival were in good agreement with the actual outcomes (Figure 8B).

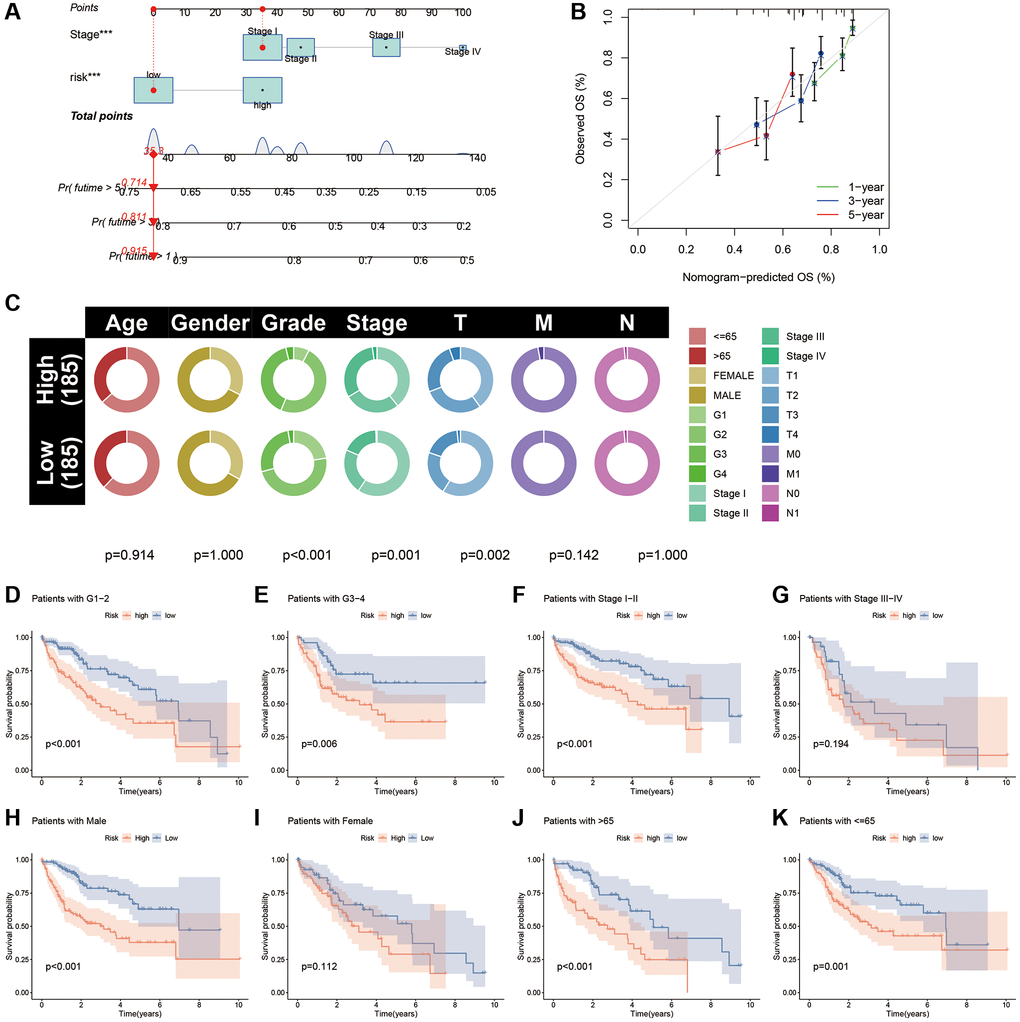

Figure 8. Nomogram and clinical subgroup analysis based on CAFRss. (A) Construction of a nomogram for HCC. (B) The calibration curves for the nomogram. (C) Circle plots show the differences in clinical parameters between the two risk subgroups. (D–K) The K-M curves show the survival differences between the high- and low-risk subgroups in the tumour grade (D, E), tumour stage (F, G), gender (H, I) and age (J, K) subgroups.

Stratified analysis of clinicopathological parameters

Circle plots of the clinical parameters revealed significant differences in grade, tumour stage and T stage between the two risk subgroups (Figure 8C). To assess the applicability of CAFRss in patients with different clinical subtypes, we performed a stratified analysis based on different clinicopathological parameters and further validated the survival in different subgroups. K-M curves demonstrated that individuals with different tumour grade and age had a better survival in the low-risk subgroup (P < 0.05) (Figure 8D–8K). Although there is no significant difference in survival between risk subgroups for women and stage III–IV patients, a noticeable trend towards the separation of the K-M curves was observed.

GSVA, GO and KEGG analysis

We first utilised GSVA to identify the pathways enriched in the different risk subgroups. The analysis revealed that the pathways enrichment of the MAPK, WNT, Notch, NOD-like receptor, RIG I-like receptor and mTOR signalling pathways, which are extensively involved in tumour evolution, in the high-risk subgroup. Additionally, the PPAR signalling pathway and multiple metabolic pathways were enriched in the low-risk subgroup (Figure 9A). Furthermore, a significant correlation was observed between the expression of 11 genes in the scoring system and key signalling pathways (Figure 9B).

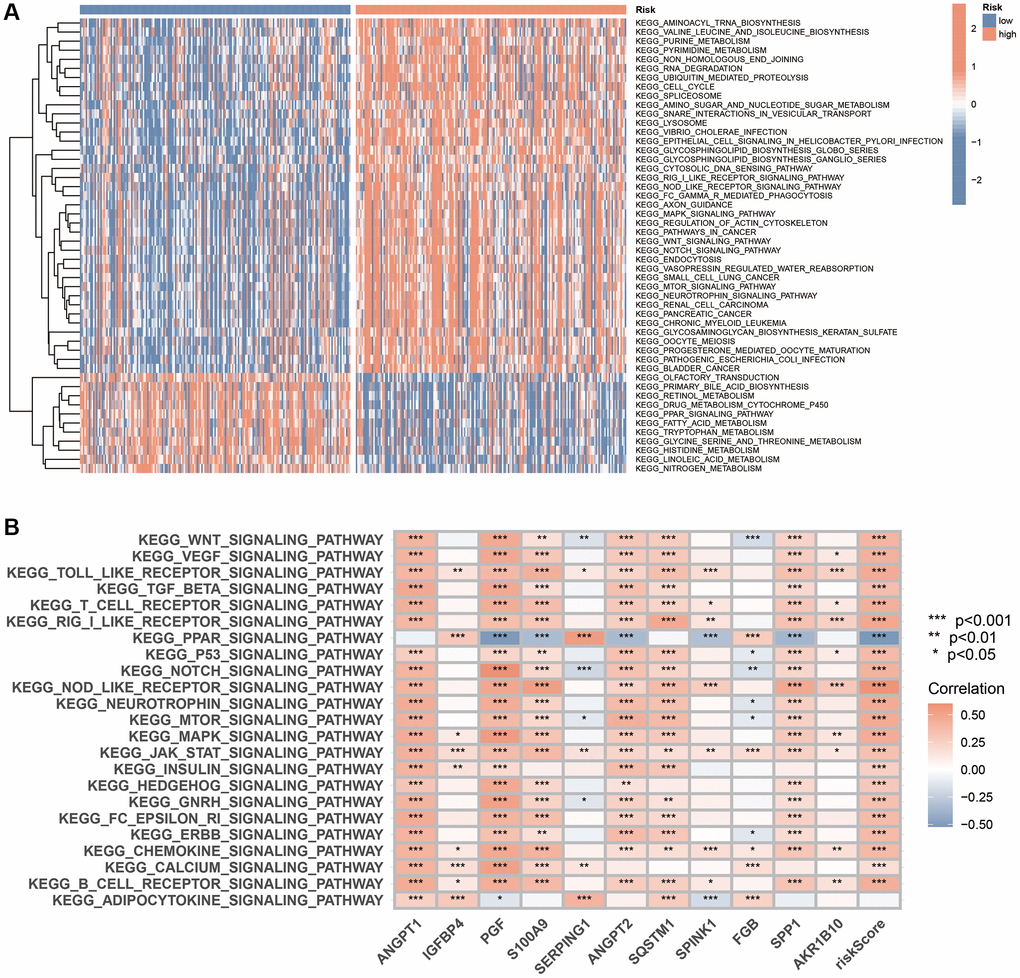

Figure 9. GSVA analysis based on the CAFRss. (A) The heat map displays the KEGG pathways enriched in the two risk subgroups. (B) The heat map demonstrates the correlation between the expression of 11 genes in the CAFRss and key tumour-related signalling pathways. ^*P < 0.05, ^**P < 0.01, and ^***P < 0.001.

Considering the differences in the enrichment pathways between the different risk subgroups, we identified DEGs between the two risk subgroups and further performed GO and KEGG analyses. GO analysis indicated that the DEGs were mainly enriched in the positive regulation of cell activation, leukocyte activation, leukocyte migration, lymphocyte activation, collagen-containing extracellular matrix, immunoglobulin complex and antigen binding, among others (Figure 10A, 10B). Regarding KEGG, DEGs were mainly enriched in PI3K-Akt signalling pathway, cytokine-cytokine receptor interactions, proteoglycans in cancer, Rap1 signalling pathway, focal adhesion and chemokine signalling pathways (Figure 10C, 10D).

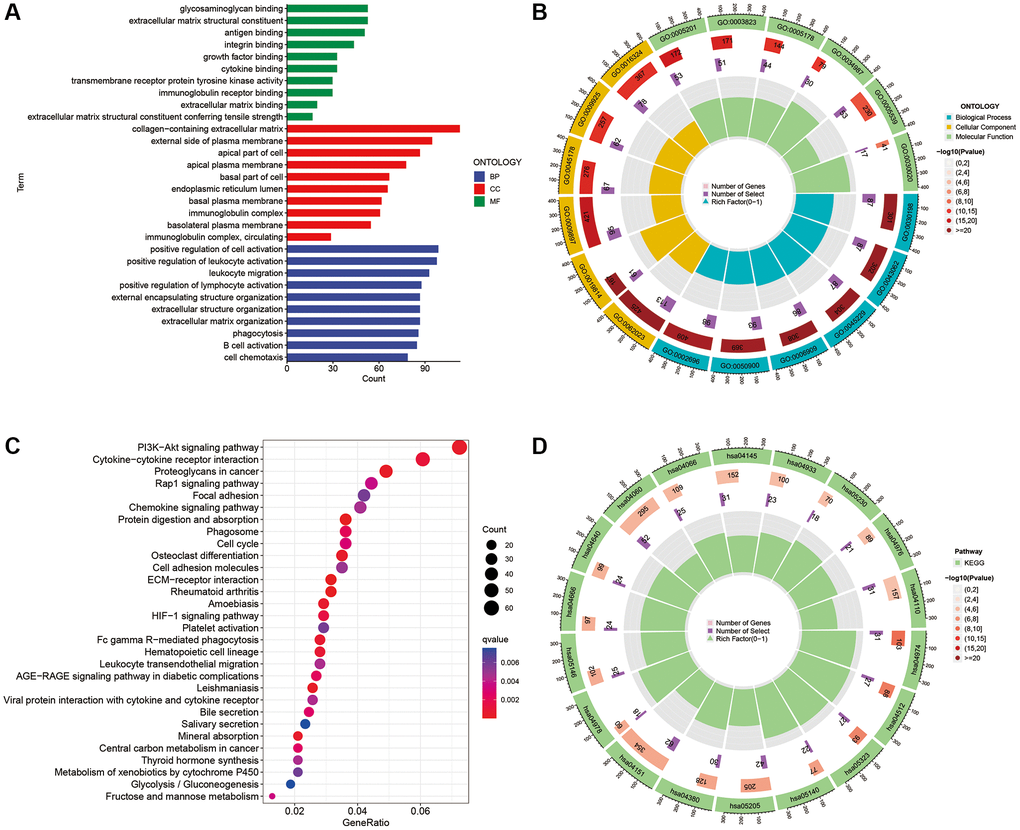

Figure 10. GO and KEGG enrichment analysis. (A, B) GO analysis of DEGs between the two risk subgroups. (C, D) KEGG analysis of the DEGs between the two risk subgroups.

Correlation of the CAFRss and TMB

Mutation waterfall plots revealed the top three genes with the highest mutation frequencies in the low-risk subgroup as CTNNB1 (24%), TTN (24%) and TP53 (19%), whereas, in the high-risk group it was TP53 (33%), CTNNB1 (28%) and TTN (23%) (Figure 11A, 11B). K-M curves demonstrated that patients with low TMB had significantly better survival compared to those with high-TMB (Supplementary Figure 2). Although there was no significant difference in TMB levels between the two risk subgroups (Figure 11C), there was a significant difference in survival between the TMB subgroup and the risk subgroup combination (P < 0.001) (Figure 11D), suggesting that the combination of risk score and TMB could provide a better prediction of clinical outcomes for patients.

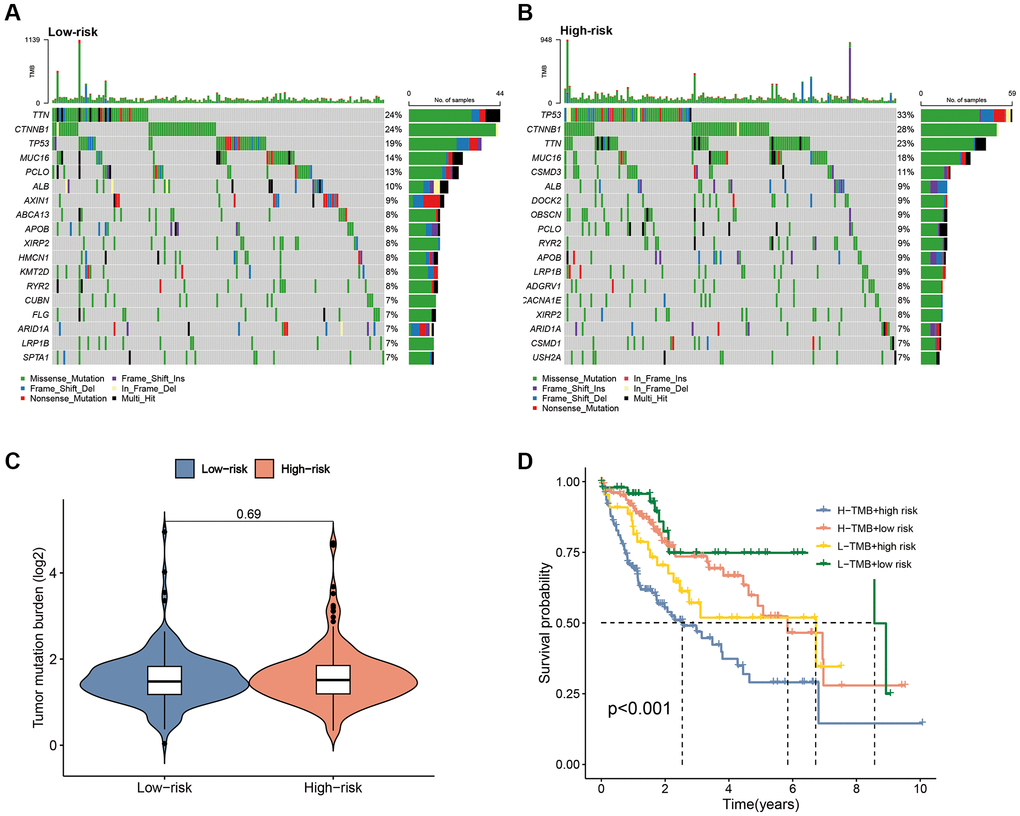

Figure 11. Correlation of the CAFRss with TMB. (A, B) Mutation waterfall plots in the two subgroups. (C) Comparison of TMB between the two risk subgroups. (D) K-M curves for the TMB subgroups combined with the risk subgroups.

Correlation of the CAFRss with TIME

Considering the enrichment of immune-associated functions in GO analysis, we further explored the relationship between CAFRss and the TIME in HCC. TIMER 2.0 analysis indicated that the degree of infiltration of most immune cells was positively correlated with risk scores (Figure 12A). Additionally, ssGSEA revealed that immune-related functions such as APC co-stimulation and co-inhibition, chemokine receptors, immune checkpoints, human leukocyte antigens, MHC class I, para-inflammation, T cell co-stimulation and co-inhibition and type II IFN response were significantly higher in the high-risk subgroup compared to the low-risk subgroup (Figure 12B). In terms of immune cells, the high-risk subgroup showed significantly higher levels of dendritic cells, activated dendritic cells, immature dendritic cells, macrophages, follicular helper T cells, helper T cells, tumour-infiltrating lymphocytes and regulatory T cells (Figure 12C). Furthermore, ESTIMATE analysis revealed higher ESTIMATE scores and immune scores in the high-risk subgroup, while stromal scores did not differ significantly between the two subgroups (Figure 12D–12F).

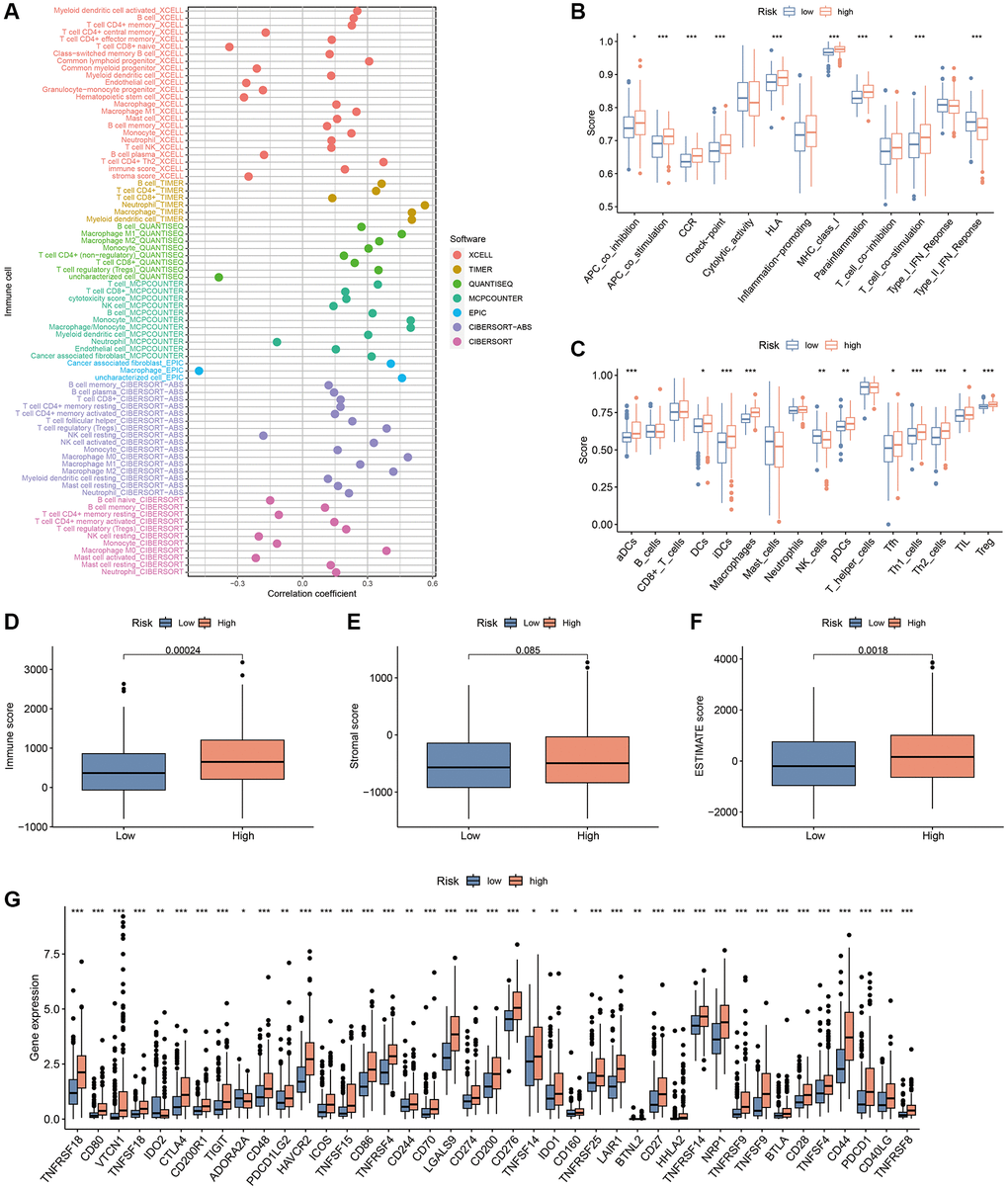

Figure 12. TIME analysis based on the CAFRss. (A) Bubble plots display the correlation between risk scores and different immune cells in the TIMER 2.0 platform. (B) ssGSEA shows differences in immune function score across the subgroups. (C) ssGSEA shows differences in immune cells score across the risk groups. (D–F) Box plots display the differences in immune, stromal and ESTIMATE scores across the two subgroups. (G) Box plots show the differences in expression of immune checkpoints across the risk subgroups. ^*P < 0.05, ^**P < 0.01, and ^***P < 0.001.

ICBs therapy mainly involves the blockade of immune checkpoints, thereby restoring the immune system’s ability to recognise tumour cells. The analysis of immune checkpoints, including Programmed Cell Death Protein 1 (PD1, encoded by PDCD1), Programmed Cell Death-Ligand 1 (PD-L1, encoded by CD274) and cytotoxic T-lymphocyte associated antigen 4 (CTLA-4), indicated higher expression levels in the high-risk group (Figure 12G), suggesting that the high-risk group may be a beneficial population for ICBs treatment.

The predictive value of CAFRss for anti-tumour drug sensitivity

To explore the potential of CAFRss in the personalised treatment of patients with HCC, we analysed the differences in IC50 values for different anti-tumour agents between the two risk subgroups. Notably, with the exception of erlotinib, the IC50 for sorafenib and most chemotherapeutic agents was lower in the high-risk group compared to the low-risk subgroup (Figure 13A–13G). Additionally, the IC50s for the targeted drugs dasatinib, imatinib, lisitinib, sunitinib and ruxolitinib were also significantly lower in the high-risk subgroup (Supplementary Figure 3).

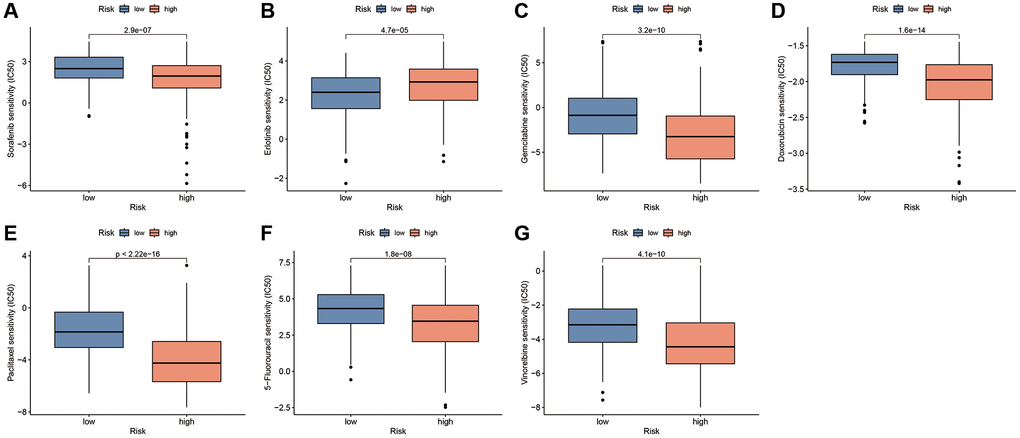

Figure 13. Drug sensitivity analysis based on the CAFRss. (A–G) Box plots display the drugs with different IC50 values across the risk subgroups.
