Rutin promotes osteogenic differentiation of mesenchymal stem cells (MSCs) by increasing ECM deposition and inhibiting p53 expression

Rutin promotes osteogenic differentiation of MSCs

To determine the effect of rutin on osteoblastic differentiation, we examined the expression of osteogenesis-related genes in MSCs during osteogenesis induction. Compared with that in the control group, OCN, OPN, and Runx2 protein expression was significantly upregulated in rutin-treated cells (Figure 1A, 1B). Alizarin red (AR) staining showed that rutin treatment increased the number of calcified nodules in osteogenic MSCs (Figure 1C). Real-time quantitative reverse transcription PCR (qRT-PCR) showed that rutin treatment significantly upregulated the mRNA expression of ALP, OCN, OPN, and Runx2 compared with that in the control group (Figure 1D). MSCs maintain a delicate equilibrium in their differentiation potential into adipocytes and osteoblasts. Previous in vitro studies have shown that adipogenesis-promoting factors suppress osteogenesis, whereas osteogenesis-promoting factors inhibit adipogenesis [17]. Therefore, we investigated the effect of rutin on the adipogenic differentiation of MSCs. Compared with that in the control group, there was a significant decrease in the mRNA expression of adipogenesis-associated genes, including Pparg and Fabp4, in rutin-treated MSCs (Figure 1E). Overall, these results suggest that rutin may promote the osteogenic differentiation of MSCs.

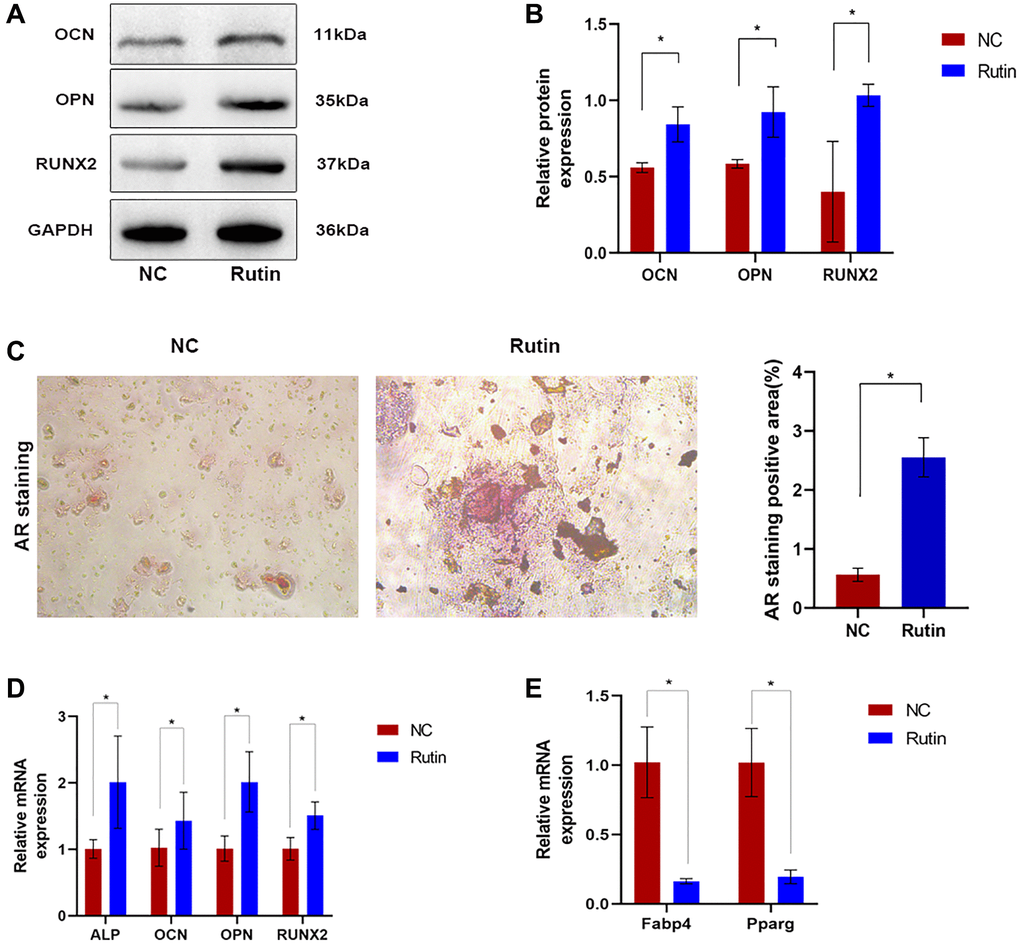

Figure 1. The effect of rutin on MSC osteogenesis and differentiation. (A, B) Western blot showed that rutin treatment in MSC culture improved the early and late osteogenic markers (OCN, OPN, RUNX2) level. (C) The AR staining. (D) Real-time RT-PCR analysis showed that the expression of early and late osteogenic markers (ALP, OCN, OPN, RUNX2) was significantly enhanced by rutin treatment. (E) Real-time RT-PCR analysis shows that the expression of adipogenic markers (Pparg, Fabp4) was significantly inhibited by treatment with rutin. The quantitative data were expressed as the mean ± S.D. of three independent experiments (^*p < 0.05).

Transcriptome analysis reveals the mechanism of rutin in osteogenic differentiation of MSCs

To investigate the regulatory mechanism by which rutin promotes the osteogenic differentiation of MSCs, we performed high-throughput sequencing of the transcriptomes of MSCs samples (rutin and control groups, n = 3). After processing and normalizing the raw sequencing data, principal component analysis (PCA) was performed on the samples. PCA showed that the samples formed two distinct clusters based on their characteristics (Figure 2A). Additionally, 167 differentially expressed genes (DEGs) were identified in the rutin vs. control groups, among which 52 were upregulated and 115 were downregulated. The relative expression of the DEGs among the samples is shown in a heatmap (Figure 2B, 2C).

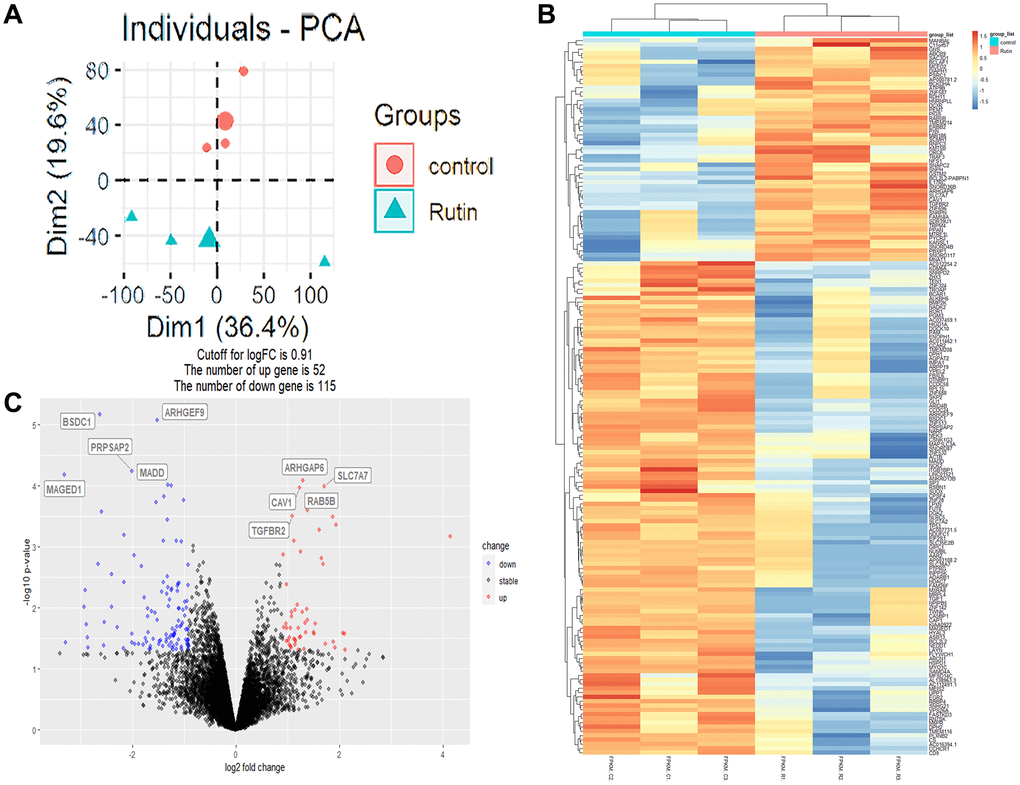

Figure 2. Transcriptome analysis of rutin effects on osteogenic differentiation of MSCs. (A) Principal component analysis (PCA) plot of the transcriptome data. (B) Heatmap of relative expression of genes across samples. (C) The volcano plot shows the differentially expressed genes (DEGs).

Gene ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analyses of DEGs

GO functional annotation of DEGs in rutin-treated MSCs during osteogenic differentation were enriched in various biological processes (BP), cellular components (CC), and molecular functions (MF.) terms (Figure 3A). In the BP category, the DEGs were mainly enriched in the regulation of ventricular cardiac muscle cell action potential (GO:0098911), positive regulation of the Wnt signaling pathway (GO:0030177), regulation of proteins targeting the membrane (GO:0090313), and negative regulation of transferase activity (GO:0051348). In the CC category, the DEGs were mainly enriched in the mitochondrial matrix (GO:0005759), U5 snRNP (GO:0005682), cell leading edge (GO:0031252), and cell-substrate junction (GO:0030055). In the MF category, the DEGs were mainly enriched in 2-(3-amino-3-carboxypropyl) histidine synthase activity (GO:0090560), basic amino acid transmembrane transporter activity (GO:0015174), protein phosphatase binding (GO:0019903), and SUMO transferase activity (GO:0019789). The relationship between the important DEGs enriched in GO analysis and the most enriched GO terms are indicated in Figure 3B. Additionally, the number of GO terms enriched by the DEGs are shown in Figure 3C.

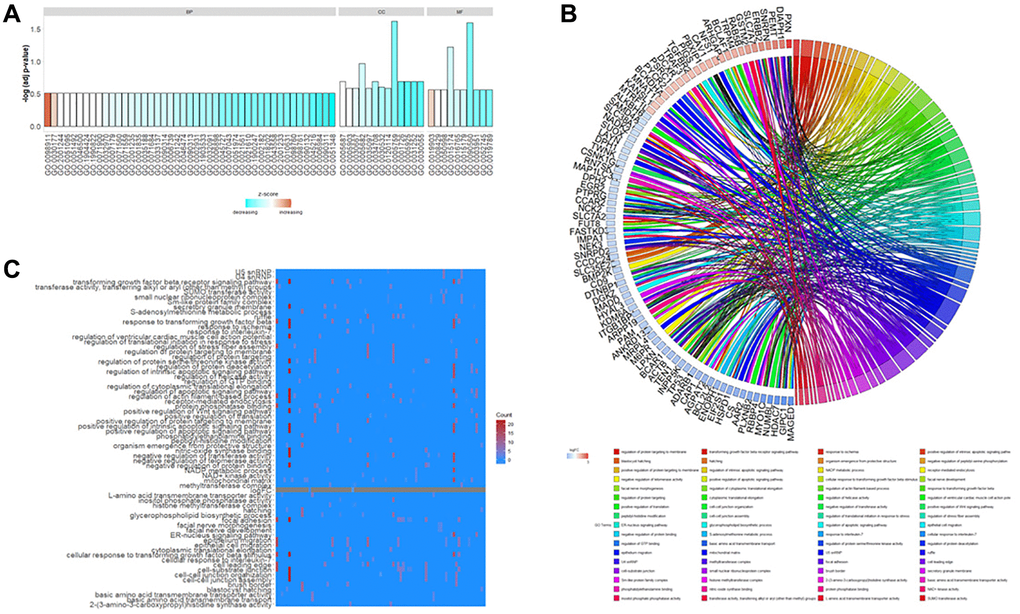

Figure 3. Gene Ontology (G.O.) functional enrichment of differentially expressed genes (DEGs) in osteogenic differentiation of MSCs under the influence of rutin. These genes were enriched in various biological processes (B.P.), cellular components (CC), and molecular function (M.F.) terms. (A) The main enrichment results of DEGs. The ordinate is indicated on a −log10 (p-value) scale. (B) Chordplot shows the G.O. enrichment results for key regulatory genes. The left semicircle represents the enriched key genes (the color of the squares refers to the relative amount of change logFC of the genes), and the right semicircle refers to the GO term enriched by the key genes in different colors and is connected by ribbons in the color representing the GO term. (C) Heatmap of G.O. enrichment results, where the vertical axis indicates G.O. terms. The horizontal axis is the enriched genes, and the square pigmentation indicates the number of GO terms enriched for a particular gene.

KEGG pathway analysis showed that upregulated DEGs in rutin-treated MSCs during osteogenic differentation were mainly enriched in focal adhesion, adherens junction, IL-17 signaling pathway, and AGE-RAGE signaling pathway in diabetic complications (Figure 4A, 4B). Additionally, the downregulated DEGs were enriched in ferroptosis, transcriptional misregulation in cancer, Hedgehog signaling pathway, and apoptosis (Figure 4C, 4D). Further analysis of the enrichment data showed that TP53 is a key gene regulated by rutin, and is involved in the regulation of multiple pathways (Figure 5A).

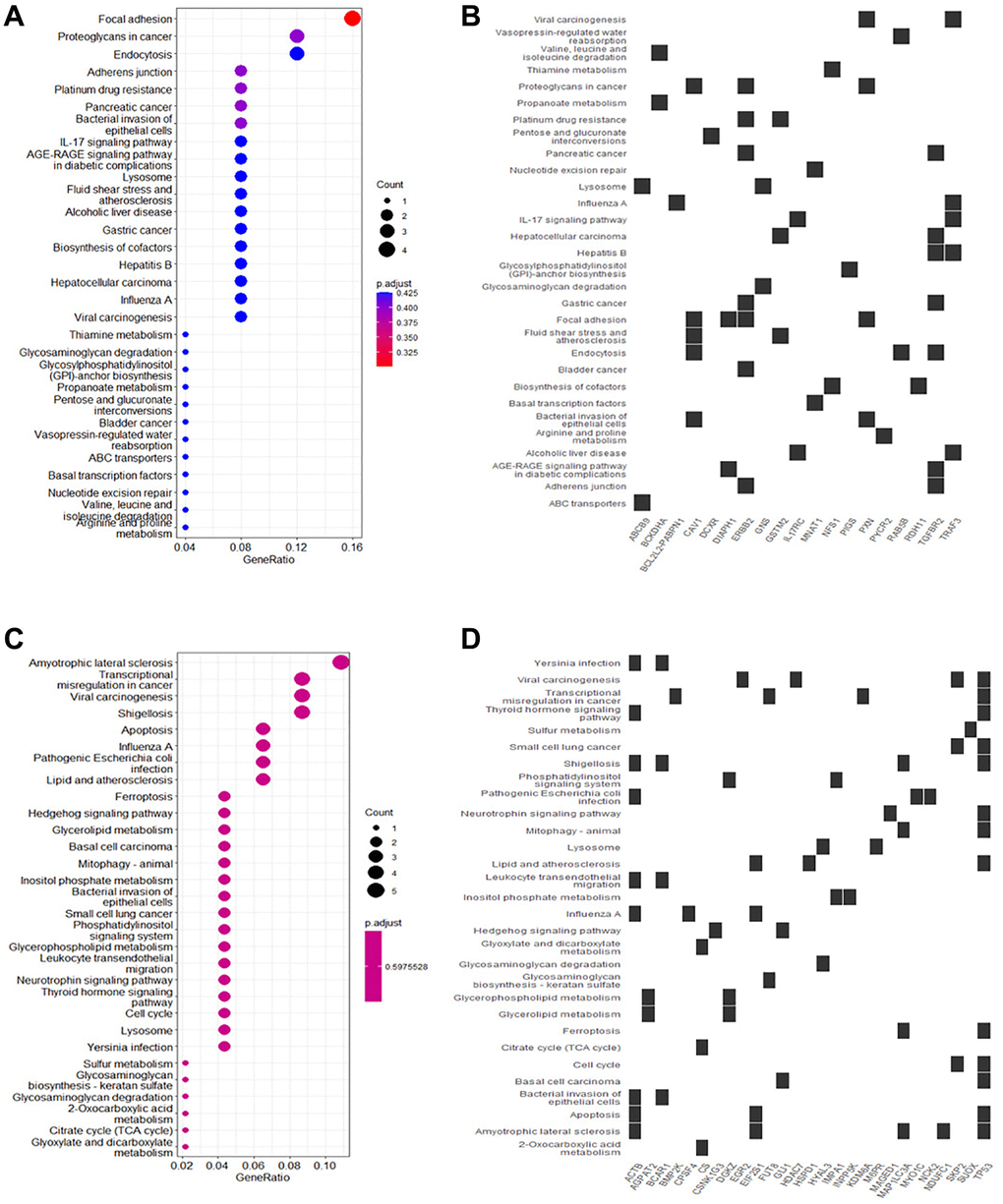

Figure 4. Kyoto Encyclopedia of Genes and Genomes (KEGG) functional enrichment of DEGs in osteogenic differentiation of MSCs. (A) The main enrichment results of the up-regulated genes (Count represents the number of enriched genes). (B) Heatmap of the relationship between up-regulated genes and KEGG terms. (C) The main enrichment results of the downregulated genes. (D) Heatmap of the relationship between downregulated genes and KEGG terms.

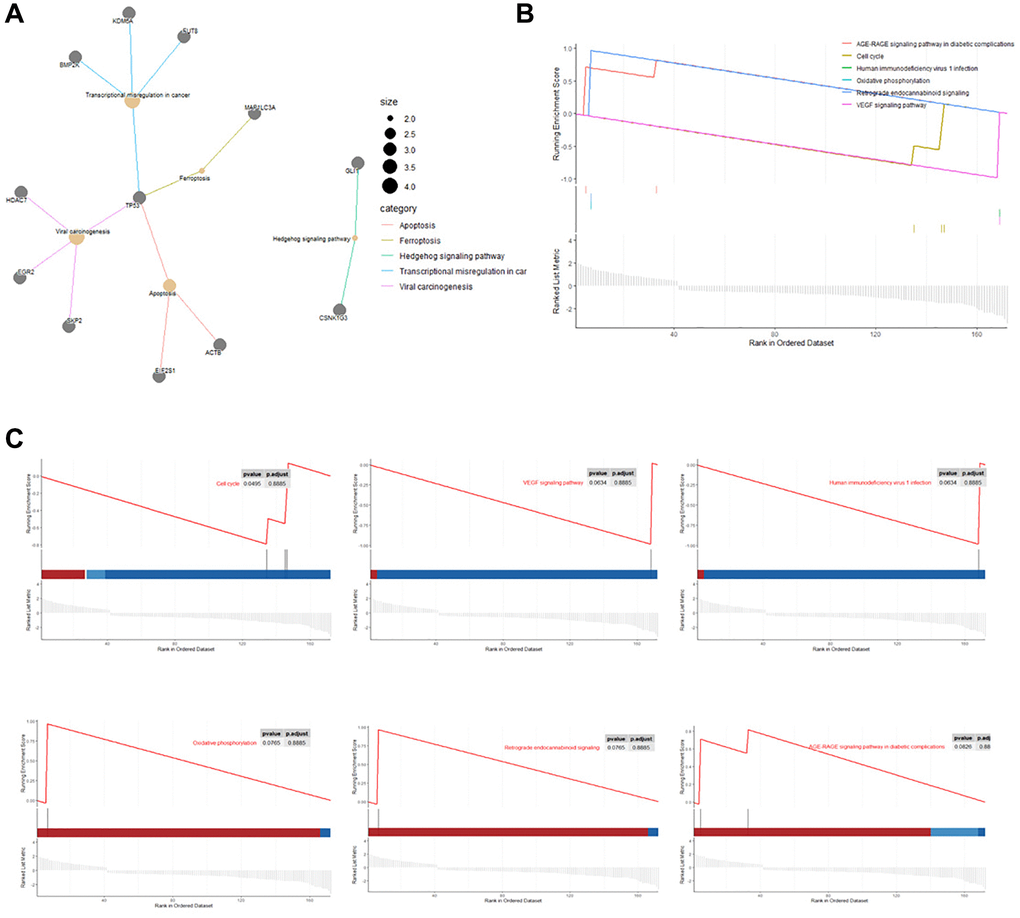

Figure 5. KEGG network and Gene set enrichment analysis (GSEA). (A) Cnetplot of the relationship between genes and KEGG terms (Size: Number of genes associated with KEGG pathway). (B, C) Gene set enrichment analysis results exhibited the top six enriched pathways.

Gene set enrichment analysis (GSEA) showed that the DEGs that were mainly enriched in cell cycle, VEGF signaling pathway, human immunodeficiency virus one infection, oxidative phosphorylation, retrograde endocannabinoid signaling, and AGE-RAGE signaling pathways in diabetic complications (Figure 5B, 5C).

Rutin-targeted genes and core regulatory network

The keyword “Rutin” was searched on the Traditional Chinese Medicine Systems Pharmacology Database (TCMSP) (https://tcmsp-e.com/tcmsp.php) to identify potential targets of rutin. In total, 21 potential targets of rutin were identified in the TCSMP database. The 21 potential targets and the key gene TP53 were imported into the STRING database, resulting in 22 protein interactions. Notably, there was a strong association between TP53, CASP3 (caspase-3), and RELA (p65), which are the potential targets of rutin (Figure 6A). KEGG enrichment analysis showed that the 22 genes were mainly involved the AGE-RAGE signaling pathway in diabetic complication pathways. The AGE-RAGE signaling pathway in diabetic complication pathways mainly affects ECM deposition, and among them cell cycle regulation by TP53 is also involved (Figure 6B, 6C).

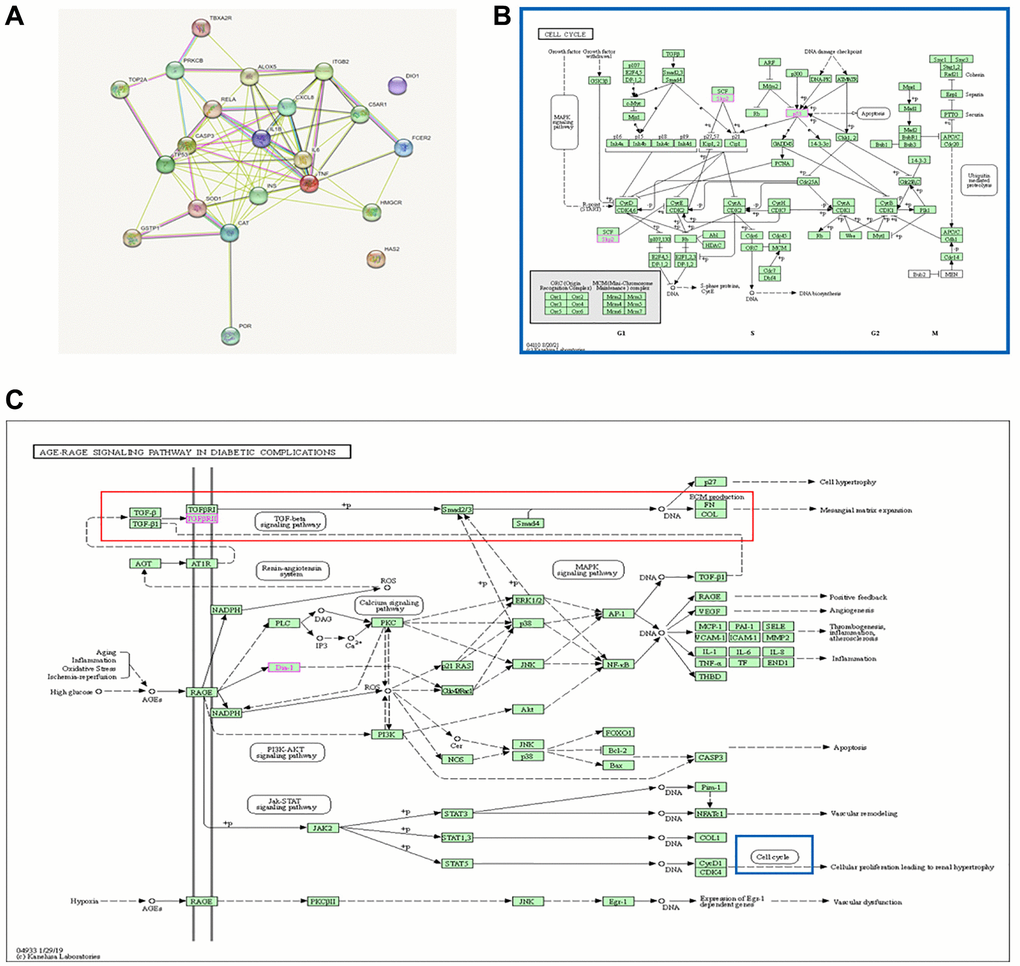

Figure 6. Rutin-targeted genes and core regulatory network. (A) PPI network of the 21 potential targets and the gene TP53. (B, C) Pathway diagram of enrichment results.

Rutin inhibits TP53 (p53) activity and promotes ECM deposition during osteogenic induction

To further investigate the mechanisms through which rutin regulates osteogenic differentiation of MSCs, cells were treated with rutin, and the expression of ECM related genes were examined. Rutin treatment promoted ECM deposition (fibronectin and COL-I) and integrin β1 (affecting cell adhesion and migration) during osteogenic differentiation of MSCs (Figure 7A–7C). Additionally, western blotting showed that rutin treatment promoted p65 phosphorylation and inhibited p53 expression and caspase-3 cleavage (Figure 7D, 7E).

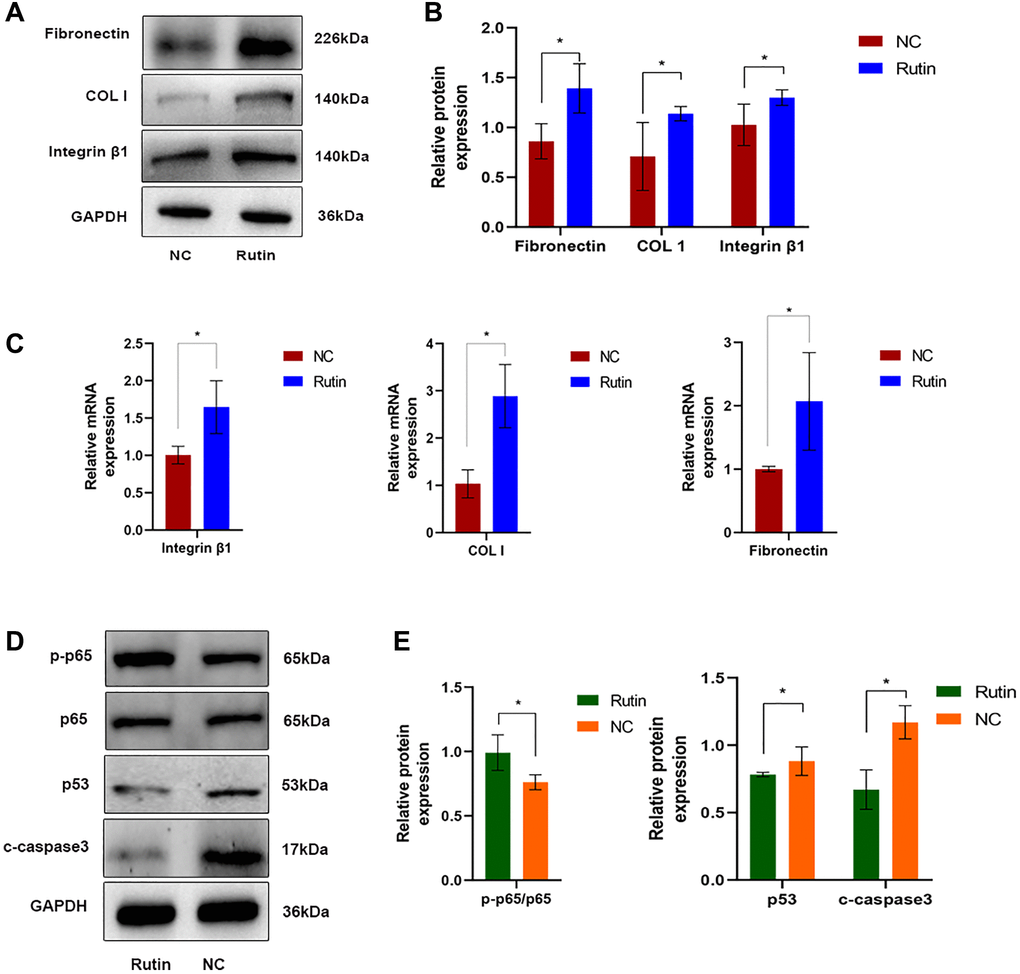

Figure 7. Rutin inhibits TP53 (p53) activity and promotes ECM deposition during osteogenic induction. (A, B) The protein expression of fibronectin, COL-I and integrin β1 in MSCs of the rutin and control groups. (C) Real-time RT-PCR analysis showed that the expression of ECM-related makers (fibronectin, COL-I) and integrin β1 were significantly enhanced by rutin treatment. (D, E) The protein expression of p65, p53, and cleaved caspase3 in MSCs of the rutin and control groups. The quantitative data were expressed as the mean ± S.D. of three independent experiments (^*p < 0.05).

Isolation and culturing of MSCs

Fresh umbilical cords were collected from a healthy 25-year-old female at the First Affiliated Hospital of China Medical University following cesarean delivery. The patients had no previous health condition prior to their inclusion in the study. Umbilical cords (6–8 cm) were processed in a Biosafety Cabinet-II (ESCO, Horsham, PA, USA) within 3 h of collection [33]. The cords were washed with PBS to eliminate blood clots and then sliced into 2–3 mm fragments to reveal Wharton's jelly. After 10–15 days, the MSCs attached themselves to the flask, displaying their characteristic morphological features. At 70–80% confluency, the cells were replaced by the addition of trypsin, which facilitated the separation of the adherent confluent cell monolayer. The floating cells were centrifuged at 11.18 rcf for 8 min, and the pellet was resuspended in media for cell subculture. Cells were maintained in DMEM supplemented with 10% FBS, 100 μg/mL of streptomycin, and 100 U/mL of penicillin at 37°C under a 5% CO₂ atmosphere. The media were replaced every 2–3 days. Cell passages P2 and P3 were used for all the experiments.

Osteoblast differentiation and analysis of MSCs

Briefly, approximately 500,000 human umbilical cord-derived MSCs (hUC-MSCs) were cultured in 6-well plates until 80% confluency was reached. The growth medium was replaced with osteoblast induction medium (OIM) for 24 h. The composition of OIM includes DMEM, 100 μG/mL of penicillin/streptomycin, 10% FBS, 10 mM of β-glycerophosphate, 2.5 μg/mL of ascorbic acid 2-phosphate, 0.1 μM of dexamethasone, and 2.5 μg/mL of amphotericin B. For subsequent experiments, a concentration of 20 μM was chosen for preconditioning of hUC-MSCs. The rutin group was exposed to 50 mg/mL of rutin (HY-N0148; MedChemExpress, Monmouth Junction, NJ, USA) for 24 h before experimentation.

Lipogenic differentiation and analysis of MSCs

Briefly, approximately 500,000 MSCs were cultured in 6-well plates until 80% confluency was reached. The culture medium with a lipid differentiation medium containing 1 μM of dexamethasone, 10 μg/mL of insulin, and 500 μM of IBMX (Sigma Aldrich, Shanghai, China). For subsequent experiments, a concentration of 20 μM was chosen for preconditioning of hUC-MSCs.

Real-time quantitative reverse transcription PCR (qRT-PCR)

Total RNA was extracted from the cells using the TRIzol reagent (Invitrogen, Carlsbad, CA, USA), followed by reverse transcription of RNA to generate cDNA using the MultiScribe Reverse Transcriptase Kit (Applied Biosystems, Waltham, MA, USA). qRT-PCR was performed on the PCR system using the SYBR Green kit (Bio Rad Laboratories Inc., Shanghai, China) and specific primers, according to the manufacturer’s instructions. GAPDH was used as the internal control. The primer sequence is listed below:

alp forwards 5′-GTGAACCGCAACTGGTACTC-3′; alp reverse 5′-GAGCTGCGTAGCGATGTCC-3′; fabp4 forward 5′-AAGGTGAAGAGCATCATAACCCT-3′; fabp4 reverse 5′-TCACGCCTTTCATAACACATTCC-3′; pparg forward 5′-TCCTGTAAAAGCCCGGAGTAT-3′; pparg reverse 5′-GCTCTGGTAGGGGCAGTGA-3′; ocn forward 5′-GGTGCAGACCTAGCAGACACCA-3′; ocn reverse 5′-AGGTAGCGCCGGAGTCTATTCA-3′; runx2 forward 5′-GACTGGGGTTACCGTCATGGC-3′; runx2 reverse 5′-ACTTGGTTTTTCATAACAGCGGA-3′; opn forward 5′-CTGCATACATGTAACCGCAGC-3′; opn reverse 5′-CTCTCCATAACATGGGC-3′; fibronectin forward 5′-GACCAGCAGAGGCATAAG-3′; fibronectin reverse 5′-CTCATCTCCAACGGCATAA-3′; col-i forward 5′-CCATTTATTAGTAGGTGTGCT-3′; col-i reverse 5′-TCACAAAAGAGTAGCCGAT-3′; integrin β1 forward 5′-GCCTTACATTAGCACAACACC-3′; integrin β1 reverse 5′-CATCTCCAGCAAAGTGAAAC-3′; gapdh forward 5′-TGGATTTTGGACGCATTGGTC-3′; gapdh reverse 5′-TTTGCACTGGTACGTGTTGAT-3′.

Western blot analysis

Briefly, cells were lysed using a nuclear extraction kit (Novus Biologicals, Centennial, CO, USA), and the proteins were separated electrophoretically and transferred onto nitrocellulose membranes. Thereafter, the membranes were blocked with 5% milk at 37°C for 2 h, followed by incubation overnight with specific primary antibodies at 4°C. After washing, the membranes were incubated with specific secondary antibodies for 1 h at 37°C. Antibody reaction was detected via enhanced chemiluminescence (Yeasen, Shanghai, China). Antibodies used for western blot analysis are listed in Table 1.

Alizarin red (AR) staining

AR staining was performed to detect mineralized calcium nodules. Briefly, MSCs were fixed with 4% paraformaldehyde for 10 min and stained with 1% AR solution (Shanghai Yuanye Biological, China) at 37°C for 30 min. After washing with PBS, stained cells and calcium nodules were observed under a microscope.

MSC RNA-Seq and single-tubule RNA-Seq

MSC RNA-Seq and single-tubule RNA-Seq were performed as previously described [34]. Briefly, total RNA was extracted from MSCs using a Direct-Zol RNA MicroPrep kit (Zymo Research, Irvine, CA, USA), and reverse-transcribed to generate cDNA using a SMARTer V4 Ultra Low RNA kit (Takara Bio USA, Mountain View, CA, USA). cDNA fragments were targeted with barcodes using a Nextera XT DNA Sample Preparation Kit (Illumina, San Diego, CA, USA), followed by purification using AmPure XP magnetic beads (Beckman Coulter, Indianapolis, IN, USA) and quantified using a Qubit 2.0 Fluorometer (Thermo Fisher Scientific, Waltham, MA, USA). (Agilent Technologies, Wilmington, DE, USA). Libraries were pooled and sequenced on an Illumina HiSeq 3000 platform (Agilent Technologies, Wilmington, DE, USA) to yield an average depth of 60 million reads per sample.

Data processing and transcript abundance quantification

Raw reads were processed using FastQC and aligned against the reference genome using STAR. Transcript abundance was quantified using RSEM5 and expressed as transcript per million (TPM).

Bioinformatics analysis

Expression matrices were analyzed using intergroup and principal component analyses (PCA). Differential expression analysis was performed to identify differentially expressed genes (DEGs) between the rutin and control groups using the Bioconductor software package ‘limma’. Genes were considered differentially expressed at p < 0.05 and log2 fold change (FC) = mean ± 2SEM. Gene ontology (GO) functional annotation and Kyoto Encyclopedia of Genes and Genome (KEGG) pathway analysis of DEGs were performed to obtain crucial pathway information using the package ‘clusterProfiler’ in Bioconductor package. Enriched GO terms and KEGG pathways by the DEGs were visualized using R software. Additionally, DEGs were subjected to gene set enrichment analysis (GSEA) using the R package called 'fgsea,’ and the outcomes were visualized.

Target prediction of rutin

To identify potential targets of rutin, the keyword “Rutin” was searched on the Traditional Chinese Medicine Systems Pharmacology Database (TCMSP) (https://tcmsp-e.com/tcmsp.php).

Screening core targets

Rutin targets and core target TP53 were imported into the String database (https://string-db.org/) to generate a protein-protein interaction (PP1) diagram. The selected species for the analysis was human.

Statistical analysis

All data are expressed as mean ± standard deviation (SD). Comparison between two groups was performed using Student’s t-test, with statistical significance set at p < 0.05. All statistical analyses were performed using SPSS 16.0 software.

Data availability

The original data (western blot) presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding authors.
