Prognostic hub gene CBX2 drives a cancer stem cell-like phenotype in HCC revealed by multi-omics and multi-cohorts

RNA-seq data preparation, processing, and differential analysis

From the TCGA database, we downloaded the expression profiles (mRNA and miRNA) and clinical data of human hepatocellular carcinoma (LIHC). 367 HCC samples and 50 paired solid tumor-normal samples, as well as 371 HCC samples and 50 paired solid tumor-normal samples, respectively, made up the available mRNA and miRNA profiles. Downloaded from the GEO database was cohort GSE140845, whose miRNA count profile included 3 HCC samples connected to HCV and 3 paired normal samples. We performed quality control checks, read mapping operations, and finally generated the mRNA counts matrix using Fastp, HISAT2, and featureCounts, respectively, for the total RNA sequencing data in GSE140845 that were downloaded from SRP231432. The count matrices for mRNA, lncRNA, and miRNA were converted into TPM (transcripts per million) matrices and CPM (count per million mapped reads) matrices, respectively. MiRBaseVersions.db packages handled the conversion of immature miRNA names into mature miRNA names.

Then, using a count matrix and the DESeq2 R packages, we identified the differential lncRNAs, miRNAs, and mRNAs between these two cohorts with |logFC| 1 and FDR 0.01. Meanwhile, we also download the RNA-seq expression profiles from ICGC (LIRI-JP, n = 231), GSE12455 (n=70), GSE138485 (n=64), GSE144269 (n=140), GSE148355 (n=69), GSE25599 (n=20), GSE55758 (n=16), GSE94660 (n=42), and the microarray expression profiles from GSE22058 (n=197), GSE25097 (n=511), to further validate the aberrant expression of CBX2, and CEP55.

From the TCGA database, we also obtained the mutation status and CNV profiles for CBX2 and CEP55.

Establishment of the initial and refined regulatory network for HCC

Initial regulatory networks. Given that lncRNA may compete with miRNA for binding sites, acting as a natural sponge to indirectly control mRNA expression. As a result, the initial regulatory network was created using the methods described below: (1) DElncRNA-DEmiRNA pairs were constructed using the lnc2base, ENCORI, and miRWalk2.0 databases; (2) DEmiRNA-DEmRNA pairs were predicted and confirmed using the miRWalk2.0, miRWalk3.0 databases, and miRNAtap packages; (3) We combined the DElncRNA-DEmiRNA pairs and the DEmiRNA-DEmRNA pairs to create the triple regulatory network under the following circumstances: (a) DElncRNA-DEmiRNA pairs had at least one supporting piece of evidence; (b) DEmiRNA-DEmRNA pairs had more than two supporting pieces of evidence; (c) up-regulated DElncRNA might down-regulate DEmiRNA to up-regulate DEmRNAs; and (d) down-regulated DElncRNA might up-regulate DEmiRNA to down-regulate DEmRNAs.

Refined regulatory network. In the initial regulatory network, the Pearson correlation coefficient (PCC) between DElncRNA and DEmRNA was calculated. The PCC 0.3 from the initial regulatory network was used to define the refined regulatory network.

In order to determine the hub regulatory network, we used the Cytoscape plug-in CytoHubba. Based on the sequences we obtained from LNCipedia, we then used lncLocator to predict the cellular location of DElncRNA. The initial regulatory network was visualized in Cytoscape, and the final regulatory network was done in R using the ggalluvial package.

Functional enrichment analysis

With the aid of the fgsea package, we conducted Gene Set Enrichment Analysis (GSEA) using signatures from MsigDB, such as Gene Ontology (C5.GOBP, C5.GOCC, and C5.GOMF), KEGG (C2), and Hallmark (H). The statistical significance of enriched signatures was determined by the false discovery rate (FDR) adjusted P 0.05.

The DESeq2 package was used to find the differentially expressed genes related to CBX2/CEP55. The clusterProfiler package used the DEGs to investigate potential functional pathways or Gene Ontology (biological processes, molecular functions, and cellular components).

Survival analysis, construction of prognosis model, and validation for HCC

The CBX2/CEP55-related differentially expressed genes were discovered using the DESeq2 package. The DEGs were used by the clusterProfiler package to look into potential functional pathways or Gene Ontology (cellular components, biological processes, and molecular functions).

Prognostic variables were chosen using the randomForest algorithm from the randomForestRSC package and the LASSO algorithm from the “glmnet” package. Candidates for prognostic DERNA served as the regression’s independent variable, and overall survival and overall status in TCGA-LIHC cohorts served as the response variables. Further PH testing was done on chosen prognostic RNAs. On the chosen, a multivariate Cox regression analysis was conducted and the ggforest package was used to visualize the results. RMS R package was used to confirm nomograms as well. The prognostic model’s reliability was verified both internally and externally. By randomly dividing the TCGA-LIHC into a training cohort and a validation cohort 50 times, internal validation was carried out. And for external validation, we used the ICGC-LIRI-JR expression profile. Calibration curves, the concordance index (C-index), and the time-dependent ROC curve were used to assess the prognostic model.

The patients’ risk scores were determined using the normalized expression of confirmed prognostic RNAs and their corresponding regression coefficients in accordance with the prognostic model. Using the median risk score, the patients were then divided into high-risk and low-risk groups. To investigate the prognostic value of the risk score, univariate Cox regression analysis was used. In the Multiple Cox Regression Analysis, the risk score was combined with age, gender, and TNM stages.

Methylation and expression analysis of CBX2 and CEP55

The TCGA database was used to download the Methylation array 450K profiles that correspond to the expression profiles. Other methylation profiles, including GSE44909 (n=24), GSE73003 (n=40), GSE82176 (n=19), GSE37988 (n=124), GSE55752 (n=16), and GSE113019 (n=60), were downloaded from GEO databases. The Spearman correlation coefficient was used to assess the relationship between CBX2/CEP55 and their DNA methylation level. We also investigate the effect of the CBX2/CEP55 methylation level on overall survival.

ATAC-seq, ChIP-seq analysis across human and mouse tumor cell or cell lines

The TCGA database was used to download the ATAC-seq profiles of the LIHC tumor samples, and the GSE173277 database was used to download the ATAC-seq data of the normal liver. Additionally, we downloaded the ATAC-seq data for the following cell lines from GEO: GSE172053 for Hep3B, GSE180143 for HepG2, GSE184796 for HepG2, GSE139190 for HepG2, GSE184797 for Huh7, and GSE192771 for Huh7. For the ATAC-seq analysis, we used Fastp for quality control steps, HISAT2 for read mapping onto GRCh38 reference steps, Samtools for bam file sorting, Macs2 for peak calling, and bdg2bw.sh for bedgraph file conversion into bw file. Finally, the WashU Epigenome Browser was used to visualize the tracks.

Active marks H3K4me3, H3K3me1, and H3K27ac histone ChIP-seq datasets were downloaded from GSE112221 (liver tissues), GSE113879 (liver tissues), GSE76344 (HepG2), GSE184796 (HepG2), GSE92328 (97L, LM3), GSE103730 (Huh7), GSE184797 (Huh7, PLC), GSE113879 (Hep3B), GSE172053 (Hep3B), GSE208334 (PLC), GSE168178 (Hu1545). We used analysis techniques that were similar to those used for ATAC-seq datasets.

Data for CBX2 primitive ChIP-seq was downloaded from the following GSEs: GSE29611 (K562), GSE59395 (HepG2, A549, H1), and GSE34774 (293T). The analysis was conducted in the manner described above. IDR located the peaks that were shared. HOMER2 also identified the potential motifs and the clusterProfiler package was used to conduct enrichment analysis on the genes whose close peaks were located on the promoters.

As previously mentioned, additional pre-existing data referred to as CBX2 knockout or knockdown, such as GSE54580 (AML), GSE193477 (AML), GSE112227 (Mouse bone), and GSE156413 (Mouse embryonic fibroblasts), were also gathered and analyzed.

Immune infiltrate levels and immune checkpoint blockade therapy prediction

The immune, stromal, and TME scores were estimated using the ESTIMATE packages. The Tumor Immune Estimation Resource 2 portal (TIMER2) databases’ immune infiltration data, including CD4 T cells and CD8 T cells, were downloaded using the CIBERSORT, MCPCOUNTER, EPIC, and QUANTISEQ algorithms. Immune inhibitor genes, immune cell score, and the Spearman correlation between CBX2/CEP55 were examined.

Based on the genome mutation maf files obtained from TCGA-LIHC, the tumor mutational burden (TMB) score was calculated. The Tumor Immune Dysregulation and Exclusion (TIDE) was used to predict the effectiveness of immunotherapy and indicated immune dysfunction and escape. A low TIDE score indicated good efficacy.

The CancerSEA database [12] and Thorsson 2018 Immunity [13] were used to download the functional state signatures, which included proliferation and cell cycle. Kim et al. [14] provided a gene list for radiation resistance. Montironi et al. and Li et al. provided the inflammatory signature, inflamed signature, and IFN-gamma signature used to forecast the response to ICB [15, 16]. The ssGSEA algorithm in the GSVA package was used to determine the scores for the gene sets.

Protein array and pathway activity calculation

The reverse phase protein array (RPPA) protein expression data were downloaded from the TCPA database. The GSCA database was used to download the pathway activity scores for the cancer-related pathways TSC/mTOR, RTK, RAS/MAPK, PI3K/AKT, hormone ER, hormone AR, EMT, DNA damage response, cell cycle, and apoptosis.

Prediction of therapeutic agents

Based on the transcriptomic profiles and drug sensitivity data in PRISM and CTRP2, we first used the oncoPredict package to train a drug sensitivity prediction model with tenfold cross-validation. The AUC value for each drug was then predicted using the fitted model and comparable transcriptomic data.

mRNAsi index analysis

A one-class logistic regression machine learning algorithm (OCLR), which built the model using training the human stem cell data from Progenitor Cell Biology Consortium (PCBC), calculated the mRNAsi scores of the TGCA-LIHC samples.

Single-cell transcriptome datasets accession and analysis

Human Protein Atlas (normal), GSE140228, GSE146115, GSE98638, GSE166635, GSE140228 and GSE125449 provided the scRNA datasets for HCC. The Seurat version 4 R package was used to process the scRNA datasets.

Immunohistochemistry and immunofluorescent staining of CBX2 and CEP55

Information on the distribution of proteins in human tissue and cells was available in the Human Protein Atlas (HPA, https://www.proteinatlas.org/), a database of the human proteome. CBX2 and CEP55 immunohistochemical and immunofluorescent staining images in Supplementary Figures 5K, 11A, 11B were downloaded from HPA (https://www.proteinatlas.org/). Detailed website information is provided in the corresponding Supplementary Figure Legend.

Statistical analysis

R and RStudio were used to perform the statistical analyses. The Fisher’s test for discrete variables was used to compare the two groups. For continuous variables, Wilcoxon rank-sum tests and Student’s t tests were employed. The survival analysis was examined using the PH test and the log-rank test. It was deemed statistically significant when the adjusted p 0.05.

Data and code available statement

The source data and public datasets used in this manuscript are uploaded as Supplementary Materials. The code used in this project has been uploaded to https://github.com/mengqingren/ceRNA.CBX2. All data used in this study are available as mentioned in methods, and all source data are available from corresponding authors upon request.

CBX2/CEP55-center hub-refined regulatory network

Aberrant gene expression and a poor prognosis were frequently present at the time of HCC onset and progression. To identify the regulatory networks of mRNA and ncRNAs in HCC, we collected two total RNA sequencing cohorts TCGA-LIHC (HCC=361, Adjacent=50) and GSE140845 (HCC=3, Adjacent=3), performed differential gene analysis, and found 6980 DEGs (2573 DElncRNA, 4278 DEmRNA, 129 DEmiRNA) in TCGA-LIHC and 843 DEGs (113 DElncRNA, 713 DEmRNA, 17 DEmiRNA). Finally, we established the shared genes responsible for the upregulation of 28 DElncRNA, 150 DEmRNA, and 6 DEmiRNA in HCC compared to 24 DElncRNA, 130 DEmRNA, and 2 DEmiRNA in adjacent tissue among these DEGs in two cohorts (Figure 1A and Supplementary Table 1). Heatmaps showed the top 20 genes’ expression in relation to adjacent tissues and HCC. (Supplementary Figure 1A–1F).

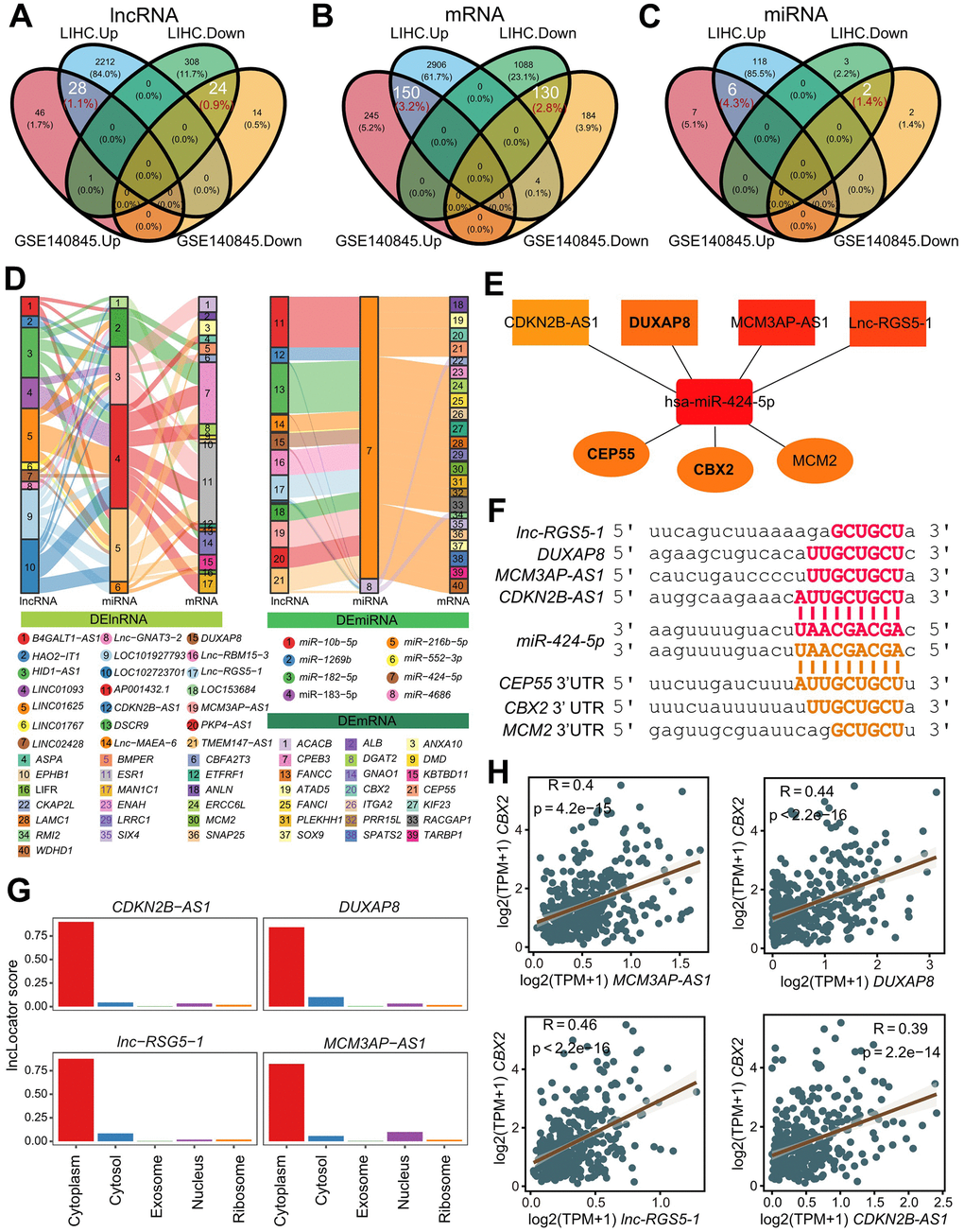

Figure 1. Identification and validation of refined hubs in triple regulatory networks. (A–C) The overlapping differential expressed genes including lncRNAs (A), miRNAs (B) and mRNAs (C) identified by DESeq2 (FDR:0.01, log2FC:1) with TCGA-LIHC and GSE140845. (D) The Sankey plot indicates the triple regulatory network based on the strategies. The thickness of lines do not make sense. (E) Strategy-one hub of refined triple regulatory networks determined by a Cytoscape plug-in CytoHubba. (F) The base pairing diagram of binding sites for the strategy-one triple regulatory network predicted by miRanda. (G) The predicted cellular localization for 4 lncRNAs in the strategy-one hub using lncLocator. (H) The Pearson’s correlation between CBX2 and 4 lncRNAs in the strategy-one hub.

In order to create the refined regulatory network, we first tried to create a basic regulatory network using one of two methods: (1) up-regulated lncRNA up-regulated mRNA by down-regulating miRNA; and (2) down-regulated lncRNA down-regulated mRNA by up-regulating miRNA. By at least one database of lnc2base, ENCORI, and miRWalk2.0, the predicted lncRNA-miRNA pairs in the initial network were verified. While at least two databases - ENCORI, miRWalk2.0, miRWalk3.0, and miRNAtap -were used to confirm the miRNA-mRNA pairs. Finally, using 37 DElncRNAs (16 up-regulated, 21 down-regulated), 61 DEmRNAs (28 up-regulated, 33 down-regulated), and 8 DEmiRNAs (6 up-regulated, 2 down-regulated), the initial regulatory network was completed (Supplementary Figure 1D). We created the refined triple regulator network with 246 strategy-one routes (14 lncRNAs, 2 miRNAs, 25 mRNA), and 77 strategy-two routes (11 lncRNAs, 6 miRNAs, 17 mRNAs), by filtering out the Pearson Correlation Coefficient greater than 0.3 between lncRNA and mRNA (Figure 1D).

CytoHubba, a Cytoscape plug-in, was used to determine the hub-refined regulatory network [17]. The refined network allowed us to isolate two hub regulatory networks: Networks centered on the first strategy (CBX2/CEP55/MCM2) and the second strategy (ESR1) (Figure 1E and Supplementary Figure 2A). Through experimentation, it had been demonstrated that ESR1 prevented the growth and metastasis of HCC [18]. Tumor cell migration and proliferation were facilitated by DUXAP8, CDKN2B-AS1, and MCM3AP-AS1 in HCC [8–10]. Fortunately, there was little evidence that DUAXP8, CDKN2B-AS1, and MCM3AP-AS1 functioned as ceRNAs to control the expression of CBX2, CEP55, and MCM2 by competitively binding has-miR-424-5p in the cytoplasm. To determine and confirm the target sites of lncRNA-miRNA pairs and miRNA-mRNA pairs, we used miRanda [19] (Figure 1F). As predicted by lncLocator2 [20], the lncRNAs DUAXP8, CDKN2B-AS1, lnc-RSG5-1, and MCM2AP-AS1 were primarily found in the cytoplasm (Figure 1G). The beneficial correlations were also demonstrated (Figure 1H and Supplementary Figure 1B–1F).

As a result, we chose two hub regulatory networks from the refined network, particularly the network that is CBX2/CEP5/MCM2-centered.

Construction and validation of the CBX2/CEP55-featured prognostic model

We first looked at the effect on survival time to investigate the clinical relevance of the RNAs in the refined network. We used univariate Cox analysis and found that 0/8 miRNA, 6/25 lncRNA, and 20/42 mRNA all had an impact on the survival time (Supplementary Figure 3 and Supplementary Table 2). To further narrow down the list of essential RNAs, we used Lasso Cox and Random Survival Forest (RSF). This led to the overlap of 7 RNAs. ANLN, on the other hand, failed the Cox-PH test, and has-miR-1269b significantly failed the univariate Cox analysis. As a result, we identified 5 key prognostic RNAs, including CPEB3, ANXA10, CEP55, CBX2, and DUXAP8 (Figure 2A and Supplementary Figure 4A). DUXAP8 and CBX2 were found to be independent prognostic genes by multivariate Cox analysis, and a prognostic model with a C-index of 0.7 was created (Figure 2B). The established prognostic model and nomogram demonstrated observable performance as indicated by calibration plots and time-dependent AUC greater than 0.7 (Supplementary Figure 4B–4D). We used two techniques to test the prognostic model’s robustness: (1) two-fold cross-validation performed 50 times at random, and (2) external validation using the ICGC-LIRI-JP dataset. Time-dependent AUC values greater than 0.7 and 0.8, respectively, in two-fold cross-validation of LIHC and LIRI-JP external validation suggested the prognostic model with 5 genes performed well. (Figure 2C–2E). A worse prognosis was independently linked to the risk score determined by the prognostic model (Figure 2F, 2G).

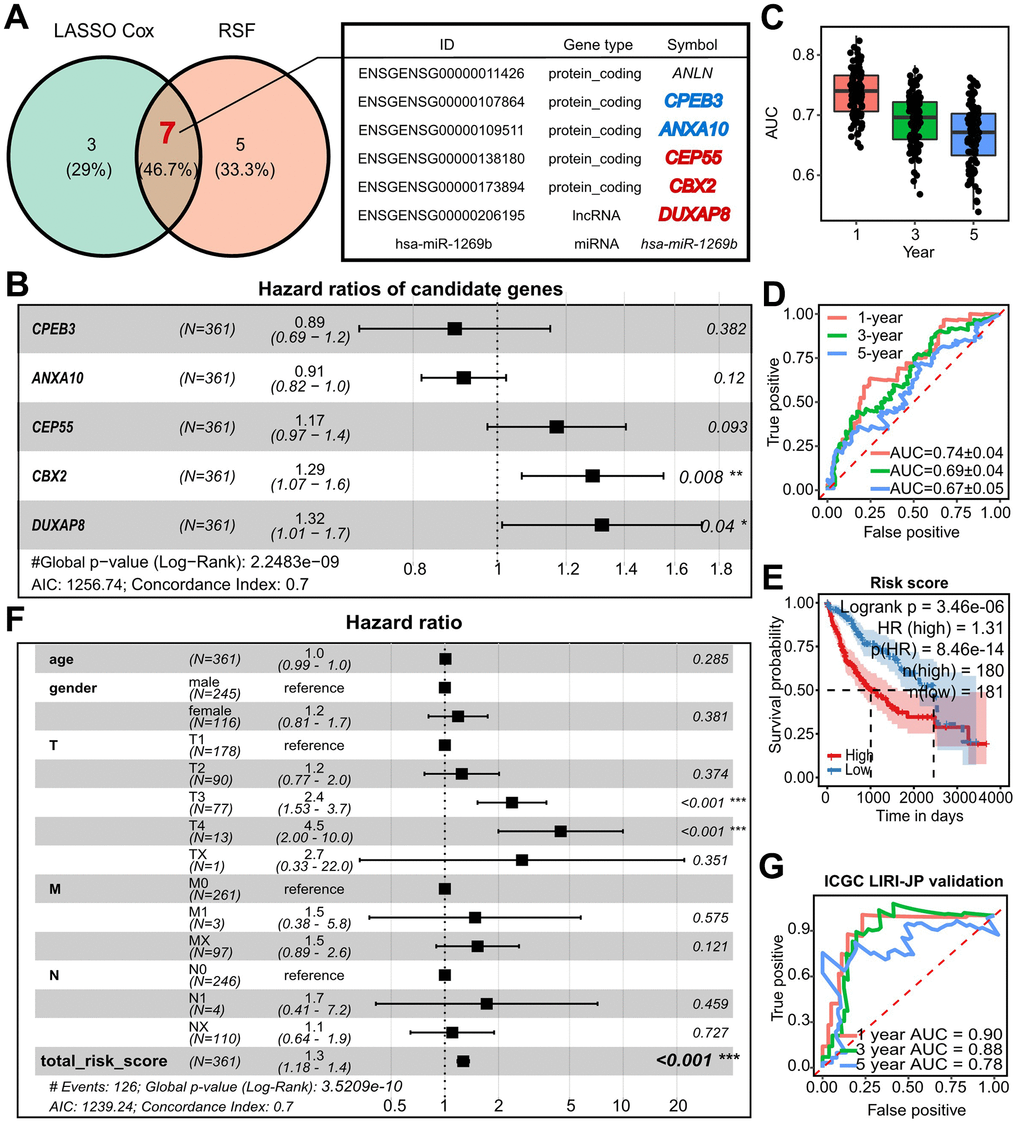

Figure 2. Establishment and refinement of DUXAP8/CBX2/CEP55-centered prognostic model. (A) Shared model candidate survival-related RNAs from which was selected with Lasso Cox and RSF from the refined regulatory networks. (B) Forest plots of multivariate Cox showed the hazard ratio (HR), 95% confidence interval (CI), and corresponding P-values of model-used CPEB3, ANXA10, CEP55, CBX2, and DUXAP8 (C) Time-dependent AUC within 5 years of a prognostic model related to 5-survival genes using two-fold cross validation with 50 randomly repeated replications. (D) The examples of time-dependent ROC at 1-, 3-, and 5-year corresponding to the AUC in (C). (E) Kaplan-Meier plots of the risk score predicted with the prognostic model in TCGA-LIHC. The high and low risk group was determined with the median of risk score. P value was calculated by log-rank test. (F) Forest plots of multivariate Cox showed HR and p value of TNM, age, gender and risk score. (G) Time dependent ROC and AUC at 1-, 3-, and 5-year predicted with external validation using ICGC-LIRI-JP by 5-survival-gene prognostic model. RSF, Random Survival Forest; AUC, area under the curve; ROC, receiver operating characteristic curve; HR, hazard ratio.

Surprisingly, we noticed that DUXAP8, CBX2, and CEP55 appeared in both the prognostic model and the hub of the regulatory network. Additionally, a worse prognosis was indicated in LIRI-JP by higher expression of CBX2 and CEP55 (Supplementary Figure 4E, 4F). The worst overall survival was seen in patients with double higher expression of CBX2 and CEP55 (Supplementary Figure 4G). Notably, there was a significant correlation between the biomarker for HCC AFP, CBX2, and CEP55 (Supplementary Figure 12G). Along with an increase in CBX2 and CEP55, the stepwise stage and tumor grade also increased (Supplementary Figure 12G). As a result, for the step analysis that follows, CBX2 and CEP55 were picked as leading actors.

Abnormal CBX2 and CEP55 expression in HCC were validated in numerous studies

We gathered numerous cohorts and carried out a differential expression analysis in order to confirm the abnormal expression of CBX2 and CEP55. In the following GSEs: GSE138485, GSE144269, GSE148355, GSE54236, GSE22508, GSE25097, GSE63898, GSE112790, and ICGC LIRI-JP, higher expression of CBX2 in HCC compared to adjacent tissue has been approved. These cohorts showed a CEP55 trend that was comparable to the CBX2 trend (Supplementary Figure 6A–6G). The expression profile of the mouse liver tumor model from GSE116463 also revealed this outcome (Supplementary Figure 6P). Immunohistochemistry staining (IHC) from the HPA database also showed similar deregulation of CBX2 and CEP55 expression (Supplementary Figure 5K). Intriguingly, we found that CBX2 and CEP55 expressed more in para-cancerous tissue in GSE25097 compared to healthy tissue, suggesting that abnormally expressed CBX2 and CEP55 may be responsible for the development of cancer (Supplementary Figure 6D).

Genomic and epigenetic alternation regulated aberrant CBX2/CEP55 expression

We first characterized the genomic alternations in order to investigate the possible causes of the abnormal expression of CBX2 and CEP55. For CBX2 and CEP55, no more than five single nucleotide mutations were found (Supplementary Table 3). In terms of copy number variation (CNV), CBX2 underwent major amplification, whereas CEP55 underwent major deletion. However, only CNV of CBX2 had a favorable impact on self-expression (Figure 3A and Supplementary Figure 5A). Additionally, we found that the CNV of CBX2 had a significant impact on both the Disease Free Interval (DFI) and Progression Free Survival (PFS) (Figure 3A and Supplementary Table 4).

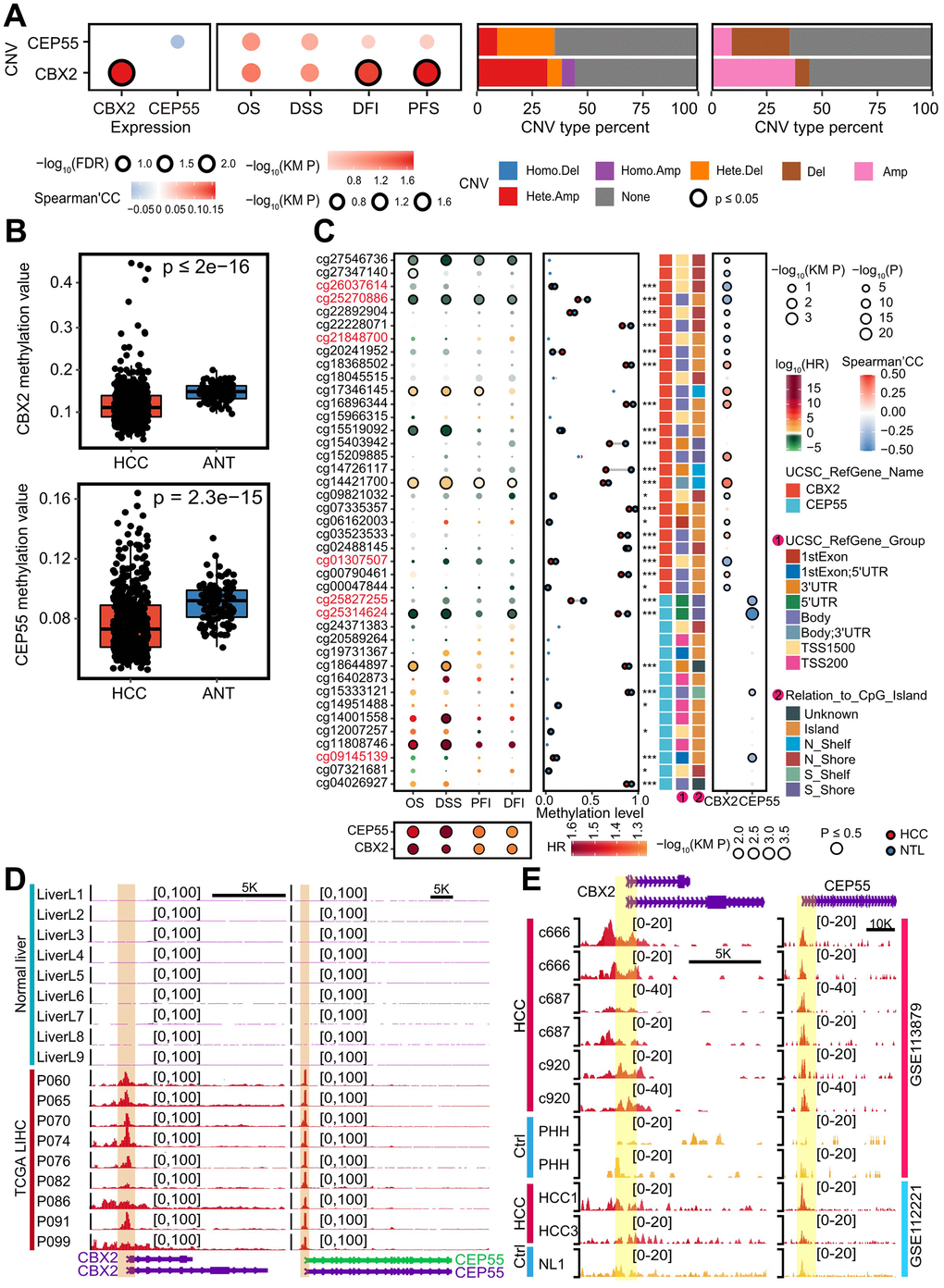

Figure 3. Genomic and epigenomic alternations enhanced CBX2 and CEP55 expressions. (A) From left to right, the figures were the Spearman’s correlation of CNV and the corresponding expression, the impact of CNV on patients’ survival time, and the percent of CBX2 and CEP55 CNV type detailly and broadly. KM P indicated the P-value computed with log-rank test. (B) Methylation level of CBX2 and CEP55 in HCC and adjacent tissues. P-value was performed using Wilcox rank sum test. (C) From left to right, the figures were the effects of methylation sites on CBX2 and CEP55 on patients’ survival, the mean methylation level of CBX2 and CEP55 in HCC and adjacent tissues, and the Spearman’s correlation between methylation level of methylation sites and expression level. The P-value reflecting differential methylation sites was derived from the Wilcox rank sum test. KM P indicated the P-value computed with log-rank test and the median of methylation level or expression level was utilized to classify the high and low group. (D) Chromatin accessibility signals on CBX2 and CEP55 in normal livers and HCC. (E) H3K4me3 signals on CBX2 and CEP55 in normal livers and HCC. HR, hazard ratio. *, P ≤ 0.05; **, P ≤ 0.01; ***, P ≤ 0.001; OS, Overall Survival; DSS, Disease Specific Survival; DFI, Disease Free Interval; PFI, Progression Free Interval.

One method for controlling gene expression was thought to be DNA methylation. Additionally, we discovered that the levels of three DNA methyltransferases (DNMT1, DNMT3A, and DNMT3B) were significantly higher in the CBX2^high tumor than the CBX2^low tumor and the CEP55^high tumor than the CEP55^low tumor (Supplementary Figure 5B–5G). Additionally, we found that adjacent tissue had significantly higher levels of methylation for CBX2 and CEP55, indicating coincidentally lower expression. Cohorts GSE113019, GSE44909, GSE44909, and GSE37988 also supported this outcome (Figure 3B and Supplementary Figure 6H–6O). Next, we determined the Spearman Correlation coefficient and patient survival time using Univariate Cox analysis to characterize the effect of particular methylation sites on gene expression. Differential methylation sites at cg26037614, cg22892904, cg09821032, and cg01307507 revealed hyper-methylation harboring promoter-associated (TSS1500) CpG island, displaying a strong inverse relationship with CBX2 expression and a favorable prognosis for patient survival (Figure 3C). We also discovered three hyper-methylation CpG islands at the promoter-associated (5’UTR) CpG island for CEP55, cg25827255, cg25314624, and cg09145139, which have an adverse effect on the expression of CEP55 and increase the survival time of patients (Figure 3C). The MEXPRESS database was used to verify this finding [21] (Supplementary Figure 6Q).

The accessible chromatin throughout the genome demonstrated the co-operative regulation of gene expression by enhancers, promoters, and chromatin-binding factors [22]. Histone H3 lysine 4 was tri-methylated (H3K4me3), designating promoters associated with transcription start sites, while H3K4 was mono-methylated (H3K4me1) and histone H3 lysine 27 was acetylated (H3K27ac), designating enhancers to activate gene expression [23, 24]. We looked at the H3K27ac signal, H3K4me3, H3K4me1, and chromatin accessibility of CBX2 and CEP55. We discovered a higher chromatin accessibility signal in HCC tissue and HCC cell lines compared to normal liver tissue on the CBX2 and CEP55 loci (Figure 3D and Supplementary Figure 5H). Likewise, similar patterns were seen for H3K4me3, H3K4me1, and H3K27ac (Figure 3E and Supplementary Figure 5H–5J). Thus, in addition to miRNA, genomic and epigenomic changes may also control the aberrant expression of CBX2 and CEP55.

CBX2/CEP55 affected the cell cycle process

To determine the potential mechanism of CBX2 and CEP55 contributing to tumorigenesis, we stratified with the median expression of CBX2 and CEP55 and identified 1338 CBX2-related and 3177 CEP55-related differentially expressed genes, respectively (Figure 4A). Up-regulated genes in CBX2^high tumors were enriched for cell cycle-related terms like nuclear division and mitotic nuclear division as well as extracellular matrix organization (Supplementary Figure 7A). GSEA for the GO gene set showed comparable results (Supplementary Figure 7B). The expression of genes involved in the cell cycle, DNA replication, ECM receptor interaction, and homologous recombination pathways was increased (Figure 4B). This outcome was seen when using the KEGG gene set in GSEA analysis (Figure 4D). Drug metabolism and fatty acid metabolism were enriched for genes up-regulated in CBX2^low tumors (Supplementary Figure 7C, 7D). In tumors that were CEP55-stratified, a similar outcome was seen (Figure 4C, 4D and Supplementary Figure 8A–8D). The cell cycle and DNA replication were strongly correlated with CEP55 expression (Figure 4C, 4D). Along with being positively correlated with cell cycle-related pathways (such as E2F targets, G2/M checkpoint, mitotic spindle, MYC targets V1 and V2) and epithelium mesenchymal transition, DEGs related to CBX2 and CEP55 were also found in signature gene sets (Supplementary Figure 9A).

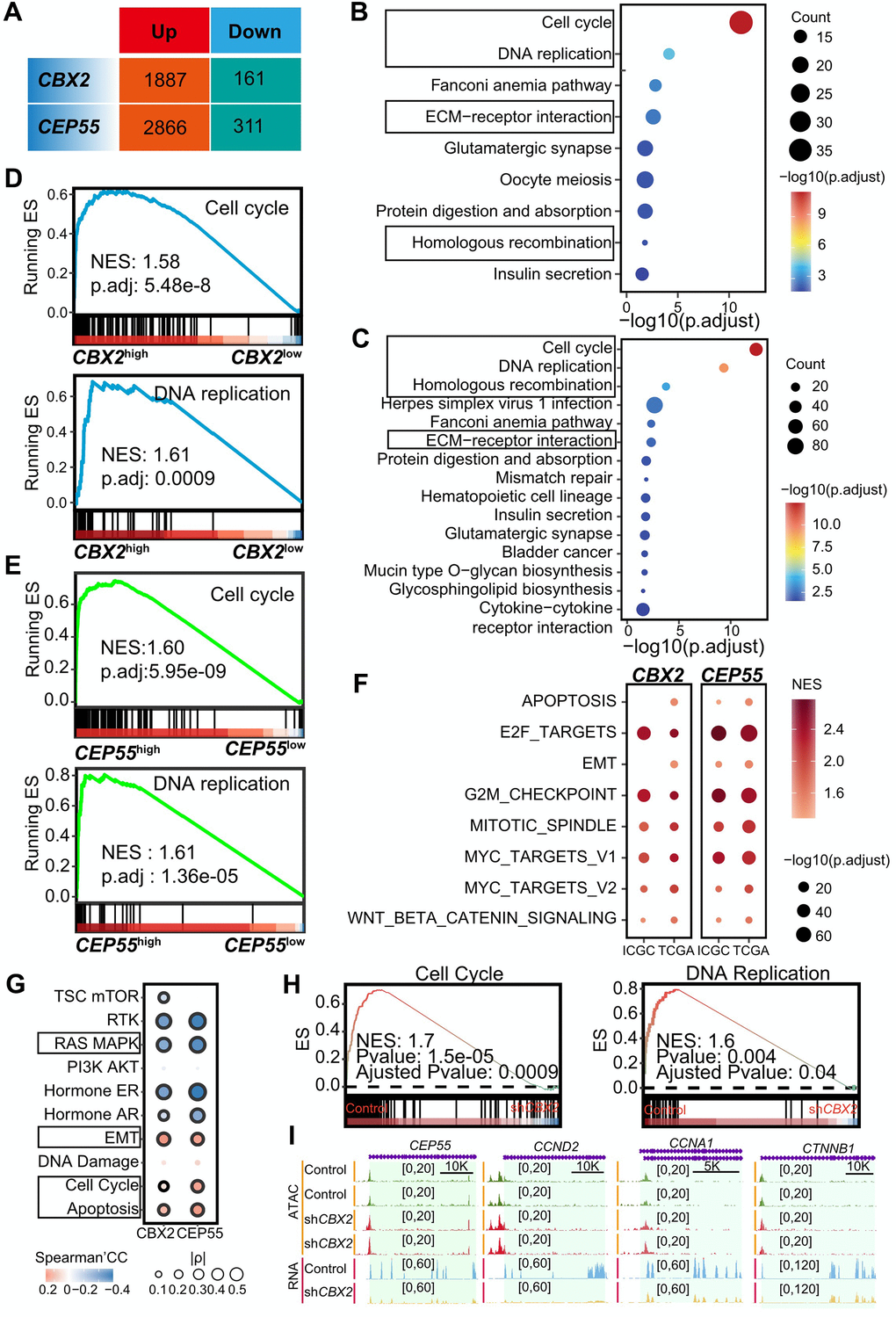

Figure 4. CBX2 and CEP55 affected the cell cycle. (A) Summary of differential expressed genes identified using DESeq2 in CBX2-stratified and CEP55-stratified tumors. The genes in Up indicated the higher expression in CBX2^high or CEP55^high tumors whereas conversely for those in Down. (B, C) Enriched KEGG in 1887 CBX2-related up-regulated genes (B) and 2866 CEP55-related up-regulated genes (C) in stratified tumors. (D, E) GSEA analysis of CBX2-related (D) and CEP55-related (E) KEGG pathway. (F) GSEA analysis of CBX2-related and CEP55-related cancer hallmarks. (G) The Spearman’s correlation between pathway activity score and CBX2/CEP55 expression. (H) GSEA analysis of CBX2 knockdown -related KEGG pathways. (I) RNA and ATAC tracks of cell cycle-related genes in shCBX2 and WT group.

To validate that CBX2 and CEP55 expression could regulate the cell cycle pathway, we first calculated the Pearson Correlation Coefficients (PCC) between all genes and CBX2 or CEP55 in LIHC and LIRI-JP cohorts. We also identified the cell cycle pathway, DNA replication pathway, ribosome pathway, cell cycle-related hallmark (E2F targets, G2/M checkpoint, mitotic spindle, MYC targets V1, MYC targets V2), EMT, apoptosis, and WNT beta-catenin signaling using GSEA with the KEGG and hallmark gene set based on the PCC (Figure 4F and Supplementary Figure 9B–9E). The majority of the genes closely linked to the expression of CBX2 and CEP55, including those in the CENP and KIF families, were found to be related to the cell cycle (Supplementary Figure 9H, 9I). And many of these genes—including TOP2A, ORC6, MCM2, and PLK1 - were crucial as determined by Chronos scores (Supplementary Figure 10A, 10B). Furthermore, we observed that CEP55 displayed a high PCC with MKI67, which was regarded as a proliferation marker (Supplementary Figure 9I).

To further certify CBX2 expression regulated the cell cycle pathway, we reanalyzed CBX2-KO datasets including GSE193477 (human AML U937), GSE112227 (mouse long bone), and GSE156413 (mouse embryonic fibroblast). We discovered the cell cycle pathway and cell cycle-related pathways (DNA replication, E2F targets, G2/M checkpoint) were enriched in the CBX2 WT group (Figure 4H and Supplementary Figure 9F, 9G). For instance, in GSE156413, CBX2 KO groups reduced Ccna1 chromatin accessibility and expression level in comparison to WT (Supplementary Figure 9G). In GSE193477, we found that CBX2 KO reduced the expression of cell cycle-related genes like CCND2 and CCNA1, but had few effects on chromatin accessibility (Figure 4I).

The Spearman Correlation Coefficient (SCC) between the two genes and the cancer-related pathway score revealed that CBX2 and CEP55 expression positively regulate the cell cycle, apoptosis, and EMT while negatively modulating the RAS MARK pathway (Figure 4G). Through the MAPK signaling pathway, CBX2 has been shown to influence chromatin accessibility and promote AML [25]. EMT may be brought on by the death of cancer cells [26].

The overall result showed that CBX2 and CEP55 may regulate the cell cycle process to support HCC.

CBX2 impacted the cell cycle directly or indirectly

It was intriguing to see that CBX2 knockout reduced CEP55 expression (Figure 4I), which inspired us to research the potential functions of CBX2. The CBX2 ChIP-seq of HepG2 was therefore reanalyzed, and we obtained IDR-confirmed 1305 peaks, of which 728 peaks were found at the gene promoter (Figure 5A). Surprisingly, cell cycle-associated ontologies with enriched content included co-SMAD binding, bHLH transcription factor binding, beta-catenin binding, SMAD binding, and beta-catenin-TCF complex (Figure 5B), indicating that CBX2 might indirectly control the cell cycle process by interacting with other transcription factors. The discovery of the SMAD and STAT motifs (Figure 5C) suggests that CBX2 may work with the STAT and SMAD TF family to control the cell cycle. The CHR (cell cycle genes homology region) motif (Figure 5C), on the other hand, was thought to be a suppressor of the cell cycle and was a binding site recognized by the DREAM complex, indicating CBX2 could regulate the cell cycle by repressing or competing with the DREAM complex [27–29].

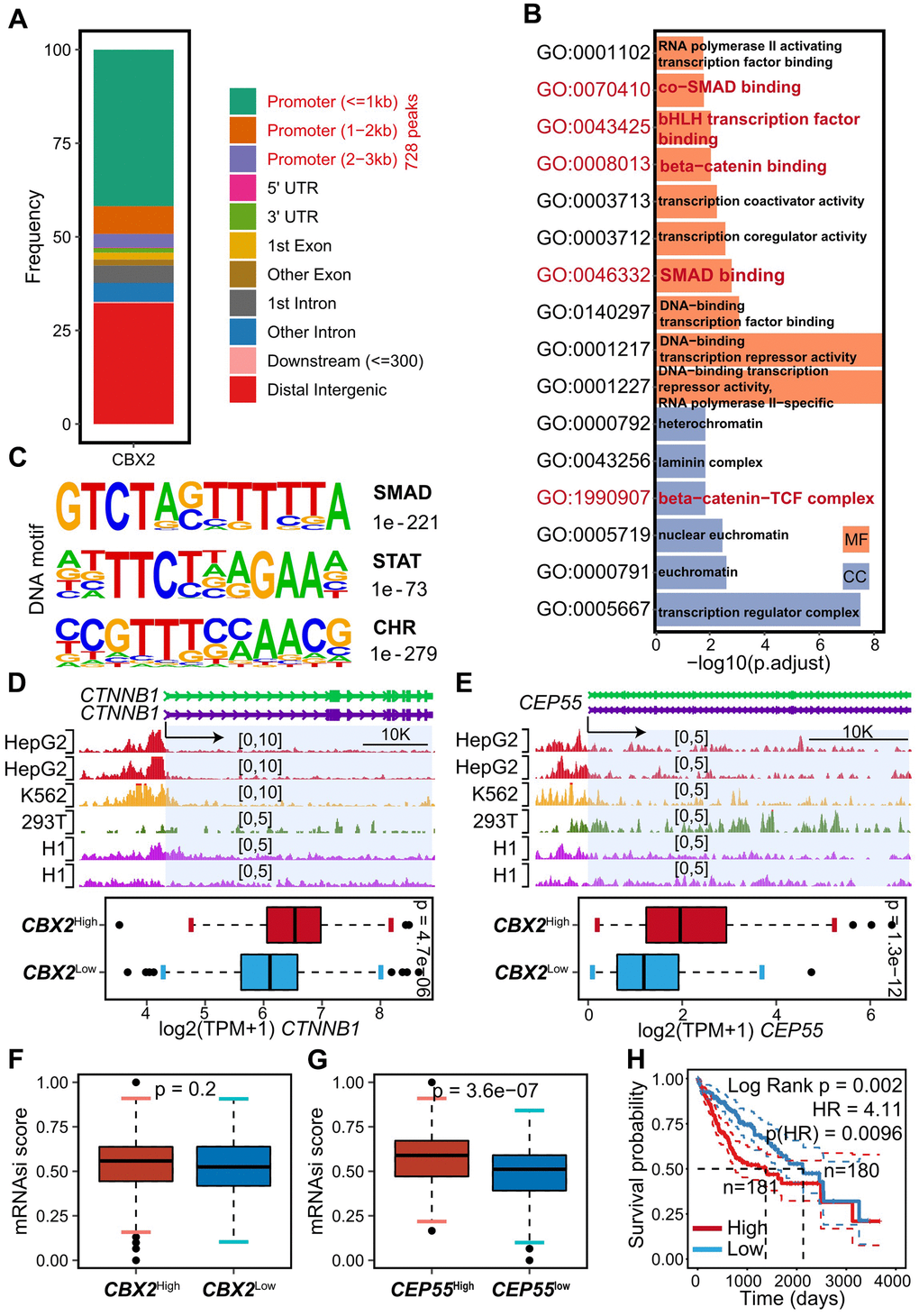

Figure 5. CBX2 regulated CEP55 and CTNNB1 directly. (A) Summary of genomic distribution of CBX2 peaks. (B) Enriched GO terms in genes associated with gene promoter CBX2 peaks. (C) DNA motifs enriched within genes associated with gene promoter CBX2 peaks determined by HOMER motif analysis. (D, E) Tracks of CBX2 peaks on CEP55 (D) loci and CTNNB1 (E) loci and the corresponding expression between CBX2-statified tumors. Statistical significance was calculated using the two-sided Wilcoxon test. (F, G) mRNAsi distribution between CBX2-stratified (F) and CEP55-stratified (G) tumors. Statistical significance was calculated using the two-sided Wilcoxon test. (H) Kaplan-Meier plots of mRNAsi. The high and low group was classified with the median of risk score. P-value was computed with log-rank test.

CBX2 consistently bound to the CEP55 promoter as shown by CBX2 ChIP in the HepG2, 293T, K562 and H1 cell lines, and ectopic expression of CBX2 in HCC increased the transcription of CEP55 (Figure 5E). The plasma membrane and nucleoplasm, respectively, were the locations of CBX2 and CEP55, according to multiplexed immunofluorescence images downloaded from the HPA (Supplementary Figure 11A, 11B). Additionally, we observed that CBX2 bound to the CTNNB1 promoter and increased the expression of CTNNB1, which encodes beta-catenin (Figures 4I, 5D), in accordance with GO:0008013 enrichment (Figure 5B) and GSEA enrichment results (Figure 4F). Beta-catenin had been confirmed to aggravate hepatocarcinogenesis and promote cancer stem cell properties [30], which enforced us to explore the relationship between CBX2, CEP55 and cancer stem cells. A higher mRNAsi score was noted in CBX2-high tumors and CEP55-high tumors when we calculated the mRNAsi score to assess the stem index of tumors with the CBX2-stratified and CEP55-stratified expression profiles (Figure 5F, 5G). Besides that, the prognosis of the patients with higher mRNAsi was worse (Figure 5H). According to this research, CBX2 could control CEP55 or CTNNB1 to control the characteristics of cancer stem cells that are consistent with more aggressive migration.

CBX2 drove a CSC-like phenotype

To further validate whether CBX2 and CEP55 affect malignant cell stemness, we reanalyzed the public datasets related to HCC CSC and observed that CBX2 and CEP55 levels were higher in cancer stem cells that were CD133, ALDH, or CD44-labeled (Supplementary Figure 11C). Additionally, both CBX2 and CEP55 demonstrated a high Pearson correlation with a CSC marker CD44 (Figure 6A and Supplementary Figure 12D). Three scRNA-seq datasets GSE125449, GSE140228 and GSE166635 downloaded from the TISCH2 database [31] were analyzed, and we found that CBX2 was primarily expressed in cancerous tumor cells while CEP55 was primarily expressed in T cells that were proliferating (T prolif), whose marker gene MKI67 (Figure 6B, 6C and Supplementary Figure 12A, 12B). Additionally, it was also discovered that CEP55 is expressed in regulatory T-cells (Tregs) and tumor cells (F). The scRNA-seq data from healthy liver tissue downloaded from the HPA served as validation for this finding that CBX2 in hepatocytes and endothelial cells whereas CEP55 in T cell. (Supplementary Figure 12C). CytoTRACE was utilized to infer intercellular activity and determine the differentiation status of cells with a matrix that counts single cells. A higher CytoTRACE score indicate a higher level of cell stemness. A total of 842 malignant cells from GSE125449 and 4500 malignant cells from GSE166635 were used to validate the influence of CBX2 on tumor stemness using CytoTRACE. The findings showed that CBX2-positive malignant tumors demonstrated significantly elevated levels of stemness rather than CEP55-positive (Figure 6D, 6E and Supplementary Figure 12F). Moreover, we conducted differential gene identification and GSEA analysis on CBX2-positive and -negative malignant cells derived from GSE125449. The results revealed significant enrichment of glycolysis, hypoxia, EMT, cell-cycle-related MYC target V1, E2F target, and G2M checkpoint in CBX2-positive malignant cells (Supplementary Figure 12E). These findings suggested that the expression of CBX2 amplifies tumor malignancy and facilitates cancer progression.

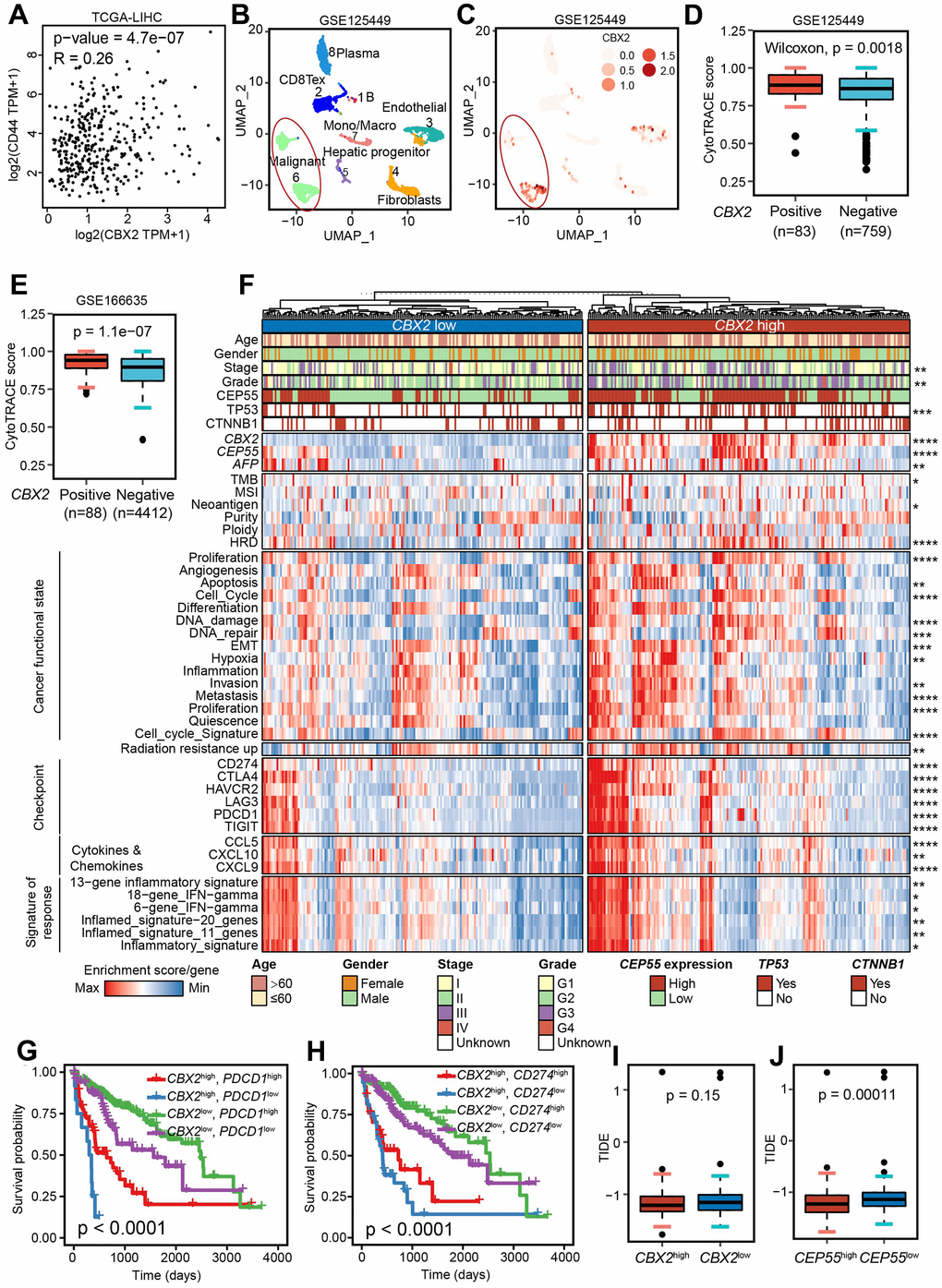

Figure 6. CBX2 shaped diverse functional states and enhanced immunotherapy response. (A) The Pearson correlation between CBX2 and CD44 in TCGA-LICH dataset. (B, C) UMAP showing the cell clusters (B) and distribution of CBX2 (C) in GSE125449. (D, E) Distribution of CytoTRACE score between CBX2-positive and –negative malignant cells from GSE125449 (D) and GSE166635 (E). P-value was calculated using the two-sided Wilcoxon test. (F) Heatmap representation of the main functional states, immunotherapy response predictors, representative molecular and immune characteristics in CBX2^high tumors and CBX2^low tumors. (G, H) Kaplan-Meier plots of CBX2 combined with PDCD1 (G) and CD274 (H). P-value was computed with log-rank test. (I, J) Distribution of predicted TIDE score between CBX2-stratified (I) and CEP55-stratified (J) tumors. P-value was calculated using the two-sided Wilcoxon test.

Generally, CSC was characterized by the unlimited proliferation, high drug resistance, promotion of heterogeneity formation, and metastatic recurrence. Different tumor phenotypes, reflecting cancer-related functional states, were produced throughout the entire tumor evolution as a result of functionally heterogeneous cancer cells cooperating or competing [12]. We then investigate CBX2 and CEP55’s effects on cancer-related functional states. Apoptosis, EMT, and cell cycle scores were all noticeably higher in CBX2^high and CEP55^high tumors (Figure 6F and Supplementary Figure 12G). In addition, CBX2 and CEP55 might promote the growth, invasion, wound healing score, differentiation, and metastasis of tumors (Figure 6F and Supplementary Figure 12G). Taken together, CBX2 drove cancer stem cell properties.

CBX2/CEP55, affected immune infiltration, enhanced radio-resistance and predicted immunotherapy response

A highly structured ecosystem of TME can shape cancer cells’ capacity for proliferating, migrating, developing drug resistance, or responding to immunotherapy. Next, we evaluated the stromal score, immune score, and TME score using the ESTIMATE algorithm, and found that CBX2 had no impact on any of them while CEP55 only improved immune infiltration (Supplementary Figure 14A, 14B). The signature score from Thorsson et al. [13] supported the observations (Supplementary Figure 14A, 14B). More specifically, we estimated the cell fraction using CIBERSORT, EPIC, QUANTISEQ and MCPCOUNTER methods and assessed the effect of CBX2 and CEP55 on the cells by computing the Spearman Correlation Coefficient. We discovered that cancer-associated fibroblast (EPIC, MCPCOUNTER) strongly connected with CBX2 and CEP55, consistently with ECM enrichment (Supplementary Figure 13G, 13I and Figure 4B, 4C). Additionally, tumors with high levels of CBX2 and CEP55 have higher levels of immunosuppressive cells such as regulatory T cells and myeloid-derived suppressor cells (Supplementary Figure 13E, 13F, 13H, 13J).

In order to understand the regulation of CBX2 or CEP55 on TME, we looked at the distributions of MHC-related genes, immune stimulators, and immune inhibitors in LIHC. CBX2^high and CEP55^high tumors were found to have higher levels of the majority of MHC, immune-stimulating, and immune-inhibiting genes, including immune inhibitor PDCD1, CD274, and immune stimulator TNFRSF9 (Supplementary Figure 14A, 14B). This suggests that these tumors had complex TME. Additionally, CBX2 and CEP55 had a significantly greater impact on tumor patient survival than PDCD1 and CD274 (Figure 6G, 6H).

Neoantigen, microsatellite instability (MSI), and tumor mutation burden (TMB) were considered new indicators of immunotherapy efficacy [13]. Since TMB and neoantigen levels were higher in CBX2 while MSI levels were higher in CEP55, two molecules could improve immunotherapy (Figure 6F and Supplementary Figure 12G). In order to further validate it, we computed the ssGSEA score using the inflammatory signature, the inflammatory signature, and the IFN-gamma signature, all of which have been shown to accurately predict the outcome of immunotherapy [15, 16]. CBX2^high and CEP55^high tumors with high signature scores had better outcomes from immunotherapy (Figure 6F and Supplementary Figure 12G). The Tumor Immune Dysfunction and Exclusion (TIDE) score was used to verify the findings; a higher TIDE score suggested a higher probability of cancers evading the immune system [32]. For tumors with high levels of CBX2 and CEP55, we found lower TIDE scores, indicating a better response to immunotherapy (Figure 6I–6J and Supplementary Figure 13A–13D). Additionally, it was discovered that tumors with elevated levels of CBX2 and CEP55 had higher concentrations of the chemokines CCL5, CXCL9, and CXCL10 linked to immunotherapy response [33] (Figure 6F). All of the results demonstrated CBX2^high and CEP5^high tumors could benefit from immunotherapy.

The effect of CBX2 and CEP55 on radiation resistance was then investigated. Higher radiation resistance up-regulated gene enrichment was seen in CBX2^high and CEP55^high tumors (Figure 6F and Supplementary Figure 12G). Additionally, based on the DepMap expression profiles, we used oncoPredict to forecast the sensitivity of drugs for CBX2-stratified tumors. Patients with high levels of CBX2 were compatible with drugs like BAY 87-2243 (a HIF-1 inhibitor), Binimetinib (a MEK inhibitor), Voreloxin (a topoisomerase II inhibitor), Floxrudidine (oncology antimetabolites), Lenvatinib, Regorafenib, Paclitaxel, and Indisulam but not Sorafenib, demonstrating CBX2 affects the effectiveness of medications (Supplementary Figure 10C).

Therefore, overexpressing CBX2 and CEP55 may cause cancer cells to develop cancer stem cell-like phenotypes with high levels of invasion, metastasis, and radiation resistance. However, immunotherapy may be advantageous for it.

CBX2/CEP55, as drug targets in pan-cancer

Surprisingly, we performed the differential gene analysis in another 20 cancers and found CBX2 and CEP55 up-regulated in 16 and 18 of 20 cancers. Additionally, BRCA and KIRP patients with high-expressed CBX2 showed worse overall survival while BRCA, KIRP, KIRC, LUAD and PAAD patients with high-expressed CEP55 showed worse survival (Figure 7A, 7C). We also observed that CBX2 and CEP55 enhanced the cell cycle and apoptosis pathway and inhibited the RAS MAPK pathway. Next, we computed the PCC between CBX2 and CEP55 to validate their positive regulatory relationship across cancers and confirmed that a significantly positive correlation greater than 0.2 was observed in 27/33 cancers, especially in THYM (Figure 7E, 7D).

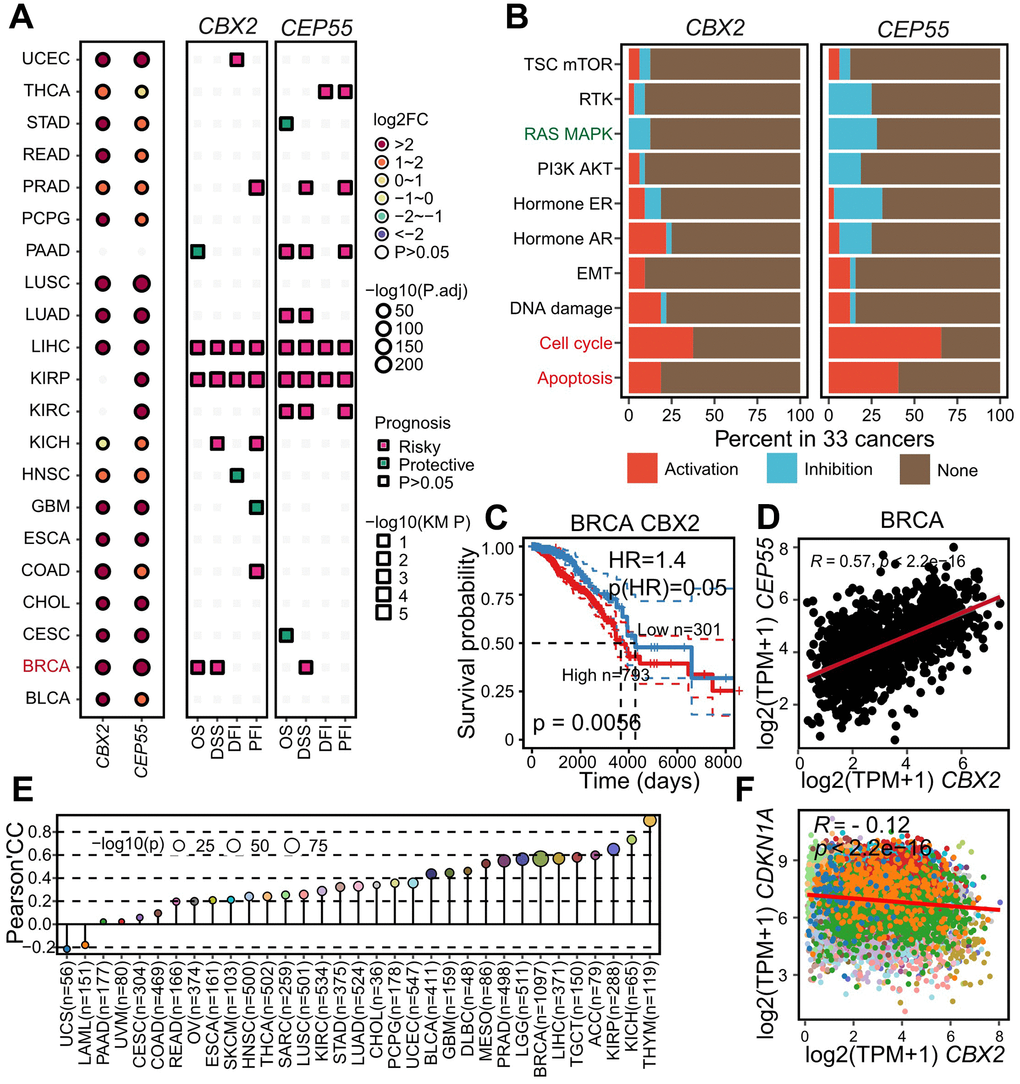

Figure 7. Aberrantly expressed CBX2 and CEP55 as drug targets as pan-cancer level. (A) Summary of CBX2 and CEP55 expression pattern differences and their impact on tumor patient survival time (OS, DSS, DFI, PFI) across 21 cancers. Prognosis was inferred with hazard ratio, “risky” indicated HR > 1 whereas “protective” suggested HR < 1 (B) Summary of pathway activation or inhibition by CBX2 and CEP55 across 33 cancers. “Activation” represented significantly positive Spearman’s correlation conversely “Inhibition” indicated the significantly negative. (C) Kaplan-Meier plots of CBX2 expression in BRCA. High and Low groups were determined by the CBX2 expression cutoff computed by surv_cutpoint function in survminer package. P-value was computed with log-rank test. (D) Pearson’s correlation between the expression of CBX2 and CEP55 in BRCA, an example of pan-cancer. (E) Pearson’s correlation between the expression of CBX2 and CDKN1A with all tumors. OS, Overall Survival; DSS, Disease Specific Survival; DFI, Disease Free Interval; PFI, Progression Free Interval. (F) Pearson’s correlation of CBX2 and CDKN1A expression level in pan-cancer.

CBX2 and CEP55 had been demonstrated to promote HCC through the cell cycle route. A greater TP53 mutation rate was seen in CBX2^high tumors, indicating a potential P53 function loss (Figure 6F and Supplementary Figure 12G). Additionally, we pointed out that the deletion of CBX2 could lower the expression of the genes CCND2, which codes for cycling D2, and CCNA1, which codes for cycling A1, both were the crucial regulators of the cell cycle (Figure 4I). The tumor suppressor gene CDKN1A, which codes for the cell cycle regulator p21, could prevent CDK from kinase activity. At the level of all cancers, we noticed that CBX2 and CDKN1A exhibited a negative trend, strengthening CBX2’s ability to regulate the cell cycle (Figure 7F).
