Prognostic implication and immunotherapy response prediction of a novel ubiquitination-related gene signature in liver cancer

Data profiles

The transcription statistics data, which is measured in fragments per kilobase of exon model per million reads mapped (FPKM), along with important clinical information such as age, sex, clinic grade, pathological stage, and T stage, were obtained from the Cancer Genome Atlas (TCGA) LIHC project. If the clinical grade cannot be determined as GX, it is highly differentiated as G1, moderately differentiated as G2, poorly differentiated as G3, and undifferentiated as G4. Pathological stage I refers to tumors that exceed 2 cm, but none of them affect blood vessels in the liver. They can spread to veins, arteries, and bile ducts. Stage II refers to tumors with a size exceeding 2 cm but not exceeding 5 cm, which have spread to blood vessels, veins, and arteries without lymph nodes or distant metastasis. Phase III tumors have a diameter greater than 5 cm and have not spread to lymph nodes, but may have spread to nearby organs or peritoneum without distant metastasis. Phase IV tumors have already shown intrahepatic metastasis or spread to surrounding organs and lymph nodes, or distant organ metastasis. You can find the relevant details in Supplementary Table 1. To validate the signature, we obtained an additional microarray dataset from the database of the International Cancer Genome Consortium (ICGC). We utilized the HCC models proposed by Liu et al., Zhang et al., Xie et al., and Li et al. to test and demonstrate the advantages of our prognostic signature related to ubiquitination. [20–23].

Analysis of genes related to ubiquitination using consensus clustering

A set of 79 genes related to ubiquitination (URGs) was obtained from the MSigDB database. You can find these genes listed in Supplementary Table 2. To categorize HCCs based on the expression of URGs, an unsupervised clustering analysis was performed using the ConsensusClusterPlus R package. This analysis aimed to separate the HCCs into distinct clusters [24].

The correlation among molecular subtypes, clinical characteristics, and prognosis of HCC

To determine the medical relevance of the two subcategories discovered through harmony gathering, we examined the relationships among the different molecular subtypes, clinicopathological characteristics, and prognostic outcomes. The patient’s attributes included age, sex, clinic grade, pathological stage, and T stage. To assess the differences in overall survival (OS) between various subtypes, we used Kaplan-Meier curves generated by the R packages ‘survminer’ and ‘survival’ [25].

Clusters associated with ubiquitination in the tumor microenvironment

The presence of immune cell infiltration in the tumor microenvironment (TME) of ubiquitination-associated clusters was determined using the CIBERSORT algorithm. Next, the limma algorithm was used to identify differences in immune and stromal cell categories, which were then presented through violin plots [26]. The R software packages, limma, and CIBERSORT, were utilized to display this information.

Creating and verifying a prognostic marker for HCC

We received raw mRNA expression data from the TCGA-LIHC project, which we then normalized. To identify the downstream genes affected by URGs, we analyzed the ubiquitination-related clusters using the R limma package. We considered statistical significance with p-values less than 0.05 and absolute log2 fold change greater than 1 [26]. Univariate Cox regression analyses were used to classify prognostic DEGs at p < 0.05. Then, LASSO regression and multiCox analysis were performed to establish a predictive signature for HCC [27].

$$\text{prognosis index (PI) = }{\displaystyle {\sum }_{i=1}^n\text{Coe}f(i)\times \text{Expr}(i)}$$

Patients from TCGA-LIHC were divided into low and high-risk subgroups based on their median risk score. The training set was randomly selected from half of the TCGA-LIHC dataset, while the other half of the patients were assigned as the internal test set. We acquired an extra microarray dataset (ICGC-LIRI-JP) from the ICGC database to validate the ubiquitination-related signature as the external test set. To compare the survival between two groups in the training and test sets, we utilized the Kaplan-Meier plotter from the R survival package. Receiver operating characteristic (ROC) curves were used to assess the prognostic capability of the ubiquitination-associated pattern for hepatocellular carcinoma (HCC) survival at 1-, 3-, and 5-year intervals with area under the curve (AUC) benchmarks [28]. The TCGA-LIHC dataset was used to present the survival outcome of individuals with HCC. To differentiate between low- and high-risk HCC patients, their separation was assessed using principal component analysis (PCA) and t-distributed stochastic neighbor embedding (t-SNE) analysis [29, 30]. To better understand the predictive properties of the signature, we performed univariate and multivariate Cox regression analyses to identify the independent risk factors for HCC. The variables taken into account in the analysis were the risk score, age, gender, clinical grade, pathological stage, and T stage.

Creating and validating the nomogram

To improve the predictive significance, we constructed a nomogram using ubiquitination-associated genes and novel features. We used the R packages ‘rms’ and ‘regplot’ for this purpose [31]. To predict patient survival rates at 1, 3, and 5 years, the nomogram was utilized. The accuracy of the nomogram was assessed using calibration curves [32]. To evaluate the robustness of the predictive nomogram, we conducted ROC analyses [33].

Identification and annotation of DEG functions

To investigate the possible cellular roles and enriched pathways of downstream genes of URGs, analyses of functional enrichment were conducted on the DEGs using the ‘cluster profiler’ R package [34], which included GO and KEGG. By utilizing GSEA, we were able to identify pathways that exhibited differential enrichment in low- and high-risk HCC.

Analysis of subgroups with low and high risk of HCC

By examining the link between ubiquitination-related patterns and clinical characteristics, we could gain valuable insight into the risk disparities among subgroups of HCC patients. To achieve this, we thoroughly evaluated age, gender, clinic grade, pathological stage, and T stage. With this information, we could better understand the factors that contribute to risk. The Kaplan-Meier method was utilized to investigate the differences in survival rates among HCC patients with varying risk levels across different subcategories. The results provided valuable insights into the disparities in HCC patient outcomes.

Analysis of TME and the response to immunotherapy in HCC with varying risk levels

Pearson’s coefficient was utilized to assess the relationship between the ubiquitination-associated pattern and genes involved in immune regulation, immune checkpoint, and diverse immune cell types. Timer, Xcell, Quantiseq, MCPcounter, EPIC, and Cibersort procedures [35–39] were utilized to create a bubble chart illustrating the infiltration of immune cells in low- and high-risk HCC. The calculation of TIDE scores was performed to forecast the response to immunotherapy. The effectiveness of a possible anti-PD-1 treatment was assessed by analyzing the IMvigor 210 cohort [40].

Assessment of the susceptibility to drugs in hepatocellular carcinoma (HCC) with varying levels of risk

To forecast the sensitivity of drugs in HCC patients with varying risks, the R package called ‘pRRophetic’ was utilized [41]. The raw dataset was obtained from the GDSC database, with the half-maximal inhibitory concentration (IC50) serving as the reference point.

RT-qPCR

TRIzol was utilized to extract Total RNA from both Tumor tissue and normal tissue, which was then reverse-transcribed into cDNA. The qPCR master mix was utilized for RT-qPCR. The experiments were repeated three times at least, and the Ct values were standardized to the internal reference gene, GAPDH, using the 2^−ΔΔCT technique.

The following primer sequences were used: 5′-GGAG CGAGATCCCTCCAAAAT-3′ (forward) and 5′-GGCT GTTGTCATACTTCTCATGG-3′ (reverse) for GAPDH; 5′-GGCAACGTGTTCAAGACGC-3′ (forward) and 5′- TGCTCGCCCATGAGGATCT-3′ (reverse) for CYP26B1; 5′-TGTCCCTGCGCTACCAAGA-3′ (forward) and 5′-GATGAGCTTTTGGGATCTGGAG-3′ (reverse) for MCM10; 5′-CAGTGGGTAATCGCC CTGG-3′ (forward) and 5′-CACAGATGGGCATTCT TGAGAAA-3′ (reverse) for SPINK4; and 5′-ATC GTGCAGGCATGAGGTTG-3′ (forward) and 5′-CCTC GCACATGAGGTGCTG-3′ (reverse) for TRIM54.

Immunohistochemistry

Immunohistochemistry was utilized to investigate the expression of CYP26B1, MCM10, SPINK4, and TRIM54 in liver tissue. Tumor tissues were collected from patients after surgery confirmed HCC by pathology. Normal tissues were collected from patients after surgery confirmed not HCC by pathology. All patients were informed consent before surgery. Formalin-fixed, paraffin-embedded sections (5 μm) were treated with xylene to remove the wax and subsequently rehydrated in a descending gradient of alcohol solutions. Sections were then incubated with sodium citrate (0.01 mol/L, pH 6.0) at 100°C for 15 minutes to repair the antigen. To eliminate the influence of endogenous peroxidases, 3% hydrogen peroxide was used. The sections were then blocked and incubated with antibodies overnight at 4°C. Following this, the sections were washed and incubated with secondary antibodies for 2 hours at 37°C. The immunocomplexes were visualized as brown pigments using diaminobenzidine. After staining with hematoxylin, the slides were dehydrated with alcohol and cleared in xylene. Representative images were captured with light microscopy.

Statistical analysis

All calculations and statistical data were generated with the R software (version 4.0.3). p < 0.05 was deemed to be statistically significant.

Detecting clusters associated with ubiquitination in HCC

To comprehend the importance of URGs in the process of tumor development, we employed a consensus clustering algorithm to categorize HCC based on the mRNA expression of 79 URGs. Figure 1A, 1B displayed the agreement cumulative distribution function (CDF) of reliable clustering for values of k ranging from 2 to 9. The cohort in our dataset was organized into clusters 1 and 2 (Figure 1C), with k = 2 being deemed the optimal selection. We separated the HCCs from the TCGA-LIHC project into two clusters. Compared with cluster 1, cluster 2 has a better prognosis. Cluster 1 showed higher clinical grade, pathological stage, and T-stage, indicating a possible association between cluster 1 and increased tumor stage in HCC. According to the data presented in Figure 1D–1F, cluster 2 exhibited a stronger association with a lower T stage, pathological stage, and clinic grade compared to cluster 1. Cluster 2 exhibited a greater survival rate than cluster 1 based on the Kaplan–Meier curve (p = 0.006; Figure 1G), indicating that lower T staging, pathological staging, and clinical grading are associated with good prognosis. Furthermore, the clinicopathological distributions of the various HCC subtypes demonstrated significant variations in URG expression and clinicopathological features (Figure 1H), which reminded us to further study the relationship between URG expression and the prognosis of HCCs.

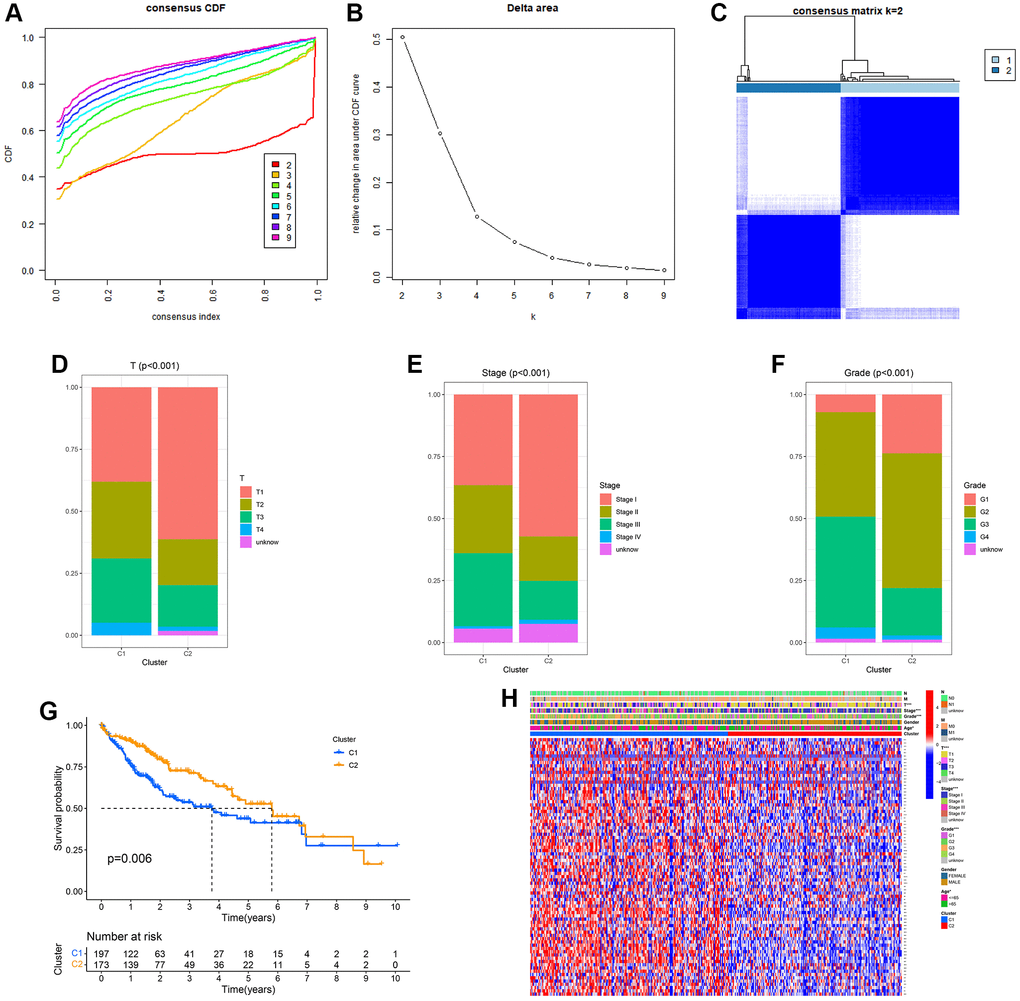

Figure 1. Clinical pathology and prognostic value of two distinct subgroups of patients divided by consistent clustering. (A) Consensus CDF in consistent clustering (k = 2–9). (B) Delta area curve of consensus clustering. (C) Consensus clustering matrix. (D–F) Differences in clinical pathology features between the two clusters. C1, cluster 1; C2, cluster 2. (G) Kaplan–Meier (K–M) survival analysis of the three subgroups. (H) Heatmap of DEG expression profiles in three subgroups.

According to the CIBERSORT algorithm, cluster 2 exhibited a notable increase in immune cell infiltration, specifically M1 macrophages, masting cells, M2 macrophages, Monocytes, and resting CD4 memory T cells, in comparison to cluster 1 (Figure 2).

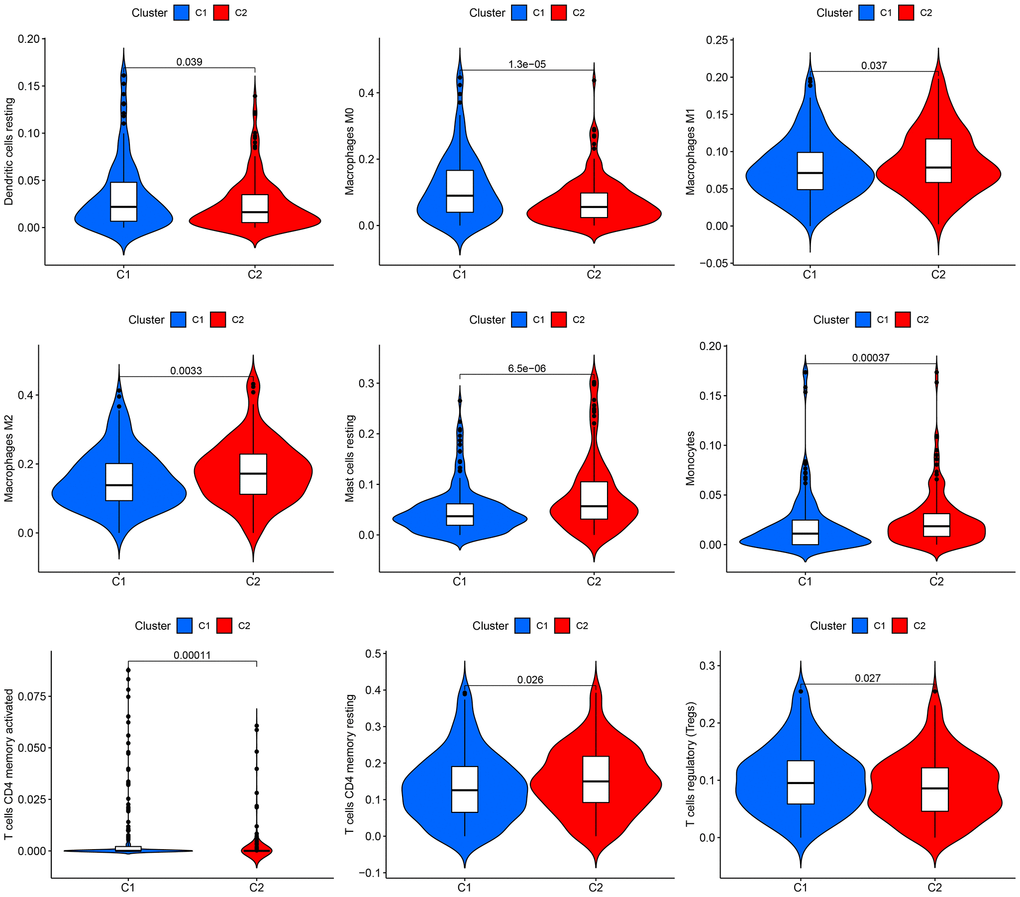

Figure 2. Infiltration of immune cells in the two groups. The two clusters display a violin plot illustrating dendritic cells, M0 macrophages, M1 macrophages, M2 macrophages, resting mast cells, monocytes, CD4 memory-activated T cells, CD4 memory resting T cells, and regulatory T cells (Tregs). Cluster 1 is referred to as C1, while Cluster 2 is known as C2.

Identification and validation of a prognostic signature related to ubiquitination in HCC

Limma, a preset program of R, was utilized to identify ubiquitination-related DEGs to understand the biological function of the ubiquitination process. To understand the potential interrelation between survival rate and gene expression of patients, we analyzed the prognostic significance of DEGs during the progression of HCC. Univariate Cox regression analysis was utilized to examine the correlation between two survival clusters and gene expression levels. The analysis of LASSO Cox regression confirmed the strong gene signature associated with ubiquitination. Through LASSO analysis, a set of 7 genes was identified (Figure 3A, 3B) that can be utilized for the development of a prognostic model. Subsequently, a 4-gene signature (CYP26B1, MCM10, SPINK4, and TRIM54) was obtained by conducting a multiCox analysis. Based on Figure 3C, HCC patients were categorized into low- and high-risk groups using the median value. According to our maps indicating survival and risk status, the groups classified as high-risk experienced a higher number of fatalities compared to the low-risk groups. Figure 3D shows a heatmap that was created to exhibit the levels of expression of different expressed URGs in both groups. Furthermore, a significant distinction was noted between the two groups via t-SNE and PCA examination (Figure 3E, 3F). According to Figure 3G, the curve of Kaplan–Meier showed a notable variation in OS between the low- and high-risk groups (p < 0.001). To assess the predictiveness of the HCC signature, we generated ROC curves. The analysis of the ROC curve showed a notable prognostic impact for HCC using the risk model, with AUC values of 0.784, 0.730, and 0.773 for 1-, 3-, and 5-year survival, respectively (Figure 3H), indicating that patients who had low risk experienced better prognosis compared to those with high risk.

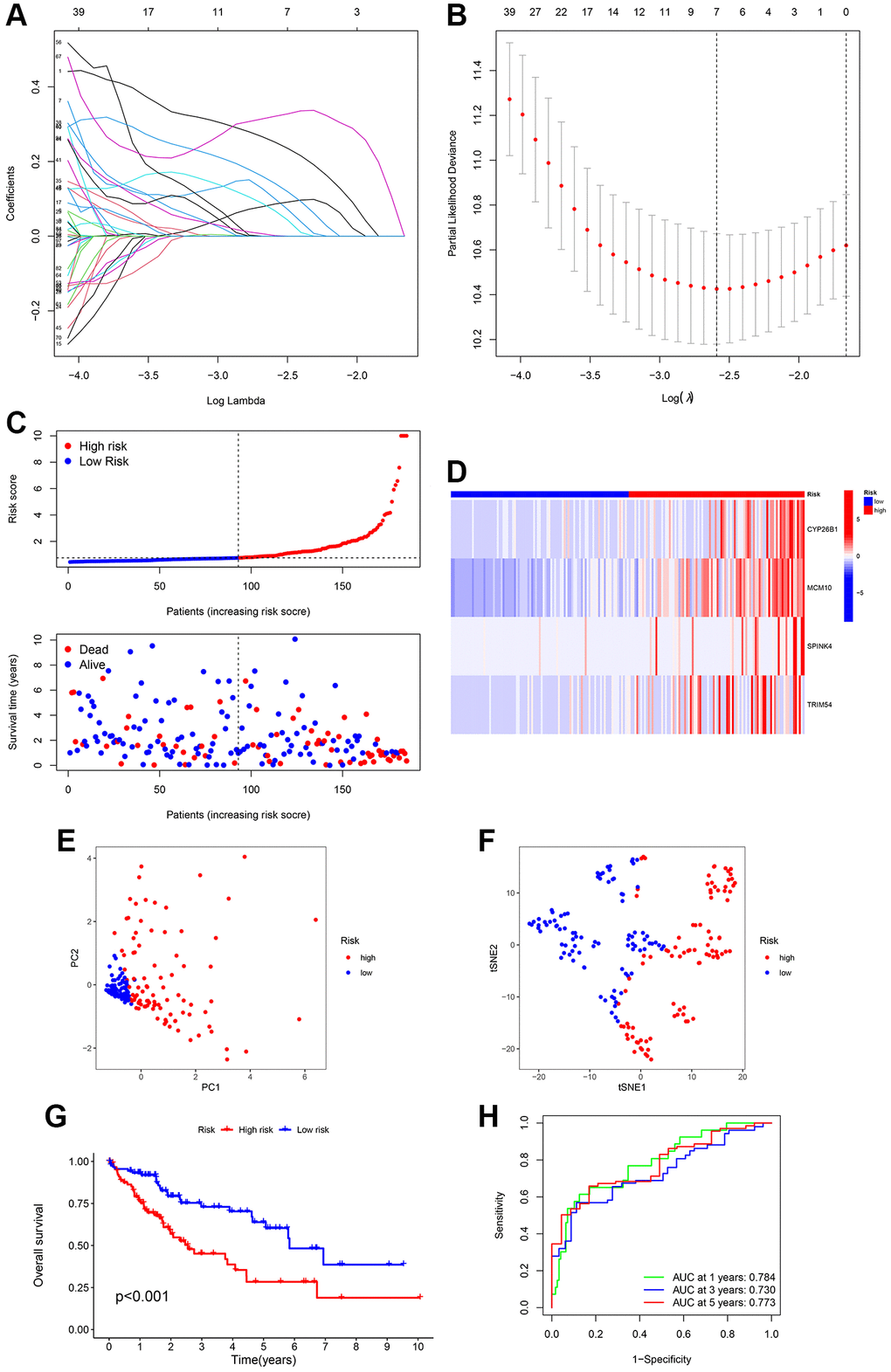

Figure 3. Creation of a signature related to ubiquitination from four genes in various clusters of HCC patients. LASSO Cox regression analysis penalizes genes that are expressed differentially (DEGs). (A, B) Cross-validation of potential genes using the lowest lambda value. (C) The risk score determines the survival time and status of every patient with HCC. (D) The expression of the four URGs in the low- and high-risk groups can be visualized through a heatmap. (E, F) Analysis of the signature using principal component analysis (PCA) and t-distributed stochastic neighbor embedding (t-SNE) was performed. (G) Comparative analysis of survival rates in two different risk subcategories. (H) The accuracy of the signature can be evaluated by analyzing the ROC curves for 1, 3, and 5 years.

The construction and verification of the risk signature

To ensure the stability and precision of the prediction signature, we evenly split all HCC patients in TCGA-LIHC into the internal training and test set. We obtained an additional microarray dataset (ICGC-LIRI-JP) from the ICGC database as an external test set for validating the risk-related signature. Survival analysis using the K-M method was performed on the internal-test set, internal-all set, and external-test set. We found that low-risk HCC patients had a considerably more favorable prognosis compared to high-risk HCC patients (p = 0.010, p < 0.001, and p < 0.001, respectively) (Figure 4A–4C). The analysis of the ROC curve demonstrated that the AUCs of survival rate in the internal-test set were 0.753 (1-year), 0.706 (3-year), and 0.681 (5-year). In the internal-all set, the AUCs were 0.762 (1-year), 0.702 (3-year), and 0.673 (5-year). Furthermore, in the external-test set, the AUCs were 0.736 (1-year), 0.716 (3-years), and 0.856 (5-years), indicating the consistent and reliable predictive ability of the signature (Figure 4D, 4E). These results further confirmed that the prognosis of high-risk patients was worse than low-risk patients.

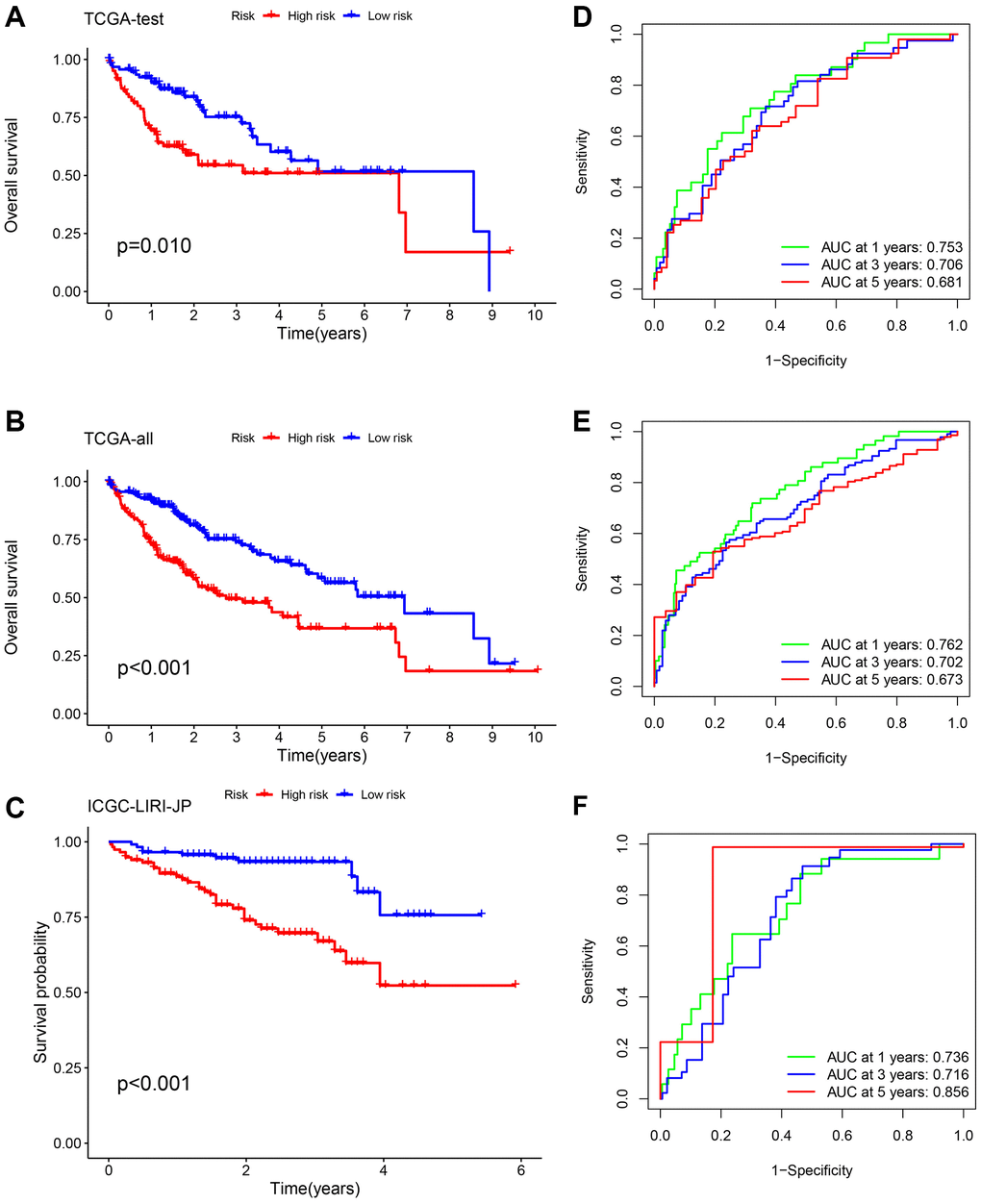

Figure 4. Validation of the risk signature. Survival analysis using the K-M method was performed on three different sets: the TCGA-test set (A, D), the TCGA-all set (B, E), and the ICGC-LIRI-JP set (C, F). To assess the precision of the signature, we utilized ROC curves for 1-, 3-, and 5-year intervals.

Evaluation of the practical usefulness of the prognostic indicator

Afterward, an examination was conducted to explore the correlation between the clinical attributes and risk scores. Subgroup analysis was conducted to validate the trustworthiness of the risk model. We confirmed the variations in survival rates among different cancer subgroups, such as age, gender, Grade stage, T stage, and clinic stage (Figure 5). The results indicate that compared to the low-risk group, the high-risk group had a more unfavorable prognosis. Multivariate Cox analysis demonstrated that our risk-related signature possessed autonomous predictive significance. The existing analysis of additional stratification for different clinical features had also established robust prediction capabilities for signature.

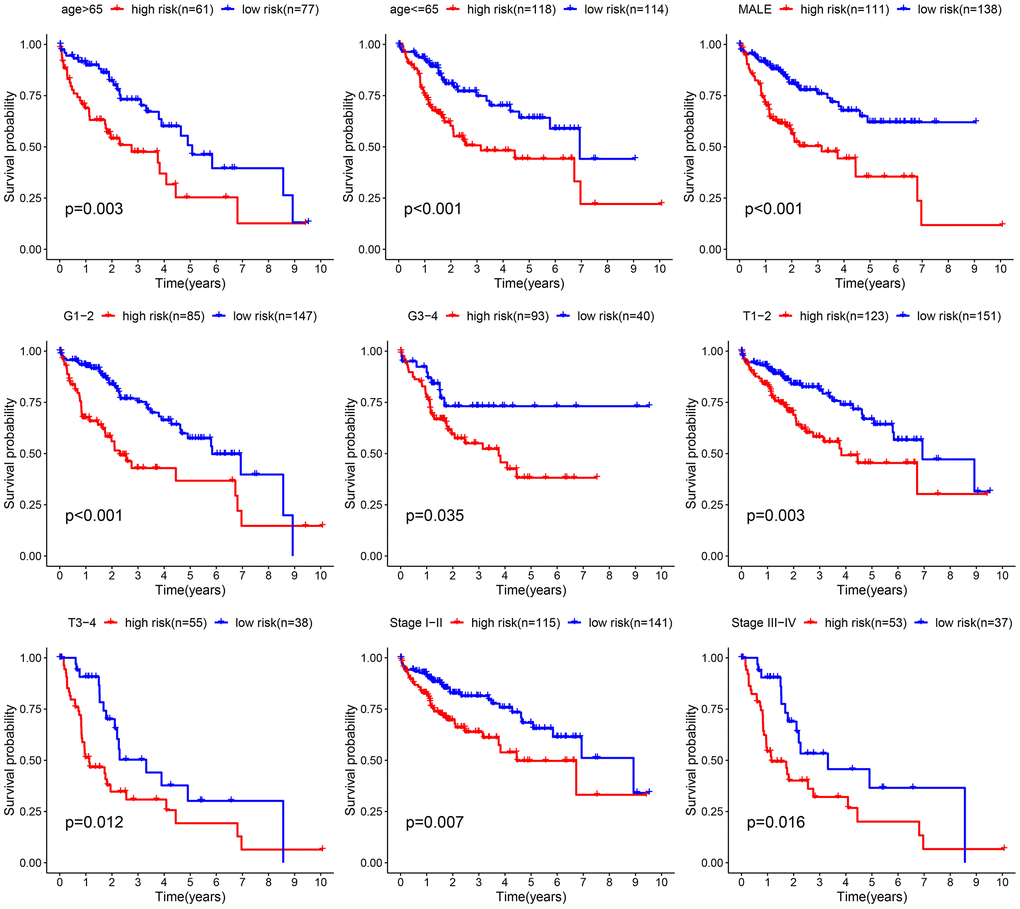

Figure 5. Comparative survival analysis among high- and low-risk groups across various clinical subgroups.

The construction and verification of the prognostic nomogram

Compared to another four published signatures for HCC, our signature had more advantages. To assess the precision and consistency of the predictive signature, we discovered that our signature had a concordance index (C-index) of 0.7, which outperformed the C-index values of the other four predictive signatures for HCC (0.631, 0.658, 0.624, 0.641, respectively) as shown in Figure 6A. Risk scores were considered as independent analytical indicators by using analyses of multivariate and univariate Cox regression (Figure 6B, 6C). A prognostic nomogram was utilized to generate distinct numerical probabilities for OS (Figure 6D), with considering various risk scores and clinical characters. We generated the calibration curve of the nomogram, and accurately predicted the 1, 3, and 5-year OS in comparison to the ideal model (Figure 6E). ROC curves were employed to assess the accuracy of the prognostic of the nomogram and the other signatures. As was shown in Figure 6F–6H, the AUC values for survival were 0.649 (1-year), 0.744 (3-year), and 0.811 (5-year). The nomogram had a stronger long-term predictive ability for prognosis than risk scores and other clinical characters.

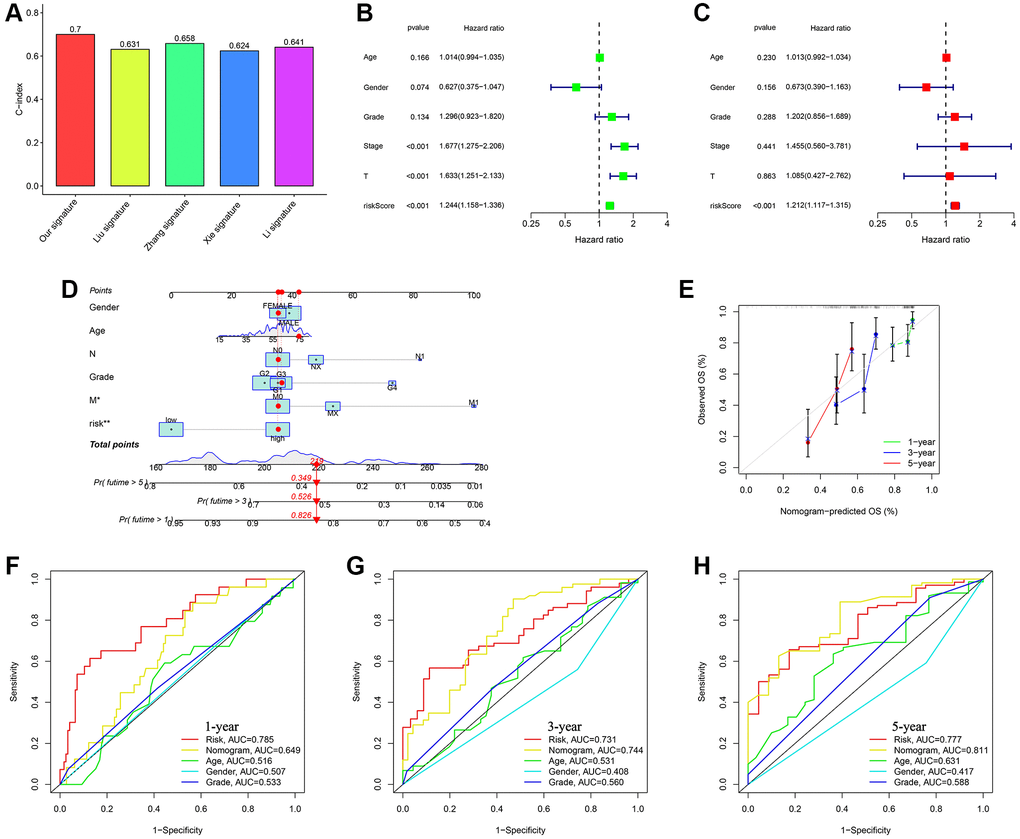

Figure 6. Assessing the durability of the gene signature associated with ubiquitination and creating the nomogram. (A) Evaluating four HCC models for comparison. (B) Cox analysis for TCGA-all set, considering only one variable at a time. (C) Cox analysis for TCGA-all set, considering multiple variables as independent factors. (D) The risk score and clinicopathological factors were used to create a predictive nomogram. (E) Calibration curves were created to compare the suggested nomogram with a perfect model. ROC curve analysis using multiple indices was conducted to examine the clinicopathological manifestations and nomogram for survival at 1-, 3-, and 5-year intervals (F–H).

Analyzing the immune response variations within different subcategories

Prior research has indicated that tumor microenvironment (TME) plays an important role in the progression of tumors. To examine the variations in immune-related annotations and immune cell infiltration among subtypes, we conducted ssGSEA. Using seven distinct algorithms, we estimated the variances in infiltration of immune cells among subtypes, as depicted in Figure 7A. The bubble chart demonstrated the correlation between the immune cells and risk score. According to the prior investigation, we categorized individuals with HCC into four subtypes of tumor immune microenvironment (TIME), which are immune activation (C1), immune suppression (C2), immune exclusion (C3), and immune residence (C4) phenotypes (as shown in Figure 7B). The C1 and C2 subtypes have a higher proportion of individuals in the group of high-risk, whereas the C3 and C4 subtypes have a higher proportion of individuals in the group of low-risk. In the low-risk subgroup, B cells, DC, CD8+ T cells, neutrophils, mast cells, NK cells, T helper cells, pDC, and TIL infiltrated more frequently, whereas aDCs, Th1 cells, iDC, Th2 cells, macrophages, Tfh, and Tregs infiltrated more frequently in the group of high-risk (Figure 7C). The group of low-risk typically exhibited greater significance in terms of CCR, cytolytic function, promotion of inflammation, response to Type I IFN, response to Type II IFN, and co-stimulation of T cells. Figure 7D demonstrates that the high-risk group typically exhibits greater importance in terms of other immune-related functions. High TIDE was also linked to the low-risk score (Figure 7E). Immunotherapy responses were significantly correlated with groups containing low- and high-risk samples, and it was observed that therapy responses were better in HCC patients classified as high-risk (Figure 7F).

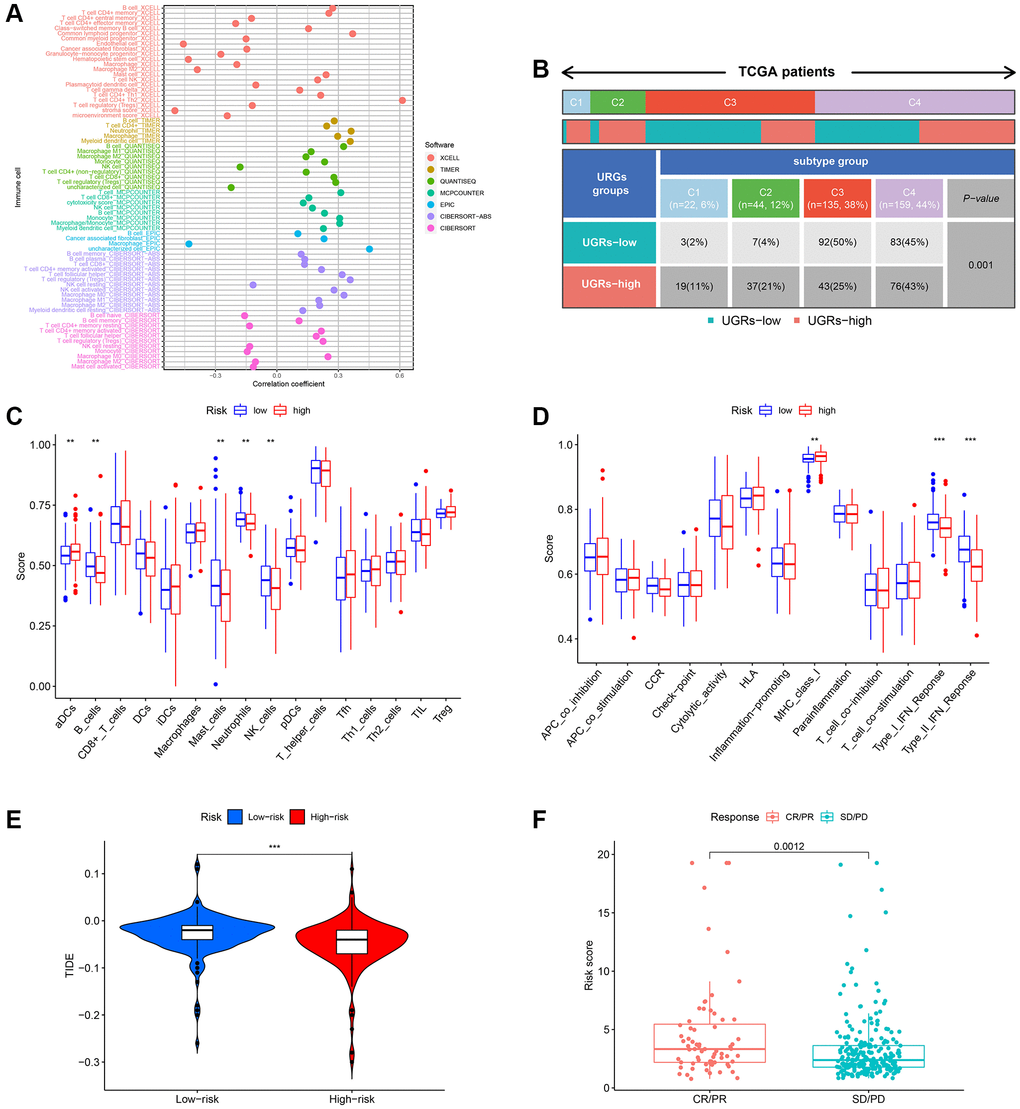

Figure 7. Evaluation of the infiltration of immune cells. (A) The XCELL, TIMER, QUANTISEQ, MCPCOUNTER, EPIC, CIBERSORT-ABS, and CIBERSORT algorithms were utilized to conduct correlation analysis between risk score and various immune cells. (B) The prevalence of TIME subtypes among TCGA patients. (C) Graphical representation of the infiltration of immune cells using a boxplot. (D) Boxplot illustrating the functionality of the immune system. (E) The TIDE score difference between the high-risk and low-risk groups. (F) Evaluating the risk score between the CR/PR and SD/PD groups. CR represents complete response, PR represents partial response, SD represents stable disease, and PD represents progressive disease.

Conducting functional enrichment analysis for HCC with high and low risk

To further explore the presumed cellular role and pathway of HCC patients at high and low risk, the DEGs between the two subgroups were determined using the benchmarks of FDR < 0.05 and p < 0.05. According to the BP analysis, the three most enriched functions were processes related to the division of organelles, processes related to nuclear division, and processes related to chromosome segregation (Figure 8A). According to the CC analysis, the chromosomal region, spindle, and microtubule were identified as the three most enriched functions (Figure 8A, 8B). According to the MF analysis, it was confirmed that the functions of binding to tubulin, binding to microtubules, and hydrolyzing ATP were the most enriched activities (as shown in Figure 8A, 8B). Based on the KEGG analysis, the five most enriched pathways were cell cycle, microRNAs in cancer, cellular senescence, oocyte meiosis, and infection of human T-cell leukemia virus 1 (as shown in Figure 8C, 8D). These four URGs may utilize the P53 signaling pathway as a potential pathway. Furthermore, as depicted in Figure 8E, the GSVA heatmap revealed notable variations in enrichment functions between the high and low-risk cohorts.

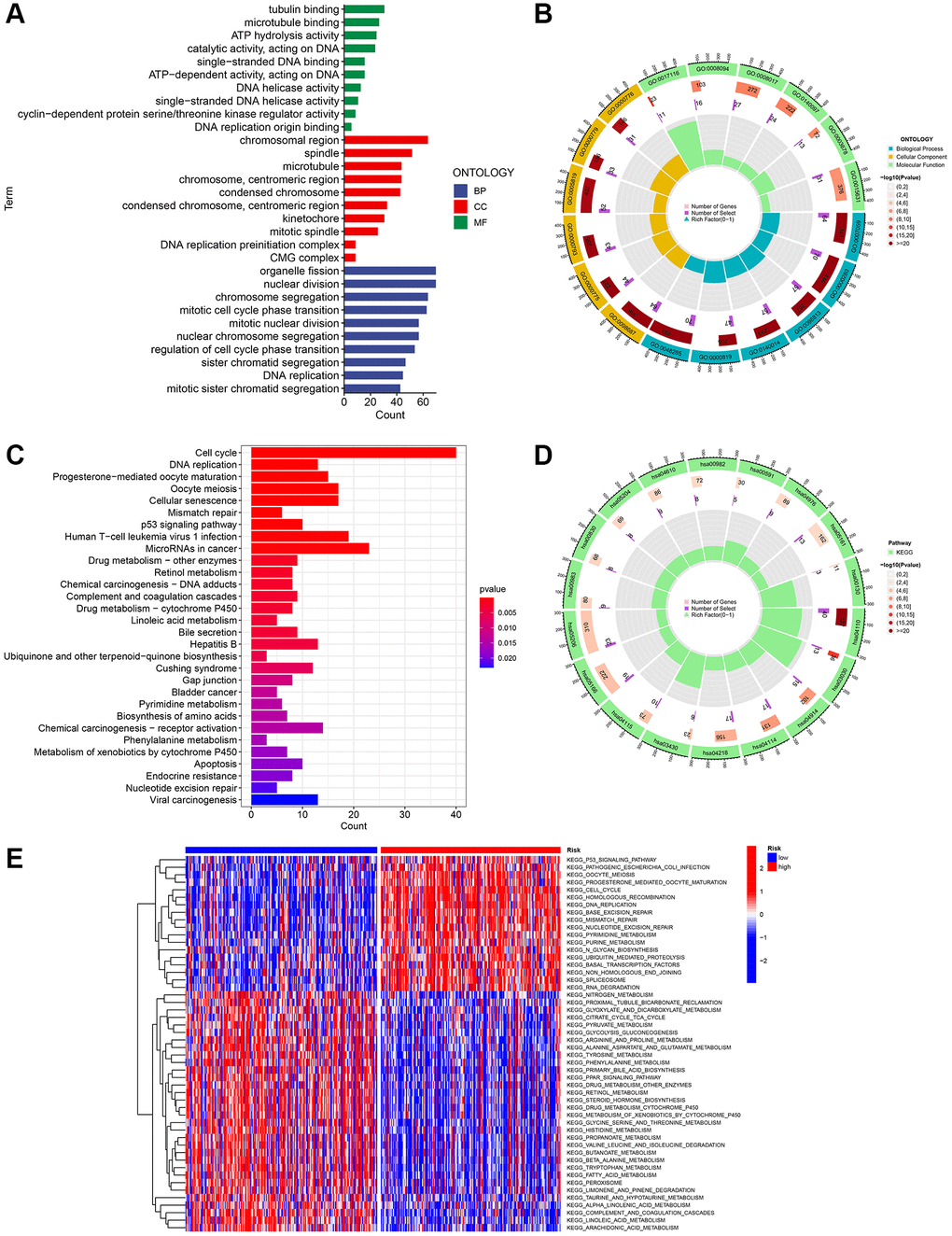

Figure 8. Investigation of the gene signature related to ubiquitination in the entire TCGA dataset using functional analyses. (A, B) Performing GO enrichment analysis on differentially expressed genes (DEGs) between the high-risk and low-risk groups. (C, D) Performing KEGG enrichment analysis on differentially expressed genes (DEGs) between the high-risk and low-risk groups. (E) Analysis of gene set variation (GSVA) in the high-risk and low-risk groups.

Anticipating responsiveness to chemotherapy medications

At present, chemotherapy continues to be the primary approach for adjuvant treatment in patients diagnosed with HCC. Nevertheless, numerous individuals tend to acquire resistance to medications used in chemotherapy. In this present investigation, we anticipated the reaction of subsets to specific chemotherapy medications (Figure 9). The findings indicated that VX-11e, AKT inhibitor VIII, AT-7519, BMS345541, Bortezomib, CP466722, FMK, and JNK-9L exhibited greater effectiveness in treating low-risk HCC patients, implying potential benefits for this specific group of patients. Furthermore, it was discovered that HCC patients at high risk exhibited elevated estimated IC50s for erlotinib compared to those at low risk.

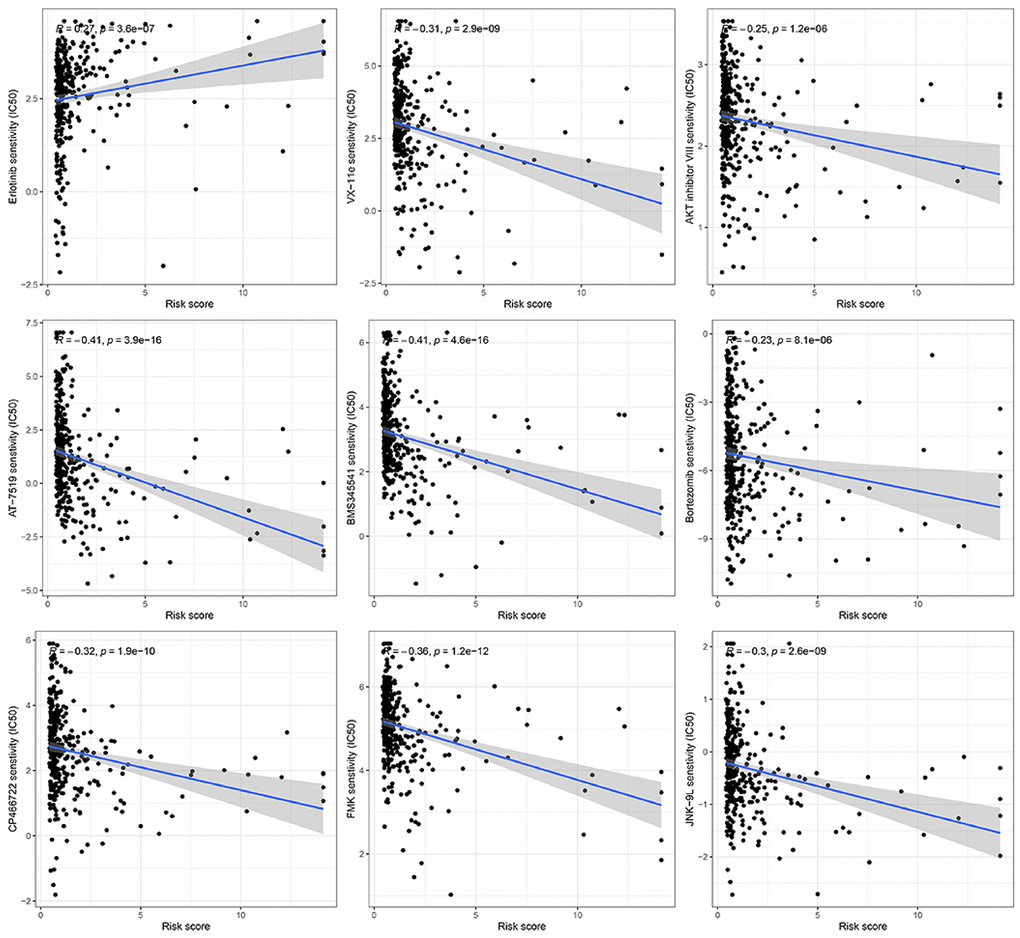

Figure 9. Prediction of the response to chemotherapy using a gene signature associated with ubiquitination.

Real-time quantitative polymerase chain reaction

Predictive biomarkers for HCC were confirmed to be four genes that formed the ubiquitination-related signature. As shown in Figure 10, the mRNA expression of CYP26B1, MCM10, SPINK4, and TRIM54 was compared and measured using RT-qPCR to determine transcription levels. Tumor tissues exhibited elevated expression levels of CYP26B1, MCM10, SPINK4, and TRIM54 compared to normal liver tissues, as indicated by the results.

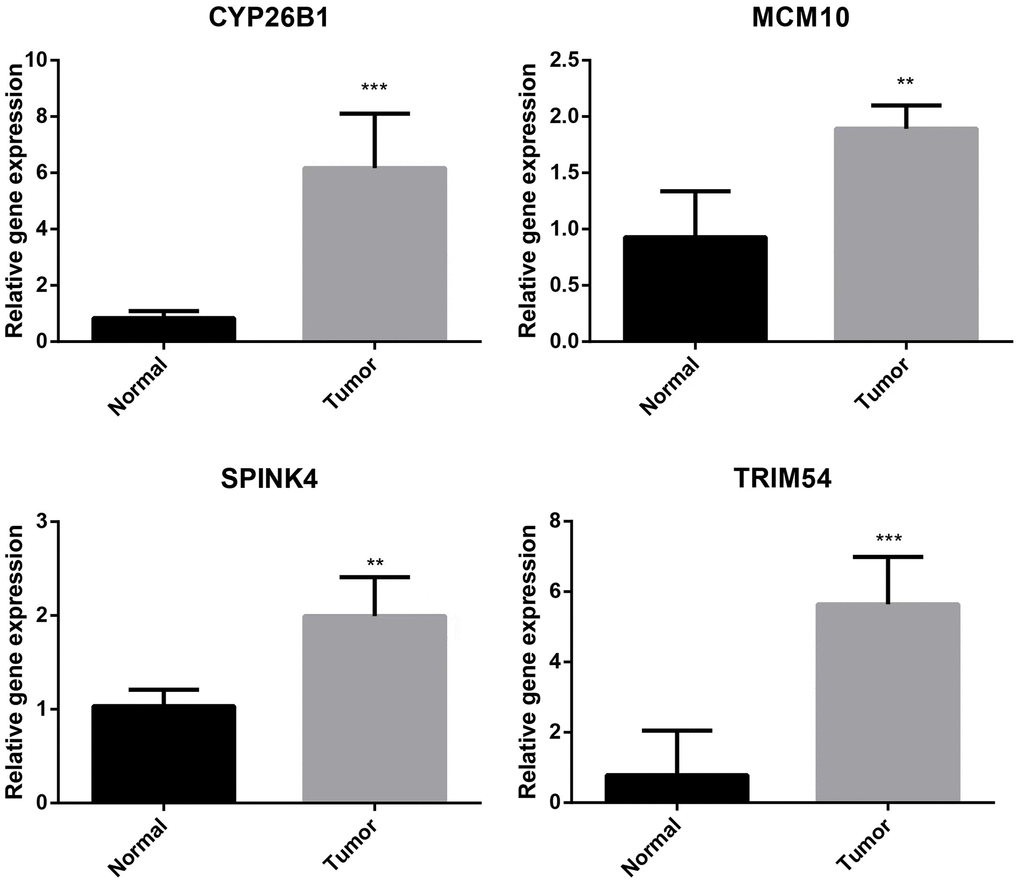

Figure 10. Validation of CYP26B1, MCM10, SPINK4, and TRIM54 through prognostic analysis and RT-qPCR.

Immunohistochemistry of the UEGs in liver tissue

Immunohistochemistry analysis showed that CYP26B1, MCM10, SPINK4, and TRIM54 were highly expressed in tumor tissue compared to normal tissue (Figure 11). Tumor tissues exhibited high expression levels of CYP26B1, MCM10, SPINK4, and TRIM54 in the current study.

Figure 11. Immunohistochemistry of CYP26B1, MCM10, SPINK4, and TRIM54 expression in tumor tissue and normal tissue.
