Identification of a circadian-based prognostic signature predicting cancer-associated fibroblasts infiltration and immunotherapy response in bladder cancer

Data acquisition and processing

The bulk RNA-sequencing (RNA-Seq) data along with clinical information were retrieved from the TCGA-BLCA database (https://portal.gdc.cancer.gov). The 24 core circadian rhythm genes (CCRGs), namely ARNTL, ARNTL2, CLOCK, CRY1, CRY2, PER1, PER2, PER3, TIMELESS, BHLHE41, BHLHE40, CSNK1D, CSNK1E, DBP, FBXL3, HLF, NFIL3, NPAS2, NR1D1, NR1D2, RORA, RORB, RORC, and TEF, were sourced from previously published literature [15, 16]. Different expression of these genes between normal and tumor bladder tissue was analyzed using the “edgeR” package, with thresholds set at |log2FC| > 1.0 and p < 0.05.

Furthermore, the RNA expression data of BLCA, including GSE32894 (308 urothelial carcinomas), GSE13507 (165 primary bladder cancer patients), GSE149582 (12 de novo muscle-invasive bladder cancer and 14 progressive muscle-invasive bladder cancer samples), GSE128192 (28 cases of sarcomatoid carcinomas and 84 cases of conventional urothelial carcinomas), and the immunotherapy data GSE67501 (11 renal cell carcinoma samples from patients receiving anti-PD-1 immunotherapy), GSE78220 (28 melanoma samples from patients receiving anti-PD-1 immunotherapy), GSE35640 (65 melanoma samples from patients receiving MAGE-A3 immunotherapy), were obtained from the Gene Expression Omnibus (GEO) database. The BLCA immunotherapy data IMvigor210 (298 metastatic urothelial cancer samples from patients receiving PD-L1 blockade immunotherapy) study were acquired from the website (http://research-pub.gene.com/IMvigor210CoreBiologies/).

BLCA subtype classification

The differentially expressed CCRGs between low- and high-stage of BLCA were utilized to subtype patients through the unsupervised clustering analysis using the “ConsensusClusterPlus”R package. The K-means clustering algorithm was used to identify stable circadian-based subgroups within BLCA. Since k = 2 is sufficient for well-separated subgroups, the patients were separated into subgroup 1 and subgroup 2 (C1 and C2). Subsequently, differentially expressed genes (DEGs) between the circadian-based subgroups were analyzed using the “edgeR” package, with thresholds set at |log2FC| > 1.0 and FDR < 0.01. Then, Gene Ontology (GO) enrichment analysis and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis were performed using the “clusterProfiler” R package to uncover the functional roles of the DEGs between the C1 and C2 rhythm-related subgroups.

Construction and validation of risk model

DEGs between the circadian-based subgroups implicated in the fibroblast-related signals were subjected to univariate Cox regression analysis to identify prognostic genes. Subsequently, the selected genes underwent further screening via Lasso and multivariate Cox regression analysis to establish a prognostic model.

To validate the risk model, patients were categorized into high- and low-risk groups based on the median risk score. The overall survival (OS) was then compared between the two groups using the “survminer” R package. The prediction accuracy of the signature was assessed by constructing a time-dependent receiver operating characteristic (ROC) curve using the “survival” R package. Additionally, “FactoMineR” package was used to perform principal component analysis (PCA). Furthermore, a nomogram, integrating clinical characteristics and the risk score, was created using the “rms” R package to estimate the probability of OS in BLCA at 1, 3, and 5 years.

Gene set enrichment analysis (GSEA) of the risk model

GSEA analysis between the high- and low-risk groups was carried out using the GSEA 4.3.2 software. Discrepancies in pathways were analyzed using the Canonical Pathways gene sets (CP) which derived from the KEGG, Pathway Interaction Database (PID) and Reactome pathway databases. Variations in cell types were analyzed using the Curated Cancer Cell Atlas (3CA) metaprograms gene sets which consist of genes that are coordinately upregulated in subpopulations of cells within tumor [17], as well as the Cell Type Signature gene sets containing curated cluster markers for cell types identified in single-cell sequencing studies. Furthermore, specific genes were analyzed using the Oncogenic Signature gene sets and Transcription Factor Targets gene sets (TFT) [18, 19].

Tumor stromal score and immune landscape evaluation

The stromal score and immune landscapes of TCGA-BLCA were assessed using a variety of algorithms, including the ESTIMATE [20], CIBERSORT [21], EPIC [22], XCELLp [23], MCPCounter [24], QUANTISEQ [25] and TIMER [26]. Additionally, Tumor Immune Dysfunction and Exclusion (TIDE) scores of TCGA-BLCA were downloaded from the official website http://tide.dfci.harvard.edu/download/. Differences of the stromal score, immune landscapes and checkpoint genes expression between the high- and low-risk groups were analyzed by the “limma” R package.

Drug sensitivity prediction

The Genomics of Drug Sensitivity in Cancer 2 (GDSC2) database were downloaded from the GDSC website (https://www.cancerrxgene.org/). Drug sensitivity of each BLCA patient was estimated using the “oncoPredict” R package [27]. The “oncoPredict” algorithm used the GDSC2 expression matrix and drug response data as training data to compute the inhibitory concentration (IC₅₀) value for 198 chemotherapeutic agents, based on the RNA expression data from the samples provided by the users.

Bioinformatic platforms

The mutation and CNV alteration patterns of the 24 core CCRGs in the TCGA-BLCA were analyzed via the cBioPortal platform (https://www.cbioportal.org). Correlation of FAM20C, TBX1 with exhausted T-cell and effector Treg cells was analyzed using the GEPIA2 (http://gepia2.cancer-pku.cn). The correlated expression as well as the Kaplan-Meier curves of FAM20C, TBX1 gene with CAFs were analyzed through the TIMER2 (http://timer.comp-genomics.org/timer/). The correlation of FAM20C mRNA expression with OS in BLCA patients (including bladder [28, 29] and urothelial cancers [30] receiving ICB immunotherapy) was analyzed through the Kaplan-Meier plotter (https://kmplot.com).

Statistical analysis

R software version 4.2.2 (R Foundation for Statistical Computing, Vienna, Austria) (http://www.R-project.org) was used for data analysis. Continuous variables were presented as mean ± standard deviations and compared through Wilcoxon test. Cox proportional hazard model was applied to the independent prognostic factors analysis. Violin diagrams and boxplots were drawn by the “ggplot2” and “ggpubr” R packages. The correlated expression of the risk genes with the CCRGs was analyzed by the “corrplot” R packages. Statistical significance is defined as *p < 0.05, **p < 0.01, and ***p < 0.001.

Dysregulation of circadian rhythm genes in BLCA tissues

The mutation rate of most CCRGs in bladder cancer tissues was less than 2%. Likewise, the frequency of copy number variation (CNV) alterations is also low, with the majority being lower than 4% (Supplementary Figure 1). Given the low frequent genetic alterations, our focus shifted to the differentially expressed mRNA. Among the 24 CCRGs, three genes were found to be up-regulated and five genes were down-regulated in tumors compared to normal tissues (Figure 1A, 1B).

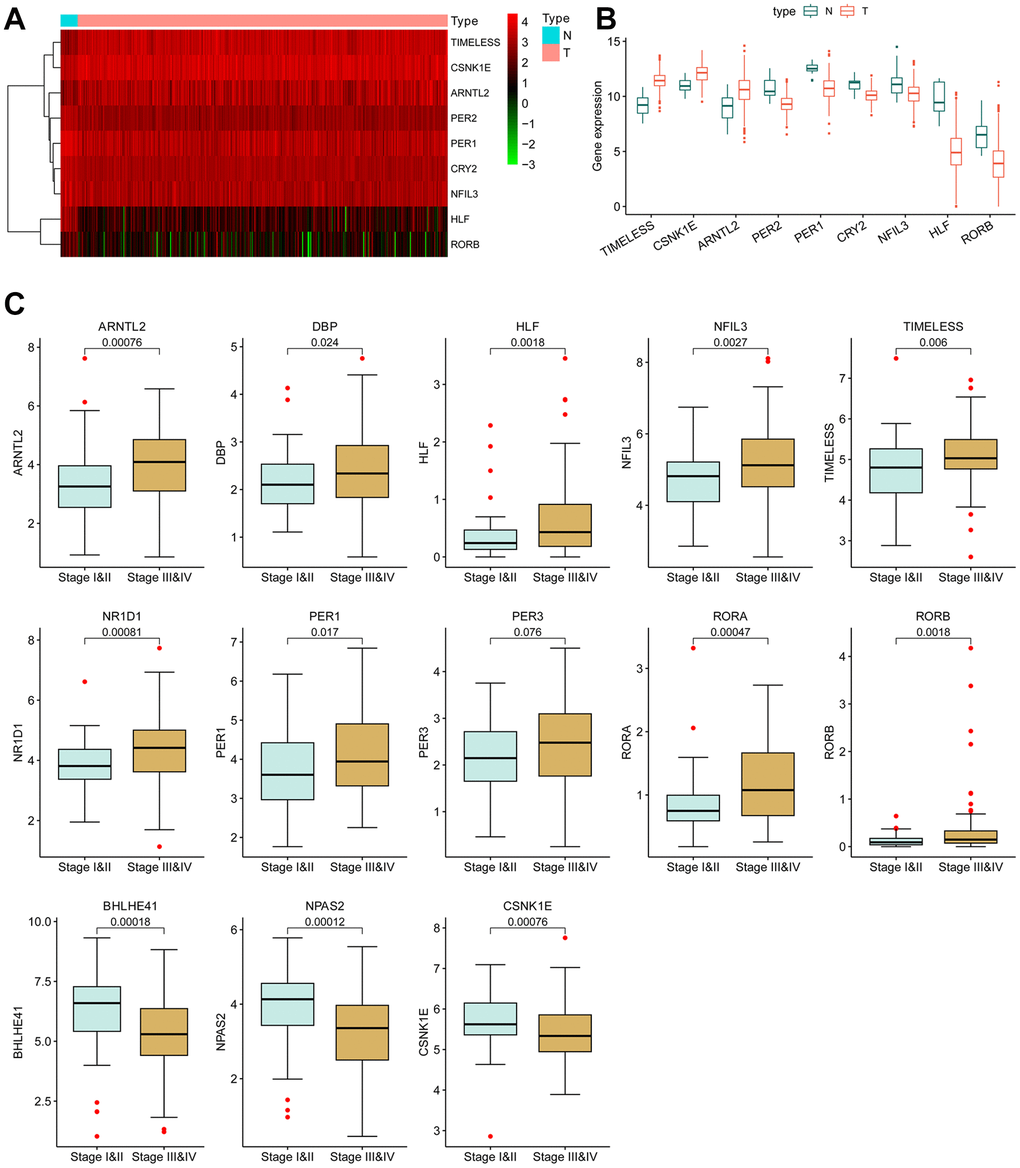

Figure 1. Differentially expressed circadian rhythm genes in BCLA. (A) Heatmap and (B) boxplot of the differentially expressed CCRGs mRNAs between BLCA tumors and normal tissues. (C) The correlation of CCRGs mRNAs with tumor stages.

Furthermore, the dysregulated expression of CCRGs was observed to be correlated with tumor stage. In comparison to low-stage tumors (stage I and II), ten CCRGs were up-regulated and three CCRGs were down-regulated in the high-stage tumors (stage III and IV) (Figure 1C). These findings suggest a potential contribution of CCRGs to the malignant progression of BLCA.

BLCA sub-clustering based on CCRGs expression

The circadian clock exerts biological functions through regulating target genes expression. Therefore, the differentially expressed CCRGs may give rise to subgroups of tumors with distinct gene expression profiles. Based on the 13 differentially expressed CCRGs between low- and high-stage tumors (Figure 1C), the TCGA-BLCA patients were clustered into two subgroups (C1 and C2) (Figure 2A). C2 subgroup exhibited significantly worse OS compared to C1 (P <0.001, Figure 2B). In addition, the circadian-related subgroups were associated with clinicopathological features. The C2 subgroup included more patients in higher tumor stages (stage III and IV) and higher pathological T and N stage (Figure 2C). Moreover, the C2 subgroup demonstrated notably higher ESTIMATE, immune and stromal scores, but lower tumor purity (Figure 2D). These results suggested that the CCRGs- based BLCA subgroups have distinct TME profiles and prognostic outcomes.

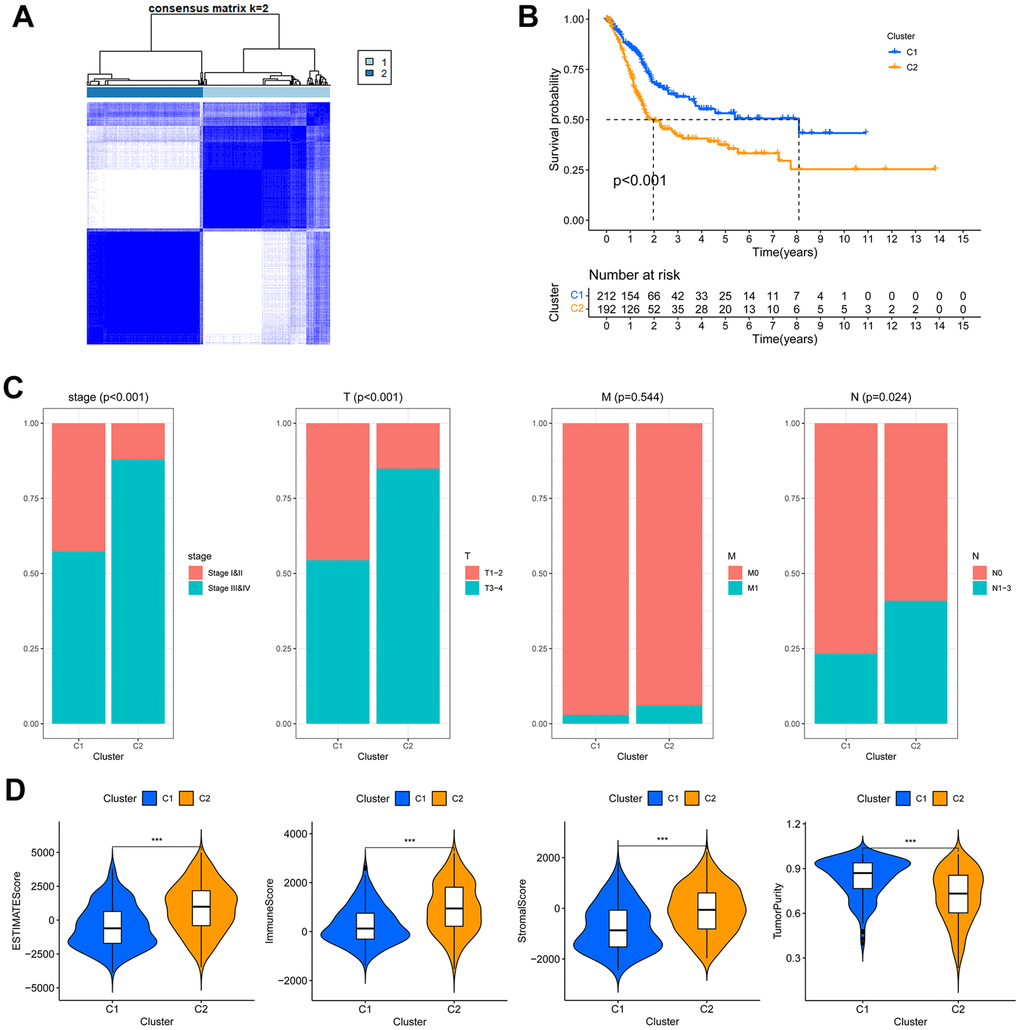

Figure 2. The circadian rhythm-based subgroups of TCGA-BLCA. (A) The TCGA-BLCA was divided into two circadian rhythm-based subgroups via unsupervised clustering. (B) Kaplan-Meier analysis of the OS of C1 and C2 subgroups. (C) Association of the circadian rhythm-related subgroups with stage and pathological T/M/N stages. (D) The ESTIMATE, stromal, immune score and tumor purity of the two circadian rhythm-related subgroups, *** p < 0.001.

A substantial number (3426) of differentially expressed genes (DEGs) were found between the C1 and C2 subgroup, with 2410 being up-regulated and 1016 being down-regulated in the C2 subgroup (Supplementary Figure 2A, 2B). GO analysis of these DEGs revealed a significant enrichment in epidermis development, intermediate filament organization, and keratinization, indicating differing cellular phenotypes between the two subgroups. Furthermore, GO terms related to TME constitution and immune cell infiltration, such as leukocyte migration, collagen-containing extracellular matrix, and receptor-ligand activity, were highly enriched in the C2 subgroup (Supplementary Figure 2C, 2D). Likewise, KEGG analysis also demonstrated a high enrichment of pathways relevant to TME constitution in the C2 subgroup, such as ligand-receptor interaction, cytokine-cytokine receptor interaction, Calcium signaling pathway and cell adhesion molecules, etc. (Supplementary Figure 2E). Together, these results indicated that the circadian-based C2 subgroup exhibits a highly active TME and poor prognosis.

Construction of a risk signature based on the different fibroblasts-related signals between the circadian-based subgroups

In the Biological Processes (BP) of GO, the fibroblast growth factor signals and leukocyte migration process were highly enriched in the DEGs between C1 and C2 subgroup (Figure 3A). Consistently, in the Cellular Component (CC) and Molecular Function (MF) categories, collagen- and immune receptor-related terms were highly enriched (Figure 3A). Considering the pivotal role of fibroblasts in the immunosuppressive tumor microenvironment [31], we consequently directed our attention to the DEGs implicated in the fibroblast growth factor signals and leukocyte migration process. These DEGs were further selected based on their enrichment in more than one biological process (Figure 3B). Ultimately, 31 DEGs were chosen for further investigation, and among them, 13 genes were identified as holding prognostic value (Figure 3C). After Lasso (Figure 3D, 3E) and multivariate Cox regression analysis, 5 genes (OTX2, FAM20C, CXCL13, TBX1, HYAL1) were ultimately selected to construct a risk model. The risk score was calculated based on the mRNA level and the weights of the selected genes as follows:

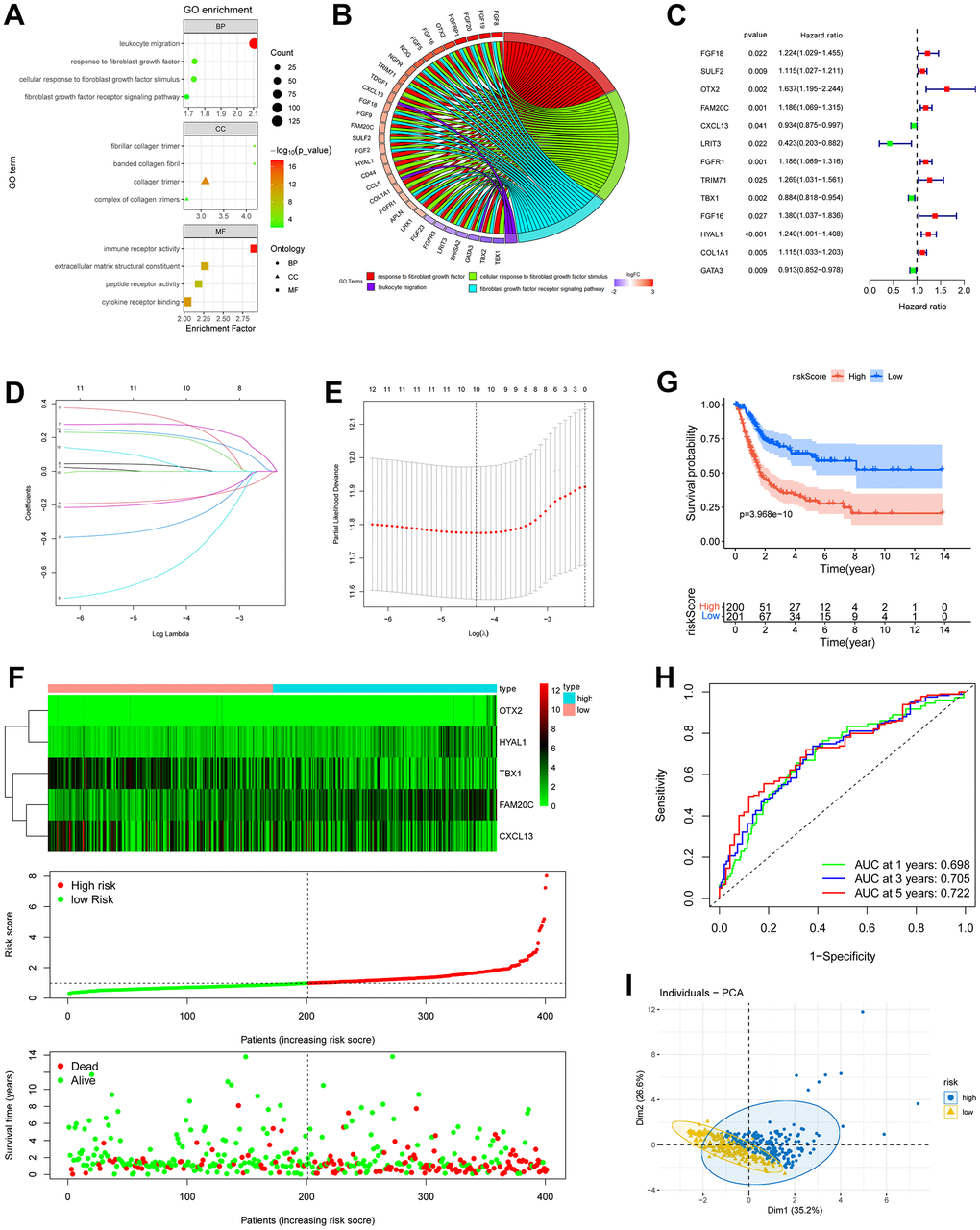

Figure 3. Construction of risk model based on fibroblast growth signal difference. (A) Bubble plot of GO enrichment of fibroblasts-related DEGs between C1 and C2 subgroups. (B) GO chord diagram showed the potential biological processes of the DEGs. (C) Forest plot of the survival-related DEGs obtained by univariate Cox regression, p < 0.05. (D, E) The 13 prognostic DRGs were fed into Lasso regression model. (F) Expression profiles of the risk genes (up), distribution of risk score (middle) and survival status (down) of BLCA patients. (G) Kaplan-Meier survival analysis of BLCA patients based on risk score. (H) ROC curves demonstrated the predictive prognostic value of risk score at 1, 3 and 5 years. (I) PCA analysis map of the high- and low-risk groups.

Risk score = (0.4806) × OTX2 + (0.2076) × FAM20C + (−0.1431) × CXCL13 + (−0.1049) × TBX1 + (0.1385) × HYAL1.

BLCA patients were then stratified into high- and low- risk groups according to the median risk score. A significant worse prognosis was observed along with gradually increasing risk score (Figure 3F). Kaplan-Meier analysis revealed a notably lower overall survival rate in high-risk patients (Figure 3G). The ROC curves demonstrated that the area under the curve (AUC) of the risk score at 1, 3, and 5 years were 0.698, 0.705, and 0.722, respectively (Figure 3H). In addition, the PCA analysis illustrated a clear separation of the high-risk group from the low-risk group along dimension 1 (Figure 3I).

Validation of the risk model

Performance of the 5-gene risk model was validated in GSE32894 (n = 254) and GSE13507 (n = 164) BLCA cohorts. In both cohorts, PCA analysis demonstrated satisfactory separation of the two risk groups (Figure 4A). High-risk patients displayed worse survival probability compared with low-risk patients (Figure 4B). the AUC for predicting 1, 3 and 5-year overall survival were 0.697, 0.758, 0.782 in the GSE32894 cohort, and 0.65, 0.615, 0.631 in the GSE13507 cohort (Figure 4C). These results underscore the prognostic capacity of the risk signature for BLCA.

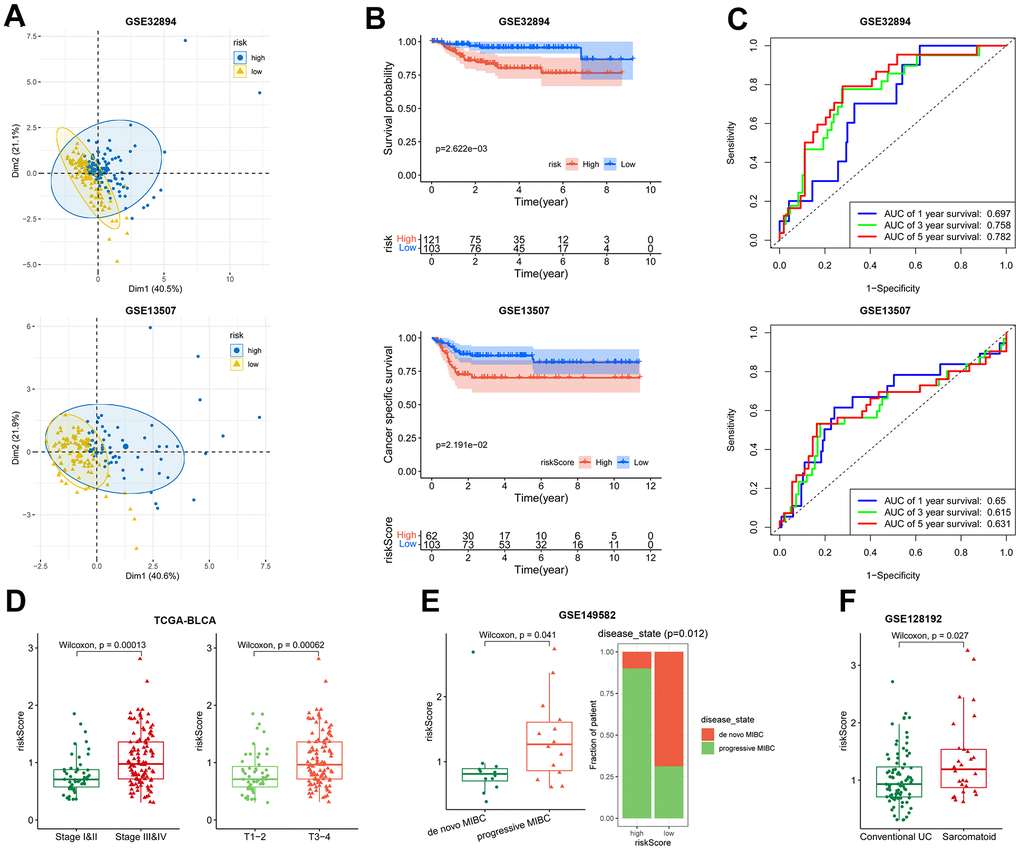

Figure 4. Association of the risk model with overall survival and disease severity. (A–C) The PCA analysis map, Kaplan-Meier survival analysis, and ROC curves of the high- and low-risk patients in GSE32894 (up) and GSE13507 (down) datasets. (D) Plot of risk score according to the stage (left) and T (right) in TCGA-BLCA dataset. (E) Patient’s risk score in de novo MIBC vs. progressive MIBC (left), and composition of the two disease states in high- and low-risk patients (right) in GSE149582 dataset. (F) Patient’s risk score in conventional UC vs. sarcomatoid carcinoma in GSE128192 dataset.

The risk model was found to be linked with disease severity. In TCGA-BLCA, the risk score exhibited a positive correlation with tumor stage. High-stage tumors (stage III-IV, T3-T4) displayed higher risk scores than low-stage tumors (stage I-II, T1-T2) (Figure 4D). In GSE149582 (n = 26) dataset, the progressive muscle-invasive bladder cancer (MIBC), known for its heightened aggressiveness compared to de novo MIBC [32], displayed substantially higher risk scores (Figure 4E). In another BLCA cohort, GSE128192 (n = 112), the risk score of conventional urothelial carcinoma (UC) was less than that of sarcomatoid carcinoma (Figure 4F). The latter is characterized by a mesenchymal phenotype with a pronounced propensity for regional and distant metastasis [33]. Together, these results indicate that the risk signature offers insight into a more aggressive phenotype.

Gene set enrichment analysis (GSEA) between high- and low-risk groups

Genes related to extracellular matrix, including matrix constituent, angiogenesis, ECM-receptor interaction, focal adhesion, integrin pathways and epithelial to mesenchymal transition were enriched in the high-risk group as shown in various gene sets (Supplementary Figure 3). The 3CA metaprograms and the single-cell sequencing gene sets unveiled elevated levels of fibroblasts and endothelial cells in the high-risk group (Figure 5A). Interestingly, the high-risk group exhibited heightened levels of glycosaminoglycan and chondroitin sulfate metabolism (Figure 5B). Further, in the oncogenic signature gene sets, mTOR, YAP, LEF1 and CYCLIN D1 were found to be activated in the high-risk group (Figure 5C). Finally, the TFT gene sets showed amplified levels of transcription factor potential for AP1, ATOH8, TEF1, and NFE2 within the high-risk group (Figure 5D).

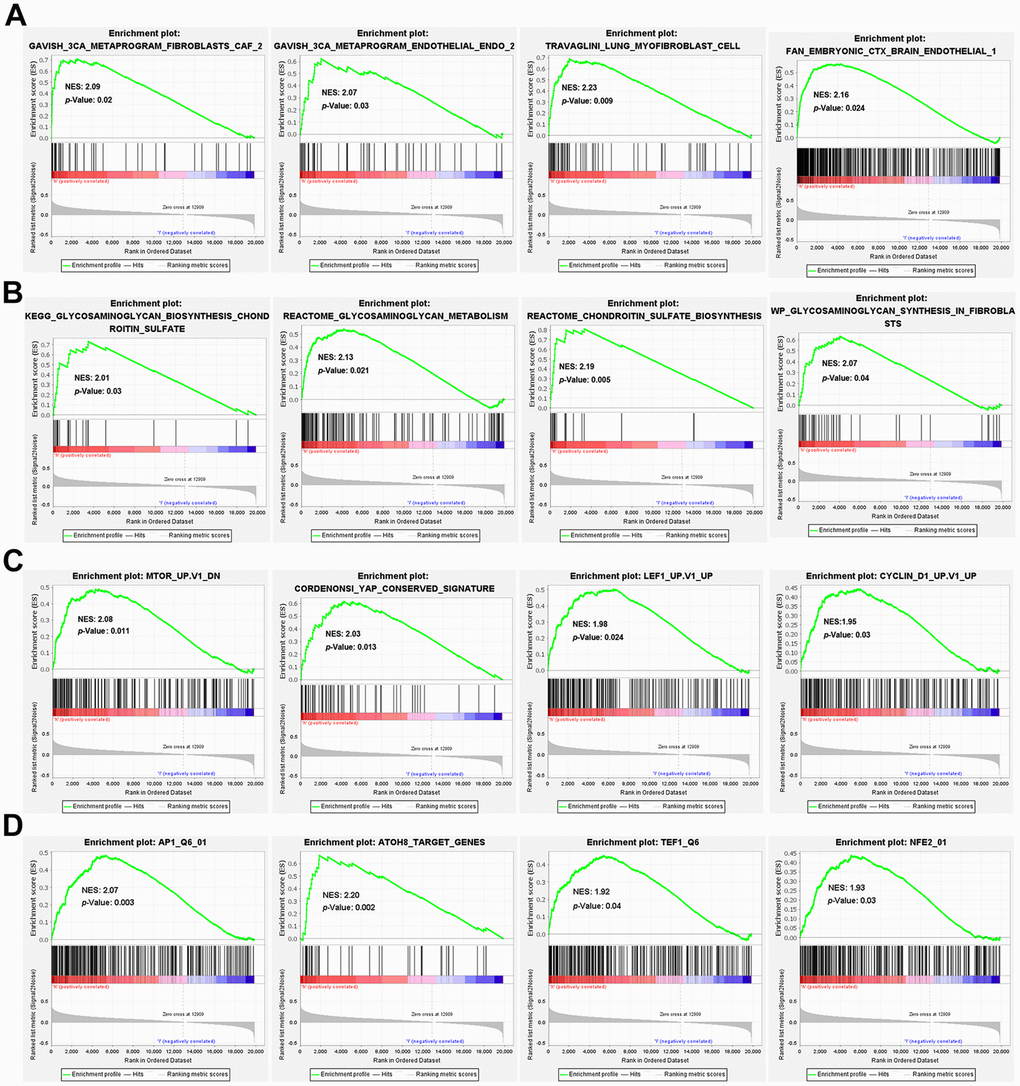

Figure 5. GSEA enrichment between high- and low-risk groups. GSEA enrichment based on (A) the 3CA metaprograms and the cell type signature gene sets, (B) the canonical pathways gene sets derived from the KEGG, Reactome and WikiPathways pathway database, (C) the oncogenic signature gene sets and (D) the transcription factor targets (TFT) gene sets.

Association of the risk model with the immune landscape

Immune landscape analysis using diverse algorithms revealed elevated infiltration of both macrophages (Figure 6A–6F) and CAFs (Figure 6B, 6C, 6F) in the high-risk group. The behavior of CD8⁺T cells exhibited varying trends depending on the specific algorithm employed. CIBERSORT, EPIC and XCELL indicated a decrease in CD8⁺ T cell infiltration in high-risk group (Figure 6A, 6B, 6F). In contrast, TIMER demonstrated increased CD8⁺T cell infiltration in the high-risk group (Figure 6E). Meanwhile, MCPCounter and QUANTISEQ indicated no significant difference in CD8⁺T cell infiltration between the two groups (Figure 6C, 6D). As for B cells, most algorithms suggested no discernible trend of change (Figure 6A–6D). Further, the expression of 38 routine immune checkpoint-related genes in high- and low-risk tumors was compared. Many of those genes, such as HAVCR2, TNFSF9, TNFSF4, PDCD1LG2, CD86, PVR, JAK1, etc., exhibited significant upregulation in high-risk tumors (p < 0.001). However, the most prominent immune checkpoint genes, PDCD1 (PD-1), CD274 (PD-L1), and CTLA4, showed no differential expression between the two groups (Figure 6G). These results indicate that high risk is associated with increased infiltration of CAFs and macrophages.

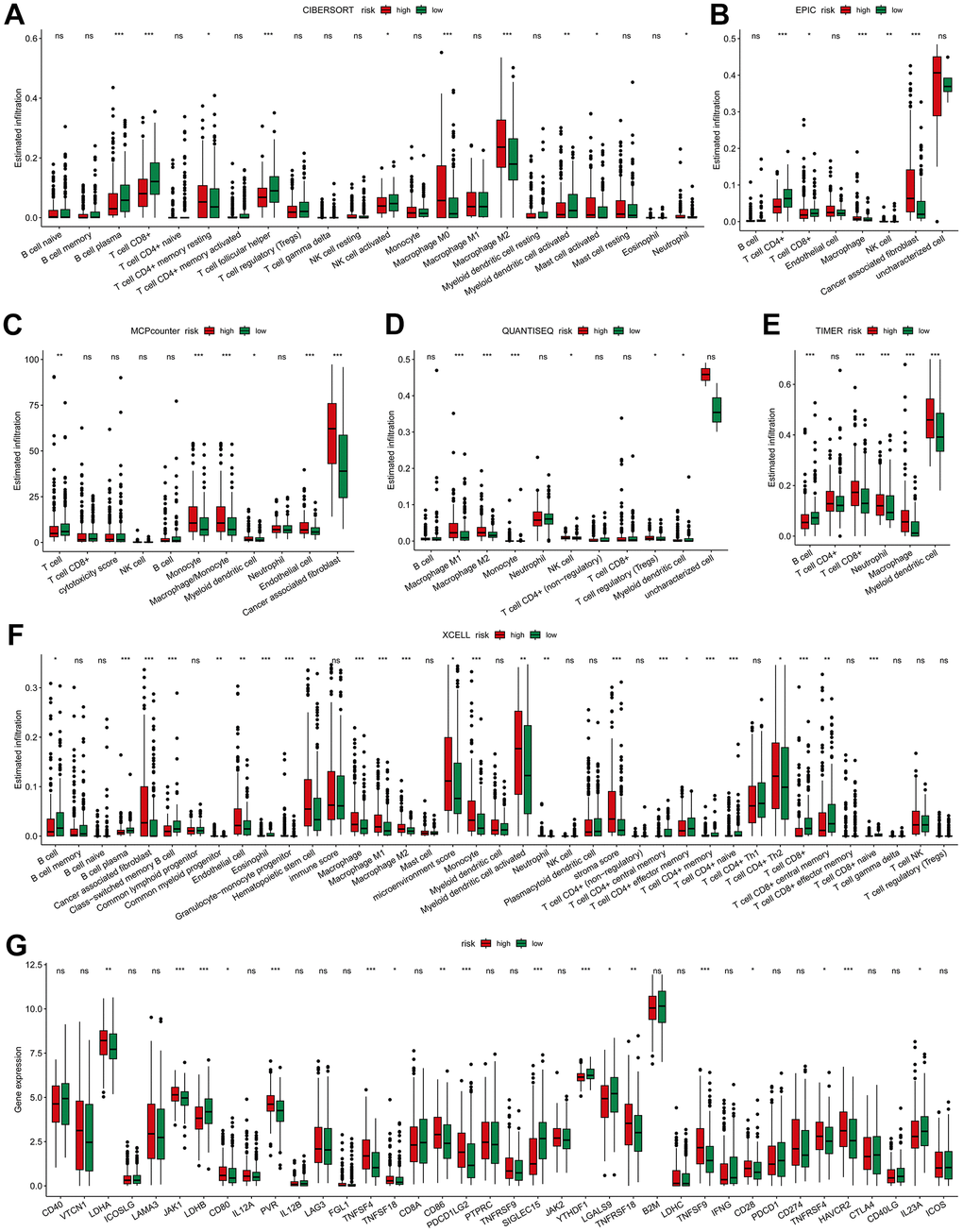

Figure 6. Immune-related association of the risk model. The difference of high- and low-risk groups in tumor immune landscape evaluated by (A) CIBERSORT, (B) EPIC, (C) MCP-Counter, (D) QUANTISEQ, (E) TIMER and (F) XCELL. (G) Differences in the immune checkpoint-related genes expression between high- and low-risk groups. * p < 0.05, ** p < 0.01, *** p < 0.001.

The risk score predicts efficiency of BLCA immunotherapy and chemotherapy

Given that the TIDE score has the ability to predict cancer immunotherapy response [34], we then examined the correlation of the risk model with the TIDE scores. It showed that the high-risk group exhibited a higher T cell exclusion score (Figure 7A), while the T cell dysfunction score showed no significant difference between high- and low-risk groups. This is consistent with the elevated abundance of CAFs in high-risk group (Figure 6B–6D). As T cell exclusion is the major obstacle for efficient BLCA immunotherapy [30]. The risk score may hold predictive value for BLCA immunotherapy.

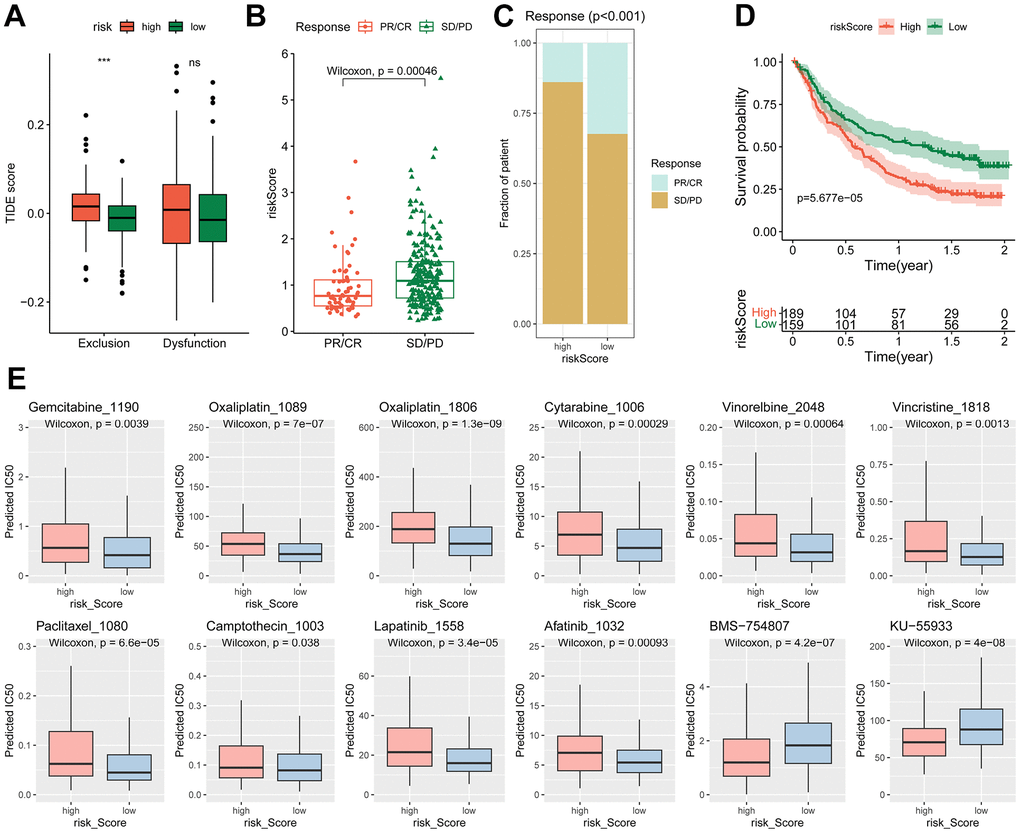

Figure 7. Different immunotherapy response and chemotherapy sensitivity between high- and low-risk groups. (A) Differences of the TIDE score between high- and low-risk groups, *** p < 0.001. (B–D) Relationship of risk score with immunotherapy efficiency in IMvigor210 cohort. (B) Difference of risk score in different response groups. (C) Distribution of different response in high- and low-risk groups. (D) Kaplan-Meier curve of the high- and low-risk patients. (E) The estimated IC₅₀ of chemotherapy drugs.

Subsequently, the predictive effect of risk score for immunotherapy was evaluated. In the Imvigor210CoreBiologies cohort, the non-response patients (SD/PD) had higher risk scores than the response patients (PR/CR) (Figure 7B, 7C). The high-risk group displayed significantly worse overall survival (OS) than the low-risk group (Figure 7D). However, in immunotherapy for other types of tumors, such as non-small cell lung carcinoma (GSE135222) and melanoma (GSE78220, GSE91061), the risk signature failed to predict outcomes (Supplementary Figure 4).

To test the potential value of the risk signature predicting drug sensitivity, the predicted IC₅₀ of 198 drugs were analyzed by the “oncoPredict” R package. The findings revealed that the high-risk group exhibited reduced sensitivity to a majority of traditional chemotherapy drugs, including oxaliplatin, gemcitabine and cytarabine. Similarly, anti-mitotic agents such as vinorelbine, vincristine, paclitaxel, camptothecin, and certain targeted agents, such as lapatinib (an ErbB2 tyrosine kinase inhibitor) and afatinib (an EGFR inhibitor), displayed lower efficacy in the high-risk group. Conversely, certain types of inhibitors, such as BMS-754807 (an IGF1R inhibitor) and KU-55933 (an ATM inhibitor), were found to be more effective in the high-risk group (Figure 7E).

Nomogram construction

The univariate and multivariate Cox regression analyses confirmed that the risk score was an independent prognostic factor for OS (Figure 8A). In multivariate ROC analysis, the risk score displayed a much more favorable performance than traditional prognostic factors in predicting 1-, 3-, 5-year OS (Figure 8B). To better forecast the prognosis of BLCA patients, a nomogram consisting of the risk score and clinical factors was constructed (Figure 8C). The calibration curve showed good performance for prediction of 1-, 3- and 5-year OS (Figure 8D).

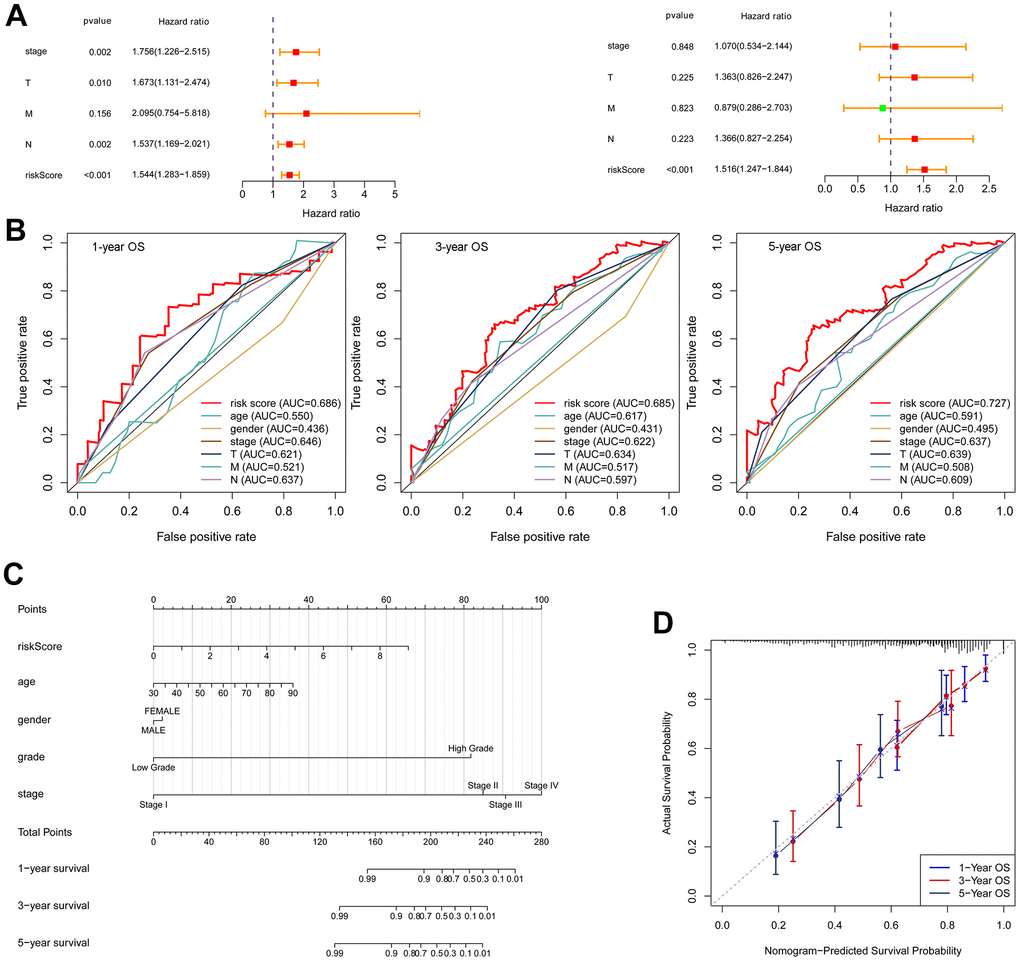

Figure 8. Construction of a nomogram. (A) Univariate Cox regression (left) and multivariate Cox regression (right) indicated the risk score as an independent prognostic factor. (B) ROC curves of the risk score and clinical characteristics. (C) Nomogram consisting of risk score and clinical factors. (D) Calibration curve for validation of the nomogram for estimating survival at 1-, 3- and 5-years.

Correlated expression of the risk genes with the CCRGs

The risk signature was constructed based on the DEGs between CCRG-based subgroups. Therefore, expression of the risk genes is expected to be associated with the CCRGs. Then we analyzed the correlated expression of the risk genes with the CCRGs in TCGA-BLCA, GSE13507 and GSE32894 datasets. In the three datasets, the expression of risk genes was broadly correlated (positively and negatively) with the CCRGs (Figure 9A and Supplementary Figure 5A, 5B). Among the five risk genes, FAM20C and TBX1 displayed the most extensive correlation with the CCRGs. Interestingly, the correlation patterns of FAM20C and TBX1 with CCRG were exactly opposite. FAM20C was positively correlated with HLF and NFIL3, and negatively correlated with NPAS2 and BHLHE41(Figure 9B). On the contrary, TBX1 correlated with these CCRGs in the opposite direction to FAM20C (Figure 9C). Consistent with this result, a negative relationship between FAM20C and TBX1 was observed (Figure 9D). Similar results were obtained in GSE13507 and GSE32894 datasets (Supplementary Figure 5C, 5D). These results indicated a regulatory network consisting of FAM20C, TBX1 and the CCRGs.

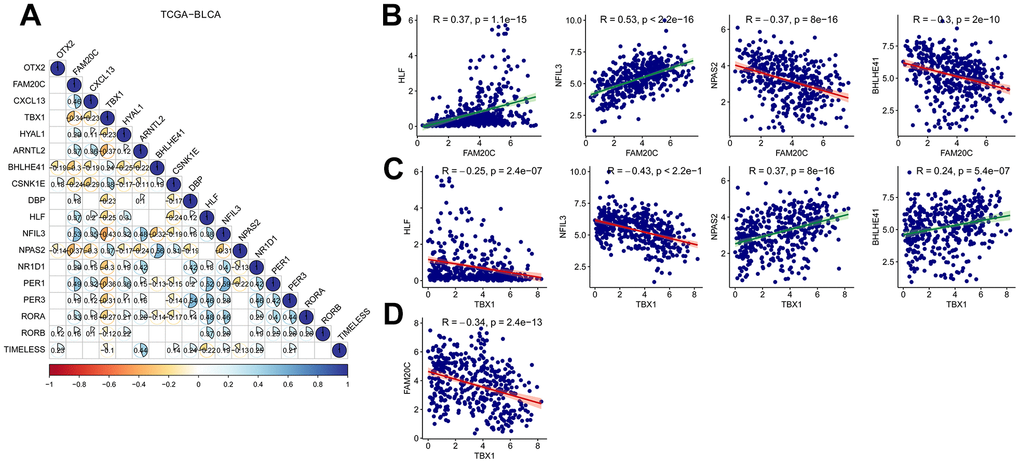

Figure 9. Correlation analysis of risk genes with the CCRDs. (A) Correlated expression of the risk genes with the CCRGs in TCGA-BLCA. (B) Correlated expression of FAM20C and (C) TBX1 with HLF, NFIL3, NPAS2 and BHLHE41. (D) FAM20C expression was negatively correlated with TBX1. Method = “Pearson”.

FAM20C and TBX1 are associated with CAFs infiltration in opposite way

To further identify the hub risk gene affecting the immunosuppressive microenvironment, we analyzed the correlation between the expression of individual risk genes and the infiltration of CAFs using the TIMER2. Among the five risk genes, FAM20C showed the strongest correlation with CAFs (Table 1). Multiple algorithms (EPIC, MCPcounter, TIDE and XCELL) affirmed a positive correlation between FAM20C and CAFs (Table 1 and Figure 10A). On the contrary, TBX1 displayed a negative correlation with CAFs in EPIC, MCPcounter and TIDE (Table 1 and Figure 10B).

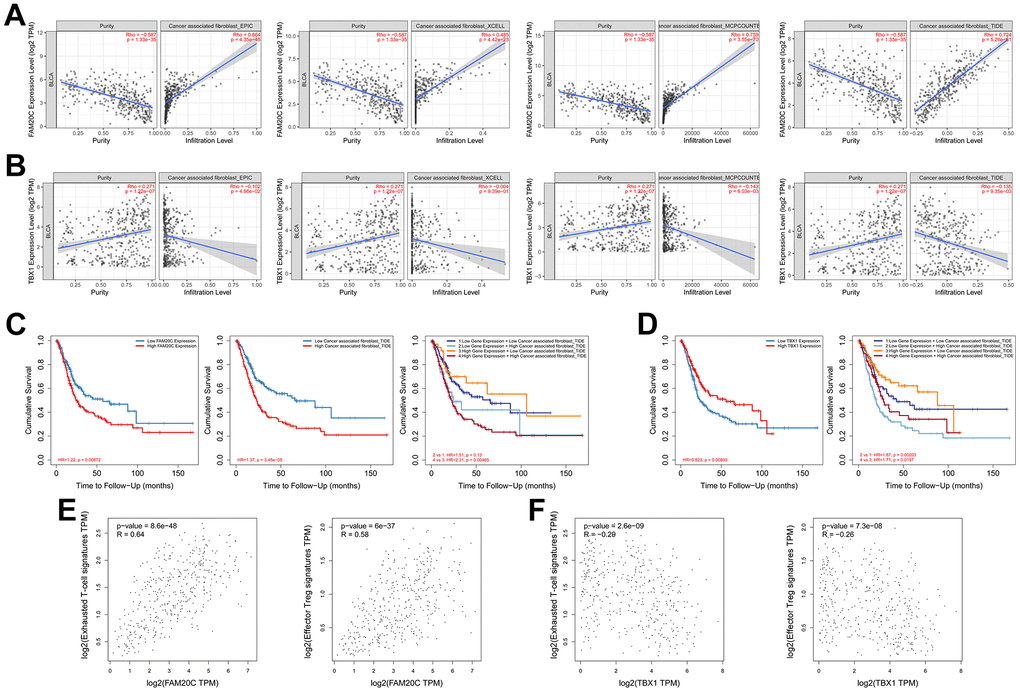

Figure 10. Correlation analysis of FAM20C and TBX1 with the immunosuppressive microenvironment. (A) Correlation of FAM20C or (B) TBX1 expression with infiltration of CAFs. The CAFs were estimated by EPIC, XCELL, MCPcounter and TIDE. (C, D) Kaplan-Meier plot of different groups as indicated. (E) Correlation of FAM20C or (F) TBX1 with exhausted T-cell and effector Treg cells. Exhausted T-cell signatures: HAVCR2, TIGIT, LAG3, PDCD1, CXCL13, LAYN; effector Treg cell signatures: FOXP3, CTLA4, CCR8, TNFRSF9.

Kaplan-Meier analysis revealed that high level of FAM20C or elevated CAFs could independently predict poor survival of BLCA patients. The coexistence of these two factors led to the most unfavorable survival outcomes. Conversely, the survival disadvantage associated with FAM20C was mitigated by low CAFs (Figure 10C). This highlights a collaborative function of FAM20C and CAFs in threatening survival. In contrast to FAM20C, TBX1 was linked to a survival benefit, which was attenuated by high CAFs infiltration (Figure 10D).

The diametric association of FAM20C and TBX1 with immunosuppressive microenvironment was further supported by their associations with exhausted T-cell and effector Treg cells. FAM20C was positively correlated with exhausted T-cell and effector Treg cells (Figure 10E). In contrast, TBX1 exhibited a negative correlation with these cell types (Figure 10F). Together, these results suggest that FAM20C and TBX1 may exert opposing effects on the immunosuppressive microenvironment, with CAFs possibly being the target of action.

FAM20C is an independent predictor for immunotherapy efficiency of BLCA

Given the association of FAM20C and TBX1 with CAFs infiltration, we wonder whether they can predict the immunotherapy efficiency. We explore this issue through the Kaplan-Meier plotter. The results indicated that high FAM20C levels were indicative of poor survival in immunotherapy for bladder and urothelial carcinomas (Figure 11A). However, TBX1 failed to predict the immunotherapy efficiency. No significant survival difference between high- and low-TBX1 groups was observed (Figure 11B).

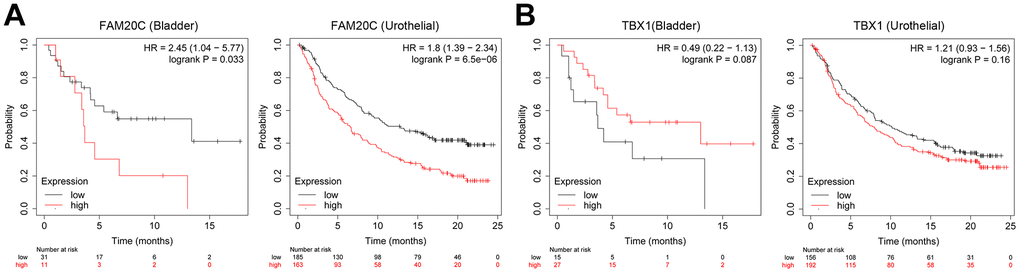

Figure 11. Association of FAM20C and TBX1 expression with immunotherapy efficiency. (A) Survival analysis of the indicative genes in the immunotherapy of BLCA (anti-PD-1) and (B) urothelial carcinomas (anti-PD-L1) through the Kaplan-Meier plotter platform.
