TJP3 promotes T cell immunity escape and chemoresistance in breast cancer: a comprehensive analysis of anoikis-based prognosis prediction and drug sensitivity stratification

Materials and Methods

The aims of this research are to explore the roles of anoikis-related genes (ARGs) in identifying drug sensitivity subtypes (contains immunotherapy and chemotherapy), and to assess the roles of ARGs in predicting clinical outcome. The whole research network is shown in Figure 1.

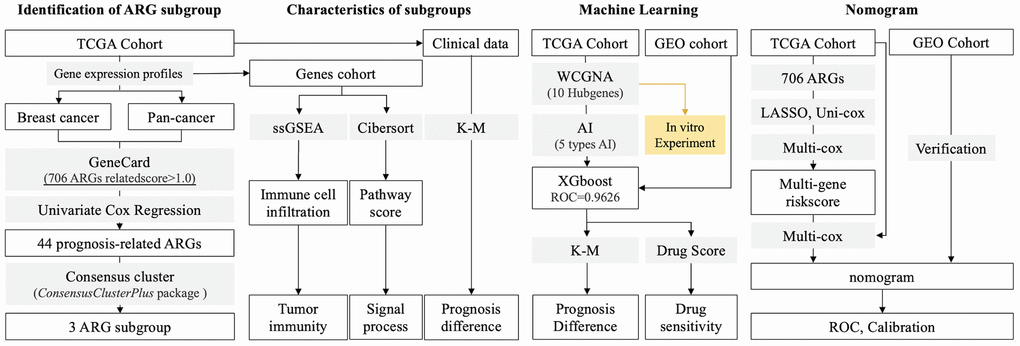

Figure 1. Research Process. (1) Identification of ARG subgroup: gene expression profiles are collected from TCGA and GEO databases, and ARG list is collected from GeneCard. 44 ARGs are selected into consensus cluster to identify subgroups. (2) Features in subgroups: Pathway score and immune cell infiltration are calculated by ssGSEA and CIBERSORT, respectively. (3) AI-based drug sensitivity stratification: 5 types of machine learning algorithms are applied, and XGBoost displays best results in identification of ARG subgroups. (4) TCGA (training) and GEO (testing) cohorts are used to construct prognosis prediction model. (5) Hubgenes are selected to perform in vitro experiments.

Bioinformatic analysis

Data collection

Data of gene expression is collected from The Cancer Genome Atlas (TCGA, https://portal.gdc.cancer.gov/repository) and Gene Expression Omnibus (GEO, https://www.ncbi.nlm.nih.gov/geo/). Clinical data is collected from Sangerbox [11], Kaplan Meier PlotteR (http://kmplot.com/analysis/index.php?), UALCAN (The University Alabama at Birmingham Cancer data analysis Portal, https://ualcan.path.uab.edu/tutorial.html), and GEO. TCGA cohort is used for model construction and training, while GSE25066 and GSE20685 are used for verification. GSE20685, GSE42568 and GSE58812 are used for breast cancer model verification, while GES30219, GSE231210, GSE37745, and GSE50081 are used for lung cancer model verification. Pan-Cancer Analysis of Whole Genomes (PCAWG, n = 818) data is used for pan-cancer model verification. Anoikis-related genes (ARGs) are collected from GeneCard (https://www.genecards.org). Immunohistochemical staining (IHC) of TJP3 is collected from The Human Protein Atlas (THPA, https://www.proteinatlas.org).

Prognosis analysis

Univariate Cox regression and Kaplan-Meier are used to calculate clinical outcome and hazard ratio (HR).

Subtypes identification and machine-learning-based drug sensitivity stratification

706 ARGs are collected from GeneCard, 44 of which are prognosis-related identified by Univariate Cox regression. 44 ARGs are put into consensus cluster analysis by R4.2.0 (ConsensusClusterPlus, parameter: maxK = 10, reps = 50). Then, identified subgroups are applied into supervised algorithm with genome (WGCNA) to find hub genes (module merging threshold is 0.3). Following, machine learning, containing Support Vector Machine (SVM, package: e1071), random forest (RF, package: randomForest), Extreme Gradient Boosting (XGboost, package: xgboost), multi-logistic (package: nnet), and deep learning (DL, package: h2o), is applied to construct training model (70% of TCGA cohort are training cohort, last 30%) to identify ARG subgroups in independent cohorts. Drug score is calculated by OncoPredict package in R4.2.0.

Tumor immunity assessment

Cibersort is used to predict immune cell infiltration in R4.2.0.

Pathway score

Genes related to ferroptosis (http://www.zhounan.org/ferrdb/current/), necroptosis (GeneCard), immunogenic cell death [12], cuproptosis (PMID: 35298263) [13], pyroptosis (GeneCard) and anoikis (GeneCard) are collected from corresponding databases or literatures. Simple sample Gene Set Enrichment Analysis (ssGSEA, package: GSVA) is applied to calculate aforesaid pathways score.

Drug score

Drug score is predicted by package OncoPredict in R4.2.0.

Nomogram

706 ARGs are put into Least Absolute Shrinkage and Selection Operator (LASSO) analysis, which is followed by Multivariate Cox regression. Five genes are finally selected to construct nomogram. Receptor operation curve (ROC) analysis and calibration analysis are applied to calculate the accuracy of the model, amongst which TCGA cohort is training cohort, while GEO cohort is testing cohort. Finally, we used nomogram to visualize the model.

Biological experiments

Reagents

MBA-MD-231 is purchased from The Cell Bank of the Chinese Academy of Science in 2023 with STR matching analysis. Alive&dead staining kit is purchased from Yeasen Biotech, China, Edu staining kit is purchased from APExBIO, (K1077, USA). OPTI-MEM is purchased from (Thermo Fisher, Gibco, USA). Paclitaxel is purchased from CSNpharm (CSN19486, USA), and it is dissolved in DMSO. Antibodies against Caspase-3 (AF6311), cleaved-caspase-3 (AF7022, Affinity Biosciences, China), TJP3 (ab181991, Abcam, UK), PD-L1 (66248-1-Ig, Proteintech, China), E-cadherin (AF0131, Affinity Biosciences), Snail1 (AF6032, Affinity Biosciences), Twist1 (AF4009, Affinity Biosciences), Zeb1 (21544-1-AP, Proteintech), GAPDH (AF7021, Affinity Biosciences), MMP7 (10374-2-AP) are used for western blot.

Cell culture

The culture media of MBA-MD-231 is DMEM within 10% fetal calf serum and 100 units/mL penicillin and streptomycin.

Small interfering RNA (siRNA) experiments

Simply, triple-negative breast cancer (TNBC) cells are transplanted into 6 wells plates for 24 h, which is followed by transfection of TJP3 small interfere RNA (siRNA) (GenePharma, Shanghai, China) for 24 h, 48 h and 72 h. Transfection system: 250 ul OPTI-MEM + 6.5 ul siRNA (20 uM) + 13 ul Lipofectamine 3000 reagent (Invitrogen, USA). The siRNA sequences for TJP3 are listed in the following:

siRNA sequence of TJP3:

• 5′–3′ ACCUGCACCAAGAUGGCCAtt

• 3′–5′ UGGCCAUCUUGGUGCAGGUtt

Recombinant plasmid transfection assay

According to previous published work [14], the construction and transfection of recombinant plasmid are simply described as like the following: Primers of TJP3 is designed by Primer 5 soft, and the sequence is synthesized and inserted by PrimeScript RT Reagent Kit (TaKaRa, China), PrimeSTAR^® GXL DNA Polymerase (TaKaRa, China), SanPrep Column DNA Gel Extraction Kit (Sangon Biotech, China), and Hieff Clone™ Plus One Step Cloning Kit (Yeasen Biotech, China). For transfection, cells are transplanted into 6-well plate, and Hieff Trans™ Liposomal Transfection Reagent (Yeasen Biotech, China) is used to perform transfection. Transfection system: DMEM (10%FBS) + 2 ug plasmid + 4 ul transfection reagent. Finally, cells are harvested after 24~48 h.

Western blot

Cells with different treatments are harvested and lysed with RIPA lysis buffer (Sigma-Aldrich, USA), supplemented with phosphorylase and protease inhibitor mixture (Thermo Fisher Scientific, USA), quantified by the BCA assay (Beyotime, China). The whole process and protocol of western blot (WB) refer to our previous work (PMID: 31935687, 33282725).

Alive&dead staining

The alive&dead staining assay is performed with Calcein AM/PI staining assay (YEASEN Biotech Co., Ltd., China). Simply, cells are treated by different treatments, followed by co-culturing with Calcein AM and PI for 0.5~1 h. Then, the cells are washed by PBS for 2 times. Finally, cells are observed by fluorescent microscope (Green: alive cells; Red: dead cells).

Edu staining

Cells are transplanted into 24-well plates, followed by different treatments. Then, 5 ul Edu (20 uM) is added into cells for another 2 h. After that, cells are washed with PBS, and followed by 1% BSA culture for 1 h. Then, 0.25% triton-100 is used to penetrate cell membrane. Then, cells are with PBS and performed click reaction.

Transwell assay

Cells are transplanted into Transwell wells (24-well, 8.0 μm, Corning Incorporated, USA) with a 10% gradient of FBS for 48 h. Then stained by crystal violet for 15 mins. Quantification of passed cell area is performed by Image-ProR Plus.

Statistics

All data analyses were performed in R4.2.0. Univariate Cox regression is performed to calculate the hazard ratio (HR) and the log-rank test is used to compare survival differences. Receiver operating characteristic (ROC) curves and the AUC value are performed by the pROC package in R4.2.0. P < 0.05 is considered to indicate a statistically significant difference.

Data availability statement

The original contributions presented in the study are included in the Article/Supplementary Materials. Further inquiries can be directed to the corresponding authors.

Results

Conquering anoikis is necessary for epithelial-mesenchymal transition (EMT) [15], and the later one is considered as the key mechanism of tumor metastasis and invasion. Recently, anoikis has been reported to play roles in tumor immunity escape, and anoikis-related genes (ARGs) are also applied in constructing prognosis prediction tools. However, it is not comprehensively explored in breast cancer. This study aims to uncover the roles of ARGs in regulating chemoresistance and immunotherapy in triple-negative breast cancer (TNBC), and attempts to construct a ARGs-based multi-gene risk model, and to make a drug sensitivity prediction tool. The whole research designation is displayed in Figure 1.

Identification of ARG-based tumor subtypes

To redefine the tumor subtype, consensus cluster analysis is performed. Firstly, ARGs are collected from GeneCard with a research strategy of “tumor and anoikis” with a threshold related-score (>1.0) (Figure 2A). After Univariate Cox regression analysis, 44 ARGs are finally filtered out (Figure 2A). The hazard ratio (HR) of each selected ARGs is displayed, eighteen of which are protective factors, while twenty-six of which are risky factors in pan-cancer (Figure 2B). Following, the aforesaid 44 ARGs are put into consensus cluster analysis, and three-grouping strategy is the best strategy (Figure 2C–2F). The heatmap shows obvious differences of ARGs expression amongst ARG subtypes (Figure 2G). And the results show significant differences of overall survival (OS), disease-free survival (DFS) and disease-free interval (DFI) amongst ARG subtypes in pan-cancer cohort, while significant difference of OS is only observed in adrenocortical carcinoma (ACC), bladder urothelial carcinoma (BLCA), breast cancer (BRCA), lung adenocarcinoma (LUAD), mesothelioma (MESO), pancreatic adenocarcinoma (PAAD) and skin cutaneous melanoma (SKCM) (Figure 2H, p < 0.05).

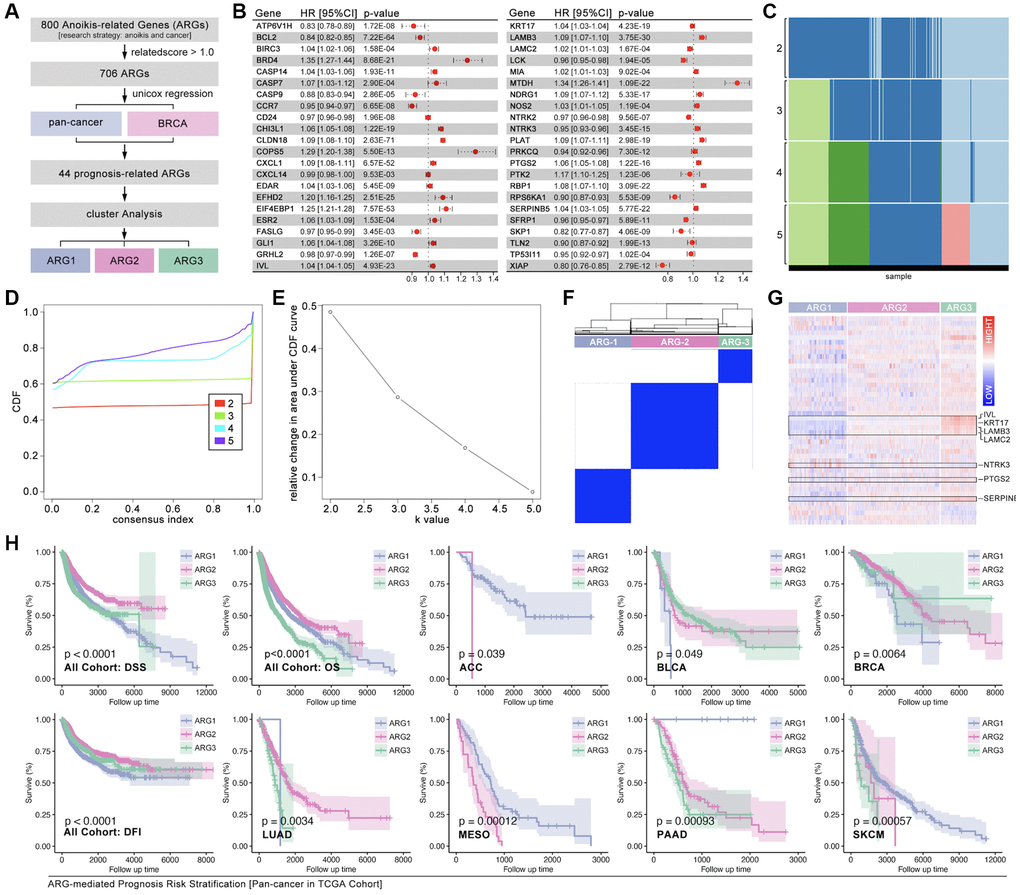

Figure 2. Identification of ARG subgroups and prognosis features. (A) ARG subgroups identification process. (B) The HR of 44 selected ARGs. (C–F) Consensus cluster analysis by ConsensusClusterPlus package to divide the TCGA cohort into three subgroups (ARG1, ARG2, ARG3). (G) 44 ARGs expression features amongst ARG subgroups. (H) Prognosis differences between ARG subgroups in pan-cancer and single type of cancer.

Features of tumor immunity and cell death signaling amongst ARG subtypes

Immune cells infiltration ratio analysis shows that significant difference exists in B cells naïve, T cells CD4 naïve, T cell CD4 memory resting, T cell regulatory (Tregs), natural killing (NK) cells resting, Monocytes, Mast cells activated, Eosinophils, and Neutrophils (Figure 3A, p < 0.05, labeled by red). Univariate Cox regression displays that B cells naïve, T cell CD4 memory resting, NK cells resting, Mast cells activated, and Neutrophils are prognosis-related factors in pan-cancer, in which forth three are protective factors while later four are risky factors (Figure 3B). Besides, results show that B cell naïve (K-M p < 0.0001, HR = 0.36, Logrank p = 0.011) and T cell CD4 memory resting (K-M p = 0.001, HR = 0.48, Logrank p = 0.007) are protective factors in pan-cancer, while NK cells resting (K-M p < 0.0001, HR = 95.33, Logrank p < 0.0001), Mast cells activated (K-M p < 0.0001, HR = 16.28, Logrank p < 0.0001), and Neutrophils (K-M p < 0.0001, HR > 100, Logrank p < 0.0001) are risky factors in pan-cancer (Figure 3C). Following, immune score is explored. As the results show, obvious significant differences of stromalscore, immunescore and estimatescore are observed amongst ARG subtypes (Figure 3D, p < 0.0001). And, genomic instability also holds a different trend amongst ARG subtypes as compared with immune score (Figure 3E). Furthermore, immunity checkpoint expression level amongst ARG subtypes is also uncovered. The results show that CTLA-4, TIGIT, PD-L1, PD-1 and LAG-3 holds same trend, which means ARG1 has lowest expression level of these genes while ARG3 has highest expression level of them (Figure 3F). In addition, cuproptosis, necroptosis, ferroptosis, pyroptosis and immunogenic cell death, are put into analysis. As Figure 3G shows, single sample GSEA (ssGSEA) analysis is applied to calculate pathway score, and the heatmap displays expression distribution in each sample and ARG subtypes (Figure 3G). Next, K-M analysis shows that all of foregoing pathways are risky factors in pan-cancer (Figure 3H), in which necroptosis, ferroptosis, pyroptosis and immunogenic cell death are positive correlated with anoikis, while cuproptosis is negative correlated with anoikis (Figure 3I, 3J).

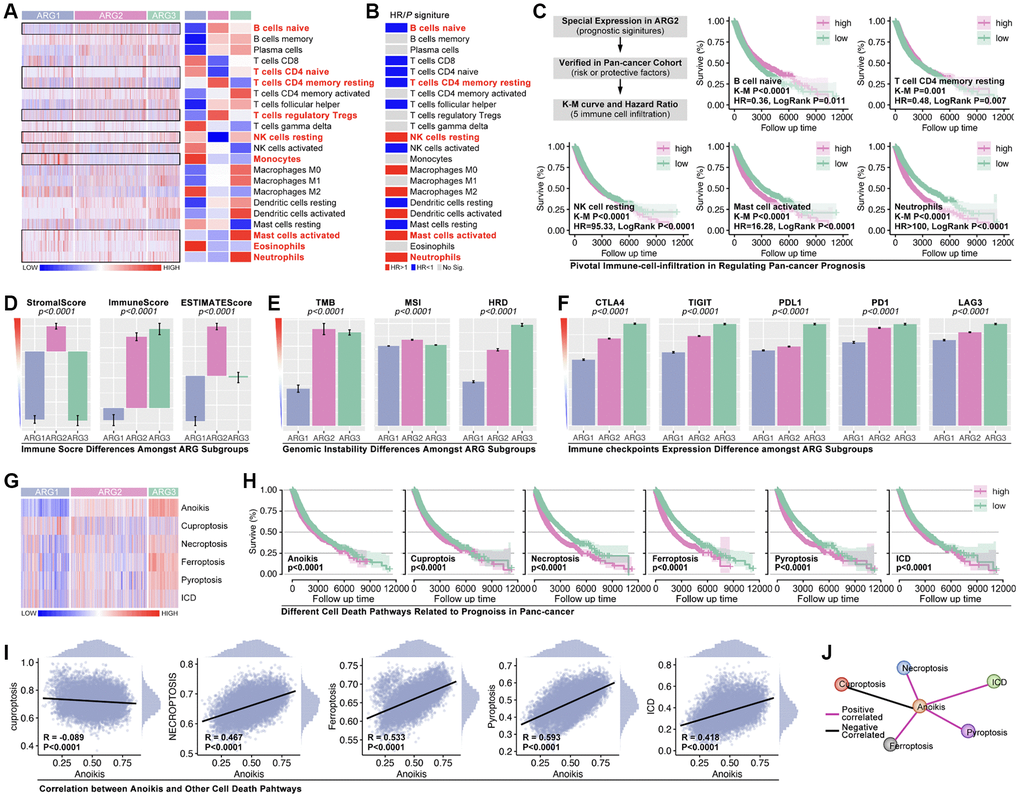

Figure 3. Tumor immunity and pathway features amongst ARG subgroups. (A) Cibersort is used to predict immune cell infiltration in pan-cancer. (B) HR of immune cells in pan-cancer. (C) Kaplan-Miler analysis and Univariate Cox regression of immune cells in pan-cancer. (D) Immune score is calculated by R4.2.0. (E) Genomic instability differences amongst ARG subgroups (data from Sangerbox: http://vip.sangerbox.com/home.html). (F) Immune checkpoints expression features in ARG subgroups. (G) Pathway score amongst ARG subgroups, calculated by ssGSEA. (H) K-M analysis of pathway score in regulating prognosis. (I, J) The relationship between anoikis score and the other pathway score.

Machine learning redefining pan-cancer subtypes basing on anoikis

Firstly, WCGNA analysis is applied to identify hub-genes. As Figure 4A, 4B show, genome is divided into 10 subgroups with different colors (Figure 4A, 4B), amongst which Module blue (MEblue) holds the highest correlation between gene expression and ARG subtype identification (Figure 4C, 4D). Following, top-50 hub-gene are put into ARG grouping and GO/KEGG analysis, and results show that hub-gene is related to cell adhering, immunity and tumor process, et al. (Figure 4E, 4F). CytoScape recognizes the most important genes (SH2D3A, TJP3, SFN, GGT6, TMC4, TACSTD2, PRSS8, GYLTL1B, ELF3, and S100A14) for further analysis (Figure 4G).

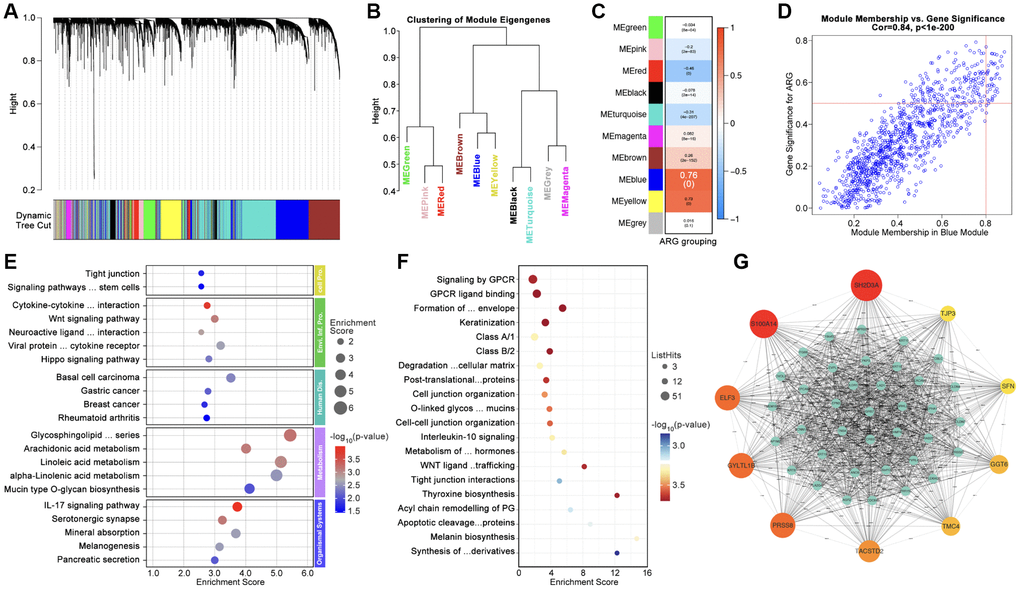

Figure 4. Identification of Hubgenes amongst ARG subgroups. (A, B) Dynamic tree cut and modules stratification of WCGNA. (C) Correlation between modules and ARG grouping. (D) The correlation between Module-blue and ARG grouping. (E) GO analysis and (F) KEGG analysis. (G) Interaction network of top 50 Hubgenes.

Hubgene-based artificial intelligence (AI) is used to construct ARG subtype stratification model with TCGA cohort. Five types of algorithms show relatively good performance, and the XGboost is the best one, in which training AUC is 1.0 and testing AUC is 0.9627 (Figure 5A). Meantime, the prognosis is significantly different amongst ARG subgroups in pan-cancer (Figure 5B). To further verify the liability of model, independent cohort is applied. As Figure 5C shows, expression of hub-gene is obviously different amongst AI-identified ARG subtypes in PCAWG cohort (Figure 5C), and the ARG subtypes’ prognosis is also significantly different (p < 0.0001, Figure 5D). Tumor types distribution in ARG subgroups is displayed in Figure 5E. In order to explore whether the model is also workable in single type of cancer, 33 single types of cancer are put into analysis. Here, prognosis differences occur in ACC, BLCA, BRCA, LUAD, PAAD, MESO, and SKCM (Figure 5F). For further verification, we randomly selected breast cancer and lung cancer into independent cohort testing. First, expression features of hub-gene in TCGA cohort (BRCA) and GEO cohort (GSE20685, GSE42568 and GSE58812) are explored (Figure 5G), and K-M analysis shows differences of OS and DFS amongst subgroups in GEO cohorts (Figure 5H, 5I). Same analysis is performed in long cancer (Figure 5J, 5K).

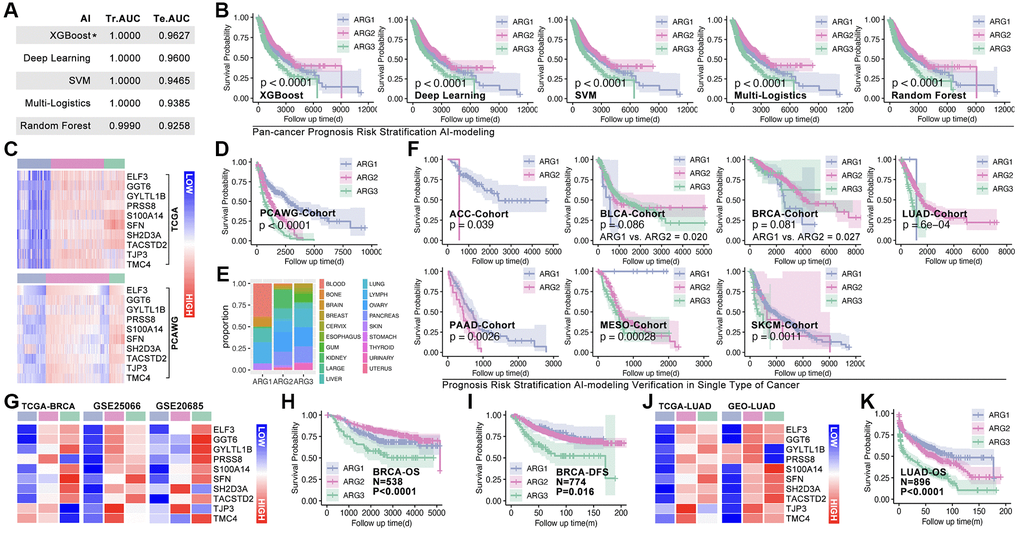

Figure 5. Machine learning identifies ARG subgroup. (A) TCGA cohort is divided into testing cohort (30%) and training cohort (70%), five types of machine learning algorithms are applied, and ROC (Tr.AUC means training AUC; Te.AUC means testing AUC) is used to assess the accuracy of models. (B) K-M analysis displays prognosis features amongst ARG subgroups. (C) Expression feature of Hubgenes in TCGA cohort and PCAWG cohort. (D) K-M analysis displays prognosis features amongst ARG subgroups in PCAWG cohort. (E) Pan-cancer distribution in ARG subgroups in PCAWG cohort. (F) AI-based ARG identification model recognizes ARG subgroups in single cancer in TCGA cohort, and K-M analysis shows prognosis features amongst ARG subgroups. (G) Expression feature of Hubgenes in breast cancer, whose data from TCGA and GEO cohorts. (H) Overall survival (OS) differences amongst ARG subgroups in GEO cohort (GSE20685, GSE42568). (I) Disease free survival (DFS) differences amongst ARG subgroups in GEO cohort (GSE21653, GSE25066). (J) Expression feature of Hubgenes in LUAD, whose data from TCGA and GEO cohorts. (K) OS differences amongst ARG subgroups in GEO cohort (GES30219, GSE231210, GSE37745, GSE50081).

AI recognizes hierarchical chemotherapy sensitivity subtypes in breast cancer

In order to explore whether ARG-based model can identify drug sensitivity, OncoPredict algorithm is applied to calculate drug score. As Figure 6A shows that EPI, CTX, DTX, PTX, DDP, GEM, 5-Fu, NVB. Olaparib and TAM are selected, and which display significant difference amongst ARG subgroups (Figure 6B). Then, GEO cohorts (GSE20685, GSE42568, GSE58812) are applied to verify the drug stratification. As results show, same significant trends are observed in EPI, DTX, PTX, DDP, GEM, 5-Fu, NVB, and Olaparib (p < 0.05, Figure 6C), while no statistical significance exists in CTX and TAM (Figure 6C). Then, the role of drug score in breast cancer prognosis is explored, and it shows that 5-Fu, CTX, GEM, Olaparib and TAM are statistically significant risk factors (Figure 6D). Furthermore, the most sensitive drugs are also filtered, and Taselisib, Doramapimod, AZD8186, Ibrutinib and ZM447439 are the top5 drugs (Supplementary Figure 1).

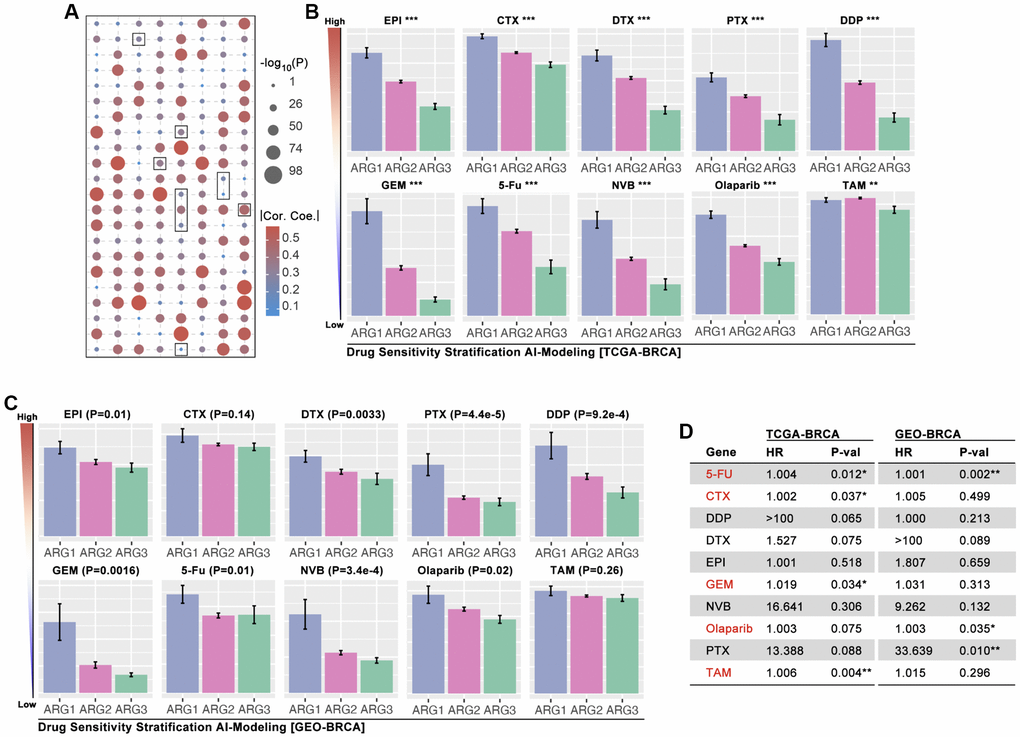

Figure 6. AI-based drug sensitivity stratification. (A) Correlation between drug score and anoikis pathway score, in which selected one are EPI, CTX, DTX, PTX, DDP, GEM, 5-Fu, NVB, Olaparib, and TAM (data from TCGA). (B) Drug score differences amongst ARG subgroups of BRCA (^* means p < 0.05, ^** means p < 0.01, ^*** means p < 0.001, data from TCGA). (C) Drug score differences amongst ARG subgroups of BRCA (data from GES20685, GSE42568, GSE58812). (D) HR of drug scores in TCGA cohort and GEO cohort of BRCA.

TJP3 promotes drug resistance and tumor metastasis in TNBC

To assess the roles of anoikis in regulating drug resistance and prognosis in breast cancer, an important analysis is performed. It ranks the importance of hub-gene in ARG subgroups identification, and the top3 genes are SFN, TJP3 and TACSTD2 (Figure 7A), amongst while only TJP3 (HR = 1.95, p = 1.3e-8) is prognosis-related gene in breast cancer (Figure 7B). Therefore, TJP3 is finally selected for further analysis. Results show that higher expression level of TJP3 are accompanied with worse clinical outcome in TNBC cohort, chemotherapy treatment, and endocrine therapy (data from Kaplan Meier PlotteR, Figure 7C–7E). In addition, RNA expression of TJP3 is higher in BRCA, CESC, COAD, OV, PAAD, READ, THYM, UCEC and UCS when compared with adjacent tissues (Figure 7F). IHC of TJP3 is collected from The Human Protein Atlas (THPA) and the results show that BRCA tissues hold higher expression level of TJP3 as compared with adjacent normal tissues (Figure 7G, 7H), same result is observed in UALCAN (The University Alabama at Birmingham Cancer data analysis Portal) breast cohort (Figure 7I) and GEO cohort (GSE10780) (Figure 7J). Finally, the correlation between TJP3 expression and drug score is explored, and it displays that TJP3 level is positive correlated with EPI (r = 0.20, p = 4.7e-6), CTX (r = 0.26, p = 1.5e-9), DTX (r = 0.14, p = 0.0014), DDP (0.16, p = 1.6e-4), GEM (r = 0.093, p = 0.031), NVB (0.095, p = 0.028), Olaparib (r = 0.24, p = 0.028) and TAM (r = 0.28, p = 4.6e-11) (Figure 7K).

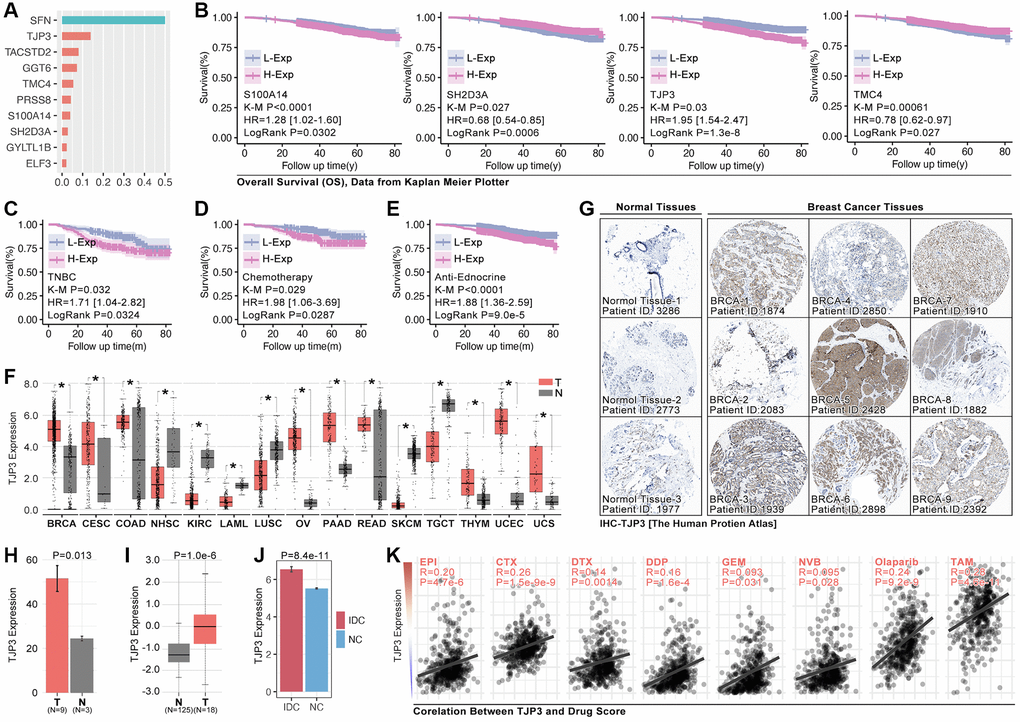

Figure 7. TJP3 is a pivotal hubgene in regulating drug tolerance. (A) Importance analysis in XGboost, in which SFN, TJP3, TACSTD2, GGT6, TMC4, PRSS8, S100A14, SH2D3A, GYLTL1B, and ELF3. (B) K-M analysis of S100A14, SH2D3A, TJP3, and TMC4 in regulating prognosis. (C) The roles of TJP3 in regulating prognosis in TNBC cohort, (D) chemotherapy cohort, and (E) endocrinotherapy cohort. (F) TJP3 expression in pan-cancer and adjacent tissues. (G) The expression level of TJP3 in adjacent tissues and breast cancer tissues (data from THPA). (H) Statistical results of TJP3 expression in THPA cohort. (I) TJP3 expression level in TNBC and corresponding adjacent tissues. (J) TJP3 expression level in IDC and corresponding adjacent tissues, data from GSE10780. (K) The correlation between the expression of TJP3 and drug scores (EPI, CTX, DTX, PTX, DDP, GEM, 5-Fu, NVB, Olaparib, TAM). ^*p < 0.05, ^**p < 0.01, ^***p < 0.001.

To further verify the roles of TJP3 in regulating tumor metastasis and drug tolerance, in vitro experiments are explored. siRNA is used to down-regulate the expression of TJP3 and recombinant plasmid is used to up-regulated TJP3 expression. As results show, down-regulation of TJP3 inhibits the migrated cells area about 30%-decreasing, as compared with control group (Figure 8A–8C), while over-expression of TJP3 promotes cell migration about 20%-increasing (Figure 8A–8C). Meantime, Alive&dead assay is performed, and the results show that down-regulation of TJP3 enhances the toxicity of GEM in breast cancer cells (p < 0.05, Figure 8D–8F). Furthermore, down-regulation of TJP3 enhances GEM-induced cell toxicity about 20%-increasing (p < 0.05, Figure 8G–8I). Based on the above results, epithelial-mesenchymal transition (EMT) and cell apoptosis are explored after changing the cellular expression of TJP3. As results show, siRNA down-regulates TJP3 expression about a 40% decreasing (p < 0.05), which leads up-regulation of E-cad (a 30% increasing, p < 0.01) and down-regulation of MMP7 (a 50% decreasing, p < 0.05), Twist1 (a 70% decreasing, p < 0.01) and Zeb1 (a 75% decreasing, p < 0.001) (Figure 9F, 9G). On contrary, over-expression of TJP3 (p < 0.001) leads down-regulation of cleaved-caspase3 and the ratio of cleaved-caspase3/caspase3 (more than a 50% decreasing, p < 0.01) (Figure 9H, 9I).

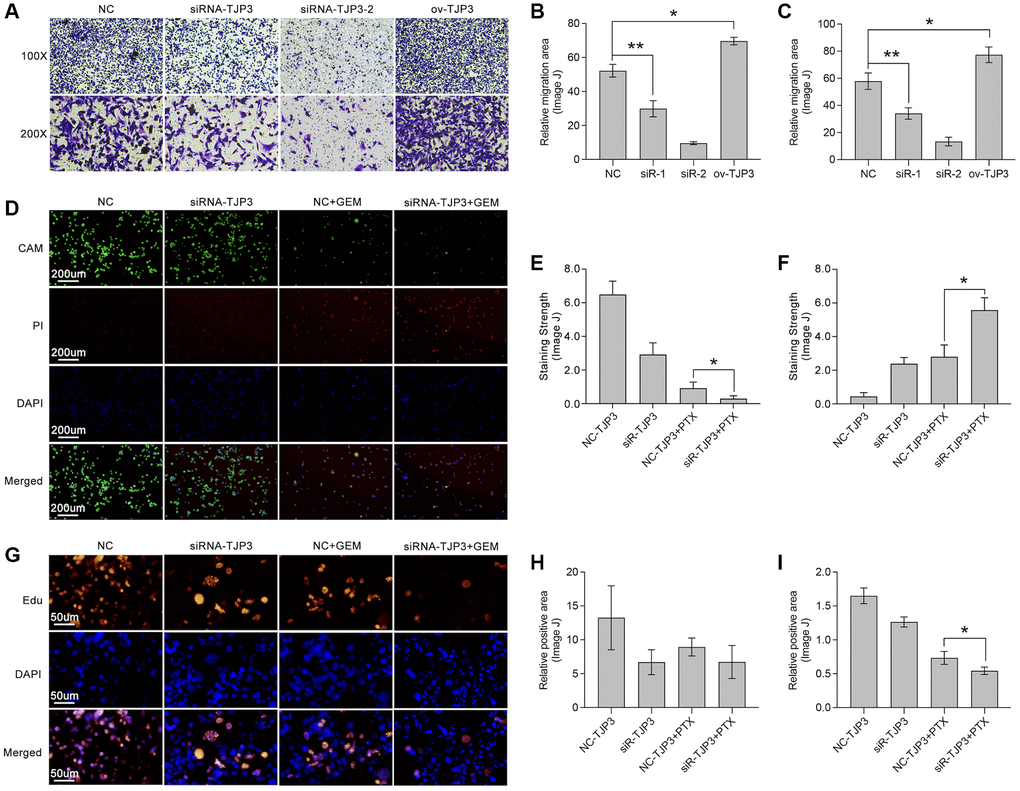

Figure 8. TJP3 regulates migration and drug tolerance in TNBC. (A) Transwell assay displays the role TJP3 in regulating cell migration. Statistical analysis shows migrated cell area in (B) 100-fold and (C) 200-fold field of view by ImageJ. (D) Alive&dead assay, in which (E) CAM means alive cells with green and (F) PI means dead cells with red. (G) Edu assay shows the role of TJP3 in regulating cell proliferation in (H) 100-fold and (I) 200-fold field of view by ImageJ. ^*p < 0.05, ^**p < 0.01, ^***p < 0.001.

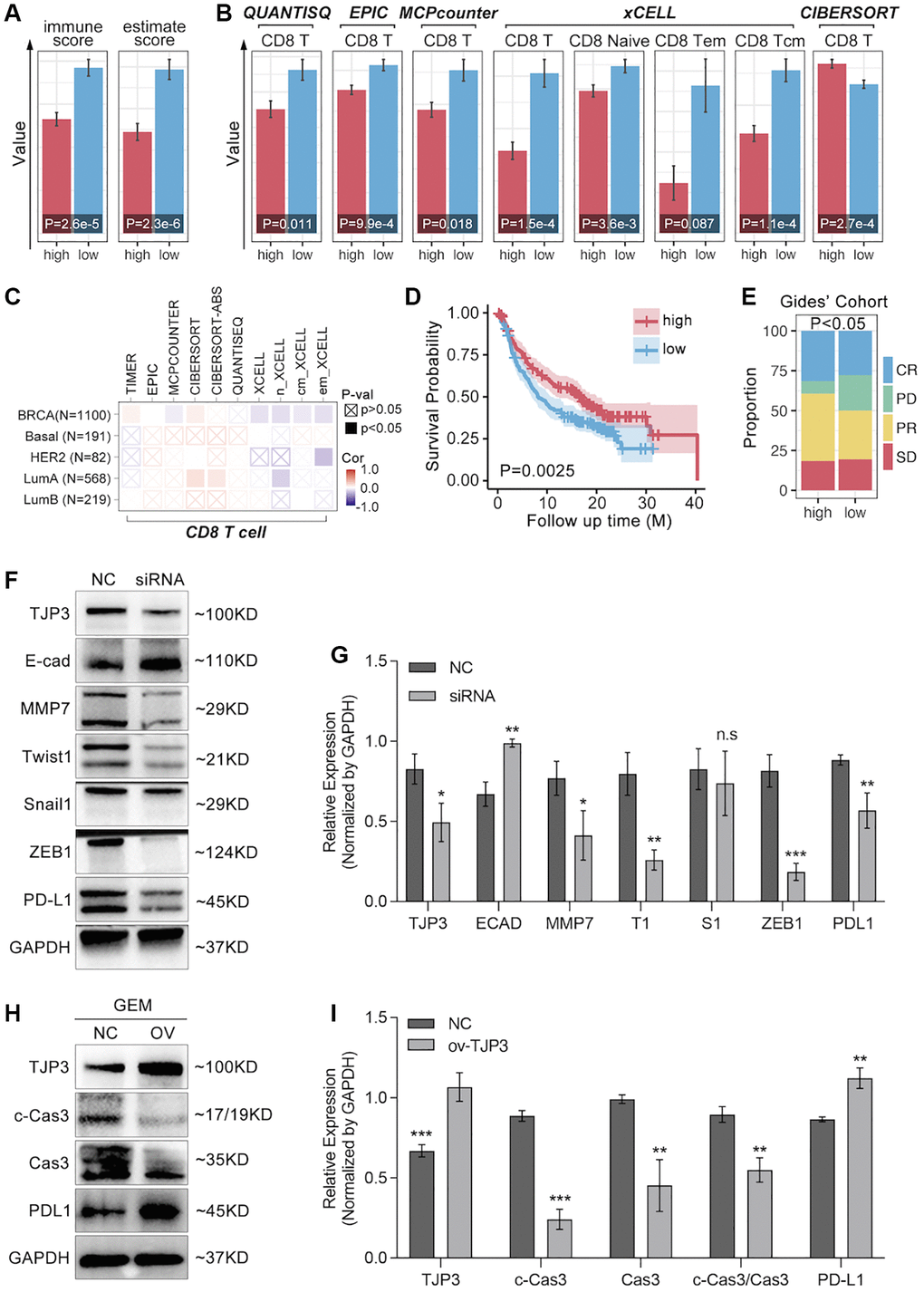

Figure 9. TJP3 regulates GEM-induced cell apoptosis and EMT process. (A) Immune Score predicted by SangerBox (http://vip.sangerbox.com/login.html). (B) T cell infiltration predicted by SangerBox (http://vip.sangerbox.com/login.html). (C) Immune cell infiltration predicted by TIMER2.0 (http://timer.comp-genomics.org/timer/). (D) Anti-PD1 prognosis in TJP3 low and high expression groups. (E) Anti-PD1 response differences between TJP3 low and high expression groups. (F) Si-RNA down-regulates TJP3 expression, and the corresponding down-stream targets expression features. (G) Statistical analysis, normalized by GAPDH. (H) Recombinant plasmid up-regulation TJP3 expression, and the corresponding down-stream targets expression features. (I) Statistical analysis, normalized by GAPDH. ^*p < 0.05, ^**p < 0.01, ^***p < 0.001.

TJP3 is a T cell immunity regulator for breast cancer

To further explore the relationship between TJP3 and T cell immunity, we apply bulky data analysis. As the Figure 9A shows, high-expression of TJP3 predicts lower immunescore and estimatescore (p < 0.05, Figure 9A), and the CD8 T cells infiltration is also lower in TJP3 high-expression group (Figure 9B). However, the correlation between the TJP3 and CD8 T cell infiltration is not definitive predicted by TIMER2.0 (Figure 9C). In order to uncover the underlying roles of TJP3 in regulating T cell immunity, we apply clinical trial cohort. As the Figure 9D, 9E show, higher expression of TJP3 predicts better prognosis in anti-PD1 therapy (Figure 9D), and TJP3 high-expression group accompanies with higher proportion of anti-PD1 response (CR and PR) (Figure 9E).

Based on above the results, in vitro experiments are performed to show the relation between TJP3 and immune escape. As results show, down-regulation of TJP3 leads down-regulation of PD-L1 (a 30% decrease, p < 0.01) (Figure 9F, 9G), while over-expression of TJP3 (p < 0.001) makes up-regulation of PD-L1 (Figure 9F, 9H).

Construction of ARGs-based prognosis prediction model of breast cancer

ARGs show their ability in identifying drug sensitivity subgroups and prognosis differences, above. Here, prognosis prediction by ARGs is also explored. Firstly, LASSO analysis, Univariate Cox regression and Multivariate Cox regression are applied to screen out genes for constructing multi-gene risk model (TCGA cohort), in which BCL2, BRD4, CASP7 and TP53I11 are selected (Figure 10A, 10B). The concordance index of the model is 0.69 (p = 9.2527e-9, Figure 10B). Then, ROC and K-M analysis are performed, and the results show that only 1-year survival prediction AUC is greater than 0.8 (Figure 10C), and all of cohorts (training cohort, testing cohort, and whole cohort) show prognosis differences between high riskscore and low riskscore groups (Figure 10D). So, it’s necessary to add clinical features to improve the efficiency of risk model. As Figure 10E shows, Multivariate Cox regression selects riskscore, clinical stage, age and N stage to construct a nomogram, and the concordance index is 0.77 (p = 1.0657e-17, Figure 10E). Following, nomogram is visualized by R4.2.0, which is displayed in Figure 10F. To further verify the prediction efficiency of monogram, TCGA cohort and GEO cohorts are both put into ROC analysis. As the results show, the AUC value is obviously improved as compared with nomogram which without clinical features (Figure 10G). Besides, calibration analysis is also performed (Figure 11A–11E).

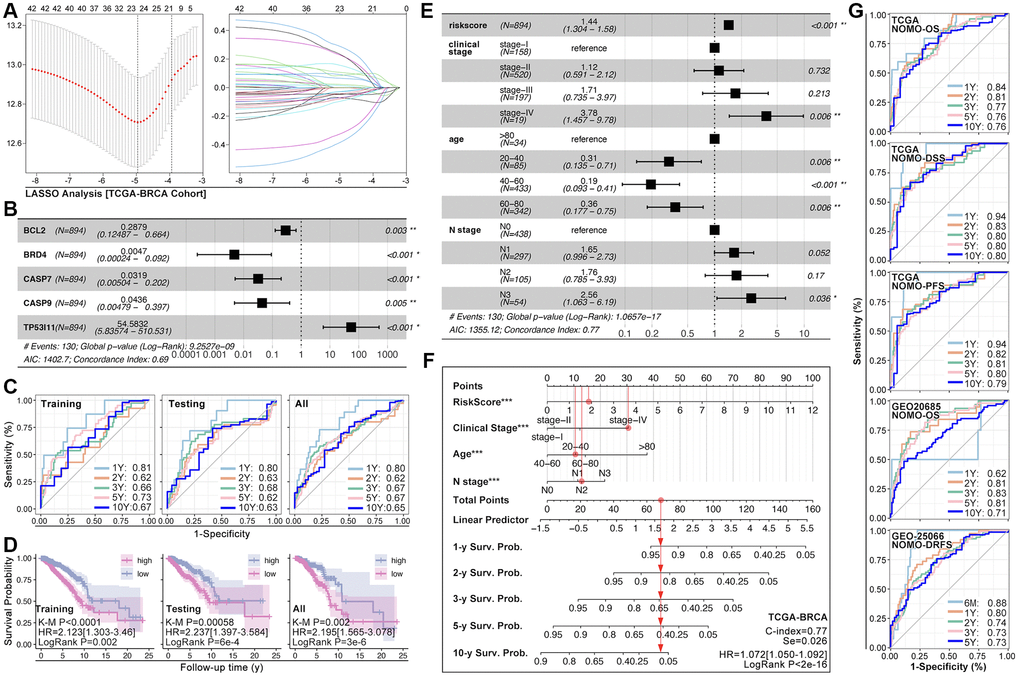

Figure 10. ARGs-based nomogram. (A) LASSO analysis and (B) Multivariate Cox regression screen out five ARGs (BCL2, BRD4, CASP7, CASP9, TP53I11) to construct prognosis prediction model. (C) ROC analysis of prognosis prediction model in training cohort, testing cohort, and all cohort (TCGA data). (D) K-M analysis of multi-gene riskscore model. (E) Multivariate Cox regression selects riskscore, clinical state, age and N stage as components to construct monogram (data from TCGA). (F) Visualization of monogram. (G) ROC analysis of monogram in TCGA cohort and GEO cohort.

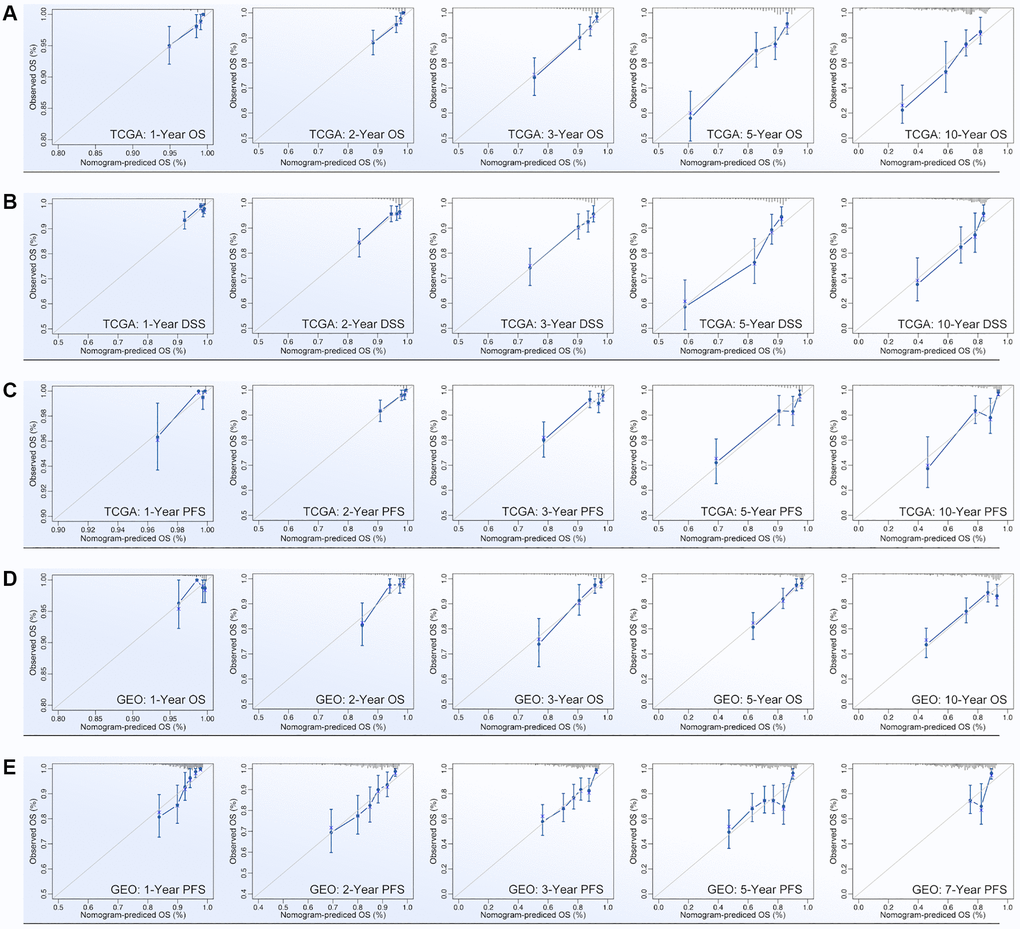

Figure 11. Calibration of nomogram. Calibration of (A) OS-prediction, (B) disease stable survival (DSS), (C) progression free survival (PFS) in monogram (data from TCGA). Calibration of (D) OS-prediction and (E) PFS in monogram (data from GEO).

Abbreviations

ACC: Adrenocortical Carcinoma; BLCA: Bladder Urothelial Carcinoma; BRCA: Breast Invasive Carcinoma; CESC: Cervical Squamous Cell Carcinoma and Endocervical Adenocarcinoma; CHOL: Cholangiocarcinoma; COAD: Colon Adenocarcinoma; DLBC: Lymphoid Neoplasm Diffuse Large B-cell Lymphoma; ESCA: Esophageal Carcinoma; GBM: Glioblastoma Multiforme; HNSC: Head and Neck Squamous Cell Carcinoma; KICH: Kidney Chromophobe; KIRC: Kidney Renal Clear Cell Carcinoma; KIRP: Kidney Renal Papillary Cell Carcinoma; LAML: Acute Myeloid Leukemia; LGG: Brain Lower Grade Glioma; LIHC: Liver Hepatocellular Carcinoma; LUAD: Lung Adenocarcinoma; LUSC: Lung Squamous Cell Carcinoma; MESO: Mesothelioma; OV: Ovarian Serous Cystadenocarcinoma; PAAD: Pancreatic Adenocarcinoma; PCPG: Pheochromocytoma and Paraganglioma; PRAD: Prostate Adenocarcinoma; READ: Rectum Adenocarcinoma; SARC: Sarcoma; SKCM: Skin Cutaneous Melanoma; STAD: Stomach Adenocarcinoma; TGCT: Testicular Germ Cell Tumors; THCA: Thyroid Carcinoma; THYM: Thymoma; UCEC: Uterine Corpus Endometrial Carcinoma; UCS: Uterine Carcinosarcoma; UVM: Uveal Melanoma; ARGS: Anoikis-related gene; AI: Artificial intelligence; LASSO: Least Absolute Shrinkage and Selection Operator; ROC: Receptor operation curve; TCGA: The Cancer Genome Atlas; GEO: Gene Expression Omnibus; UALCAN: The University Alabama at Birmingham Cancer data analysis Portal; THPA: The Human Protein Atlas; PCAWG: Pan-Cancer Analysis of Whole Genomes; IHC: Immunohistochemical staining; MMP7: Matrix metalloproteinase 7; TJP3: Tight junction protein 3; E-cad: E-cadherin; SVM: Support Vector Machine; XGboost: Extreme Gradient Boosting; DL: Deep learning; ssGSEA: Simple sample Gene Set Enrichment Analysis.

Author Contributions

Formal analysis: Chaojun Liu, Pengping Li; Investigation: Yingbo Shao; Methodology: Yanjun Li; Project administration: Hui Liu; Resources: Yaning He; Software: Yanjun Li and Qi Chen; In vitro experiments: Pengping Li; Supervision: Fangyuan Zhu and Hui Liu.

Conflicts of Interest

The authors declare that the research is conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Ethical Statement

The study was performed without any local human samples and clinical data and therefore, approval from the ethics committee is not required for this study.

Funding

This work is supported by the Key Science and Technology Projects of Xiaoshan (No. 2021210), Medical Health Science and Technology Planning Project of Hangzhou (No. B20220666).
