Construction and validation of a novel angiogenesis pattern to predict prognosis and immunotherapy efficacy in colorectal cancer

Results

Overview of the genetic and transcriptional alterations of ARGs in CRC

Firstly, the somatic mutations pattern of 36 ARGs in CRC cohort (COAD and READ samples) was investigated. The Figure 1A demonstrated that 157 (39.35%) had mutations of these ARGs in 399 COAD cohort. Notably, VCAN was the gene with the highest mutation frequency (10%), however, there were no mutations in two ARGs (CCND2 and TIMP1). In addition, the Figure 1B showed that 34 (24.82%) had mutations of these ARGs in 137 READ cohort, and VCAN was also the gene with the highest mutation rate (9%). Further, the protein–protein interaction (PPI) analysis was performed to construct, and indicated that VEGFA, SPP1, POSTN, VTN, COL3A1, ITGAV, and TIMP1 were the hub genes (Figure 1C). We then performed to compare the mRNA expression levels between normal and tumor tissues. A total of 26 DEGs were determined, most of which were rich in the tumor tissues (Figure 1D). Moreover, the somatic copy number alterations of ARGs were investigated, and the copy number variation (CNV) alterations on their respective chromosomes were demonstrated in Figure 1E. As shown in Figure 1F, 36 ARGs demonstrated evident CNV alterations. Notably, there was a positive association between the levels of ARGs and CNV alteration; for example, the expression levels of PRG2, SERPINA5, and THBD were low in tumor tissues, while VEGFA, PF4, and PTK2 were expressed at high levels. These results indicate that CNV may modulate the expression of ARGs in CRC. According to clinical characteristics, the CRC patients were divided into early-stage groups (I + II) and advanced-stage groups (III + IV). As shown in Figure 1G, there were significant differences between the two groups in 36 ARGs. The expression levels of 12 ARGs (VEGFA, VCAN, POSTN, STC1, COL5A2, ITGAV, COL3A1, SPP1, OLR1, PTK2, TIMP1, and JAG2) were higher in both CRC tissues and the advanced-stage groups, which indicated that their potential function as carcinogenic genes in CRC.

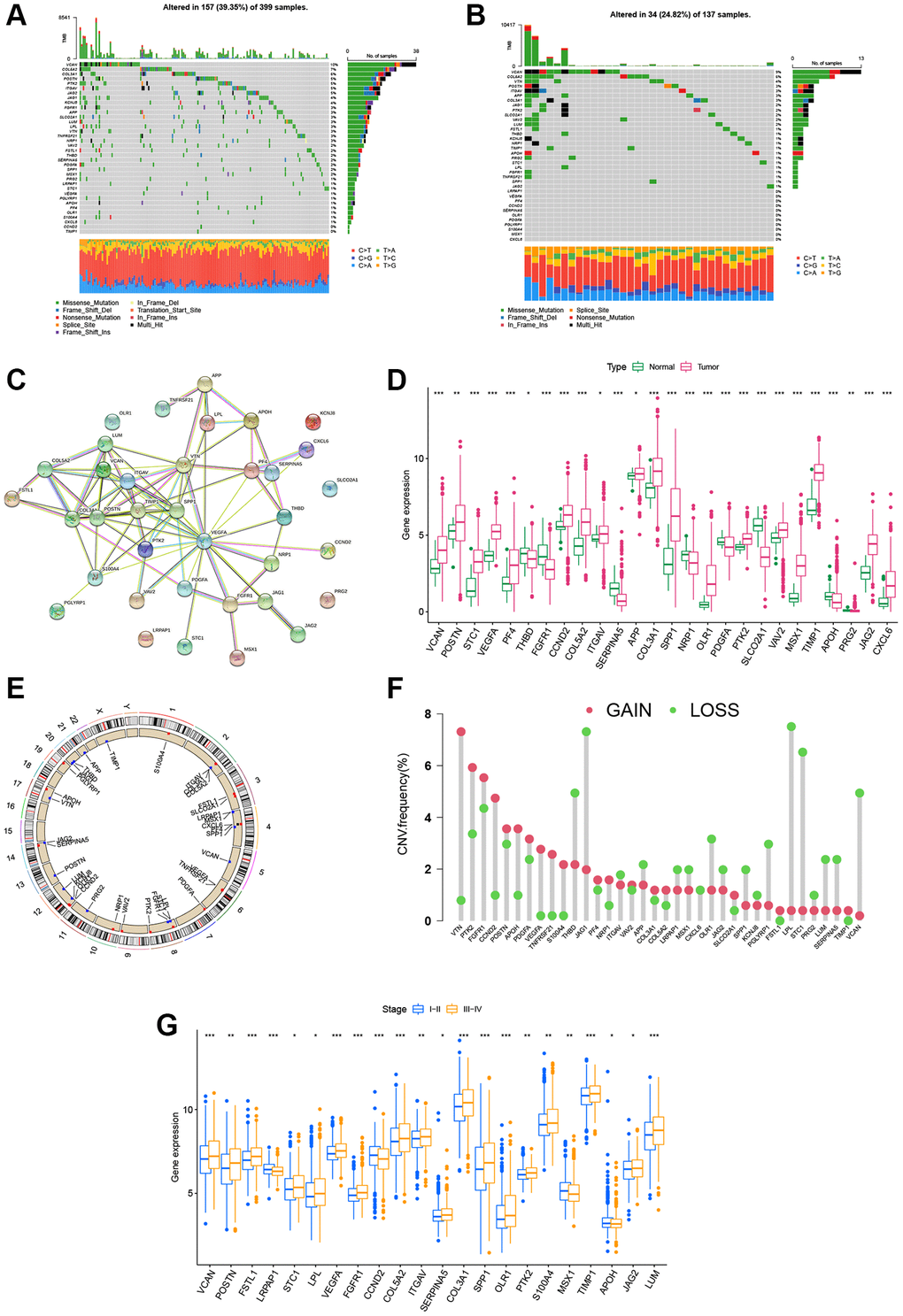

Figure 1. Landscape of the ARG genetic alterations in CRC. (A, B) Mutation frequencies of 36 ARGs in 399 and 137 patients with COAD and READ based on the TCGA cohort, respectively. (C) PPI network showing the interactions of ARGs (the minimum required interaction score was 0.4). (D) Expression distributions of DEGs between tumor and normal tissues. (E, F) Locations of CNV alterations in ARGs on 23 chromosomes and the frequencies of CNV gain, loss, and non-CNV among ARGs, respectively. (G) Expression distributions of DEGs between the high- and low-stage groups. ^*P < 0.05; ^**P < 0.01; ^***P < 0.001.

Identification of angiogenesis patterns in CRC

Supplementary Figure 1 displays the article framework and workflow. Our study integrated 1109 patients from four eligible CRC datasets to identify potential angiogenesis patterns of CRC. Detailed clinical information of 1109 patients are presented in Supplementary Table 3. We extracted the expression levels of 36 ARGs and then revealed their prognostic value using uniCox and Kaplan–Meier analysis [55] (Supplementary Table 4). Next, we established the angiogenesis network to visualize the landscape of 36 ARGs, including their interactions, connections, and prognostic values (Figure 2A, Supplementary Table 5). Based on these ARGs, we identified two different angiogenesis-related patterns by consensus clustering, including 612 cases in Cluster A and 497 cases in Cluster B (Figure 2B). Further, PCA analysis confirmed that the CRC patients were well-differentiated when k = 2, indicating the robust and reliable clustering of the samples (Figure 2C). The Kaplan–Meier curves demonstrated that the survival outcome of Cluster A was better than that of Cluster B (P < 0.001, Figure 2D). Furthermore, the heatmap was used to visualize the relationship between 36 ARGs expression and clinical features. Compared to Cluster B, we found that Cluster A was markedly associated with early pathological stage (P < 0.001), left-sided CRC (P < 0.01), without BRAF mutations (P < 0.001), and low risk of recurrence (P < 0.001, Figure 2E).

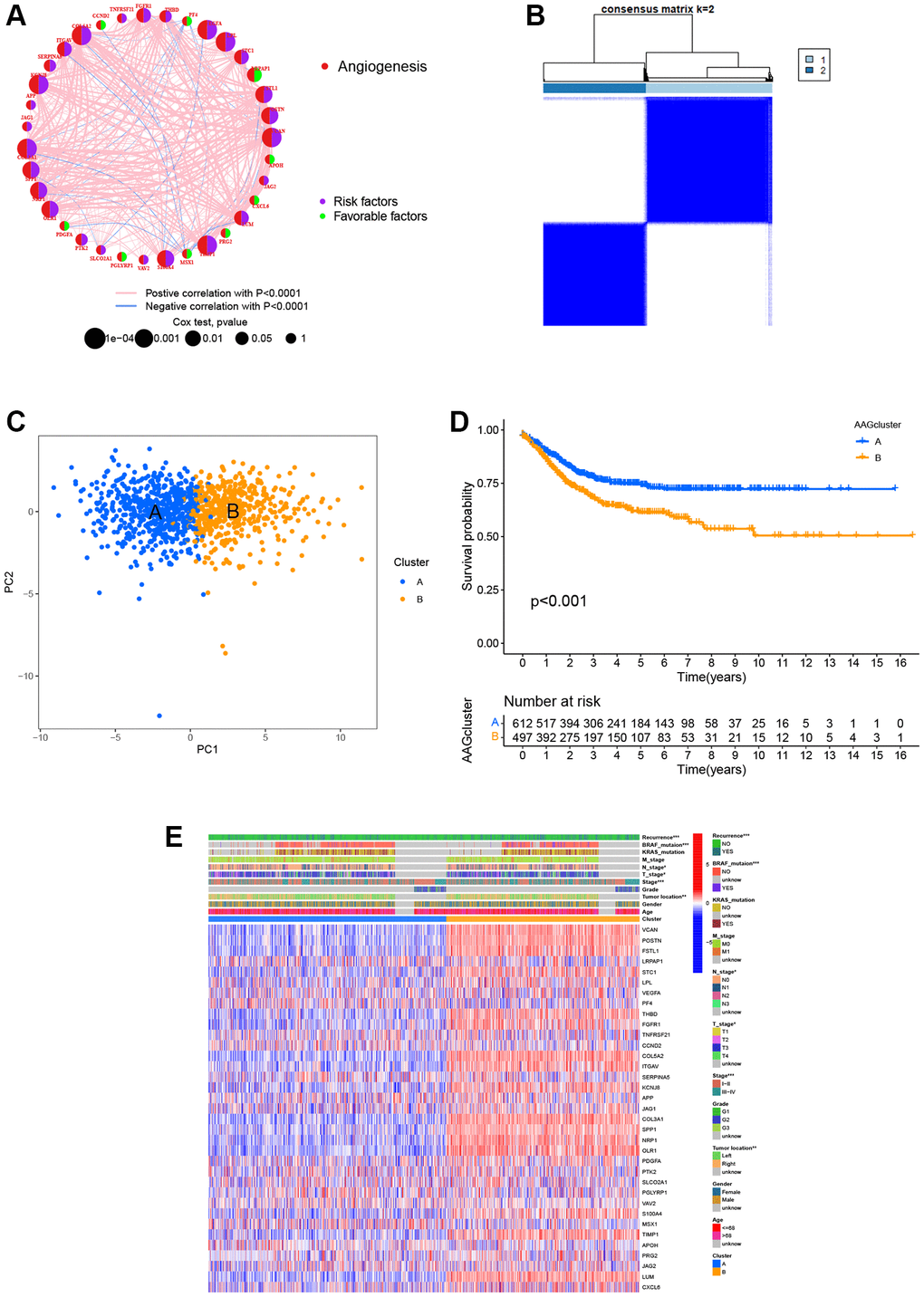

Figure 2. ARG-related subtypes and clinicopathological and biological characteristics of two distinct subgroups of samples divided by consistent clustering. (A) The correlation network of ARGs in CRC (red line: positive correlation; blue line: negative correlation). (B) Consensus matrix heatmap defining two clusters (k = 2) and their correlation area. (C) PCA showing a remarkable difference in transcriptomes between the two subtypes. (D) Univariate analysis showing 36 ARGs related to the RFS time. (E) Differences in clinicopathological and biological characteristics of the two distinct subtypes. ^*P < 0.05; ^**P < 0.01; ^***P < 0.001.

Variation in characteristics of TME infiltration between two angiogenesis subtypes

GSVA enrichment analysis showed that cluster B was significantly enriched in cancer-associated pathways (e.g., renal cell carcinoma, glioma, and small cell lung cancer), metastasis-associated pathways (e.g., cell adhesion molecules cams, ECM receptor interaction, and focal adhesion), and immune fully-activated pathways (e.g., B cell receptor signaling pathway, cytokine receptor interaction, chemokine signaling pathway activation, and the NOD-like and Toll-like receptor signaling pathways) (Figure 3A). To further investigate the correlation between ARGs and the TME of CRC, we analyzed the infiltrating levels of 23 human immune cell subsets in distinct subtypes with the CIBERSORT algorithm. We observed that, except for the monocyte cells, the other 22 types of immune cells were all poorly activated in Cluster A (Figure 3B). Further, we analyzed the differences in terms of the immune score, stromal score, and estimate score between Cluster A and Cluster B using the ESTIMATE algorithm. Our results revealed that Cluster B had higher TME scores than Cluster A, which indicates that Cluster B had a higher levels of angiogenesis-dependent extracellular matrix components (P < 0.001, Figure 3C). Moreover, we analyzed the expression of 47 important immune-oncology targets between Cluster A and Cluster B. As shown in Figure 3D, significant differences were observed in 36 immune checkpoints between the two subtypes, including PD-L1, CTLA-4, and LAG3 (P < 0.001). Altogether, our findings suggest that ARGs were involved in the formation of TME infiltration and represent different prognostic features in patients of CRC.

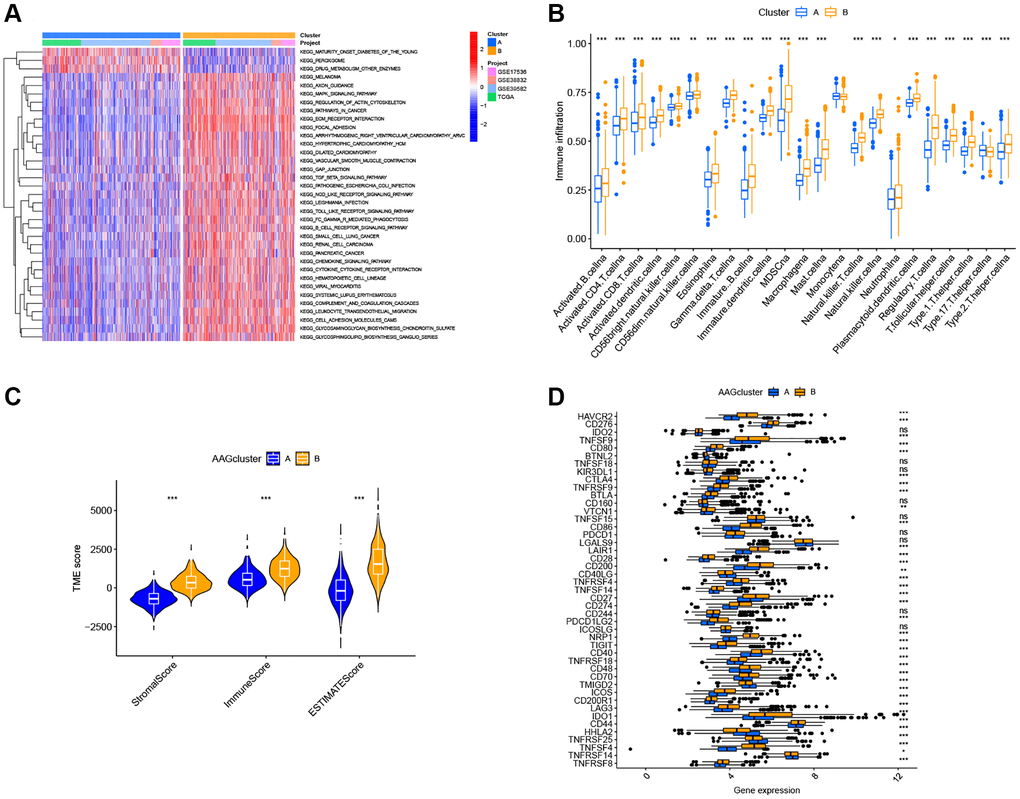

Figure 3. Two ARG subtypes showed diverse tumor immune cell microenvironments. (A) Biological processes analyzed by GSVA showing the active biological pathways in distinct subtypes. (B) The abundance of 23 TME infiltrating cells between the two subtypes of ARGs. (C) Correlations between the two ARG subgroups and the TME score. (D) Expression levels of 47 immune checkpoints in the two subtypes. ^*P < 0.05; ^**P < 0.01; ^***P < 0.001.

Generation of gene subtypes based on two angiogenesis clusters

To confirm the biological behavioral differences between these two angiogenesis subtypes, 927 angiogenesis clusters related DEGs were obtained using the “limma” package in R to obtain insights into their biological function. These angiogenesis subtypes related DEGs were mainly enriched in biological metastasis processes (Figure 4A). KEGG analysis showed enrichment of immune-, cancer- and metastasis-related pathways (Figure 4B), indicating that angiogenesis plays a vital role in the immune regulation of the TME and the modulation of tumor metastasis. Next, uniCox analysis was performed to explore the prognostic value of these DEGs and 620 genes related to RFS time were extracted (P < 0.05, Supplementary Table 6). To further understand specific regulation mechanism, a consensus clustering method was performed to divide patients into different gene clusters (named gene_Cluster A, B, and C, respectively) based on prognostic genes (Supplementary Figure 2). Kaplan-Meier curves indicated that patients in gene_Cluster C showed the worst RFS, whereas patients in gene_Cluster A had a favorable RFS (P < 0.001, Figure 4C). Furthermore, angiogenesis related gene_Cluster C was related to the advanced TNM stage, KRAS and BRAF mutations, and a higher recurrence risk (Figure 4D). Furthermore, the angiogenesis-related gene clusters demonstrated significant differences in ARG expression, which were consistent with the expected results of the angiogenesis clusters (Figure 4E).

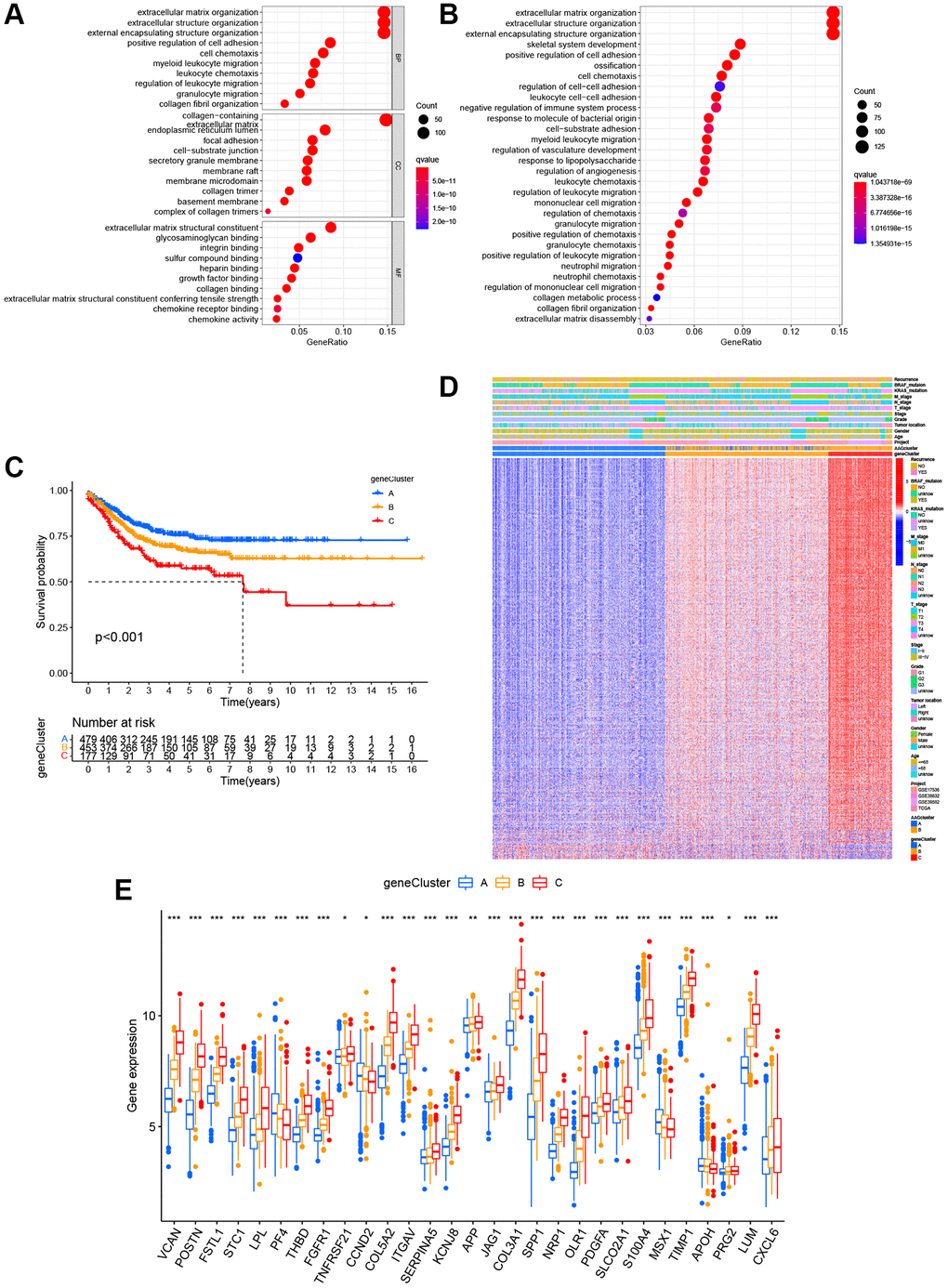

Figure 4. Identification of gene subgroups based on DEGs. (A, B) The bubble graph for Gene Ontology (GO) analysis and the barplot graph for Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis in the two ARG subtypes. (C) Kaplan–Meier curves for the RFS of the three gene subtypes. (D) Relationships between clinicopathologic characteristics and the three gene subtypes. (E) Differences in the expression of 36 ARGs among the three gene subtypes. ^*P < 0.05; ^**P < 0.01; ^***P < 0.001.

Construction and validation of the prognostic ARG_score in CRC

The ARG_score was constructed based on the DEGs associated with angiogenesis clusters. First, we randomly assigned the patients into training (n = 555) and testing (n = 554) groups at a ratio of 1:1. LASSO and multivariate Cox analyses for 620 angiogenesis cluster-related prognostic DEGs were then used to identify an optimal prognostic signature (Supplementary Figure 3). A total of 9 RFS-associated genes were identified based on the minimum partial likelihood deviance, and the ARG_score for each patient in the training, testing, and entire datasets were calculated based on the risk formula, as follows: risk score = (expression of SLC2A3 × 0.2758) + (expression of SCG2 × 0.1617) + (expression of KDR × 0.3094) + (expression of MMP11 × 0.1725) + (expression of CXCL10 × −0.2112) + (expression of CXCL13 × −0.0965) + (expression of SPINK1 × −0.1023) + (expression of KLK10 × 0.0877) + (expression of MMP3 × −0.1427). A Sankey diagram was constructed to visualize the patients’ distribution in the two angiogenesis clusters, three gene clusters, and two ARG_score groups (Figure 5A). In addition, significant differences were observed in the ARG_score of the angiogenesis clusters and gene clusters (Figure 5B, 5C). The highest and lowest ARG_score was observed in gene_Cluster C and gene_Cluster A, respectively, suggesting a low ARG_score may be closely associated with immune activation-associated features. According to the results of survival analysis, we found that the higher ARG_score of both classifications were associated with a worse RFS. Moreover, Kaplan-Meier analysis implied that low ARG_score patients had a better RFS over patients with a high ARG_score in the training cohort (P < 0.001, Figure 5D), and the AUCs of the 1-, 5-, and 10-year RFS were 0.702, 0.755, and 0.753 in the training cohort, respectively (Figure 5E). PCA analysis demonstrated a clear distribution between the low- and high-ARG_score groups (Figure 5F). The relationships between the 9 selected prognostic signatures and the ARG_score can be witnessed in the heatmap (Figure 5G). Meanwhile, the distribution of the ARG_score and RFS time of patients is shown in Figure 5H, 5I. To assess the predictive robustness of the risk model, the ARG_score of the testing cohort and the entire cohort were obtained (Supplementary Figures 4, 5). Based on the median score of the training cohort, we also separated patients into different risk subgroups. Also, survival analysis revealed a superior RFS of low score patients compared to high score patients (P < 0.001). Further, the classification efficiency analysis of 1-, 5- and 10-years survival prediction showed that ARG_score had a high AUC values, suggesting that the model had the ability to evaluate the survival of CRC patients.

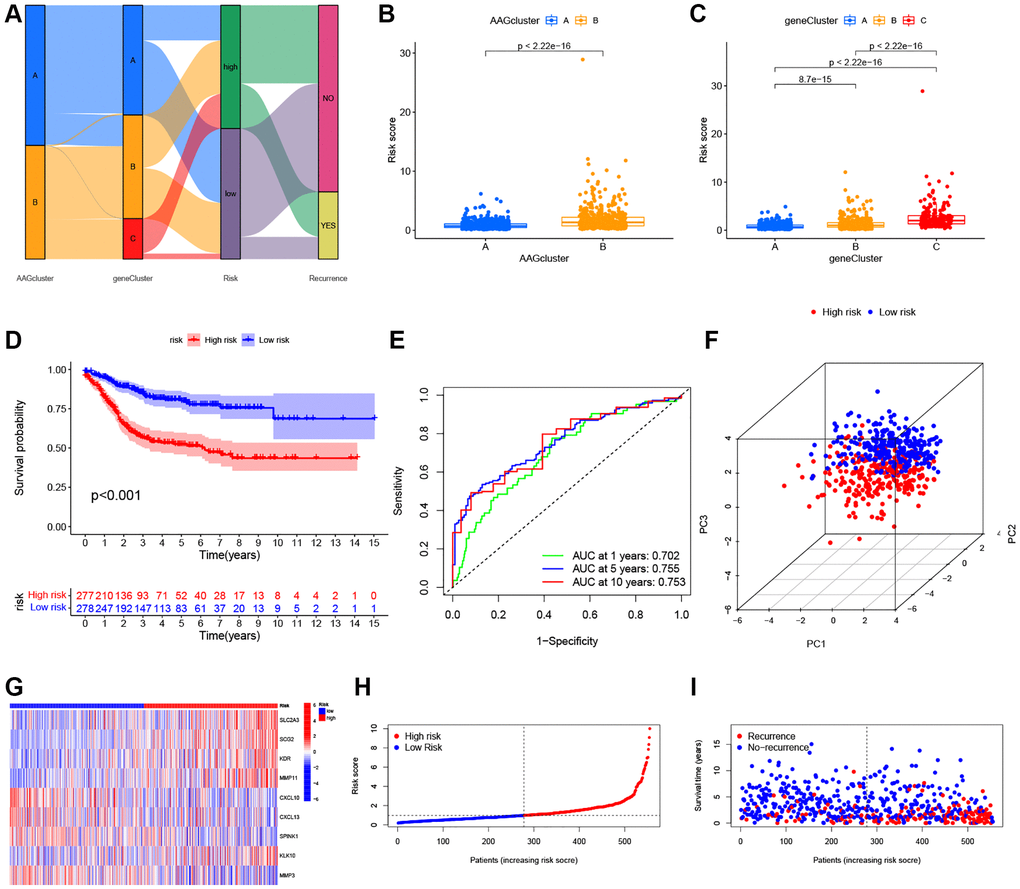

Figure 5. Construction of the ARG_score in the training set. (A) Alluvial diagram of subtype distributions in groups with a different ARG_score and prognosis. (B) Differences in ARG_score between the two ARGs clusters. (C) Differences in ARG_score among the three gene subtypes. (D) Kaplan–Meier analysis of the RFS between the low- and high-ARG_score groups. (E) ROC curves to predict the sensitivity and specificity of 1-, 5-, and 10-year survival according to the ARG_score. (F) PCA analysis based on the prognostic model. (G–I) The distribution of the risk score, survival time, and survival status, and the heatmap of the 9 selected prognostic genes between the high- and low-ARG_score groups, respectively.

Validation of the 9 prognostic ARGs in CRC tissues

To more effectively verify our findings, the expression levels of 9 prognostic signatures were measured in 6 pairs of tumor tissues and normal adjacent tissue samples by RT-qPCR. As shown in Supplementary Figure 6I–6O, the expression levels of SLC2A3, MMP11, CXCL10, KLK10, and MMP3 were upregulated, while those of SCG2 and CXCL13 were downregulated in CRC tissues compared to normal tissues. No statistically significant difference was observed in the mRNA levels of KDR and SPINK1 between the normal and tumor tissues (data not shown). These experimental results were consistent with those predicted by the bioinformatics methods (Supplementary Figure 6A) and the GEPIA database (Supplementary Figure 6B–6H).

Stratified analysis and independent prognostic value of ARG_score

To determine the influence of the ARG_score on clinical features, the association between ARG_score and clinical factors was investigated in CRC patients, including age, gender, TNM stage, tumor location, KRAS, and BRAF mutation status. We found a higher ARG_score in patients in the stage III–IV subgroup than those in the stage I–II subgroup (P < 0.001, Supplementary Figure 7A). To determine whether the ARG_score could be used as an independent prognostic factor, we carried out univariate and multivariate Cox regression analyses by using ARG_score and multiple clinical characteristics. As shown in Supplementary Figure 7B–7D, ARG_score was an independent predictor of CRC outcome in the training cohort, with consistent results observed across the testing cohort and the entire cohort (P < 0.001). To further investigate the prognostic significance of the ARG_score in CRC, we performed a stratified analysis in different clinical parameter subgroups. As shown in Supplementary Figure 8, CRC patients in the high ARG_score group tended to have a shorter RFS than that in the low ARG_score group (P < 0.001), as demonstrated by the results for age, sex, tumor location, TNM stage, and KRAS and BRAF mutations.

Establishment of a clinical nomogram for the prediction model in CRC

Given the high correlation between the ARG_score and patients’ prognosis in CRC, we further performed to establish a nomogram by using multivariate Cox regression to predict the 1-, 5-, and 10-year RFS (Figure 6A). Calibration plots showed that 1 -, 5 -, and 10-year RFS could be predicted relatively well (Figure 6B). Further, the AUC values of the nomogram with that of the TNM stage were estimated for predicting the 1-, 5-, and 10-year RFS, respectively. Compared with TMN staging features, the prediction ability of ARG_score in the nomogram was superior (Figure 6C–6E).

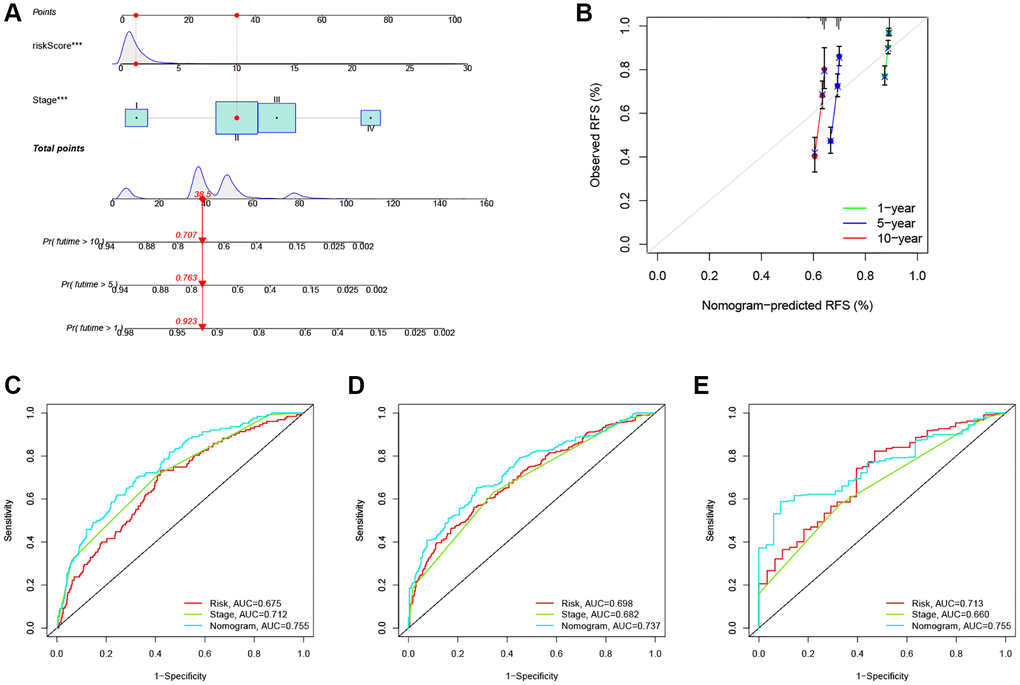

Figure 6. Construction and evaluation of a predictive nomogram. (A) The nomogram predicts the probability of the 1-, 5-, and 10-year RFS. (B) The calibration plot of the nomogram predicts the probability of the 1-, 3-, and 5-year RFS. (C–E) The time-dependent ROC curves of the nomograms compared for the 1-, 5-, and 10-year RFS in CRC, respectively. ^***P < 0.001.

Relationship between ARG_score and TME infiltration in CRC

There is increasing evidence that TME cell infiltration is critical to tumor development and therapeutic response. Thus, we used the CIBERSORT algorithm to investigate the abundance of different immune cell types between the low- and high-ARG_score groups. As shown in Figure 7A, the ARG_score was positively correlated with the infiltration of M0 and M2 macrophages, neutrophils, regulatory T cells (Tregs), and activated mast cells, while being negatively correlated with the infiltration of M1 macrophages, naïve B cells, follicular helper T cells, CD8 + T cells, CD4 + memory-activated T cells, plasma cells, activated NK cells, and resting NK cells. In addition, a low ARG_score was also closely related to a high immune score, whereas a high ARG_score was linked to a high stromal score (Figure 7B). We then evaluated the potential relationship between the 9 selected genes in the prognostic signature and the abundance of immune cells, and found that most immune cells were significantly associated with these 9 genes (Figure 7C). Furthermore, we evaluated the correlations between 47 immune checkpoints and this prognostic signature. As shown in Figure 7D, 30 immune checkpoints were discrepantly represented in the two groups, including PD-L1, CTLA-4, and LAG3.

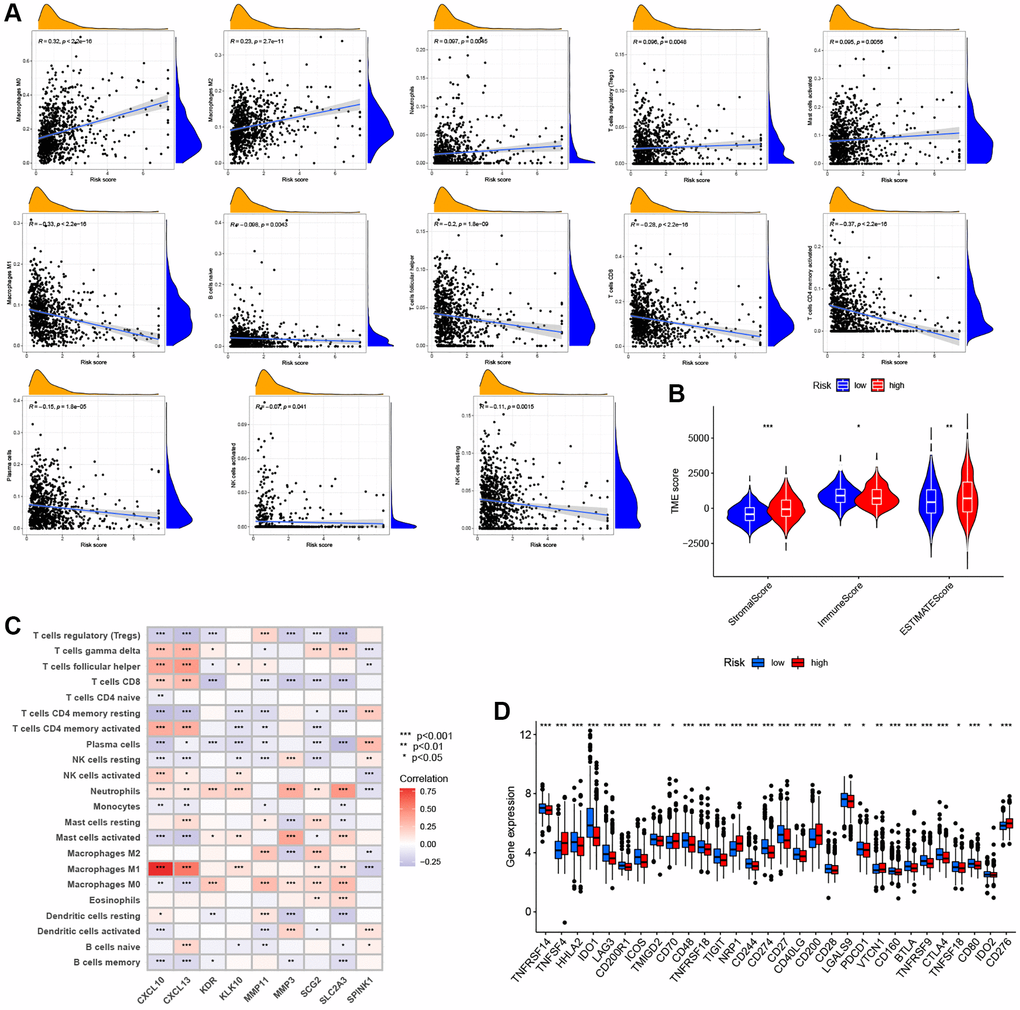

Figure 7. Evaluation of the TME and immune checkpoints between the distinct ARG_score groups. (A) Correlations between ARG_score and immune cell types. (B) Correlations between ARG_score and both immune and stromal scores. (C) Correlations between the abundance of immune cells and 9 selected genes in the proposed model. (D) Expression of 47 immune checkpoints in the low- and high-ARG_score groups. ^*P < 0.05; ^**P < 0.01; ^***P < 0.001.

The ARG_score had observable correlations with the TMB, MSI, and CSC indices

Several studies have reported that patients with high TMB or MSI-H status may be more sensitive to immunotherapy [5, 56, 57]. As shown in Figure 8A, a higher TMB was observed in the low ARG_score groups compared to the high ARG_score groups (P < 0.05), indicating that low ARG_score patients may benefit more from immunotherapy drugs. In addition, our findings indicate that the ARG_score was negatively correlated with TMB based on Spearman correlation analysis (R = −0.14, P < 0.05, Figure 8B). We further evaluated the potential relationship between TMB status and RFS, and found significant differences in clinical outcome between patients with high and low TMB groups (P < 0.05, Figure 8C). Meanwhile, this prognostic benefit in the high TMB groups was more affected by the ARG_score than that of the low TMB groups (P < 0.01, Figure 8D). Furthermore, correlation analysis showed that the high ARG_score group was associated with a microsatellite stable (MSS) state, while the low ARG_score group was associated with a high microsatellite unstable (MSI-H) state (Figure 8E, 8F). This result also implies that the low ARG_score groups benefitted from immunotherapy, with consistent results observed in the TMB analyses. Furthermore, the relationships between ARG_score and cancer stem cell (CSC) index was analyzed. As shown in Figure 8G, the results showed that ARG_score was negatively correlated with CSC index values (R = −0.48, P < 0.001), meaning that a lower ARG_score was associated with more pronounced stem cell characteristics and lower degree of cell differentiations. Additionally, the distribution differences of the top 20 somatic mutations genes among distinct ARG_score groups were analyzed based on TCGA-COAD cohort. As shown in Figure 8H, the mutation incidences of APC, TP53, TTN, KRAS, MUC16, SYNE1, PIK3CA, and FAT4 were higher than or equal to 20% in the high ARG_score groups. Surprisingly, except for the USH2A, all other mutated genes were higher than or equal to 20% in the low ARG_score groups (Figure 8I). Taken together, our results indicate that these genes were more likely to be mutated in the low ARG_score groups compared to the high ARG_score groups.

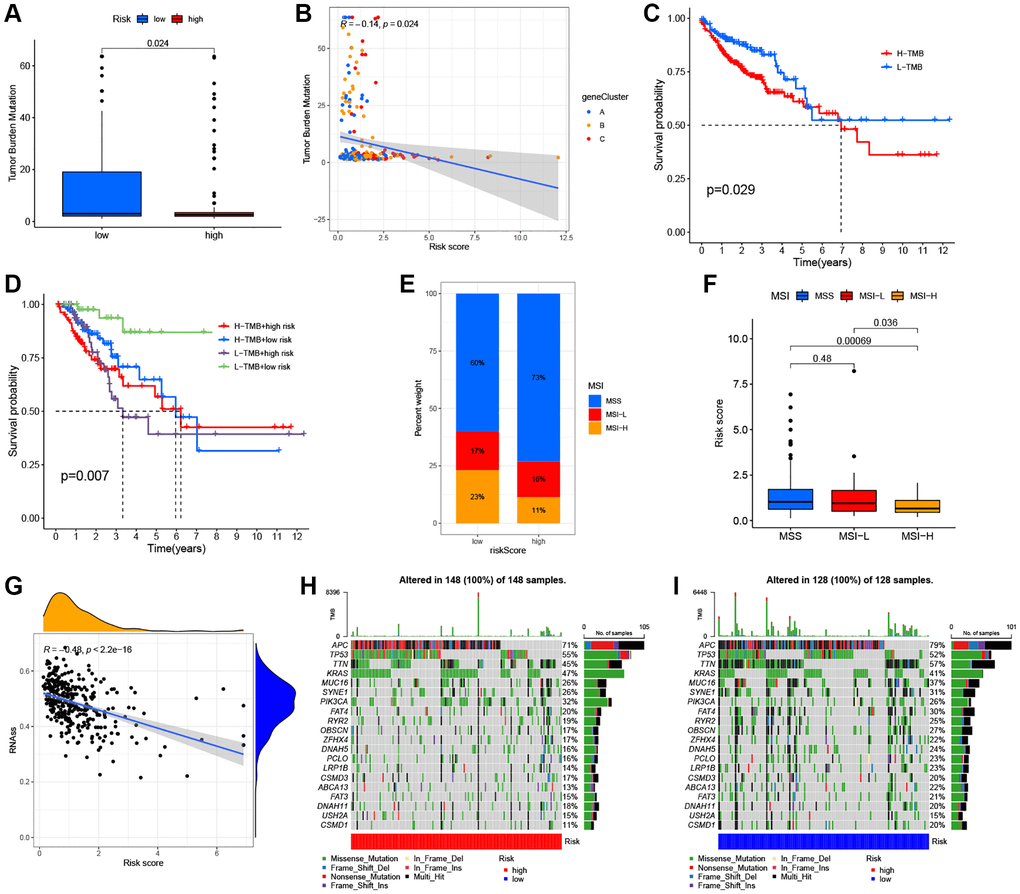

Figure 8. Comprehensive analysis of the ARG_score in CRC. (A, B) Relationships between the ARG_score and TMB. (C) Kaplan–Meier analysis of the RFS between the low- and high-TMB groups. (D) Survival analysis among four groups stratified by both TMB and ARG_score in CRC. (E, F) Relationships between ARG_score and MSI. (G) The correlation of the ARG_score with CSC index. (H, I) The waterfall plot of somatic mutation features established with the high- and low-ARG_score groups.

Screening of the sensitive molecular drugs and prediction of the immunotherapy efficacy

Currently, CRC patients usually receive chemotherapy, targeted therapy, and immunotherapy after radical surgery, which has been shown to significantly improve clinical outcomes [58]. To explore the potential therapeutic drugs of patients in the low- and high-ARG_score groups, we analyzed the IC50 values of common therapeutic drugs in CRC patients. Our data showed that the low ARG_score groups may positively react to cisplatin, ATRA, gefitinib, sunitinib, gemcitabine, obatoclax, mesylate, paclitaxel, camptothecin, and bosutinib, while the high ARG_score groups may respond better to shikonin, 11asatinib, erlotinib, imatinib, lapatinib, and nilotinib (Figure 9A). The 15 associated candidate drugs were ranked by the p-value of differences, and top 6 most associated molecule drugs were screened for CRC patients. The 3D structures of ATRA, gemcitabine, camptothecin, shikonin, imatinib, and 11asatinib were displayed through the PubChem database (Figure 9B). The vascular endothelial growth factor (VEGF) pathway has been shown to play a critical role in the control of CRC angiogenesis [59]. Anti-angiogenic drugs targeting the VEGF signaling pathways, including bevacizumab, has been shown to be an effective and tolerable therapy that improves survival in advanced CRC patients [60]. We further investigated the ability of the ARG_score to predict response to bevacizumab therapy in the GSE53127 cohort. As shown in Figure 9D, the high ARG_score groups had a higher objective response rate compared to the low ARG_score groups (P < 0.001). Also, in the GSE103668 cohort, the proportion of response patients in the high ARG_score groups were significantly higher than that in the low ARG_score groups (P < 0.001, Figure 9E). Furthermore, we observed significant negative associations between immune checkpoint levels (e.g., PD-1/L1, CTLA-4, and LAG3) and the ARG_score during the evaluation of ARG-related TME characteristics. Thus, we used two methods to assess the predictive ability of the ARG_score in the immunotherapy response. The immunophenoscore (IPS) has been applied to predict the immunotherapeutic benefits to CTLA-4 and PD-1. Our results indicated that the low ARG_score group had a good response to PD-1 and CTLA-4 single positive, double positive, and double negative (Figure 9C). Further, three datasets (GSE78220, GSE126044, and E-MTAB-3218 cohorts) containing patient pretreatment and immunotherapeutic (anti-PD-1 therapy) data were collected, which had various clinical (PR/CR: responses or PD/CD: no-responses) and transcriptional (RNA-seq) information. As shown in Figure 9F–9H, the proportion of response patients in the low ARG_score groups were significantly higher than that in the high ARG_score groups (P < 0.05), which is consistent with the characteristics of significant vascular infiltration and immunosuppression in the high ARG_score groups. Together, our findings suggest that the ARG_score model had greater potential for predicting immunotherapy efficacy.

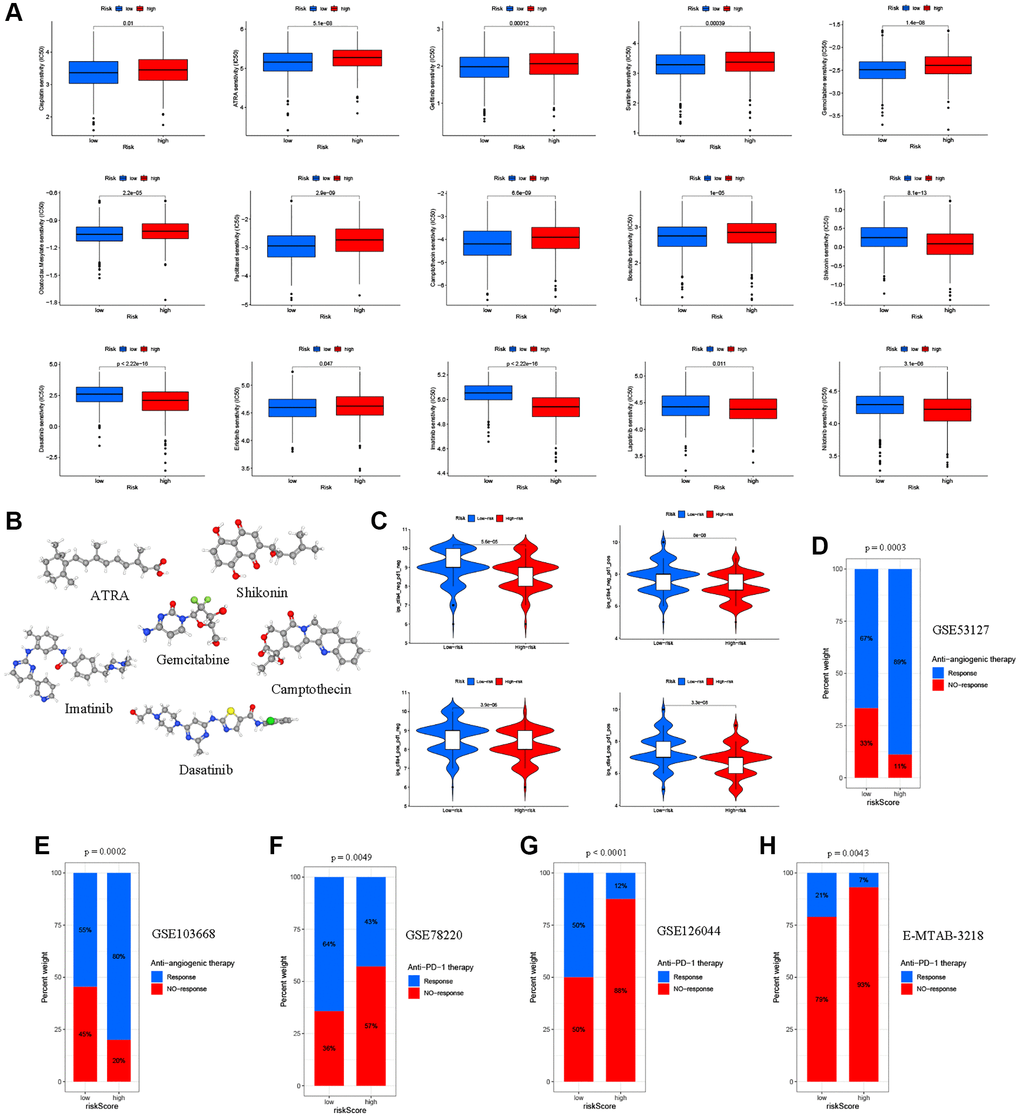

Figure 9. Relationships between the ARG_score and therapeutic sensitivity. (A) Relationships between the ARG_score and chemotherapy and sensitivity to targeted inhibitor therapy. (B) The 3D structure of 6 potential target drugs screened out from the cMap database. (C) The IPS in the different ARG_score groups. (D, E) Proportion of patients with different treatment outcomes (bevacizumab therapy) in the low- and high-ARG_score groups. The proportion of response patients in the low ARG_score groups were significantly higher than that in the high-ARG_score groups in both the GSE53127 and GSE103668 cohorts. (F–H) Patients with a high ARG_score exhibited poorer response outcomes after immunotherapy (anti-PD-1 therapy) using the GSE78220, GSE126044, and E-MTAB-3218 cohorts.

KLK10 was identified as a prognostic key ARG and immunotherapy target

According to the expression of 9 prognostic ARGs, a machine learning algorithm was used to predict candidate ARGs based on survival and death as binary dependent variables. As shown in Figure 10A, the three most important ARGs were CXCL10, SPINK1, and KLK10 in the RF model. Further, we analyzed the expression levels of these ARGs by combining the GTEx and TCGA databases. Our results showed that KLK10 was the most significantly different gene between normal and tumor tissues (Figure 10B, FDR < 0.001 and log₂ FC > 5), which showed a high degree of consistency with the results of qRT-PCR analysis (Supplementary Figure 6N). To investigate the relationship between KLK10 expression and TME infiltration, we assessed the stromal score and immune score based on ESTIMATE analysis. As shown in Figure 10C, the stromal and immune score of high KLK10 expression groups were higher than those of low KLK10 expression groups, indicating that KLK10 expression was related to a hot TME. Additionally, we performed different algorithms to determine the relationship between KLK10 expression and infiltration levels of different immune cell types. The lollipop shape demonstrated that most immune cells had a positive correlation with KLK10 expression (Figure 10D). Furthermore, we used the TIDE algorithm to dissect the relationship between KLK10 expression and immunotherapy response. The results indicated that high KLK10 expression was positively correlated with the tumor immune escape (T cell dysfunction and T cell exclusion), which provides novel insights into precision immunotherapy in CRC (Figure 10E). Further, we explored the relationship between clinical and prognostic value and KLK10 expression, and found that the expression of KLK10 was significantly related to the pathologic stage (Figure 10F). Moreover, high KLK10 expression was markedly related to poor RFS based on the median of the KLK10 expression levels (Figure 10G), highlighting its potential function as the tumor promotor in the occurrence and development of CRC.

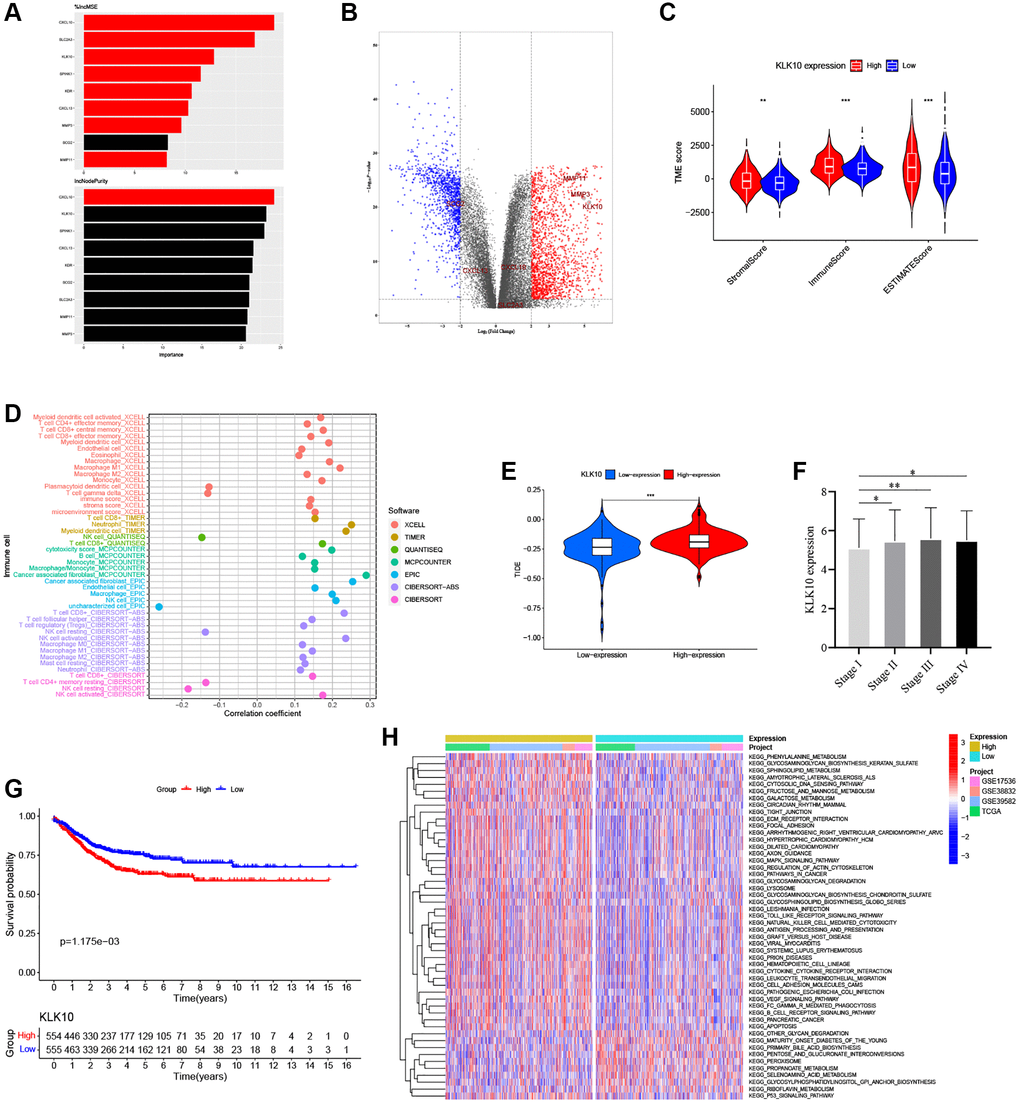

Figure 10. Identification of the key biomarkers in ARGs based on multi-methods. (A) The variable importance of 9 prognostic ARGs in RF models. (B) Volcano plot of significant DEGs between the normal and tumor tissues in four CRC cohorts (red represents upregulated genes, blue indicates downregulated genes, and gray represents no change). (C) Correlations between KLK10 expression and both the immune and stromal scores. (D) Spearman correlation analysis performed using different algorithms between KLK10 expression and immune cell infiltration. (E) The relationship between KLK10 expression and the TIDE score. (F) The correlation of KLK10 expression with clinicopathological staging characteristics. (G) Survival analysis for CRC patients with distinct KLK10 expression. (H) The GSVA pathway enrichment analysis between distinct KLK10 expression groups. ^*P < 0.05; ^**P < 0.01; ^***P < 0.001.

Exploration and validation of the biological functions of KLK10 in CRC

To determine the biological characteristics of KLK10, we performed GSVA enrichment analysis between the low- and high-expression groups. The results demonstrated that KLK10 was involved in cancer development and progression mechanisms, including the TP53, MAPK, and VEGF pathways, apoptosis pathway, chemokine pathway, and tumor metastasis pathway (Figure 10H), indicating that KLK10 may play an essential role in tumor growth and invasion. To validate our results further, specific siRNAs were transfected into HT29 and HCT116 cells, and the transfection efficiency of KLK10 siRNA was verified by qRT-PCR (Figure 11A). In terms of cell proliferation, the results of the CCK8 assay indicated that a reduction in KLK10 significantly suppressed the proliferation ability of HT29 and HCT116 cells (Figure 11B). Further, the results of wound-healing assays showed that the knockdown of KLK10 markedly restrained the healing of scratched wounds (Figure 11C). As we know, the epithelial-mesenchymal transition (EMT) is one of the key mechanisms of tumor metastasis and one of the main factors leading to the poor prognosis in patients. We conducted a correlation analysis and presented our findings in a heatmap (Figure 11D). The results indicated that the KLK10 expression was positively associated with the mesenchymal markers (e.g., N-cadherin and vimentin), while being negatively related to the epithelial markers (E-cadherin). In line with these outcomes, western blot analysis confirmed that the knockdown of KLK10 downregulated the protein level of N-cadherin and vimentin in two cell lines. On the contrary, reduced KLK10 expression markedly upregulated the protein level of E-cadherin (Figure 11E, 11F). Collectively, these results highlight the pro-tumor effects of KLK10 in CRC, in accordance with the results of bioinformatics analysis.

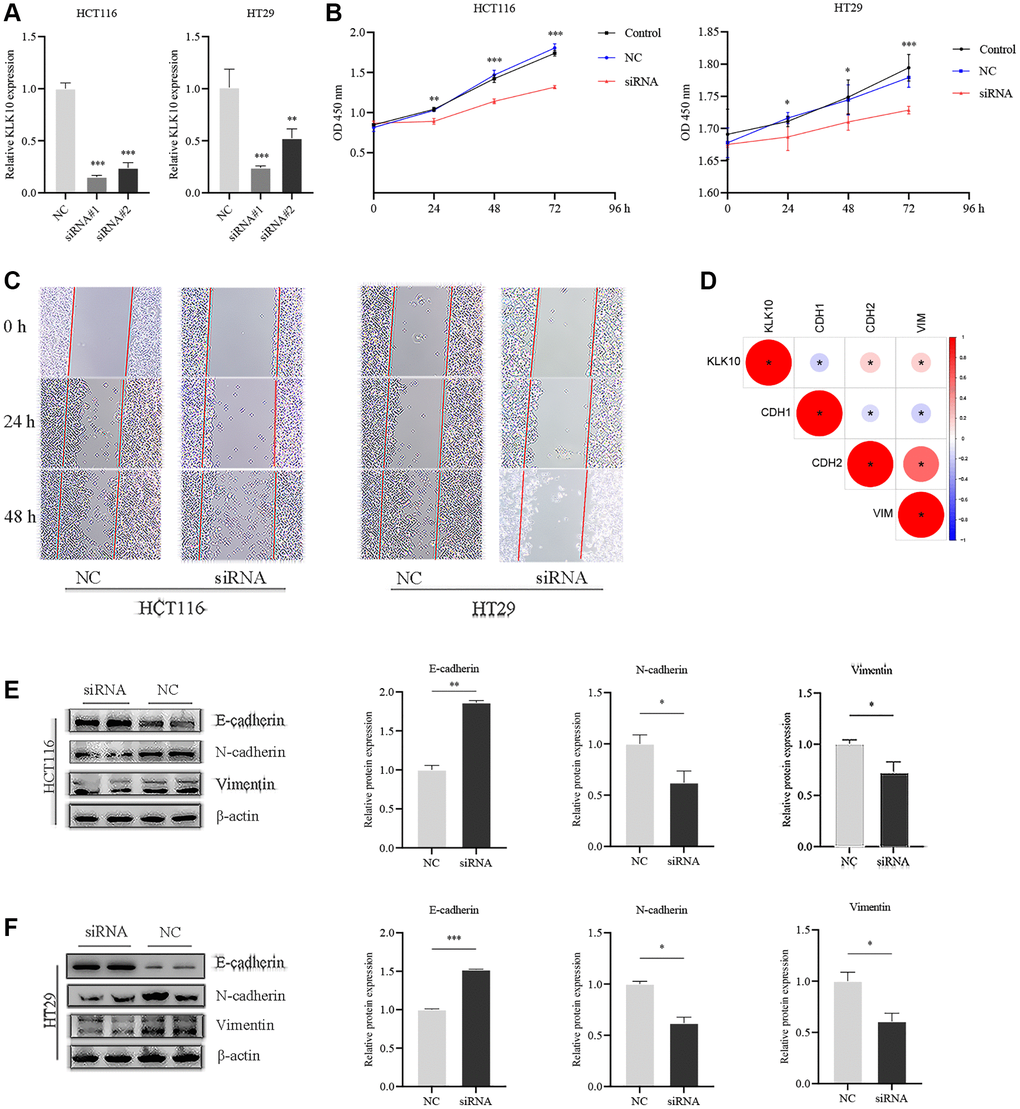

Figure 11. Influences of KLK10 expression on CRC cell proliferation, migration, and invasion. (A) The efficacy of the KLK10 transcript was detected after KLK10 knockdown in two CRC cell lines. (B) Cell viability was assessed by CCK8 array when KLK10 expression was reduced in cells. (C) Wound-healing assay of CRC cells with KLK10 knockdown monitored for 48-h with 24-h intervals. (D) Correlations between KLK10 expression and EMT markers (E-cadherin, N-cadherin, and Vimentin) using Spearman analysis. (E, F) The protein levels of E-cadherin, N-cadherin, and Vimentin were measured by western blotting after KLK10 knockdown in two CRC cell lines. Data are presented as mean ± SD. ^*P < 0.05; ^**P < 0.01; ^***P < 0.001.

KLK10 was significantly associated with Fusobacterium nucleatum (F.n) infection in CRC

The gut microbiota plays an important role in human health and disease. Recent studies have demonstrated that the presence of microbiota in various tumor tissues is not accidental, but a common phenomenon [61]. Therefore, the intratumoral microbiota is also considered to be part of the TME. F.n is a gram-negative anaerobe parasitic in the oral cavity, which has been found to promote CRC development through inhibits host anti-tumor immunity [62, 63]. Given the essential roles played by ARGs in the tumor immune microenvironment, we speculated that F.n dysregulation might affect the expression of ARGs and hence modulate local immune responses, in turn affecting immunotherapy. To determine the key ARGs associated with F.n, we performed whole genome microarray analysis of HCT116 cell lines infected with F.n for 48 h. In addition, the gene expression profile of the RNA-seq dataset (GSE90944) from HT29 cell lines infected with F.n was also obtained and further analyzed. Surprisingly, KLK10 was identified as the key downstream ARG of F.n (DEGs was set as an FDR < 0.05 and |log₂ FC| ≥ 1) (Figure 12A). Moreover, the results showed that the expression of KLK10 was significantly upregulated by F.n in two cell lines (Figure 12B). Further, qPCR was performed to validate the expression of KLK10 in CRC cell lines infected with F.n. As shown in Figure 12C, 12D, the mRNA expression of KLK10 was significantly upregulated in CRC cells by F.n infection for 24 h and 48 h, respectively. These findings were consistent with the results of western blot analysis (Figure 12E). Overall, our findings suggest that F.n infection strongly induces KLK10 expression in CRC cell lines. As such, KLK10 could serve as a promising clinical indicator and therapeutic target for CRC patients infected with F.n.

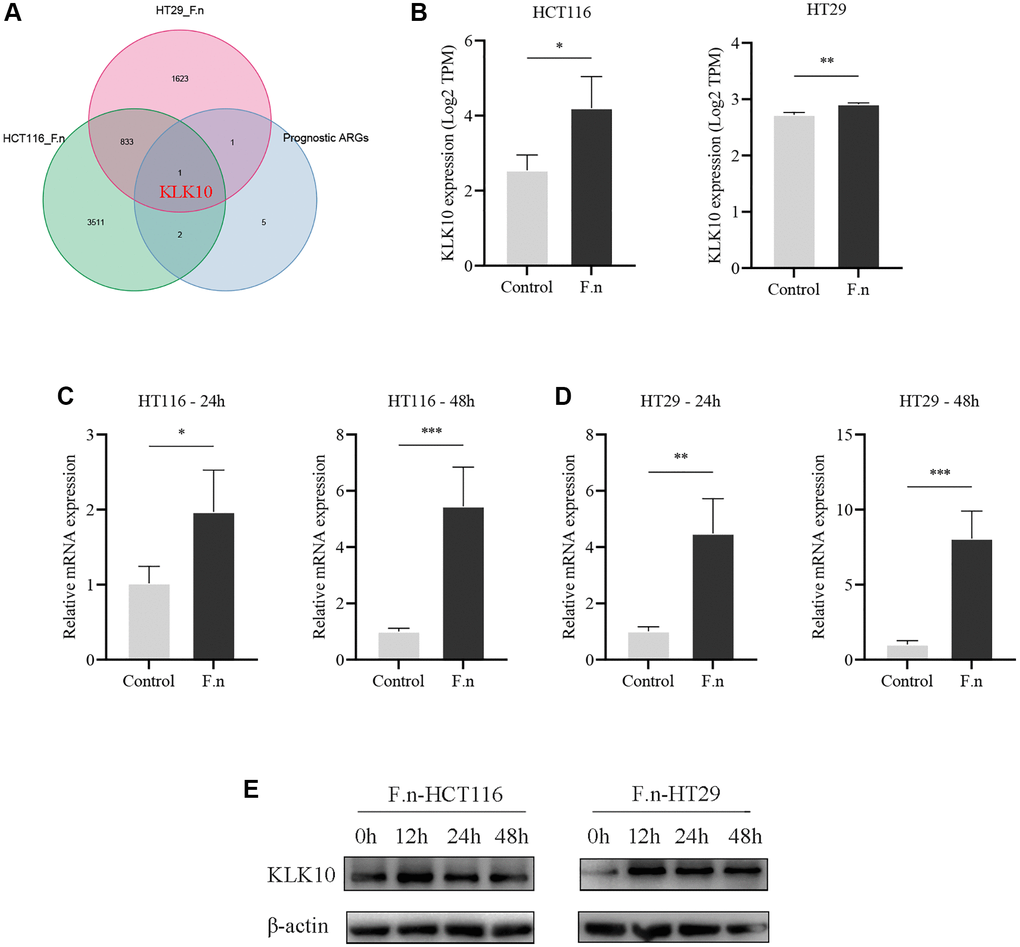

Figure 12. CRC cells co-cultured with F.n were found to have significantly upregulated KLK10 expression. (A) The Venn diagram demonstrating that KLK10 was shared by F.n infection-related DEGs and prognostic ARGs. (B) Microarray analysis of KLK10 expression between HCT116 cells and F.n infected HCT116 cells (left panel) and expression of KLK10 in HT29 cells incubated with or without F.n (right panel). (C, D) The KLK10 mRNA expression in CRC cell lines infected with or without F.n for 24 h and 48 h, respectively, was determined by qPCR. (E) Representative western blot for KLK10 protein and β-actin protein extracted from CRC cells infected with F.n for 0, 12, 24, and 48 h. ^*P < 0.05; ^**P < 0.01; ^***P < 0.001.

Author Contributions

ZL designed the research route and conducted the experimental verification. ZL executed the majority of data collation, analysis and writing. YL contributed to some data analysis and figures. PG and YW performed supervision and funding acquisition. All authors have read and approved the final manuscript.

Acknowledgments

We would like to extend our thanks to the GEO and TCGA network for providing the data. The authors also gratefully acknowledge contributions from the GEPIA 2 database, PubChem database, TCIA database, and TIDE website.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Ethical Statement and Consent

All procedures for the colorectal cancer validation cohort were done in agreement with the Declaration of Helsinki and approved by the Ethical Committee of Ningbo Second Hospital, also known as Ningbo HwaMei Hospital of the University of Chinese Academy of Science (application number SL-NBEY-KYSB-2022-009-01). The patients/participants provided their written informed consent to participate in this study.

Funding

This research was funded by the National Nature Science Foundation of China (NSFC) (Grant No. 81970466), Ningbo Top Medical and Health Research Program (Grant No. 2022010101) and Ningbo Digestive System Tumor Clinical Medical Research Center (Grant No. 2019A21003).
