A cellular senescence-related genes model allows for prognosis and treatment stratification of cervical cancer: a bioinformatics analysis and external verification

Acquisition and procession of TCGA and senescence-related gene set

From the TCGA website (https://portal.gdc.cancer.gov/), we acquired gene expression data, transcriptome profiles, and clinical information of CC patients. We obtained a curated gene list consisting of 279 cellular senescence-related genes from the CellAge database (https://genomics.senescence.info/cells/, seen in Supplementary Table 1). Using the criteria of log₂(FC) >1 and P-value < 0.05, we performed differential expression analysis of these differentially expressed senescence-related genes (DE-SRGs) in three hundred and six CC and three normal tissues using the “edgeR” package in R 3.6.1 software. For validation, we obtained two datasets, GSE44001 and GSE52903, from the GEO database. We visualized the expression levels of the prognosis-associated DE-SRGs by employing the “pheatmap” and “ggplot” packages in R, respectively, while comparing normal and tumor samples. Our study adhered to the publication guidelines provided by TCGA.

Senescence-related gene analysis using consensus clustering

Using the “ConsensusClusterPlus” package in R, we performed an unsupervised clustering analysis of SRGs. First, the cumulative distribution function (CDF) curve showed a gradual and smooth increase. Second, each subgroup had an appropriate sample size. Finally, the correlation within each subgroup increased while the correlation between subgroups decreased. Additionally, we performed PCA using the “prcomp” command in R to further explore the data structure and patterns.

Development and validation of the prognostic signature related to senescence

Next, we employed LASSO regression analysis using the “glmnet” R package to identify key prognosis-related DE-SRGs. The risk score formula for predicting the prognosis of CC patients is as follows:

$$\text{Risk}\text{score}={\displaystyle \sum {\text{n}}_{\text{i}}}={\displaystyle \sum (\text{Coefi}\ast {\text{x}}_{\text{i}})}$$

The regression coefficient of DE-SRGs in the LASSO analysis was denoted as Coefi. Xi represents the expression value of the DE-SRGs, and n represents the number of prognostic DE-SRGs. Patients were classified into low- and high-risk groups based on the median value of the risk score. Kaplan–Meier survival analysis of these groups was conducted using the “survival” package in R. For evaluating the sensitivity and specificity of the risk signature, we utilized the “timeROC” package in R software to construct the ROC curve.

Development and validation for nomogram including risk score model

We conducted univariate and multivariate Cox regression analyses to ascertain whether the risk signature served as an independent risk factor for CC patients. Subsequently, a nomogram comprising these independent prognostic factors was constructed using the “rms” package. Calibration curves were generated, and the C-index was measured to validate the predictive capability of this signature. We further assessed the prognostic performance of the nomogram using Kaplan-Meier survival analysis and the area under the time-dependent ROC curve (AUC).

Bioinformatics analysis of SRGs risk model

In order to reveal the function of risk signature, we utilized GSEA (http://software.broadinstitute.org/gsea/index.jsp) [10] to assess the significant differences in identified gene sets between the low and high groups [11]. For GSEA analysis, we utilized the hallmarker.all.v6.2.symbols.gmt collection of annotated gene sets from the Molecular Signatures Database as our reference gene sets in GSEA software, with a significance cutoff set at P<0.05. Additionally, to investigate the potential biological functions of differentially expressed SRGs, we conducted Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis using the “clusterProfiler” package in R [12]. Functional categories with an adjusted P-value of less than 0.05 were regarded as significant pathways.

External validation of the DE-SRGs

To validate the expression patterns of the selected genes in the TCGA dataset, we extracted mRNA expression data from GEO datasets (GSE44001 and GSE52903) for further analysis. The differential expression of these selected genes between CC and non-tumor tissues was assessed using Prism 7.0 (GraphPad, San Diego, CA, USA) through the Wilcoxon signed-rank test, with a significance level set at P < 0.05. Additionally, we generated survival and ROC curves to evaluate the performance of the risk signature.

Statistical analysis

R was utilized for all data analyses. The AUC was employed as a metric to evaluate the prognostic accuracy. The correlation between risk scores and the estimation of stromal and immune cells in ESTIMATE score was assessed using Pearson correlation. Statistical significance was defined as a P-value of <0.05 in all analyses.

Availability of data and materials

The datasets analyzed during the current study are available in the TCGA repository, (https://portal.gdc.cancer.gov/. Accession No. TCGA-CC).

Acquisition of senescence-related DEGs in CC patients

Figure 1 illustrates the comprehensive flow chart detailing the construction of the predictive model in this study. From the senescence-related genes in the database, we extracted a total of 279 senescence-related genes. After the integration of the SRGs expression data of 306 TCGA tumor tissues and 3 normal tissues, we obtained 42 upregulated and 32 downregulated SRGs (Figure 2A, 2B). The 74 DE-SRGs are shown in Supplementary Table 2. GO and KEGG analysis of the DEGs are shown in Figure 2C, 2D.

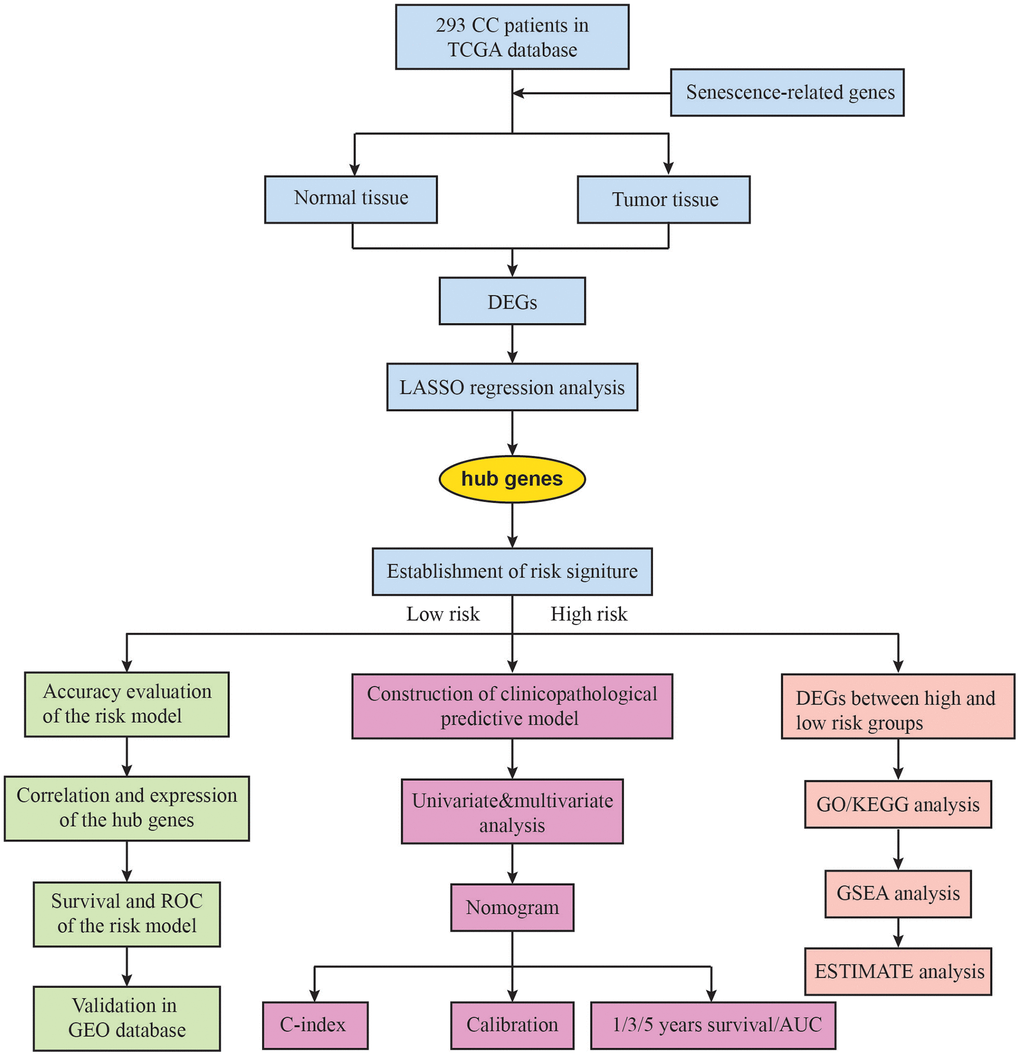

Figure 1. The flow chart of the study design. CC, cervical cancer; TCGA, The Cancer Genome Atlas; DEGs, differentially expressed genes; LASSO, Least Absolute Shrinkage and Selection Operator; AUC, area under the ROC curve; GO, gene oncology; KEGG, Kyoto Encyclopedia of Genes and Genomes; GSEA, gene set enrichment analysis.

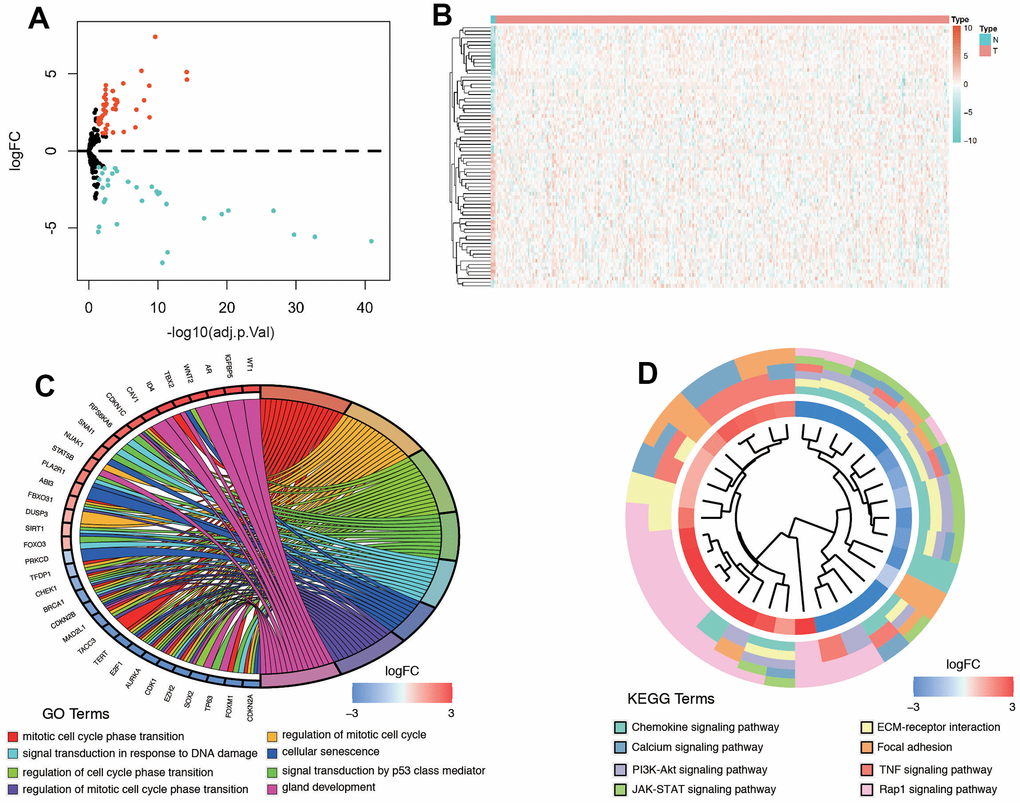

Figure 2. Differentially expressed senescence-related genes and functional analysis in cervical cancer. (A) Volcano plot. (B) Heatmap. (C) GO analysis of DEGs. (D) KEGG analysis.

Identification of senescence subtypes in cervical cancer

To gain further insights into the characteristics of senescence-related genes in cervical cancer, we employed a consensus clustering algorithm to classify patients based on the expression profiles of 279 senescence-related genes. Through this analysis, we identified two distinct clusters, with k=2 being the optimal choice (Figure 3A–3D). PCA analysis revealed clear separations in the distribution of senescence-related genes between the two clusters (Figure 3E). Importantly, patients in cluster 1 exhibited a significantly longer OS compared to those in cluster 2, as demonstrated by Kaplan–Meier analysis (log-rank test, P = 0.006; Figure 3F). These findings motivated us to delve deeper into the association between senescence and prognosis in CC patients by investigating the expression patterns of senescence-associated genes.

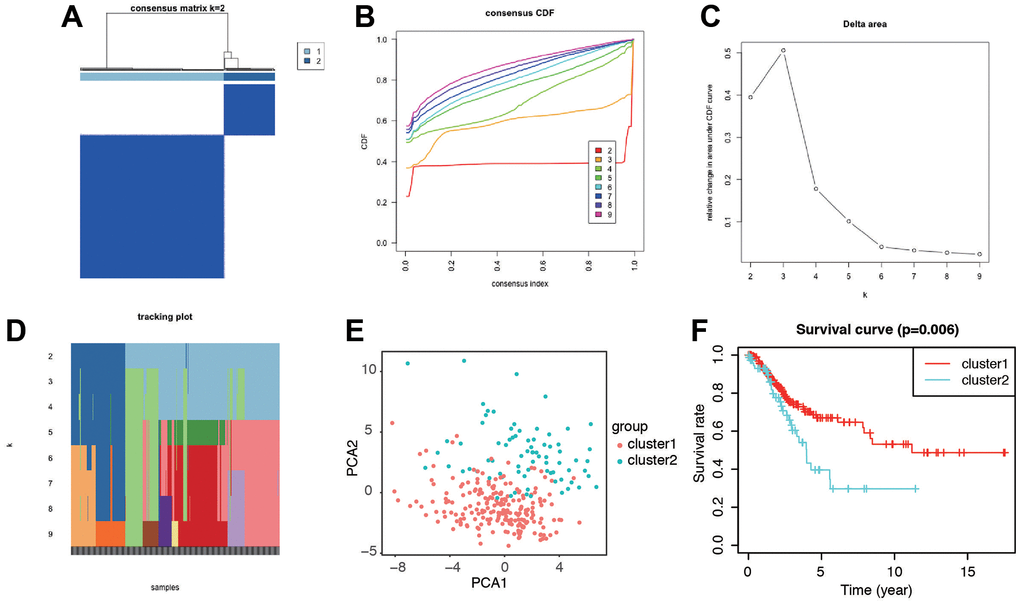

Figure 3. Identification of the molecular subtypes of the CC patients using the DEGs associated with senescence. (A) The CC patients were stratified into 2 clusters based on the consensus clustering matrix (k=2). (B–D) Consensus clustering model with cumulative distribution function (CDF) by k from 2 to 9. (E) The results of PCA analysis among the two subtypes. (F) Survival curves of patients in the two clusters.

Construction of prognostic markers of cervical cancer

We merged the expression profiles of SRGs and clinical follow-up information of CC to identify a total of CC samples. Through LASSO regression analyses, we identified 6 genes that exhibited significant associations with prognosis, including RPS6KA6, ABI3, PTTG1, E2F1, CBX7, and SPOP (Figure 4A, 4B). Table 1 shows the coefficients of each gene a. Using the prognostic model comprising these six DE-SRGs, we calculated the risk score for each patient, which consisted of 1 potential risky gene and 5 potential protective genes. According to the results of coefficient of each gene, we constructed the prognostic model as follows: risk score= -(PTTG1*0.009676657) –(E2F1*0.025364333) –(CBX7*0.054322881) –(SPOP*0.175131225) +(RPS6KA6*0.09447039)- (ABI3*0.070493701). Patients were then divided into low-risk (n=153) and high-risk groups (n=153) based on the median risk score. We further investigated the relationship among the 6 genes. The results indicated that they were significantly relevant (Figure 4C). Moreover, the heatmap (Figure 4D) depicted the expression levels of the six genes in both low- and high-risk patients within the TCGA dataset. Notably, we observed substantial differences between the high- and low-risk groups in relation to various clinical factors, including tumor status, lymph node metastasis (LNM), grade, menopause status, stage, age, and living status. We deeply analyzed the expression of the six genes in different kinds of samples. We found they were significantly different expressed in cervical tissues (Figure 4E). These results indicated the six senescence-related genes were significantly different in high and low risk groups.

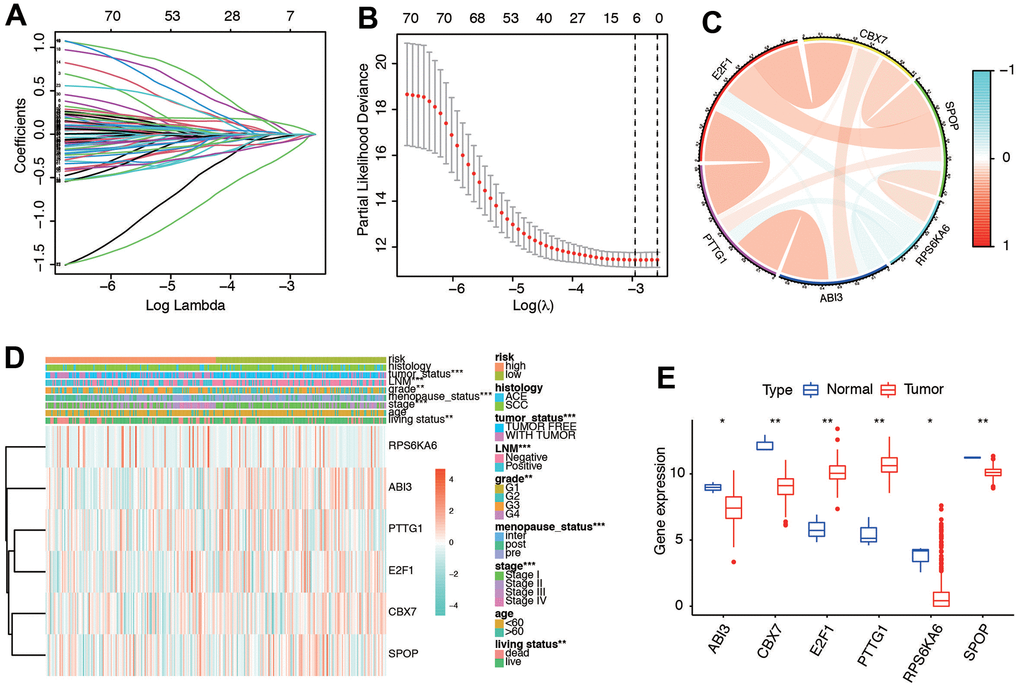

Figure 4. Ten-fold cross-validation for tuning parameter selection and a gene expression. (A) Plots of the ten-fold cross-validation error rates. (B) LASSO coefficient profiles of the six senescence-related genes. (C) Relationships between the six genes. (D) Gene expression of the six genes and clinicopathological characteristics in different risk groups. (E) The expression of six genes in normal and tumor tissues.

Accurate evaluation of the 6 SRGs risk model for CC patients

The distribution of risk score and survival status of these 6 prognostic DE-SRGs are shown in Figure 5A, 5B. Patients in high-risk group were vulnerable to have a higher risk score and worse prognosis. The survival analysis using the Kaplan–Meier curve revealed a significantly worse prognosis for patients in the high-risk group (P=2.021e-05, Figure 5C). The time-dependent ROC analysis (Figure 5D–5F) displayed the predictive performance of the model, with AUC values of 0.764, 0.743, and 0.78 for predicting the 1-year, 3-year, and 5-year survival rates, respectively. These results suggested that the SRG-related risk model is accurate and high predictive for patients with CC.

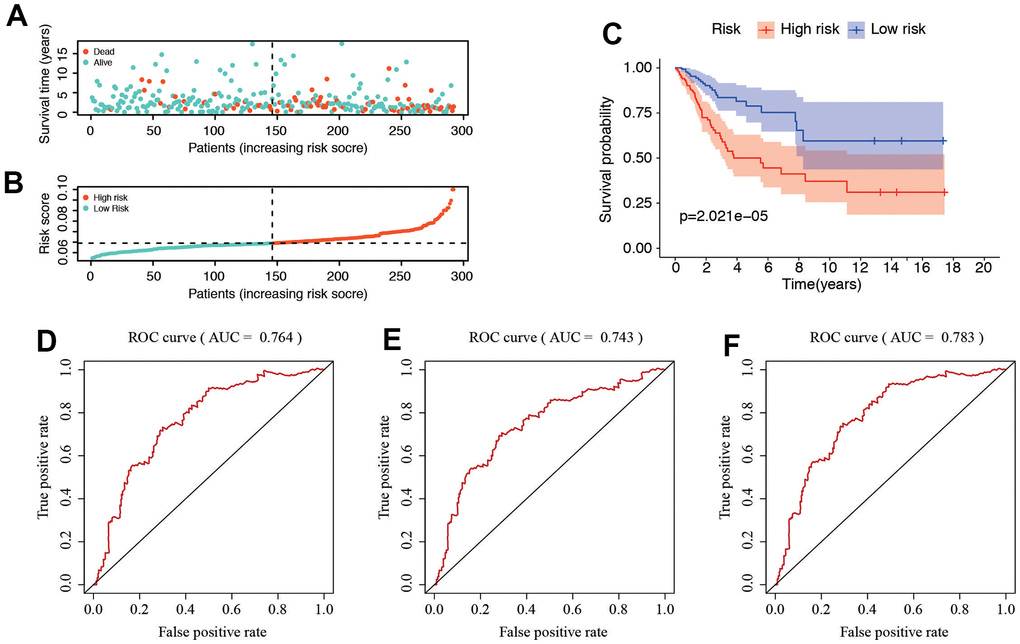

Figure 5. Correlation between the risk score and clinicopathological features. (A, B) Distribution of risk score and patient survival status of cervical cancer. (C) The Kaplan–Meier curve demonstrates that patients in the high-risk group have a poorer prognosis. (D–F) Time-dependent ROC curve of 1-, 3-, and 5-year analysis for survival prediction by the risk score.

Function and enrichment analysis of the model

We performed additional analysis to investigate the correlation between the risk score and ESTIMATE-related scores, encompassing immune score, stromal score, and ESTIMATE score. Our findings revealed a negative correlation between these scores and the risk score, with correlation coefficients of -0.41, -0.15, and -0.33, respectively (all P < 0.01, Figure 6A–6C), which pointed out that stromal and immune cell was lower in the high risk group. The results suggested that patients in the high-risk group had an unfavorable prognosis, which was associated with alterations in the tumor immune microenvironment of CC. We then compared the tumor microenvironment (TME) score between low and high risk groups (Figure 6D). Additionally, we categorized the patients into four subgroups based on their immune score and risk score, with high and low scores determined by the median value of the risk score. Conversely, patients with a low immune score and high risk score had the poorest prognosis (Figure 6E).

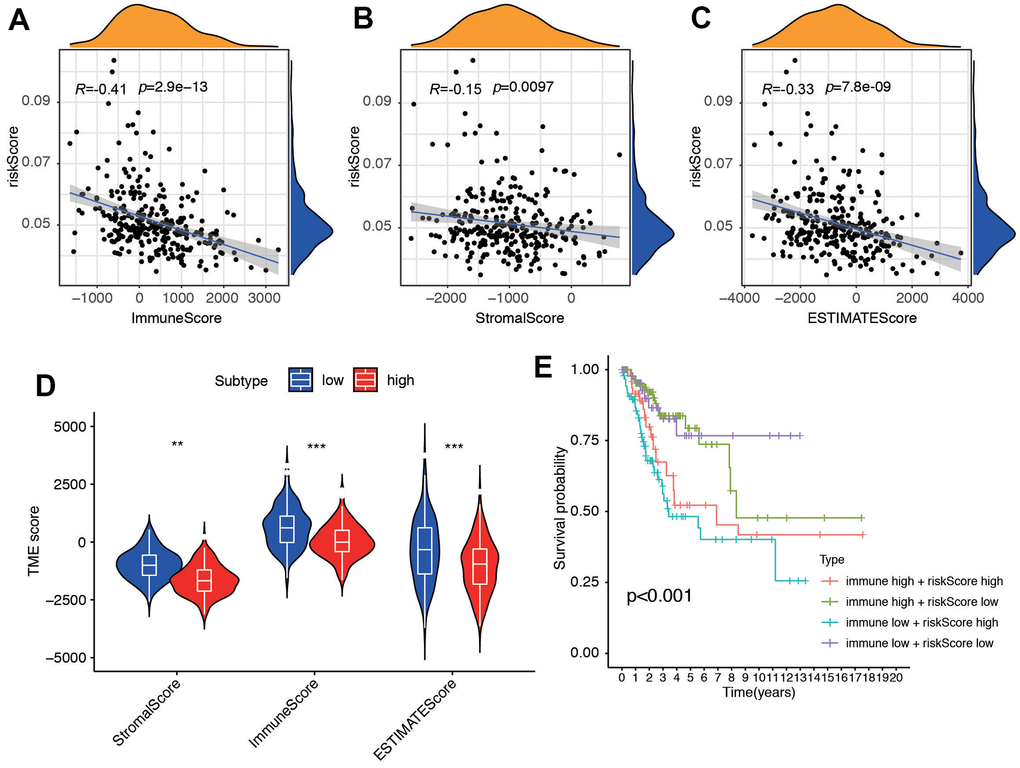

Figure 6. The association between tumor microenvironment and risk score. Correlation between (A) Immune Score, (B) Stromal Score and (C) ESTIMATE and risk score. (D) Different score between low- and high-risk groups. (E) Survival analysis for four groups stratified by combining the immune signature and the risk score characteristic in the TCGA-CC cohort.

Building and validation of the predictive nomogram

To develop a clinical strategy for predicting the survival probability of CC patients, we created a nomogram using the TCGA cohort. This nomogram was used to assess the probability of different period of OS. We first performed the univariate and multivariate analyses to recognize independent risk factors for CC patients. The results of univariate analysis showed that stage (HR=1.589, 95%CI: 1.280-1.974, P<0.001), grade (HR=1.608, 95%CI: 1.133-2.282, P=0.008), LNM (HR=4.408, 95%CI: 2.630-7.387, P<0.001), tumor status (HR=3.907, 95%CI: 2.440-6.256, P<0.001), and 6-gene risk signature (HR=5.398, 95%CI: 3.010-9.678, P<0.001) are significantly associated with survival of CC (Figure 7A). Furthermore, we enrolled these factors into a multivariate Cox analysis. Finally, we found that stage (HR=1.111, 95%CI: 1.165-1.827, P=0.011), grade (HR=1.983, 95%CI: 1.258-2.869, P=0.035), LNM (HR=2.293, 95%CI: 1.220-4.310, P=0.010), tumor status (HR=2.112, 95%CI: 1.162-4.318, P=0.023), and 6-gene risk signature (HR=3.166, 95%CI: 1.660-6.041, P<0.001) were independent risk factors for CC patients (Figure 7B). These five independent prognostic factors were used to construct the nomogram (Figure 7C). The diagonal line at 45° represented the ideal prediction. The calibration plots demonstrated that the nomogram exhibited excellent performance in predicting the 1-year, 3-year, and 5-year survival outcomes (Figure 7D). The specific scores for each factor were provided in Table 2. The C-index of the model was 0.78 (95% CI: 0.69-0.86). Moreover, we divided the cohort evenly into three subgroups (low-score, moderate-score, and high-score groups) based on their risk scores from the nomogram. Subsequently, we evaluated the differences in Kaplan-Meier survival among these three groups, including the low-, moderate-, and high-risk groups. The survival curve of the high-score group demonstrated worse overall survival (OS) compared to the moderate and low-score groups (Figure 7E). ROC curve analysis in Figure 7F exhibited that the risk score AUC value of 1-, 3-, 5-year survival was 0.818, 0.829, and 0.860. These findings suggested that the nomogram had a high accuracy in predicting OS.

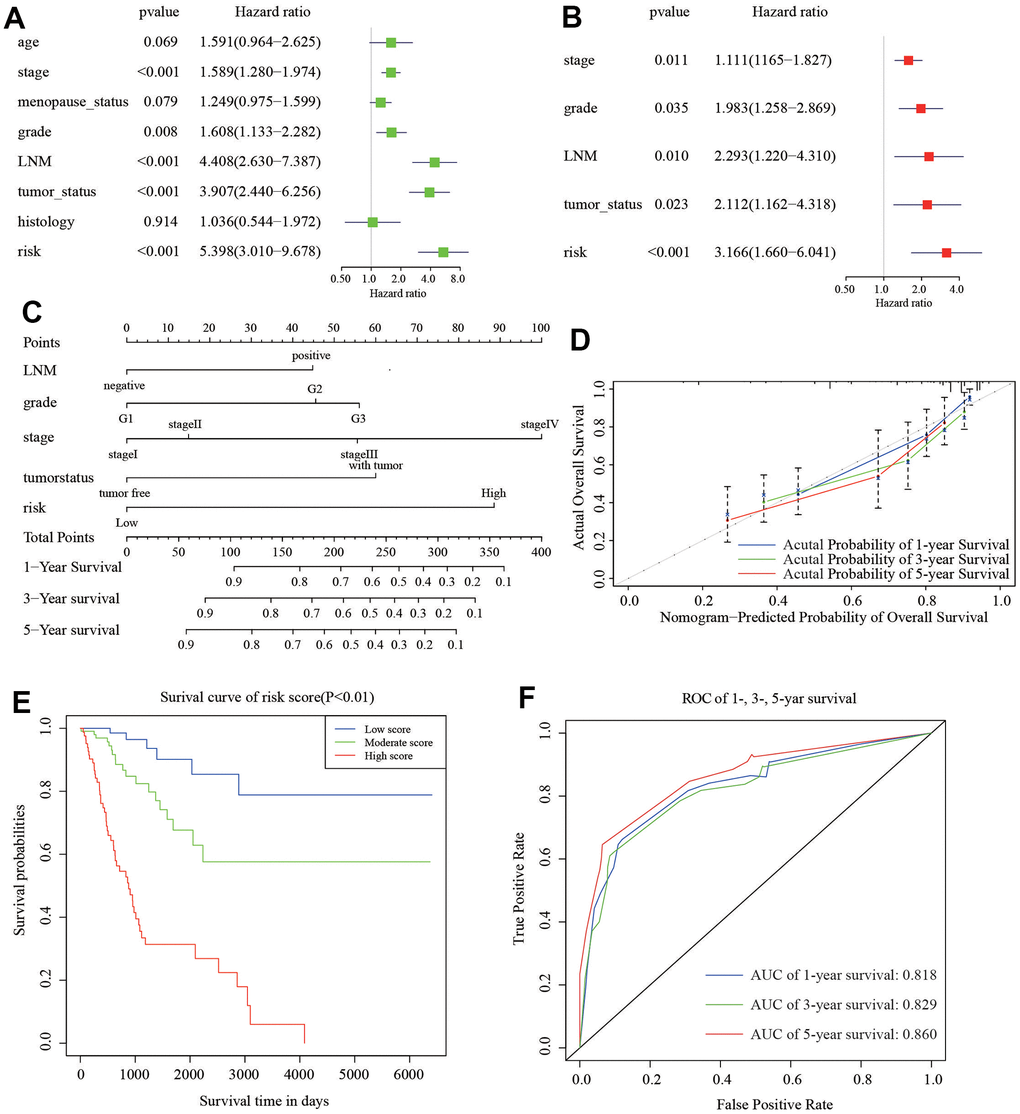

Figure 7. Nomogram to predict the probability of patients with CC. (A) Univariate and (B) multivariate regression analyses of the prognostic value of clinicopathological features. (C) The nomogram to predict 1-, 3-, or 5-year OS in the CC patients. (D) The calibration plots for predicting patient 1-, 3-, or 5-year OS. (E) The Kaplan–Meier curves represent the survival probability of low, moderate, and high score group patients based on the nomogram. (F) The ROC of 1-, 3-, 5-year survival curves by the nomogram.

Biological features of significant genes found in this panel

Furthermore, we utilized Gene Set Enrichment Analysis (GSEA) software to identify the enriched pathways or functions in the high-risk and low-risk patient groups. The top ten terms enriched in these groups are depicted in Figure 8A. The results showed that key important pathways, such as the adipogenesis, DNA repair, EMT, KRAS signaling, and Notch signaling were significantly activated in the risk group. Then, we performed a differential expression analysis between low-risk group and high-risk group using Wilcoxon test with a log₂(Fold Change) > 1 and P < 0.05. We found 271 DEGs between the two groups, including 154 up-regulated genes and 117 down-regulated genes (Figure 8B). Supplementary Table 3 contains the DEGs list along with their corresponding log₂FC and FDR adjusted P-values. Subsequently, we conducted GO and KEGG pathway analysis for these DEGs, and Figure 8C, 8D displays the top 10 enriched terms in the GO and KEGG pathways, respectively. The KEGG analysis indicated that the genes were mainly involved in gap junction, notch signaling pathway, oxidative phosphorylation, glycine serine/threonine metabolism, and WNT signaling pathway.

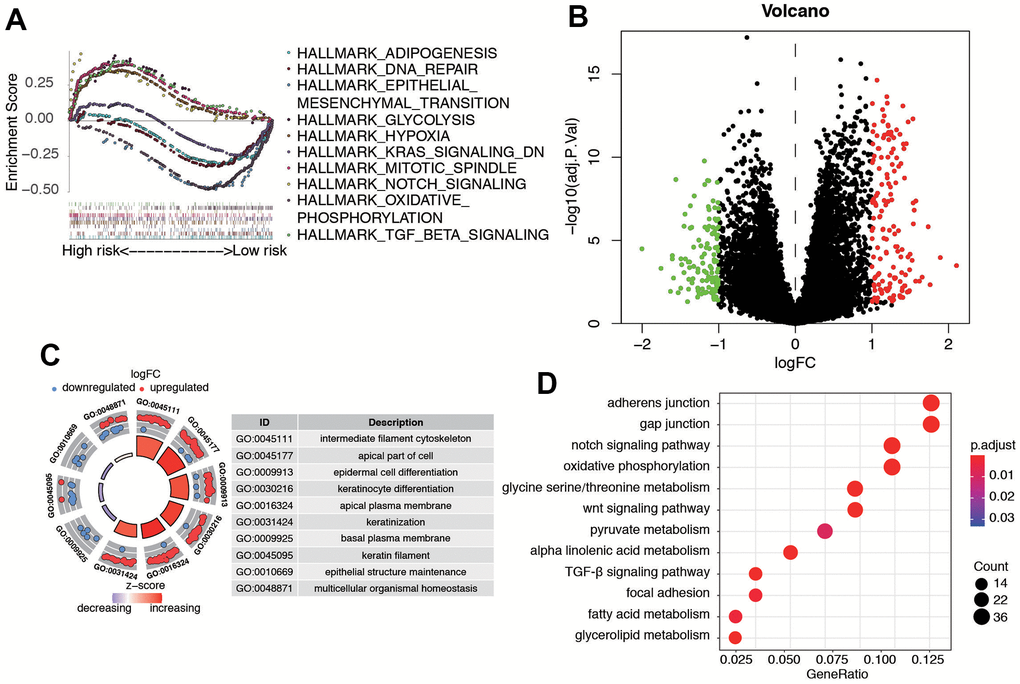

Figure 8. Biological features and significant genes enrichment analysis in risk model. (A) The GSEA enrichment analysis of senescence-related risk signature. (B) Heatmap of DEGs in different risk model. (C) The GO analysis of risk model-related DEGs. (D) The KEGG pathway analysis of risk model-related DEGs.

External validation of the 6 genes

GSE44001 and GSE52903 were acquired to validate. We compared the content of the six genes (Figure 9A), survival curve of risk model (Figure 9B, P=3.766e-03), and predictive accuracy by AUC (Figure 9C, AUC=0.795) in the dataset. Results in GSE52903 indicated the similar expression and prognosis (Supplementary Figure 1). Consistent with the results in the entire TCGA cohort, these results suggested that six genes were highly predictive for evaluating the prognosis of CC patients.

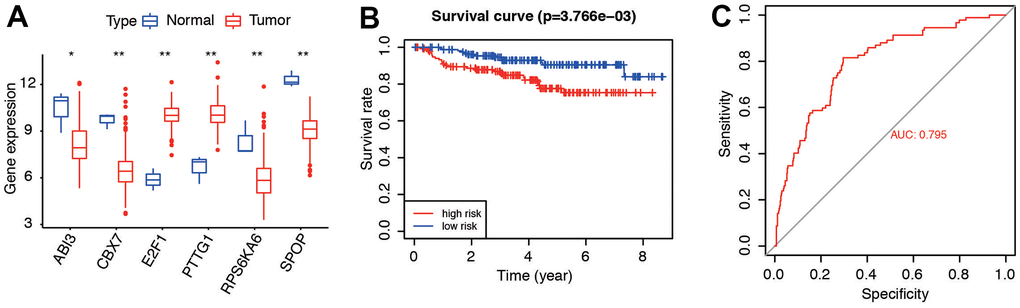

Figure 9. External validation of the six genes and related risk model. (A) Gene expression of the six senescence-related genes in GSE44001 dataset. (B) Survival curve of patients in low- and high-risk groups. (C) Predictive accuracy of the risk model in GSE44001.
