A cellular senescence-related genes model allows for prognosis and treatment stratification of cervical cancer: a bioinformatics analysis and external verification

Back to articleFigure 8(8 of 9)

100%

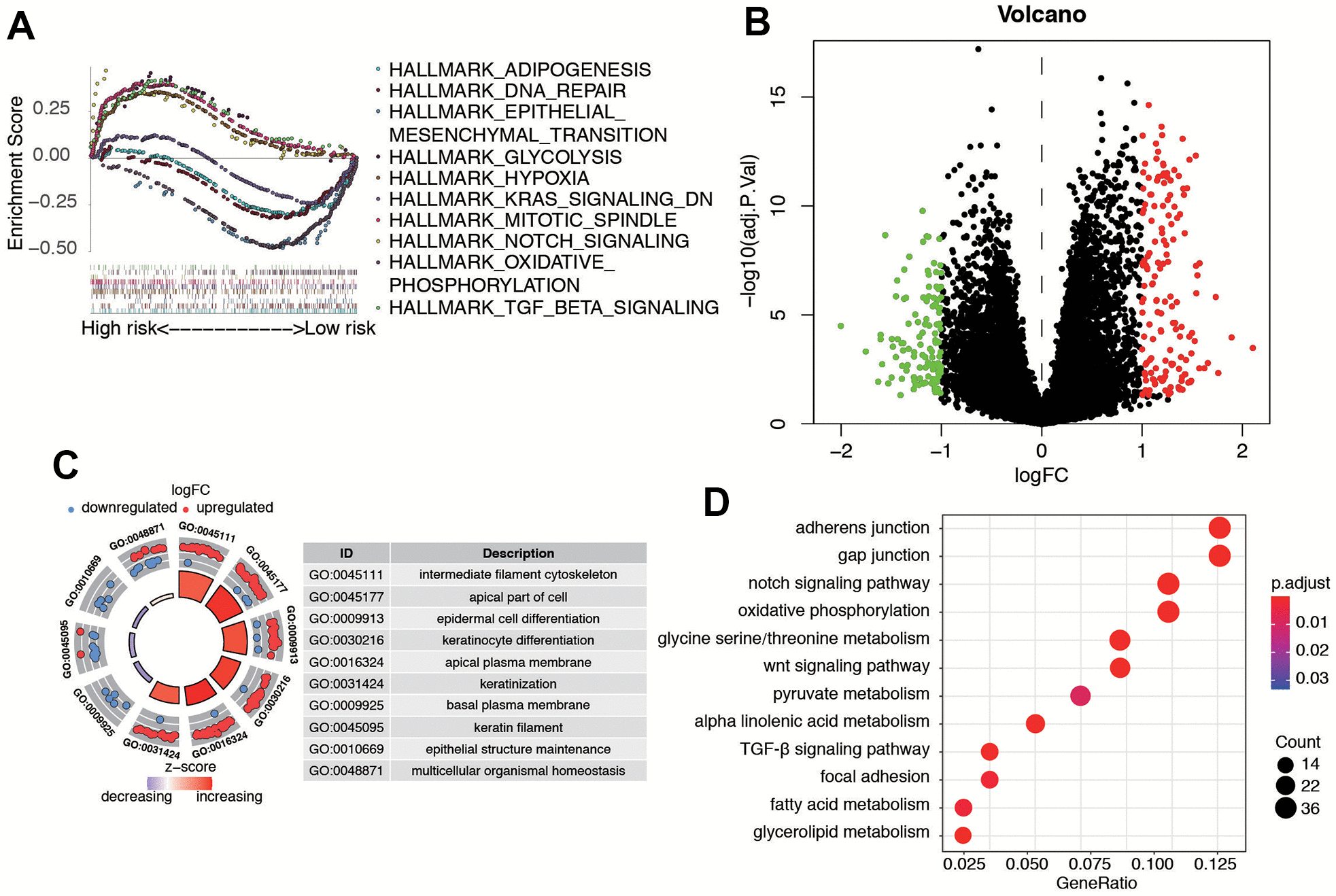

Figure 8.Biological features and significant genes enrichment analysis in risk model. (A) The GSEA enrichment analysis of senescence-related risk signature. (B) Heatmap of DEGs in different risk model. (C) The GO analysis of risk model-related DEGs. (D) The KEGG pathway analysis of risk model-related DEGs.
