Comprehensive assessment of regulatory T-cells-related scoring system for predicting the prognosis, immune microenvironment and therapeutic response in hepatocellular carcinoma

Data sources

The scRNA-seq data for the GSE98638 (n=6), GSE140228 (n=5), and GSE166635 (n=2) cohorts were downloaded from the Tumor Immune Single-Cell Hub 2 (TISCH 2) platform (http://tisch.comp-genomics.org/) [18]. Transcriptome matrices of the TCGA-LIHC cohort were obtained from the TCGA (https://portal.gdc.cancer.gov/repository) repository, which contains transcriptome data for 374 HCC tumour samples and 50 normal samples. Perl programming language was utilised for the transformation of simple nucleotide variation (SNV) data to further obtain the tumor mutation burden (TMB) values for each case in the TCGA-LIHC cohort. Transcriptomic and clinical information for GSE14520 (n=221) cohort was downloaded from the GEO (https://www.ncbi.nlm.nih.gov/) database, and case inclusion criteria were the presence of both transcriptomic and survival information. Clinical information and transcriptomic data for the CHCC validation cohort (n=159) were obtained from previous studies and the National Omics Data Encyclopedia database (https://www.biosino.org/node) [19]. Additionally, the data of ICGC-LIRI (n=232) were downloaded from the International Cancer Genome Consortium Data (ICGC; https://dcc.icgc.org/) portal. The Human Protein Atlas (HPA) was performed to obtain immunohistochemical staining images [20] (V.22.0, https://www.proteinatlas.org) (Supplementary Table 1). Tregs-related genes (TRGs) were downloaded from the Genecards (https://www.genecards.org/) (Supplementary Table 2) [21].

Identification of differentially expressed genes (DEGs) between Tregs and other cells

R software (version R 4.1.2) was utilized to process scRNA-seq data (GSE98638, GSE140228 and GSE166635) to obtain DEGs between Tregs and other cells in each cohort (|fold change (FC)| > 1.5, False discovery rate (FDR) < 0.05). DEGs from the three cohorts were combined and defined as Tregs-related DEGs for subsequent analysis. The package “VennDiagram” was utilized to further plot Venn diagrams of Tregs-associated DEGs and TRGs to obtain differentially expressed TRGs (DETGs) for subsequent analysis.

Identification of differentially expressed GETGs between HCC tumor and normal tissues

The R package “limma” was utilised to obtain differentially expressed GETGs (|FC| > 1.5, FDR<0.05) between tumor and normal tissues. Subsequently, the “pheatmap” was employed to draw differential expression heatmaps and volcano maps. The “sva” package was employed to eliminate batch effects and obtain expression data of differentially expressed GETGs in the TCGA and the GSE14520 cohorts.

Construction of a TRSSys for HCC

Cox regression was used to obtain prognosis-associated GETGs in the TCGA-LIHC cohort, a process performed by the packages “survival” and “survminer”. Subsequently, the LASSO regression was used to screen the optimal TRGs for the establishment of TRSSys. The risk formula for TRSSys is as follows:

$$\text{TRSSys}={\displaystyle \sum _{\text{i}=1}^{\text{n}}\text{Coef}(\text{i})\text{Exp}(\text{i})}$$

where Coef represents the regression coefficient of each TRGs in TRSSys. According to the regression coefficients, a higher TRSSys score represents a worse prognosis. Based on the TRSSys formula, the risk scores were calculated for each individual in the TCGA and the GEO testing cohorts, and all individuals were risk stratified according to the median risk score of the TCGA cohort.

Validation and evaluation of TRSSys

First, the Kaplan-Meier (K-M) curves were utilised to determine the effect of the expression of TRSSys-related genes on the survival of individuals with HCC. The procedure was performed through the “survivor” and “survminer” packages. Additionally, the K-M method was also utilised to analyze the survival differences between patients in the high- and low-risk subgroups in the TCGA and GEO cohorts. Then, the “pheatmap” was performed to map the expression status of TRSSys-related genes. Furthermore, the K-M method was also used to assess the validity of TRSSys in the CHCC and ICGC-LIRI validation cohorts.

To further assess the effectiveness of TRSSys, we further conducted univariate (uni) and multivariate (multi) Cox analyses of TRSSys and selected clinicopathologic parameters to identify independent prognostic factors in the TCGA and GEO cohorts. Additionally, the ROC curves were employed to further assess the predictive efficacy of TRSSys in HCC. Finally, to assess the stability of TRSSys, we used the K-M method to determine whether TRSSys could discriminate between populations with different prognoses in different clinical subgroups.

Development of TRSSys-based nomogram

TRSSys and tumor stage are independent prognostic factors for HCC. We developed a nomogram based on TRSSys and tumor stage for better determining the survival of individuals with HCC. The process was constructed utilizing the “regplot”, “survival” and “rms”. Moreover, Hosmer-Lemeshow calibration curves were utilised to assess whether the expected and actual probabilities calculated from the nomogram fit.

TRSSys-based enrichment analysis

To analyze the differences in TRSSys-based risk stratification in pathway enrichment, we performed Gene Set Variation Analysis (GSVA) [22]. The “GSVA”, “GSEABase”, “pheatmap”, “ggplot2”, “reshape2” and “limma” were used to perform GSVA and to map the enrichment heatmap in the two risk subgroups. Further, the correlation between the expression of TRSSys-associated TRGs and different signaling pathways was also analyzed. To further explore the molecular differences between different risk subgroups, the “limma” was performed to obtain DEGs between the two risk subgroups (FC >2, FDR < 0.05). Gene Ontology (GO) and KEGG (Kyoto Encyclopedia of Genes and Genomes) were further utilised to analyze the enrichment of DEGs in functions and pathways and to visualize the outcome.

TRSSys-based tumour mutation burden (TMB) analysis

To analyze the differences in mutation frequencies of genes in the different risk subgroups, the “maftools” package was utilised to map the waterfall of mutations in different subgroups. Additionally, “limma” was used to compare TMB between the two risk subgroups. Furthermore, the patients were categorized into four subgroups by two-by-two combinations of TMB subgroups and risk subgroups in the TCGA cohort, and the K-M curves were used to determine the differences in survival among the four subgroups of patients.

TRSSys-based TIME analysis

TIMER is a platform for comprehensive assessment of immune infiltrates across different cancer types [23, 24]. To determine the correlation between TRSSys and various immune cell infiltrations, we acquired the immune cell data matrix of the TCGA cohort on the TIMER repository (http://timer.comp-genomics.org/) and performed Spearman’s analysis. The packages “scales”, “tidyverse”, “ggtext”, “ggpubr” and “ggplot2” were utilised to plot Spearman correlation bubble plots. To compare TIME differences between the two risk subgroups, we first performed ssGSEA on the TCGA-LIHC cohort to quantify the degree of immune cell infiltration in each sample, which in turn determines the corresponding immune-related function scores and immune-related cell scores. R packages “ggpubr” and “reshape2” were utilised to visualize differences in ssGSEA between risk subgroups. Activation of the immune checkpoint pathway was done as a key mechanism of tumor immune evasion [25]. We likewise analyzed the expression of major ICs in high- and low-risk subgroups and visualized the outcomes.

TRSSys-based drug sensitivity analysis

OncoPredict is an algorithm that predicts drug sensitivity levels based on transcriptome expression levels [26]. The “limma”, “oncoPredict” and “parallel” packages were utilised to obtain a matrix of drug sensitivity data for the TCGA-LIHC cohort. Subsequently, the half-maximal inhibitory concentrations (IC50) of various agents in the two risk subgroups were analyzed to evaluate the value of TRSSys in guiding clinically individualized treatment.

Statistical analysis

The statistical analyses involved in this study were done through R software (Vision 4.2.2) and its corresponding R packages. Survival analyses were performed using the K-M method. P-value < 0.05 indicates statistical significance.

Identification of Tregs in HCC

Tregs of the GSE98638, GSE140228 and GSE166635 cohorts were identified and annotated according to the TISCH cell marker annotations (Figure 1A–1C). Subsequently, differential analysis extracted DEGs between Tregs and other cell types in these three HCC cohorts and merged them to obtain 561 Tregs-associated DEGs for subsequent analysis (Figure 1D).

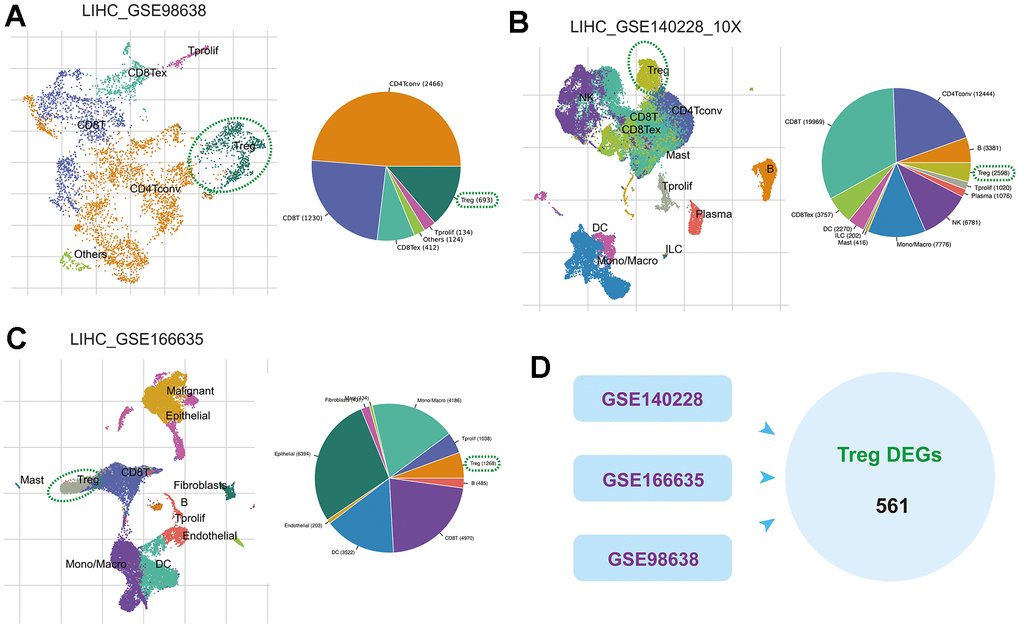

Figure 1. The scRNA-seq analysis identifies Tregs in HCC. (A–C) Annotation of cell clusters in the GSE98638, GSE140228 and GSE166635 cohorts. (D) DEGs between Tregs and other cell types in these three cohorts.

Identification of DETGs in HCC

We obtained 5846 TRGs on Genecards (relevance score >10), and intersected these TRGs with the 561 DEGs above to obtain 388 DETGs for subsequent analysis (Figure 2A). The volcano plot demonstrated 388 differentially expressed DETGs in HCC tumour tissues and normal tissues, which contained 36 DETGs that were lowly expressed in tumour tissues and 171 DETGs that were highly expressed in tumour tissues (Figure 2B). Additionally, the heatmap demonstrated the expression of 100 differentially expressed DETGs in HCC tumour and normal tissues (Figure 2C).

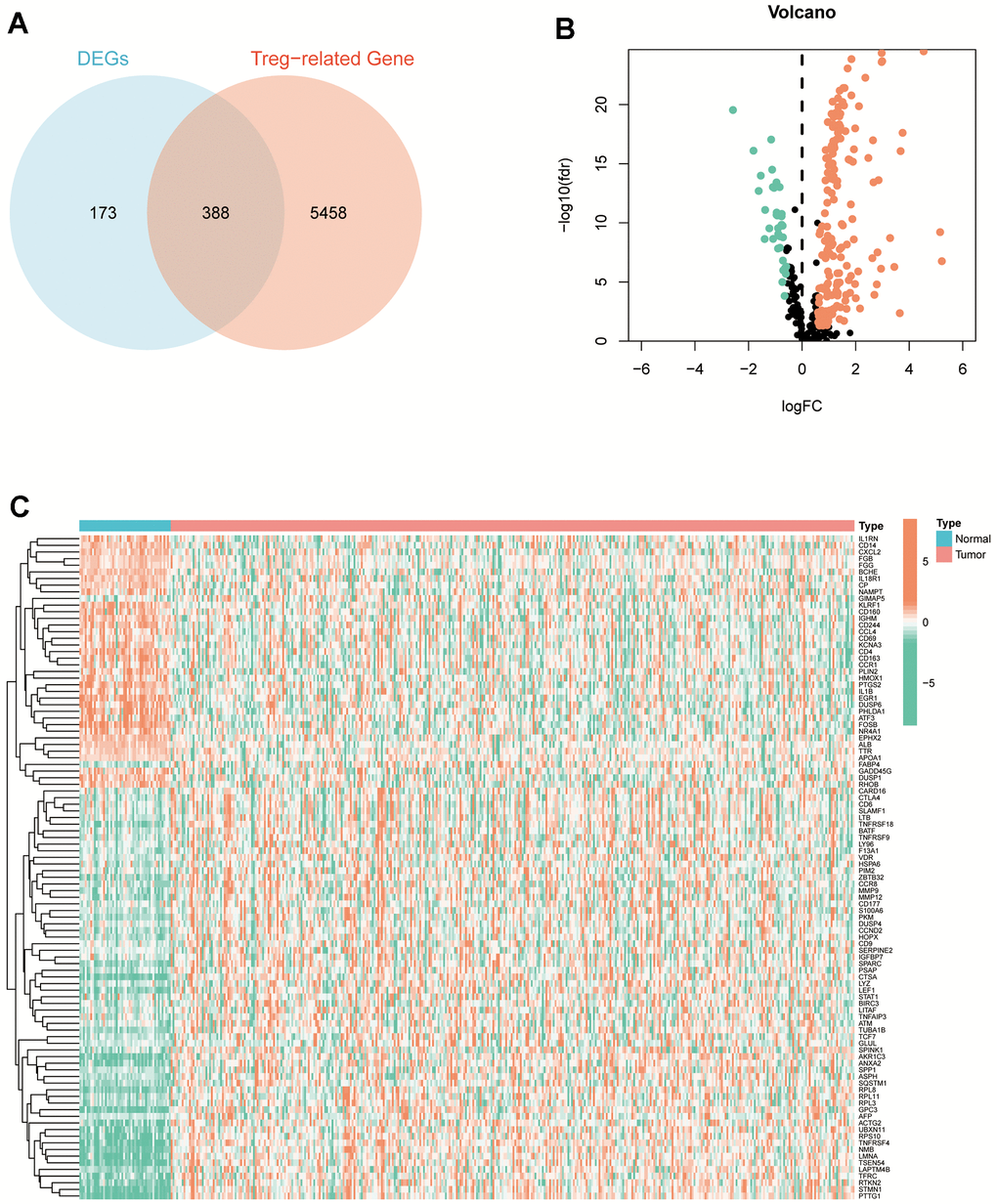

Figure 2. Identification of DETGs. (A) Intersected 5846 TRGs with the 561 DEGs to obtain 388 DETGs. (B) The volcano plot demonstrated 388 differentially expressed DETGs in HCC tumour and normal tissues. (C) The heatmap demonstrated the expression of 100 differentially expressed DETGs in HCC tumour and normal tissues.

Identification of TRSSys in HCC

Cox regression was performed on the differentially expressed DETGs to identify 69 TRGs associated with HCC prognosis (Figure 3A). LASSO regression finally screened 8 of these TRGs for TRSSys construction (Figure 3C, 3D) (Table 1). All of these TRGs were highly expressed in HCC tumour tissues (Figure 4A, 4B). In addition, the K-M curves revealed that the high expression of all these 8 TRGs was a poor prognostic factor (Figure 5A–5H). Furthermore, Figure 5I demonstrated the expression of TRSSys-associated TRGs in Tregs of GSE98638 cohort. Subsequently, according to the risk formula for TRSSys, the risk score = Exp (PTTG1) * (0.10034) + Exp (LAPTM4B) * (0.02591) + Exp (ENO1) * (0.13373) + Exp (RPS8) * (0.00719) + Exp (TPP1) * (0.19610) + Exp (SPP1) * (0.04681) + Exp (STMN1) * (0.01250) + Exp (LGALS3) * (0.01890). The risk score for each individual was calculated from the above equation.

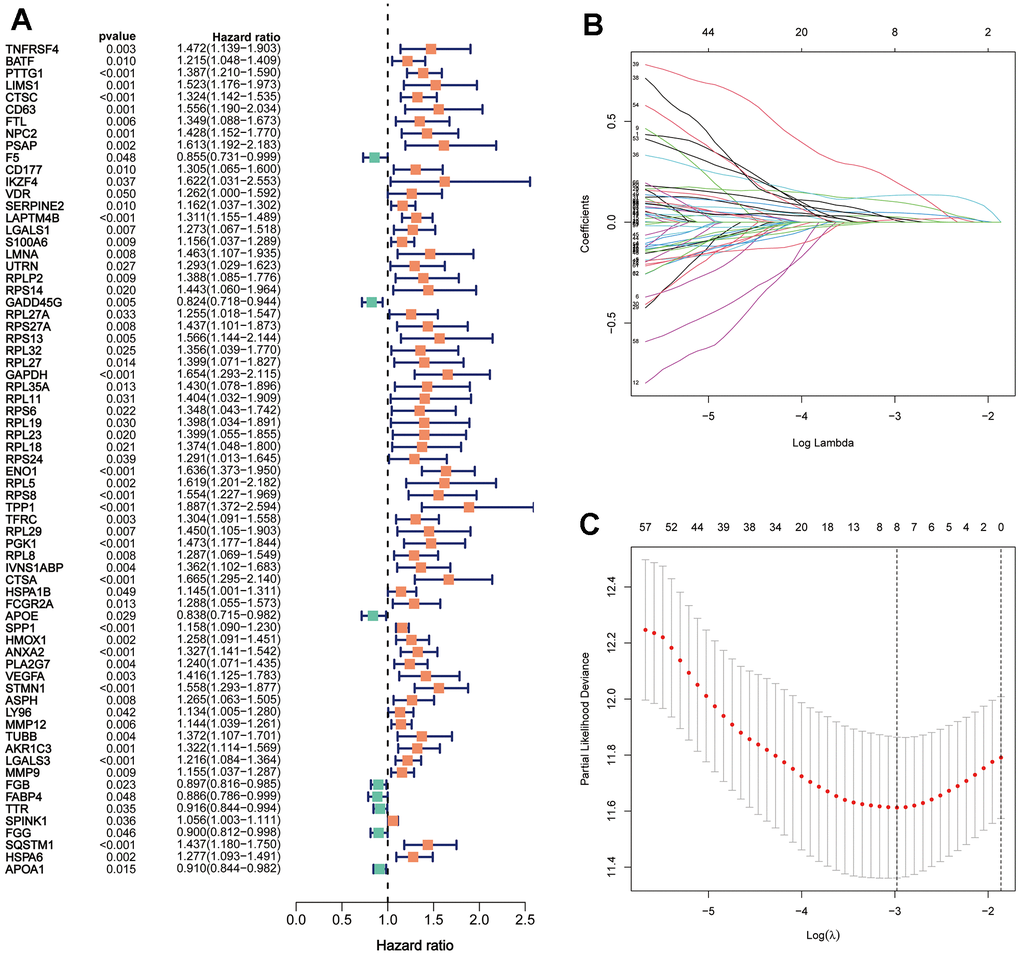

Figure 3. Establishment of TRSSys for HCC. (A) The 69 TRGs associated with HCC prognosis. (B, C) The variable selection and cross-validation plots based on the LASSO.

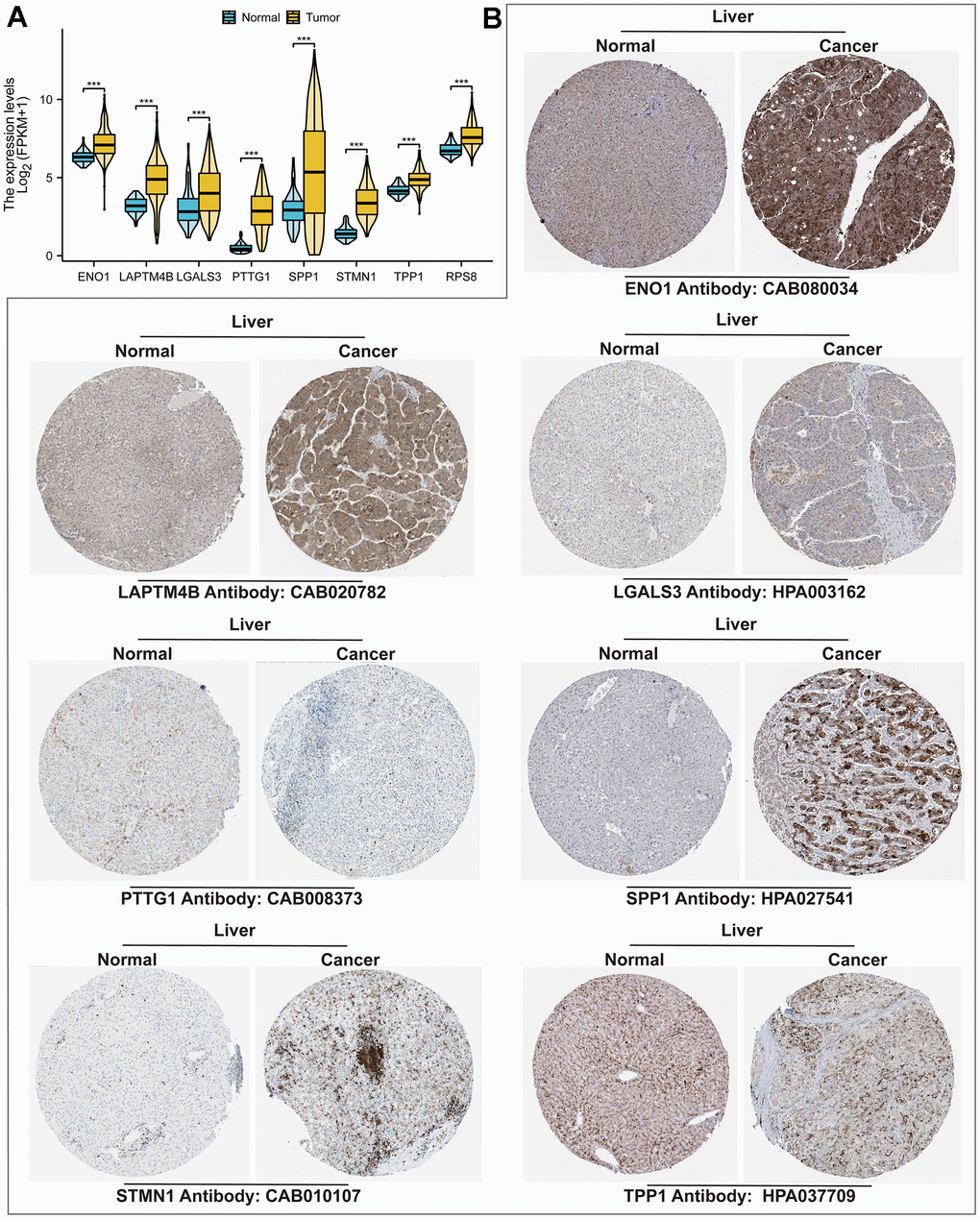

Figure 4. TRSSys-related genes in HCC. (A) Differential expression of TRSSys-related TRGs in tumor and normal tissues. (B) Immunohistochemical images of TRSSys-related TRGs in the HPA.

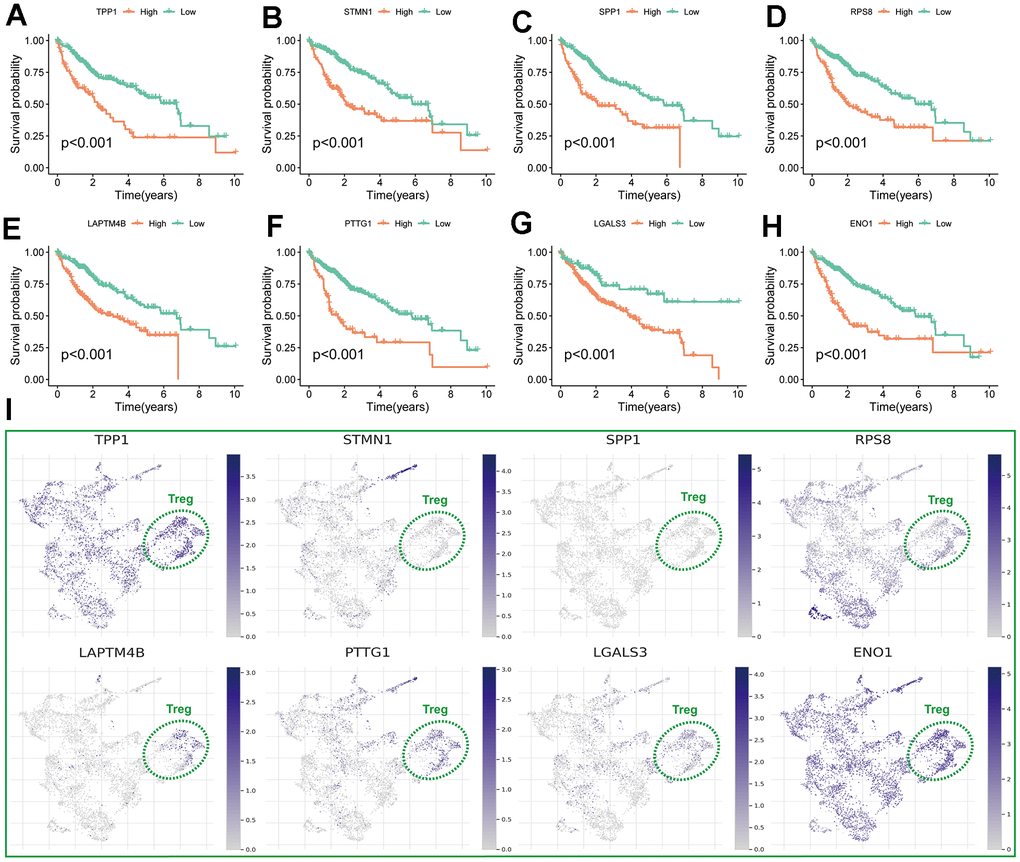

Figure 5. Assessment of TRSSys-related genes in HCC. (A–H) K-M curves of the 8 TRSSys-related for OS in the TCGA cohort. (I) The expression of TRSSys-associated TRGs in Tregs of GSE98638 cohort.

Verification of TRSSys in HCC

We first assessed the predictive ability of TRSSys in the TCGA cohort. K-M curves (Figure 6A) suggested that the survival of low-risk patients was superior to that of the high one (P<0.001). The expression heat map suggested that TRSSys-related TRGs were expressed at higher levels in the high-risk group (Figure 6B). Risk curves and risk status plots suggested that the number of patients with mortality increased as the risk score increased (Figure 6C, 6D). To further validate TRSSys, we analyzed the predictive value of TRSSys in an independent validation cohort, GSE14520. The K-M curves also suggested that the survival of low-risk patients was superior to that of the high one (P=0.028) (Figure 6E). The expression heat map also suggested that TRSSys-associated TRGs had higher expression levels in the high-risk group (Figure 6F). Risk curves and risk status plots suggested that the proportion of patients with mortality status increased as the risk score increased (Figure 6G, 6H). Moreover, the K-M curves of the CHCC (Supplementary Figure 1A) and ICGC-LIRI (Supplementary Figure 1B) cohorts further validated the effectiveness of TRSSys in HCC.

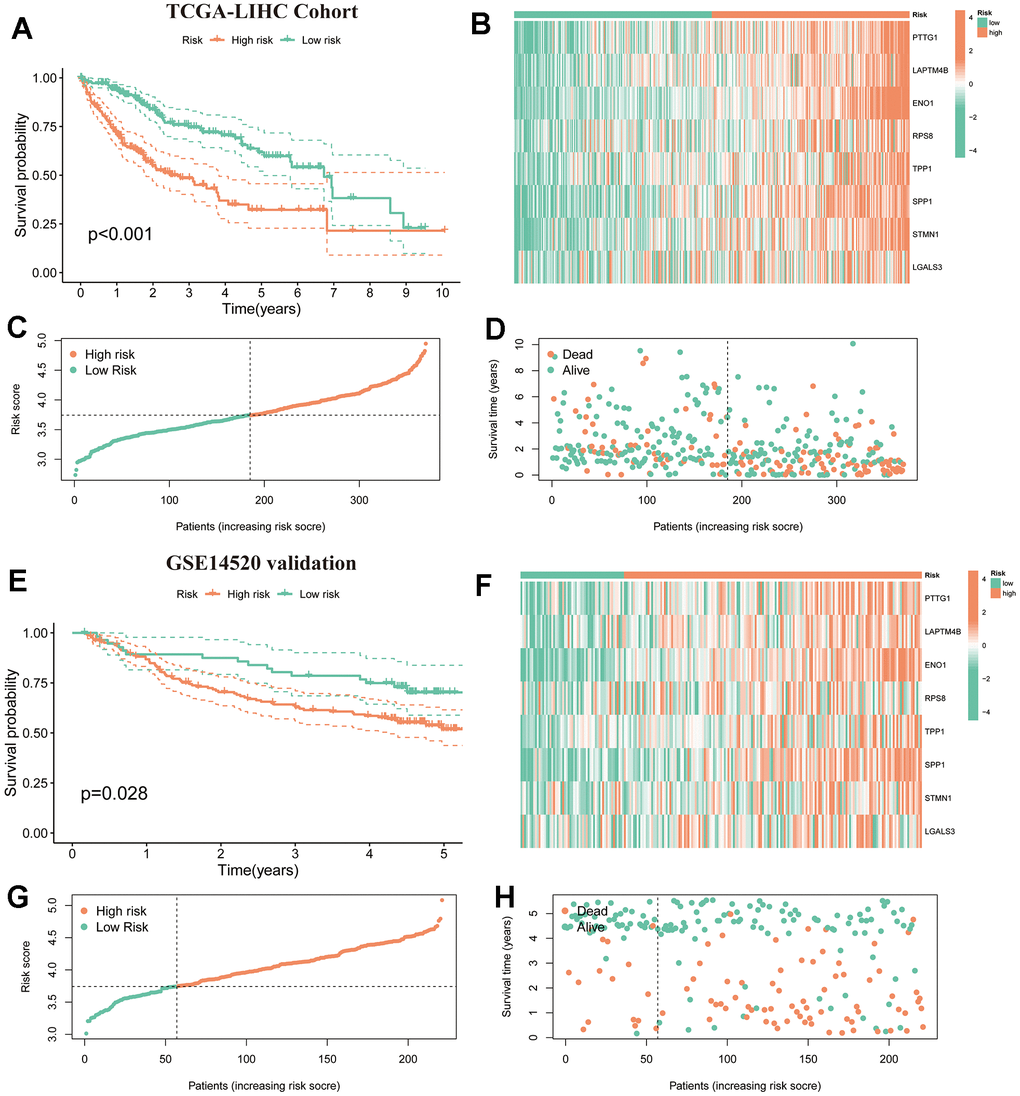

Figure 6. Verification of TRSSys in HCC. (A) Kaplan-Meier curves in the TCGA-LIHC. (B) Expression heat map of TRSSys-related TRGs in the TCGA cohort. (C, D) The distribution of survival conditions in the TCGA-LIHC. (E) Kaplan-Meier curves in the GSE14520. (F) Expression heat map of TRSSys-related TRGs in the GSE14520 cohort. (G, H) The distribution of survival conditions in the GSE14520.

Evaluation of the TRSSys in HCC

Both uni- and multi-Cox regression suggested that TRSSys could independently predict the clinical outcomes of individuals with HCC, with hazard ratios of 5.116 and 4.324 (P < 0.001) (Figure 7A, 7B). Furthermore, TNM stage was another independent prognostic indicator. Moreover, the ROC curves showed that the AUC values of TRSSys in predicting 1-, 3-, and 5-year OS were 0.784, 0.677, and 0.698 (Figure 7C). Comparisons of AUC values of TRSSys with age, gender, grading, and staging in the ROC curves also suggested the good predictive efficacy of TRSSys (Figure 7D). Additionally, in the GSE14520 cohort, Cox regression also showed that TRSSys was an independent prognostic factor in patients with HCC (Supplementary Figure 2A, 2B). The ROC curves in the GSE14520 showed that the AUC values of TRSSys predicting 1-, 3- and 5-year OS were 0.596, 0.624 and 0.662, respectively (Supplementary Figure 2C, 2D).

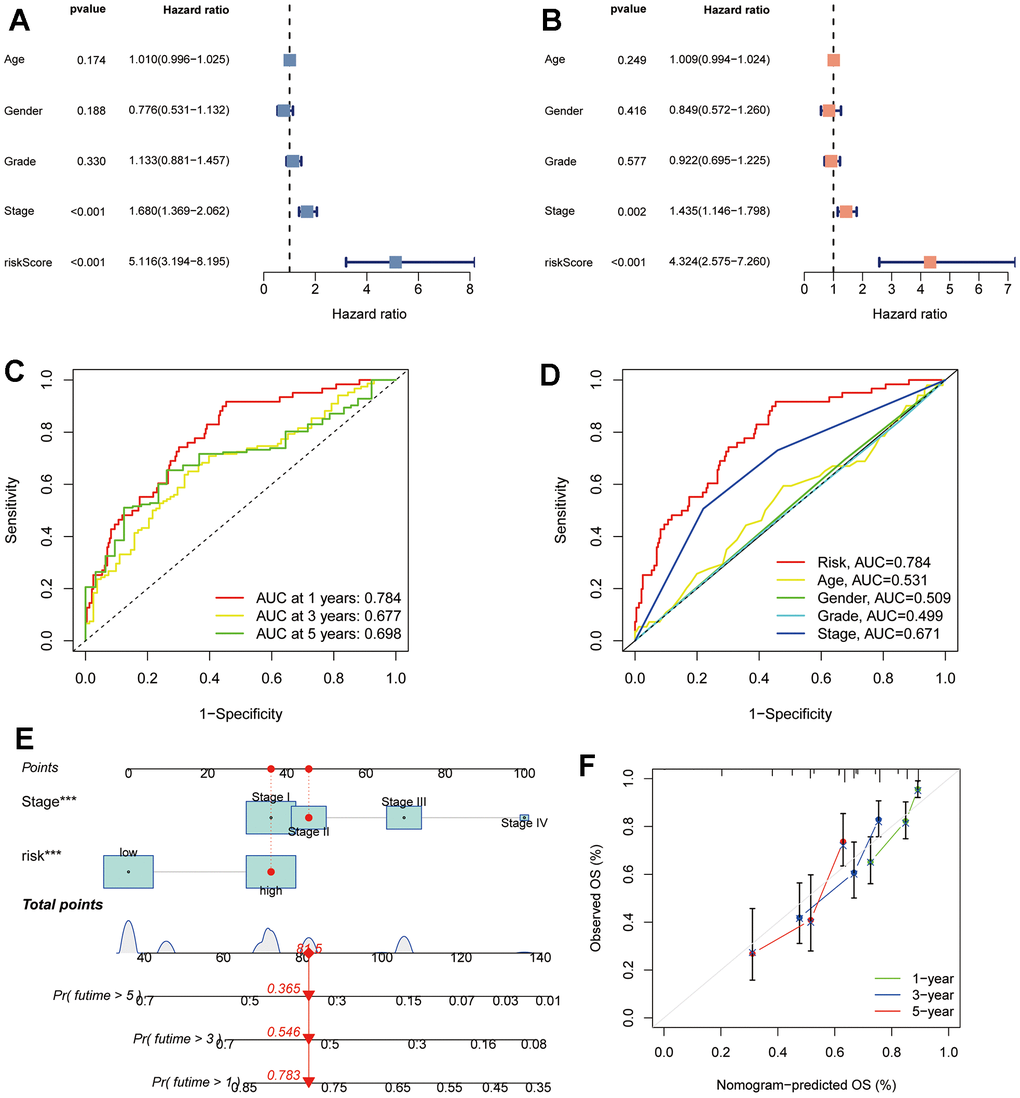

Figure 7. Assessment of TRSSys in HCC. (A, B) Forest plots for univariate (A) and multivariate Cox (B) regression analysis in the TCGA cohort. (C) ROC curves for the TRSSys in the TCGA cohort. (D) Comparison of the TRSSys with clinicopathological parameters in the TCGA cohort. (E) Nomogram for predicting OS in HCC. (F) Calibration curves for nomogram. *P < 0.05, **P < 0.01, and ***P < 0.001.

TRSSys-based nomogram

Cox regression indicated that both TRSSys and stage were prognostic variables for HCC. To better predict the survival of clinical individuals, we incorporated TRSSys-based risk stratification and stage into the construction of the nomogram (Figure 7E). The 1-, 3-, and 5-year OS rates for a stage II and high-risk individual were estimated to be 0.783, 0.546, and 0.365, respectively, based on the nomogram. The calibration curves revealed that the expected probabilities and the actual probabilities were in high agreement (Figure 7F).

TRSSys-based clinical parameter stratification

Circle plots demonstrate the status of clinicopathological parameters in the two risk groups (Figure 8A). Furthermore, K-M curves showed that patients with different age, stage and grade had a worse prognosis in the high-risk group (Figure 8B–8E). Although there was no significant difference in survival among females in the two risk subgroups (P = 0.059), a trend toward separate survival curves could still be seen. Together, these results suggest the general applicability of TRSSys in HCC.

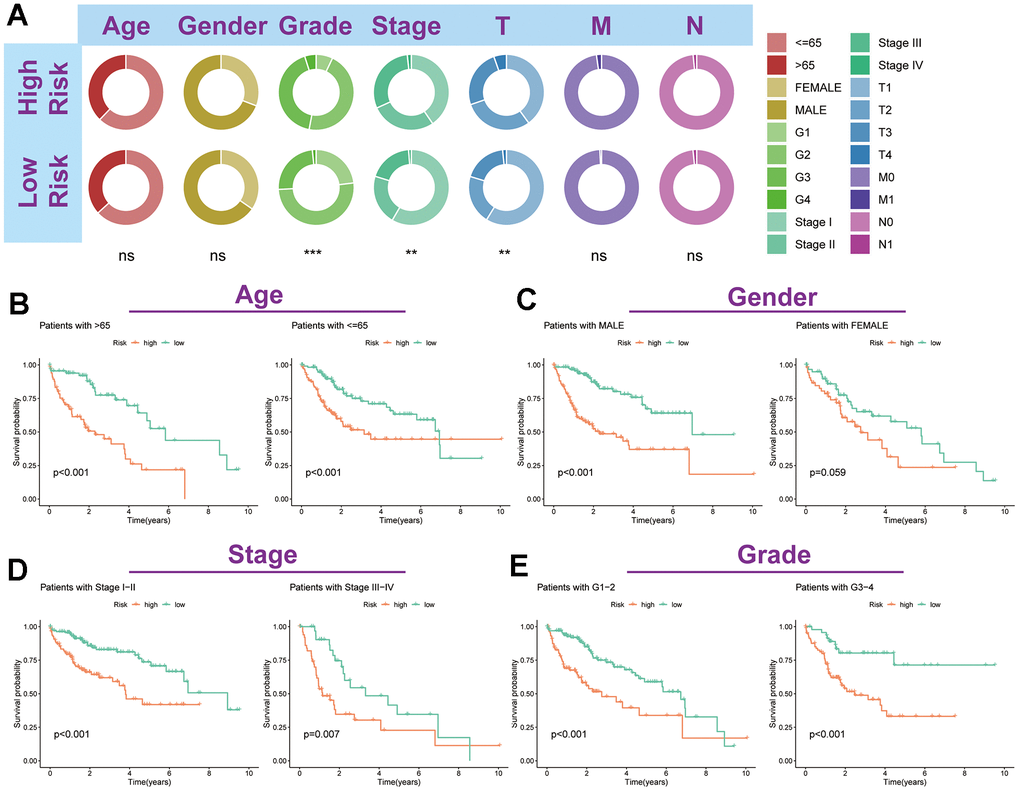

Figure 8. Association of TRSSys with clinical parameters in HCC. (A) Distribution status of different clinicopathologic parameters in two risk subgroups. (B–E) Kaplan-Meier curves revealed the survival between individuals in the two risk groups for age (B), gender (C), stage (D) and grade (E) subgroups.

GSVA, GO and KEGG

GSVA results showed that the functions enriched in the high-risk subgroup included cell cycle, homologous recombination, DNA replication, basic excision repair, mismatch repair, nucleotide excision repair, purine metabolism, RNA polymerase, RNA degradation, lysosome, P53 signalling pathway and NOD-like receptor signalling pathway (Figure 9A). Additionally, correlation heatmaps showed that the expression of TRSSys-associated TRGs was closely related to the signalling pathway (Figure 9B).

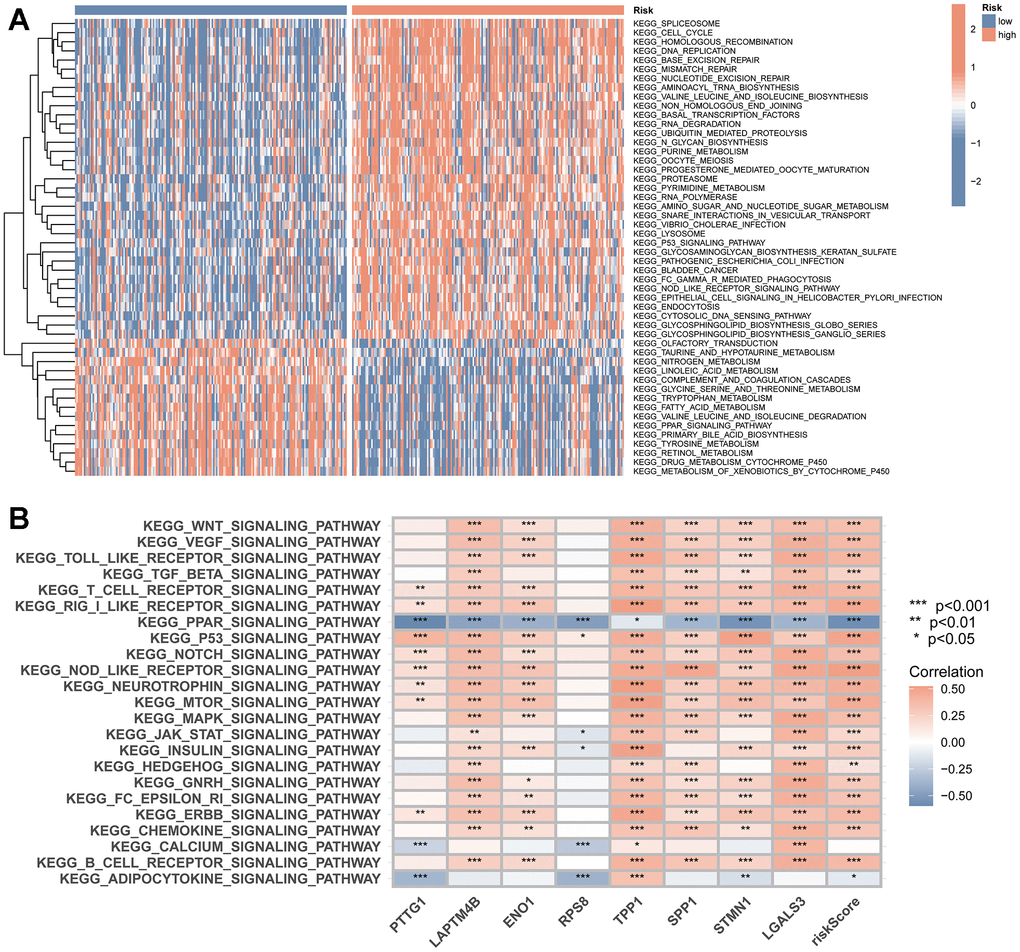

Figure 9. TRSSys-based GSVA. (A) KEGG enriched in the high- and low-risk groups. (B) The correlation between the expression of TRSSys-related TRGs and tumour-related pathways.

DEGs were identified between the high- and low-risk subgroups and further explored the enrichment of DEGs in biological functions. GO analysis revealed that in terms of biological processes, DEGs were mainly enriched in positive regulation of cell activation, leukocyte mediated immunity, positive regulation of leukocyte and lymphocyte activation, phagocytosis and immune response-activating signal transduction. Regarding cellular component, DEGs are mainly enriched in external side of plasma membrane, immunoglobulin complex, chromosomal region, and condensed chromosomes. Regarding molecular function, DEGs are enriched in functions such as antigen binding, cycline activity, immunoglobulin receptor binding, and integrin binding (Figure 10A, 10B). Finally, KEGG analysis showed that DEGs were enriched in cell cycle, cyclokine-cyclokine receptor interaction, phagosome, and proteoglycans in cancer (Figure 10C, 10D).

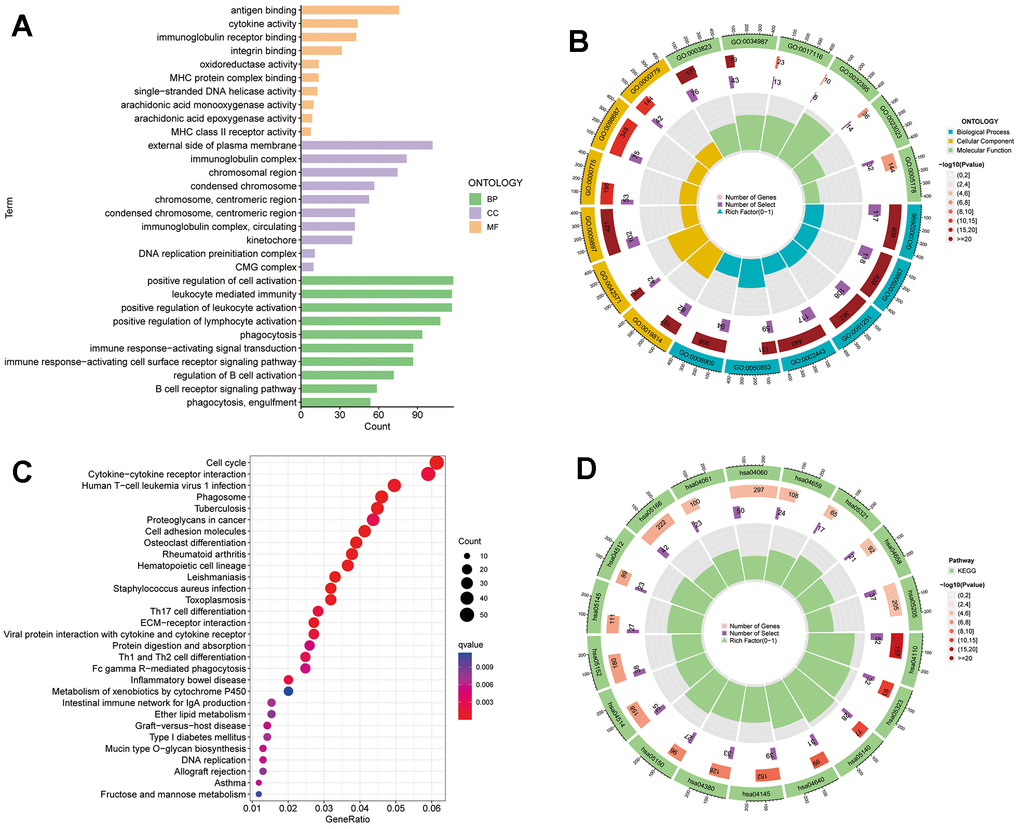

Figure 10. TRSSys-based GO and KEGG analysis. (A, B) GO analysis of the DEGs between the risk subgroups. (C, D) KEGG analysis of the DEGs between the risk subgroups.

TRSSys-based TMB analysis

The mutation waterfall plot showed the mutational differences in the 20 genes with the highest mutation frequencies in HCC across risk groups (Supplementary Figure 3A, 3B). Additionally, TMB levels were not significantly different in the high- and low-risk groups (Supplementary Figure 3C). However, there was a difference in survival between TMB subgroups and risk subgroup combinations, with the best prognosis for low-TMB and low-risk combinations (P < 0.001) (Supplementary Figure 3D). The above results suggest that the combination of TRSSys and TMB in HCC may be able to better determine the prognosis of patients.

TRSSys predicts TIME in HCC

The correlation between TRSSys and TIME of HCC was further analyzed considering the regulatory role of Tregs on TIME. The immune correlation bubble plots suggested a positive correlation between risk score and immune score in the XCELL algorithm; a positive correlation between risk score and CD4+ T cells, CD8+ T cells, macrophages, and neutrophils in the TIMER algorithm; and a positive correlation between macrophages, Treg cells, and immune score in QUANTISEQ. In addition, most immune cells were positively correlated with the risk score in the EPIC, and CIBERSORT-ABS algorithms (Figure 11A). The ssGSEA results revealed that patients in the high-risk group had significantly higher levels of infiltration of activated dendritic cells, dendritic cells, macrophages, follicular helper T cells, helper T cells and Tregs (Figure 11B). Notably, in terms of immune function, immune checkpoints also had higher expression levels in the high-risk subgroup (Figure 11C). Further immune checkpoint-associated gene analysis revealed that most checkpoints were significantly elevated in the high-risk group (Figure 11D), suggesting a highly immunosuppressive state in the high-risk group.

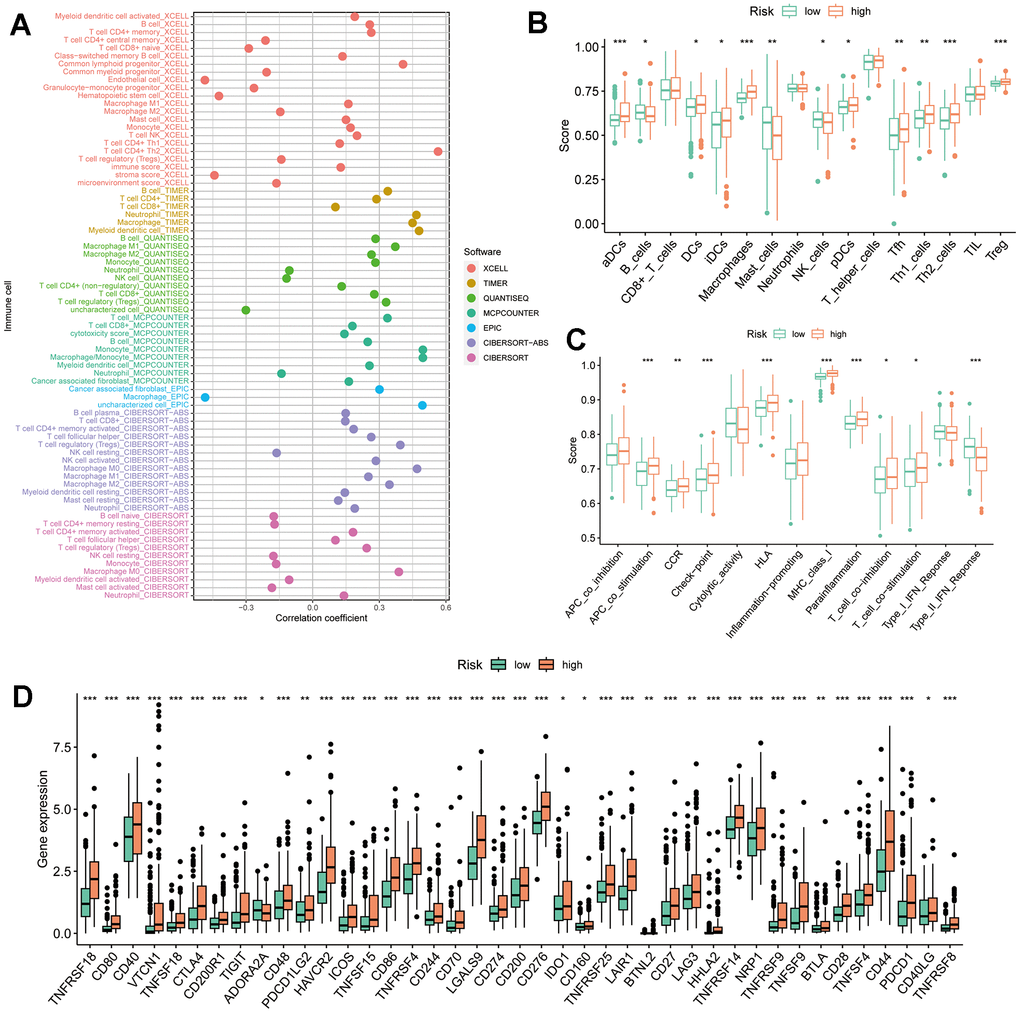

Figure 11. TRSSys-based TIME analysis. (A) Correlation bubble plot between the degree of immune cell infiltration and risk score. (B, C) Differences in immune cell scores and immune function scores across risk subgroups. (D) Differences in expression of immune checkpoints across risk subgroups.

TRSSys predicts drug sensitivity in HCC

TRSSys-based drug sensitivity analysis revealed that the IC50 of multiple chemotherapeutic and targeted drugs differed between risk subgroups (P < 0.001) (Figure 12A–12P). Among them, 5-fluorouracil, vinorelbine, paclitaxel, lapatinib, gefitinib, erlotinib, dasatinib, crizotinib, and afatinib showed significantly lower IC50 in the low-risk group. Additionally, sorafenib, oxaliplatin, irinotecan, niraparib, olaparib, gemcitabine, and axitinib had significantly higher IC50s in the low-risk group.

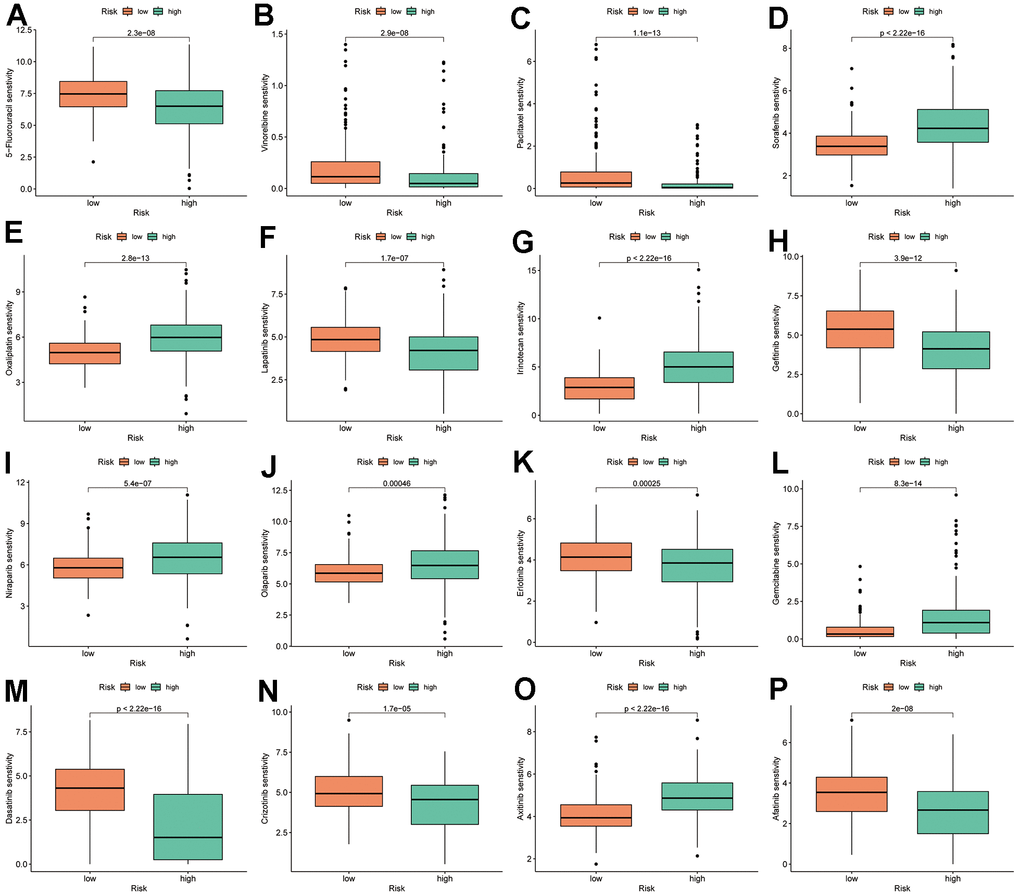

Figure 12. TRSSys-based IC50 analysis. (A–P) Therapy response of common chemotherapy and targeted drugs for risk groups.
