Protective effects of triptolide against oxidative stress in retinal pigment epithelium cells via the PI3K/AKT/Nrf2 pathway: a network pharmacological method and experimental validation

Role of TP in cell viability and its antioxidative stress properties

The sodium iodate-mediated oxidative stress in RPE can mimic many features of AMD. Thus, SI was used to simulate cellular oxidative damage. CCK-8 tests were used to assess the viability of cells. Before investigating the efficacy of triptolide, we determined its safety in ARPE-19 cells. The results of the CCK-8 tests (Figure 1A) suggested that concentrations of triptolide below 40 nM were safe for ARPE-19 cells. It has been discovered that in HepG2 cells, cell viability markedly decreases when the concentration of TP exceeds 40 nM [27]. To assess its protective effect, we pretreated ARPE-19 cells with TP at different concentrations. Then, ARPE-19 cells were cultured using different concentrations of SI for 24 hours. Figure 1B shows a dose-dependent decrease in cell viability. Some studies suggest that an acute nonlethal dose for extending treatment analysis may be selected at concentrations of 10 mM or lower of sodium iodate [28]. Based on the findings of the CCK-8 test, we selected a concentration of 10 mM (p < 0.01) to be administered in the sodium iodate group (SI group). Figure 1C shows 20 nM (p < 0.01) as the optimal concentration for TP treatment. Additionally, TP improved the cellular activity in SI-exposed ARPE-19 cells.

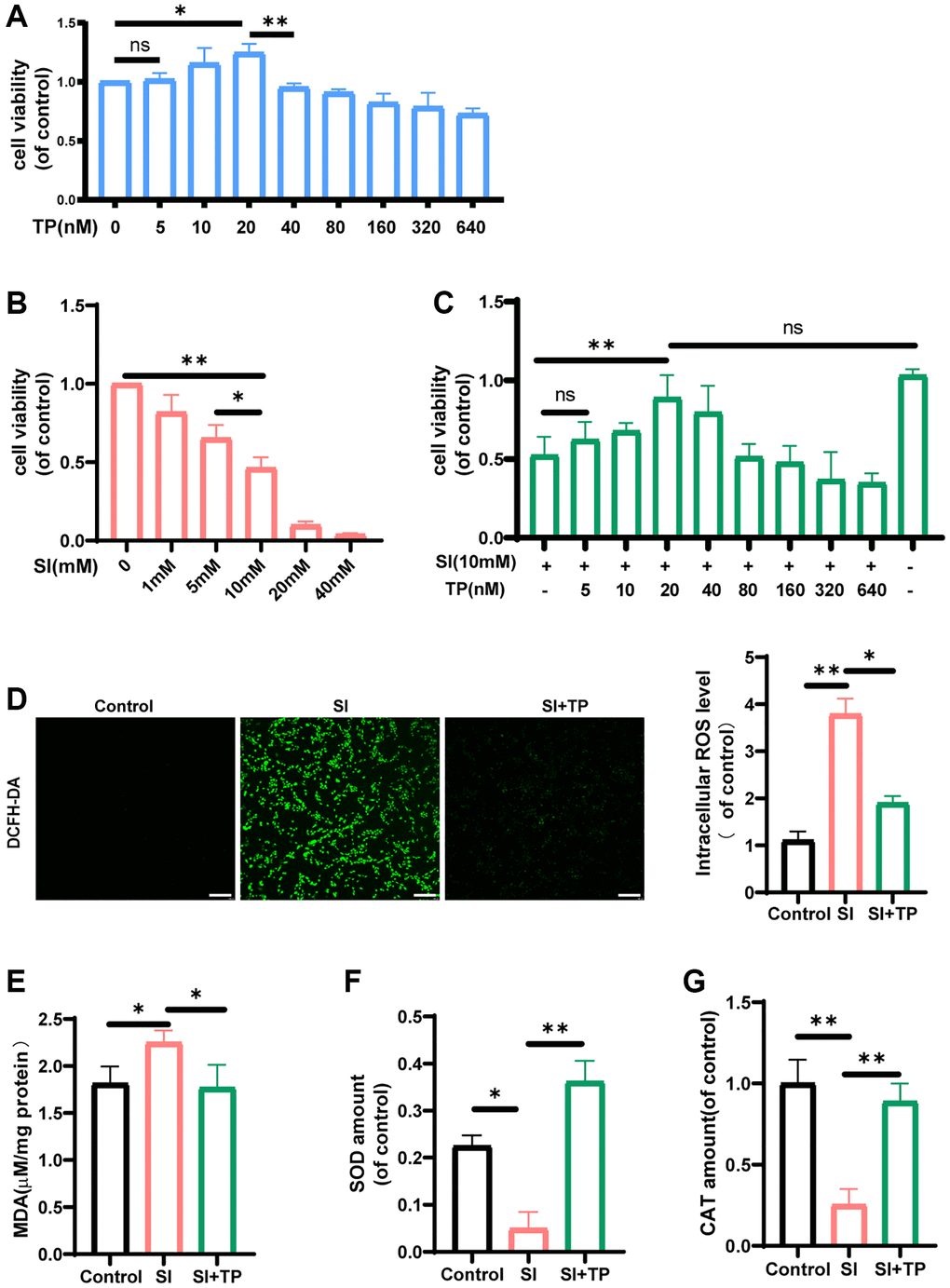

Figure 1. The effects of triptolide on the levels of pro- and anti-oxidant factors and the cell viability. The ARPE-19 cells were incubated with different concentrations of triptolide (TP) (A) or sodium iodate (SI) (B) for 24 h. (C) The ARPE-19 cells were treated with TP for different concentrations and then exposed to 10 mM SI for 24 h, n = 4. TP prevented the decrease in retinal pigment epithelial cell viability induced by SI. The fluorescence images of ROS were measured by a fluorescence microplate, n = 3. (D) The data showed that TP reduced the generation of ROS in ARPE-19 cells significantly. The amounts of MDA (E), SOD (F), CAT (G) in cell lysates were detected by a microplate reader using commercial kits. Data are shown as mean ± standard deviation (SD), n = 3; Scale bar, 300 μm. In all cases, the control is untreated retinal pigment epithelial (RPE) cells. Abbreviation: NS: not significant. ^*P < 0.05. ^**P < 0.01.

To better determine the protective effect of TP against the SI-mediated oxidative damage, we evaluated a series of indicators of oxidation and antioxidation. In contrast to the control group, as shown in Figure 1D, ROS increased (p < 0.01) in the SI group. However, in the TP-pretreated group (SI+TP group), the levels of ROS in ARPE-19 cells significantly decreased (p < 0.05). The results of the flow cytometric analysis were the same (Supplementary Figure 1A). Furthermore, in comparison with the control group, the MDA contents notably increased (p < 0.05) after exposure to SI (Figure 1E). Compared with the SI group, the TP-pretreated group showed significantly decreased levels of well-known antioxidative enzymes (p < 0.01), SOD (Figure 1F) and CAT (Figure 1G).

Protective effects of TP on retinal pigment epithelial barrier function, mitochondrial membrane potential, and proliferation

To determine whether TP regulates ARPE-19 function, we examined the proliferation and mitochondrial membrane potential of ARPE-19 treated with or without TP in vitro. We found that co-treatment with TP and SI attenuated the antiproliferative effects of SI (p < 0.05) (Figure 2A). JC-1 fluorescence ratio was used to detect mitochondrial membrane potential. Mitochondrial depolarization is frequently quantified by comparing the red-to-green fluorescence ratio. The results of JC-1 staining showed that SI induced a dissipation of the mitochondrial membrane potential (p < 0.01), while TP ameliorated the mitochondrial depolarization (p < 0.05) (Figure 2B). These all demonstrated the protective potential of TP.

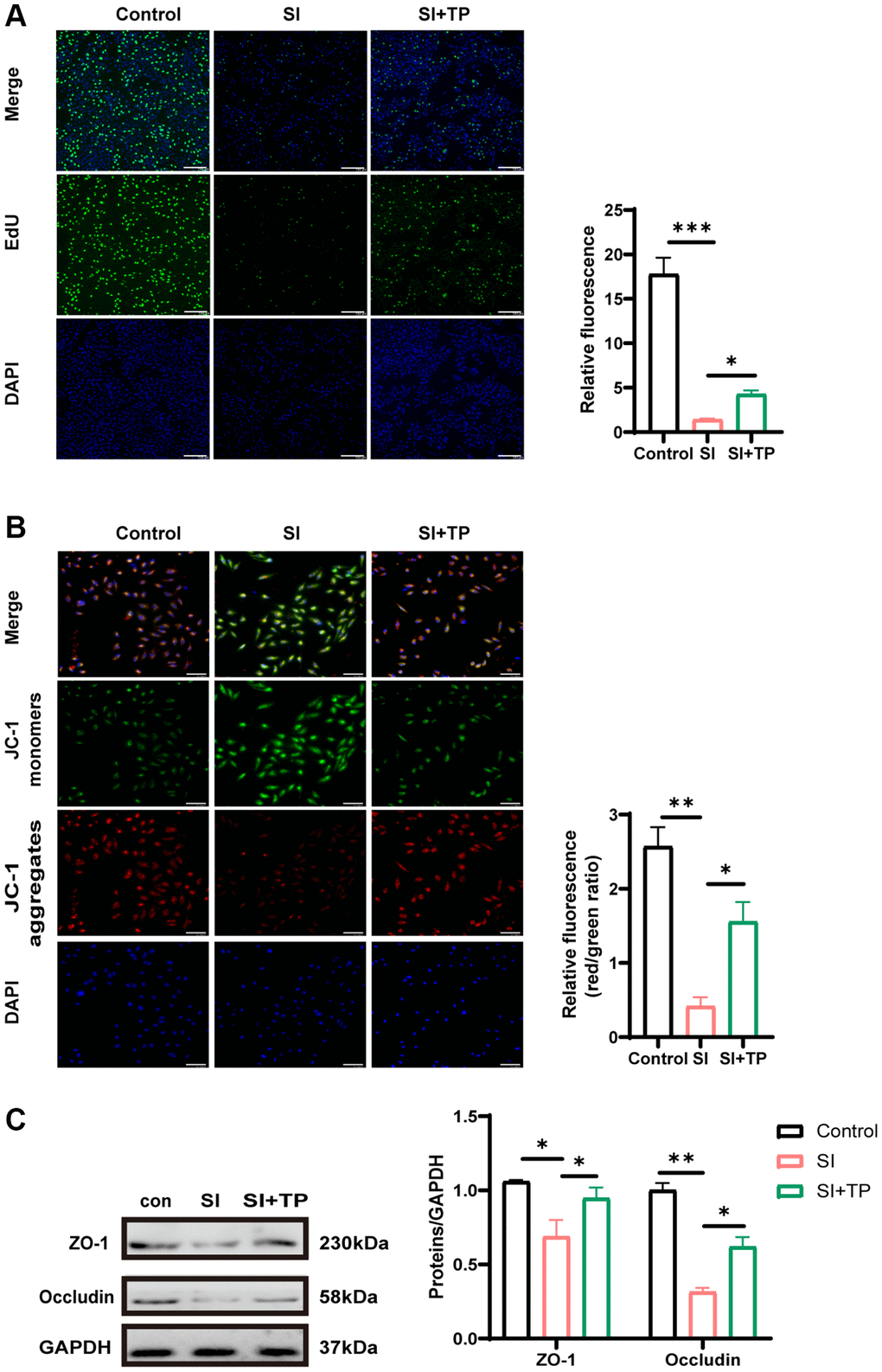

Figure 2. Effects of TP on proliferation, mitochondrial membrane potential and tight junction protein. (A) The EdU assay was used to analyze the proliferation-suppressing effect of SI on RPE cells. DAPI for nuclear staining (blue). EdU-positive cells (green) were counted to calculate the percentage. Scale bar, 200 μm. (B) Mitochondrial membrane potential was detected by the JC-1 fluorescence ratio. The transition from red fluorescence to green fluorescence represents the decrease of cell membrane potential. Scale bar, 200 μm. (C) Protein levels of occludin and ZO-1 were detected by Western blot with GAPDH as the loading control. The bar graphs show the results of analysis. Values are the mean ± SD; n = 3; ^*P < 0.05, ^**P < 0.01, ^***P < 0.001.

The tight junctions of the paracellular barrier serve as the cornerstone of any epithelial barrier. Oxidative damage to RPE frequently results in the disruption of the epithelial barrier function. Western blotting revealed the expression of two essential elements of the epithelial cytoskeleton, namely occludin and ZO-1. As depicted in Figure 2C, the expression of ZO-1 (p < 0.05) and occludin (p < 0.01) was notably decreased in the SI-exposed group, demonstrating that epithelial barrier function was significantly compromised after SI exposure. However, their expression in the TP-pretreated group (SI+TP group) was significantly elevated relative to the SI-induced group (p < 0.05). These results showed that TP exerts some protective effect on RPE tight junctions.

Network pharmacology analysis and molecular docking

TP is a natural compound with low molecular weight (360.4Da). Figure 3A shows its chemical structure. To delineate the protective mechanism of TP against AMD, we used network pharmacology analysis to predict its potential targets. Using an online Venn diagram tool, we identified 2061 TP-related targets, 2,026 AMD-related targets, and 417 cross-targets (Figure 3B). To establish the protein-protein interaction (PPI) network, the 417 genes were integrated into the STRING database. Using Cytoscape (v3.10.0) software, a PPI network, comprising of 409 nodes and 1950 edges, was reconstructed from the STRING database (Figure 3C). Using overlapping genes to enrich GO and KEGG, we could evaluate AMD-related signal transduction pathways and biological processes which may be influenced by TP. The result of GO enrichment includes three parts: molecular function, cell composition, and biological process. Figure 3D shows the bar graphs of the top 10 results from the three parts of GO enrichment. In Figure 3D, according to GO analysis, the target genes were mostly enriched in “positive regulation of phosphorylation” (biological process), “membrane raft” (cellular component), and “cytokine receptor binding” (molecular function). According to KEGG enrichment analysis, the target genes were shown to be implicated in a number of different pathways, including Th17 cell differentiation, the PI3K/Akt signaling pathway, HIF-1 signaling pathway, and longevity-regulating pathway. The PI3K-Akt signaling pathway showed much higher enrichment (Figure 3E). These results indicated that the PI3K-Akt pathway may be linked to the potential protective mechanism of TP against AMD. Nuclear factor erythroid 2-related factor 2 (Nrf2), as a transcription factor, regulates the expression of antioxidants, phase 2 detoxification enzymes, and other related proteins. Nrf2 is essential for the regulation of oxidative status. Thus, we focused on two hub proteins: PI3K and Nrf2. To anticipate the potential binding of TP to PI3K (PDB code: 1E7U) and Nrf2 (PDB code: 5CGJ), a molecular docking simulation was performed using AutoDock Vina. Triptolide binds to Nrf2 protein mainly through hydrogen bonding and conjugation. VAL512, CYS513, GLY367, and VAL369 can each form a hydrogen bond with triptolide, whereas CYS368 can conjugate with its cyclic structure. Additionally, RG690 and GLU852 can each form a hydrogen bond with triptolide, while TRP201 and HIS658 can form a conjugate with triptolide (Figure 3F). The calculated free energy of TP binding to Nrf2 is −9.9 kcal/mol, while that of its binding to PI3K is −9.0 kcal/mol, implying that TP has relatively good binding ability to these two molecules.

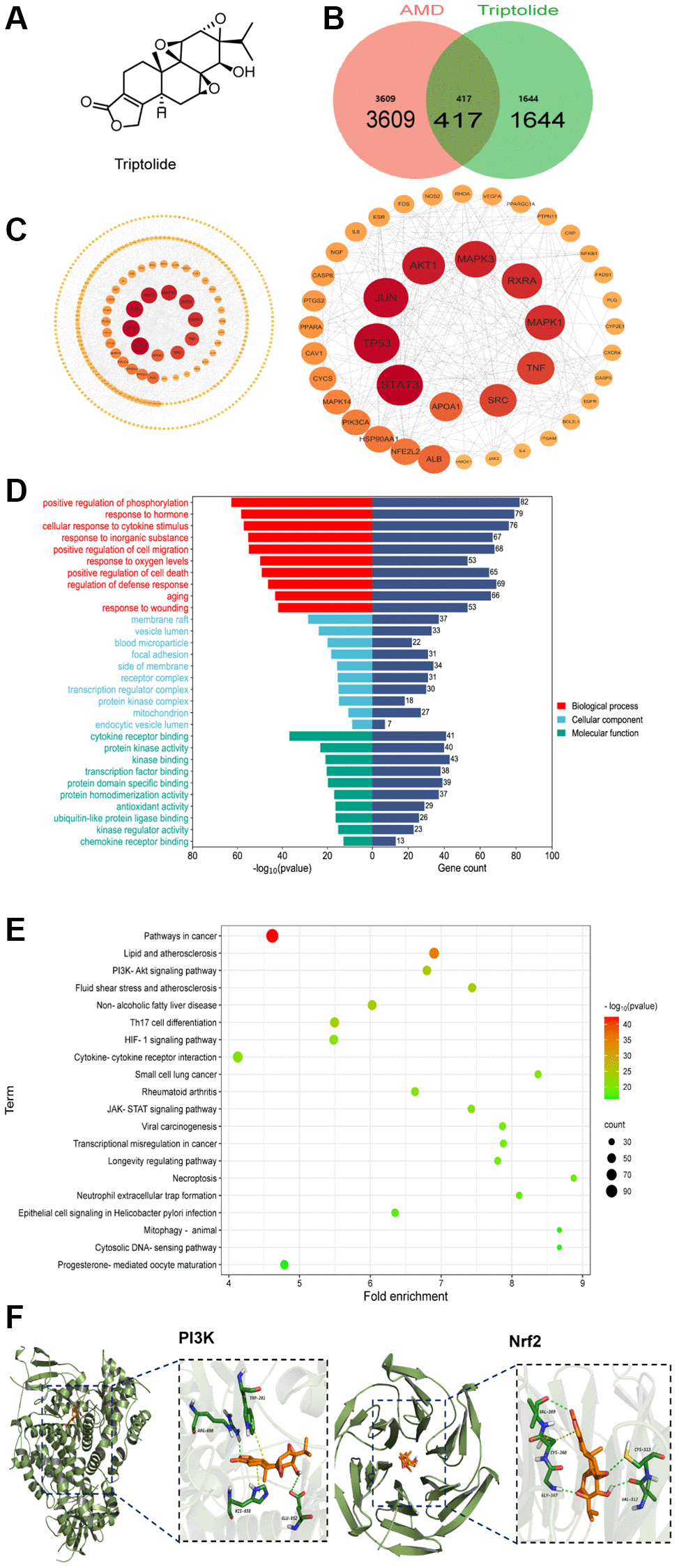

Figure 3. The underlying target of triptolide by network pharmacology analysis. (A) The chemical structure of TP. (B) The 417 intersection targets of TP against AMD (Venn diagram). (C) The crucial protein interaction network diagram. The larger the degree of the node in the graph, the darker the color and the larger the diameter of the node. (D) GO functional annotation for potential targets of TP on AMD. (E) KEGG enrichment analysis for potential targets of TP on AMD. (F) The molecular docking model of TP with PI3K and Nrf2.

Role of the PI3K/Akt pathway in TP-mediated cytoprotection against oxidative stress

The PI3K/Akt signaling pathway has been proposed to be essential for the regulation of the antioxidant function in RPE cells [29]. ELISA revealed that the level of Nrf2 in the serum of patients with AMD was significantly lower (p < 0.01) compared with controls (Figure 4A). Western blot was used to measure the protein levels for p-PI3K, PI3K, p-Akt, Akt, p-Nrf2, and Nrf2 in ARPE-19 cells, thereby further exploring the mechanics of the antioxidant effects of TP. As shown in Figure 4B, exposure to SI induced a significant decrease in p-PI3K/PI3K (p < 0.05), p-Akt/Akt (p < 0.05), and p-Nrf2/Nrf2 (p < 0.05), inhibiting the PI3K/Akt/Nrf2 signaling pathway. However, treatment of SI-exposed ARPE-19 cells with TP, notably increased the levels of p-Nrf2/Nrf2 (p < 0.05) (Figure 4E), p-Akt/Akt (p < 0.05) (Figure 4D), and p-PI3K/PI3K (p < 0.05) (Figure 4C). Two important intrinsic antioxidant molecules are HO-1 and NQO1. The protein content analysis in Figure 4B shows that the levels of HO-1 (p < 0.05) (Figure 4F) and NQO1 (p < 0.05) (Figure 4G) were lower in the SI group. Compared with the SI group, their levels in the TP group showed significantly elevated expressions (p < 0.01). The PI3K/Akt/Nrf2 pathway can be activated to increase the levels of HO-1 and NQO1 to reduce the damage caused by oxidative stress in ARPE-19 cells.

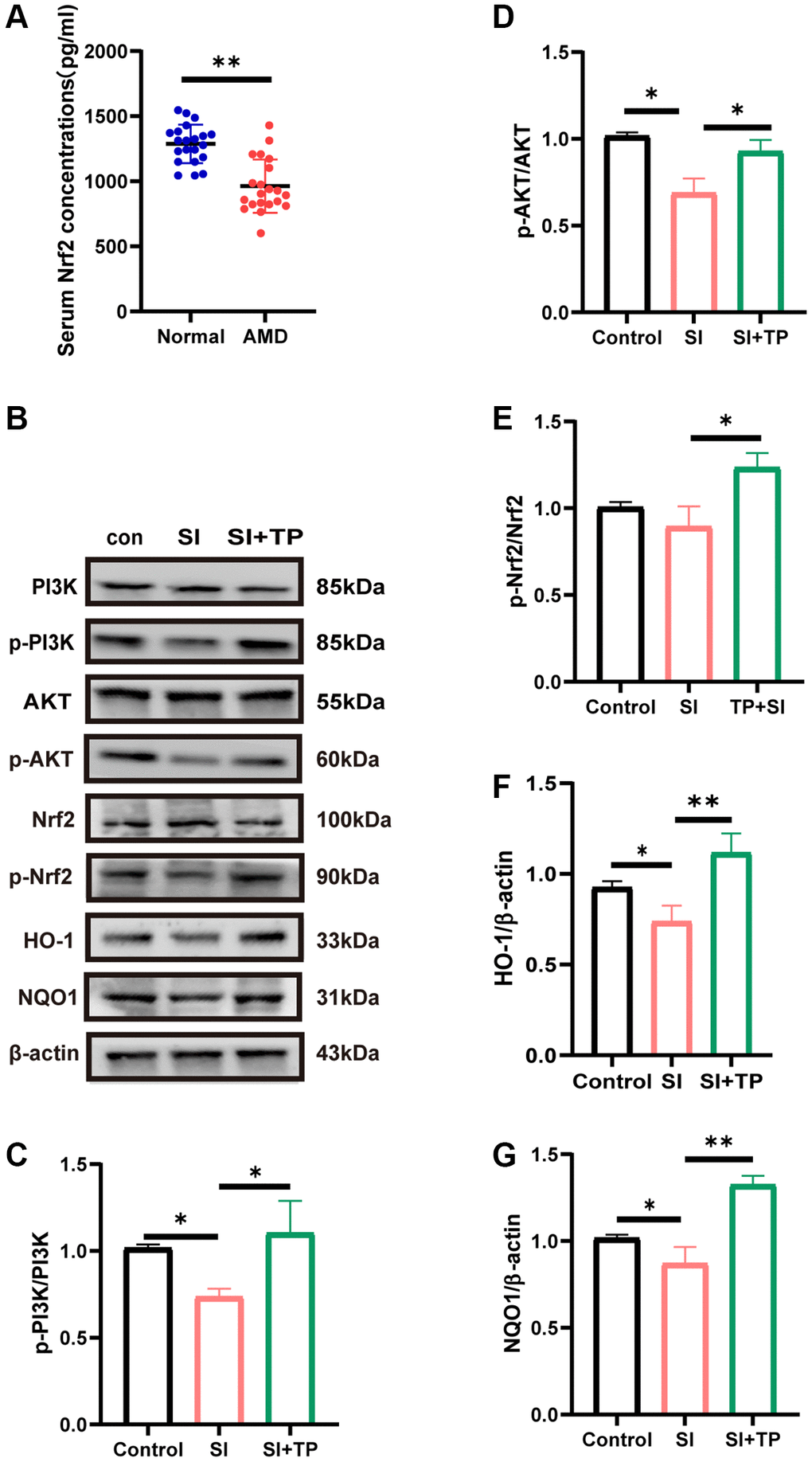

Figure 4. Activation of the PI3K/Akt pathway was involved in the protective effect of triptolide on ARPE-19 cells. (A) Serum Nrf2 levels in normal subjects and AMD patients detected by ELISA, n = 3. (B) Cells were treated with 20 nM triptolide (TP) for 6 h and then treated with sodium iodate (SI) for 24 h. Western blot analysis was performed using the corresponding antibodies. Quantitative analyses of p-PI3K/PI3K (C), p-Akt/Akt (D), p-Nrf2/Nrf2 (E), HO-1 (F) and NQO1 (G) by ImageJ software. Data are shown as mean ± standard deviation (SD) (n = 3); Abbreviation: NS: not significant. ^*p < 0.05. ^**P < 0.01.

TP-induced phosphorylation of Nrf2 protein

Phosphorylation of Nrf2 protein induced by TP is regulated by the PI3K/Akt pathway. To confirm that Nrf2 protects ARPE-19 cells from SI-induced oxidative damage, we pretreated the cells with ML385 (1 μ mol/L), an Nrf2 inhibitor, and subsequently treated them with SI and/or TP. Compared with the treatment group, ML385 markedly reduced the levels of phosphorylated Nrf2 (p-Nrf2/β-actin) (p < 0.01), as evidenced by western blot analysis (Figure 5A). Meanwhile, the expression levels of HO-1 (p < 0.01) and NQO1 (p < 0.01) were reduced by ML385 (Figure 5A). In contrast, phosphorylation of Akt and PI3K was not influenced in Nrf2-inhibited cells compared with controls. (Figure 5A).

Figure 5. Triptolide-activated PI3K/Akt/Nrf2 signaling pathway is helpful to the activation of antioxidant stress in SI-treated RPE cells. Expression levels of p-PI3K/PI3K p-Akt/Akt, p-Nrf2/Nrf2, HO-1 and NQO1 relative proteins in ARPE-19 cells. The cells were incubated with LY294002 (10 μM) (A) or ML385 (1 μM) (B) for 1 h after pretreatment with TP (20 nM) for 6 h, then exposed to SI (10 mM) for 24 h. Quantitative analyses by ImageJ software (n = 3). (C) Immunofluorescence staining of p-PI3K, p-Akt, p-Nrf2 and HO-1 in ARPE-19 cells. Bar = 200 μm. Data are shown as mean ± standard deviation (SD) (n = 3); ^*p < 0.05, ^**P < 0.01 compared with the control group; ^#P < 0.05, ^##P < 0.01 compared with the SI group; ^&&P < 0.01 compared with the SI+TP group.

Additionally, LY294002 (10 μ mol/L) diminished the protective impact of the PI3K/Akt/Nrf2 pathway on SI-exposed ARPE-19 cells, as well as its activation by TP. The results in Figure 5B demonstrate that LY294002 suppressed the levels of p-Nrf2/Nrf2 (p < 0.01) and p-Akt/Akt (p < 0.01). LY294002 significantly inhibited PI3K/Akt phosphorylation and Nrf2 activation. Thus, these findings suggested that activation of the PI3K/Akt signaling pathway may be mediated through Nrf2 activation. As shown in Figure 5B, LY294002 significantly attenuated the protective effect of TP. Therefore, TP may protect ARPE-19 from oxidative stress by activating the PI3K/Akt/Nrf2 pathway. Furthermore, immunofluorescence assays showed that the levels of phosphorylated PI3K, phosphorylated Akt, phosphorylated Nrf2, and HO-1 dramatically increased with triptolide administration (Figure 5C). In addition, the triptolide-induced effects on the expression of p-PI3K, p-Akt, p-Nrf2 and HO-1 could be reversed by LY294002 (Figure 5C). The results of immunofluorescence (Figure 5C) were consistent with the in-cell western analysis. Flow cytometric analysis demonstrated that pretreatment with TP significantly increased the proportion of SI-induced the level of ROS, and this effect was eliminated by LY294002 treatment (p < 0.05) (Supplementary Figure 1B). These results indicate that PI3K/Akt activation is necessary for Nrf2 activation and the cytoprotective effects induced by TP. In conclusion, these results suggest that TP inhibits oxidative damage through the PI3K/Akt/Nrf2 signaling cascade.

Reagents and cell line

Triptolide was purchased from Topscience (Shanghai, China). Sigma Industrial Company (Shanghai, China) provided the sodium iodate, which was 98% pure. Anti-p-PI3K (Tyr458), anti-PI3K, anti-p-Akt (Ser473), anti-Akt, anti-Nrf2, anti-p-Nrf2 (Ser40), anti-HO-1, anti-NQO1, anti-Nanti-ZO-1, and anti-occludin were provided by Affinity Biosciences (Beijing, China). Cell Signaling Technology (Shanghai, China) was used to get anti-GAPDH and anti-actin. LY294002 (a PI3K/Akt inhibitor) and ML385 (an Nrf2 inhibitor) were obtained from Selleckchem (Houston, TX, USA). Human adult retinal pigment epithelium-19 (ARPE-19) cell line was acquired from the American Type Culture Collection (ATCC, Manassas, VA, USA). Dulbecco’s modified Eagle’s medium/nutrient mixture F12 (DMEM/F12) and antibiotics (penicillin and streptomycin) were acquired from Gibco (CA, USA). The source of fetal bovine serum (FBS) was GeminiBio (West Sacramento, CA, USA).

ARPE-19 cell culture and cell viability assay

At 37°C, cells were cultured in a DMEM/F-12 solution with 10% FBS and 0.5% penicillin/streptomycin (10,000 U/mL⁻¹) and 5% CO₂ to keep the atmosphere moist. The effect and mechanism of TP on the SI-exposed ARPE-19 cells were measured by treating the cells with triptolide for 6 hours, then sodium iodate was added for 24 hours. LY294002 (10 μM/L) and ML385 (1 μM/L) were added independently for 1 hour before triptolide treatment.

The Cell Counting Kit-8 (Topscience, Shanghai, China) was used to evaluate the vitality of the cells. First, ARPE-19 cells (1 × 10⁴ cells/mL) were seeded in a 96-well plate (100 μL per well) and treated with sodium iodate or triptolide for 24 hours. In the same manner, the control well was established using medium without samples, while the blank well contained medium without cells. Cellular medium (100 μL per well) and CCK-8 reagent were added to the blank well and incubated for 2 hours at 37°C. At a wavelength of 450 nm, absorbance was measured using a microplate reader (Multiskan FC, Thermo Fisher Scientific, Waltham, MA, USA).

Detection of intracellular ROS

Following the aforementioned treatment, the cells were subsequently incubated in a medium containing dichlorodihydrofluorescein diacetate (DCFH-DA) (Beyotime Institute of Biotechnology, Shanghai, China) at a concentration of 2.5 μM for 30 minutes. Images were captured by fluorescence microscope (Zeiss, Jena, Germany) and flow cytometry (Thermo Fisher Scientific, USA). ImageJ (NIH, Bethesda, MD, USA) was used to measure the ROS fluorescence intensity.

Analysis of activities of SOD, CAT, and MDA

Following the aforementioned treatment, the cell supernatant was gathered and the overall activities of superoxide dismutase (SOD), catalase (CAT), and malondialdehyde (MDA) in ARPE-19 cells were analyzed using the respective kits (Beyotime Institute of Biotechnology, Shanghai, China). The experimental procedures followed the manufacturer’s specifications.

EdU cell proliferation assay

Following the manufacturer’s recommendations, the EdU cell proliferation test was used to assess cell proliferation. Following treatment as above, the cells were labeled by adding 10 M of the EdU reagent (Beyotime, Shanghai, China) to each well, which was then incubated for 2 hours. After being washed with PBS, the cells were fixed in 4% paraformaldehyde solution (PFA, Beyotime, China) for 15 minutes, and then were permeabilized with 0.3% Triton X-100 (Sigma, USA) for another 15 minutes. Afterward, cells were incubated with click reaction mixture for 30 minutes at room temperature in the dark. To counterstain the nucleus, 1× Hoechst 33342 reagent was used. Confocal microscopy (Zeiss, Jena, Germany) images were taken.

Measurement of mitochondrial membrane potential

We used JC-1 to perform the mitochondrial membrane potential (MMP) assay. In healthy cells with high mitochondrial membrane potential, a high level of JC-1 in the mitochondrial matrix causes red fluorescence. On the other hand, apoptotic cells have a lower MMP that facilitates the translocation of JC-1 into the cytosol, with its green fluorescence. Therefore, changes in JC-1 fluorescence can be used to detect changes in MMP. ARPE-19 cells were treated as above, washed with PBS, and then incubated in a medium containing JC-1 chromosomal solution at 37°C for 30 minutes. After two rinses with PBS, the change in MMP was detected using a confocal fluorescence microscope.

Network pharmacology analysis

Potential targets of TP have been collected from Pharmmapper, TCMSP, Swiss TargetPrediction, and CTD databases and according to the results of Figure 1A. To find AMD-related targets, “age-related macular degeneration” was used as a keyword in GeneCards and OMIM databases. The online Venn diagram tool was then used to analyze TP-related targets and AMD-related targets for overlap. Protein-protein interaction (PPI) networks were constructed utilizing a string database, then were visualized using Cytoscape. Using the Metascape database and bioinformatics, GO and KEGG pathway enrichment analyses of key targets were performed.

Molecular docking

Molecular docking using Autodock was performed to evaluate the interaction between TP and its targets. In a nutshell, the 3D structures of the TP targets were downloaded from the PDB protein database, and its 2D chemical structure was gathered from the PubChem database and transformed into 3D format with OpenBabel. After that, AutoDock software was used to simulate molecular docking, and PyMOL software was used to visualize the docking results.

Determination of serum Nrf2

The study included 21 patients with AMD and 21 healthy controls. The diagnosis of AMD disease was confirmed in all patients based on well-defined diagnostic criteria. Our study excluded patients with diabetes mellitus, hypertension, dyslipidemia, a history of other autoimmune diseases, immune deficiencies, and other diseases. After explaining the nature and possible consequences of the study, informed consent was obtained from the subjects. An enzyme-linked immunosorbent assay (ELISA) kit (Proteintech, Wuhan, China) was used to measure serum Nrf2. The manufacturer’s protocol was followed for the assay.

Western blotting

Protein was extracted with RIPA (Beyotime, Shanghai, China) using proteinase and phosphatase inhibitors (Roche, Basel, Switzerland), and then was centrifuged at 4°C for 10 minutes at 14,000 rpm. BCA protein assay (Beyotime, China) was employed to measure the concentration of the proteins. SDS-PAGE (Beyotime, China) was used to separate the protein samples, which were deposited afterward onto a PVDF membrane (Millipore, Burlington, MA, USA). At room temperature, the samples were then immersed in 5% skim milk for 1.5–2 hours. The primary antibody was then incubated on the membrane at 4°C for the following day. After three washes with TBST, the membrane was incubated with secondary antibody at room temperature for 2 hours. An ECL kit (Thermo Fisher Scientific, USA) was used for visualization, and signals were quantified using ImageJ software.

Immunofluorescence analysis

ARPE-19 cells were seeded and then incubated in 24-well plates with glass coverslips overnight. Cells were incubated with sodium iodate and LY294002, fixed with chilled 4% paraformaldehyde for 15 minutes, permeabilized with 1% Triton for 20 minutes, and blocked with 10% goat serum for 30 minutes. Coverslips were then incubated overnight at 4°C with antibodies against HO-1 (1:200), p-Nrf2 (1:200), p-Akt (1:200), and p-PI3K (1:200). Then, goat anti-rabbit IgG conjugated with Alexa Fluor 488 (Beyotime, China) was incubated for 1 hour. DAPI staining was performed for 5 minutes. A confocal fluorescence microscope (Zeiss, Germany) was used for fluorescence imaging.

Statistical analysis

Similar results have been obtained with 3 independent experiments. The program of IBM SPSS Statistics 20.0 (IBM, Armonk, NY, USA) was used to analyze the data, which were presented as mean ± SD. The one-way analysis of variance (ANOVA) was employed to analyze data from various groups. Additionally, unpaired Student’s t-test was performed to determine the significance between two groups. GraphPad Prism 9.0 software was used for all graphs and plots and p < 0.05 was considered significant.
