Highly multiplexed immune profiling throughout adulthood reveals kinetics of lymphocyte infiltration in the aging mouse prostate

Identification of distinct immune subsets in mouse prostate using mass cytometry

Prostates from mice of various ages between 1 and 16 months were collected and weighed to confirm the relationship between age and prostate development. We observed a positive correlation between age and wet prostate weight (ρ = 0.6673, P_ρ < 0.001) with a rapid increase in weight in pre-pubescent mice (<3 months old) (Supplementary Figure 1A), consistent with the rapid, androgen-dependent growth of the prostate which occurs postnatally until sexual maturity at 2–3 months of age [24, 25]. After reaching adulthood, the mouse prostate continues to grow at a much slower rate. In post-pubertal adult mice aged 3 to 16 months, we observed a positive correlation between age and prostate weight (ρ = 0.5144, P_ρ < 0.01), with a significant increase in mass at 16 months of age (p < 0.05) (Supplementary Figure 1A). Importantly, age was also positively correlated with the percentage of CD45⁺ immune cells in the prostate as measured by flow cytometry (ρ = 0.7034, P_ρ < 0.01) (Supplementary Figure 1B), consistent with age-related prostatic inflammation. The increase in total immune cells in the aged prostate was confirmed by quantifying the total lymphoid area in aged mouse prostates using immunohistochemistry (Supplementary Figure 1C, 1D).

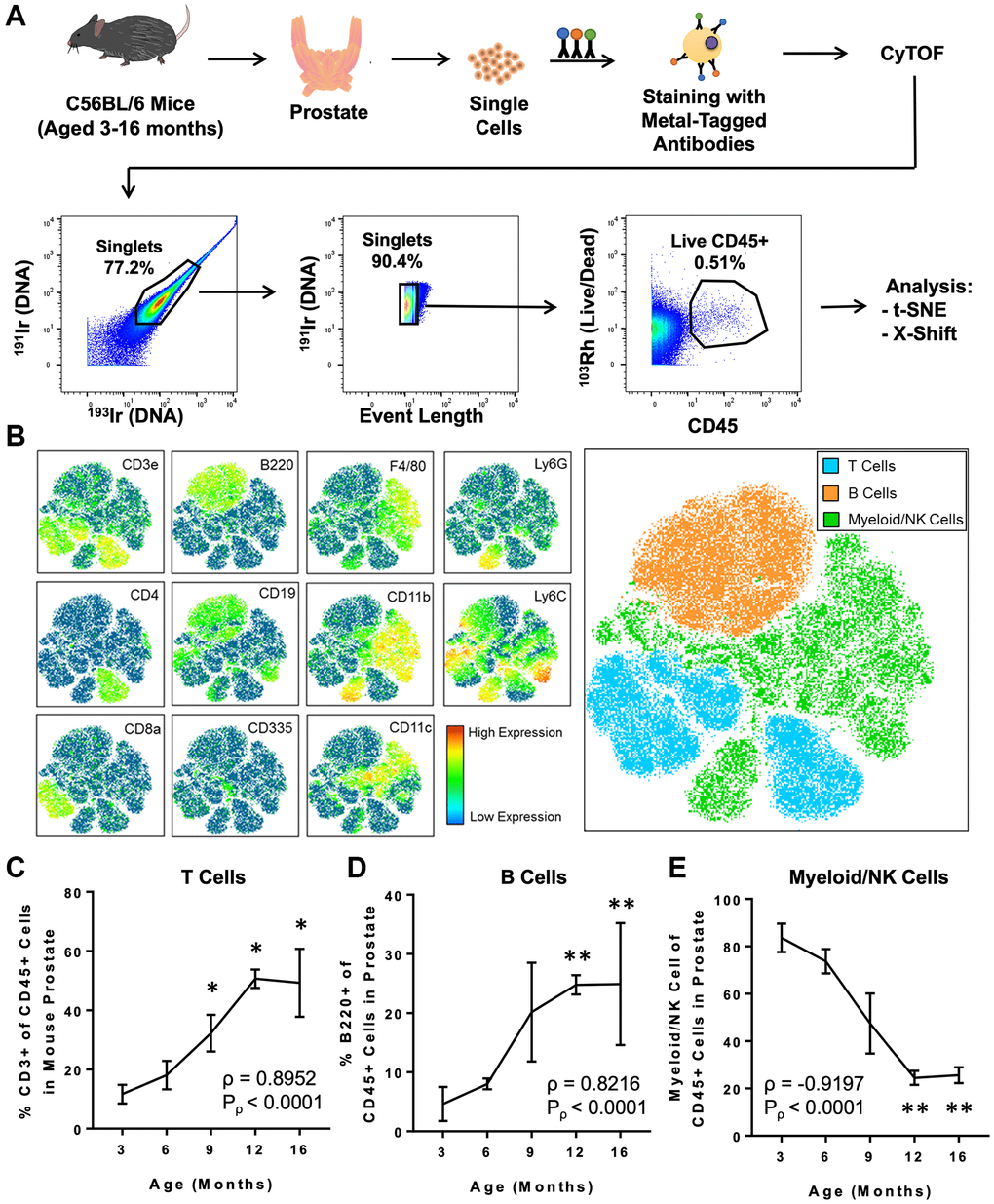

Next, we used CyTOF to characterize age-related changes in the immune microenvironment of the prostate throughout adulthood. Prostates were isolated from adult mice aged 3, 6, 9, 12, and 16 months (each n = 4), and dissociated cells were stained with a panel of 19 metal-tagged antibodies designed to label a broad variety of immune cell types using CyTOF (Table 1 and Figure 1A). Immune cells from all ages were clustered using the t-distributed stochastic neighbor embedding (t-SNE) algorithm for dimensional reduction and visualization (Figure 1A, 1B and Supplementary Figure 2A). Based on expression of well-defined immune cell lineage markers, the t-SNE plot was separated into 3 broad groups: T cells (expressing CD3e), B cells (expressing B220), and myeloid/NK cells (expressing CD335, F4/80, CD11b, CD11c, Ly6C, or Ly6G) (Figure 1B). We observed a positive correlation between age and the percentage of T cells (ρ = 0.8952, P_ρ < 0.0001) and B cells (ρ = 0.8216, P_ρ < 0.0001) in the adult mouse prostate (Figure 1C, 1D). The enrichment for T and B lymphocytes with age was accompanied by a respective decrease in the percentage of myeloid/NK cells (ρ = –0.9197, P_ρ < 0.0001) in the aging mouse prostate (Figure 1E). These trends are consistent with the age-related increase in T and B lymphocytes and decrease in myeloid and NK cells previously reported in 3- and 24-month-old mouse prostates by our group [12].

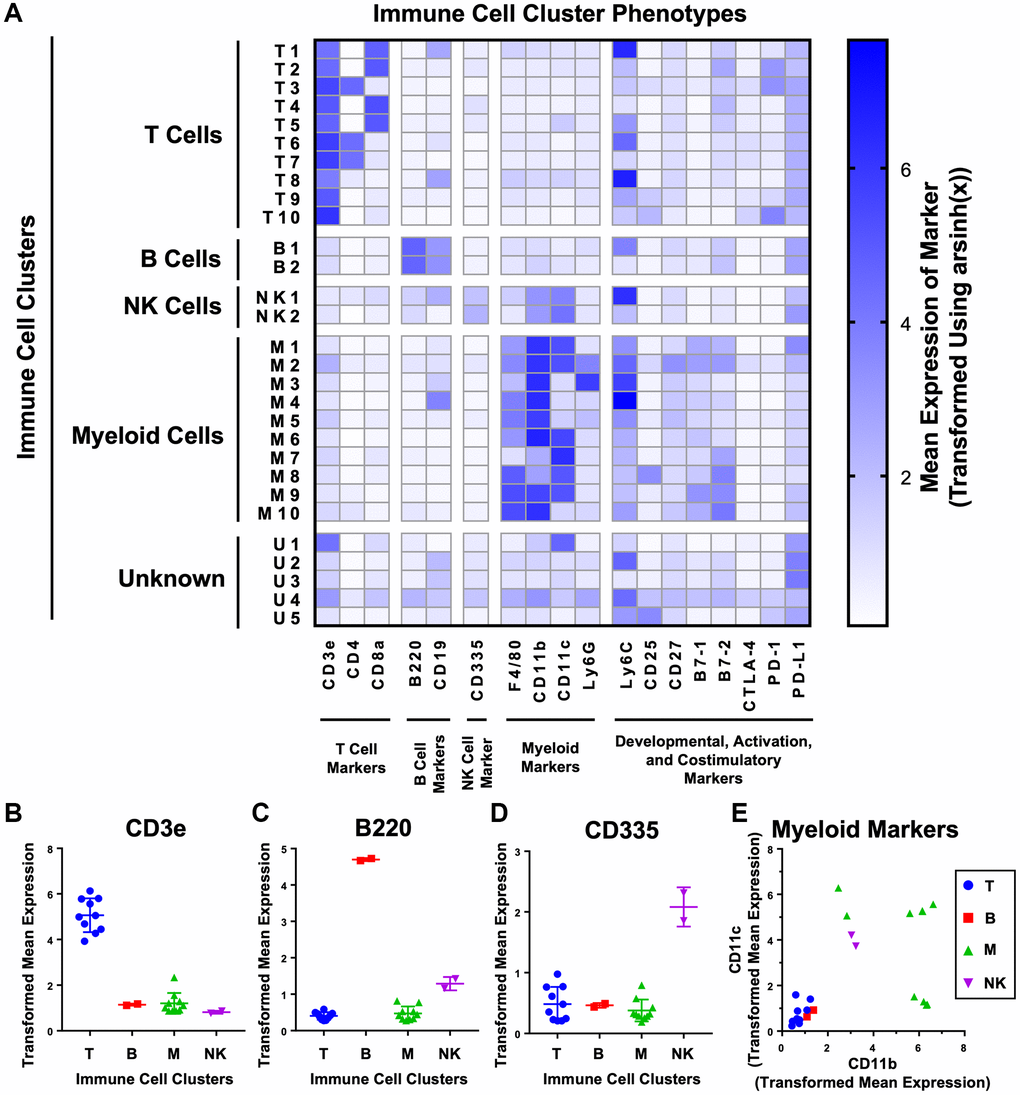

To provide more granularity to our analysis we performed unsupervised k-nearest neighbors clustering using the X-Shift algorithm to further subdivide the t-SNE plot into phenotypically-distinct immune cell clusters (Figure 2A and Supplementary Figure 2B). The X-Shift algorithm was chosen because it optimizes the numbers of clusters to prevent over- and under-clustering [26]. We identified 29 distinct immune cell clusters which were then subdivided by cell type. Expression of lineage markers was used to identify 24 of 29 immune cell clusters as T cells (CD3e⁺), B cells (B220⁺ and CD19⁺), NK cells (CD335⁺), and myeloid cells (any combination of F4/80⁺, CD11b⁺, CD11c⁺, or Ly6G⁺) (Figure 2A–2E). The 5 remaining clusters were classified as unknown due to expression of both T cell and myeloid cell markers (U1), lack of a strong signal for any lineage-specific markers (U2–U3, U5) or mild, nonspecific staining for every marker (U4) (Figure 2A).

Surprisingly, there were 6 immune cell clusters with staining for both Ly6C and CD19 (T1, T8, B1, NK1, M4, U2) (Figure 2A). Since CD19 is only expected on B cells, expression by other immune cell lineages is unlikely [27]. Instead, we determined that there was interference between the Ly6C and CD19 channels in our experiment. At high levels of Ly6C, there was overflow of signal into the CD19 channel, resulting in a linearly proportional increase in signal between the two channels (Supplementary Figure 3A). In our panel, Ly6C was conjugated to neodymium-150, and CD19 was conjugated to erbium-166 (Table 1). These two lanthanide isotopes differ by 16 Da, consistent with known effects of oxidation of neodymium-150 by oxygen-16 as the sample is ionized to plasma in the mass cytometer (Supplementary Figure 3B) [28]. We checked every other combination of the 19 markers used and found no other instances of signal spillover (Supplementary Figure 3C). The effects of signal spillover from Ly6C into CD19 taken into account, high Ly6C expression likely caused the T1, T8, NK1, M4, and U2 clusters to appear as CD19⁺. However, expression of the B cell specific marker B220 by cluster B1 indicates that its CD19 signal is likely true [29]. Interestingly, Ly6C is expressed across many different immune lineages but is not expressed on resting B cells [30, 31]; however, Ly6C has been found in some cases to be upregulated in B cells exposed to lipopolysaccharide and type III interferon [32, 33]. Given that CD19 is not expressed in immune cells besides B cells, the artifactual signal interference from Ly6C into CD19 is not likely to have affected the clustering or cell type identification in our analysis.

Aging-related changes of mouse prostatic immune cell populations arise early in adulthood

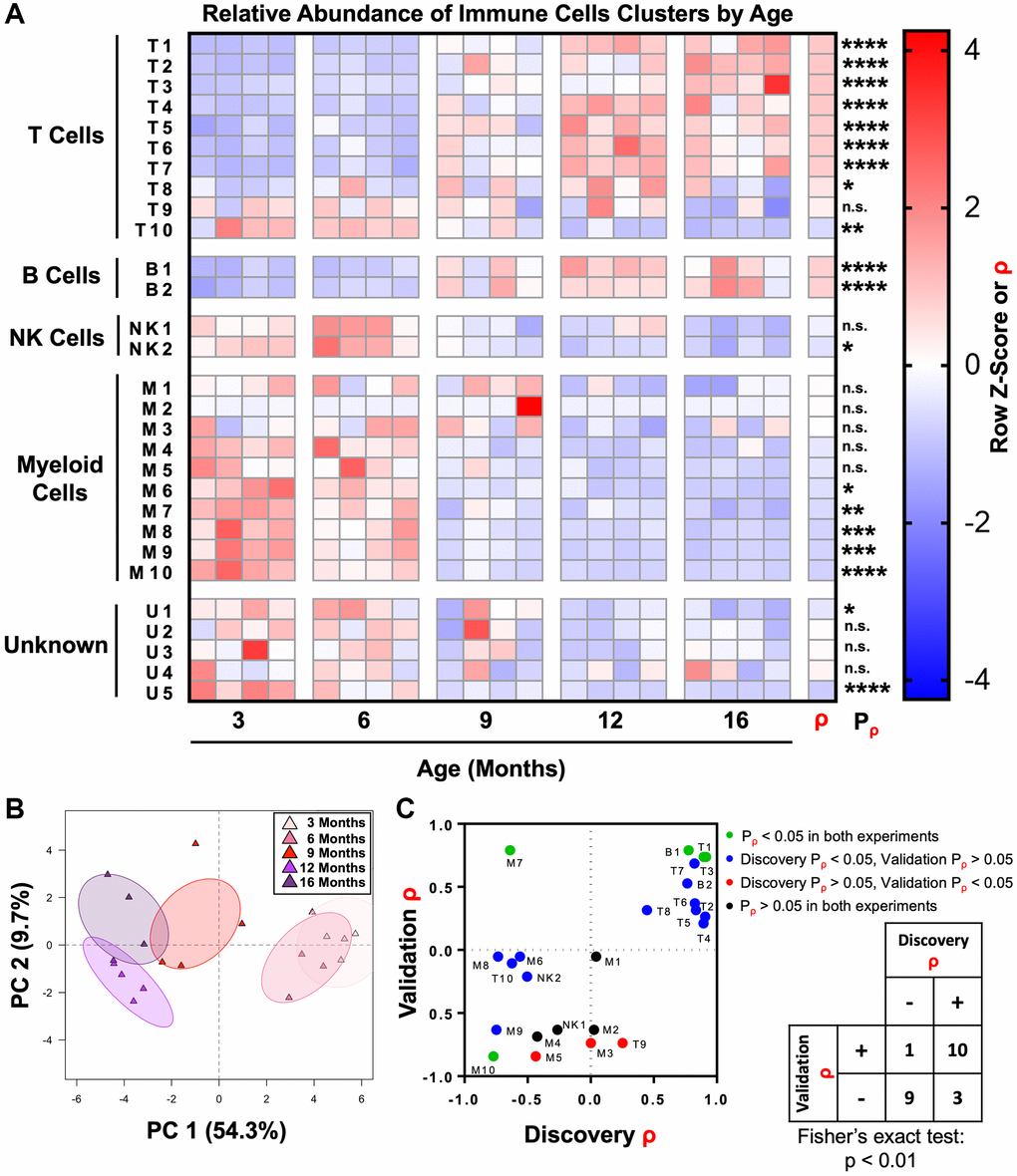

Having used unsupervised clustering to subdivide immune cells in the mouse prostate into distinct subsets, we next examined how these populations change throughout adulthood. Correlation analysis was performed to determine whether each immune cell cluster was enriched (ρ > 0) or depleted (ρ < 0) with age. We found that 19/29 immune cell clusters were significantly correlated with age (ρ ≠ 0, P_ρ < 0.05). Consistent with the overall increase in T and B lymphocytes in the mouse prostate with age, 8/10 T cell clusters and 2/2 B cell clusters were significantly enriched with age. Similarly, we found that 1/2 NK cell clusters and 5/10 myeloid cell clusters had a significant negative correlation with age (Figure 3A and Supplementary Table 1). Excluding an extreme outlier in the abundance of cluster M2 in one of the 9-month-old mice, we also found a significant negative correlation (P_ρ < 0.05) between M2 abundance in the prostate and age (Supplementary Figure 4).

Principal component analysis was performed to assess the progression of changes in the mouse prostate immune microenvironment. Prostates from 3- and 6-month-old mice clustered together as did those from 12- and 16-month-old mice, demonstrating the similarity in immune microenvironments of prostates in the youngest and oldest age groups (Figure 3B). Prostates from 9-month-old mice clustered between the other ages, demonstrating an intermediate immune phenotype at this age. These results show that the shift in the inflammatory microenvironment of the aging mouse prostate occurs between 6 and 12 months of age.

To validate these changes to the immune microenvironment of the mouse prostate, we performed a separate CyTOF immunophenotyping experiment with a panel of the same markers and mice 4-, 9-, and 15-months-old (each n = 3) (Supplementary Table 2). The 24 known immune cell clusters from the discovery experiment were matched to immune cells from the validation experiment, and Spearman correlation analysis was performed (Supplementary Figure 5 and Supplementary Table 3). Four of the 24 immune cell clusters (T1, T3, B1, and M10) were validated (same sign for ρ and P_ρ < 0.05 in both discovery and validation experiments) (Figure 3C). Fifteen of the 24 immune cell clusters had the same direction of correlation with age in both the discovery and validation experiments but failed to meet the barrier of statistical significance in both experiments. The majority of these were significant in the discovery but not the validation experiments, likely due to the low statistical power of n = 3 in the validation. Overall, there was a statistically significant correlation between the sign of ρ for immune cell clusters in each experiment (p < 0.01, Fisher’s exact test), supporting the reproducibility of our CyTOF immunophenotyping (Figure 3C).

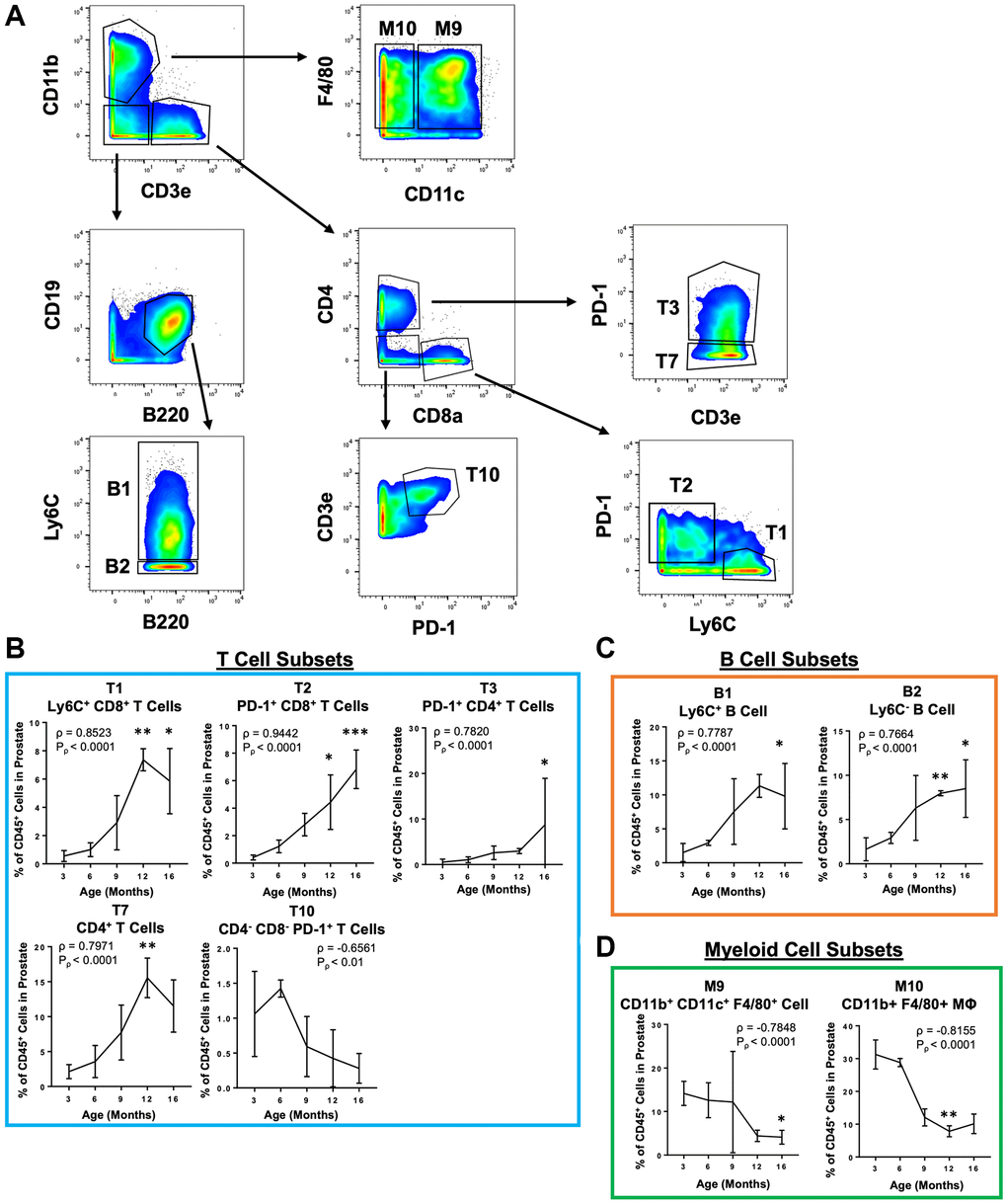

Because CyTOF is not a widely available technique, we sought to provide a more accessible way to study these age-related immune microenvironment changes in the mouse prostate. Guided by the phenotypes of the validated immune cell clusters, a simpler gating scheme was constructed which can identify the 4 validated clusters (T1, T3, B1, and M10) and 5 additional clusters that were significant in the discovery experiment (T2, T7, T10, B2, and M9) using a reduced number of markers (Table 2 and Figure 4A). The reduced panel has fewer markers to be used with more widely accessible 12-color flow cytometry [34]. Importantly, manual gating to reidentify these immune cell clusters in the discovery experiment produced populations with significant correlations with age that are consistent with correlations found using X-Shift clustering (Figure 4B–4D).

Mouse prostate and bladder share features of inflammaging

As part of the discovery experiment, we also performed CyTOF on bladders and kidneys from the same 3- and 16-month-old mice (each n = 4) to compare aging of the prostate to other urogenital tissues with age-related cancer risk [35, 36]. Immune cells from these tissues were included for X-Shift clustering so that we could examine age-related changes to the same 29 immune cell clusters as the prostate (Supplementary Table 1). In the mouse bladder, we identified significant correlations between age and 17/29 immune cell clusters (ρ ≠ 0, P_ρ < 0.05) (Supplementary Figure 6A). Unlike the prostate and bladder, the immune profiles of the 3- and 16-month-old mouse kidneys displayed more similarity, with only 5/29 immune cell clusters significantly correlated with age (Supplementary Figure 6B). Principal component analysis was performed on the 3- and 16-month-old samples from the prostate, bladder, and kidney to assess the similarities in how different urogenital tissues age (Figure 5A). Three-month-old bladder and prostate clustered together as did 16-month-old bladder and prostate, suggesting these tissues are similar in how their immune microenvironments change with age. On the other hand, both ages of kidney clustered together near the 16-month-old bladder, suggesting that the kidney immune microenvironment changes less with age and was most similar to the 16-month-old bladder.

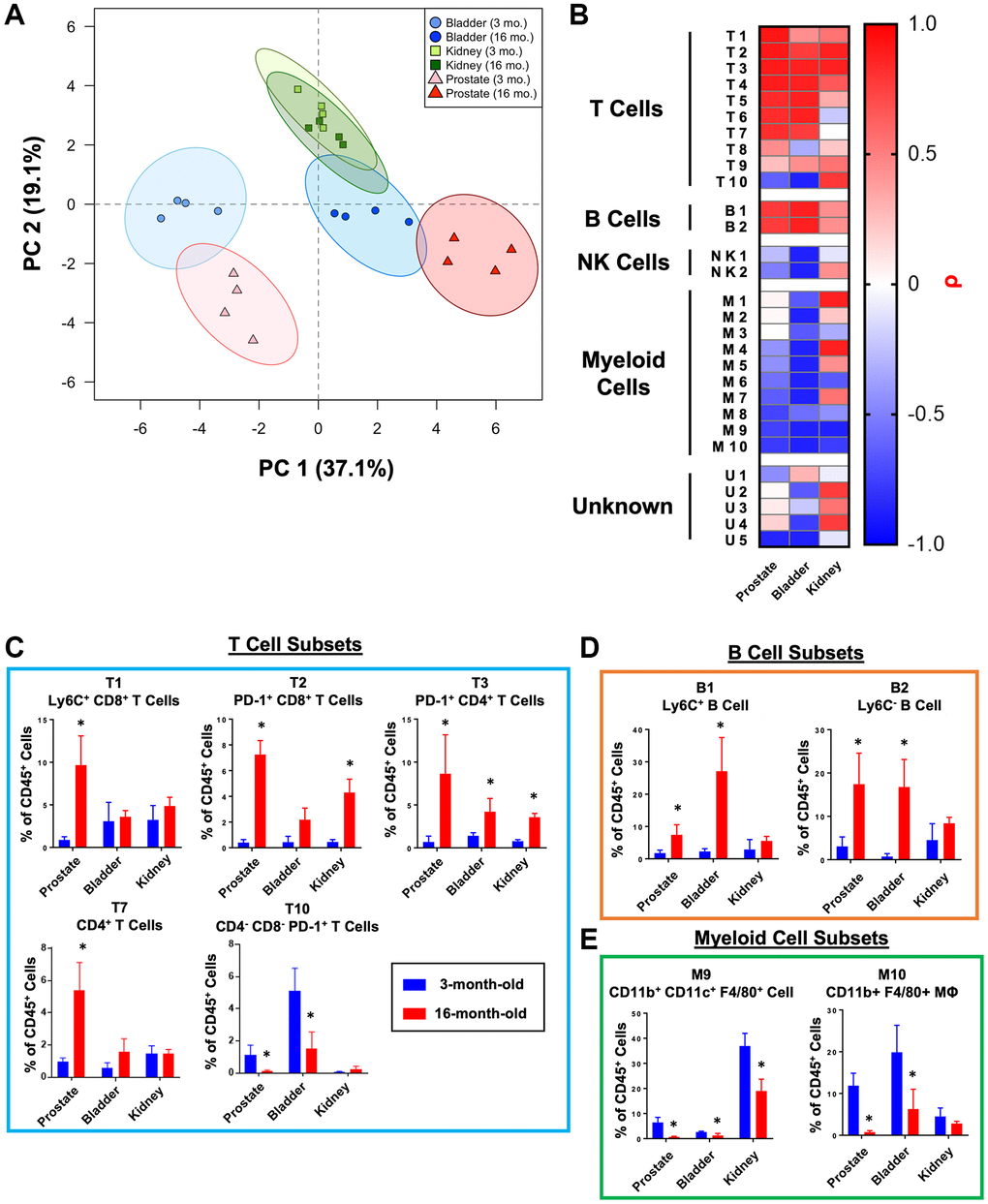

To better understand these relationships, we compared the correlation coefficients (ρ) for each immune cell cluster, irrespective of p-value, in the prostate, bladder, and kidney (Figure 5B). Thirteen of 29 clusters were correlated with age in the same direction in all three tissues (all ρ > 0 or ρ < 0) (T1–T4, T9, B1–B2, NK1, M6, M8–M10, and U5). Among the other immune cell clusters, prostate and bladder shared more similarities to each other than to kidney (Figure 5B–5E and Supplementary Figure 6C). These results demonstrate that different mouse urogenital tissues have distinct inflammatory signatures that change with age and that the aging prostate more closely resembles the aging bladder than the kidney.
