Cell-type specific epigenetic clocks to quantify biological age at cell-type resolution

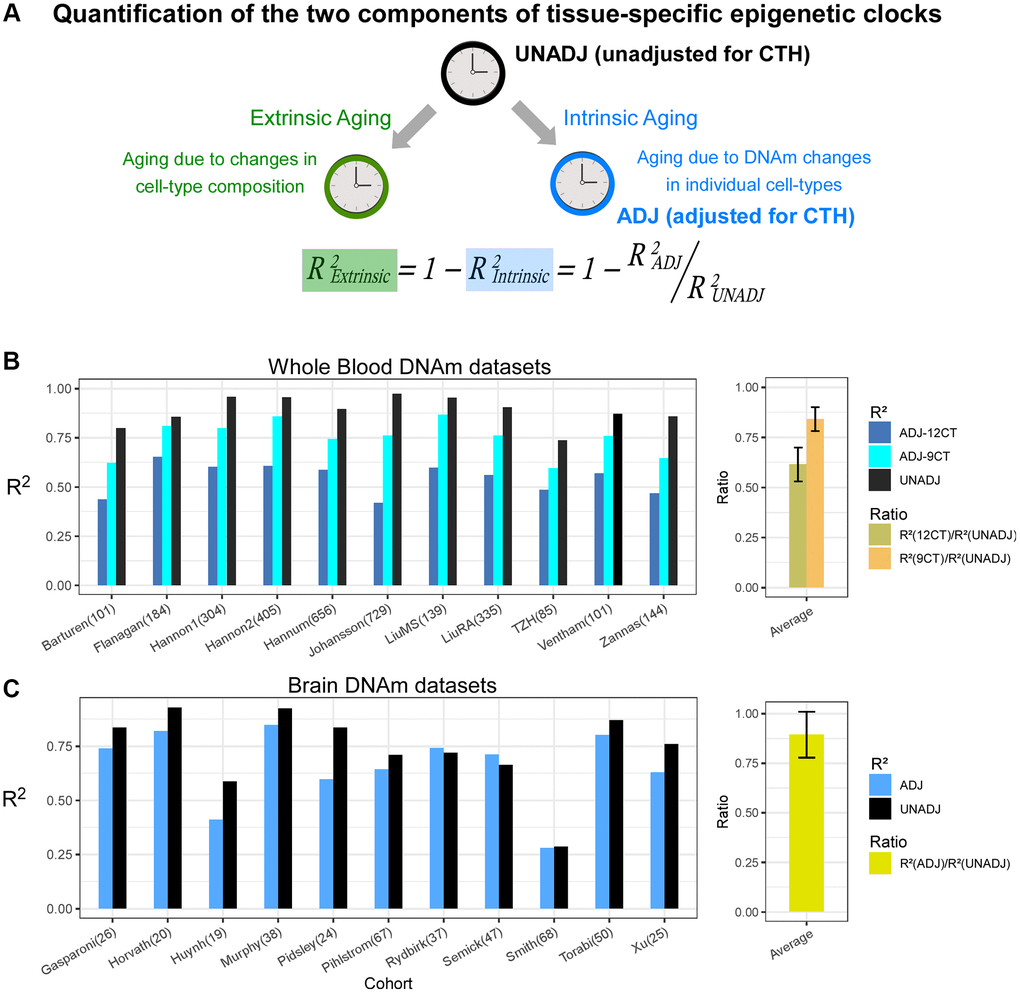

Dissecting and quantifying the two components of epigenetic clocks

Epigenetic clocks are composites of two underlying age-related processes, an extrinsic one that reflects age-associated variations in cell-type composition and an intrinsic one that captures age-associated DNAm changes in individual cell-types (Figure 1A). Thus, the predictive accuracy (R² value) of a clock can be composed as the sum of an extrinsic and intrinsic accuracy, so that the extrinsic R² value can be estimated from the predictive accuracies of two clocks: one adjusted for CTH, and another which is not (Figure 1A). To quantify the relative rates of extrinsic and intrinsic aging, we assembled a large collection of whole blood Illumina DNAm datasets, using two of the largest cohorts to train Elastic Net age-predictors unadjusted and adjusted for CTH, respectively (Methods). Adjustment for CTH was performed at the resolution of 12 immune cell subtypes using a validated DNAm reference matrix encompassing naïve and memory B-cells, naïve and memory CD4T-cells, naïve and memory CD8T-cells, T-regulatory cells, natural-killer cells, monocytes, neutrophils, eosinophils and basophils [24] (Methods). We also built an elastic net clock adjusting for 9 immune-cell subtypes, by merging together the estimated fractions of the naïve and memory lymphocyte subsets, allowing us to assess the importance of the known age-related shift from naïve to mature T-cell subsets in driving an epigenetic clock’s accuracy (Methods) [24]. We then estimated R² values of the 3 clocks in 11 independent whole blood DNAm datasets (Methods). This revealed that the unadjusted clock achieved substantially higher R² values than the two adjusted clocks, especially when compared to the clock adjusted for all 12 immune cell types (Figure 1B and Supplementary Figures 1, 2). We estimated that the intrinsic aging component accounts for approximately 61% of the predictive accuracy of the unadjusted clock (Figure 1B), which means that extrinsic aging accounts for a substantial fraction of a clock’s accuracy (39%). Of note, not adjusting for relative shifts in naïve to memory subsets, we would have over-and-under estimated the intrinsic and extrinsic aging components to be approximately 84% and 16%, respectively (Figure 1B). By assembling a large collection of brain DNAm datasets (Methods, Supplementary Table 1) and adjusting for 7 brain cell-type fractions (GABAergic excitatory neurons, glutamatergic inhibitory neurons, astrocytes, microglia, oligodendrocytes, endothelial cells and stromal cells), as estimated with the HiBED algorithm [46], we verified that the intrinsic component of aging in brain is around 88%, higher than the estimate obtained in blood (Figure 1C and Supplementary Figure 3). To see which brain cell-types are driving the extrinsic aging component, we performed a fixed and random effects meta-analysis over 13 Illumina DNAm brain datasets, encompassing over 2,000 samples (Supplementary Table 1), which revealed an age-associated increase of excitatory neurons, whilst inhibitory neurons and astrocytes decreased (Figure 2). Thus, this age-related shift in neuronal subtypes accounts for the 12% extrinsic aging component. Of note, these findings are broadly consistent with recent single-nucleus DNAm studies reporting reduced inhibitory neuron fractions in the brain of aged donors [47, 48]. Overall, these results obtained in blood and brain tissue highlight the critical importance of adjusting for CTH when building epigenetic clocks.

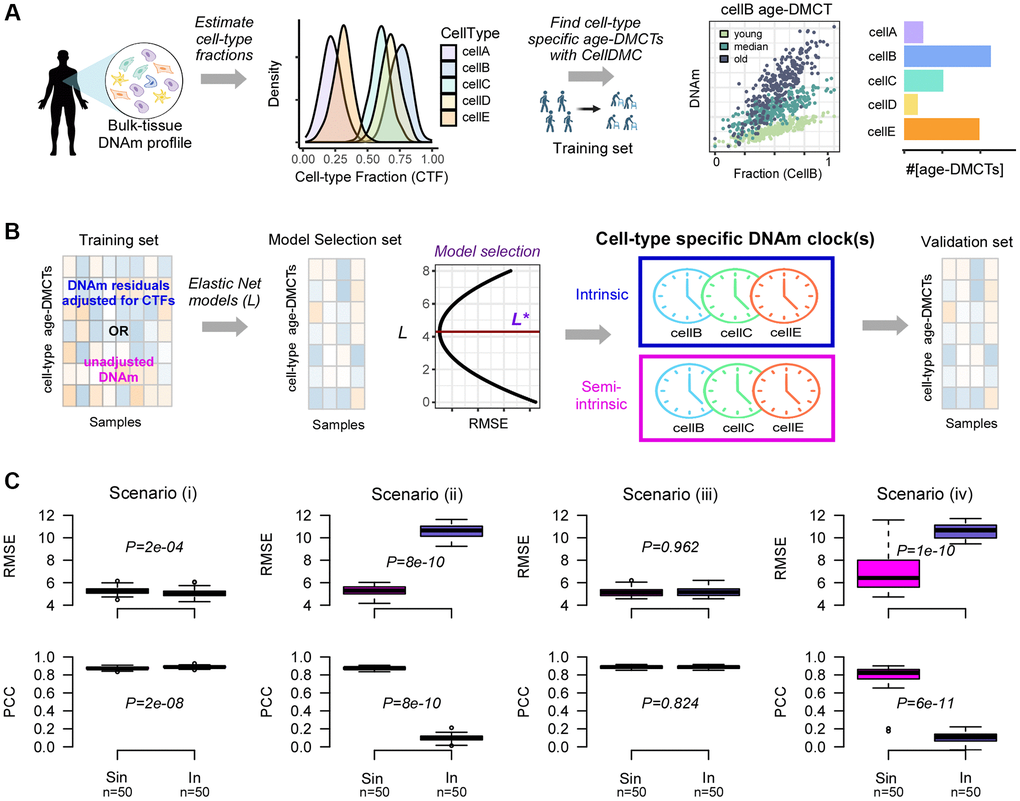

A computational strategy to build cell-type specific epigenetic clocks

In order to dissect the intrinsic aging component, we next devised a computational strategy to build cell-type specific epigenetic clocks (Figure 3A). After estimation of the cell-type fractions in a given bulk-tissue DNAm dataset, we apply the CellDMC algorithm [45] to a training subset of the data to identify age-associated differentially methylated cytosines in each cell-type of interest (age-DMCTs) (Figure 3A). CellDMC uses the estimated cell-type fractions as weights in a model that expresses a CpG’s DNAm profile across samples as a corresponding weighted mixture of latent phenotype-dependent DNAm profiles. In the present context, the phenotype is age and the described model includes interaction terms between age and the cell-type fractions (Methods). These interaction terms allow cell-type specific age-DMCTs to be found (see Figure 3A for a hypothetical example). Assuming there is a substantial number of age-DMCTs for a given cell-type, we then apply an Elastic Net Regression model [49] to train predictive models for chronological age parameterized by a penalty parameter (Figure 3B). This training is restricted to age-DMCTs of the given cell-type and can be performed either on the residuals of the DNAm data matrix, obtained by regressing out the effect of cell-type composition, or on the unadjusted DNAm data matrix (Methods). In the former case, we define the clocks as being “intrinsic”, otherwise they are “semi-intrinsic”. The best performing models in a blinded model-selection set define our cell-type specific intrinsic and semi- intrinsic epigenetic clocks, one for each cell-type (Figure 3B). These clocks are then validated in independent DNAm datasets.

The reasoning behind defining separate intrinsic and semi-intrinsic clocks can be understood with simulation models. We generated simulated DNAm mixtures of 3 underlying cell-types (granulocytes, monocytes and lymphocytes), and in which age-DMCTs are introduced into only one cell-type (lymphocytes) under four different scenarios (Methods): (i) age-DMCTs do not map to cell-type specific CpGs and no cell-type fractions change with age, (ii) as (i) but with the lymphocyte fraction changing with age, (iii) age-DMCTs discriminate lymphocytes from the other two cell-types and no cell-type fraction changes with age, (iv) as (iii) but with the lymphocyte fraction changing with age. For each scenario, we generated training and validation sets, deriving lymphocyte specific intrinsic and semi-intrinsic clocks, subsequently validating them in the independent test sets. Interestingly, whilst the intrinsic clock displayed marginally better performance in the scenarios where cell-type fractions did not change with age, the semi-intrinsic clock was substantially better in cases where the lymphocyte fraction did change with age (Figure 3C). Thus, the use of residuals in scenarios where a given cell-type fraction changes with age can dilute out the biological signal in that cell-type, and under these circumstances, the cell-type specific semi-intrinsic clock would be preferable.

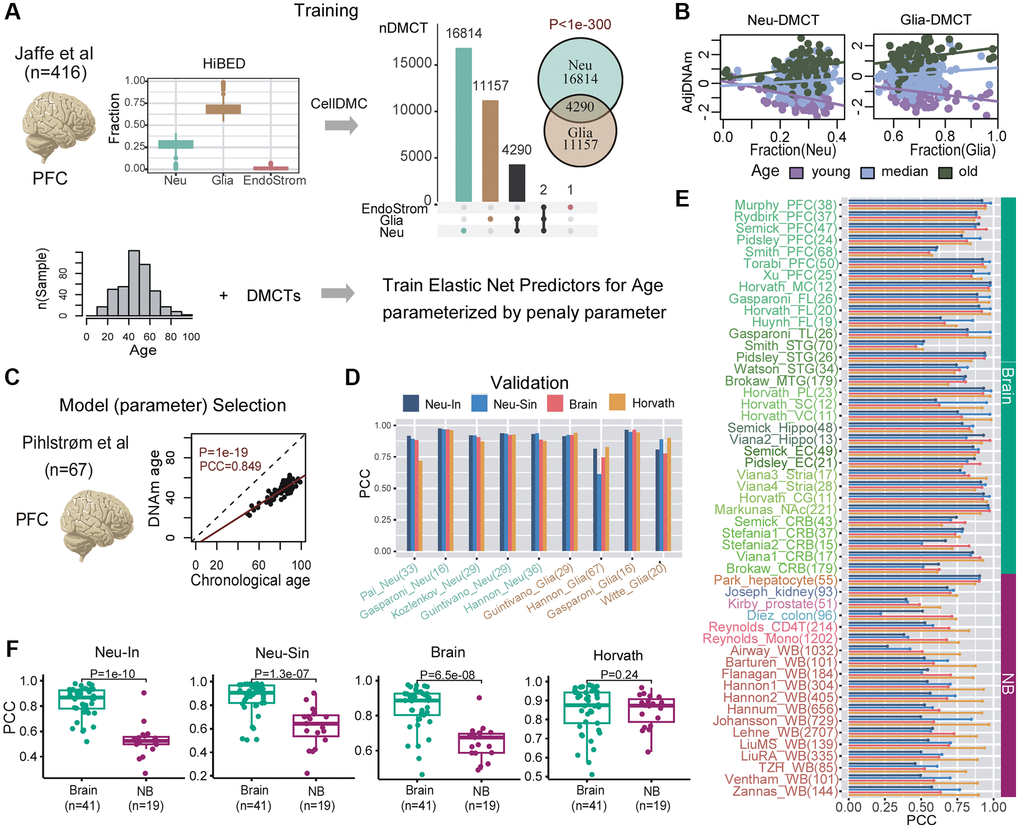

Construction and validation of neuron-specific epigenetic clocks

Next, we applied this strategy to the case of brain tissue. For training the clocks, we used one of the largest collections of prefrontal cortex (PFC) samples profiled with Illumina 450k technology [50], encompassing 416 samples with a wide age range (18–97 years) (Supplementary Table 1 and Figure 4A). Although the HiBED algorithm [46] inferred fractions for 7 brain cell-types (Supplementary Figure 4A), for subsequent CellDMC analysis, power considerations [45, 51] required us to collapse the inferred fractions to 3 broad cell-types: neurons, glia and endothelial/stromal (Figure 4A). Applying CellDMC with the estimated fractions, disease status and sex as covariates, resulted in 16,814 neuron-specific and 11,157 glia-specific age-DMCTs (Figure 4A, Methods). Visualization of representative age-DMCTs confirmed the cell-type specific nature of their age-associated DNAm changes (Figure 4B). Interestingly, neuron and glia age-DMCTs displayed a weak marginal co-localization with the cell-type specific CpGs in the brain DNAm reference matrix (Supplementary Figure 5). Focusing on the neuron-DMCTs and adjusting the DNAm data for variations in cell-type fractions, we next applied the Elastic Net regression framework to learn different models specified by a penalty parameter. For model (i.e. optimal parameter) selection, we used a completely independent Illumina DNAm dataset from Philstrom et al. [52] which included 67 PFC control samples with an age range 49–100 years (Figure 4C and Supplementary Table 1). We declared the model achieving best generalization performance in the Philstrom dataset, as defining our neuron-specific intrinsic (“Neu-In”) clock (Figure 4C, Supplementary Figure 4B and Supplementary Table 2). This neuron-specific clock was further validated in 5 independent datasets of sorted neuron samples, encompassing a total of 143 samples (Figure 4D, Supplementary Figure 4C and Supplementary Table 1). An analogous neuron “semi-intrinsic” clock (“Neu-Sin”) was obtained by applying the same training procedure to the same age-DMCTs in the Jaffe et al. DNAm data but now without adjusting the DNAm data for variations in cell-type fractions (Methods, Figure 4D, Supplementary Figure 4D and Supplementary Table 3). To assess specificity of the clocks to neurons and brain tissue, we assembled a large collection of Illumina DNAm datasets encompassing other brain cell-types (glia), other sorted non-brain cell-types and bulk tissue-types (Supplementary Table 1, Methods, and Supplementary Methods). As a further control, we also benchmarked our Neu-In/Sin clocks to two other clocks: a clock obtained by running the Elastic Net on all CpGs but adjusting the DNAm data for cell-type fractions (Methods, Figure 4D, Supplementary Figure 4E and Supplementary Table 4), thus defining a brain, but not neuron-specific, clock (“BrainClock”), and the multi-tissue Horvath clock. We restricted the assessment of all clocks to control samples only, to avoid potential confounding by disease. First, we observed that the neuron intrinsic and semi-intrinsic clocks also displayed good correlations with chronological age in sorted glia datasets, although the largest of these glia datasets displayed a significantly weaker association, suggesting that our neuron-clocks are indeed neuron-specific (Figure 4D). In line with this, a multivariate linear regression of correlation strength against cell-type (neuron vs. glia), weighted by cohort size, revealed a significantly higher correlation in neurons compared to glia for the neuron-intrinsic clock but not for the other 3 clocks (Supplementary Figure 6A). When assessed between brain and non-brain tissue/cell-types, we observed that the two neuron-specific clocks as well as the brain-specific clock achieved better predictions of chronological age in the brain-tissue datasets compared to non-brain ones, whilst, as expected for a multi-tissue clock, Horvath’s clock performed similarly between brain and non-brain tissues (Figure 4E, 4F). Importantly, and despite the relatively small number of sorted neuron datasets, the neuron-specific clocks also displayed stronger correlations with age in the sorted neuron datasets compared to the brain-specific clock (Supplementary Figure 6B). Thus, overall, our data support the view that the neuron-specific clocks are indeed optimized to predict chronological age in brain cell subtypes and that they are less confounded by changes in cell-type composition compared to e.g. the brain-specific clock.

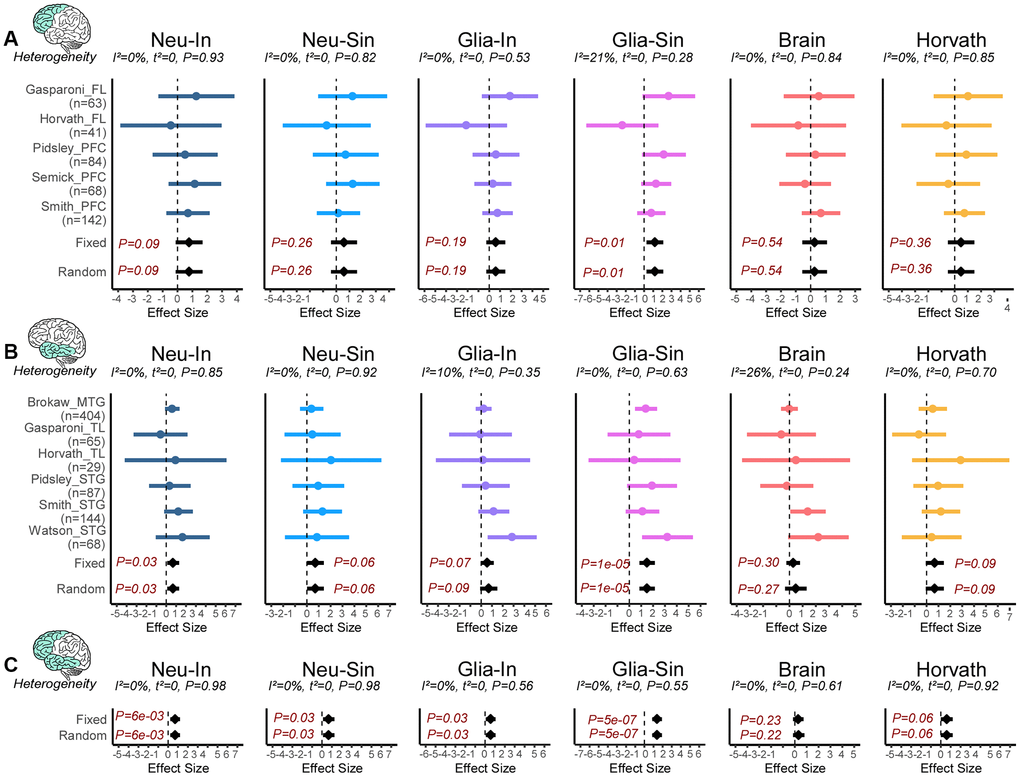

Neuron and glia-specific clocks are accelerated in Alzheimer’s Disease

Next, we asked if the clocks predict age-acceleration in neurodegeneration. To this end, we collated eleven DNAm-studies of Alzheimer’s Disease encompassing two brain regions, frontal lobe (FL) and temporal lobe (TL) (Supplementary Table 5), amounting to a total of 213 AD cases and 185 controls in FL, and 456 cases and 341 controls in TL. As before, we first performed a meta-analysis of cell-type fractions to see if any of these fractions change in AD (Methods). This revealed a significant decrease of excitatory neurons and corresponding increases of oligodendrocyte/OPC and microglia fractions in AD (Supplementary Figure 7). Whilst the decreased excitatory neuron fraction was observed in both TL and FL, the microglia and oligo/OPC increases were more specific to the frontal and temporal lobes, respectively (Supplementary Figure 8). Thus, only the excitatory neuron fraction is observed to change with both age and AD (Figure 2 and Supplementary Figure 7), although interestingly the increased fraction seen with age is reversed in AD cases. For each of the 4 clocks in each brain region we then performed a fixed and random effects meta-analysis for AD (Methods), revealing a weak but statistically significant age-acceleration in AD cases for the neuron-intrinsic clock in the TL, but not for brain-specific and Horvath’s clocks (Figure 5A, 5B). In the case of Horvath’s clock, the association remained non-significant upon adjustment for brain cell-type fractions (Supplementary Figure 9). The association of the neuron-intrinsic clock in the PFC/FL was marginally significant. Given that the I² test for heterogeneity showed great consistency in the effect sizes between cohorts and regions (Figure 5A, 5B), we extended the meta-analysis to include all datasets from both regions, now revealing significant associations for both intrinsic and semi-intrinsic neuron-clocks (Figure 5C). Because all of the AD datasets considered in this analysis are from bulk-tissue, we wondered if a similar finding would apply to the other major cell-type in brain, i.e. glia. To this end, we used the previous Jaffe and Philstrom DNAm datasets to build and validate analogous glia intrinsic (Glia-In) and semi-intrinsic (Glia-Sin) clocks (Methods, Supplementary Figure 10, Supplementary Tables 6, 7), subsequently computing their DNAm-Ages in the AD datasets. Interestingly, this also revealed age-acceleration effects in the glia compartment of both FL and TL regions, with the effect being strongest for the Glia-Sin clock (Figure 5A–5C). Comparing the predicted age-acceleration of the Neu-In with the Glia-In clock, and that of the Neu-Sin with the Glia-Sin clocks, revealed moderate but significant correlations between the Neu and Glia clock estimates (Supplementary Figure 11). Thus, age-acceleration patterns in neurons and glia are similar, despite the two clocks being made up of entirely distinct sets of CpGs. In summary, these data indicate that both neuron and glia specific clocks display age-acceleration in AD, and that this acceleration is more prominent in the TL glia fraction.

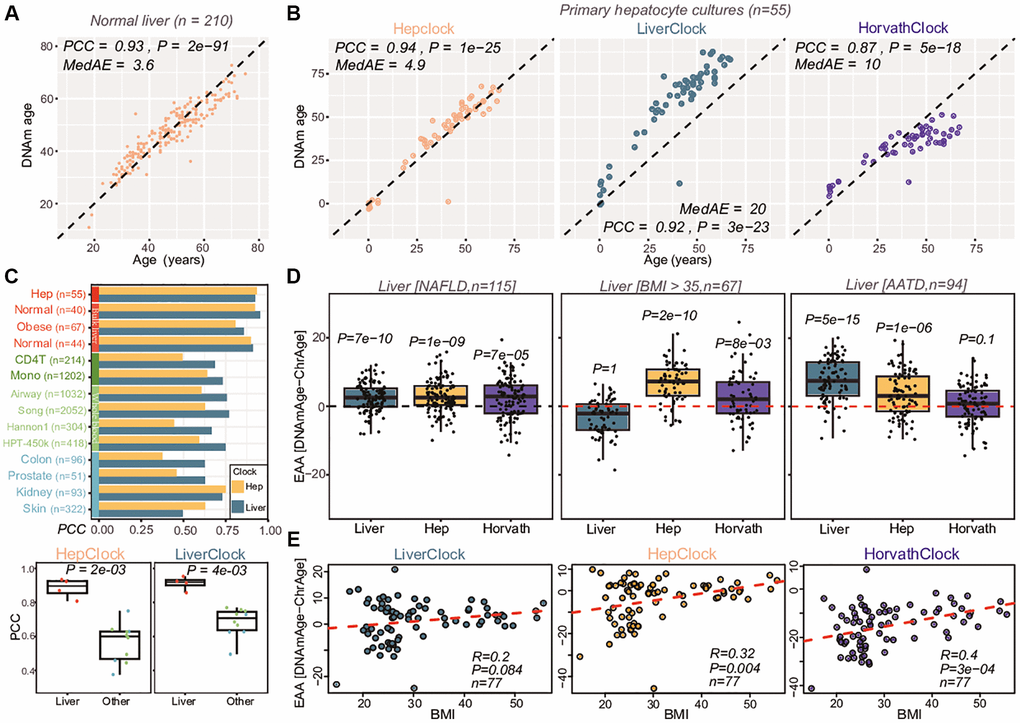

Construction and validation of a hepatocyte-specific epigenetic clock

As a second example, we considered the case of liver tissue, aiming to build a hepatocyte-specific epigenetic clock. We used our EpiSCORE algorithm [53] and liver DNAm reference matrix defined over 5 cell-types (hepatocytes, cholangiocytes, Kupffer cells, endothelial cells and lymphocytes) [44] to estimate corresponding cell-type fractions in a series of 210 normal liver specimens (age range = 18–75, mean age = 47, sd = 12) with available Illumina EPIC DNAm profiles [54] (Methods). Liver cell-type fractions changed with chronological age, although this was mainly restricted to cholangiocytes and endothelial cells, a pattern that was replicated in independent cohorts (Supplementary Figure 12). Next, we assessed if we can reliably identify age-DMCTs. To this end we applied CellDMC [45] to all 210 samples, revealing that most age-DMCTs were in either hepatocytes or cholangiocytes, with hepatocyte and cholangiocyte age-DMCTs displaying strong overlap but with opposite directionality of change (Supplementary Figure 13A–13D). As with the age-DMCTs in neurons and glia, here too we observed a preferential co-localization to marker CpGs in our liver DNAm reference matrix (Supplementary Figure 5). To validate the hepatocyte age-DMCTs, we computed the average DNAm over hepatocyte age-hypermethylated DMCTs in an independent set of 55 primary hepatocyte cultures from donors of different ages (Methods), which revealed the expected positive correlation with age (Supplementary Figure 13E). Correspondingly, hepatocyte age-hypomethylated DMCTs displayed the expected anti-correlation, with the pattern exactly inverted for cholangiocyte age-DMTCs (Supplementary Figure 13E). To further validate the hepatocyte and cholangiocyte age-DMCTs, we collected three additional liver DNAm datasets (Methods) and repeated the CellDMC analysis in each one. This confirmed the strong overlap between hepatocyte and cholangiocyte age-DMCTs in each validation cohort (Supplementary Figures 13F and 14). This strong validation supports the view that we can confidently identify age-associated DMCTs in hepatocytes and that these display opposite directionality of change in cholangiocytes.

Having demonstrated that we can successfully identify hepatocyte age-DMCTs, we next applied a 10-fold cross-validation procedure to build a hepatocyte-specific semi-intrinsic clock (Methods). Of note, this procedure involved re-applying the CellDMC algorithm on the full set of CpGs but now using only on 9 folds, with the leave-one-out bag being used for model selection (Methods). This procedure was iterated 10 times, each time using a different bag as the leave-one-out test set, a procedure that avoids overfitting [55], which resulted in a final age-predictor (“HepClock”) (Supplementary Table 8 and Figure 6A). We also trained an analogous clock but now using age-DMCs derived from a linear model that only adjusts for cell-type fractions, the resulting clock thus being liver-specific but not hepatocyte-specific (“LiverClock”, Methods, Supplementary Table 9). To validate and benchmark these clocks, we applied them to the DNAm dataset of primary hepatocyte cultures (Methods). Although R-values (Pearson Correlation Coefficients) were similar for all clocks, HepClock attained a significantly lower median absolute error of 4.9 years compared to values of 20 and 10 for the liver and Horvath clocks, respectively (Figure 6B). This suggests that improved predictions of chronological age in sorted hepatocytes are indeed possible with a corresponding hepatocyte specific clock. Next, we applied HepClock and LiverClock to a collection of DNAm datasets from bulk-liver tissue, sorted immune-cell types, as well as other tissue-types including blood, skin, prostate, colon and kidney (Methods). This confirmed the clear specificity of HepClock and LiverClock to liver tissue (Figure 6C). We note that Horvath’s clock was excluded from this analysis, because some of the liver DNAm datasets were used for the original training of the Horvath clock itself [28].

Hepatocyte specific clock predicts biological age-acceleration in liver pathologies

We next applied HepClock, LiverClock and Horvath’s clock to 3 separate DNAm studies representing a variety of liver pathologies, in order to assess the ability of these clocks to predict biological age-acceleration. One study encompassed 115 liver samples from patients with non-alcoholic fatty liver disease (NAFLD) [54], another set comprised 67 liver tissue samples from obese individuals (BMI >35) [56], with the 3rd cohort comprising 94 liver tissue samples from patients with Alpha-1 Antitrypsin Deficiency (AATD) [57], a genetically inherited disorder that increases the risk of cirrhosis (Methods). Whilst on the NAFLD samples all three clocks were accelerated, the observed acceleration was strongest for the Liver and HepClocks (Figure 6D). On the clinically obese samples only HepClock displayed a very significant age-acceleration effect, with Horvath’s clock being marginally associated (Figure 6D). In the AATD-cohort, only the Liver and HepClocks displayed age-acceleration (Figure 6D). In another independent liver-tissue DNAm dataset encompassing healthy non-obese and obese individuals [58, 59], HepClock and Horvath clock age-acceleration measures displayed a correlation with BMI, but not so for the LiverClock (Figure 6E), mirroring the results in the previous cohort of 67 obese individuals (Figure 6D). The age-acceleration effect in the hepatocytes of NAFLD and obese livers is noteworthy, because the hepatocyte fraction itself decreases substantially in NAFLD and obese individuals (Supplementary Figure 15). Overall, as assessed over the 4 studies, the hepatocyte-specific epigenetic clock improves the sensitivity to detect biological age acceleration in the hepatocytes of liver tissue in variety of different liver pathologies including an inherited one where Horvath’s clock did not predict age-acceleration.

Minimal but significant overlaps with chronological age clocks

Having demonstrated how cell-type specific clocks predict age-acceleration in relevant conditions and cell-types, it is important to study the nature of the specific CpGs making up these clocks. We first assessed overlaps of our clock CpGs with previous clocks including Horvath [28], Zhang [11] and PhenoAge [3]. In general, although overlaps were small in absolute terms, some were statistically significant (Supplementary Figure 16). For instance, most of our cell-type specific clock CpGs displayed a significant overlap with CpGs from Zhang and Horvath’s clocks, two clocks trained to predict chronological age. The smaller non-significant overlap with PhenoAge clock CpGs may indicate that our cell-type specific clocks in brain and liver are capturing different facets of biological aging compared to PhenoAge.

Minimal but significant overlap with DamAge causality clock

The overlap with the recently proposed causal DamAge and AdaptAge clocks [60] was also small in absolute terms, but interestingly the neuron and glia-clock CpGs displayed a significant overlap with the DamAge clock (Binomial P < 0.001) and not with AdaptAge (Binomial P > 0.05) (Supplementary Figure 16). The overlapping CpGs from Neu-In and Neu-Sin with DamAge mapped to 4 genes (SESN2, EPS8L2, SGMS1, ZNF642), whilst the corresponding overlapping DamAge-CpGs from Glia-In and Glia-Sin mapped to 3 genes (ST3GAL4, CBX7, TOMM40L) (Supplementary Table 10). Supporting the statistical significance of these overlaps with the neuron and glia clocks, these overlapping genes have previously been implicated in AD. For instance, SESN2 plays an important role in AD progression [61, 62] and is regarded as a diagnostic AD biomarker [63]. The expression level of EPS8L2 is significantly reduced in an AD mouse model [64], whilst SGMS1 is functionally implicated in AD pathogenesis [65], displaying elevated expression levels in the brain of AD cases [66]. Interestingly, ZNF642 is upregulated in Parkinson’s disease [67], and Zinc finger proteins are well-known to be associated with neurological diseases [68]. One of the shared DamAge glia-clock CpGs mapped to the promoter of ST3GAL4, a gene associated with brain atrophy in AD patients [69, 70] and that correlates with Braak staging [71]. Expression of PRC1 component CBX7 has been shown to regulate the AD related INK4b-ARF-INK4a locus [72] and is associated with suppression of axon growth and regeneration [73]. Finally, TOMM40L is in linkage disequilibrium with APOE and contributes synergistically to the risk of Alzheimer’s Disease [74–77]. Specifically, the APOEɛ4-TOMM40’ 523 L haplotype is associated with a higher risk and shorter times of conversion from mild cognitive impairment (MCI) to AD [78], possibly driven by mitochondrial dysfunction [75]. Overall, these data demonstrate that our brain cell-type specific clocks do map to CpGs and genes that have been causally and negatively implicated in neurodegeneration and AD, which is consistent with our neuron and glia clocks displaying age-acceleration in AD.

The Neu-In clock CpGs are enriched for AD EWAS hits and mQTLs

Given the associations of our clocks with AD and BMI, we next asked if our clock CpGs overlap with AD or BMI associated differentially methylated cytosines (DMCs), as determined by corresponding EWAS [79, 80] (Methods). Whilst for the brain-clocks we did observe a significant overlap with AD-DMCs, this was not evident for the Hep/LiverClocks and BMI-DMCs (Supplementary Figure 17).

Next, we asked if our clock CpGs are associated with mQTLs. We performed an enrichment against three broad classes of mQTLs: adult blood derived mQTLs as given by the ARIES database [81], mQTLs derived from the eGTEX consortium [82] which are available for a number of different tissue-types including colon, prostate, ovary, lung, breast, kidney, skeletal muscle, testis and whole blood, and mQTLs derived for fetal and adult brain [83, 84] (Methods). Using the ARIES database, this revealed a significant enrichment for mQTLs among brain clock CpGs, but only marginal associations for the Hep/LiverClocks (Supplementary Figure 18A), probably because of the smaller number of Hep/LiverClock CpGs, itself reflecting the smaller training set in the case of liver tissue. Interestingly, all brain clock CpGs displayed significant enrichment for mQTLs as defined in adult brain, but not fetal brain, although this negative finding could be due to the smaller number of mQTLs in fetal brain (Supplementary Figure 18B). For the mQTLs as defined by eGTEX we also observed enrichment, but this was restricted mainly to the neuron-clocks and tissues with the largest numbers of mQTLs (e.g. colon, lung, prostate and ovary) (Supplementary Figure 18C), suggesting that other associations may become significant if we had more CpGs in either the clock or mQTL list. Supporting this, we note that we did not observe any enrichment for mQTLs as derived from whole blood in eGTEX, whilst we did observe enrichment against the larger mQTL ARIES database. In the case of the Neu-In clock and blood mQTLs from ARIES, we observed 2 clock-CpGs defining cis-mQTLs where the linked SNP has been associated with AD [85] (Supplementary Figure 18D and Supplementary Table 11). Interestingly, these cis-mQTLs map to the gene CASS4, a CAS scaffolding protein family member involved in the formation of neuritic plaques and neurofibrillary tangles, as well as in the disruption of synaptic connections in AD [86, 87]. Of note, Neu-In clock CpGs defining cis-mQTLs in adult brain also included SNPs that mapped to CASS4. In addition, another Neu-In/Neu-Sin clock CpG defines a cis-mQTL in brain mapping to the TSPAN14 gene (Supplementary Figure 18D), which is associated with increased AD risk [85, 88, 89]. Thus, a minor component of the neuron-specific clocks involves CpGs whose DNAm-levels are also influenced by genetic variants associated with AD.

Brief description of main datasets analyzed

Estimating cell-type fractions in whole blood, liver and brain

For a given bulk-tissue sample with a genome-wide DNAm profile, it is possible to estimate the cell-type composition of the tissue with a corresponding tissue-specific DNAm reference matrix [104]. Such a DNAm reference matrix consists of cell-type specific CpGs and cell-types, and is typically built from genome-wide DNAm data of sorted cell-types [105]. The cell-type fractions themselves are estimated by regressing the DNAm profile of the bulk-tissue samples against the reference profiles of the DNAm reference matrix, a procedure that only uses the highly discriminatory cell-type specific CpGs as defined in the DNAm reference matrix [106]. For whole blood, we estimated fractions for 12 immune cell subtypes (naïve and memory B-cells, naïve and memory CD4+ T-cells, naïve and memory CD8+ T-cells, T-regulatory cells, natural killer cells, monocytes, neutrophils, eosinophils, basophils) using EpiDISH and our validated DNAm reference matrix for these 12 cell-types [24]. In the case of liver tissue, we used our validated EpiSCORE algorithm and the associated liver DNAm reference matrix defined for hepatocytes, cholangiocytes, endothelial cells, Kupffer macrophages and lymphocytes [53]. In the case of brain-tissue, we applied the HiBED algorithm [46], since the EpiSCORE brain DNAm reference matrix led to the microglia fraction always being zero. We applied HiBED to estimate proportions for 7 brain cell-types including GABAergic excitatory neurons, glutamatergic inhibitory neurons, astrocytes, microglia, oligodendrocytes, endothelial cells and stromal cells. When applying CellDMC we collapsed these estimates to 3 broad cell-types: neurons, glia and endothelial/stromal.

Relative quantification of extrinsic and intrinsic aging in whole blood and brain

Whole blood: As training data we used two of the largest whole blood DNAm datasets, the Airway [107] and Lehne [108] cohorts, which we have previously normalized and analyzed [24]. Briefly, the Airway EPIC DNAm dataset (GSE147740) included 1032 samples with age information. The Lehne dataset is a 450k DNAm dataset (GSE55763) encompassing 2707 samples in total. The two datasets were merged, resulting in 314,436 CpGs and 3739 samples. In the Airway dataset, age is cofounded by gender (Pearson correlation test, P-value = 0.003896). To train the unadjusted and adjusted clocks, we applied the Elastic Net regression to the training dataset with alpha = 0.5 and a 10-fold cross-validation to infer the optimal penalty parameter lambda. In the unadjusted case, we applied the Elastic Net to the standardized DNAm residuals after adjusting for sex and cohort only. In the adjusted case, we applied the Elastic Net to the standardized DNAm residuals after adjusting for sex, cohort and the 12 estimated immune-cell type fractions. We also trained another clock adjusted for 9 immune cell-type fractions by merging the naïve and memory lymphocyte subsets together, in other words, by adding the fractions of naïve and memory B-cells to yield a fraction for B-cells, and similarly for CD4T and CD8T-cells. The 3 optimal clocks were then applied to 11 independent whole blood datasets (using only control/healthy samples, see Supplementary Table 1), all previously normalized as in Luo et al. [24]. In the case of the adjusted clocks, the clocks were applied to the standardized DNAm residuals after adjustment for the 12 or 9 immune-cell fractions. Finally, the predicted ages were linearly regressed to the true chronological ages in each cohort, resulting in R² values for the unadjusted and the two adjusted clocks. The ratio of the adjusted clock’s R² value to that of the unadjusted clock, $R_{ADJ}^2/R_{UNADJ}^2$ quantifies the fraction of the unadjusted clock’s accuracy that can be attributed to intrinsic aging. For the extrinsic component, its fractional contribution is given by $1-R_{ADJ}^2/R_{UNADJ}^2$.

Brain: For training, we used the Jaffe et al. dataset [50] encompassing 491 samples, including 300 controls and 191 samples from schizophrenia patients, with an age range 0.003 ~ 96.98 years. We used HiBED to estimate the fractions for 7-cell-types (ExN, InN, Oligo/OPC, Micro, Astro, Endo, Strom), as described earlier. To train the Elastic Net clocks with alpha = 0.5, we used a 10-fold cross-validation to infer the optimal penalty parameter lambda. In the unadjusted case, we applied the Elastic Net to the standardized DNAm residuals obtained after adjusting for sex and disease-status, whilst in the adjusted case, it was applied on the standardized DNAm residuals obtained after adjusting for sex, disease-status and 7 brain cell-type fractions. The two clocks were then applied to 11 independent brain DNAm datasets (using control/healthy samples only, see Supplementary Table 1), obtaining in each cohort corresponding $R_{ADJ}^2\&R_{UNADJ}^2$ values. The fraction of the unadjusted clock’s accuracy attributed to intrinsic and extrinsic aging was then estimated as described above for whole blood.

Construction of the neuron/glia/brain-specific epigenetic clocks

We used HiBED [46] to estimate fractions for 7 brain cell-types in the Jaffe and Philstrom datasets, in each case summing up fractions to yield estimates for 3 broad cell-types: neurons (Neu), glia (Glia) and endothelial/stromal. We then applied CellDMC [45], as implemented in the EpiDISH package [109], to the Jaffe dataset in order to infer age-associated DMCTs in each of these 3 broad cell-types. Briefly, the CellDMC model postulates the following relationship for the DNAm level ${\beta }_{cs}$ of a CpG c in sample s:

$${\beta }_{cs}={\displaystyle \sum _{t=1}^3{\widehat{f}}_{ts}{\beta }_{cts}={\displaystyle \sum _{t=1}^3{\widehat{f}}_{ts}({\mu }_{ct}+Ag{e}_s{\gamma }_{ct})+{\epsilon }_{cs}}}$$

where ${\widehat{f}}_{ts}$ are the estimated cell-type fractions for cell-type t in sample s. This can be re-expressed as a multivariate regression model with interaction terms between age and cell-type fractions:

$${\beta }_{cs}={\displaystyle \sum _{t=1}^3{\mu }_{ct}{\widehat{f}}_{ts}+{\displaystyle \sum _{t=1}^3{\gamma }_{ct}{\widehat{f}}_{ts}Ag{e}_s+{\epsilon }_{cs}}}$$

This estimates the regression coefficients ${\mu }_{ct}$ and ${\gamma }_{ct}$ so as to minimize the error in a least squares sense. When applying CellDMC to the Jaffe dataset, we also adjusted for schizophrenia (SZ) status and gender, i.e., we ran the model:

$${\beta }_{cs}={\displaystyle \sum _{t=1}^3{\mu }_{ct}{\widehat{f}}_{ts}+{\displaystyle \sum _{t=1}^3{\gamma }_{ct}{\widehat{f}}_{ts}Ag{e}_s+{\theta }_{c}Se{x}_s+{\phi }_{c}S{Z}_s+{\epsilon }_{cs}}}$$

We included both SZ cases and controls, adjusting for case/control status, so as to increase power. Having identified the significant neuron-DMCTs (those CpGs c with a significant ${\gamma }_{ct}$ with t = neuron, t-test FDR <0.05), we next trained Elastic Net regression (glmnet R package) [49] models (alpha = 0.5) for age, each parameterized by a different penalty parameter (lambda) value. This training was done on the residuals obtained by regressing out the cell-type fractions from the DNAm beta matrix. To select the optimal model, we then applied the age-predictors for each choice of lambda to the Philstrom DNAm dataset (using the residuals after adjusting this DNAm data matrix for cell-type fractions), selecting the lambda that minimized the root-mean-square error (RMSE). This defines a neuron-specific epigenetic clock that is applicable to residuals after adjusting for cell-type fraction, a clock we call “Neu-In” (neuron-intrinsic).

We also constructed a similar clock called “Neu-Sin” (neuron semi-intrinsic), following the same procedure as before, but now not adjusting the DNAm data matrix for cell-type fractions. In other words, whilst the Neu-In and Neu-Sin clocks are both built from CpGs that change with age in neurons, the Neu-In clock uses the residuals for construction, whilst the Neu-Sin clock does not. A third non-cell-type specific clock (Brain) was also built using the same procedure as before, but not using CellDMC to identify CpGs changing with age, instead identifying age-DMCs by running a linear model of DNAm versus age adjusting for cell-type fractions, i.e. in this case the regression model is:

$${\beta }_{cs}={\displaystyle \sum _{t=1}^3{\mu }_{ct}{\widehat{f}}_{ts}+{\gamma }_{c}Ag{e}_s+{\theta }_{c}Se{x}_s+{\phi }_{c}S{Z}_s+{\epsilon }_{cs}}$$

and one finds age-DMCs, as those CpGs c with a significant ${\gamma }_c$ (t-test, FDR <0.05). The age-predictor itself was then also trained on residuals obtained after regressing out the effect of cell-type fractions. Of note, the model selection step to define the Neu-Sin and Brain clocks was also done using the independent Philstrom DNAm dataset.

Finally, an analogous procedure describing the construction of the Neu-In and Neu-Sin clocks was followed to build corresponding glia-specific intrinsic and semi-intrinsic clocks (Glia-In and Glia-Sin).

Validation of the neuron/glia/brain specific clocks

To validate and demonstrate specificity of the Neu-In/Sin, Glia-In/Sin and Brain clocks, we applied them to sorted neuron, sorted glia, brain and non-brain DNAm cohorts. When applying the Neu-In, Glia-In and Brain clocks, we adjusted the DNAm datasets for underlying cell-type fractions, which were estimated using HiBED in the case of brain tissue, EpiDISH in whole blood cohorts and EpiSCORE in other non-brain tissues.

Construction of HepClock and LiverClock

We first describe the construction of the hepatocyte-specific clock (HepClock). We selected 210 normal liver samples from Johnson et al.’s dataset for training and model selection. EpiSCORE was used to estimate fractions for 5 liver cell-types including hepatocytes, as described above. The 210 samples were then randomly divided into 10 bags (each bag with 21 samples), with stratified sampling within each age group to ensure a similar age distribution in each bag. To identify CpGs changing with age in hepatocytes, we then applied the CellDMC algorithm [45] to a subset composed of 9 bags, resulting in a set of hepatocyte age-DMCTs. The specific CellDMC model run was:

$${\beta }_{cs}={\displaystyle \sum _{t=1}^5{\mu }_{ct}{\widehat{f}}_{ts}+{\displaystyle \sum _{t=1}^5{\gamma }_{ct}{\widehat{f}}_{ts}Ag{e}_s+{\epsilon }_{cs}}}$$

Having identified the significant hepatocyte-DMCTs (those CpGs c with a significant ${\gamma }_{ct}$ with t = hepatocyte, t-test FDR <0.05), and using the same 9 bags, we then trained a range of lasso regression models parameterized by a penalty parameter lambda. Each of these models (parameterized by lambda) were subsequently applied to the left-out-bag to yield age-predictions for the samples in this left-out-bag. This procedure was repeated 10-times, each time using a different subset of 9 bags for training and one left-out-bag for model selection. The age-predictions over all 10 folds were then combined and compared to the true ages computing the RMSE for each choice of lambda. The model minimizing the RMSE was then selected as the optimal model. Of note, the above procedure applies CellDMC a total of 10 times, once for each fold. The number of hepatocyte age-DMCTs is variable between folds, so we identified the minimum number (k) obtained across all folds, and subsequently only used the top-k hepatocyte age-DMCTs from each fold before running the lasso regression model. Lasso was implemented using the glmnet function from the glmnet R-package (version 4.7.1) [49], with alpha set to 1. Having identified the optimal model (lambda parameter), we finally reran the lasso model with this optimal parameter on the full set of 210 samples using the top-k hepatocyte age-DMCTs as inferred using CellDMC on all samples.

The LiverClock was built in an analogous fashion with only one key difference: instead of applying CellDMC in each fold, we ran a linear regression of DNAm against age with all the liver cell-type fractions as covariates. That is, the model in this case is:

$${\beta }_{cs}={\displaystyle \sum _{t=1}^5{\mu }_{ct}{\widehat{f}}_{ts}+{\gamma }_{ct}Ag{e}_s+{\epsilon }_{cs}}$$

and one finds age-DMCs, as those CpGs c with a significant ${\gamma }_c$ (t-test, FDR <0.05). After optimization of lambda, the final age lasso predictor was built from such age-DMCs derived using all 210 samples.

Simulation analysis on mixtures of sorted cell-types

We used a simulation framework to assess and compare the intrinsic and semi-intrinsic paradigms for cell-type specific clock construction. We first generated basis DNAm data matrices for 3 hypothetical cell-types “A”, “B” and “C” each one defined over 10,000 CpGs and 200 samples, drawing DNAm beta-values from Beta (10,40), i.e. from a Beta-distribution with a mean value of 0.25. We then declared the first 1000 CpGs to be cell-type specific for a cell-type “A”, by drawing the DNAm-values for two other cell-types (“B” and “C”) from Beta (40,10), i.e. from a Beta-distribution with mean 0.75. Thus, the first 1000 CpGs are unmethylated in cell-type “A” compared to “B” and “C”. Likewise, another 1000 non-overlapping CpGs were defined to be unmethylated in cell-type “B” and another 1000 non-overlapping CpGs for cell-type “C”. The remaining 7000 CpGs are unmethylated in all cell-types. To generate realistic mixtures of these 3 cell-types, we randomly sampled cell-type fractions from true estimated fractions in whole blood by applying our EpiDISH algorithm [109] to estimate 7 immune cell-type fractions in a large dataset of 656 whole blood samples [110]. We declared 3 cell-types to be granulocytes, monocytes and lymphocytes, by adding together the fractions of B-cells, CD4T-cells, CD8 T-cells and NK-cells to represent “lymphocytes” and adding together the fractions of neutrophils and eosinophils to represent “granulocytes”. To define the ages of the 200 samples we bootstrapped 200 values from the ages of 139 donors from the BLUEPRINT consortium [111] in order to mimic an age distribution of a real human cohort. Before mixing together the artificially generated DNAm data matrix for the 3 hypothetical cell-types, we introduced age-DMCTs in the cell-type defining lymphocytes. This was done by drawing DNAm-values for these age-DMCTs to increase with the age of the sample. In more detail, because the minimum age of the BLUERPINT samples was 30, we first assigned M-values according to the formula:

$$Mval=Mval0+(age-30)\times effS+\sigma$$

where effS = 0.1 and Mval0 = log2(0.1/(1–0.1)) and $\sigma$ representing a Gaussian deviate with a standard deviation value equal to effS. These values were chosen to mimic age-related DNAm changes as seen in real data, although with a smaller noise component in order to better understand and interpret downstream results.

In total we considered 4 different scenarios depending on the choice of age-DMCTs in lymphocytes and whether the fraction of “lymphocytes” increases with age or not. In scenarios (i) and (ii), 1000 age-DMCTs were chosen to not overlap with any of the 3000 cell-type specific marker CpGs. In scenarios (iii) and (iv), 900 age-DMCTs in lymphocytes were chosen to be lymphocyte-specific markers. Reason we did not pick all 1000 lymphocyte markers, is to leave 100 markers that remain cell-type specific to allow for reference construction and estimation of cell-type fractions using EpiDISH. In scenarios (i) and (iii), cell-type fractions were chosen so that no fraction changed significantly with age, whilst in scenarios (ii) and (iv) the lymphocyte-fraction was chosen to increase with age.

For each of the 4 scenarios, we generated training and validation mixture sets. DNAm reference matrices were built from different realizations of the basis DNAm data matrices but using the same parameter values. These reference matrices were then applied to the training dataset to infer cell-type fractions. With the estimated cell-type fractions we then applied CellDMC [45] to the training set to infer age-DMCTs. Since age-DMCTs are only introduced in lymphocytes, we focus on the predicted age-DMCTs in this cell-type, applying an Elastic Net (alpha = 0.5) penalized regression framework in a 10-fold cross-validation framework to learn a predictor of chronological age using either an intrinsic or semi-intrinsic paradigm: in the semi-intrinsic paradigm the Elastic Net predictor was trained on the original DNAm-values, whilst in the intrinsic case it was applied to residuals obtained by regressing out the effect of the cell-type fractions. The optimal penalty parameter was selected via the 10-fold CV procedure and the optimal predictor then applied to the validation dataset. Of note, in the semi-intrinsic setting the validation set is defined on the original DNAm-values, whereas the intrinsic model is applied to the residuals of the validation set. For each scenario we ran 50 different simulations, recording the accuracy (root mean square error-RMSE and Pearson Correlation Coefficient-PCC) of the semi-intrinsic and intrinsic lymphocyte-specific clock predictors in the corresponding validation set.

Meta-analyses

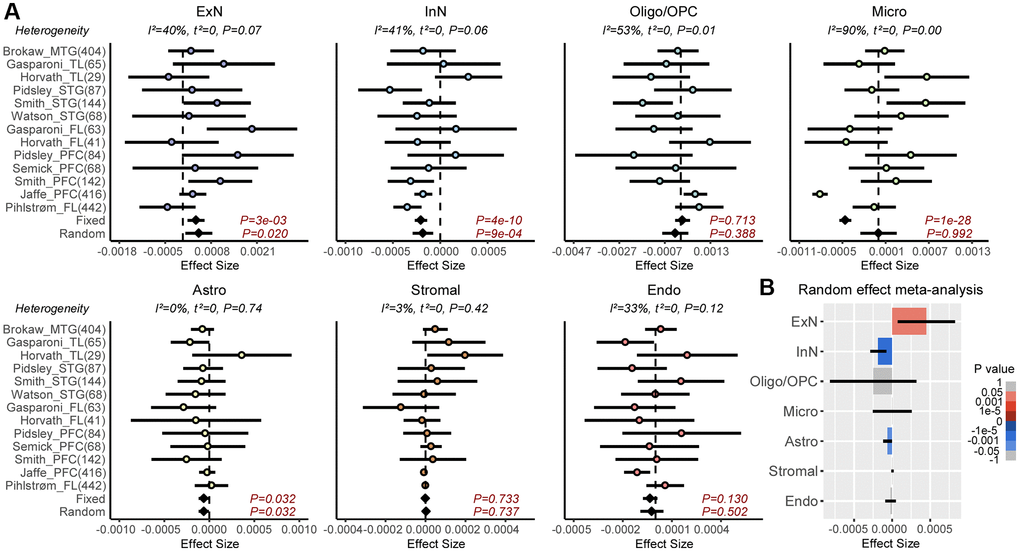

In the case of brain tissue datasets, we performed two separate meta-analyses. One of these explored if brain cell-type fractions change with age, whilst the other was done to explore if our cell type specific clocks (extrinsic age-acceleration-EAA) display correlations with Alzheimer’s Disease (AD) status. The former analysis was done for 7 brain cell types over 13 independent DNAm datasets encompassing frontal and temporal lobe regions, in each dataset adjusting for disease status and sex. The latter meta-analysis was done for frontal lobe (n = 5) and temporal lobe (n = 6) separately, and then again treating both regions together (n = 11). In each cohort, associations between EAA and AD status was assessed using a multivariate linear regression with sex and age as covariates, AD status encoded as ordinal with 0 = control, 1 = AD case. We extracted the corresponding effect size, standard error, Student’s t-test, and P-value for each regression. Meta-analysis was then performed using both fixed effect and random effect inverse variance method using the metagen function implemented in the meta R-package [112, 113].

Co-localization of age-DMCTs with DNAm reference matrix CpGs

The liver DNAm reference matrix used to estimate cell type proportions before training the clocks contains 171 marker gene promoters. We calculated the number of hepatocyte and cholangiocyte age-DMCTs that mapped to the promoter regions of these 171 marker genes (where the region is defined as within 1kb upstream or downstream of the transcription start site). To generate a null distribution, we did the following: from the DNAm dataset that we used to infer the age-DMCTs, we randomly selected a matched number of age-DMCTs and checked how many mapped to the promoter regions of these 171 marker genes. This process was repeated 1,000 times to obtain the null distribution, yielding an empirical P-value. In the case of the HiBED DNAm reference matrix, we focused on the CpGs in the first layer of deconvolution, and computed overlaps with neuron and glia age-DMCTs using a 1kb window. A null distribution was estimated in the same way as for liver.

Enrichment analyses

We assessed enrichment of clock-CpGs against EWAS-DMCs for AD and BMI, as determined by the EWAS catalog [79] and EWAS-atlas [80]. Enrichment analysis was done using a one-tailed Fisher exact test. We also assessed enrichment of our clock-CpGs for (i) blood mQTLs as determined by the ARIES mQTL database (n = 123010 is the number of distinct CpGs in mQTLs present in the training cohorts of the clocks) [81], focusing on the mQTLs identified in the adult population, (ii) mQTLs (n(breast) = 13256, n(colon) = 156419, n(kidney) = 18578, n(lung) = 166242, n(skeleton muscle) = 14437, n(ovary) = 134215, n(prostate) = 68724, n(testis) = 14894, n(blood) = 21222) identified by the eGTEX consortium [82] and (iii) mQTLs identified from adult [84] (n = 71965) and fetal [83] (n = 30707) brain DNAm datasets. Numbers of mQTLs mapping to the datasets used to train the clocks were computed. Since the GTEx project identified mQTLs using the Illumina EPIC array, while our clocks were trained using 450k probes, we only used mQTLs that map to 450k probes. Significance was evaluated using a one-tailed Binomial test. Overlap with GWAS AD SNPs from Bellenguez et al. [85] and GWAS BMI SNPs from Pulit et al. [114] was done by restricting to SNPs that were part of mQTLs that included clock-CpGs.

Code availability

All the cell-type specific clocks presented here are freely available as part of the R-package CTSclocks, downloadable from https://github.com/HGT-UwU/CTSclocks.

Data availability

The Illumina DNA methylation datasets analyzed here are all freely available from GEO (https://www.ncbi.nlm.nih.gov/geo). Details: Liver-NAFLD (n = 325, GEO: GSE180474); Hepatocyte cultures (n = 56, GEO: GSE123995); Liver-obese (n = 67, GEO: GSE61446); Liver-Horvath/Ahrens (n = 77, GEO: GSE61258 and GSE48325); Liver tissue (40 normal, GEO: GSE107038); Liver-AATD (n = 94, GEO: GSE119100); MESA (214 purified CD4+ T-cells and 1202 Monocyte samples, GEO: GSE56046 and GSE56581); Colon (96 normal and 144 adenocarcinoma, GEO: GSE131013); Prostate (123 normal and 63 benign, GEO: GSE76938); Kidney (93 normal, GEO: GSE79100); Skin (322 normal, GEO: GSE90124); Brain sorted-Pai (33 normal and 67 BD, SCZ, GEO: GSE112179); Brain sorted-Gasparoni (32 normal and 30 AD, GEO: GSE66351); Brain sorted-Kozlenkov (29 normal and 59 Heroin or suicide, GEO: GSE98203); Brain sorted-Guintivano (58 normal, GEO: GSE41826); Brain sorted-Hannon (103 normal, GEO: GSE234520); Brain sorted-Witte (20 normal and 36 BD, SCZ, MDD, GEO: GSE191200); Brain-Jaffe (226 normal and 190 SCZ, GEO: GSE74193); Brain-Philstrom (67 normal and 375 Various mental disease and neurodegenerative disease, GEO: GSE203332); Brain-Semick (187 normal and 82 AD, GEO: GSE125895); Brain-Pidsley (71 normal and 179 AD, GEO: GSE43414); Brain-Smith (138 normal and 148 AD, GEO: GSE80970); Brain-Horvath (95 normal and 205 AD, HD, GEO: GSE72778); Brain-Gasparoni (52 normal and 76 AD, GEO: GSE66351); Brain-Watson (34 normal and 34 AD, GEO: GSE76105); Brain-Brokaw (358 normal and 450 AD, GEO: GSE134379); Brain-Murphy (38 normal and 37 MDD, GEO: GSE88890); Brain-Rydbirk (37 normal and 41 MSA, GEO: GSE143157); Brain-Torabi (50 normal and 75 SCZ, GEO: GSE128601); Brain-Xu (25 normal and 23 AUD, GEO: GSE49393); Brain-Huynh (19 normal and 27 Multiple sclerosis, GEO: GSE40360); Brain-Viana2 (13 normal and 14 SCZ, GEO: GSE89703); Brain-Viana3 (17 normal and 16 SCZ, GEO: GSE89705); Brain-Viana4 (28 normal and 21 SCZ, GEO: GSE89706); Brain-Markunas (221 normal, GEO: GSE147040); Brain-Viana1 (17 normal and 16 SCZ, GEO: GSE89702); Brain-Stefania1 (37 normal and 21 Suicide, GEO: GSE137222); Brain-Stefania2 (15 normal and 18 Suicide, GEO: GSE137223); Whole blood-Airway (1032 normal, GEO: GSE147740); Whole blood-Barturen (101 normal and 473 SARS, GEO: GSE179325); Whole blood-Flanagan (184 normal, GEO: GSE61151); Whole blood-Hannon1 (304 normal and 332 SCZ, GEO: GSE80417); Whole blood-Hannon2 (405 normal and 260 SCZ, GEO: GSE84727); Whole blood-Hannum (656 normal, GEO: GSE40279); Whole blood-Johansson (729 normal, GEO: GSE87571); Whole blood-Lehne (2707 normal, GEO: GSE55763); Whole blood-LiuMS (139 normal and 140 Multiple Scleroris, GEO: GSE106648); Whole blood-LiuRA (335 normal and 354 Rheumatoid arthritis, GEO: GSE42861); Whole blood-TZH (85 normal and 620 Different health conditions, GEO: Requested Access); Whole blood-Ventham (101 normal and 279 Inflammatory bowel disease, GEO: GSE87648); Whole blood-Zannas (144 normal and 278 Trauma, GEO: GSE72680). The DNAm-atlas encompassing DNAm reference matrices for 13 tissue-types encompassing over 40 cell-types is freely available from the EpiSCORE R-package https://github.com/aet21/EpiSCORE.
