Construction and validation of cuproptosis-related lncRNA prediction signature for bladder cancer and immune infiltration analysis

Databases

The mRNA expression profiles of 433 bladder cases were obtained from the Cancer Genome Atlas (TCGA, https://portal.gdc.cancer.gov/), which contains 19 normal tissues and 414 bladder tumors. Gene transcription levels were first normalized as fragments per kilobase million (FPKM). The expression level of each transcript was transformed using base log2 (FPKM+1) and low-expression genes with mean expression less than 1 will be filtered out using the “limma” package [20]. Patients with missing survival data and follow-up times less than 30 days were excluded. The related clinical characteristics, copy number variation (CNV), and somatic mutation information with BC were directly acquired from TCGA. According to the human genome annotation (GRCh38), protein-coding genes and lncRNAs were annotated and classified.

Identification of cuproptosis-related genes (CRGs) and enrichment analysis

Seventeen cuproptosis-related genes (CRGs) were sourced from a recent article (2022) appearing in Cell [13]. The differential expression analysis for CRGs between the tumor and normal tissues was completed with R package “limma” using the thresholds of |log2FC| > 1 and P <0.05. The R package “maftools” was used for the aggregation and visualization of the mutation landscape [21]. The correlations of CPGs were created using the R package “igraph”. GeneMANIA (http://genemania.org/) was utilized for constructing a weighted functional interaction network, which is a web tool that can predict gene interactions and screen other potential binding partners [22]. The Gene ontology (GO) biological meaning and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment of the CRGs were performed to uncover the function through the R package “clusterProfiler” [23]. The corrected P < 0.05 was considered significantly enriched.

Identification of cuproptosis-related lncRNAs (CRLs) and consensus clustering analysis

Cuproptosis-Related lncRNAs (CRLs) were identified by using the Pearson correlation index calculation between CRGs and lncRNAs. On the premise of correlation coefficient > 0.05 and P < 0.05, certain lncRNAs can be regarded as CRLs. Univariate Cox regression analysis was conducted to identify the prognostic-associated CRLs (P < 0.01). The prognostic CRLs were then used for unsupervised clustering and classification with the R package “consensusClusterPlus” [24]. To produce the most stable consensus, we repeated the optimization procedure 50 times with 80% item resampling. Kaplan-Meier analysis was used to assess the differences in overall survival (OS) between different subgroups. In addition, the comparison of clinicopathological factors and the expression of PD-L1 in different clusters was performed.

Construction and validation of CRL prognostic signature

The included cases (n = 403) were split in a 1:1 to ratio training (n=203) and testing (n=200) sets. We then executed the least absolute shrinkage and selection operator (LASSO) on the above prognostic CRLs to construct the signature in the training set. The risk score of each patient was generated by the sum of multiplying the expression value of each CRL by its regression coefficient. According to the optimal cutoff value, patients were classified into low- and high-risk groups. Prognostic differences between the two groups were revealed using Kaplan-Meier survival curves, and receiver operating characteristic (ROC) curves were plotted for 5 years to measure the predictive ability of this signature. Meanwhile, we applied the testing and entire sets to validate the above findings.

Stratification survival analyses and clinical significance

To investigate the clinical value of the prognostic signature, patients were stratified based on different clinical variables. In the stratified analysis, prognostic differences in different groups were analyzed by means of Kaplan-Meier and log-rank test survival analysis. We then applied the R package “pheatmap” to plot a heatmap to illustrate the distribution of clinical characteristics in diverse groups using the Chi-square test.

Gene set enrichment analysis

Gene set enrichment analysis (GSEA) (https://www.gsea-msigdb.org/gsea/login.jsp) software was used to investigate potential mechanisms [25]. KEGG and HALLMARK gene sets were used as references. The adjusted P value (false discovery rate) < 0.25 and normalized enrichment score > 1 denoted statistical significance.

Nomogram construction

The nomogram can predict the probability of a certain clinical outcome based on the values of multiple variables [26]. We conducted univariate and multivariate Cox regression analyses to assess the independent prognostic value of prognostic signature and clinical parameters (age, gender, grade, and stage). Then, variables that could be used as independent prognostic indicators were selected to develop a nomogram in BC using the R package “RMS” package. The predictive performance of the nomogram was then validated by calibration curves and decision curve analysis (DCA).

Tumor mutation burden and drug sensitivity analysis

Tumor Mutational Burden (TMB) is a somatic biomarker proposed to predict response to immunotherapies in cancer [27]. TMB was counted and visualized in each sample using the R package “maftools” [21]. In addition, we compared TMB between two different groups and plotted the risk score survival curve for TMB. Moreover, half maximal inhibitory concentration (IC50) values of different drugs in the low- and high-risk groups of bladder cancer samples were calculated with the R package “oncoPredict” [28].

Exploration of immune features and prediction of immunotherapy efficacy

To explore the relationship between prognostic signature and immunity, the infiltration status and immune function were analyzed between two groups. Multiple immune data platforms, including TIMER, CIBERSORT, CIBERSORT-ABS, QUANTISEQ, MCPCOUNTER, XCELL, and EPIC algorithms were used to estimate the immune infiltration status of patients with bladder cancer. The single sample gene set enrichment analysis (ssGSEA) was used to calculate the enrichment score of 29 immune cells, functions, or pathways [29]. The tumor microenvironment score of each sample was calculated using the R package “Estimate”. Furthermore, the expression levels of several common immune targets were compared between the two groups. The Tumor Immune Dysfunction and Exclusion (TIDE) database (http://tide.dfci.harvard.edu/) [30] was used to further analyze the difference of TIDE score in the low- and high-risk groups of BC samples.

Statistical analysis

All statistical analyses were performed in R statistical software (version 4.0.1) and Perl language (version 5.30.2). Unless otherwise specified, statistical significance was considered for two-tailed P < 0.05.

The expression profiles and transcriptional alterations of CRGs

To explore the function of cuproptosis in BC, the expression profiles of 17 CRGs in BC samples were compared with that of normal samples. In total, seven CRGs were identified as differentially expressed genes. Compared with normal bladder tissues, four genes (LIPT2, GCSH, CDKN2A, and SLC31A1) were determined to be up-regulated, while three genes (DLST, ATP7A, and MTF1) were down-regulated in BC cases (Figure 1A, 1B). We then examined the alteration frequency and CNVs in 17 CRGs. As can be seen from Figure 1C, all genes went through some degree of mutations and ATP7B had the highest frequency of mutations. Subsequently, we explored the CNVs duplicated or deleted in the segments of the genome and noticed the alterations were common among CRGs. CDKN2A had the highest amplification, while LIPT2 showed an extensive deletion in CNV (Figure 1D). The CNV chromosome location information of 17 CRGs was displayed in Figure 1E. The results suggested that these CRGs were scattered in different chromosomes. The relationship network revealed a highly intricate interaction network of these CRGs (Figure 1F). Moreover, the regulatory network consisted of 37 genes, including 17 CRGs and additional genes spontaneously pulled through GeneMANIA. The biological functions association and relevant gene networks were visualized in Figure 1G.

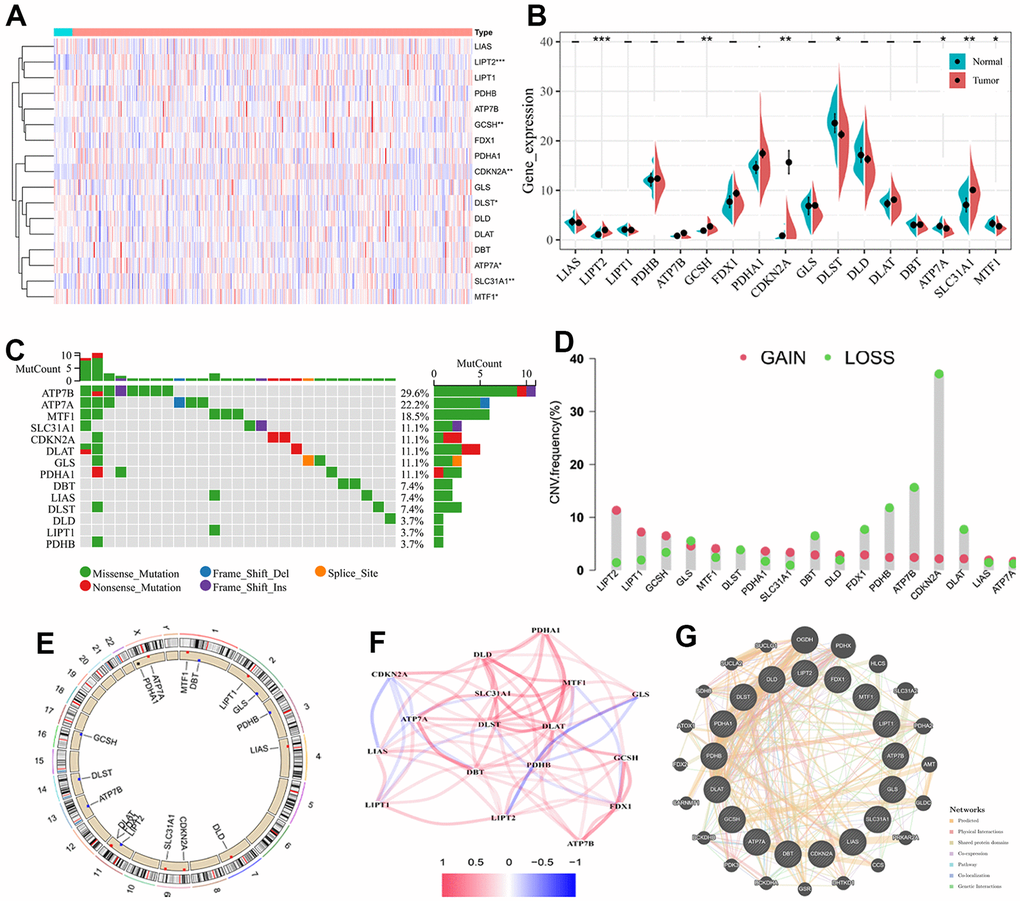

Figure 1. The multi-omics landscape of the cuproptosis-related genes (CRGs) in BC. (A) Heatmap of the CRGs in BC and normal samples. (B) Violin plot showing the differences in the expression of 17 CRGs between BC and normal tissues. (C) Genetic alterations of CRGs in BC. (D) CNV mutation frequency of CRGs in BC. (E) Location of CNV alterations in BC. (F) The relationship network of the CRLs. Red and Blue lines indicate positive and negative correlations, respectively. (G) The regulatory network of 17 CRGs and additional 20 genes spontaneously pulled through GeneMANIA. -, no significant, * P < 0.05, ** P < 0.01.

Biological function of CRGs

GO analysis showed these 37 genes (including 17 CRGs and additional 20 genes spontaneously pulled from GeneMANIA) were enriched in the coenzyme metabolic process, tricarboxylic acid cycle, and acetyl-CoA metabolic process in biological processes (BP) (Figure 2A, 2B). The top three significantly enriched cellular component (CC) were mitochondrial matrix, oxidoreductase complex, and dihydrolipoyl dehydrogenase complex (Figure 2C, 2D). As for molecular function (MF), oxidoreductase activity and transferase activity-transferring acyl groups were most significantly enriched (Figure 2E, 2F). In parallel, KEGG analysis revealed these genes were involved in carbon metabolism, citrate cycle, and pyruvate metabolism (Figure 2G, 2H).

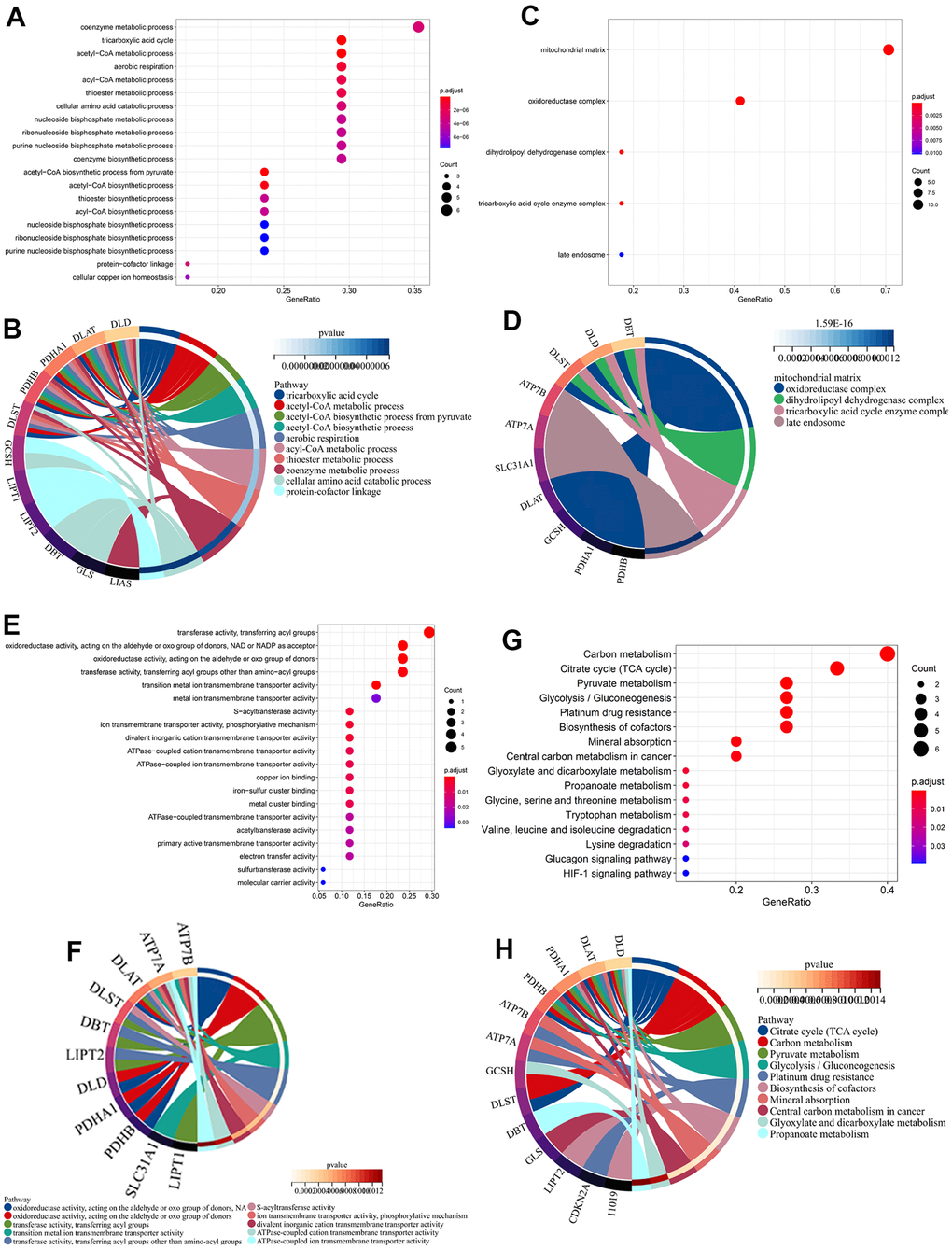

Figure 2. Functional enrichment analysis of cuproptosis-related genes (CRGs) in BC. The bar plot and circle plot of enriched GO BP (A, B), CC (C, D), MF (E, F), and KEGG (G, H) of CRGs in BC.

Identification of CRLs and construction of co-expression network

We performed a Pearson’s correlation analysis between all lncRNAs and 17 CRGs based on both expression profiles in BC tissues. A total of 466 CRLs were screened out with the filtering criteria. The results of the co-expression network between 12 CRGs and 466 lncRNAs were presented in Figure 3A. We then conducted a univariate Cox regression analysis on these screened CRLs and discovered that 16 CRLs were significantly related to OS (P< 0.01), including 5 risk (HR > 1) and 11 protective (HR < 1) lncRNAs in BC patients (Figure 3B). The Sankey diagram presented the correspondence between CRGs and CRLs (Figure 3C).

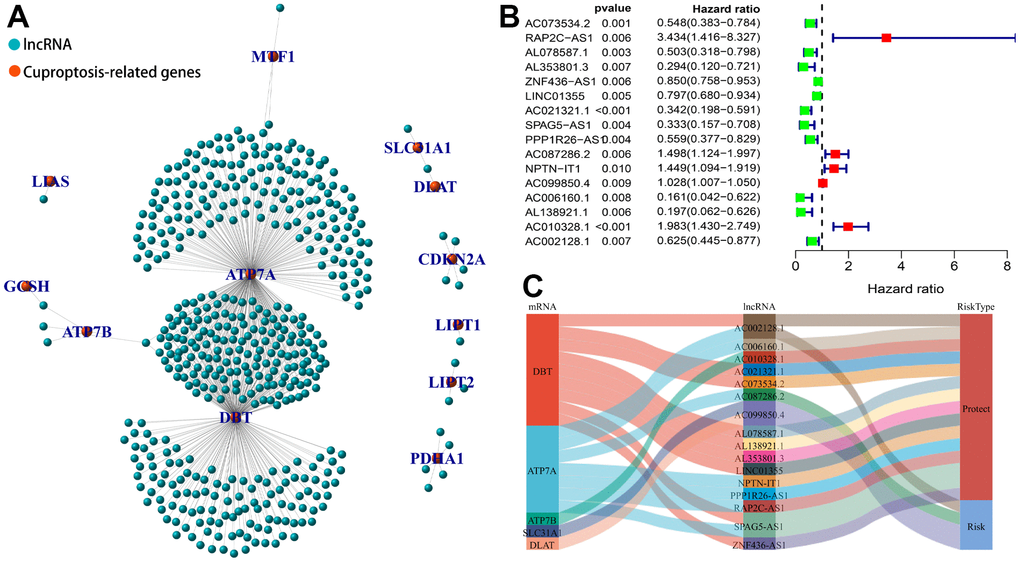

Figure 3. Identification of cuproptosis-related lncRNA (CRLs) in BC. (A) The co-expressed network between 17 cuproptosis-related genes and 466 lncRNAs. (B) The forest plot shows 16 prognostic CRLs in univariate Cox regression analysis. (C) Sankey graph of the co-expression network.

Determine the cuproptosis subtypes based on the prognostic CRLs

To better understand the molecular heterogeneity of BC based on the 16 prognostic CRLs, unsupervised consensus clustering was conducted to group BC samples. According to the consensus matrixes (Figure 4A) and cumulative distribution function (CDF) curves (Figure 4B), k = 2 was the most optimal value to divide the BC cases into two subtypes (cluster1, n = 134; cluster2, n = 269). Kaplan-Meier analysis demonstrated a considerable difference in OS between two clusters, with cluster2 having a significant survival advantage (Figure 4C). The PCA reconfirmed the difference in distribution between the two clusters (Figure 4D). The distribution of clinical variables and expression of 16 CRLs between two clusters were intuitively shown in a heatmap (Figure 4E). Patients in cluster2 were more related to the high-grade relative to cluster1.

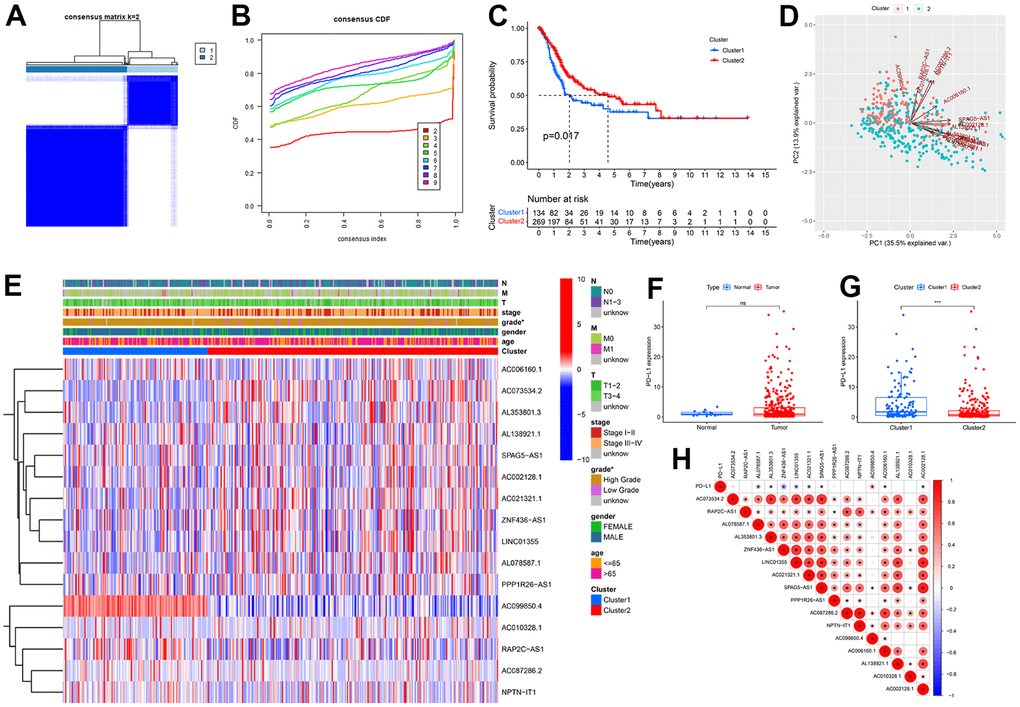

Figure 4. Unsupervised consensus clustering of 16 prognostic cuproptosis-related lncRNA (CRLs) in BC. (A) Consensus matrix that divides BC cases into two clusters (k=2). (B) Cumulative distribution function (CDF) curves for k = 2–9. (C) Kaplan Meier analysis for BC patients in two clusters. (D) PCA showed the difference in distribution between the two clusters. (E) The distribution of clinical features and expression of 16 CRLs between two clusters. (F) No differential expression was observed for PD-L1 between BC and normal tissues. (G) PD-L1 upregulation in cluster1. (H) The correlation of PD-L1 with CRLs. * P<0.05, ** P<0.01, ns: no significant.

To examine the involvement of PD-L1 with CRLs, we analyzed the expression of PD-L1 between two subtypes. It was observed that expression levels of PD-L1 in BC tissues were not significantly different from that in normal tissues (Figure 4G). Notably, cluster1 had a statistically distinctly higher PD-L1 level than cluster2 (P < 0.001) (Figure 4G). Next, we plot a heatmap to study the correlation between the PD-L1 and 16 CRLs and found weak but significant negative relations between the CRGs and most CRLs (Figure 4H).

Construction and validation of the prognostic signature

In the training set, we performed LASSO Cox regression analysis on 16 prognostic CRLs to establish a prognostic signature. The optimal signature was constructed using 7 CRLs when the log (lambda) was the least deviation possibility (Figure 5A, 5B). We calculated the risk score of each patient and the formula was generated as follow: risk score = (-0.236 × expression of AC073534.2) + (0.141 × expression of RAP2C-AS1) + (-0.238 × expression of AC021321.1) + (0.463 × expression of AC087286.2) + (0.005 × expression of AC099850.4) + (-1.239 × expression of AC006160.1) + (0.358 × expression of AC010328.1). In the training set, patients were separated into a low-risk group (n = 102) or a high-risk group (n = 101) with the optimal cutoff value (Figure 5C). Moreover, as the risk score increased, so did the mortality rate (Figure 5D). Heatmap representing the expression levels of the 4 risk lncRNAs (RAP2C-AS1, AC087286.2, AC099850.4, and AC010328.1) were much higher in the high-risk groups relative to controls. As expected, the other 3 protective lncRNAs (AC073534.2, AC021321.1, and AC006160.1) showed opposite expression trends (Figure 5E). Similar findings can be also found using the same method on the testing set (Figure 5F–5H) and the entire set (Figure 5I–5K).

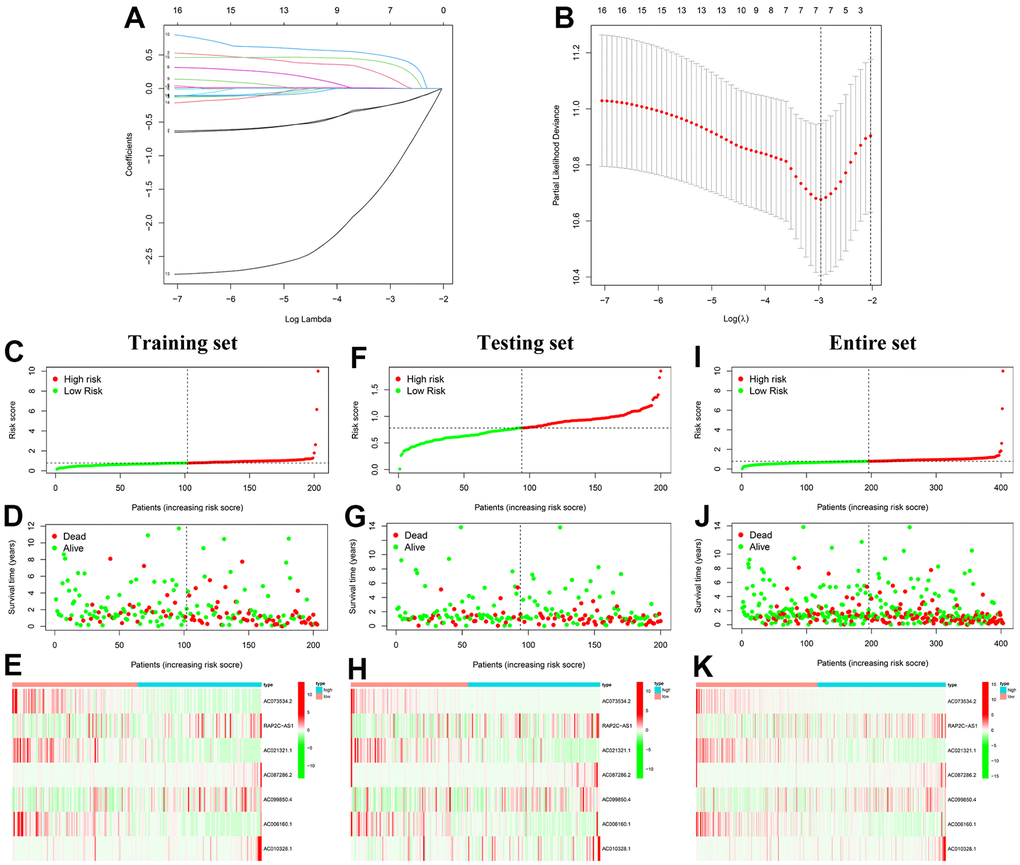

Figure 5. Construction and validation of the prognostic signature. (A) The 10-fold cross-validation for the optimal parameter selection in the LASSO regression. (B) The profile of the LASSO coefficient. (C) The distribution plots of the risk score in the training set. (D) The survival status of BC patients in the training set. (E) The heatmap of 7 CRLs in the training set. (F) The distribution plots of the risk score in the testing set. (G) The survival status of BC patients in the testing set. (H) The heatmap of 7 CRLs in the testing set. (I) The distribution plots of the risk score in the entire set. (J) The survival status of BC patients in the entire set. (K) The heatmap of 7 CRLs in the entire set.

To compare prognosis between two groups, the Kaplan-Meier curve was performed with the log-rank test. The OS of the low-risk group was remarkably longer than that of the high-risk group in the training (P < 0.001), the testing (P = 0.042), and the entire sets (P < 0.001) (Figure 6A–6C). Furthermore, we constructed the ROC curves and calculated the area under the ROC curve (AUC) to evaluate the accuracy of diagnoses. The AUC values of the signature for predicting 5-year survival rates were 0.730, 0.695, and 0.687 in the training, the testing, and the entire sets, respectively (Figure 6D–6F).

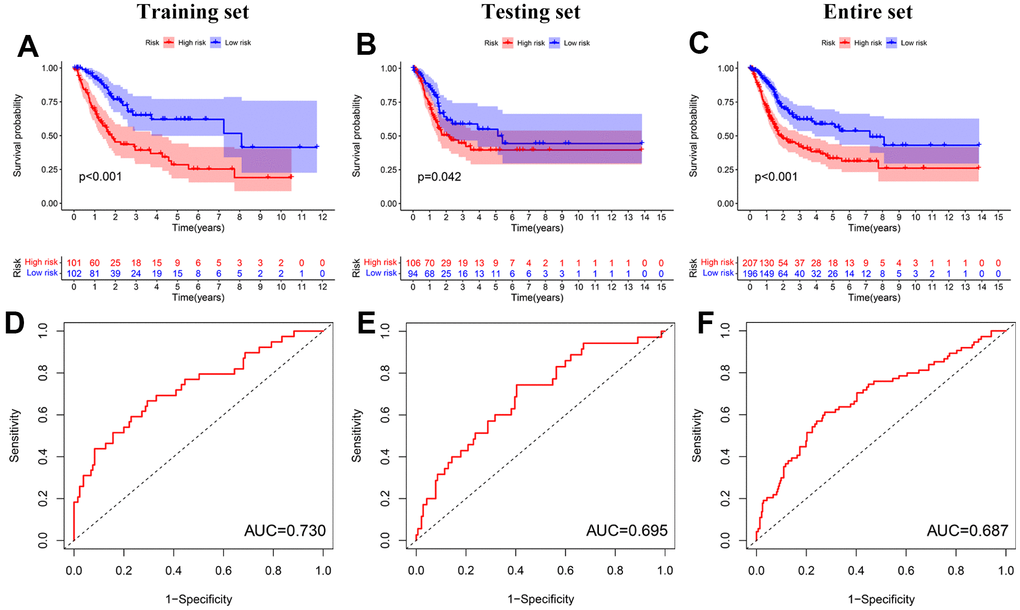

Figure 6. Prognosis value of the prognostic signature. (A–C) Kaplan–Meier survival curves of BC patients in the training, testing, and entire sets. (D–F) ROC analyses in the training, testing, and entire sets.

Clinical application of the prognostic signature

Stratification survival analyses were employed to evaluate the prediction power of the constructed signature in diverse subgroups of clinical parameters. As shown in Figurer 7, patients in the high-risk group suffered a poorer outcome than patients in the high-risk group for all subgroups other than cases with low-grade, or with T1-2 stage, or with N1-3 stage, or with M1 stage. These results indicated this signature had good predictive power.

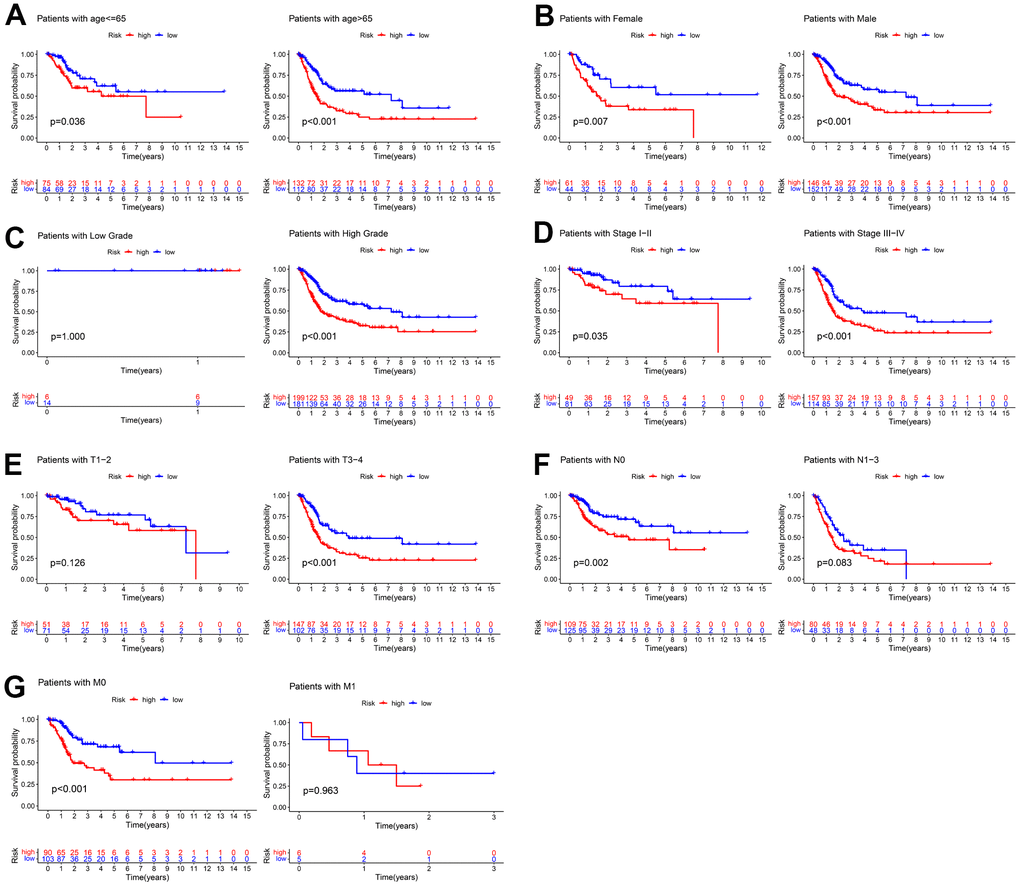

Figure 7. Kaplan–Meier survival curves of the low- and high-risk groups in different subgroups of clinical parameters. (A) age, (B) gender, (C) grade, (D) AJCC stage, (E) T stage, (F) N stage, (G) M stage.

The association between clinical features and risk score was further investigated. Significant differences were observed for various clinical features in terms of cluster (P < 0.001), AJCC stage (P < 0.001), T stage (P < 0.01), and N stage (P < 0.01) between the high- and low-risk groups (Figure 8A). We also explored the relationship between risk score, and subtype, AJCC stage, T stage and N stage. Patients in cluster1 had significantly higher risk scores than those in cluster2 (Figure 8B). In addition, the risk score increased along with the AJCC stage, T stage, and N stage increased (Figure 8C–8E).

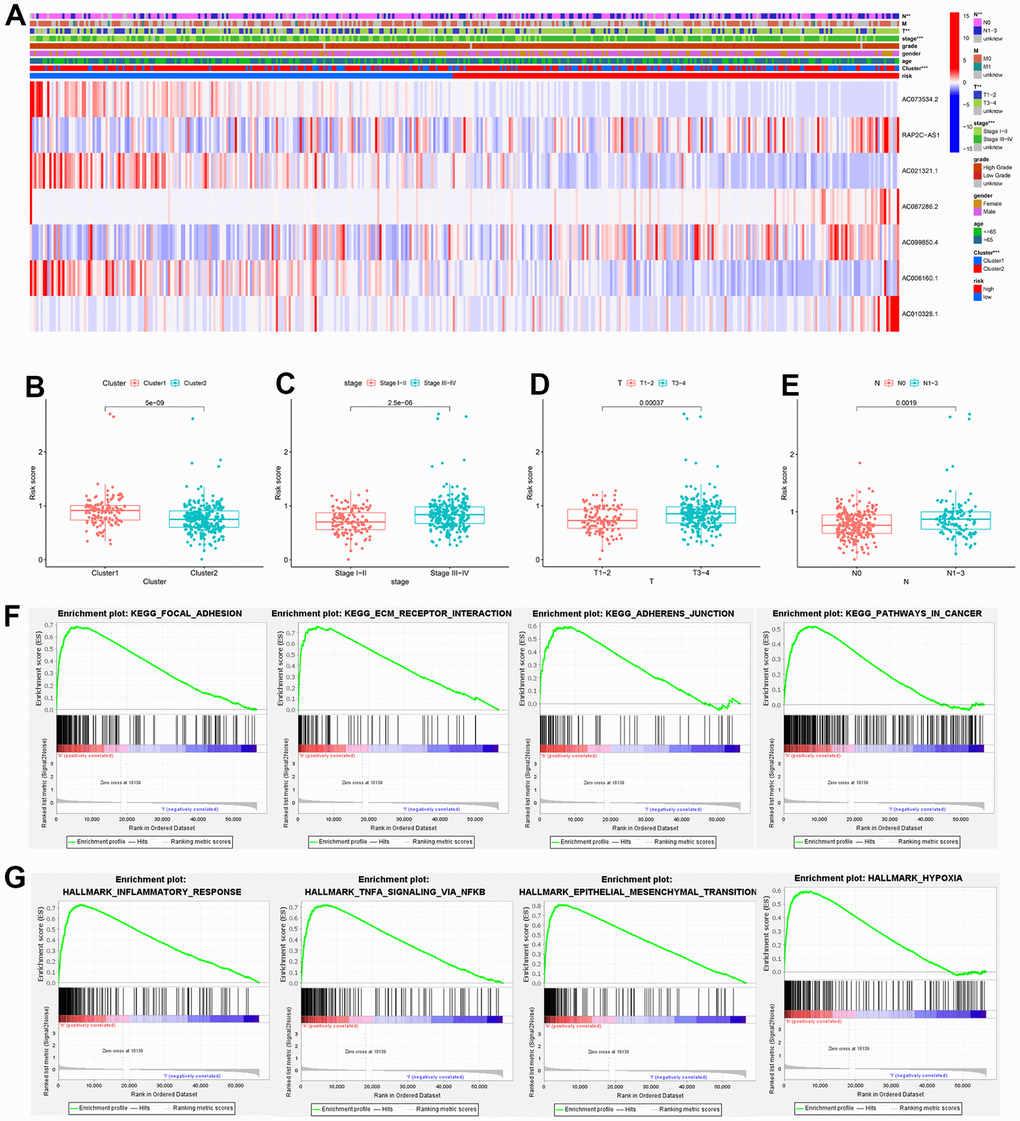

Figure 8. Heatmap of the clinical relevance and GSEA. (A) Heatmap of the distribution of clinical features and expression of 7 CRLs between two groups. (B–E) Differential expression analysis of risk score in patients with different clusters, AJCC stage, T stage, and N stage. (F) GSEA showed the significantly enriched KEGG gene sets in the high-risk group. (G) GSEA showed the significantly enriched Hallmark gene sets in the high-risk score. ** P<0.01,*** P<0.001.

To further explore the potential biological functions and pathways between low- and high-risk groups, GSEA was conducted. As anticipated, the cancer-related pathways were obviously associated with the high-risk group, such as focal adhesion (Figure 8F) and epithelial-mesenchymal transition (Figure 8G).

Development of the nomograph

Subsequently, we conducted Cox regression analyses to determine the independent prognostic parameters for BC patients. In the training set, the univariate Cox analysis indicated age (P < 0.001), AJCC stage (P < 0.001), and risk score (P < 0.001) were significantly associated with the OS. Further multivariate Cox analysis suggested that age, AJCC stage and risk score remained significant (Figure 9A). A similar result was acquired with the same technique from the testing set (Figure 9B). The above results demonstrated that prognostic signature was an independent prognostic predictor for OS in patients with BC.

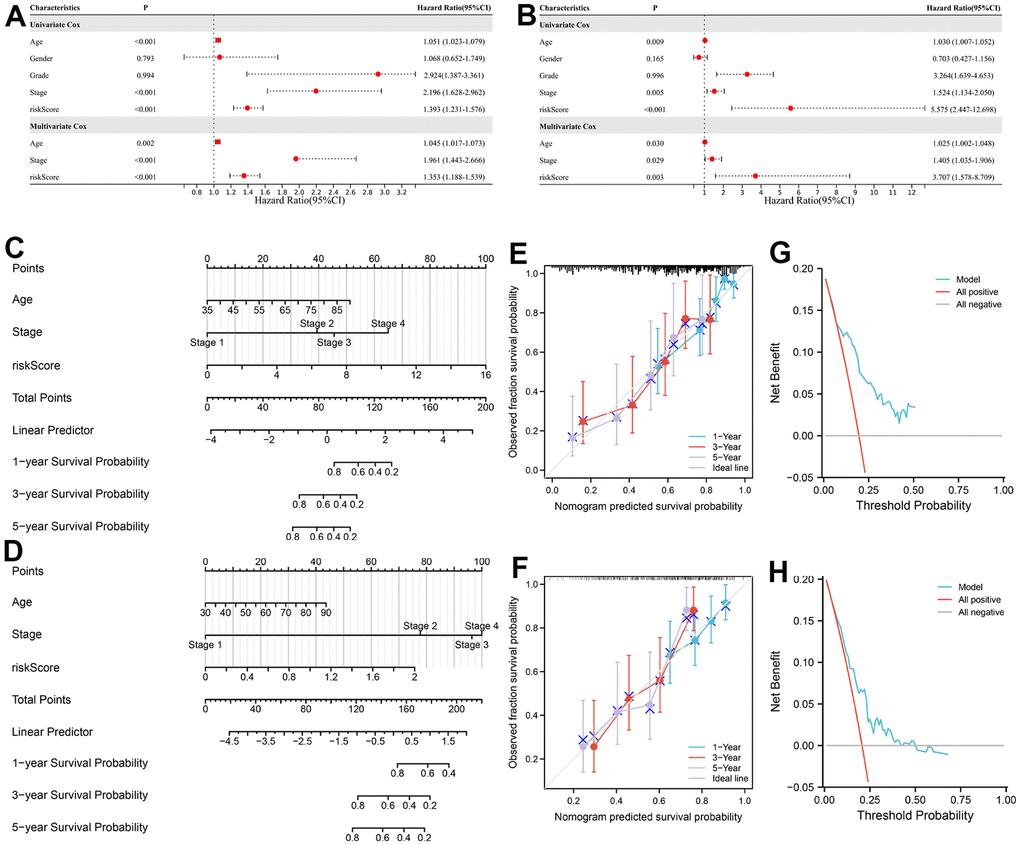

Figure 9. Development of a nomogram for predicting the prognosis of BC patients. (A, B) Uni- and multi-variate Cox regression analysis of the clinical parameters in the training and testing sets. (C, D) Nomogram for predicting the 1-, 3-, and 5-year OS of BC patients in the training and testing sets. (E, F) Calibration curves of nomogram in the training and testing sets. (G, H) DCA of nomogram in the training and testing sets.

Based on the Cox regression analyses, the clinical nomogram was developed using three independent prognostic factors as parameters in the training (Figure 9C) and the testing sets (Figure 9D). Each factor was assigned a score in proportion to its risk contribution to survival, and the total score could be accordingly calculated. The calibration chart of the nomogram showed fairly consistent in predicting OS of the nomogram with the observing 1-, 3- and 5-year results in both sets (Figure 9E, 9F). In addition, the result of DCA demonstrated this clinical nomogram owned good net benefits in predicting the prognosis in both sets (Figure 9G, 9H).

TMB and drug analysis

We also explored the differences in TMB levels between the low- and high-risk groups. We found that the 5 most highly mutated genes were TP53, TTN, KMT2D, MUC16, and ARID1A in the high-risk group, which TP53, TTN, KMT2D, KDM6A, MUC16, and ARID1A in the low-risk group (Figure 10A, 10B). This difference was not statistically significant (P = 0.077), although considerably high levels of TMB were observed in the high-risk group (Figure 10C). Importantly, we noticed a remarkable difference in the survival analysis of TMB between the low- and high-risk groups (Figure 10D). High TMB had a longer survival time than low TMB (P = 0.004). Meanwhile, there was a statistically significant difference in the combined analysis of TMB and patient risk (Figure 10E, P < 0.001).

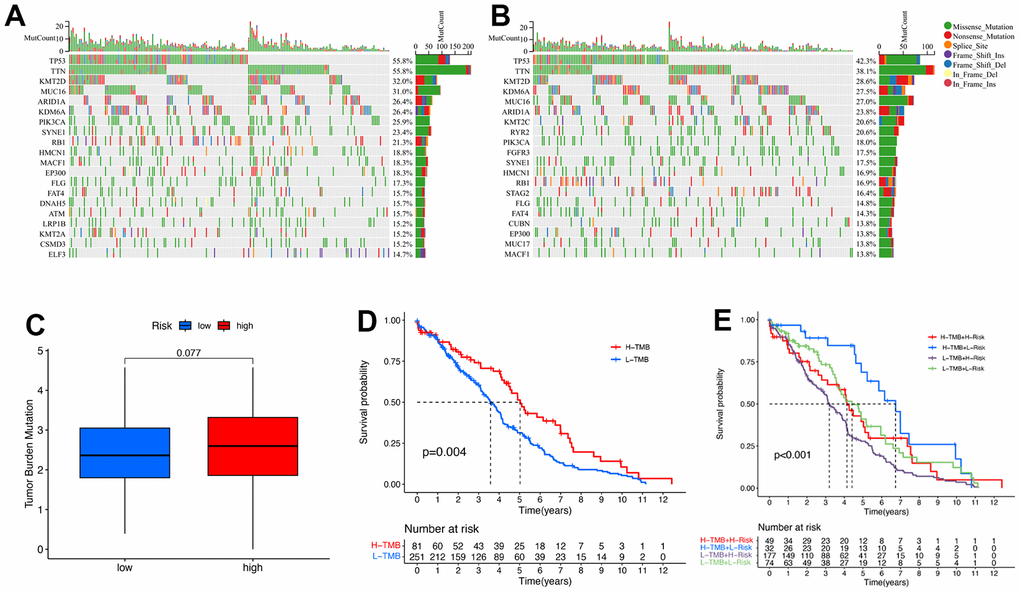

Figure 10. The relationship between the signature and TMB. Top 20 mutation genes of BC for the low-risk (A) and high-risk (B) groups in waterfall plot. (C) TMB comparison between low- and high-risk groups. (D) Kaplan-Meier curves for high- and low-TMB groups. (E) Kaplan-Meier curves for the patients stratified by TMB and risk scores.

Subsequently, potential anti-tumor drugs were screened through the algorithm from the “oncoPredict” R package. We calculated the IC₅₀ of common agents in the low- and high-risk groups and found that patients in the high-risk group were significantly more sensitive to gemcitabine, KRAS (G12C) inhibitor-12, linsitinib, navitoclax, nilotinib, palbociclib, rapamycin, sorafenib, and temsirolimus (Figure 11A), while AZD8186, cisplatin, dasatinib, erlotinib, KU-55933, luminespib, sapitinib, and trametinib had higher IC₅₀ values in the low-risk group (Figure 11B). These findings showed that low- and high-risk group had the corresponding drug susceptibility patterns, suggesting that the risk score might distinguish more suitable patients to receive appropriate chemotherapies.

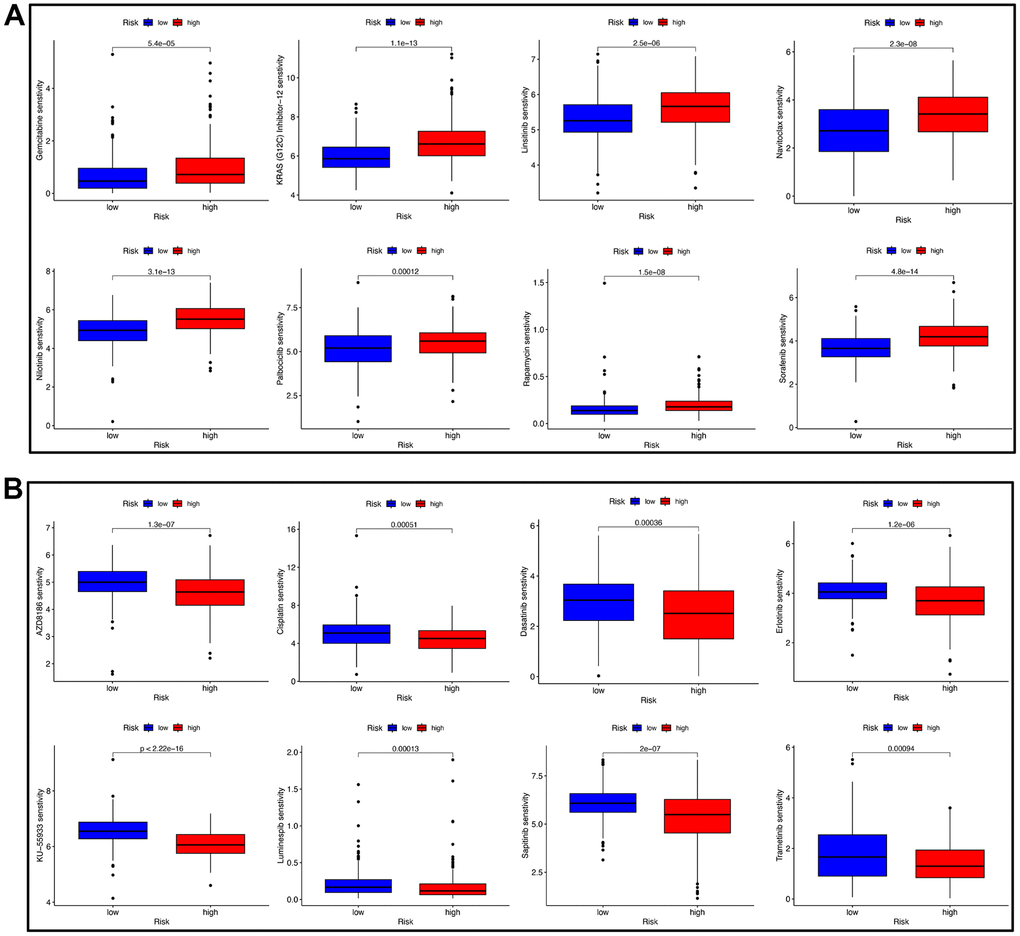

Figure 11. Drug sensitivity analysis. (A) BC patients with a high-risk score had a higher IC₅₀ value of eight therapeutic drugs compared with patients with a low-risk score. (B) BC patients with a high-risk score had a lower IC₅₀ value of many therapeutic drugs compared with patients with a low-risk score.

Exploration of immunological features and immunotherapy response

To investigate the profile of immune infiltration in BC, the relationship between risk score and immune cell infiltration was estimated using 7 algorithms. The heatmap showed that a considerable number of immune cells had elevated expression in the high-risk group than in the low-risk group (Figure 12A) We quantified the enrichment level of 13 immune cells and 16 immune functions for each patient using a ssGSEA algorithm (Figure 12B–12D). Significant differences in all 29 immune infiltrating signatures were found between the two groups, and the higher expression occurred in the high-risk group. Consistently, the high-risk group also represented a higher immune score, stromal score, and ESTIMATE score and lower tumor purity (Figure 12E–12H). Taken together, these results suggested the prognostic signature might be related to the tumor immune microenvironment. Given the important clinical advances of immune checkpoint inhibitor (ICI) therapy in various tumors, an assessment was done to evaluate the distribution of 47 ICI–relevant genes between two groups. The expression levels of many ICIs were markedly up-regulated in the high-risk group than those in the low-risk group (Figure 12I). In addition, BC patients with a low-risk score had a higher TIDE score than those with a high-risk score (Figure 12J, P = 0.0011). A higher TIDE score represents higher possibility of immune escape, indicating less benefit from immunotherapy. Taken together, these findings revealed that ICI therapy might be a potentially effective therapeutic modality for the high-risk group.

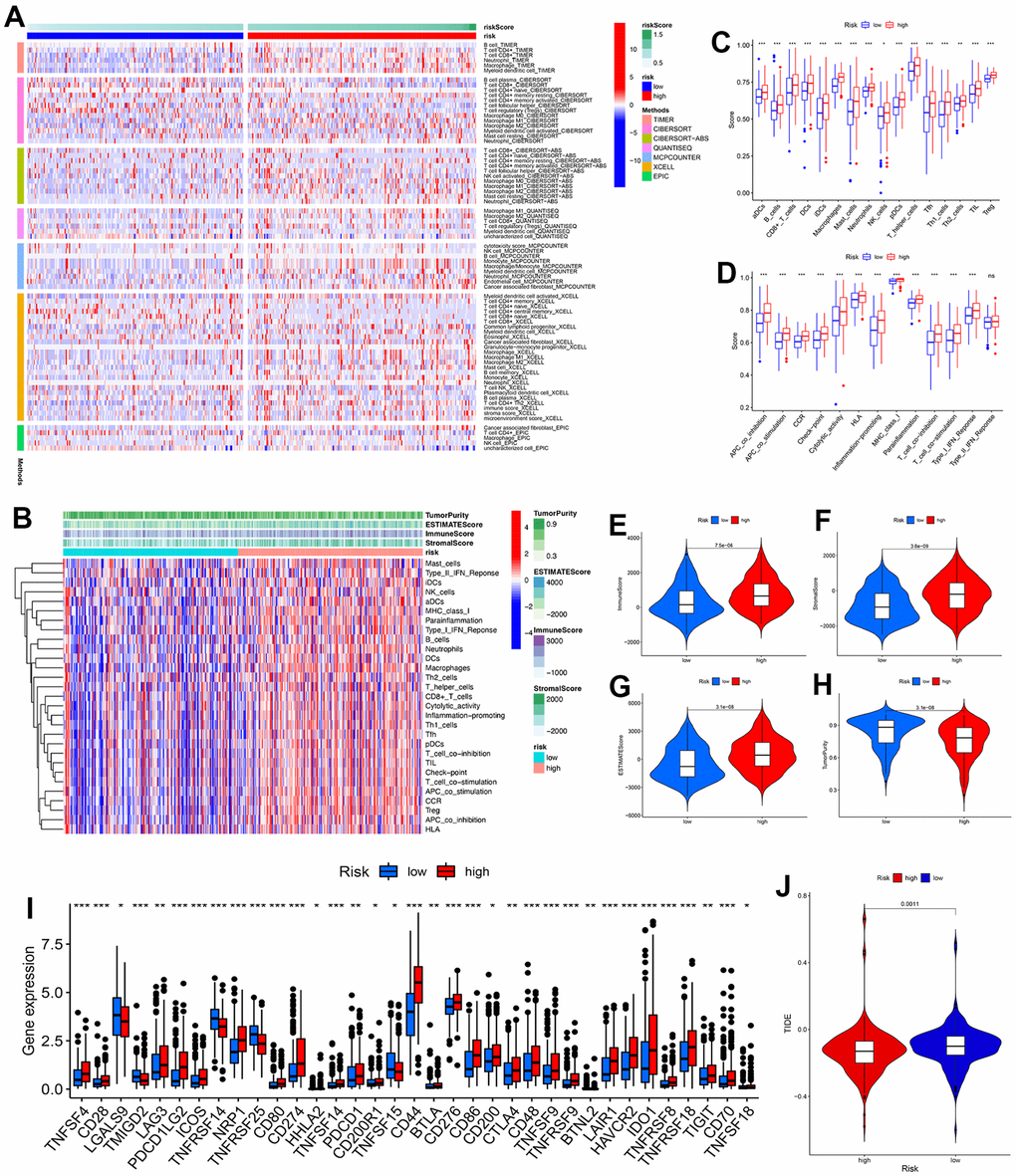

Figure 12. Analyses of immunological features and immunotherapy response. (A) Heatmap showed the expression of immune cells between low- and high-risk groups. (B) Enrichment levels of immune-related cells and types between the low- and high-risk groups in the heatmap. (C) Differences in immune cells between two groups. (D) Differences in immune function between two groups. (E–H) Comparison of immune score, stromal score, ESTIMATE score, and tumor purity between two groups. (I) Differences in immune checkpoint expression between two groups. (J) TIDE comparison between low- and high-risk groups. * P<0.05, ** P<0.01, *** P<0.001.
