Machine learning developed a PI3K/Akt pathway-related signature for predicting prognosis and drug sensitivity in ovarian cancer

Results

The relationship of PRGs with ovarian cancer prognosis

As shown in Supplementary Figure 2A, a total of 174 DEGs were obtained in ovarian cancer with |LogFC| ≥ 1.5 as the cutoff (p<0.05). Supplementary Figure 2B showed the top 50 DEGs in ovarian cancer. Among these genes, 29 genes were significantly correlated with the prognosis of ovarian cancer (Figure 1A). To be more specific, ANGPT2, PPP2R5C, LPAR2, IL2RG, AKT1, CREB3, RHEB, GNG5, and HSP90AA1 were significantly correlated with a good clinical outcome in ovarian cancer (Figure 1A, HR<1, p<0.05). While COL1A1, COL1A2, FN1, CCND1, KRAS, THBS2, COL6A3, ITGB5, LAMB2, AKT2, CSF1R, PDGFRB, CDKN1B, ITGB8, ITGA11, ITGA5, BCL2L11, EFNA5, PDGFRA, and FGF7 were significantly correlated with a poor clinical outcome in ovarian cancer (Figure 1A, HR>1, p<0.05).

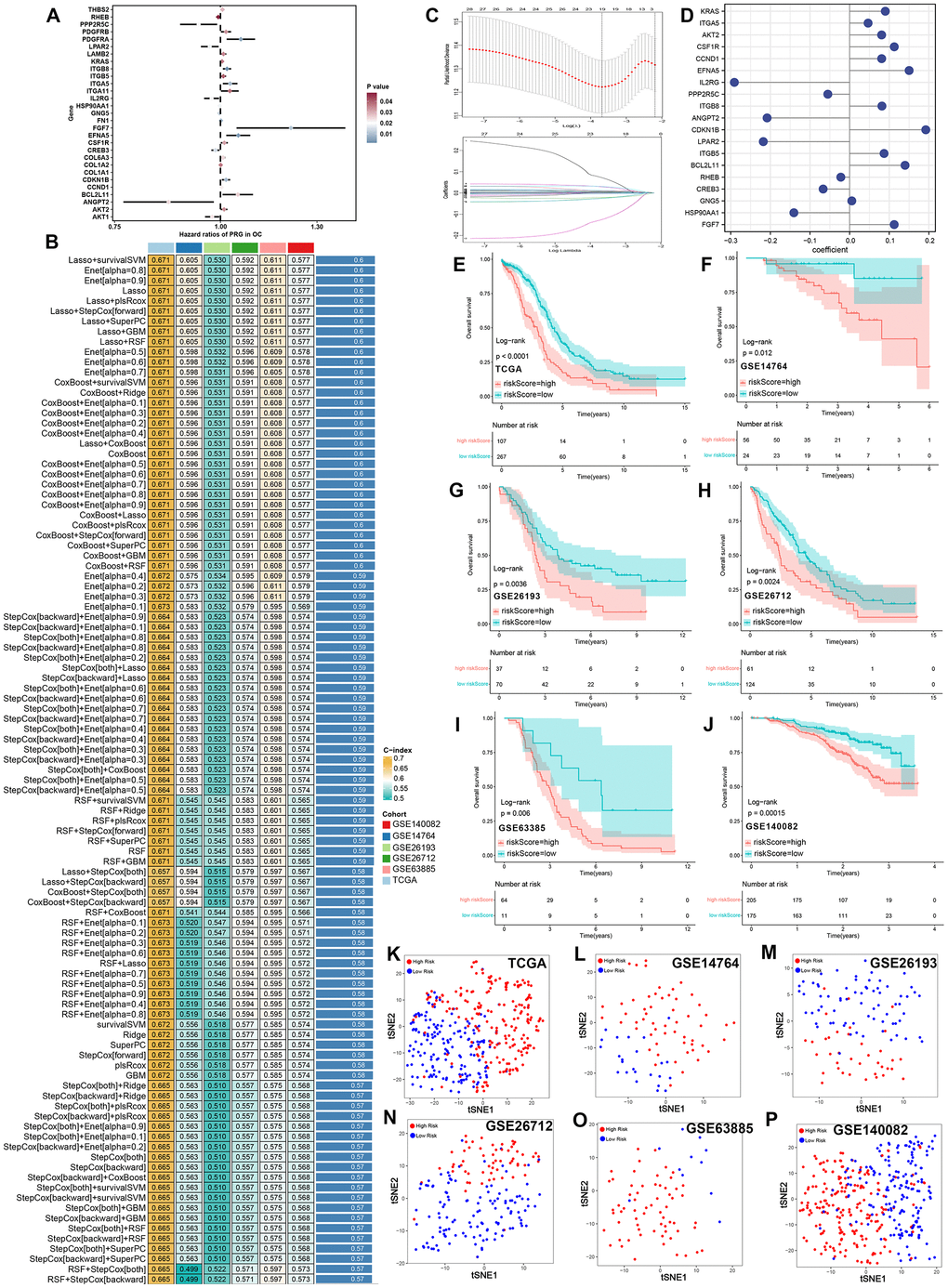

Figure 1. Integrative machine learning analysis constructed a prognostic PI3K/Akt pathway related signature. (A) Potential biomarker identified by univariate cox analysis. (B) The C-index of 101 kinds prognostic models constructed by 10 machine learning algorithms in training and testing cohort. (C) The determination of the optimal λ was obtained when the partial likelihood deviance reached the minimum value, and further generated Lasso coefficients of the most useful prognostic genes. (D) Coefficients of 19 genes finally obtained in survivalSVM regression. The survival curve of ovarian cancer with high and low risk score in TCGA (E), GSE14764 (F), GSE26193 (G), GSE26172 (H), GSE63885 (I) and GSE140082 (J) cohort. Cluster analysis of ovarian cancer cases with high and low risk score in TCGA (K), GSE14764 (L) GSE26193 (M), GSE26172 (N), GSE63885(O) and GSE140082 (P) cohort by using tSNE method.

Integrative machine learning algorithms developed an optimal prognostic PRS

Above 29 potential prognostic biomarkers were then subjected to an integrative procedure including 10 machine learning-based methods, with which we could develop an accurate and stable prognostic PRS. Aa result, a total of 101 kinds of prediction models were obtained, and their C-index of training cohort (TCGA) and testing cohort (GSE14764, GSE26193, GSE26712, GSE63885 and GSE140082) were shown in Figure 1B. We could see that the model constructed by Lasso + survivalSVM method was considered as the optimal model and they had a highest average C-index of 0.6 (Figure 1B). In the Lasso regression, the optimal λ was obtained when the partial likelihood deviance reached the minimum value based on the LOOCV framework (Figure 1C). A total of 19 genes with nonzero Lasso coefficients were submitted to survivalSVM, which identified a final set of 19 PRS and their coefficients were shown in Figure 1D. Using the cut-off value, we then divided into ovarian cancer cases into high and low risk groups based on their risk scores (PRS score). As expected, ovarian cancer patients with high risk score had a poor OS rate in TCGA (p<0.0001, Figure 1E), GSE14764 (p=0.012, Figure 1F), GSE26193 (p=0.0036, Figure 1G), GSE26712 (p=0.0024, Figure 1H), GSE63885 (p=0.006, Figure 1I) and GSE140082 (p=0.00015, Figure 1J) cohort. tSNE analysis about the classification of ovarian cancer cases into high- and low-risk groups of training cohort and testing cohort were shown in Figure 1K–1P. On the basis of above findings, we concluded that this PRS was capable of predicting the prognosis of ovarian cancer patients.

Evaluation of the performance of PRS

ROC analysis was performed to evaluate the discrimination of PRS in training cohort and testing cohort, with 1-, 3-, and 5-year AUCs of 0.741, 0.718, and 0.738 in TCGA cohort (Figure 2A); 0.620, 0.666, and 0.641 in GSE14764 cohort (Figure 2B); 0.493, 0.568, and 0.552 in GSE26193 cohort (Figure 2C); 0.684, 0.657, and 0.604 in GSE26712 cohort (Figure 2D); 0.569, 0.667, and 0.678 in GSE63885 cohort (Figure 2E), respectively. In GSE140082 cohort, 1-, and 3-year AUCs were 0.550 and 0.640, respectively (Figure 2F). Further univariate and multivariate cox regression analysis demonstrated risk score as an independent risk factor for the prognosis of ovarian cancer patients in TCGA, GSE14764, GSE26193, GSE63885 and GSE140082 cohort (Figure 2G, 2H). We then compared the C-index of our PRS and 54 prognostic signatures that have been established for ovarian cancer. As shown in Supplementary Figure 3A, the C-index of the current PRS was higher than most of 54 random prognostic signatures. All in all, our PRS had a relatively good performance in predicting the clinical outcome of ovarian cancer patients. Considering PRS-based risk score, clinical stage and tumor grade, we then developed a nomogram for predicting the overall survival of ovarian cancer patients (Supplementary Figure 3B), which could help the clinicians evaluate the clinical outcome of ovarian cancer patients and make an appropriate follow-up project. Compared with the idea curve, nomogram-based calibration curves had a relative well predictive value in predicting the 1-, 3-, and 5-year OS rate (Supplementary Figure 3C).

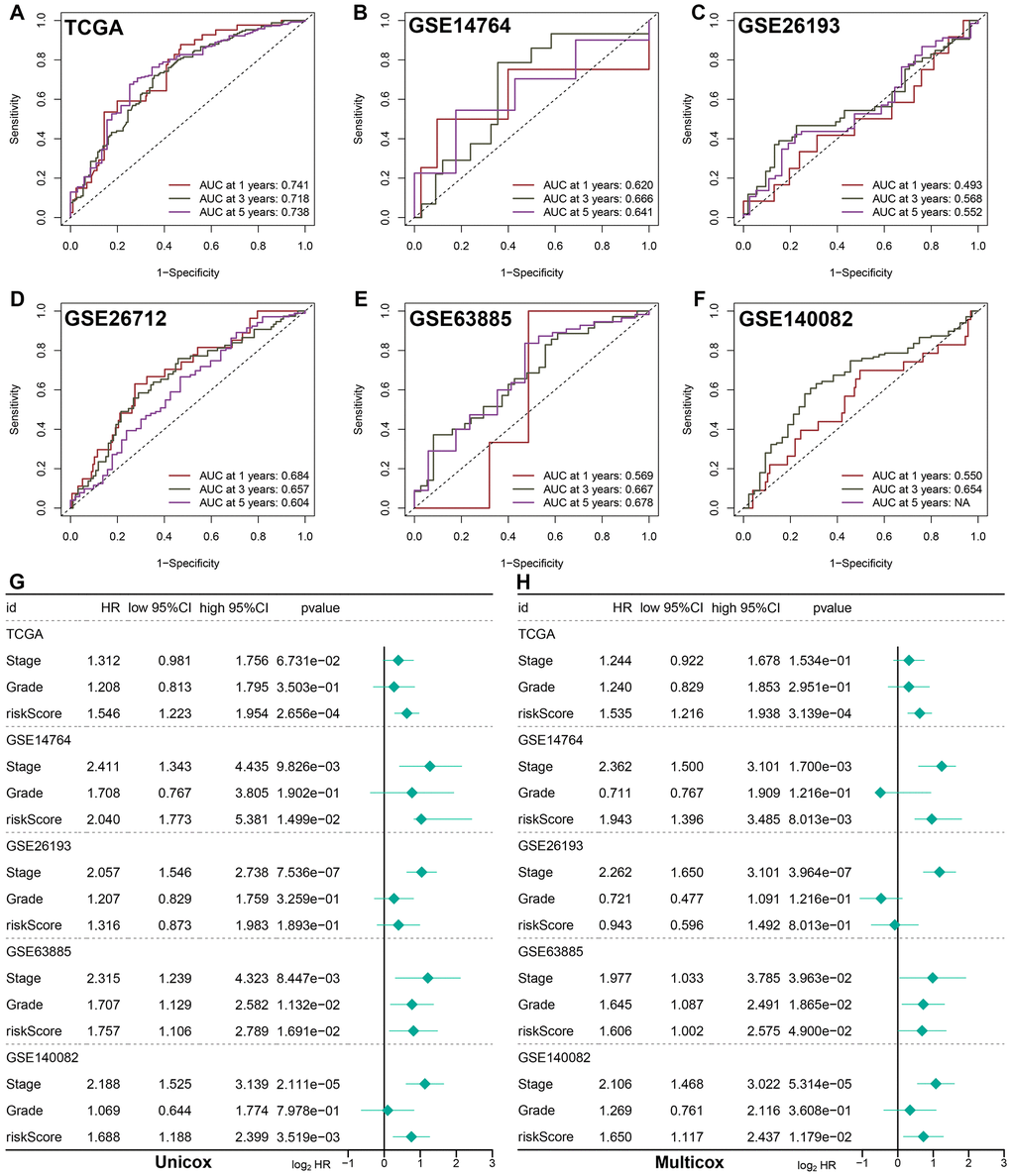

Figure 2. Evaluation of the performance of prognostic PI3K/Akt pathway related signature (PRS). ROC curve evaluated discrimination of PRS in predicting 1-, 3-, and 5-year OS rate of ovarian cancer in TCGA (A), GSE14764 (B), GSE26193 (C), GSE26172 (D), GSE63885 (E) and GSE140082 (F) cohort. (G, H) Univariate and multivariate cox regression analysis considering grade, stage and risk score in training and testing cohort.

Development of the optimal model for evaluating the status of lymphatic and venous invasion

Lymphatic and venous invasion were vital factors affecting the prognosis of ovarian cancer. We then identified the optimal model among PRS genes to classify lymphatic and venous invasion. Logistic regression analysis was firstly performed to evaluate the association between the expression values of 19 genes in PRS and the AUC values that were screened the status of lymphatic and venous invasion. As a result, a total of 32767 formulas were generated from the logistic regression model. Furthermore, we used decisive GMM-based clustering, a very feasible approach with a good clustering performance [16, 17], to clustered gene sets into eight clusters (lymphatic invasion classifying) or nine clusters (venous invasion classifying) in our proposed algorithm. The cluster that had the highest AUC was considered as the best model to predict the status of lymphatic and venous invasion. As shown in Supplementary Figure 4B, the lymphatic invasion classifying model developed by 10 TRGs (CCND1, CDKN1B, CSF1R, EFNA5, FGF7, HSP90AA1, IL2RG, KRAS, LPAR2, RHEB) had a max AUC of 0.749 by the GMM classifier in one of the 32767 formulas. And venous invasion classifying developed by 11 TRGs (AKT2, CDKN1B, CREB3, CSF1R, EFNA5, FGF7, GNG5, HSP90AA1, ITGA5, ITGB8, RHEB) had a max AUC of 0.816 by the GMM classifier in one of the 32767 formulas (Supplementary Figure 4B).

PRS showed significant correlation with cancer-related hallmark

In order to clarify the vital role of PRS in ovarian cancer, we then perform GSEA analysis and explore PRS related biological process and internal connection in ovarian cancer. As expected, ovarian cancer with high risk score had a higher proliferation score, angiogenesis score, DNA repair score, EMT signaling score, Glycolysis score, and Hypoxia score (Figure 3A–3F, all p<0.05). Moreover, high risk score indicated a higher IL2-STAT5 signaling score, IL6-JAK-STAT3 signaling score, NOTCH signaling score, P53 pathway score, and G2M checkpoint score in ovarian cancer (Figure 3G–3K, all p<0.05). Interestingly, apoptosis score was significantly higher in ovarian cancer patients with low risk score (Figure 3L, p=0.028). Increasing evidences have highlighted vital role of macrophages M2/M1 proportion in tumor progression, prognosis and immunotherapy [18–20]. We found that high risk score indicated a higher level of macrophages M2/M1 proportion in TCGA, GSE26193, and GSE26712 cohort (Supplementary Figure 5A–5C, all p<0.05). These results implied that the activation of PI3K/ATK signaling participated in the tumor progression and shortened prognosis in ovarian cancer patients.

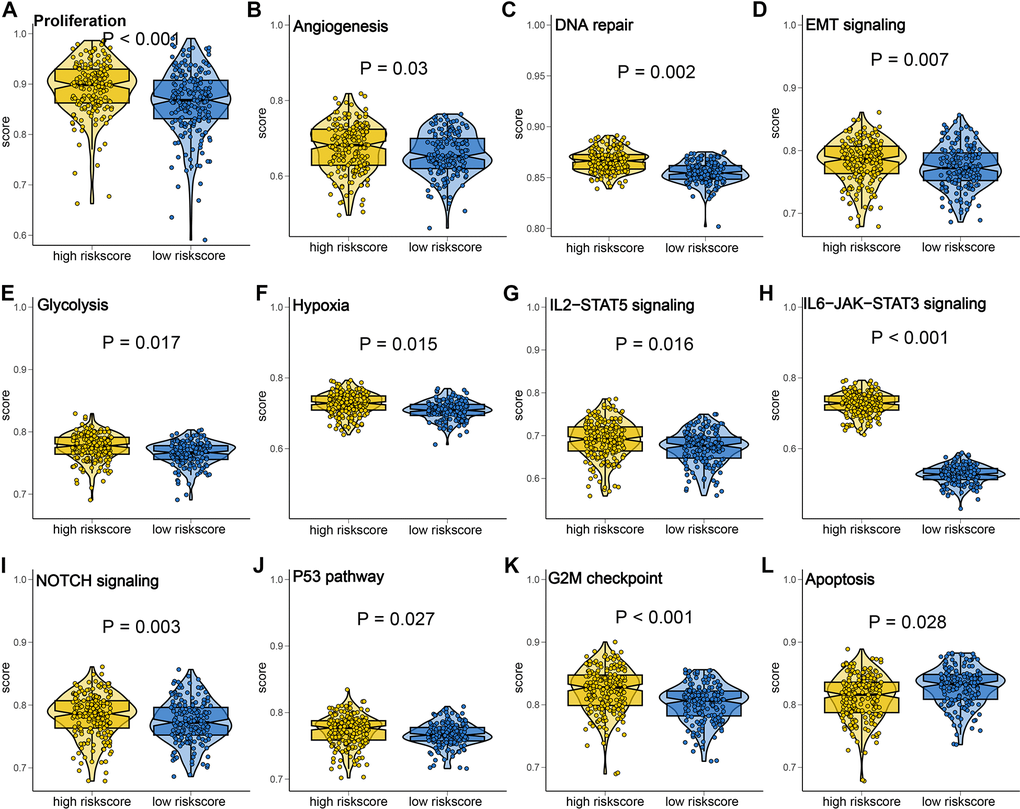

Figure 3. Gene set enrichment analysis of PI3K/Akt pathway related signature (PRS). The gene score of hallmark gene sets correlated with proliferation (A), angiogenesis score (B), DNA repair score (C), EMT signaling score (D), Glycolysis score (E), Hypoxia score (F), IL2-STAT5 signaling score (G), IL6-JAK-STAT3 signaling score (H), NOTCH signaling score (I), P53 pathway score (J), G2M checkpoint score (K) and apoptosis (L) in low and high risk score.

The correlation between PRS and tumor microenvironment (TME) in ovarian cancer

Tumor immune landscape could be clustered into six different types, including wound healing (C1), IFN-g dominant (C2), inflammatory (C3), lymphocyte depleted (C4), immunologically quiet (C5) and TGF-b dominant (C6) [21]. As shown in Figure 4A, C2 ranked most of TCGA ovarian cancer cases in both low and high risk group. However, the proportion of C4 in high risk group was significantly higher than that in low risk group (Figure 4A, p=0.001). With several algorithms including CIBERSORT, MCPcounter, QUANTISEQ, XCELL, CIBERSORT-ABS, TIMER and EPIC, we provided insights into the immune landscape in low and high risk groups to avoid inaccuracy and bias caused by the use of a single algorithm. Significant negative correlation was obtained between risk score and the abundance of most immune cells (Figure 4B). As expected, negative correlation was obtained between risk score and the abundance of most immune cells (Figure 4C, all p<0.05). As expected, low risk score indicated a higher ESTIMATE score and Immune score in ovarian cancer (Figure 4C, all p<0.05). In CIBERSORT algorithm, ovarian cancer with low risk score had a higher level of aDcs, B cells, CD8⁺ T cells, DCs, neutrophils, NK cells, pDCs, T helper cells, Tfh, Th1 cells, Th2 cells, TIL and Treg (Figure 4D). Moreover, low risk score was associated with a higher score of immune related functions in ovarian cancer, including APC_co_inhibition and stimulation, cytolytic activity, MHC cluss I, parainflammation, T cell co_inhibition, and type_I_IFN_reponse (Figure 4E, all p<0.05). Low risk score indicated a higher level of most of HLA-related genes (Figure 4F, p<0.05) and immune checkpoints (Figure 4G, p<0.05) in ovarian cancer patients. These results suggested that low risk score may be a relatively “hot” tumor phenotype compared with high risk score in ovarian cancer.

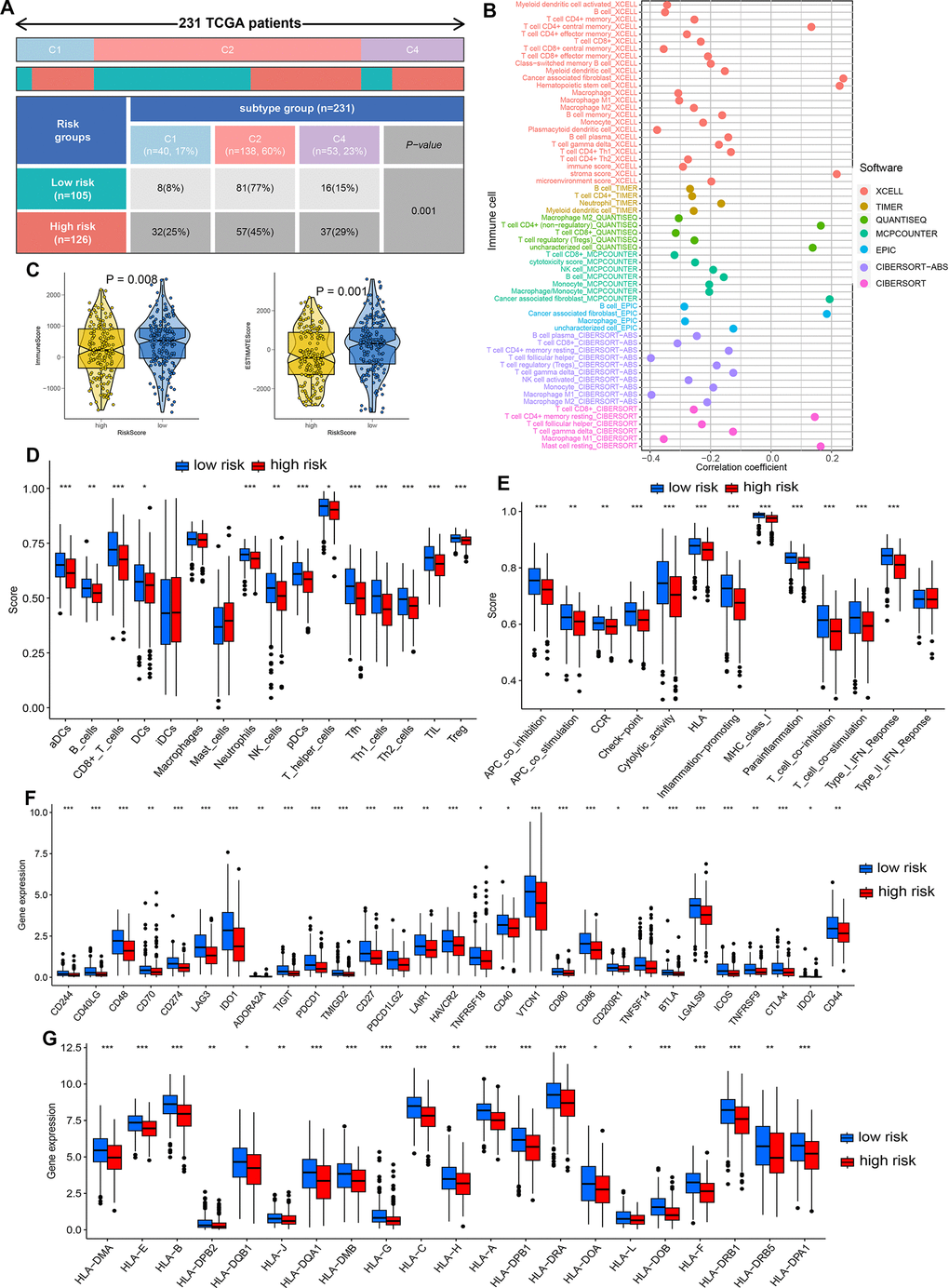

Figure 4. Dissection of PI3K/Akt pathway related signature (PRS)-based tumor microenvironment (TME). (A) Tumor immune landscape in ovarian cancer with high and low risk score. (B) Correlation between PRS and immune infiltration in ovarian cancer. (C) The TME score difference in different risk score group of ovarian cancer. The difference of the score of immune cells (D), immune-related functions (E), immune checkpoint (F), HLA-related genes (G) in different risk score group of ovarian cancer. *p<0.05, **p<0.01, ***p<0.001.

Assessment of response to immunotherapy and chemotherapy between high and low risk score group

The above clarified the significant correlation between risk score and TME and the results suggested that ovarian cancer with low risk score may be a relatively “hot” tumor phenotype. Thus, we then explored whether risk score could predict the response to immunotherapy in ovarian cancer. As shown in Figure 5A, 5B, ovarian cancer with high risk score had a higher score of immune escape (Figure 5A, p<0.001) and immune surveillance (Figure 5B, p<0.001). Higher TIDE score and low IPS scores indicate higher immune escape potential and lower immunotherapy response rates. In our study, high risk score indicated a higher TIDE score (Figure 5C, p=0.005) and T cell exclusion score (Figure 5D, p<0.001) in ovarian cancer. IPS was a superior predictor of response to anti-CTLA-4 and anti-PD-1antibodies and high IPS indicated a better response to immunotherapy [22]. The results suggested that ovarian cancer with low risk score had a higher CTLA4 IPS, PD1 IPS and CTLA4/PD1 IPS (Figure 5E, all p<0.05). These results suggested that ovarian cancer patients with low risk score may be more sensitive to immunotherapy. In order to verify these results, we then used two immunotherapy cohorts, including IMvigor210 cohort and GSE91061 cohort. As shown in Figure 5F, patients in CR/PR group had a significant lower risk score, with an AUC of 0.83 in ROC curve (p=0.005). Interestingly, high risk score was associated with a poor OS rate, with 1-, 2-, and 3-year AUCs of 0.706, 0.712, and 0.718 (Figure 5G). Similar results were obtained in IMvigor210 dataset, which showed that CR/PR group indicated a lower risk score, with an AUC of 0.75 in ROC curve (Figure 5H, p=0.004). And patients with high risk score had a poor OS rate, with 1-, and 2- year AUCs of 0.627, 0.846 (Figure 5I, p<0.001). These evidences may suggest that ovarian cancer patients with low risk score may be more sensitive to immunotherapy and PRS may be an indicator for immunotherapy response. We then estimated the IC50 value of drugs correlated with chemotherapy and endocrinotherapy between high and low risk score group in order to guide clinical treatment in ovarian cancer. The result suggested that low risk score group tended to benefit from chemotherapy with 5-Fluorouracil, Cisplatin, Cyclophosphamide, Docetaxel, Epirubicin, Gemcitabine, Olaparib, Oxaliplatin, Topotecan, Tamoxifen, Erlotinib and Foretinib (Supplementary Figure 6A–6L, all p<0.05).

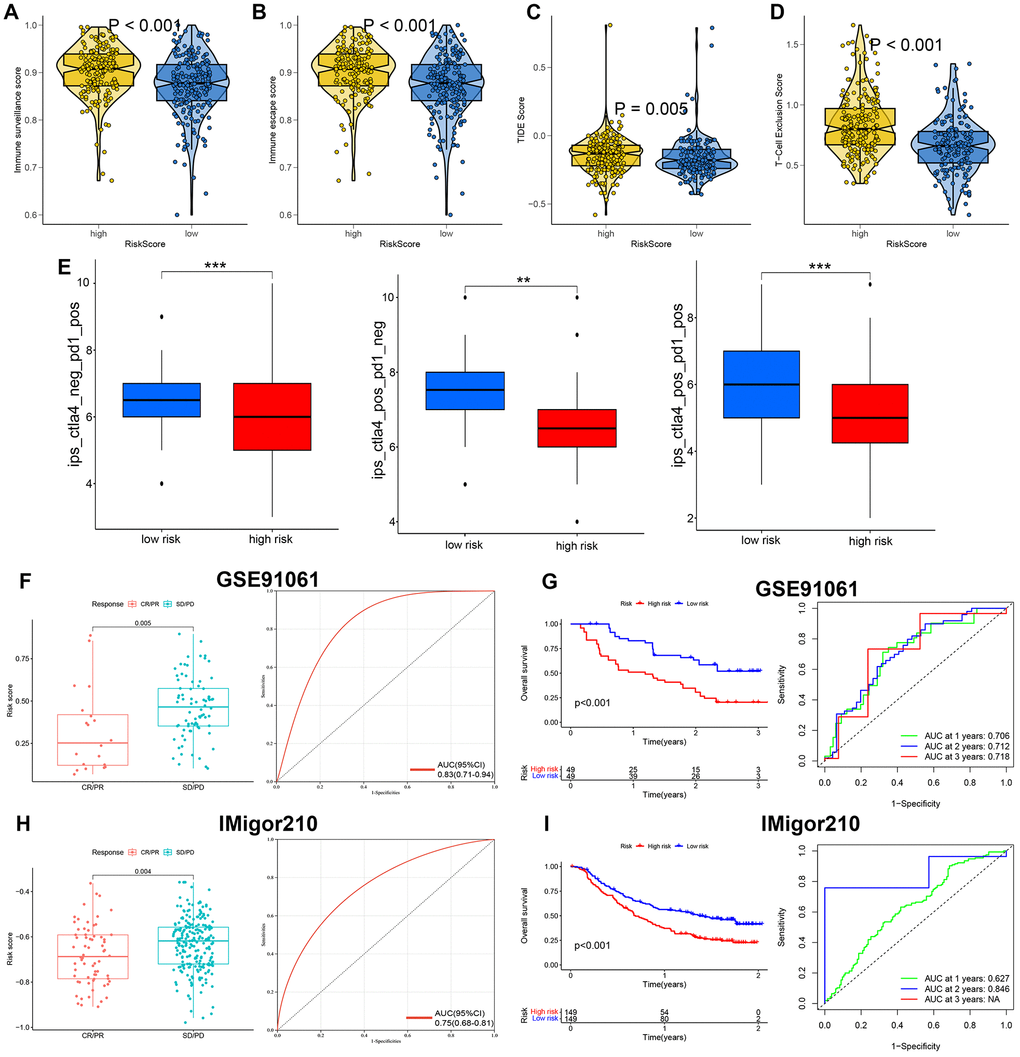

Figure 5. PI3K/Akt pathway related signature (PRS)-based treatment strategy for ovarian cancer. The level of immune surveillance score (A), immune escape (B), TIDE score (C), T cell exclusion score (D), and immunophenoscore (E) in ovarian cancer patients with high and low risk score. The risk score in CR/PR and SD/PD group and corresponding ROC curve in GSE91061 dataset (F). The OS curve and corresponding ROC curve in patients with high and low risk score in GSE91061 dataset (G). The risk score in CR/PR and SD/PD group and corresponding ROC curve in IMvigor210 dataset (H). The OS curve and corresponding ROC curve in patients with high and low risk score in IMvigor210 dataset (I). **p<0.01, ***p<0.001.

The correlation between PRS and mutation landscape in ovarian cancer

As genetic mutation played a vital role in tumor genesis and progression. We then compared the difference of mutation landscape in high and low risk score group. Supplementary Figure 7A, 7B showed the mutation landscape of ovarian cancer in these two groups. Patients in low risk score group had a higher tumor mutational burden (TMB) score (Supplementary Figure 7C, p=0.001). Moreover, further prognostic analysis revealed that high TMB score and high risk score were associated with a poor OS rate (Supplementary Figure 7D, 7E, p<0.001).

High-resolution scRNA-seq revealed the immune landscape of ovarian cancer

A total of 5 normal tissues and 7 ovarian cancer tissues were analyzed to characterize the immune landscape in ovarian cancer. As shown in Figure 6A, all the cells in these tissues could be clustered into 7 subtypes, including T cells, Smooth muscle cells, NK cell, Fibroblasts, Macrophage, NK cell, and Endothelial cells and Monocyte. We then explored the fraction of different immune cell types in each sample, revealing that different immune cell types varied significantly among different samples (Figure 6B). To be specific, T cells were prevalent in tumor tissues while smooth muscle cells were predominant in normal tissues (Figure 6B). Compared with normal tissues, ovarian tissues had a high PRG score (Figure 6C). With the progression of ovarian cancer, the PRG score was increasing (Figure 6D). These results further revealed that the activation of PI3K/ATK signaling participated in the tumor progression and shortened prognosis in ovarian cancer patients. As cancer-associated Fibroblast (CAF) plays a vital role in tumor progression. We then collected Fibroblast in tumor for further analysis. Using t-SNE analysis, CAF were categorized as myCAF and iCAF cells (Figure 6E). Further analysis revealed a different trajectory between different pseudotime, state, and cell subtypes in the development trajectory analyses of CAF cells (Figure 6F–6H). Figure 6I revealed the expression of PRG in different state of CAF cells.

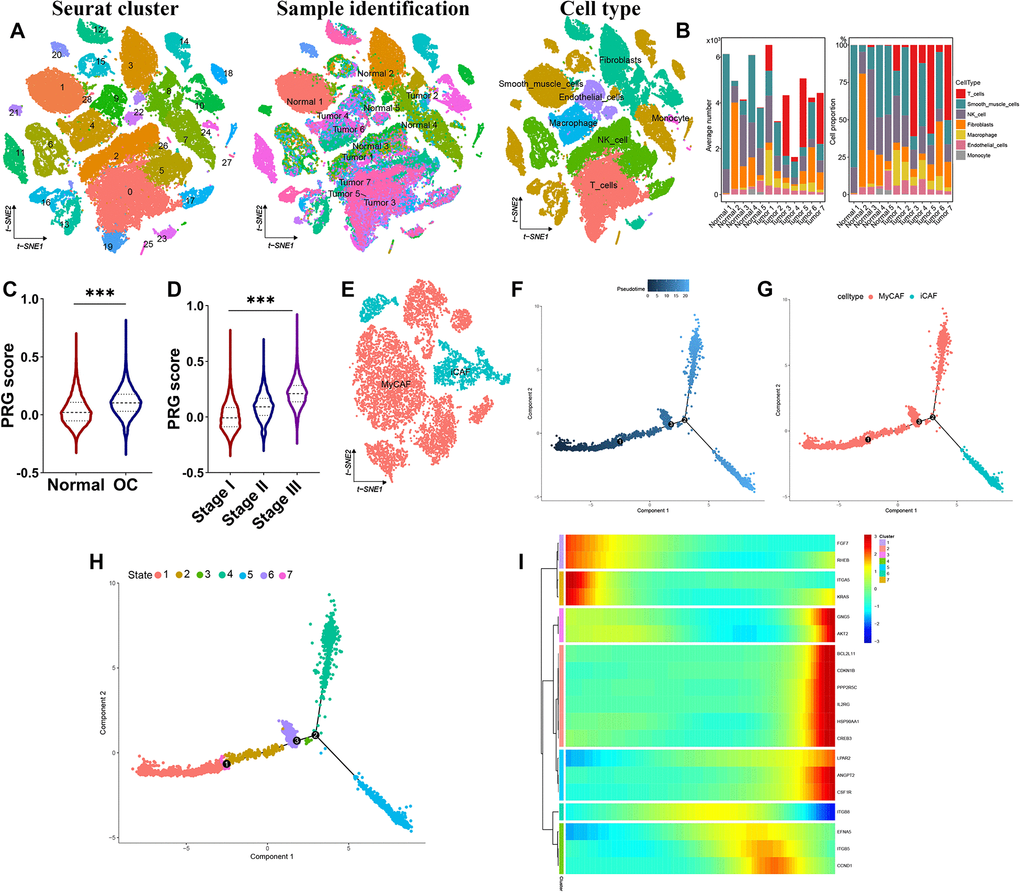

Figure 6. High-resolution revealing immune landscape of ovarian cancer. (A) t-SNE plot showing the identified cell types of all ovarian cancer and normal sample. (B) Fraction of cell types originating from each sample. (C, D) PI3K/Akt pathway related signature score in normal sample and ovarian cancer tissues. (E) Further sub-cell types of CAF cells. (F–H) Developmental trajectory of CAF cells inferred by monocle, colored by pseudotime, cell subtype and state. (I) Heatmap of the expression of PI3K/Akt pathway related signature genes in the developmental trajectory of CAF cells state. ***p<0.001.

Cell communication network analysis in ovarian cancer

We studied the signaling pathway that allowed multiple cells to interact with each other during tumorigenesis in order to illustrate how these cells regulate tumorigenesis. The number and strength of interactions were shown in Supplementary Figure 8A. We then focus on interaction number and weights/strength of CAF cells with other cell types. The CAF cells were strongly linked with smooth muscle cell, endothelial cells and Monocyte (Supplementary Figure 8B). Further analysis revealed that PRS genes were involved in FGF signaling network in ovarian cancer. FGF signaling could be activated CAF-CAF interaction (Supplementary Figure 8C, 8D). In FGF signaling, FGF7 and FGFR1 was the ligand and receptor, respectively (Supplementary Figure 8E). FGF7 from CAFs may interact with those smooth muscle cell, endothelial cells and Monocyte have FGFR1 expression (Supplementary Figure 8F).

ceRNA network

The above results revealed that FGF7 may play a vital role in the progression of ovarian cancer. We then explore their upstream targets using several databases. As showed in Supplementary Figure 9A, miR-132-3p, miR-195-5p and miR-18b-5p were suggested as potential miRNA targets of FGF7 based on the result of TargetScan, ENCORI, miRDB, RNAIter, TargetMiner, RNA22, miRwalk. We then explored the upstream circRNAs interacting with miR-132-3p, miR-195-5p and miR-18b-5p. As a result, a total of 91 circRNAs were obtained. The circRNA-miRNA-mRNA network was showed in Supplementary Figure 9B.

Author Contributions

Xiaofang Han performed data analysis work and aided in writing the manuscript. Xiaofang Han and Liu Yang designed the study, assisted in writing the manuscript. Hui Tian and Yuanyuan Ji edited the manuscript. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

Funding

This study was funded by the Natural Science Foundation of Shanxi Province (201901D111443).
