Value of KPNA4 as a diagnostic and prognostic biomarker for hepatocellular carcinoma

Correlation of KPNA4 expression with immune cells in HCC

The TIMER database was used to examine the correlation between KPNA4 and immune infiltration, and it could be found that the levels of infiltration of CD8⁺ T cells, B cells, dendritic cells, CD4⁺ T cells, and neutrophils and macrophages were positively associated with KPNA4 levels (Figure 1A, all P < 0.05).

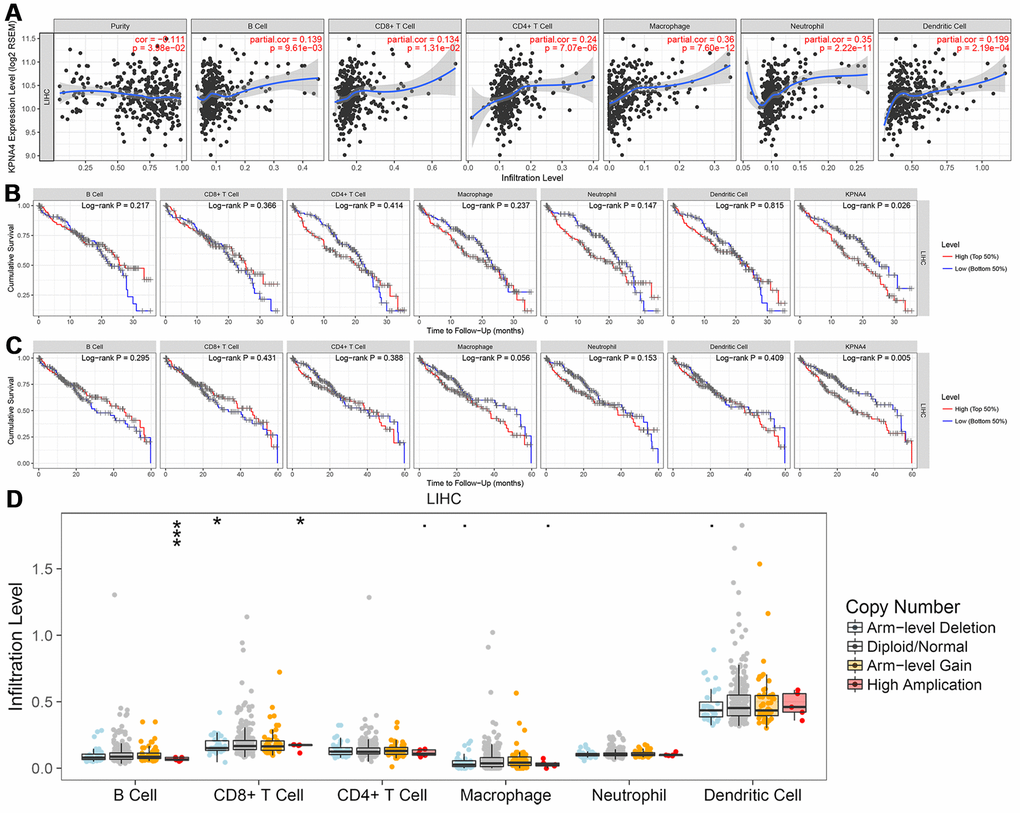

Figure 1. Correlation between KPNA4 expression and immune infiltration in HCC. (A) The correlation between KPNA4 expression and immune infiltrations in HCC. (B, C) 3-year and 5-year survival analysis of immune infiltrations and KPNA4 expression in HCC patients. (D) Somatic copy number alterations analysis of infiltrated immune cells in HCC.

Then, we used multivariable Cox regression to determine the clinical relevance of immune cell levels with respect to clinical parameters and KPNA4 expression. The results showed that tumor stage, macrophage, and dendritic cell levels, and KPNA4 expression were all significant risk factors for a poor prognosis and KPNA4 expression was an independent factor that influenced 3-year and 5-year survival rates (Figure 1B, 1C and Table 1).

Somatic copy number alteration (SNCA) analysis indicated that high amplification category of infiltrated B cells in HCC was significantly different with that in normal samples, arm-level deletion and high amplification of infiltrated CD8⁺ T cells were the two categories which significantly altered in HCC (Figure 1D). In addition, we used the GEPIA database to examine correlations of KPNA4 and T cell exhaustion markers PD-1 (PDCD1), GZMB, LAG3, and CTLA4 in cancerous tissues, and to examine the correlation between KPNA4 and PDL1 (CD274). The results indicated a positive correlation between KPNA4 expression and CTLA4, GZMB, and PDL1 expressions in cancerous tissues (Figure 2A, 2B, 2E, all P < 0.05), but no significant correlations with other markers (Figure 2C, 2D).

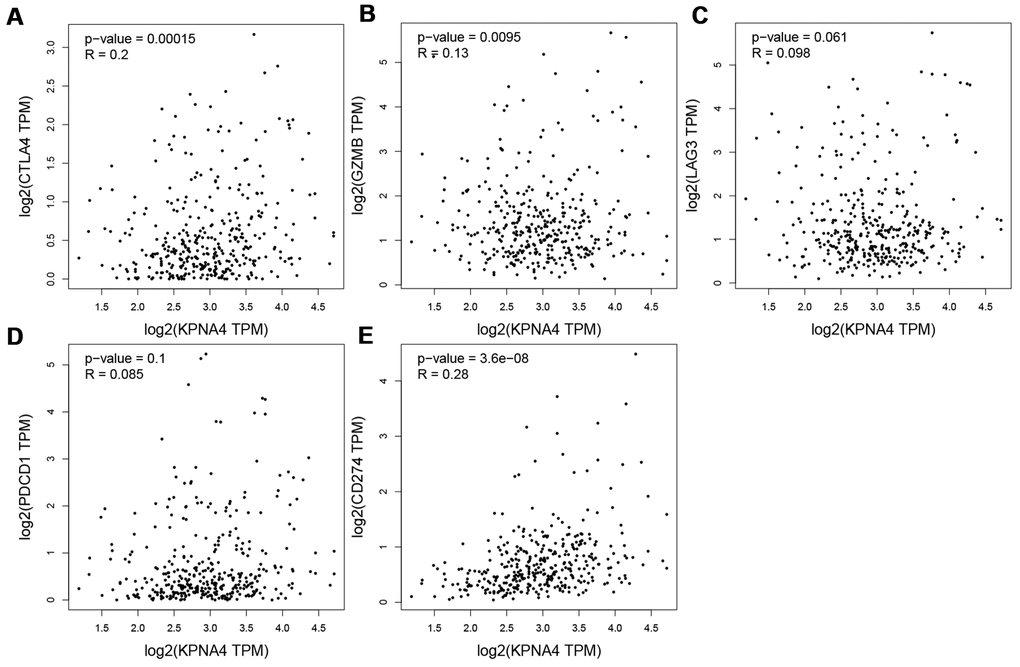

Figure 2. Correlation between KPNA4 expression and T cell exhaustion in HCC. (A–E) Correlation analysis between KPNA4 and related gene markers (CTLA4, GZMB, LAG3 and PDCD1) of T cell exhaustion and PDL1 (CD274) expression.

KPNA4 expression in the HPA and co-expression networks in HCCDB

Figure 3A showed the KPNA4 expression features in the HPA, and a relatively low mRNA level could be found in normal liver tissues compared with other organ tissues. Next, we used this database to determine the difference of KPNA4 mRNA expression in various cancers, and found that HCC is the lowest expression type among them (Figure 3B). However, as shown in Figure 3C, 3D, KPNA4 protein expression in the liver presents a higher level compared with that in other organs. In addition, in A-431, PC-3, and U-2 OS cell lines, it could be seen that KPNA4 localization was enriched in the nucleus (Supplementary Figure 1).

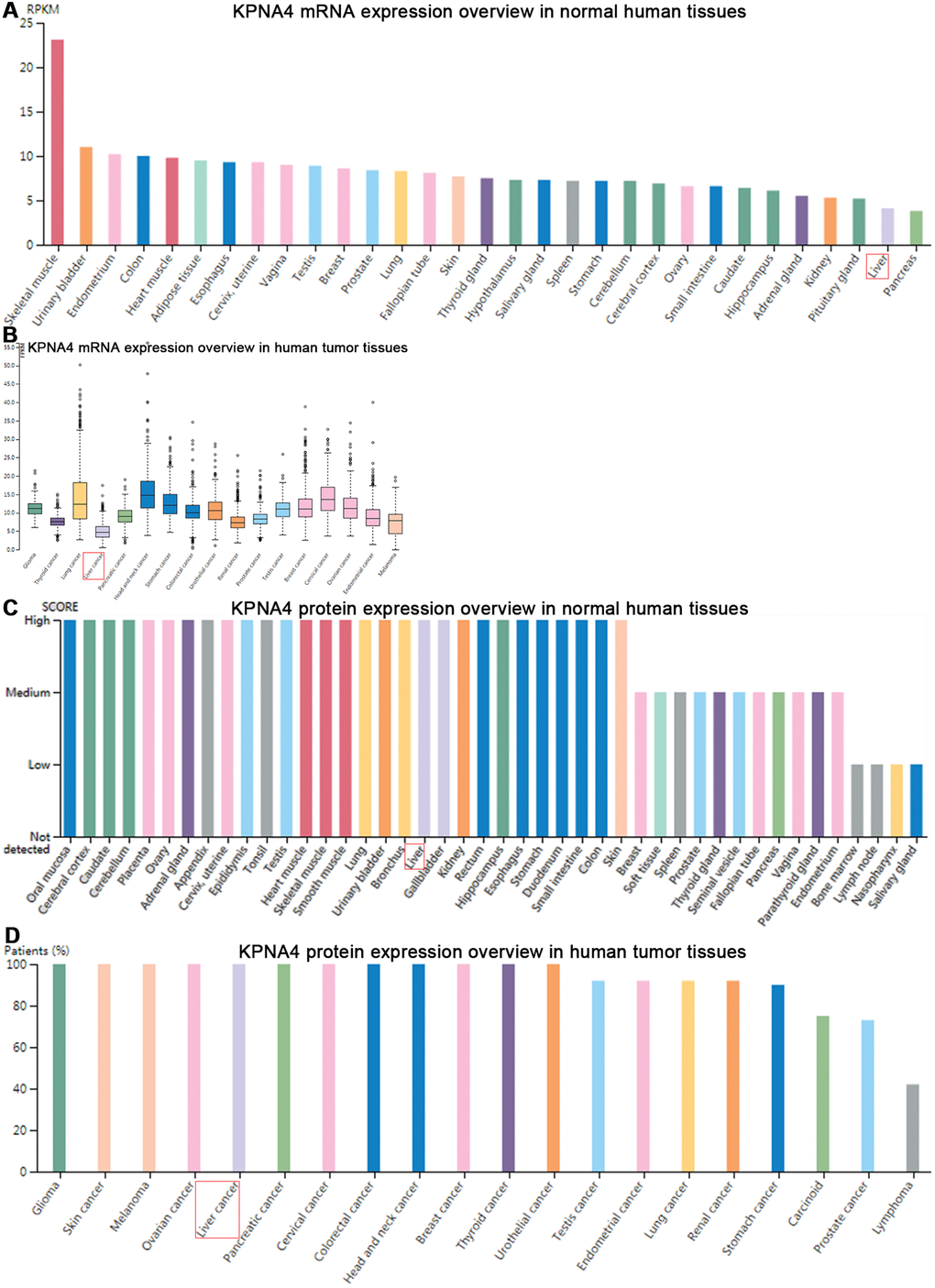

Figure 3. Gene and protein expression profiles of KPNA4 in human normal and tumor tissues in HPA database. (A) mRNA expression data from the GTEx project. (B) Gene expression in common human tumor tissues. (C) Protein expression of normal tissues in different organs. (D) Protein expression overview in common tumors.

The KPNA4 expression overview among various tissues was illustrated with a radar chart. As shown in Figure 4A, KPNA4 expression in normal liver tissue was lower than that in other normal tissues (liver/other normal: logFC = -0.80); similarly, in HCC tissue, the level was lower than other cancerous samples (HCC/all tumor: logFC = -0.40). However, when compared with adjacent normal liver tissue, it could be found that KPNA4 level was much higher in HCC (logFC = 0.21).

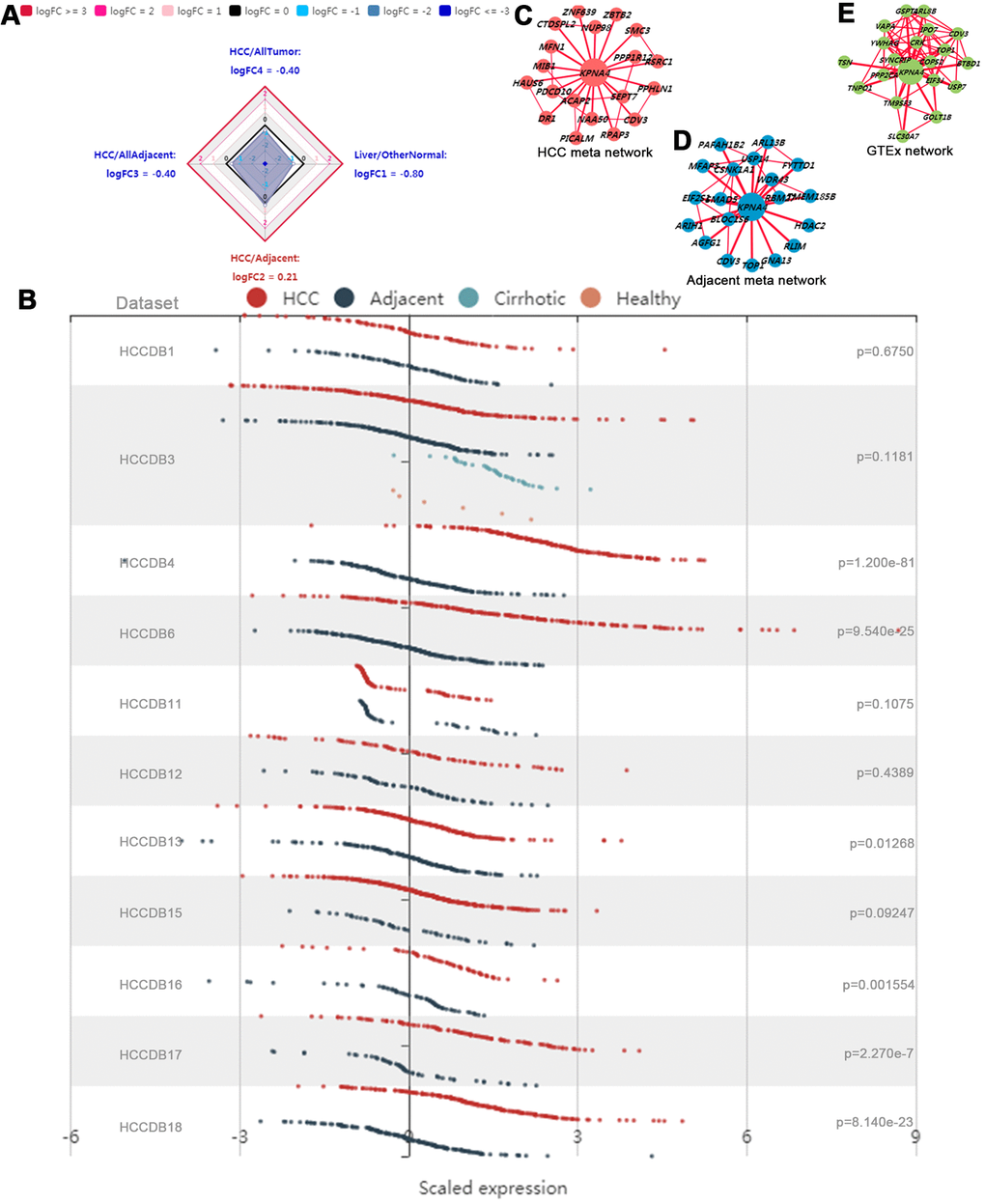

Figure 4. Gene expression profiles in HCCDB database. (A) Radar map of KPNA4 overall expression among different types of tissues. (B) The differential expression of KPNA4 in different liver cancer datasets. The coexpression networks of KPNA4 in HCC tissues (C), adjacent liver tissues (D) and normal tissues from the GTEx project (E) showed that different liver tissues expressed different coexpression networks.

Next, KPNA4 differential expressions were explored in 11 datasets from the HCCDB. It could be found that KPNA4 level in HCC was much higher than that in adjacent liver tissue among 6 of 11 datasets (HCCDB4, HCCDB6, HCCDB13, HCCDB16, HCCDB17 and HCCDB18) (Figure 4B). Results of the KPNA4 co-expression networks indicated there have been vastly different co-expression modes among different tissues (HCC tissue, adjacent tissue, and normal liver tissue) (Figure 4C–4E).

Association of KPNA4 expression with clinical parameters and influence on patient survival

As indicated above, the expression of KPNA4, at both mRNA and protein levels, was much higher in HCC samples than normal samples. Next, we employed the UALCAN database to determine the correlations between KPNA4 and clinical indices. As shown in Figure 5A, KPNA4 mRNA expression was higher in HCC than that in normal samples, and meanwhile there have been a higher level in HCC patients than healthy individuals (Figure 5B). Besides, patients > 21 years old generally had higher KPNA4 level compared to those < 21 years old healthy individuals (Figure 5C). However, KPNA4 expression was not correlated with patient weight (Figure 5D). Lastly, tumor stage and grade were analyzed in HCC patients, and it can be found that increased KPNA4 mRNA expression was associated with higher tumor stage and grade (Figure 5E, 5F).

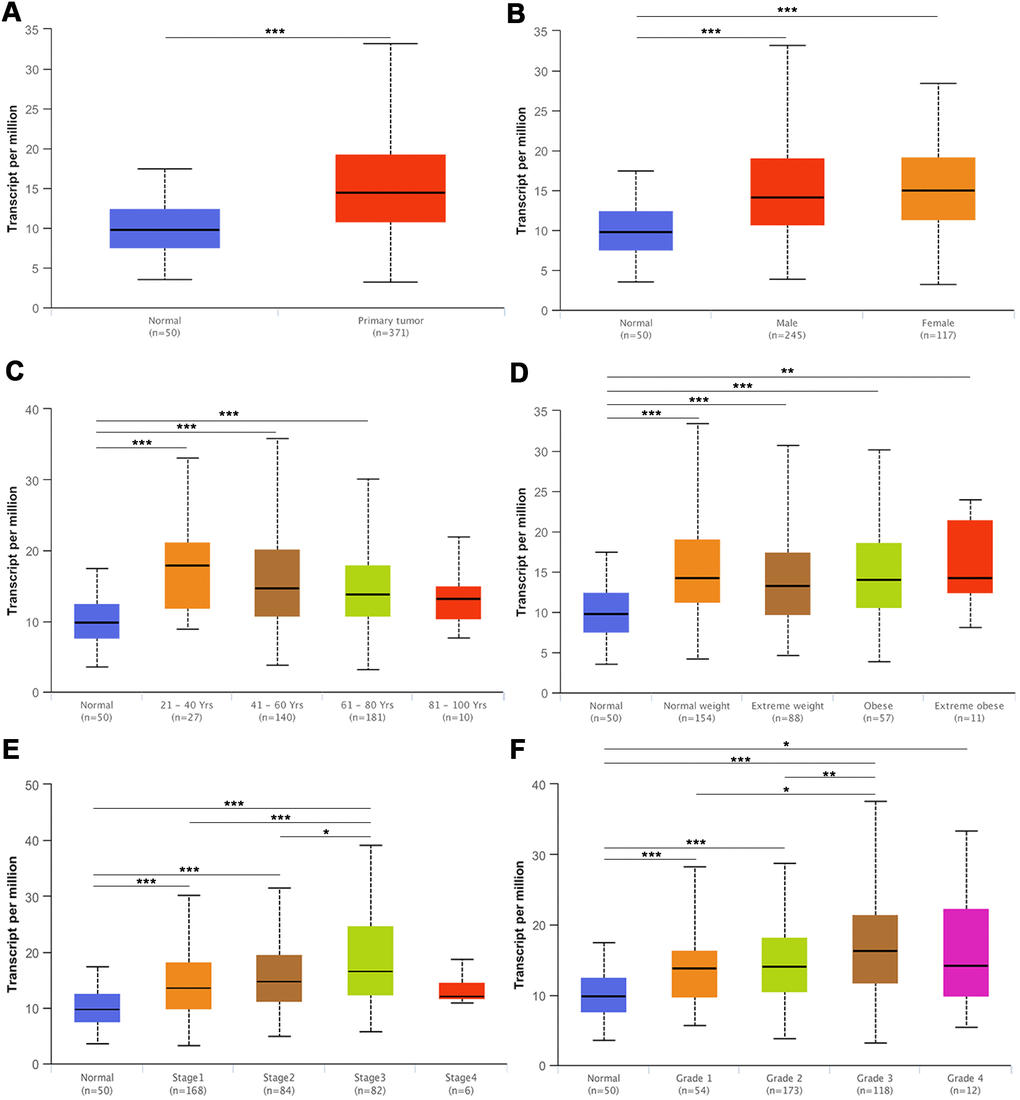

Figure 5. The mRNA expression of KPNA4 in the UALCAN database. (A) The mRNA expression level of KPNA4 was significantly higher in cancer tissues than in normal tissues. (B) The expression level of KPNA4 in HCC patients was higher than that in healthy people and was not associated with gender. (C) Patients (age > 21 years old) commonly had higher gene expression than young healthy people. (D) The expression level of KPNA4 was not correlated with patient weight. The expression level of KPNA4 was positively correlated with tumor stage (E) and tumor grade (F) in HCC. * represents P < 0.05, ** represents P < 0.01, *** represents P < 0.001.

As shown in Figure 6A, 6B, KPNA4 expressions in normal samples were lower compared with HCC samples. Then, Kaplan-Meier plotter was used to examine the correlation between KPNA4 and patient survival, and it could be concluded that KPNA4 expression was negatively correlated with patient survival (Figure 6C, hazard ratio (HR) = 1.86, 95% confidence interval (CI): 1.29-2.7, P = 0.00076). Furthermore, we performed a survival analysis in the HPA to confirm our findings, and the results were consistent with those presented above (Figure 6D).

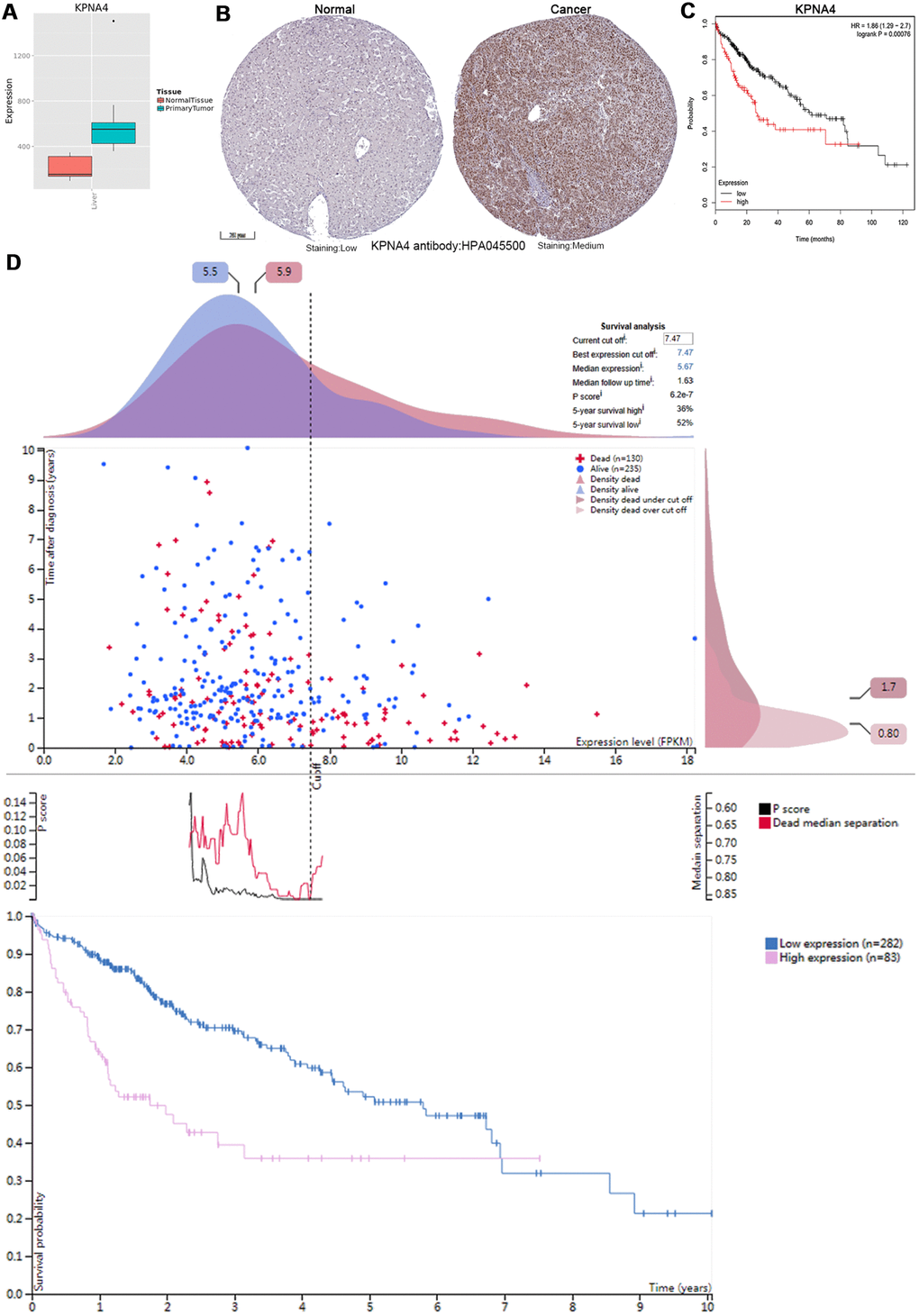

Figure 6. KPNA4’s expression and prognostic value in HCC patients. (A) The mRNA expression level of KPNA4 was significantly higher in cancerous tissues than in normal tissues in the Metabolic gEne RApid Visualizer. (B) Representative immunohistochemistry images from the HPA with the KPNA4 antibody: HPA045500, cancerous tissue had higher staining than normal liver tissue. (C) High KPNA4 mRNA expression was significantly associated with poor OS in HCC patients from the Kaplan-Meier plotter. (D) Prognostic value of the KPNA4 level in HCC patients from the HPA.

KPNA4 expression is an independent risk factor for the prognosis of HCC patients

Firebrowse website (http://firebrowse.org/api-docs/) was used to download data of KPNA4 expression and clinical parameters, and after obtaining the data, Cox survival analysis was performed. By examining data integrity and professional screening, we included 210 patients with 13 clinical parameters for this analysis (Table 2). Table 3 showed the results of univariate and multivariate analyses, and it could be found that in univariate analysis, body mass index (BMI) (HR = 1.037, 95% CI: 1.007-1.068, P = 0.015), total bilirubin (TB) level (HR = 0.040, 95% CI: 0.004-0.438, P = 0.008), and KPNA4 mRNA level (HR = 1.001, 95% CI: 1.000-1.001, P = 0.027) were identified as significant factors influencing overall survival (OS); age (HR = 1.034, 95% CI: 1.004-1.065, P = 0.026), BMI (HR = 1.037, 95% CI: 1.004-1.070, P = 0.026), TB level (HR = 0.038, 95% CI: 0.002-0.767, P = 0.033), tumor histopathological grade (HR = 1.819, 95% CI: 1.132-2.921, P = 0.013) and KPNA4 mRNA level (HR = 1.001, 95% CI: 1.000-1.002, P = 0.012) were significantly associated with OS in multivariate analysis.

Genetic alterations of KPNA4 and the biological interaction networks in HCC

To examine KPNA4 alterations and the associations with OS in HCC, data from the cBioPortal database was used. And the results indicated that KPNA4 was altered in 39 of 360 (11%) patients; among them, 27 had high KPNA4 mRNA expression (7.74%), 5 had low KPNA4 mRNA expression (1.43%), 4 had KPNA4 amplification (1.15%), 1 had a KPNA4 mutation (0.29%), and 1 patient had multiple alterations (0.29%) (Figure 7A).

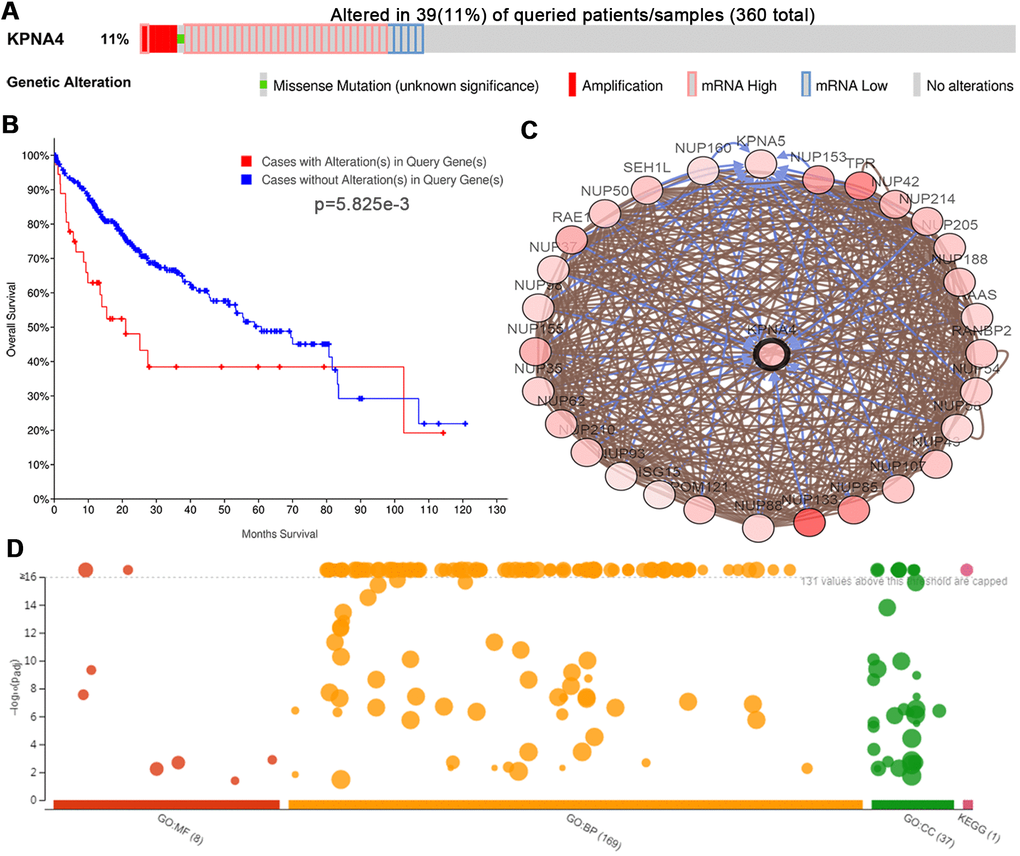

Figure 7. Genetic mutations of KPNA4 and its associations with OS in HCC patients (cBioPortal). (A) Oncoprint of KPNA4 alterations in HCC. The overview of genomic alterations showed that the mutation rate of KPNA4 was 11%. (B) Alterations in KPNA4 poorly affect the prognosis of HCC patients. (C) Network view of KPNA4 and its altered neighboring genes in HCC. (D) GO functional enrichment and KEGG pathway analyses of KPNA4 and its frequently altered neighboring genes.

Kaplan-Meier analysis indicated that the KPNA4 alteration was significantly associated with shorter OS (Figure 7B, P = 5.825e-3). Next, neighboring genes that were significantly associated with KPNA4 alterations were used to analyze the biological interaction in cBioPortal, and Figure 7C showed the network. From the results, it could be found that the top 3 mutant genes were NUP133 (36.4%), TPR (23.1%), and NUP85 (21.1%), respectively (Supplementary Table 1). Then, we used the g:Profiler tool to explore functions of KPNA4 and its frequently altered neighboring genes. As shown in Figure 7D and Supplementary Table 2, cellular components, including the host cell, nuclear pore, nuclear envelope, nuclear membrane and nuclear pore outer ring were significantly associated with KPNA4 alterations. Besides, these alterations were noted to be mainly correlated with tRNA export from the nucleus, non-coding RNA export from the nucleus, transport of virus, multiorganism transport and regulation of the glycolytic process. KPNA4 mutation particularly influenced molecular functions, including the structural constituent of the nuclear pore, structural molecule activity, nuclear localization sequence binding, signal sequence binding and nucleocytoplasmic carrier activity. Lastly, KEGG analysis was performed, and it can be found that KPNA4 mutation in HCC was significantly associated with the RNA transport pathway.

Enrichment analyses of co-expressed genes and kinase, miRNA, and transcription factor targets networks in HCC

To determine the co-expressed genes correlated with KPNA4 in HCC, we employed the LinkedOmics database to perform this analysis. The volcano plot (Figure 8A) illustrated genes which were positively or negatively correlated with KPNA4 (false discovery rate < 0.01). The 50 significant genes which were positively or negatively correlated with KPNA4 were presented by a heat map (Figure 8B, 8C and Supplementary Table 3). Next, the gene set enrichment analysis (GSEA) was used to perform GO term and KEGG analyses, and it could be found that the differentially expressed genes were located primarily in the mitochondria, microbody, respiratory chain, oxidoreductase complex and blood microparticles. These genes were mainly involved in small molecule catabolic processes, the generation of precursor metabolites and energy, fatty acid metabolic processes, RNA localization, and mitochondrial gene expression processes. Moreover, they were involved in cofactor binding, the structural constituents of ribosomes, histone binding, oxidoreductase activity and electron transfer activity (Figure 8D–8F). Finally, enrichment analysis of KEGG showed these genes were primarily involved in ribosome, nonalcoholic fatty liver disease, oxidative phosphorylation, and peroxisome and chemical carcinogenesis pathways (Figure 8G).

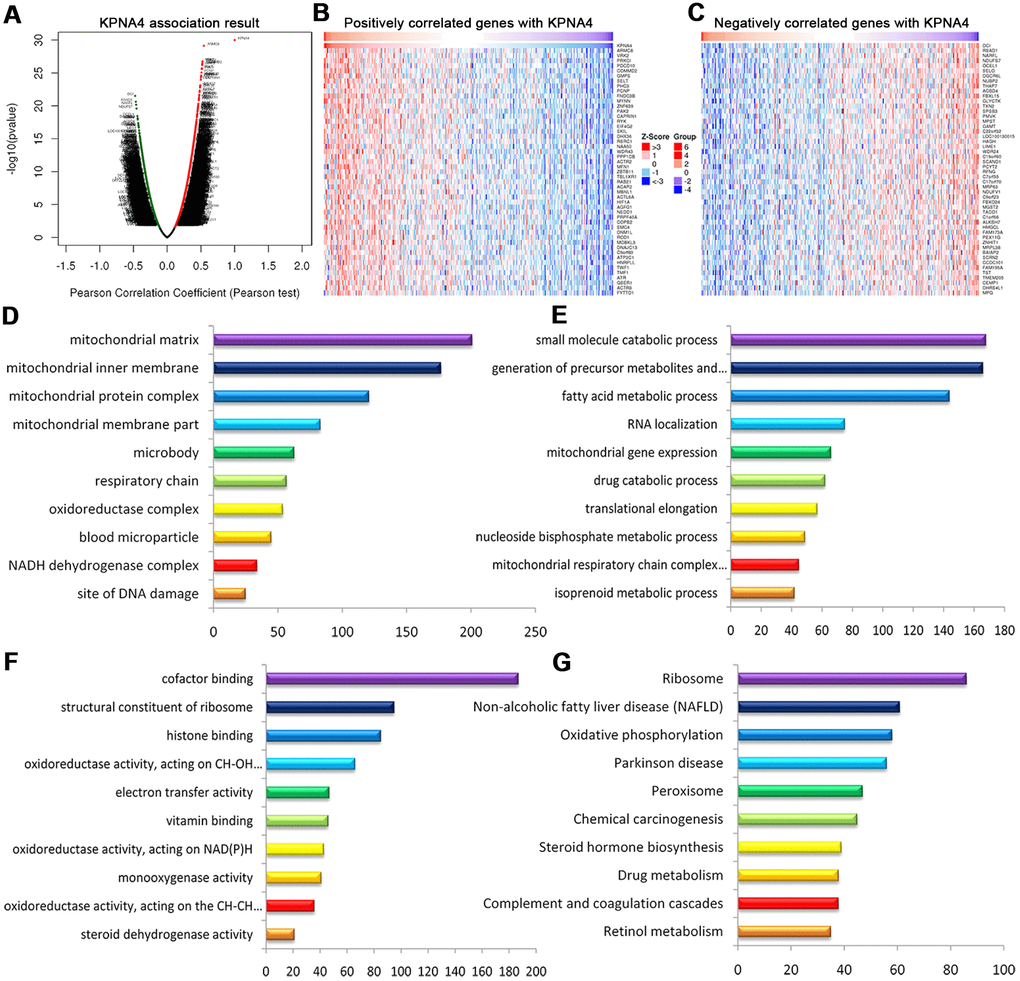

Figure 8. Genes differentially expressed in correlation with KPNA4 in HCC (LinkedOmics). (A) Volcano plot showing genes correlated with KPNA4 through Pearson’s test analysis. (B, C) Heat maps showing the top 50 genes positively and negatively correlated with KPNA4 in HCC; red (positive), green (negative). The significantly enriched GO annotations ((D) cellular components, (E) biological processes, (F) molecular functions) and KEGG pathways (G) of KPNA4 coexpressed genes were analyzed using GSEA.

Furthermore, we constructed the kinase, miRNA and transcription factor target networks by GSEA to explore the targets of KPNA4 in HCC. As indicated in Supplementary Figure 2A, it could be seen that cyclin-dependent kinase 2 (CDK2), CDK1, mitogen-activated protein kinase 1 (MAPK1), ataxia-telangiectasia mutated (ATM), and checkpoint kinase 1 (CHEK1) were the top 5 significant kinase target networks. (GCACTTT) MIR-17-5P, MIR-20A, MIR-106A, MIR-106B, MIR-20B, MIR-519D, (TTTGCAC) MIR-19A, MIR-19B and (TGTTTAC) MIR-30A-5P, MIR-30C, MIR-30D, MIR-30B, MIR-30E-5P were the most significant miRNA target networks (Supplementary Figure 2B). Besides, heat shock transcription factor-like HSF1_01, transcription factor SOX9_B1, and the E2F transcription factor (E2F) family, including E2F_Q4_01, E2F_Q4, and E2F_02 were the main transcription factor target networks (Supplementary Figure 2C).

Expression of KPNA4 is correlated with HCC prognosis

To confirm the conclusions arrived at above, we conducted qRT-PCR assay to measure KPNA4 mRNA level in 40 pairs of HCC tissues and corresponding normal tissues. The clinical features of included cases were concluded in Supplementary Table 4. Our results indicated KPNA4 level was higher in HCC tissue than that in normal tissue (Figure 9A, P < 0.01). Next, western blotting and immunohistochemistry (IHC) assays were used to evaluate KPNA4 protein levels in these samples, and it could be found that KPNA4 protein level was higher in HCC than that in normal tissue (Figure 9B–9D).

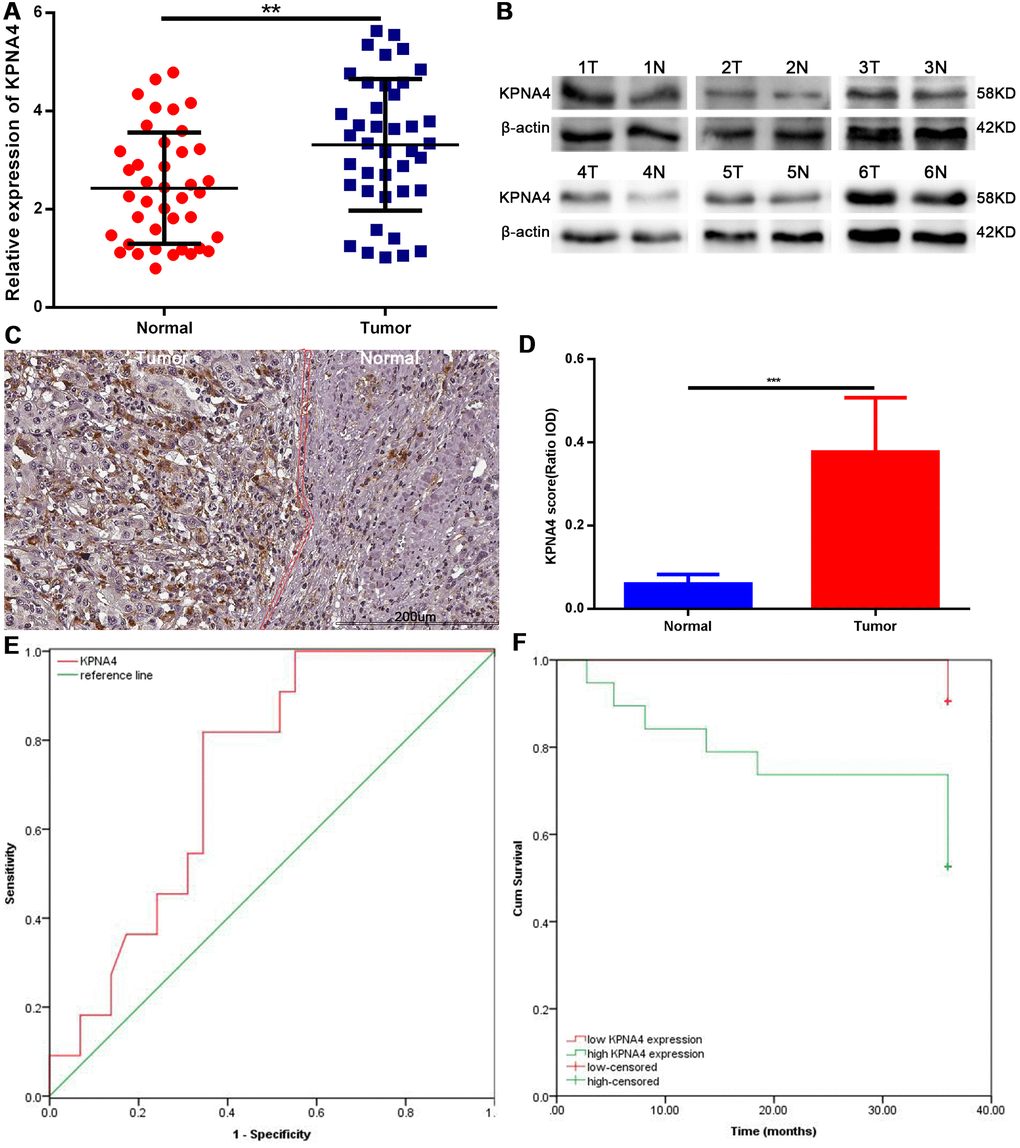

Figure 9. Expression levels of KPNA4 and prognostic values in HCC patients. (A) KPNA4 mRNA level was increased in HCC tissues compared with normal tissues as measured by qRT-PCR. (B) KPNA4 protein level was increased in HCC tissues compared with normal tissues as measured by western blot. (C) KPNA4 expression by immunohistochemistry staining. (D) Semi-quantitative analysis of KPNA4 protein expression between cancerous specimens and non-cancerous parts. (E) ROC of KPNA4 level in HCC showing that elevated KPNA4 level correlated with HCC incidence. (F) High KPNA4 expression level correlated with poor OS.

Finally, we performed the receiver operating characteristic (ROC) curve analysis and Kaplan-Meier analysis to determine potential application value of KPNA4 in HCC; and found that KPNA4 may serve as a biomarker to diagnose HCC (area under the ROC curve [AUC] = 0.726, 95% CI: 0.569-0.882, P = 0.029; Figure 9E), and to predict patient prognosis (Figure 9F, P = 0.005).

Bioinformatics analysis

The Tumor IMmune Estimation Resource (TIMER, https://cistrome.shinyapps.io/timer/) is used to explore the correlation between gene expression and immune infiltration in various cancers [28]. Here, KPNA4 expression was analyzed in HCC patients, and B lymphocytes, CD8⁺ T lymphocytes, CD4⁺ T lymphocytes, macrophages, neutrophils, and dendritic cells were included for the analysis. Multivariable Cox analysis was performed to investigate the clinical relevance of tumor immune subsets with common clinical factors and KPNA4 expression in HCC. The Gene Expression Profiling Interactive Analysis (GEPIA, http://gepia.cancer-pku.cn/) was used to examine the associations of KPNA4 level and markers of T cell exhaustion [29].

KPNA4 expression in human tissues and protein subcellular localization were validated using the Human Protein Atlas (HPA) (https://www.proteinatlas.org) database [30]. In addition, KPNA4 expression was further investigated in the Metabolic gEne RApid Visualizer (MERAV, http://merav.wi.mit.edu) database [31] and the HCCDB database (http://lifeome.net/database/hccdb) [32]. Meanwhile, co-expression networks in HCC tissue, adjacent liver tissue, and normal liver tissue were constructed using the HCCDB.

KPNA4 mRNA expression and its associations with various clinical indicators were explored using the UALCAN database (http://ualcan.path.uab.edu) [33]. Kaplan-Meier plotter (http://kmplot.com/analysis/) analysis was conducted to investigate prognostic value of KPNA4 for HCC patients.

Genetic alterations of KPNA4 in HCC and its correlation with patient survival were analyzed using the cBio Cancer Genomics Portal database (http://cbioportal.org) [34]. In addition, neighboring genes of KPNA4 were then used to perform Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analyses using the g:Profiler database (http://biit.cs.ut.ee/gprofiler/) [35]. The correlated genes, together with KPNA4, were analyzed in HCC using data from a LinkedOmics cohort (n=371) (http://www.linkedomics.org/login.php) [36]. GO, KEGG, kinase-target enrichment, miRNA-target enrichment, and transcription factor-target enrichment analyses of the identified correlated genes were further performed using the Web-based GEne SeT AnaLysis Toolkit (WebGestalt) [37].

Patients and tissue samples

In present study, 40 pairs of HCC tissues and corresponding normal tissues were obtained from HCC patients who underwent hepatectomy at the Third Affiliated Hospital of Sun Yat-Sen University, Guangzhou, China. The protocol of this study was approved by the Ethics Committee of the Third Affiliated Hospital of Sun Yat-Sen University, and each patient has signed the informed consent.

Quantitative reverse transcription- polymerase chain reaction (qRT-PCR)

Total RNA of all clinical samples in our center was extracted using the TRIzol reagent (Invitrogen, Carlsbad, CA, USA). Then, we conducted reverse transcription assays using the GoScript™ System (Promega, Madison, WI, USA). Finally, quantitative polymerase chain reaction (q-PCR) analysis was performed using SYBR-green PCR Master Mix and a Roche PCR 480 system (Roche Applied Science, Germany). The following primer sequences for this assay were used: KPNA4 (forward): 5′-CAGGAGATTCTTCCAGCCCTTTGTGT-3′ and (reverse): 5′-ATTACCATCTGTATTTGTTCATTGCCAGCATC-3′; glyceraldehyde 3-phosphate dehydrogenase (GAPDH) (forward): 5′-GGAGCGAGATCCCTCCAAAAT-3′ and (reverse): 5′- GGCTGTTGTCATACTTCTCATGG-3′.

Western blotting

Total protein was extracted using an EpiQuik Nuclear Extraction Kit (Epigentek, Farmingdale, NY, USA). A BCA Protein Assay Kit (Pierce, Rockford, IL, USA) was used to quantify the protein concentration. Equal protein quantities were separated by 10% SDS-PAGE gel and then transferred onto nitrocellulose membranes (0.2 μm). Incubation of antibodies against KPNA4 (Santa Cruz, CA, USA) and β-actin (Cell Signaling Technology, Danvers, MA, USA) was performed overnight at 4° C. Then, incubation of HRP-conjugated secondary antibody (Abcam, Cambridge, MA, USA) was performed. Finally, an enhanced chemiluminescence kit (ECL; Pierce) was used to visualize target protein expression.

Immunohistochemistry (IHC) analysis

IHC assays were performed using formalin-fixed HCC tissue samples which was embedded in 4-μm-thick paraffin sections. The sections were incubated with antibody against KPNA4 (Santa Cruz,CA, USA) overnight at 4° C, and then the secondary antibody (Abcam) for 1 h at room temperature. ImagePro Plus 6.0 software was used to perform semiquantitative scoring of the images.

Cox regression analysis

Cox proportional hazards regression models were adopted to determine the association of KPNA4 expression with patient survival. The SPSS version 22.0 software was used in this study, and differences were considered significant with values of P < 0.05.
