Nicotinamide phosphoribosyltransferase postpones rat bone marrow mesenchymal stem cell senescence by mediating NAD⁺–Sirt1 signaling

Senescence-associated alterations in MSCs at late passage are associated with reduced Nampt expression and attenuated NAD⁺-Sirt1 signaling

In the present study, we generated senescent MSCs via serial expansion in vitro. Rat MSCs at early passage (EP, P3) and late passage (LP, P10) displayed obvious morphological differences. MSCs at EP grew well and exhibited the elongated spindle shapes, whereas MSCs at LP displayed senescence-like morphology with irregular shapes, enlarged and flattened cell bodies, and noticeable particles in the cytoplasm. Quantitative analysis of cell morphology revealed that the cell aspect ratio gradually decreased, whereas the cell surface area progressively increased with passages (Fig. 1A). Senescence-associated-β-galactosidase (SA-β-gal) staining is the most widely used method for assessing senescence [24–26]. As shown in Fig. 1B, a small number of blue-stained MSCs were observed at EP, whereas this population was augmented at LP. Quantitative analysis indicated that the ratio of SA-β-gal-positive cells in LP MSCs was significantly elevated when compared to that in EP MSCs. These results demonstrated that LP MSCs displayed the senescent changes unlike EP MSCs, and replicative senescence occurred with increasing passages.

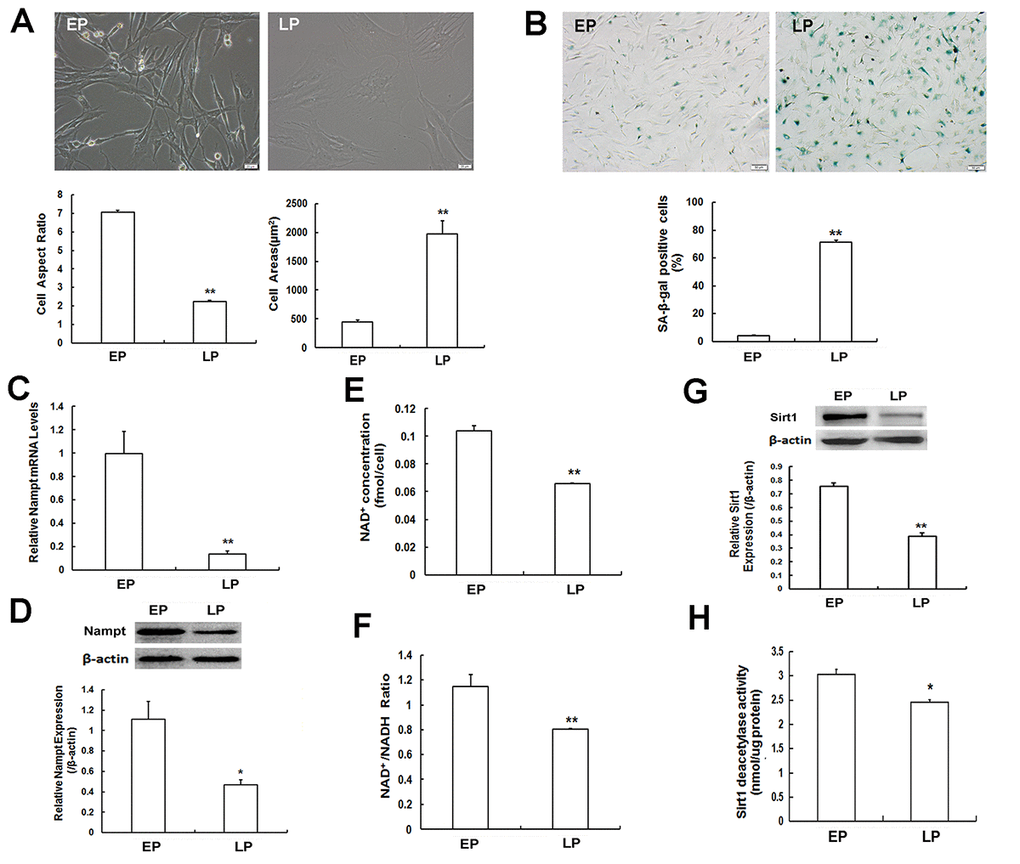

Figure 1. Senescence-associated variations in mesenchymal stem cells (MSCs) and measurement of Nampt expression and NAD⁺-Sirt1 signaling. (A) Morphological characteristics of young MSCs at early passage (EP, P3) and replicative senescent MSCs at late passages (LP, P10) (Scale bar = 20 μm) and analysis of cell aspect ratio and cell surface area. (B) SA-β-gal staining (scale bar = 50 μm) and quantitative analysis of SA-β-gal-positive cells. (C) Nampt mRNA expression determined by RT-qPCR. (D) Nampt protein expression determined by western blotting. (E, F) Detection of intracellular NAD⁺ concentration (E) and NAD⁺/ NADH ratio (F). (G, H) Sirt1 protein expression evaluated by western blotting (G) and detection of Sirt1 deacetylase activity (H); n = 3 independent experiments. *P < 0.05, **P < 0.01.

To determine the potential role of Nampt in MSC replicative senescence, we detected its expression by Real-time quantitative polymerase chain reaction (RT-qPCR) and western blotting. At both mRNA (Fig. 1C) and protein (Fig. 1D) levels, Nampt expression was significantly decreased in LP MSCs compared to that in EP cells. Based on the NAD⁺ world theory, declined Nampt expression is linked to the age-related down-regulation of intracellular NAD⁺ levels and Sirt1 deacetylase activity [27]. Accordingly, we next examined NAD⁺-Sirt1 signaling pathway in both cells. The results indicated that intracellular NAD⁺ content (Fig. 1E), NAD⁺/NADH ratio (Fig. 1F), Sirt1 protein expression (Fig. 1G) and Sirt1 deacetylase activity (Fig. 1H) in LP MSCs were substantially lower than those in EP MSCs. Taken together, our data showed that Nampt might be involved in the regulation of MSC replicative senescence via NAD⁺-Sirt1 signaling.

Nampt depletion induces MSC senescence at early passage

To investigate whether Nampt directly affects MSC senescence, we first evaluated the effect of a specific Nampt inhibitor, FK866, on MSC senescence. We found that at concentrations higher than 12.5 nM, FK866 exerted a cytotoxic effect on young EP MSCs (P3) (data not shown). Therefore, P3 MSCs were treated with 10 nM FK866 in subsequent experiments. In the presence of FK866, P3 MSCs presented senescent morphology with enlarged and flattened cell bodies, blurred cell borders, and clearly visible particles in the cytoplasm (Fig. 2A). The cell aspect ratio was markedly reduced, and the cell surface area was enlarged (Fig. 2A). In addition, cell proliferation declined (Fig. 2B) and the population doubling time (PDT) was significantly prolonged after FK866 treatment (Fig. 2C). Cell cycle analysis revealed that FK866 induced cell cycle arrest in G1 phase, and the S-phase fraction (SPF) and proliferative index (PI) were lower in the FK866 group than those in the vehicle group (Fig. 2D). Multilineage differentiation is one of the most important hallmarks of SCs; therefore, we next tested whether FK866 could influence MSC osteogenic and adipogenic differentiation. After the treatment of FK866, matrix mineralization was reduced as indicated by Alizarin red S staining (Fig. 2E), and lipid droplet formation was diminished as indicated by oil red O staining (Fig. 2F). Quantitative analysis indicated that MSC osteogenesis and adipogenesis were significantly attenuated by the addition of FK866. Furthermore, both SA-β-gal activity (Fig. 2G) and p16^INK4A expression (Fig. 2H) were evidently elevated in the FK866 group compared to those in the vehicle group.

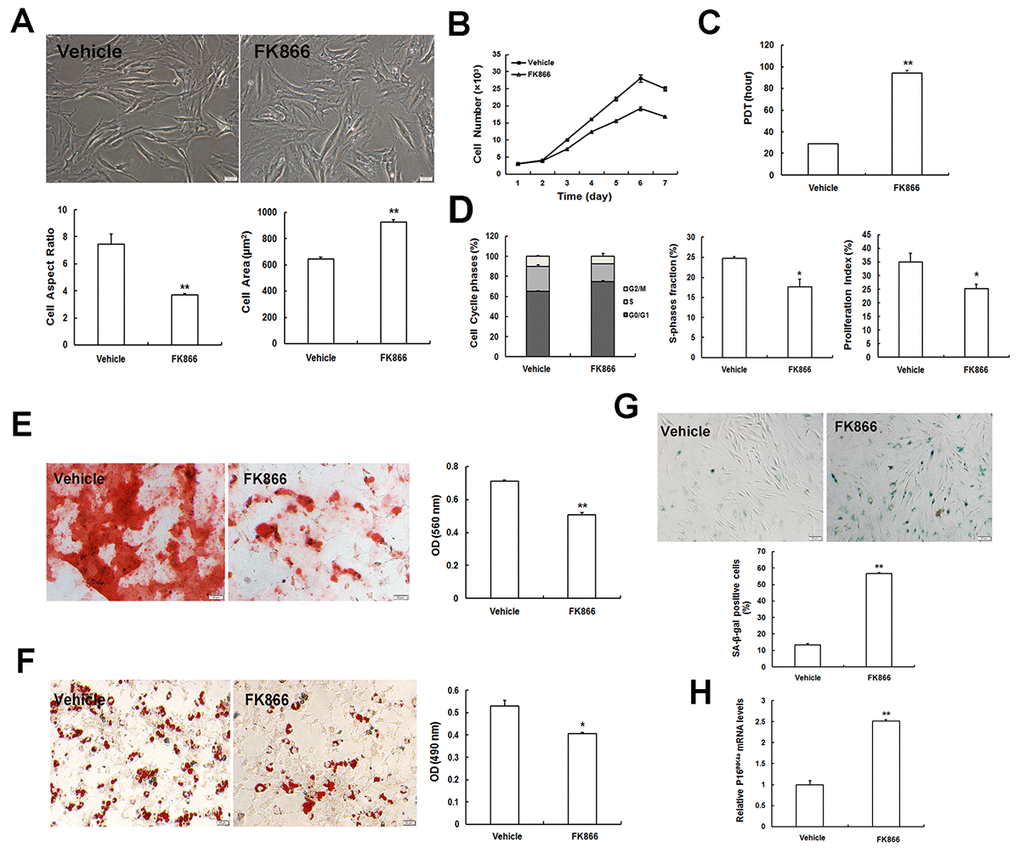

Figure 2. The specific Nampt inhibitor FK866 induces cellular senescence. (A) Morphological appearance (scale bar = 20 μm) and quantification in young EP MSCs (P3) when treated with FK866. (B) Cell growth curves. (C) Population doubling time (PDT). (D) Evaluation of cell cycle by flow cytometry, and analysis of S-phase fraction (SPF) and proliferation index (PI). (E) Osteogenic differentiation of MSCs determined by Alizarin Red S staining (scale bar = 50 μm). (F) Adipogenic differentiation of MSCs determined by Oil red O staining (Scale bar = 20 μm). (G) SA-β-gal staining of MSCs (scale bar = 50 μm) and quantification. (H) mRNA expression of the senescence marker p16^INK4a; n = 3 independent experiments. *P < 0.05, **P < 0.01.

To confirm the effect of Nampt depletion on MSC senescence, we next generated Nampt-deficient MSCs via viral transduction of Nampt shRNA (shNampt) into P3 MSCS. The transduction efficacy was evaluated by RT-qPCR and western blotting. We discovered that Nampt expression at both mRNA (Fig. 3A) and protein (Fig. 3B) levels showed a significant reduction compared to that in cells transduced with non-targeting control shRNA (shcon) lentiviral particles. Accordant with the effect of FK866, Nampt deficiency in P3 MSCs induced senescence-like morphological alterations, including a reduced cell aspect ratio and enlarged cell surface area (Fig. 3C). Moreover, cell proliferation slowed down (Fig. 3D) and the PDT was increased by approximately 5-fold (Fig. 3E). The majority of cells were arrested in G1 phase, and both SPF and PI were notably repressed (Fig. 3F). In addition, both osteogenic (Fig. 3G) and adipogenic (Fig. 3H) differentiation potentials were significantly diminished after knockdown of Nampt, as indicated by decreased bone matrix mineralization and reduced intracellular lipid droplets. Furthermore, SA-β-gal activity in Nampt-depleted MSCs was markedly enhanced (Fig. 3I), and p16^INK4A expression was elevated (Fig. 3J). Taken together, the above data suggested that Nampt depletion in young MSCs via either pharmacological inhibition or gene silencing can promote or accelerate MSC senescence.

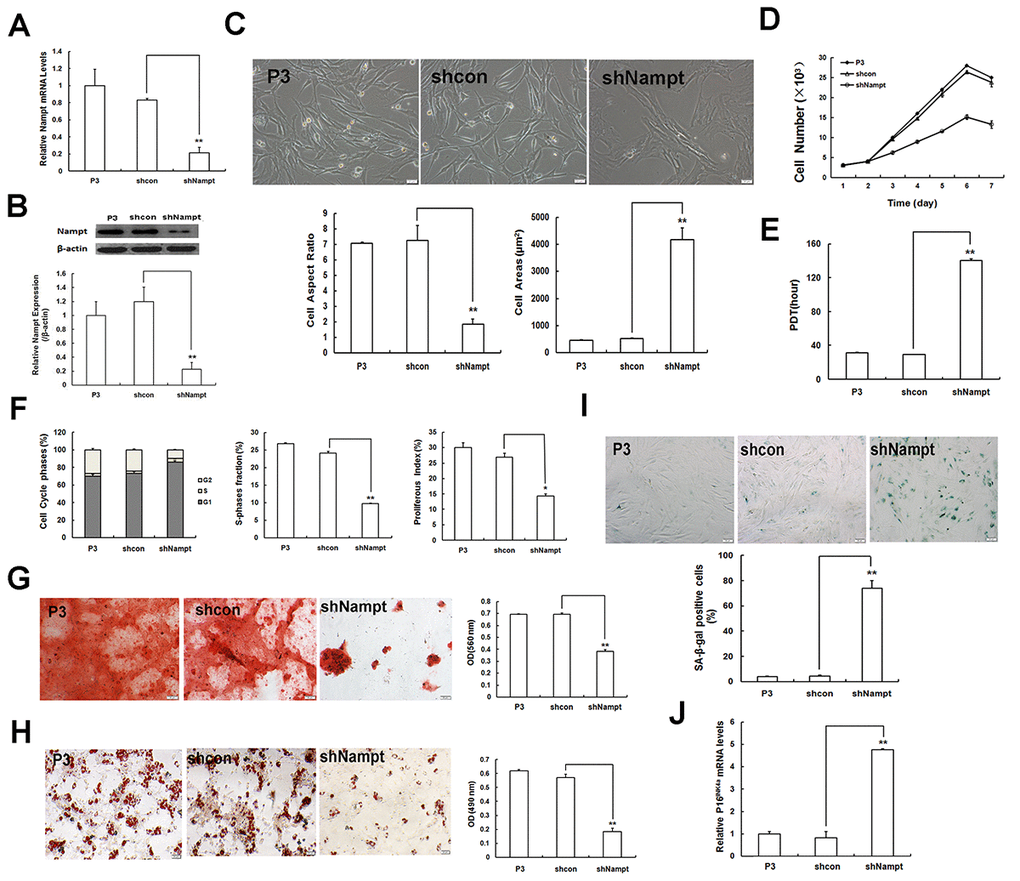

Figure 3. Nampt gene silencing exacerbates MSC senescence. (A) Gene expression of Nampt in young EP MSCs (P3) after Nampt knockdown as demonstrated by RT-qPCR. (B) Protein levels of Nampt as detected by western blotting. (C) Senescent morphology (scale bar = 20 μm) and quantification. (D) Logarithmic proliferation in Nampt-deficient MSCs. (E) Cell population doubling time (PDT). (F) Detection of cell cycle and analysis of both S-phase fraction (SPF) and proliferation index (PI). (G) Osteogenic differentiation of MSCs (scale bar = 50 μm). (H) Adipogenic differentiation of MSCs (scale bar = 20 μm). (I) SA-β-gal staining (scale bar = 50 μm) and quantification. (J) Gene expression of senescence-related factor p16^INK4a; n = 3 independent experiments. *P < 0.05, **P < 0.01.

Nampt repletion alleviates MSC senescence at late passage

Considering that Nampt was expressed at low levels in senescent LP MSCs (P10), we examined whether MSC senescence could be attenuated by enforcing Nampt expression. For this purpose, P10 MSCs were transduced with lentivirus expressing Nampt (LV-Nampt) and the lentiviral vector (LV-Vector). As indicated by the results of RT-qPCR and western blotting, Nampt was successfully over-expressed at both mRNA (Fig. 4A) and protein (Fig. 4B) levels. Moreover, cellular morphology was notably altered by Nampt overexpression (Fig. 4C). Senescent cells with enlarged and flattened cell bodies became substantially smaller and slenderer, and the cell borders became distinct. The cell aspect ratio markedly increased, whereas the cell surface area prominently decreased. On the other hand, Nampt-replenished MSCs grew faster (Fig. 4D), and the PDT was shortened (Fig. 4E). The percentage of cells arrested in G1 phase was also markedly reduced by Nampt repletion, and both SPF and PI were up-regulated (Fig. 4F). Of note, matrix mineralization was largely enhanced (Fig. 4G) and lipid droplet formation was improved (Fig. 4H) following Nampt overexpression. Quantitative analysis indicated that osteogenesis and adipogenesis in senescent LP MSCs were significantly augmented after increasing Nampt expression. Moreover, both SA-β-gal activity (Fig. 4I) and p16^INK4A expression (Fig. 4J) in Nampt over-expressed MSCs were substantially inhibited compared to those in cells transduced with the vector. These data suggested that Nampt overexpression in senescent MSCs results in the alleviation of cellular senescence, indicating that Nampt replenishment can suppress or delay MSC senescence.

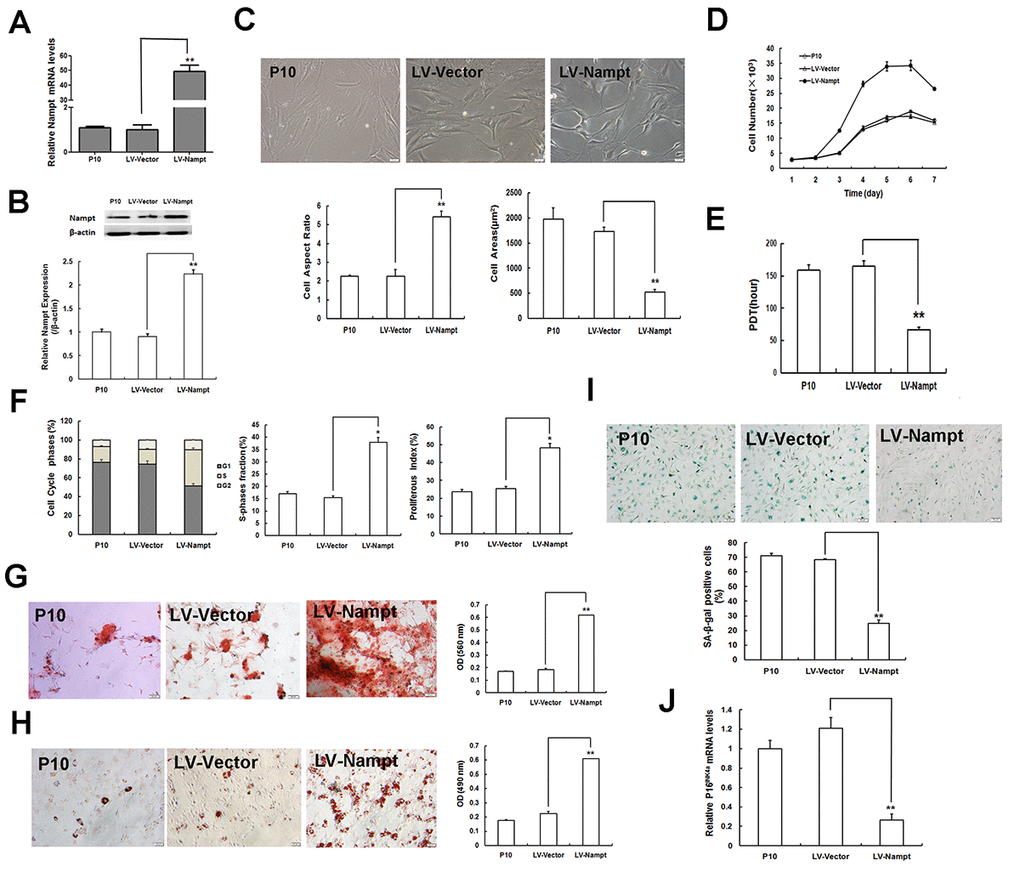

Figure 4. Nampt overexpression alleviates MSC senescence. (A) Nampt mRNA expression determined by RT-qPCR in senescent LP MSCs (P10) after Nampt overexpression. (B) Nampt protein expression examined by western blotting. (C) Cellular morphology (scale bar = 20 μm) and quantification. (D) Logarithmic proliferation in Nampt-overexpressing MSCs. (E) Cell population doubling time (PDT). (F) Detection and analysis of cell cycle. (G) Observation of osteogenesis (scale bar = 50 μm) and quantification. (H) Observation of adipogenesis (scale bar = 20 μm) and quantification. (I) SA-β-gal staining (scale bar = 50 μm) and quantification. (J) Gene expression of the senescence-related factor p16^INK4a; n = 3 independent experiments. *P < 0.05, **P < 0.01.

Nampt-regulated MSC replicative senescence is mediated by NAD⁺–Sirt1 signaling

It has been elucidated that Nampt can decrease age-related MSC senescence via the NAD⁺-Sirt1 axis [22]. In the present study, our results above have already proved that Nampt plays a regulatory role in MSC replicative senescence. To further find out the underlying mechanisms in this process, we attempted to investigate whether Nampt regulation on MSC replicative senescence was also mediated by NAD⁺–Sirt1 signaling pathway. To this end, we next examined the alterations in NAD⁺-Sirt1 signaling resulted from Nampt depletion and repletion in MSCs. As shown in Fig. 5, although there was no significant change in Sirt1 protein expression after FK866 treatment or Nampt overexpression in MSCs (Supplementary Figure 1A and B), Nampt deficiency via either knockdown or FK866 led to significantly lower intracellular NAD⁺ content (Fig. 5A), NAD⁺/NADH ratio (Fig. 5B) and lower Sirt1 activity (Fig. 5C) than those in the control group (shcon or Vehicle). However, Nampt overexpression conversely resulted in markedly elevated intracellular NAD⁺ content (Fig. 5D) and NAD⁺/NADH ratio (Fig. 5E), as well as increased Sirt1 deacetylase activity (Fig. 5F). These findings revealed that the mechanisms underlying Nampt-regulated MSC replicative senescence are linked to the NAD⁺–Sirt1 signaling pathway.

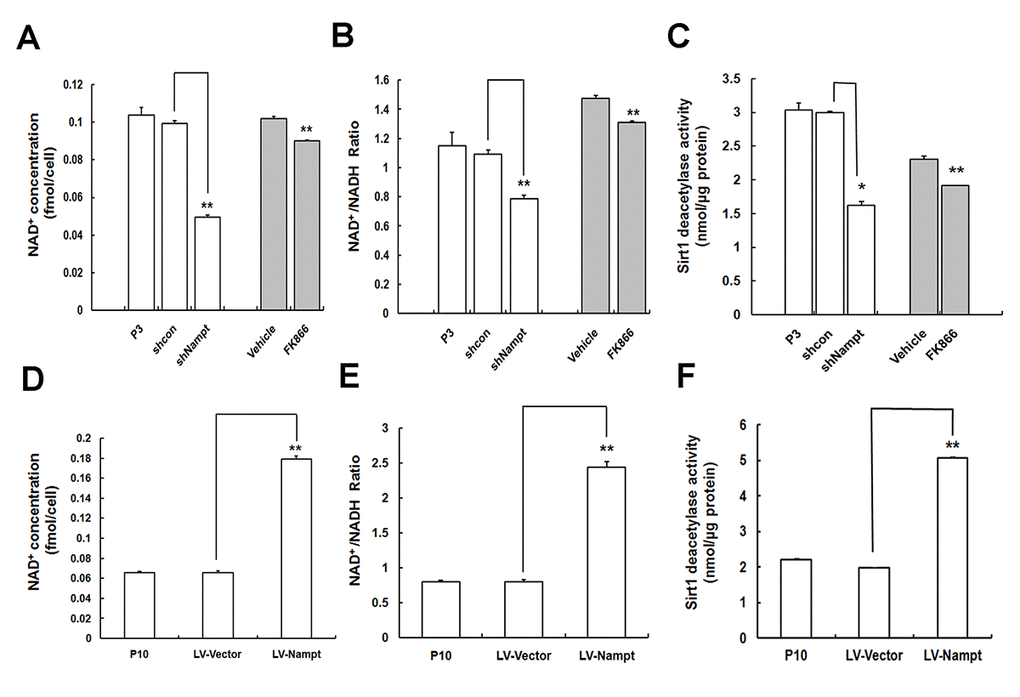

Figure 5. Nampt regulation on MSC senescence is linked to the NAD⁺–Sirt1 signaling pathway. (A, B, C) Intracellular NAD⁺ content (A) NAD⁺/ NADH ratio (B) and Sirt1 deacetylase activity (C) were measured when Nampt was suppressed by either FK866 treatment or gene silencing. (D, E, F) Effect of Nampt overexpression on intracellular NAD⁺ content (D) and NAD⁺/ NADH ratio (E), as well as Sirt1 deacetylase activity (F); n = 3 independent experiments. *P < 0.05, **P < 0.01.

NAD intermediates treatment attenuates MSC senescence via enhancing NAD⁺ biosynthesis and Sirt1 activity

To further verify that Nampt-regulated MSC senescence was associated with NAD⁺–Sirt1 signaling, we assessed the effects of different exogenous intermediates in the NAD⁺ salvaging pathway on MSC senescence. First, senescent LP MSCs were treated with different concentrations of NAD intermediates or Vehicle. As shown in Fig. 6A, the ratios of SA-β-gal-positive cells as well as p16^INK4A mRNA expression were markedly decreased after treatment with 100 μM nicotinamide (NAM), 100 μM nicotinamide mononucleotide (NMN), 100 μM NAD, or 5 μM resveratrol (RSV). In addition, intracellular NAD⁺ content (Fig. 6B), NAD⁺/NADH ratio (Fig. 6C), and Sirt1 activity (Fig. 6D) in senescent LP MSCs were significantly elevated in response to the addition of NAD intermediates.

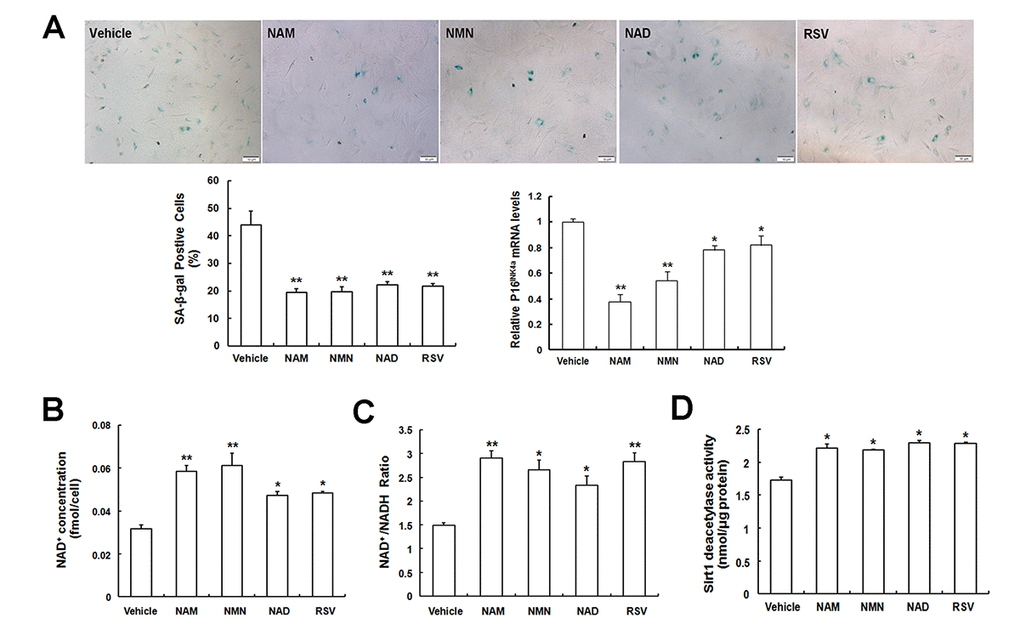

Figure 6. Exogenous intermediates participated in NAD⁺ biosynthesis ameliorates MSC replicative senescence. (A) SA-β-gal staining and p16^INK4A mRNA expression of senescent LP MSCs in the presence of Vehicle (DMSO treated), 100 μM NAM, 100 μM NMN, 100 μM NAD, and 5 μM resveratrol (RSV) (scale bar = 50 μm) and quantification. (B, C, D) Effect of NAD intermediates treatment on NAD⁺ content (B) and NAD⁺/ NADH ratio (C), as well as Sirt1 deacetylase activity (D); n = 3 independent experiments. *P < 0.05, **P < 0.01.

Next, we also assessed the roles of different NAD intermediates in FK866-induced MSC senescence. SA-β-gal staining and quantitative analysis showed that the percentages of SA-β-gal-positive cells in young EP MSCs increased after treatment with FK866, and p16^INK4A mRNA expression also showed an upward trend in FK866-induced MSCs, whereas the addition of NAD intermediates, NAM, NMN, NAD, and RSV, significantly alleviated the augmented β-gal-positive cells and p16^INK4A expression induced by FK866 (Fig. 7A). Furthermore, NAD intermediates remarkably up-regulated FK866-induced reduction in the intracellular NAD⁺ content (Fig. 7B), as well as NAD⁺/NADH ratio (Fig. 7C), and Sirt1 activity (Fig. 7D). These data demonstrated that the supplementation of NAD intermediates could not only rescue replicative senescent MSCs but also ameliorate FK866-induced MSC senescence via preserving NAD⁺ levels and Sirt1 activity, further confirming that Nampt postpones MSC senescence via NAD⁺-Sirt1 mediation.

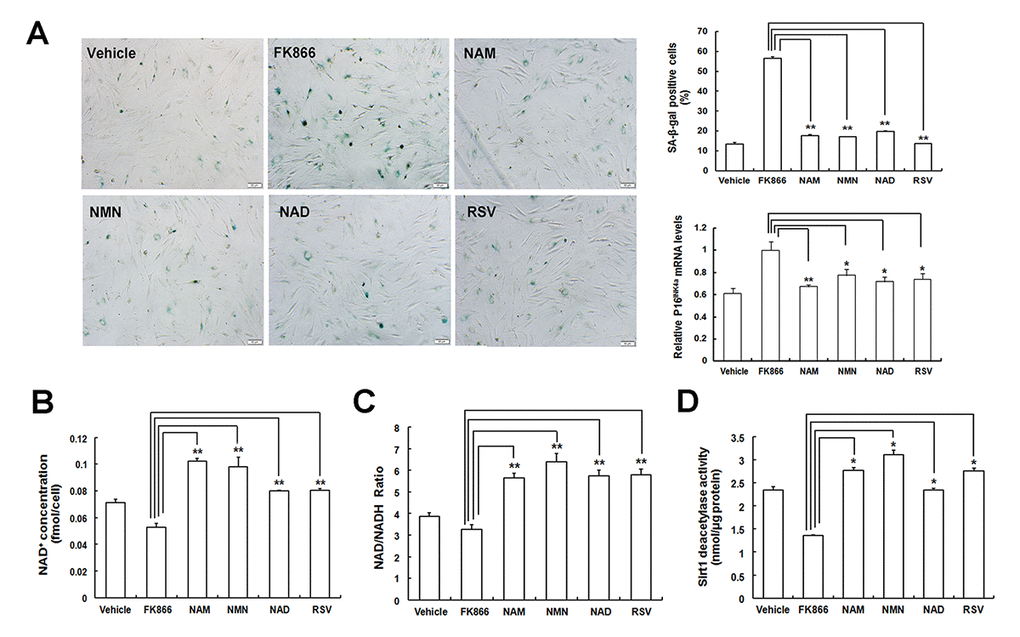

Figure 7. NAD intermediates treatment attenuates FK866-induced MSC senescence. (A) Evaluation of SA-β-gal staining and p16^INK4A expression in young EP MSCs with FK866 pre-treatment in the presence of Vehicle (DMSO treated), 100 μM NAM, 100 μM NMN, 100 μM NAD, and 5 μM RSV (scale bar = 50 μm) and the quantitative analysis of the percentages of SA-β-gal positive cells and p16^INK4A mRNA expression. (B, C, D) Effect of NAD intermediates treatment on NAD⁺ content (B) and NAD⁺/ NADH ratio (C), as well as Sirt1 deacetylase activity (D) after pre-treating with FK866; n = 3 independent experiments. *P < 0.05, **P < 0.01.

Ethics Statement

This study was conducted in accordance with the ethical standards, the Declaration of Helsinki, and national and international guidelines, and was approved by the authors’ institutional review boards.

MSC isolation and culture

MSCs from healthy, male, 1–2-month-old Wistar rats were isolated by the whole bone marrow adherent method, as previously described [22]. All animal experimental procedures used were consistent with the ethical standards of the Ethic Committee of Jilin University (permit number: SYXK 2013-0005). Cells were maintained in Dulbecco’s modified Eagle’s medium with nutrient mixture F-12 (DMEM-F12; Gibco, USA) with 10% fetal bovine serum (FBS, Gibco) 100 U/mL penicillin, and 100 μg/mL streptomycin. The culture medium was replaced every 3 days. MSCs were consecutively expanded up to P10. MSCs at P3 (EP) and P10 (LP) were used in subsequent experiments.

Cell growth assays and population doubling time

The proliferative capacity of MSCs was assessed by the cell counting method. Briefly, 5 × 10³ cells were seeded into 24-well culture plates and were counted daily by trypan blue exclusion for 1 week. Cell growth curves were generated to analyze cell growth kinetics. PDT was calculated as previously described [22,23]. Briefly, 7 × 10⁵ cells were seeded in a 10-cm dish and cultured. When cells reached 80% confluency, they were harvested and counted. PDT was calculated according to the following formula: PDT = Ct / ln(Nf / Ni) / ln(2), where Nf is the number of harvested cells, Ni is the number of seeded cells, and Ct is the culture time.

Cell cycle analysis

For cell cycle analysis, 1 × 10⁶ cells were harvested and fixed in 70% ethanol at 4 °C overnight. After centrifugation, the cell pellets were washed three times with ice-cold phosphate-buffered saline (PBS). Then, the pellets were incubated with 100 μL of RNaseA at 37 °C for 30 min. Next, the cells were incubated with 200 μL propidium iodide at 4 °C for at least 15 min. DNA content was analyzed using a FACS Calibur (BD Biosciences, USA) with Cell Quest software, and the SPF and PI were calculated.

Adipogenic and osteogenic differentiation assays

To detect multilineage differentiation potential, MSCs were cultivated in adipogenic or osteogenic culture medium for 2–3 weeks, as previously described [23]. Oil red O staining was used to show lipid droplets after adipogenic induction, and Alizarin red S staining was conducted to observe bone matrix mineralization after osteogenic induction. To quantify the retention of Oil red O, stained adipocytes were extracted with 4% Igepal CA630 (Sigma-Aldrich, USA) in isopropanol for 15 min. Further, to quantify mineralization, 10% cetylpyridinium chloride (Sigma-Aldrich) was added for 30 min at room temperature (RT). Respective absorbance values were measured using a kinetics ELISA reader (Spectra MAX 250, Molecular Devices) at 490 nm and 560 nm for final quantitative analysis.

Senescence-associated β-galactosidase activity assay

To assess MSC senescence, SA-β-gal staining was conducted using a senescent cell histochemical staining kit (Beyotime, China), following the manufacturer’s instruction. Briefly, cells were fixed in fixation buffer for 15 min at RT, washed twice with PBS, and incubated in Staining Solution Mix for 12–14 h. Then, the percentage of β-galactosidase-positive cells was determined using a bright-field microscope (OLYMPUS, Japan), assessing at least 200 cells in ten different microscopic fields.

FK866 and NAD intermediates treatment

To determine the optimal concentration of FK866 without inducing robust cellular toxicity, 3,000 cells were seeded in 96-well plates and incubated in a humidified incubator at 37 °C for 24 h. Thereafter, the cells were treated with different concentrations of FK866 (0–100 nM; Sigma-Aldrich) for 72 h before the addition of CCK8 solution (10 μL/well). After incubation at 37 °C for 1 h, the absorbance at 450 nm was measured with a microplate reader. Subsequently, senescent LP MSCs were cultured in the presence or absence of different exogenous NAD intermediates, including 100 μM nicotinamide (NAM), 100 μM nicotinamide mononucleotide (NMN), 100 μM NAD, and 5 μM of Sirt1 activator resveratrol (RSV) for 48 h. For FK866-induced cellular senescence, young EP cells were pre-treated with complete medium containing 10 nM FK866 or Vehicle (DMSO) for 24 h, and then the cells following FK866 treatment were respectively exposed to 100 μM NAM, 100 μM NMN, 100 μM NAD, and 5 μM RSV for 48 h. Afterward, cells were collected for SA-β-gal assay, NAD⁺ and NAD⁺/NADH measurement, Sirt1 activity assay, and protein expression studies.

Lentiviral transduction of MSCs

Prior to transduction, 1.5 × 10⁴ MSCs at P3 or P10 were seeded in 24-well plates and incubated at 37 °C overnight. Then, the cells were transduced with the purchased lentiviral particles encoding Rat Nampt or control vector, or with shNampt or non-targeting shCon (GeneChem, China) in the presence of 5 μg/mL polybrene (GeneChem) for 10 h. Seventy-two hours after transduction, EGFP expression was observed under a fluorescence microscope (OLYMPUS, Japan) and transduction efficiency was evaluated by RT-qPCR and western blotting.

Gene expression analysis

Total RNA was extracted from MSCs using TRIzol (Takara, China). cDNA was synthesized using an RNA PCR Kit (AMV) Ver.3.0 (Takara). mRNA levels were measured by RT-qPCR using TransStart Top Green qPCR SuperMix (TRANS, China) with an ABI 7300 Real-Time PCR System (Applied Biosystems, USA). Rat-specific primers were synthesized, and included: β-actin: forward 5′-GGAGATTACTGCCCTGGCTCCTA-3′, reverse 5′-GACTCATCGTACTCCTGCTTGCTG-3′; Nampt: forward 5′-AGGGGCATCTGCTCATTTGG-3′, reverse 5′-TGGTACTGTGCTCTGCCGCT-3′; Sirt1: forward 5′-GCAGGTTGCAGGAATCCAAA-3′, reverse 5′-GGCAAGATGCTGTTGCAAAG-3′; p16^INK4A: forward 5′-AAACACTTTCGGTCGTACCC-3′, reverse, 5′-GTCCTCGCAGTTCGAATC-3′. The thermal cycling protocol included pre-incubation at 95 °C for 2 min, followed by 40 cycles of amplification at 95 °C for 15 s and annealing for 30 s at 60 °C, and a final extension at 72 °C for 5 min. Data were normalized to the expression of β-actin using the 2^−ΔΔCt method.

Western blot analysis

Total protein was extracted from MSCs using RIPA lysis buffer (Beyotime, China) supplemented with proteinase inhibitors. Protein concentrations were determined with a BCA Protein Assay Kit (Beyotime). Then, 25 μg of each protein sample was separated by 12% SDS-PAGE and transferred onto PVDF membranes (Millipore, USA) by electroblotting, after which nonspecific binding to the membrane was blocked with 5% non-fat milk for 1–2 h at RT. Then, the membranes were probed with anti-Sirt1 (1:1000, Upstate, USA), anti-Nampt (1:1000, BETHYL, USA), and anti-β-actin (1:1500, Abcam, UK) antibodies diluted in Tris-buffered saline. After incubation at 4 °C overnight, the membranes were incubated with anti-rabbit IgG secondary antibody. The protein blots were visualized using an Electro-Chemi-Luminescence detection system (JENE, UK) and quantified with ImageJ software.

Quantification of intracellular NAD⁺ and NAD⁺/NADH ratio

Intracellular NAD⁺ concentrations were determined using the NAD⁺/NADH Quantification Colorimetric Kit (BioVision, USA), in accordance with the manufacturer’s instructions. Briefly, 400 μL NADH/ NAD⁺ Extraction Buffer was added to 2 × 10⁵ cells frozen at −80 °C for 20 min and thawed at RT for 10 min. Then, half of the supernatants were directly transferred to a 96-well plate, and the other half were heated in a water bath at 60 °C for 30 min before the detection of NADt (NADH and NAD⁺) and NADH, respectively. Next, 98 μL of NAD⁺ Cycling Buffer and 2 μL of NAD⁺ Cycling Enzyme Mix were gently mixed and added to each well for incubation at 37 °C for 5 min. Then, 10 μL of NADH Developer was added for 2 h, and the optical density at 450 nm was read using a multi-well spectrophotometer. The NAD⁺ and NADH amount, and NAD⁺/NADH ratio in each sample were calculated and normalized by cell numbers. A standard curve was performed with the NADH standards included in the kit.

Sirt1 deacetylase activity assay

Sirt1 deacetylase activity was measured using a SIRT1 assay kit (Sigma-Aldrich) following the manufacturer’s instructions. Total protein was extracted, and protein concentrations were measured as described above. Next, 20 μL of protein extract was gently and uniformly blended with a mixture of 15 μL Assay Buffer and 5 μL NAD⁺ solution. Then, 10 μL SIRT1 Substrate Solution was added to the mixture, which was incubated at RT for 10 min. After the addition of 5 μL of developing solution, the samples were incubated at 37 °C for 10 min. Fluorescence was read at 450 nm (excitation 360 nm) using a plate reader, and Sirt1 activity was calculated and normalized by protein content. A standard curve was generated on the basis of the Standard Solution contained in the kit.

Statistical analysis

All experiments were performed three times independently. Two groups were compared by a two-tailed Student’s t-test. All experimental data are expressed as the mean ± standard deviation, and differences were considered significant at P < 0.05.
