Research Paper Volume 16, Issue 21 pp 13392—13408
Pan-cancer analysis identifies the oncogenic role of CCNE1 in human cancers

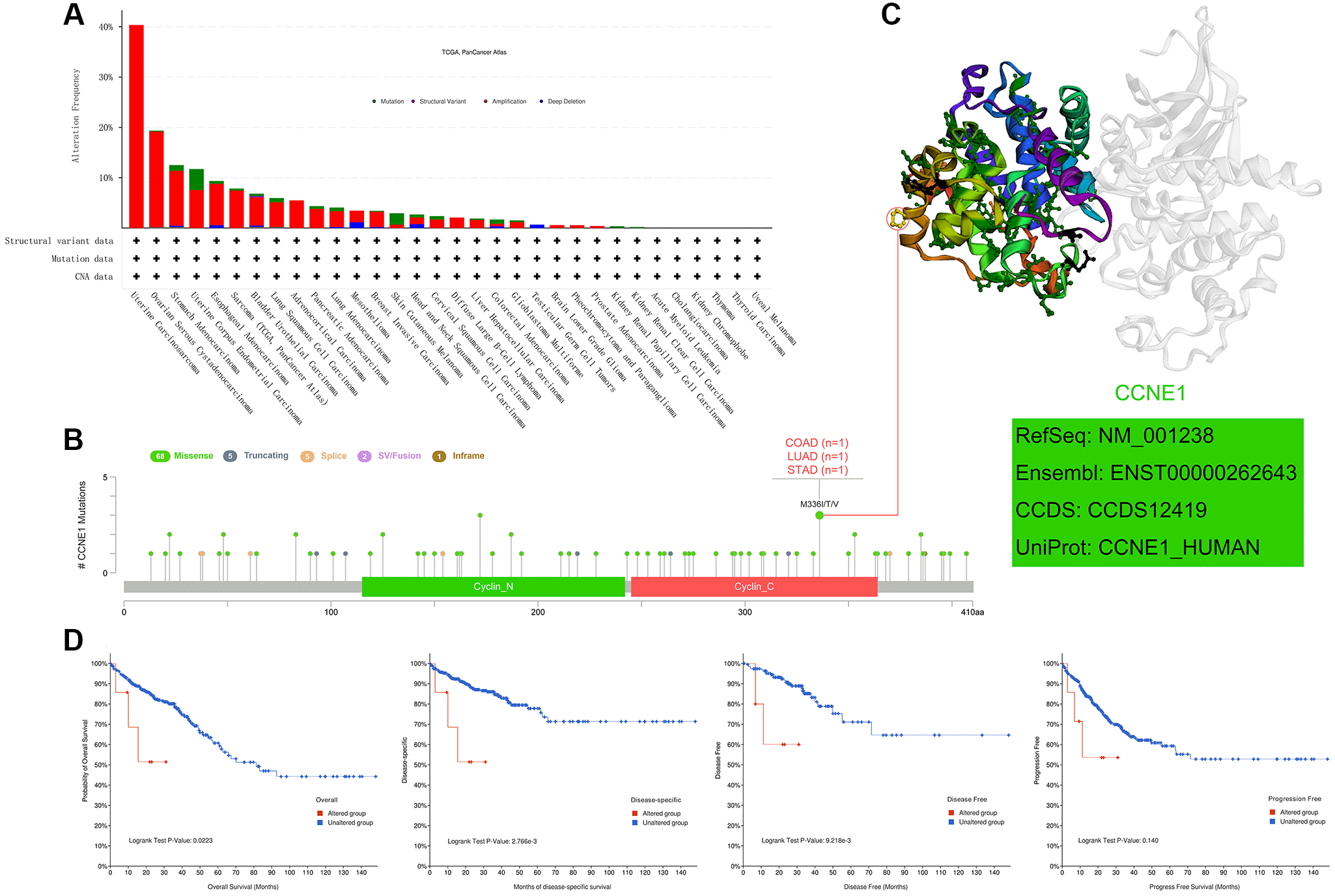

Figure 4. Mutation features of CCNE1 in cancer. (A) Bar chart representing the distribution of different CCNE1 mutation types across various cancers. (B) Lollipop plot highlighting the mutation sites of CCNE1, with higher frequency mutations displayed prominently. (C) 3D structural model of CCNE1, focusing on regions with the highest mutation frequency. (D) Kaplan-Meier curves linking CCNE1 mutation status with survival outcomes (overall survival, disease-specific survival, disease-free survival, and progression-free survival) in COAD.
