Research Paper Volume 16, Issue 11 pp 10016—10032
Landscape analysis of alternative splicing in kidney renal clear cell carcinoma and their clinical significance

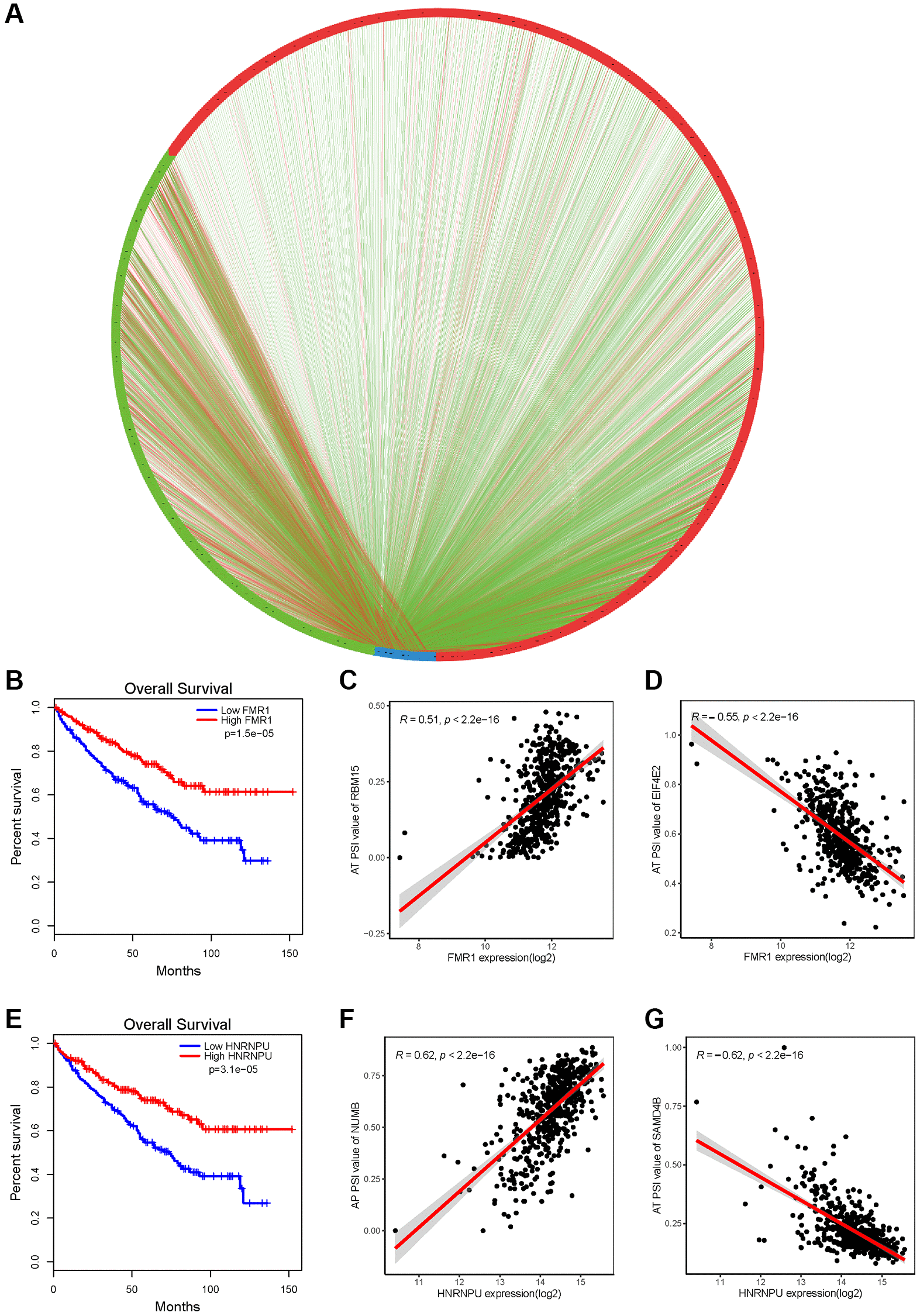

Figure 6. AS correlation network in KIRC. (A) Splicing correlation network in KIRC. The expression of all the prognostic-related splicing factors (blue dots) was negatively (green line) or positively (red line) associated with PSI value of all the favorable prognosis and adverse AS events (red dots and green dots, respectively). (B, E) Using the GEPIA tool to analyze the prognosis of splicing factors FMR1 and HNRNPU, respectively. (C, D, F, G) Representative dot plots of correlations between expression of SFs FMR1 or HNRNPU and PSI value of AS events (P < 0.001).
