Research Paper Volume 16, Issue 11 pp 9498—9517
THY1 is a prognostic-related biomarker via mediating immune infiltration in lung squamous cell carcinoma (LUSC)

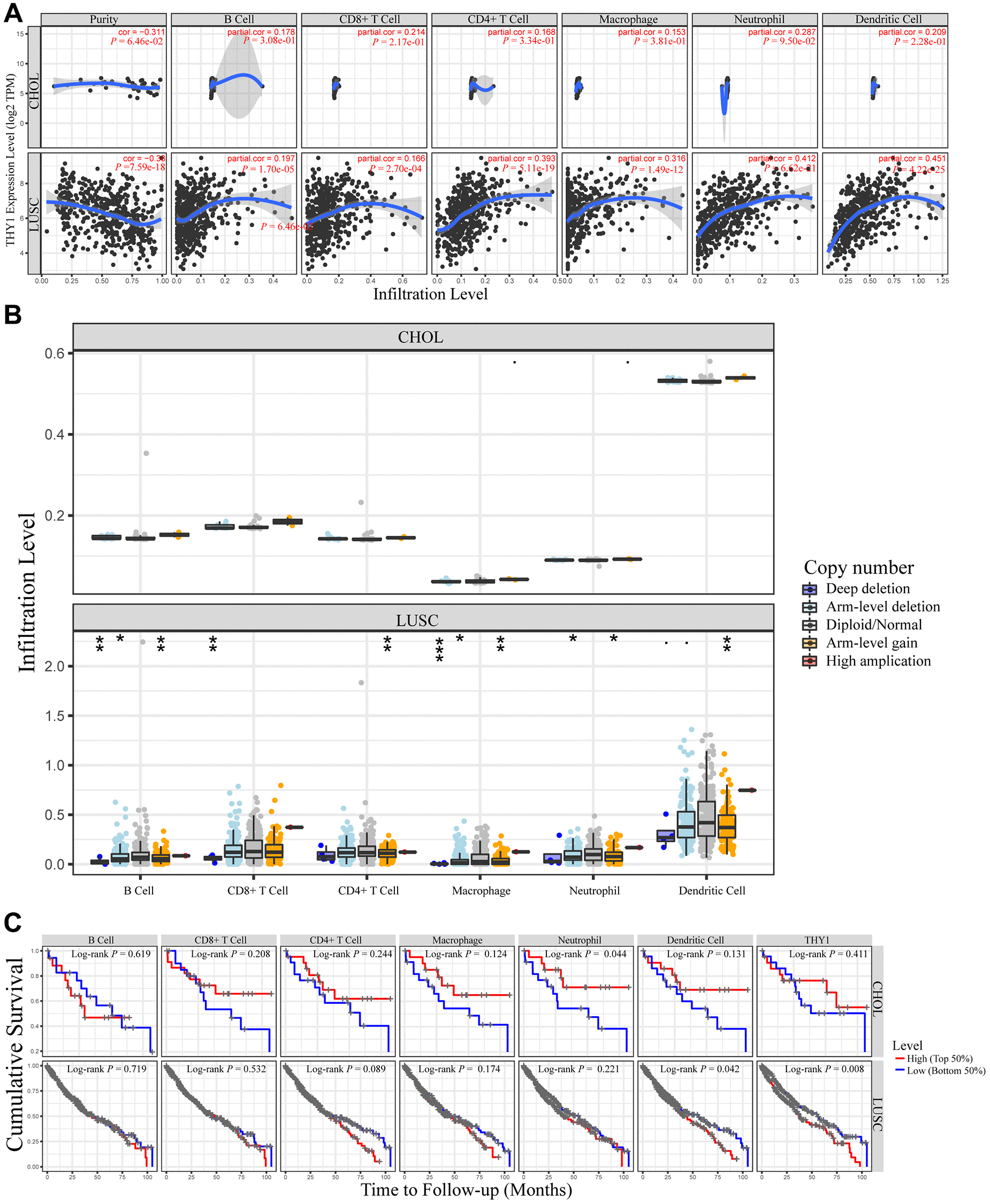

Figure 6. Relationships between THY1 expression and immune infiltration levels in lung squamous cell carcinoma (LUSC) and cholangiocarcinoma (CHOL). (A) Differentially expressed THY1 was significantly correlated with lymphocytes infiltration levels in LUSC, but not in CHOL. (B) Copy number alteration of different immune lymphocytes was significantly correlated with immune infiltration levels in LUSC, but not in CHOL. (C) Higher THY1 expression and dendritic cell infiltration level significantly correlated with poorer prognosis in LUSC.
