Figure 2

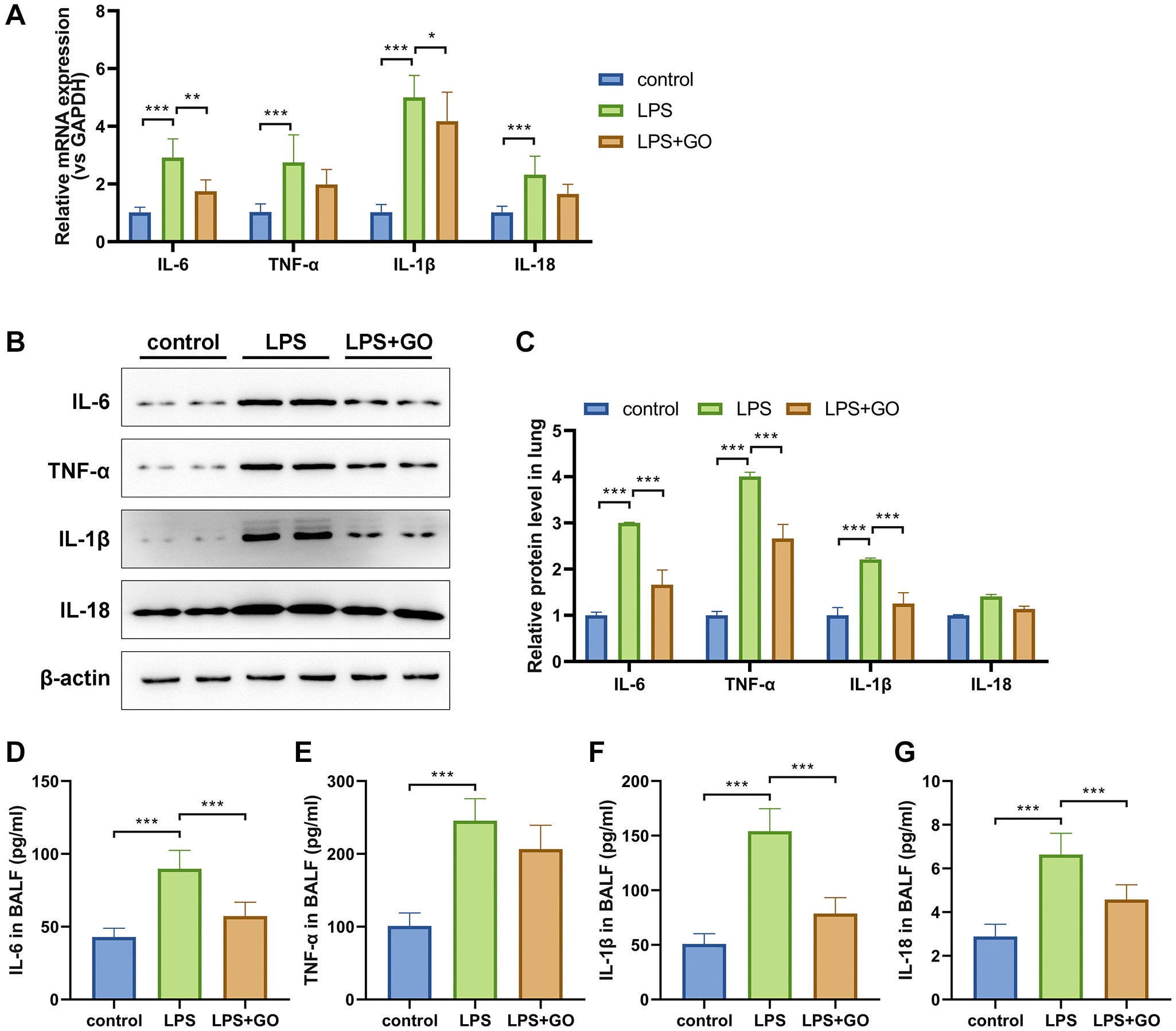

Figure 2.GO blocks lung inflammation during LPS-induced ALI. (A) Real-time PCR analysis showed that GO prevented the increase in the mRNA expression levels of inflammatory cytokines, including TNF-α, IL-6, IL-1β, and IL-18, in lung tissues. (B) Western blotting revealed that GO blocked the increase in the protein expression levels of inflammatory cytokines, including TNF-α, IL-6, IL-1β, and IL-18, in lung tissues. (C) Statistical chart of density analysis using ImageJ. (DG) ELISA analysis revealed that GO inhibited the secretion of inflammation cytokines, including TNF-α, IL-6, IL-1β, and IL-18, in BALF. Experiments were performed in triplicate, and data are expressed as the mean ± standard deviation (SD). Student’s t-test, *p < 0.05, **p < 0.01, and ***p < 0.001. Abbreviation: ns: no significant difference.
Figure 2 — Garlic oil supplementation blocks inflammatory pyroptosis-related acute lung injury by suppressing the NF-&#x3ba;B/NLRP3 signaling pathway via H2S generation | Aging
