Research Paper Volume 16, Issue 6 pp 5412—5434

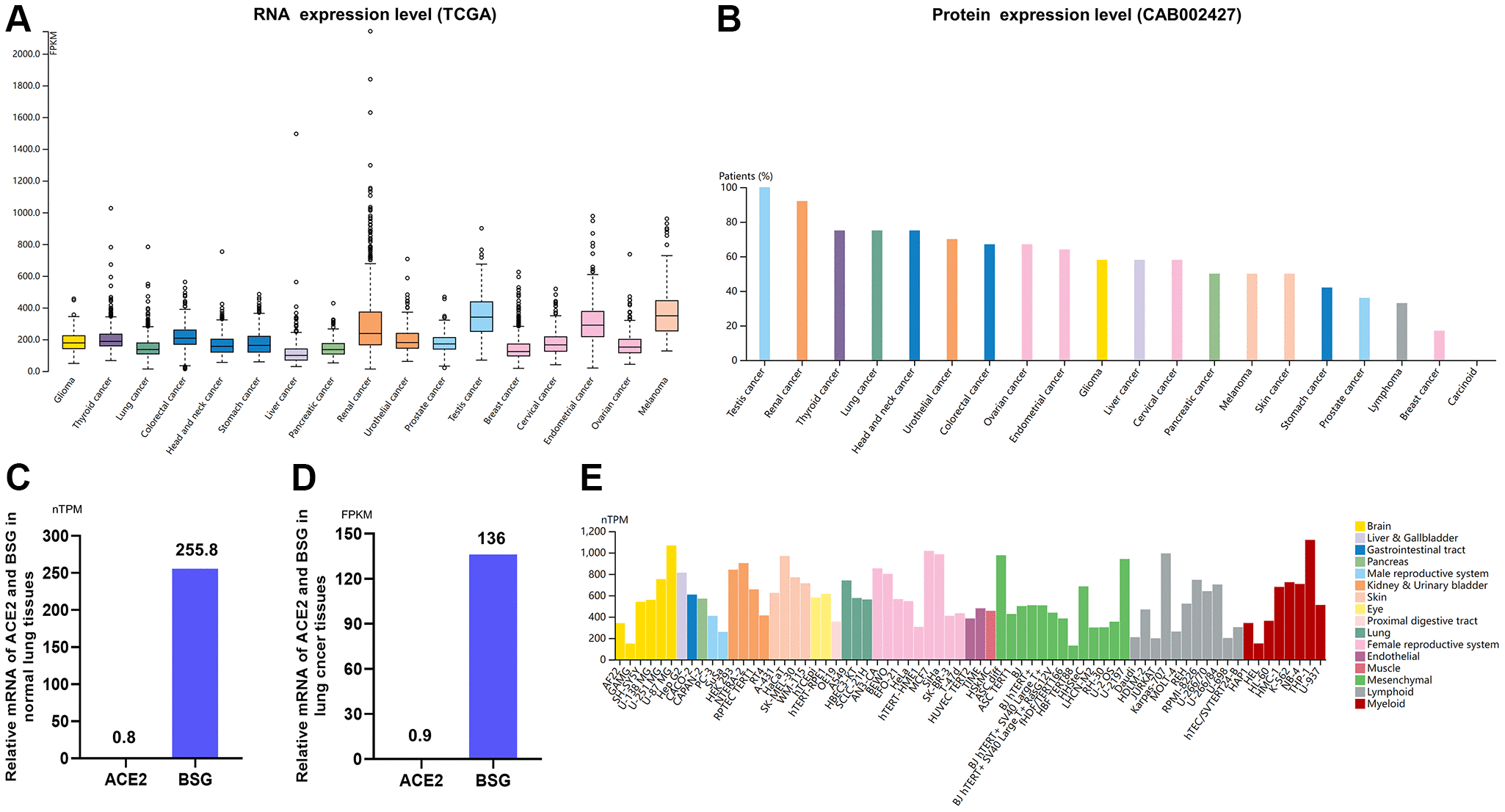

Figure 4. Expression of BSG in tumor tissues and cancer cells. (A) mRNA expression levels of BSG (TCGA) across multiple cancer types. (B) Protein expression levels of BSG (CAB002427) across multiple cancer types. (C) Relative mRNA expression levels of ACE2 and BSG in normal lung tissues. (D) Relative mRNA expression levels of ACE2 and BSG in lung cancer tissues. (E) mRNA expression levels of BSG in the multiple cancer and normal cells. The cancer types were color-coded according to which type of normal organ the cancer originates from. The cell lines were classified into 16 color-coded groups according to their organ to which it is from. Abbreviations: TPM: transcripts per million; FPKM, number of fragments per kilobase of exon per million reads.
