Research Paper Volume 16, Issue 6 pp 5370—5386
Comprehensive analysis of gene expression profiles of annulus fibrosus subtypes and hub genes in intervertebral disc degeneration

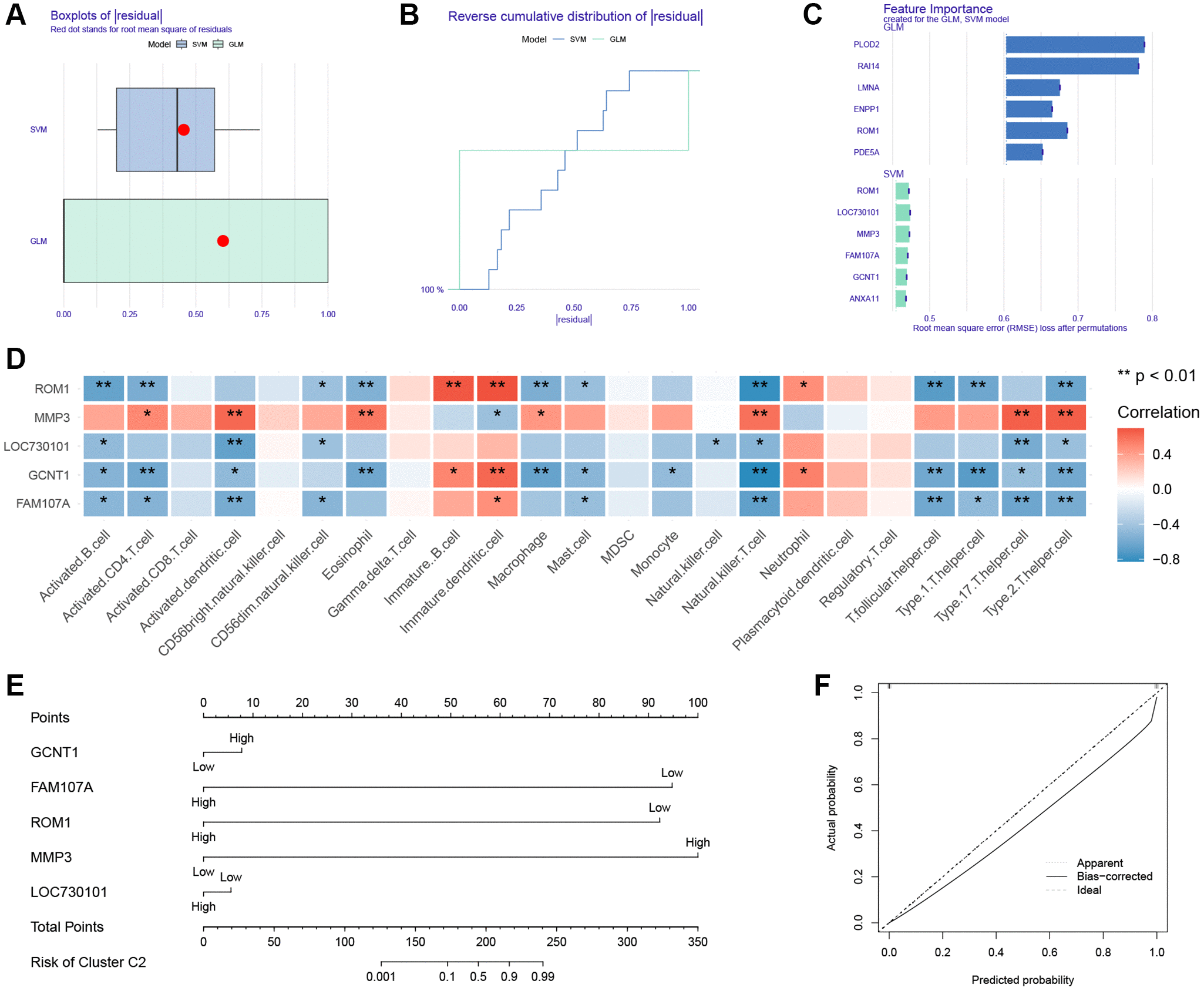

Figure 6. Construction of nomogram. (A) Boxplot of the residuals of the sample. (B) Cumulative residual distribution plot of sample. (C) The importance of variables in the GLM and SVM models. (D) Heatmap of correlation between ssGSEA algorithm results and hub genes. (E) Nomogram. (F) Calibration curve for the nomogram.
