Figure 3 — GABA in the anterior cingulate cortex mediates the association of white matter hyperintensities with executive function: a magnetic resonance spectroscopy study

Research Paper|Volume 16, Issue 5|pp. 4282–4298

GABA in the anterior cingulate cortex mediates the association of white matter hyperintensities with executive function: a magnetic resonance spectroscopy study

Back to articleFigure 3(3 of 6)

100%

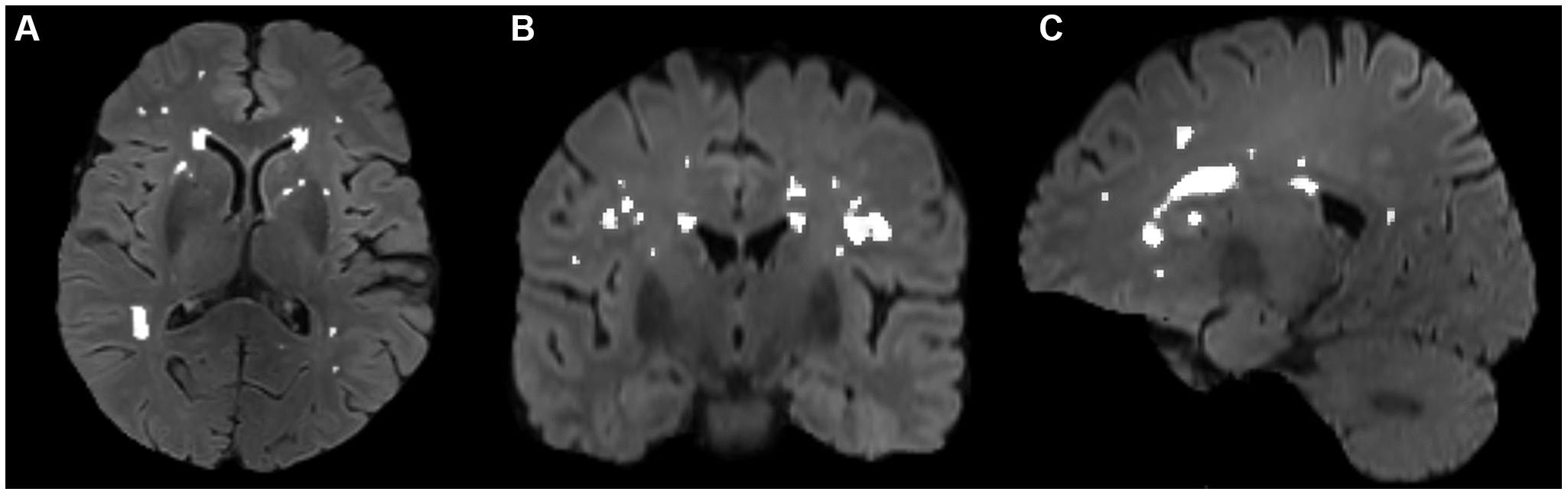

Figure 3.Segmentation of WMH volumes in the transverse (A), coronal (B), and sagittal (C) positions on FLAIR images. The white color represents the automatically segmented WMH range. WMH, white matter hyperintensities.
