Figure 7 — New insights into ginsenoside Rg1 regulating the niche to inhibit age-induced germline stem cells depletion through targeting ECR/BMP signaling pathway in Drosophila

Research Paper|Volume 16, Issue 4|pp. 3612–3630

New insights into ginsenoside Rg1 regulating the niche to inhibit age-induced germline stem cells depletion through targeting ECR/BMP signaling pathway in Drosophila

Back to articleFigure 7(7 of 7)

100%

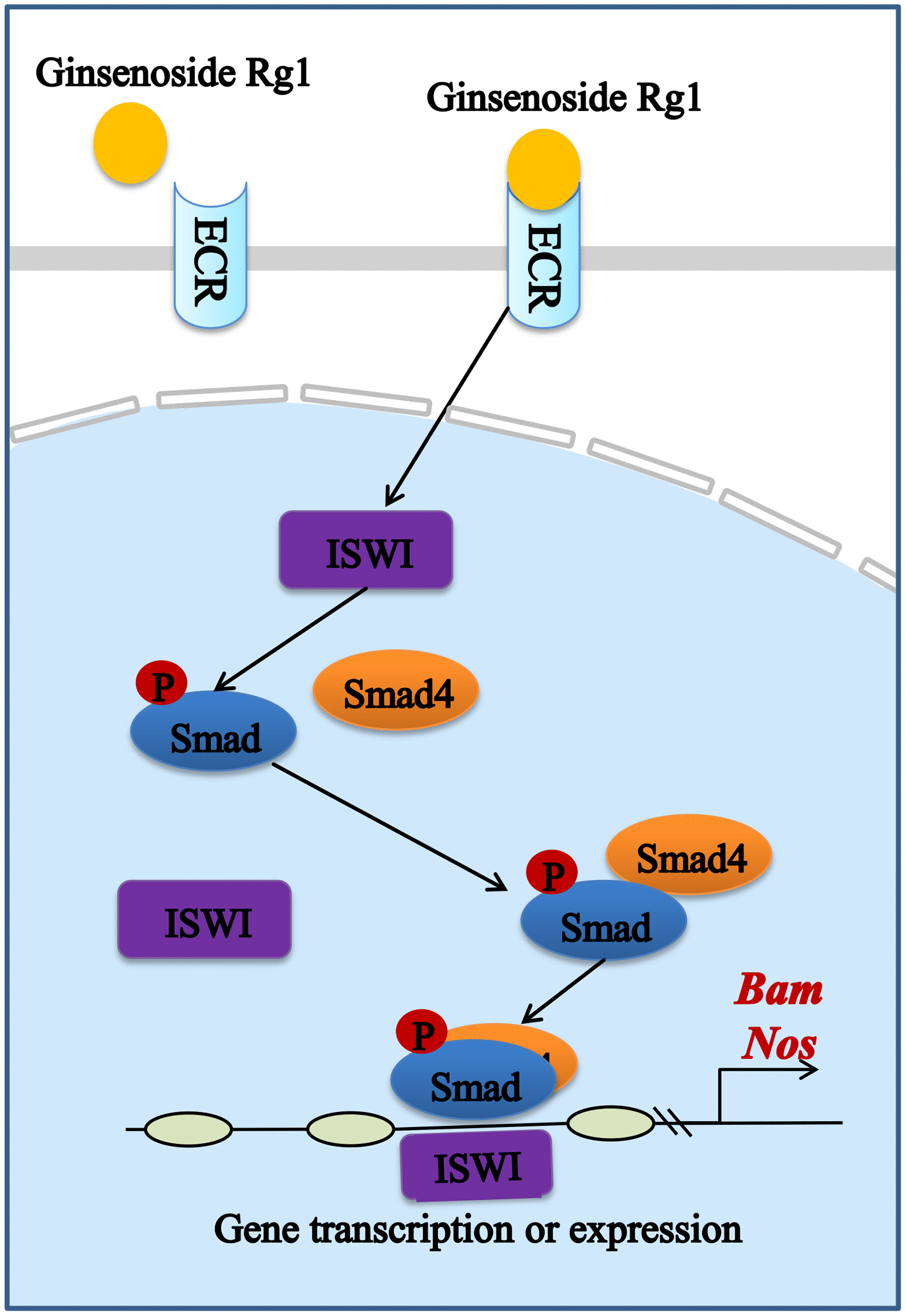

Figure 7.Schematic diagram of the signaling pathway of the mitigating effect of ginsenoside Rg1 improves the niche to increase GSC number by targeting ECR.
