Unravelling diagnostic clusters and immune landscapes of cuproptosis patterns in intervertebral disc degeneration through dry and wet experiments

Back to articleFigure 3(3 of 12)

100%

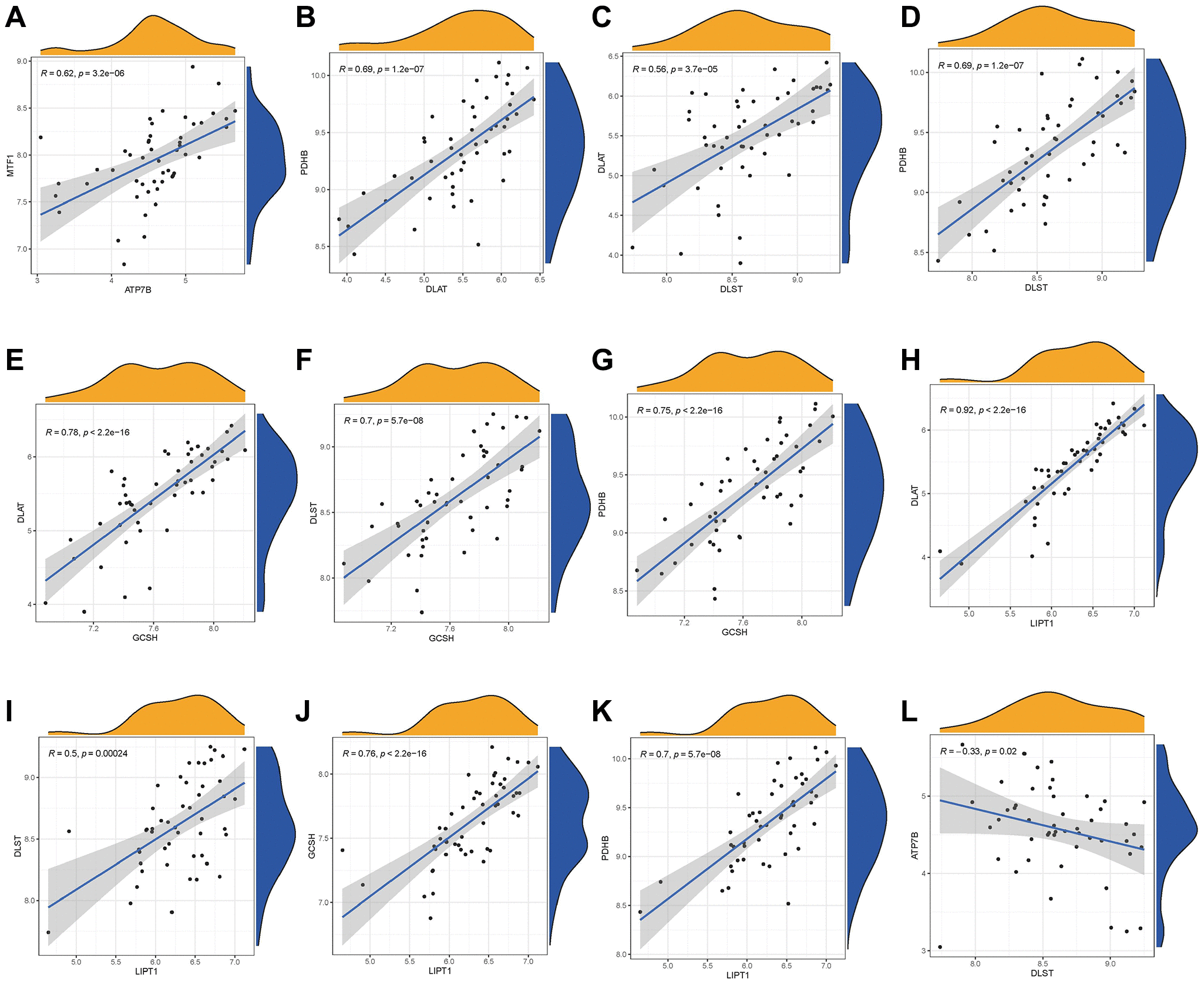

Figure 3.Correlation among cuproptosis modulators in IDD. There existed significantly positive correlations in the gene expression levels of MTF1-ATP7B, PDHB-DLAT, PDHB-DLST, DLAT-DLST, DLAT-GCSH, DLST-GCSH, PDHB-GCSH, DLAT-LIPT1, DLST-LIPT1, GCSH-LIPT1, and PDHB-LIPT1 in IDD cases (A–K), while the gene expression levels of ATP7B-DLST in IDD cases exhibited significantly negative correlation (L).
