Research Paper Volume 16, Issue 1 pp 568—592
Immune landscape and heterogeneity of cervical squamous cell carcinoma and adenocarcinoma

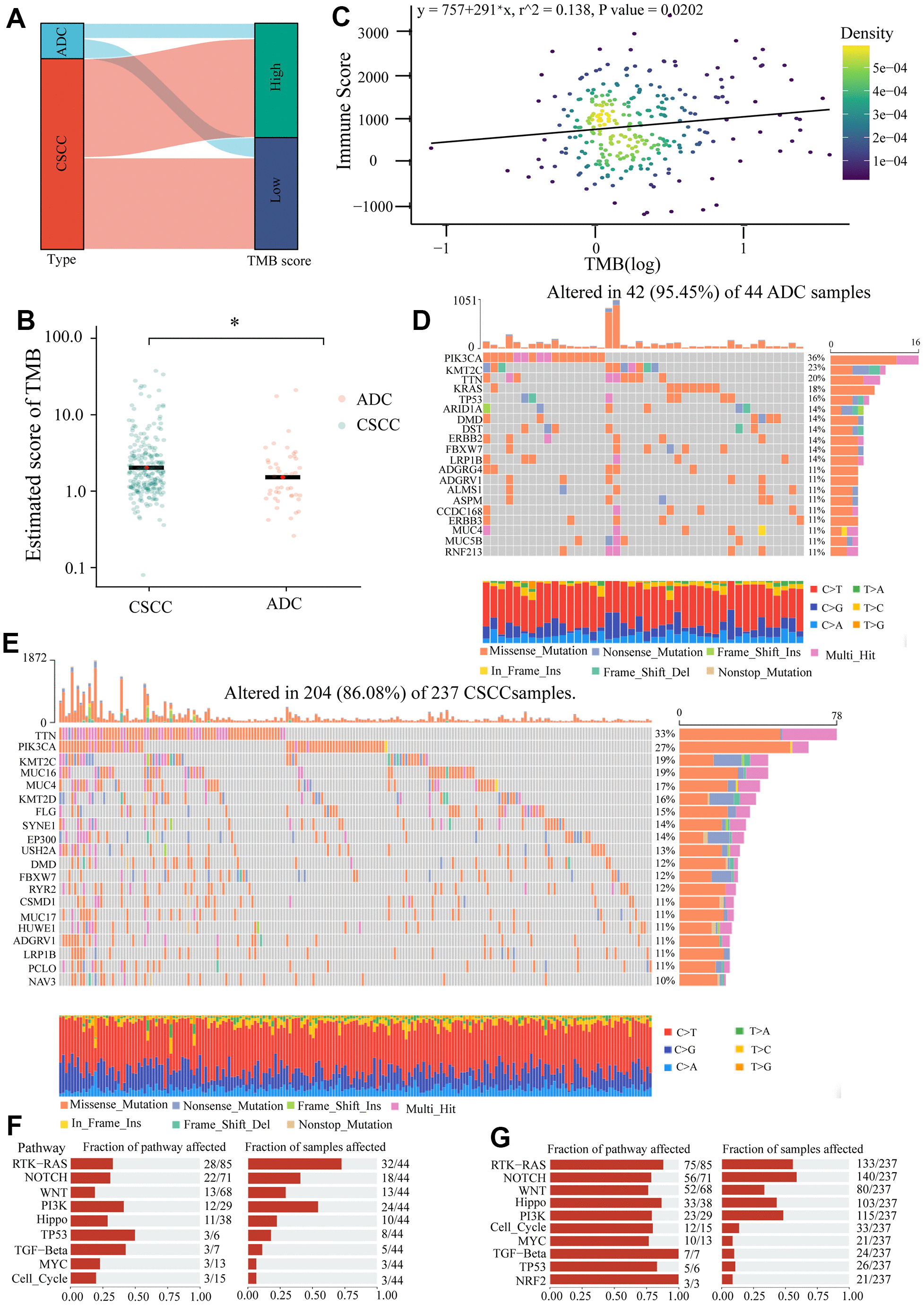

Figure 9. The differences of TMB and gene mutation between CSCC and ADC patients. (A) The Sankey diagram represents the relationship between pathological type and TMB score. (B) The estimated score of TMB in CSCC and ADC. (C) The relationship between ImmunoScore and TMB score. (D) The top 20 mutated genes in 42 of 44 ADC samples. (E) The top 20 mutated genes in 204 of 237 CSCC samples. (F) The oncogenic pathways of mutated genes and their corresponding fractions of samples affected in ADC samples. (G) The oncogenic pathways of mutated genes and their corresponding fractions of samples affected in CSCC samples. * P <0.05.
