Research Paper Volume 16, Issue 1 pp 367—388
Multidimensional comprehensive and integrated analysis of the potential function of TMEM25 in renal clear cell carcinoma with low expression status

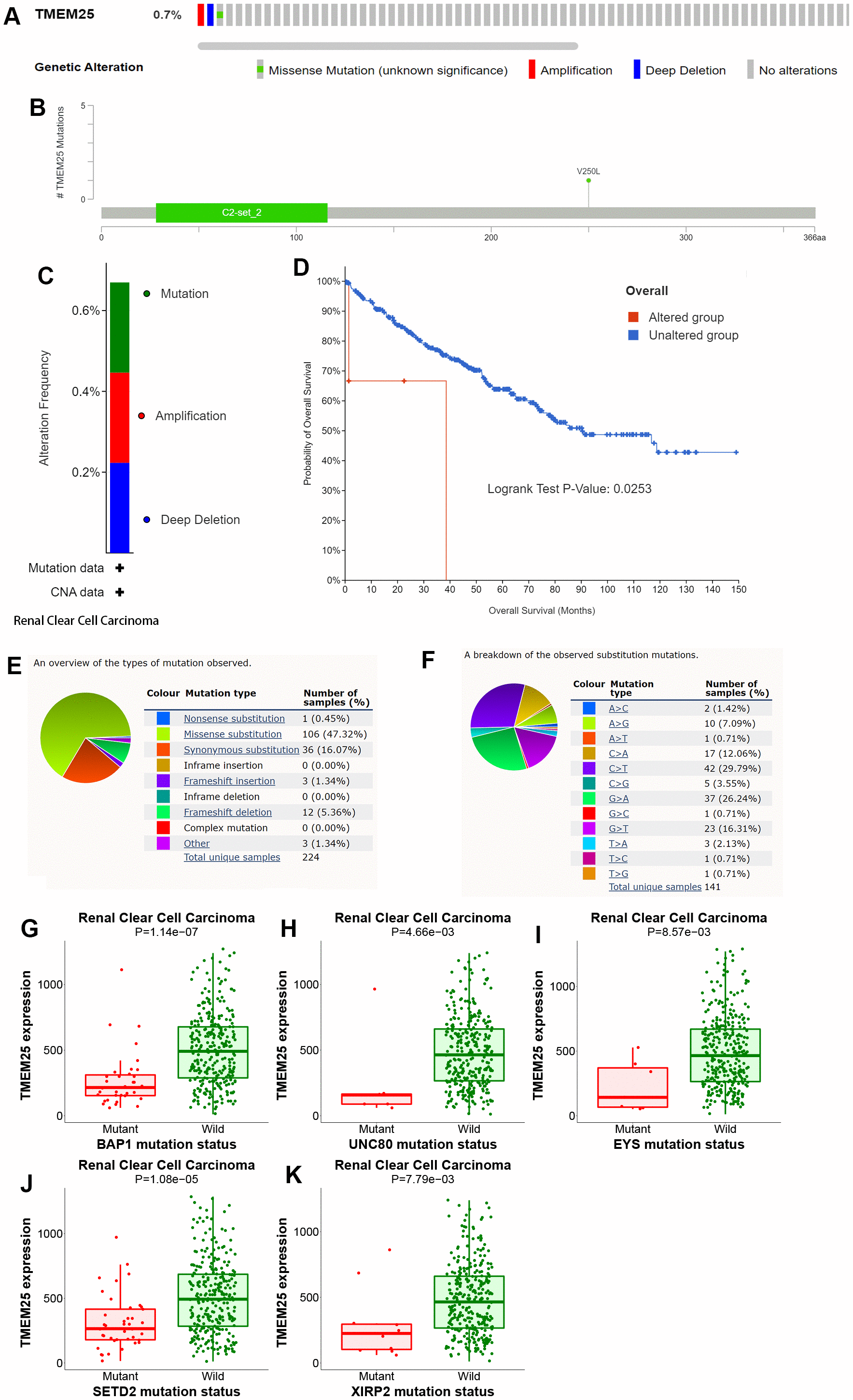

Figure 7. Analysis of genetic alterations of TMEM25 in ccRCC. (A–C) OncoPrint provides a comprehensive view of the TMEM25 mutation. (D) The Kaplan-Meier curves indicate differences in overall survival time between the TMEM25 mutated and unmutated groups. (E, F) The COSMIC website provides information about the types of TMEM25 gene mutations found in different types of cancer. (G–K) Mutations in BAP1, EYS, SETD2, UNC80 and XIRP2 genes alter the expression level of TMEM25.
