Research Paper Volume 15, Issue 22 pp 13213—13238
A prognostic risk model for programmed cell death and revealing TRIB3 as a promising apoptosis suppressor in renal cell carcinoma

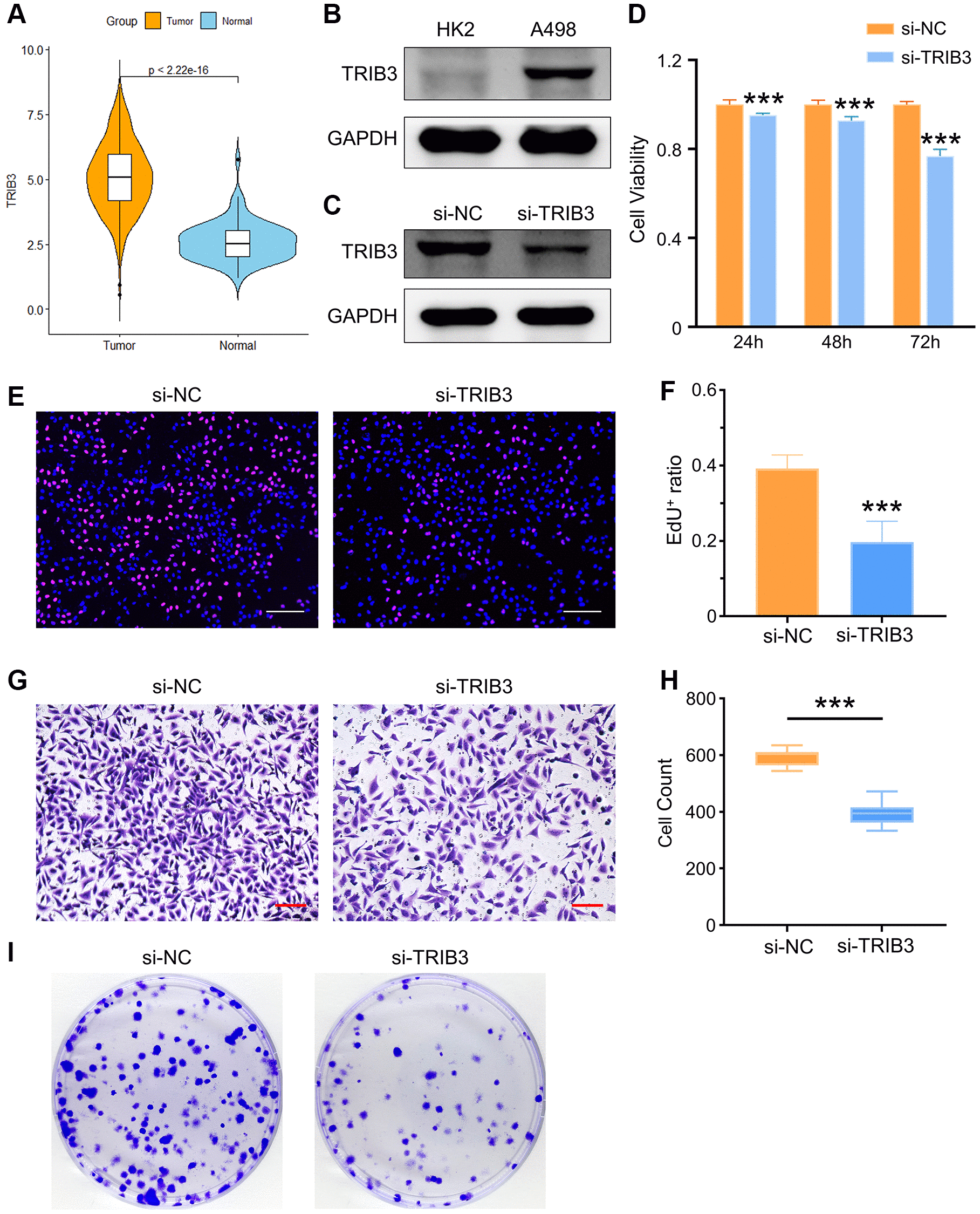

Figure 9. The role of TRIB3 in tumor development in renal cancer. (A) TRIB3 expression in TCGA-KIRC database. (B) TRIB3 expression in HK2 and A498 cells. (C) The efficacy of TRIB3 knockdown in A498 cells. (D) Cell viability of si-NC- or si-TRIB3-transfected A498 cells. (E) Proliferation ability of si-NC- or si-TRIB3-transfected A498 cells tested by EdU staining (scale bar = 200 μm), and the quantified data are shown in (F). (G, H) Invasion capacity of si-NC- or si-TRIB3-transfected A498 cells tested by Transwell assay (scale bar = 200 μm) and the quantified data. (I) Cloning assay of A498 cells with si-NC or si-TRIB3 transfection.
