Hub gene identification and molecular subtype construction for Helicobacter pylori in gastric cancer via machine learning methods and NMF algorithm

Back to articleFigure 7(7 of 10)

100%

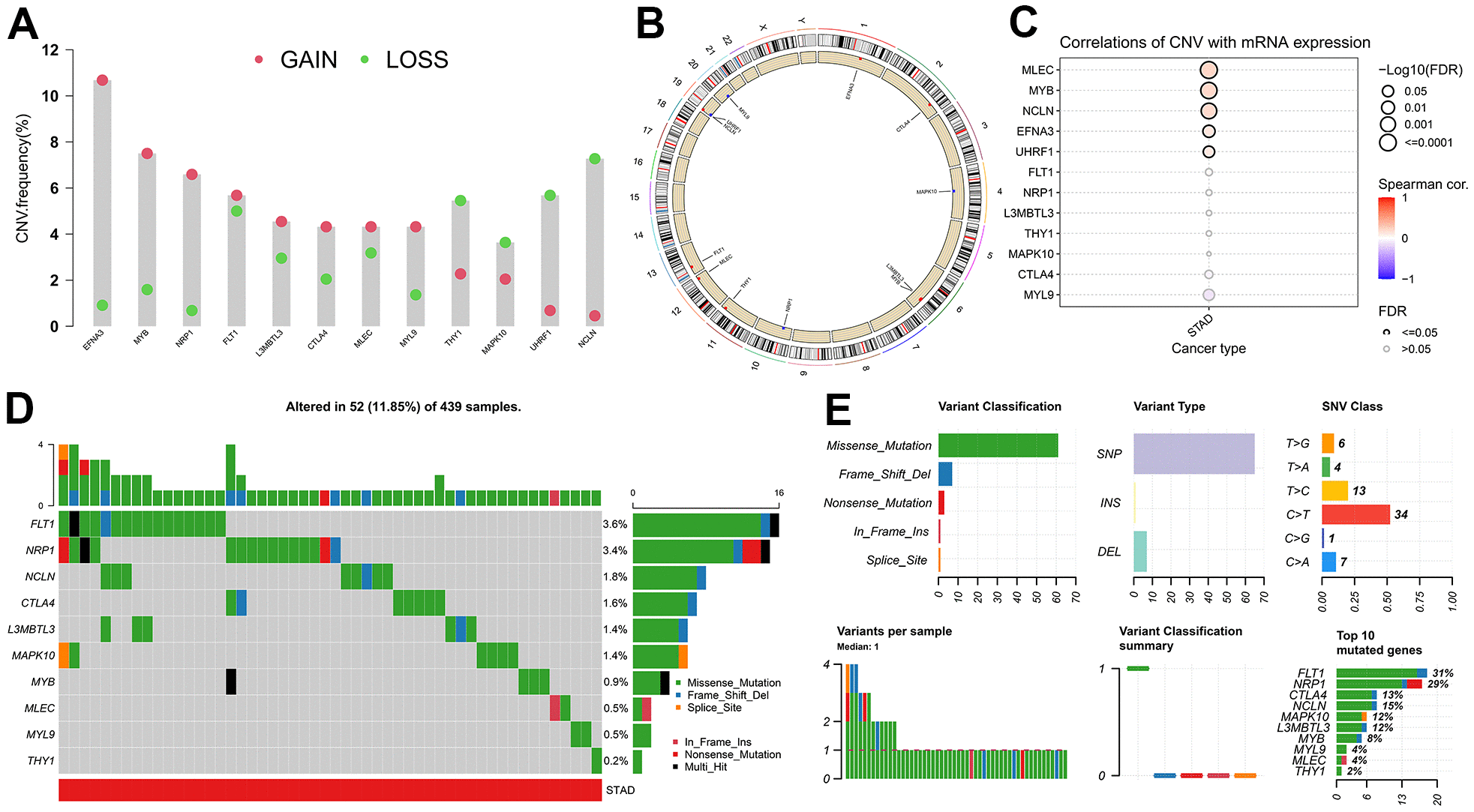

Figure 7.Mutational characteristics of the hub genes. (A) Copy number variation (CNV) frequency of hub genes. (B) Circle diagram of CNV with hub genes. (C) Correlation between expression of hub genes and CNV. (D) Cascade of hub gene mutations. (E) Details regarding single nucleotide variants (SNV).
