Research Paper Volume 15, Issue 14 pp 6950—6968
Single-cell sequencing analysis reveals the relationship between tumor microenvironment cells and oxidative stress in breast cancer bone metastases

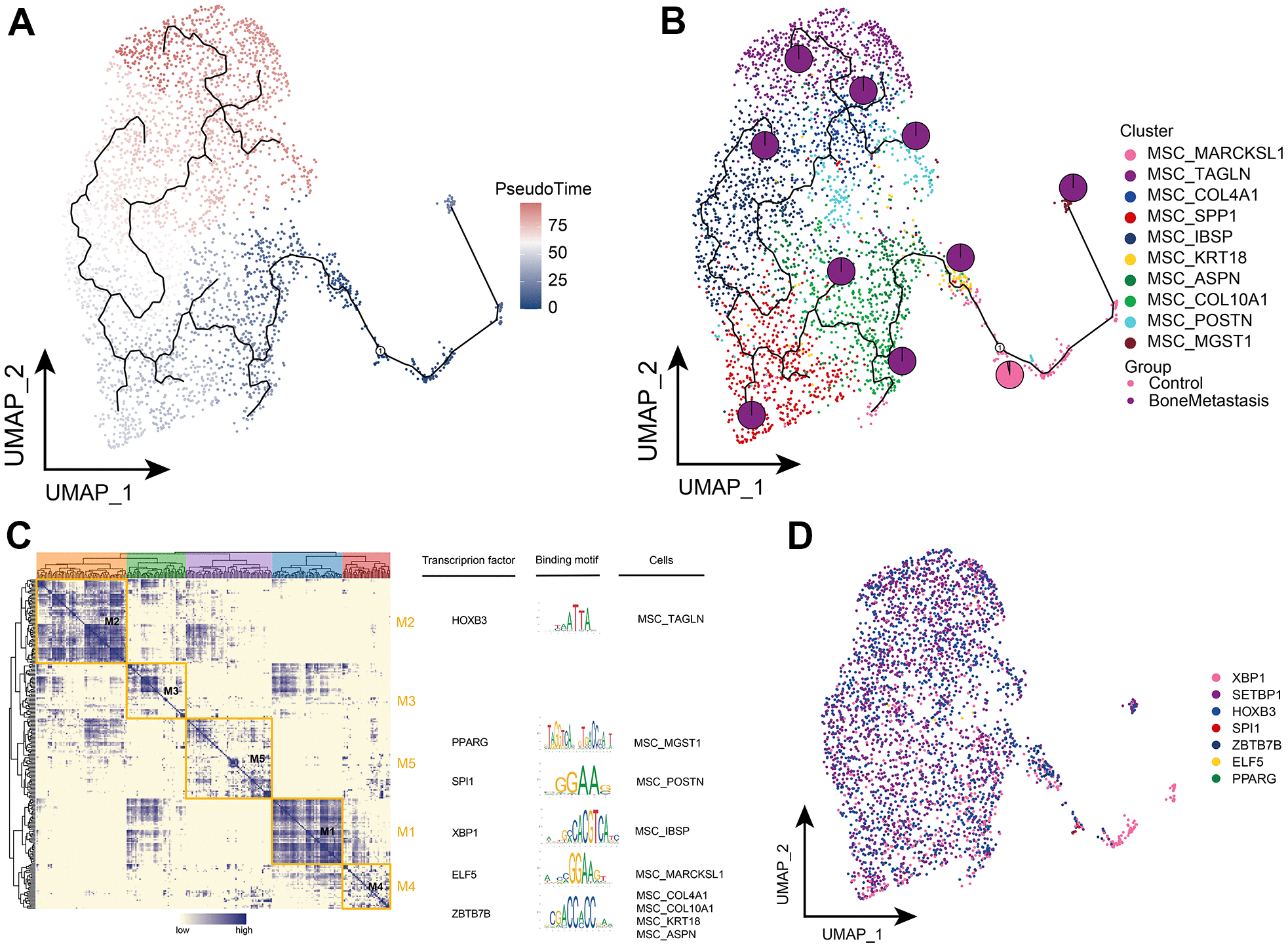

Figure 7. Clonal evolution of MSC subpopulations in patients with bone metastases from breast cancer. (A, B) Pseudo-time values (A) and developmental trajectories (B) of MSC subpopulations, pie charts representing the proportion of control and breast cancer bone metastasis patients in MSC subpopulations. (C) Co-expression modules of transcription factors in MSC subpopulations of patients with breast cancer bone metastases. Left: Identification of regulator modules based on the regulator’s linkage specificity index matrix. Middle: representative transcription factors and their binding patterns in the modules. Right panel: cellular subpopulations in which transcription factors are located. (D) Single-cell atlas showing transcription factors regulating MSC subpopulations.
