Research Paper Volume 15, Issue 13 pp 6011—6030

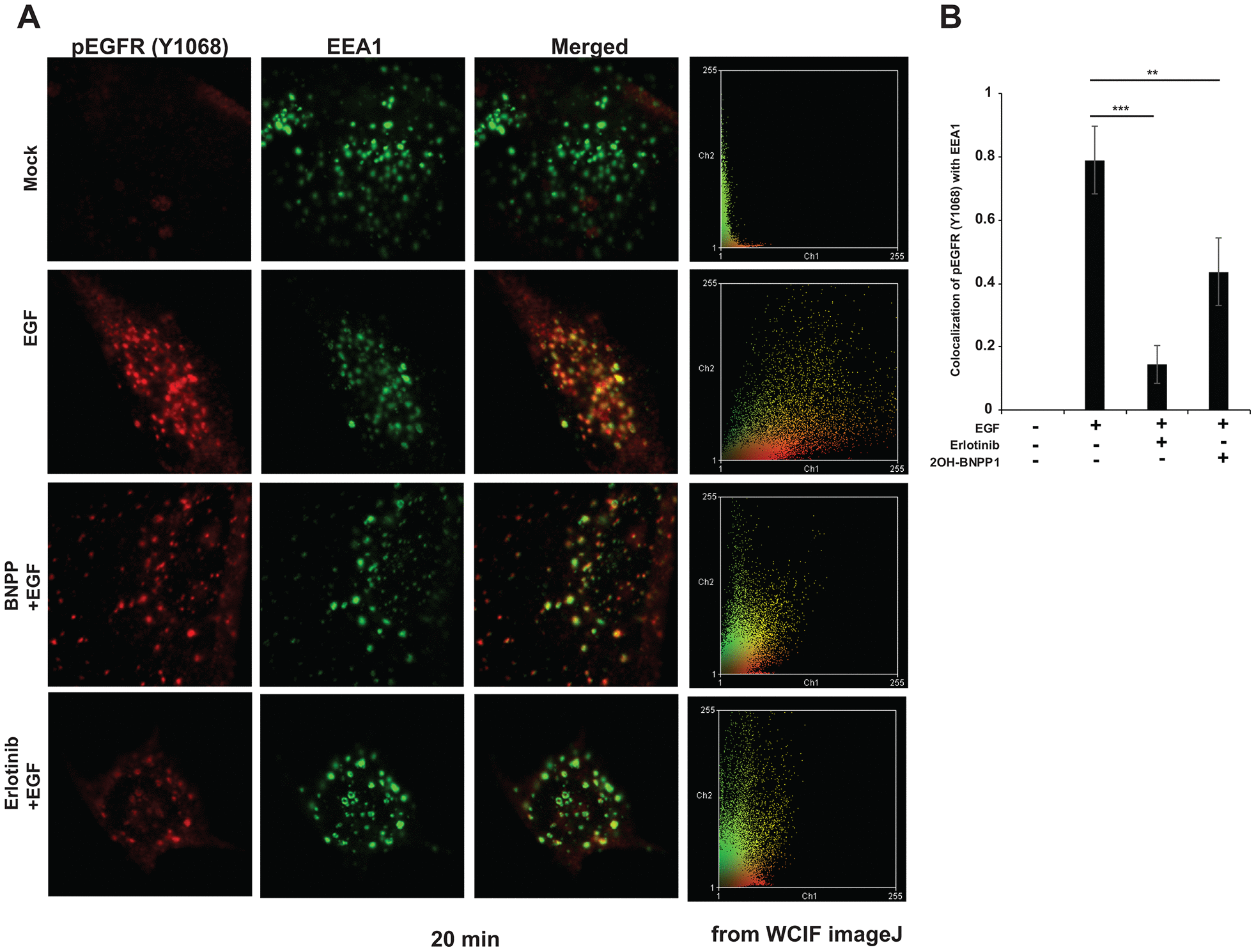

Figure 6. BUB1 inhibitor reduces endocytosis of active EGFR in MDA-MB-231-1833 cells. (A) Cells were plated on glass coverslips, serum starved for 3-4 hours and pretreated with 2OH-BNPP1 (10 μM) or erlotinib (10 μM) for 1 hour followed by EGF treatment (50 ng/mL). Cells were fixed at different time points (5, 20, 40 and 80 minutes) post EGF treatment and processed for staining with pEGFR (Y1068) and EEA1 antibodies. Representative confocal images 20 minutes post EGF treatment are shown. (B) co-localization of pEGFR (Y1068) with EEA1 was estimated on ImageJ using JACOMP plugin. Data at 20 min post EGF treatment is plotted. Two-sided students t-test was performed on MS-Excel (p values, ** = 0.00097, ***=3.17 X 10^-5).
