Research Paper Volume 15, Issue 9 pp 3826—3838
miR-926-3p influences myocardial injury in septic mice through regulation of mTOR signaling pathway by targeting TSC1

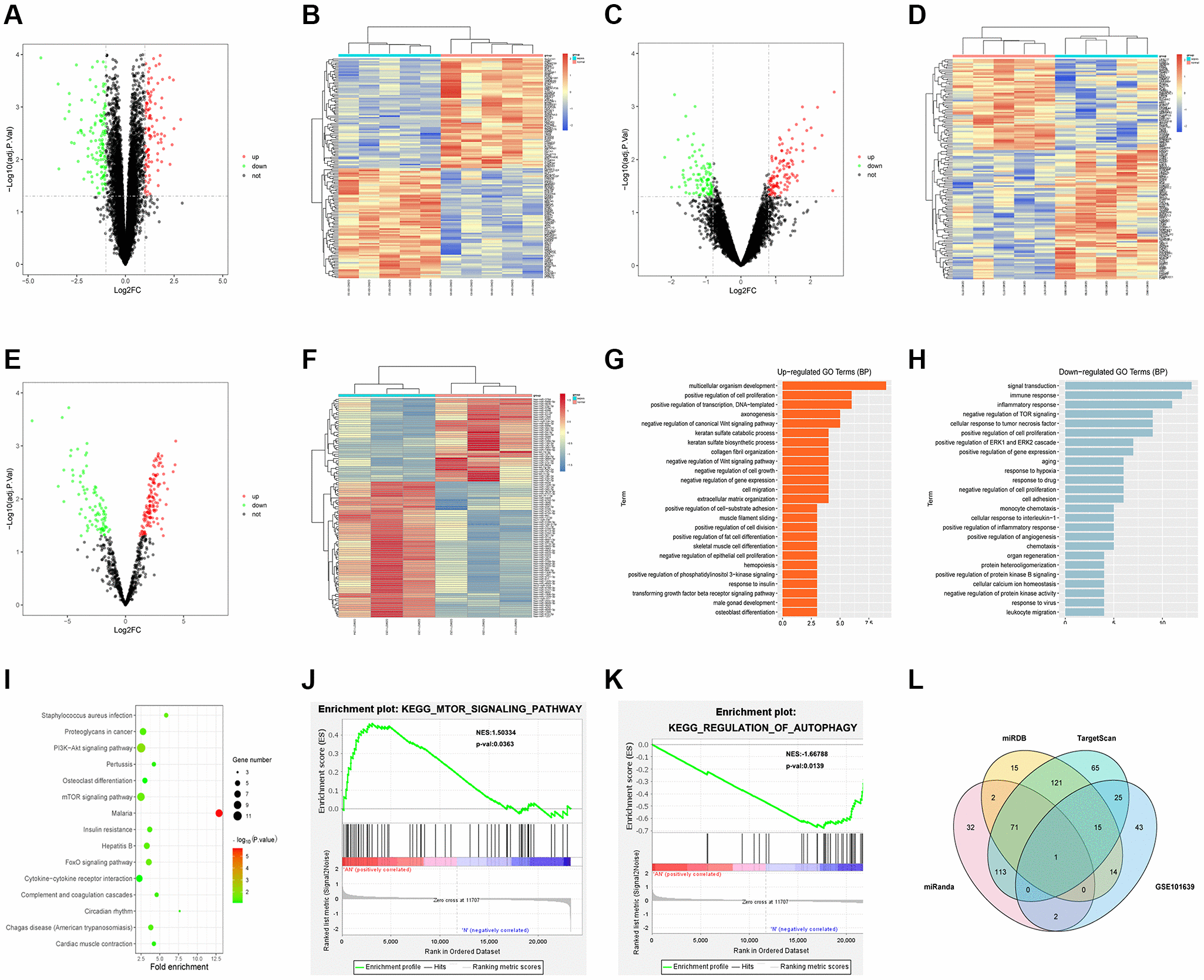

Figure 1. Bioinformatics analysis. (A) Volcano plot of visually grouped DEGs in GSE79962. (B) Cluster heatmap of DEGs in GSE79962. (C) Volcano plot of visually grouped DEGs in GSE12624. (D) Cluster heatmap of DEGs in GSE12624. (E) Volcano plot of visually grouped DEGs in GSE101639. (F) Cluster heatmap of DEGs in GSE101639. (G and H) Diagrams of up-regulated and down-regulated GO pathways of DEGs. (I) KEGG pathway of DEGs. (J and K) GSEA showed that regulation of autophagy, mTOR signaling pathway and other pathways were significantly related to the enrichment of DEGs. (L) Venn diagrams of candidate target genes and GSE101639 DEGs.
