Figure 5 — Whole-transcriptome sequencing analysis reveal mechanisms of Yiqi Huoxue Yangyin (YHY) decoction in ameliorating D-gal-induced cardiac aging

Research Paper|Volume 15, Issue 8|pp. 2906–2919

Whole-transcriptome sequencing analysis reveal mechanisms of Yiqi Huoxue Yangyin (YHY) decoction in ameliorating D-gal-induced cardiac aging

Back to articleFigure 5(5 of 8)

100%

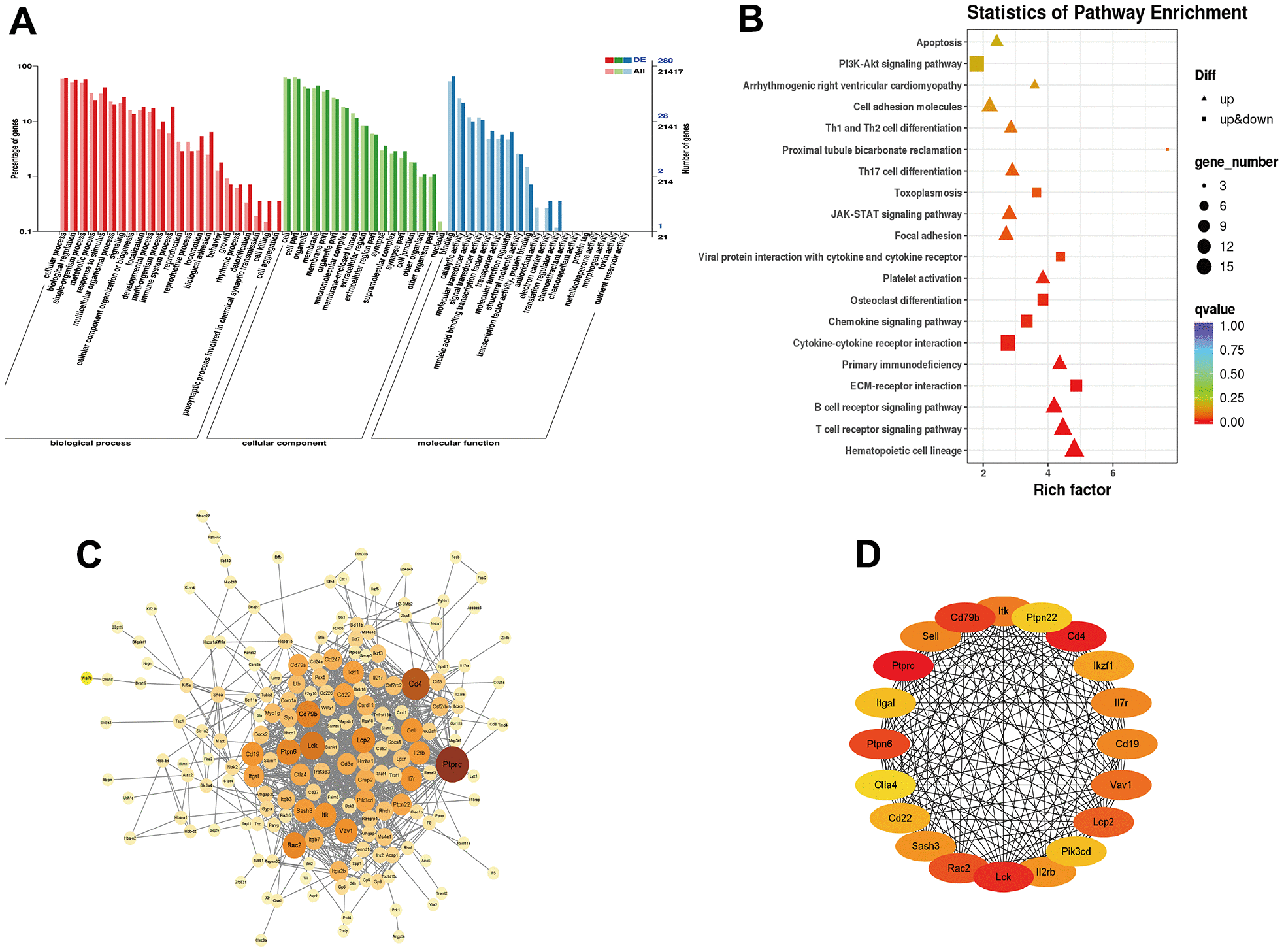

Figure 5.Functional enrichment analysis of differentially expressed mRNAs. (A) GO enrichment analysis of DEGs; (B) KEGG pathway analysis enrichment analysis of DEGs; (C) PPI network constructed using STRING online database; (D) Top 20 hub genes identified through degree method in cytoHubba.
