Research Paper Volume 15, Issue 1 pp 148—163
Investigation on the mechanism of Shaoyao-Gancao Decoction in the treatment of gastric carcinoma based on network pharmacology and experimental verification

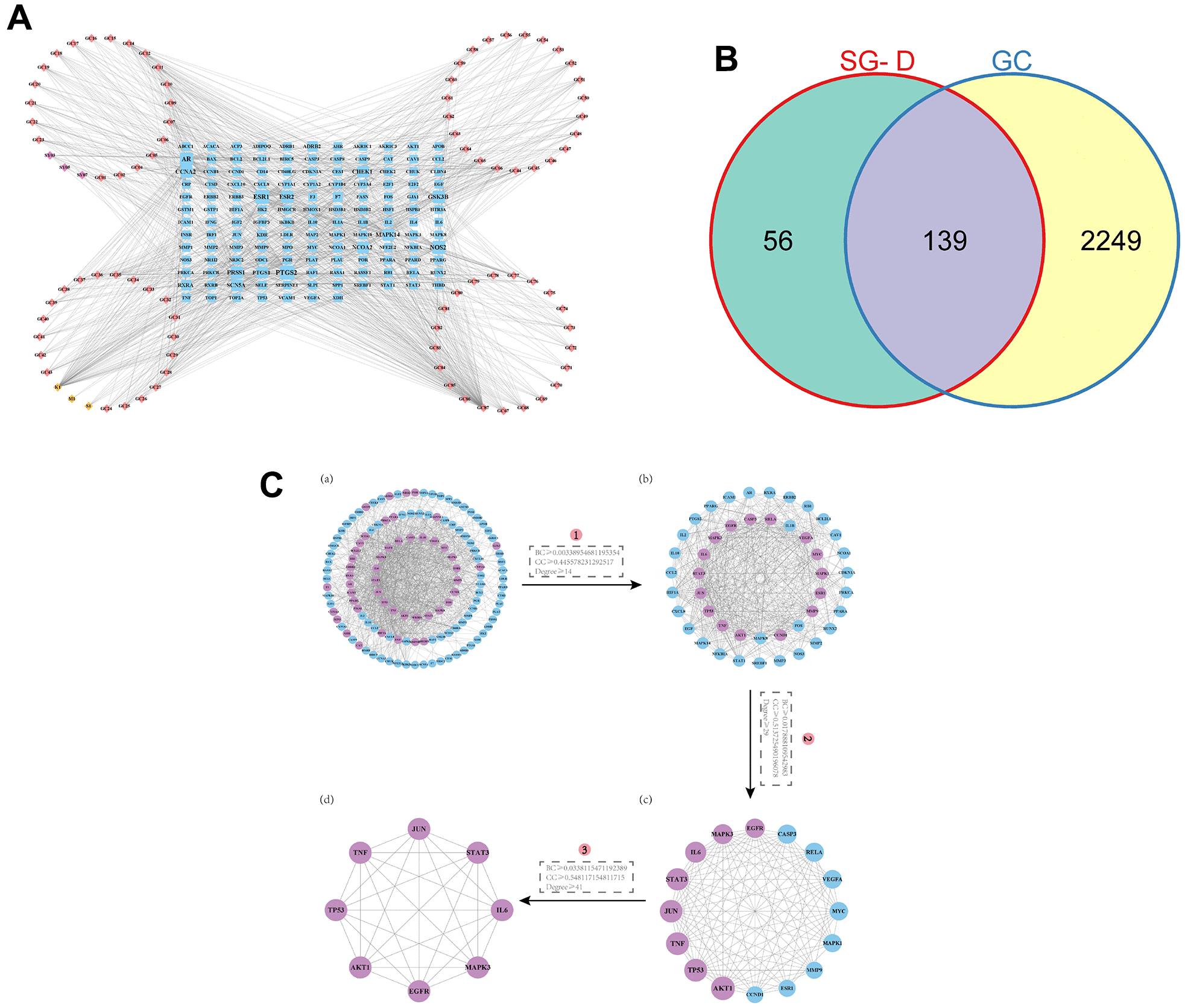

Figure 2. Prediction of active ingredients and core targets. (A) The “component-target” network. The active ingredients in Shaoyao are shown by the purple nodes, those in Gancao are represented by the pink nodes, the common active ingredients of SG-D by yellow nodes, and the common targets by blue node. The more active ingredients are connected to a node as it grows larger. (B) Venn diagram of intersecting targets of SG-D and GC. (C) The screening of core targets in the PPI network, (a) Containing 132 nodes and 1138 edges, purple nodes indicate targets with higher BC, CC, and Degree. (b) Containing 46 nodes and 491 edges. (c) Containing 16 nodes and 103 edges. (d) Containing 8 nodes and 28 edges.
