Research Paper Volume 14, Issue 24 pp 10153—10170
Sevoflurane postconditioning ameliorates cerebral ischemia-reperfusion injury in rats via TLR4/MyD88/TRAF6 signaling pathway

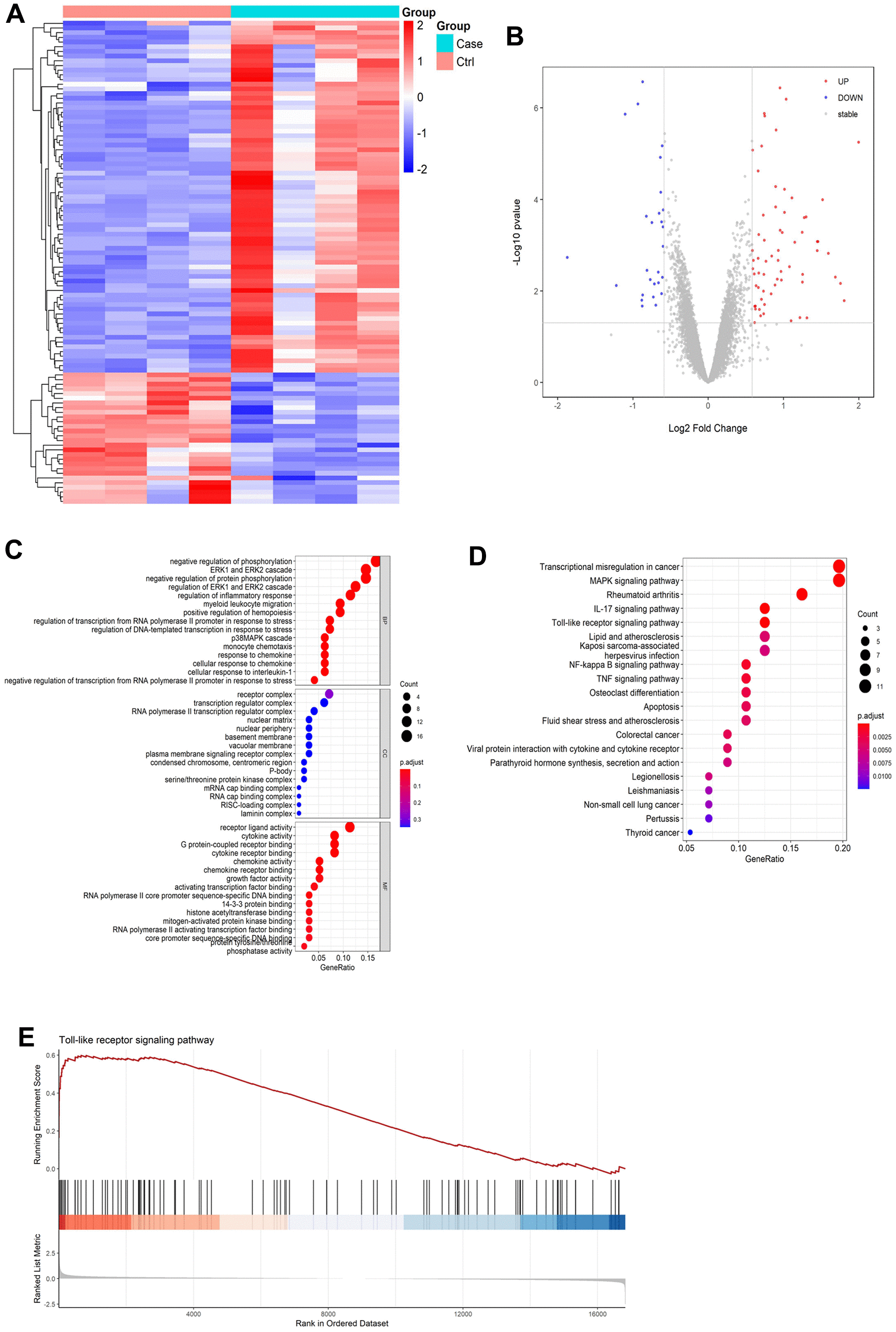

Figure 2. Results of bioinformatics analysis. (A) Differential gene volcano map. (B) Heatmap of differentially expressed gene cluster analysis. (C) GO enrichment analysis pathway diagram. (D) KEGG enrichment analysis pathway diagram. (E) GSEA gene enrichment analysis diagram of Toll-like receptor signaling pathways.
