Research Paper Volume 14, Issue 5 pp 2210—2220

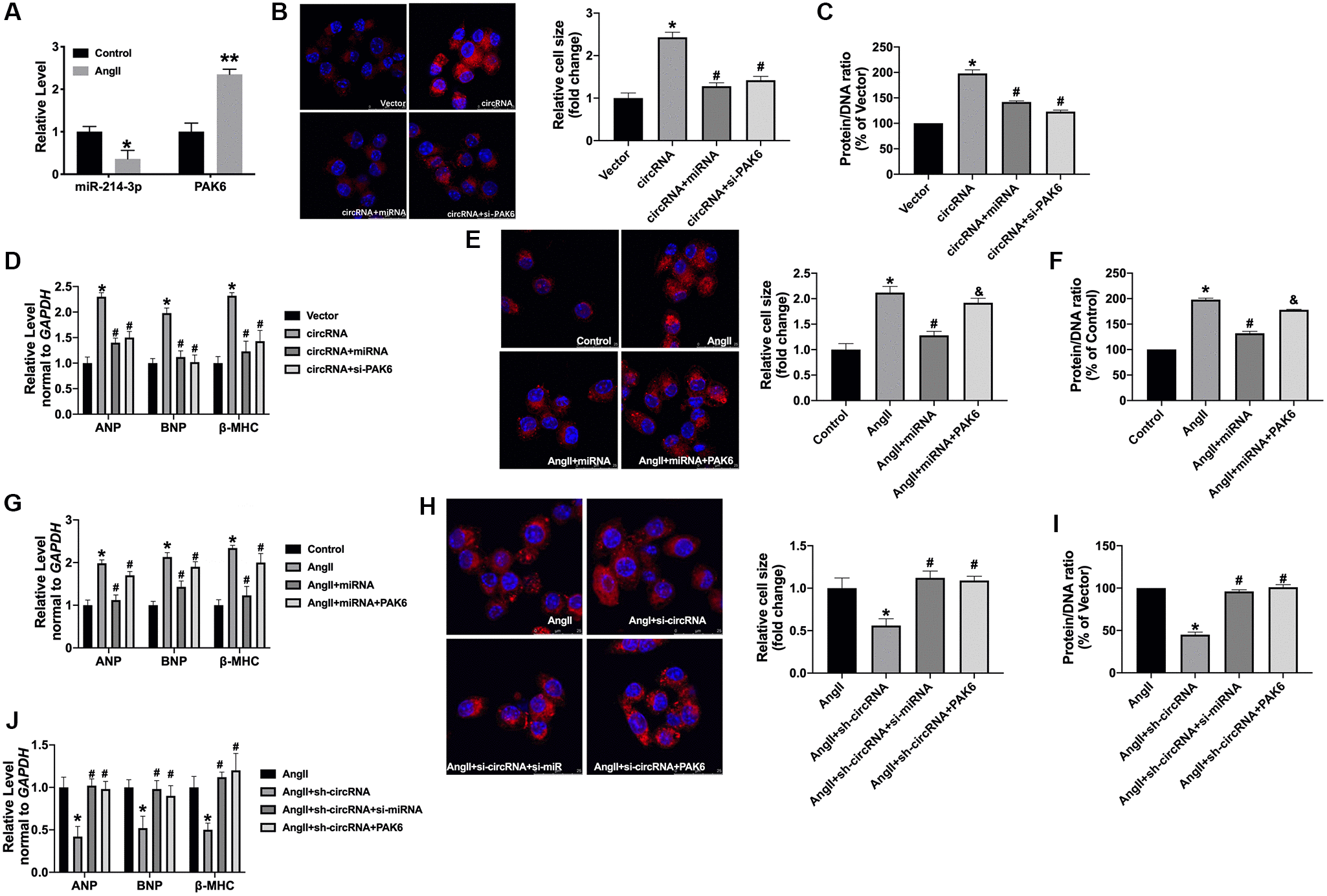

Figure 6. The circ_0001006 regulates cardiac hypertrophy via suppressing miR-214-3p/PAK6. (A) qRT-PCR assay analysis of PAK6 and miR-214-3p level in cardiomyocytes. (B) Representative immunofluorescence results of cardiomyocytes (The scale bar is 25 μm). (C) Protein/DNA ratio of the cardiomyocytes. (D) The expression of ANP, BNP, and β-MHC in cardiomyocytes. (E) Representative immunofluorescence results of cardiomyocytes (The scale bar is 25 μm). (F) Protein/DNA ratio of the cardiomyocytes. (G) The expression of ANP, BNP, and β-MHC in cardiomyocytes. (H) Representative immunofluorescence results of cardiomyocytes (The scale bar is 25 μm). (I) Protein/DNA ratio of the cardiomyocytes. (J) The expression of ANP, BNP, and β-MHC in cardiomyocytes. Data are shown as mean ± SEM. ^*P and ^#P < 0.05 and ^**P < 0.01. All experiments were repeated at least three independent experiments.
