Figure 2 — Activation of the gut microbiota-kynurenine-liver axis contributes to the development of nonalcoholic hepatic steatosis in nondiabetic adults

Research Paper|Volume 13, Issue 17|pp. 21309–21324

Activation of the gut microbiota-kynurenine-liver axis contributes to the development of nonalcoholic hepatic steatosis in nondiabetic adults

Back to articleFigure 2(2 of 5)

100%

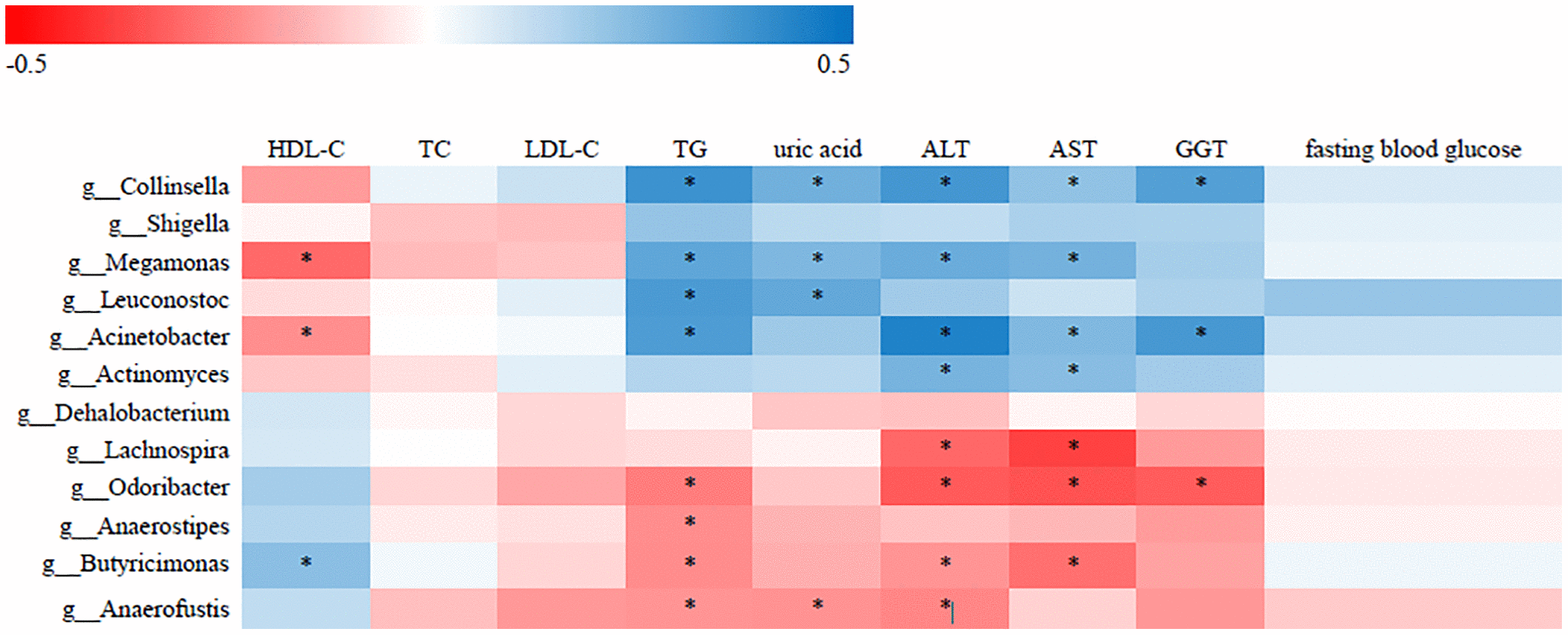

Figure 2.Correlative relationships between discriminatory gut microbiota and clinical indices. X-axis: clinical indices; Y-axis: genus; color scale represents Spearman’s correlation coefficient; red denotes strong negative correlations; blue denotes strong positive correlations; ^*P < 0.05).
