A preclinical study: correlation between PD-L1 PET imaging and the prediction of therapy efficacy of MC38 tumor with ⁶⁸Ga-labeled PD-L1 targeted nanobody

Back to articleFigure 1(1 of 7)

100%

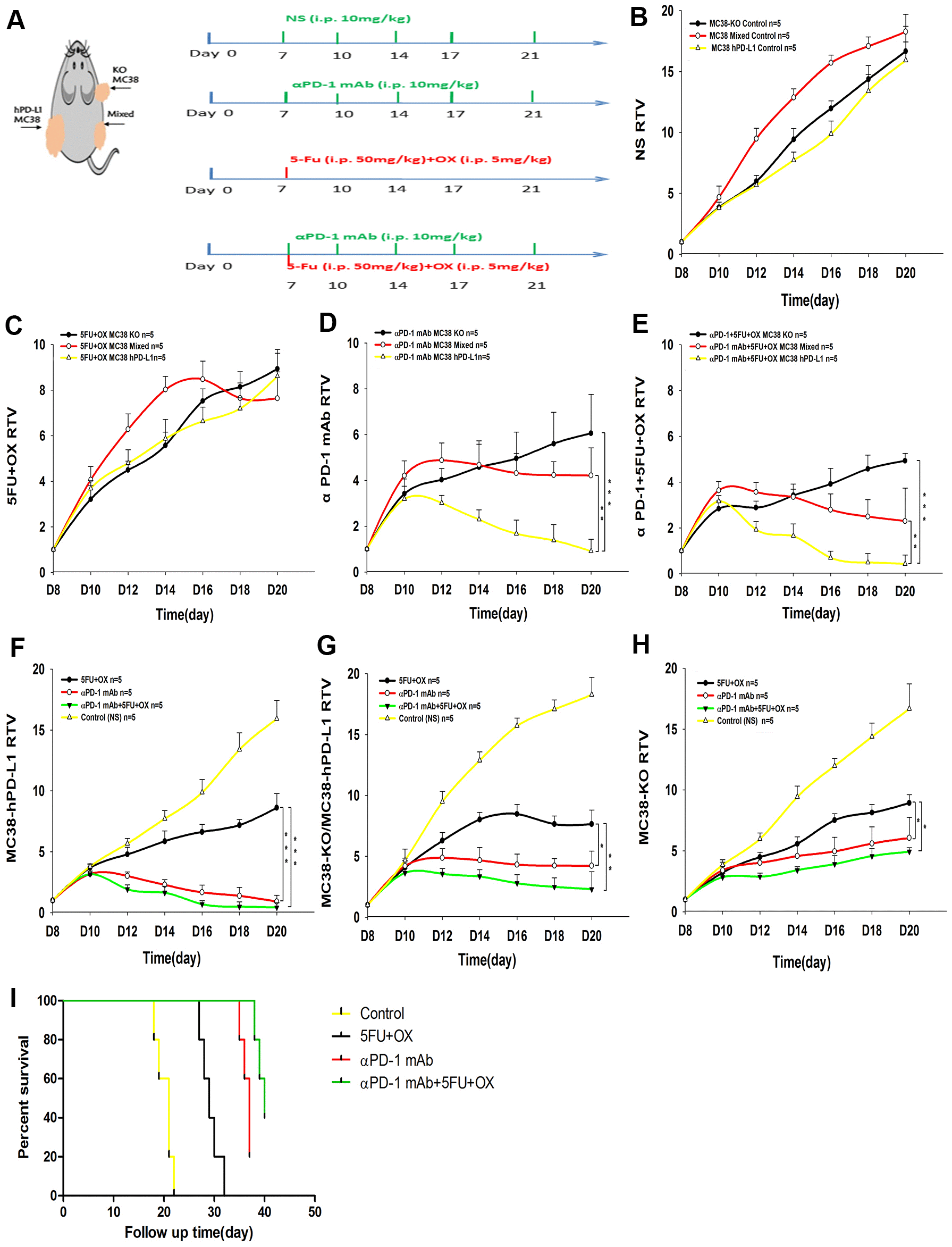

Figure 1.Effect of different treatments on tumor growth in tumor-bearing mice. (A) Treatment schedules. (B–H) Tumor growth delay cure (n=5) (B) The growth cure of different tumors with normal saline. (MC38-KO, black; MC38 Mixed, red; MC38 hPD-L1, yellow). (C–E) Different treatment methods for different tumors. (F–H) The growth of different tumors treated with 5Fu and Oxaliplatin (OX), anti-PD-1, or combined treatment. (I) Mice survival analysis. ^***P <0.001, ^**P <0.01, ^*P <0.05.
