Figure 8 — Development of a prognostic index and screening of prognosis related genes based on an immunogenomic landscape analysis of bladder cancer

Research Paper|Volume 13, Issue 8|pp. 12099–12112

Development of a prognostic index and screening of prognosis related genes based on an immunogenomic landscape analysis of bladder cancer

Back to articleFigure 8(8 of 8)

100%

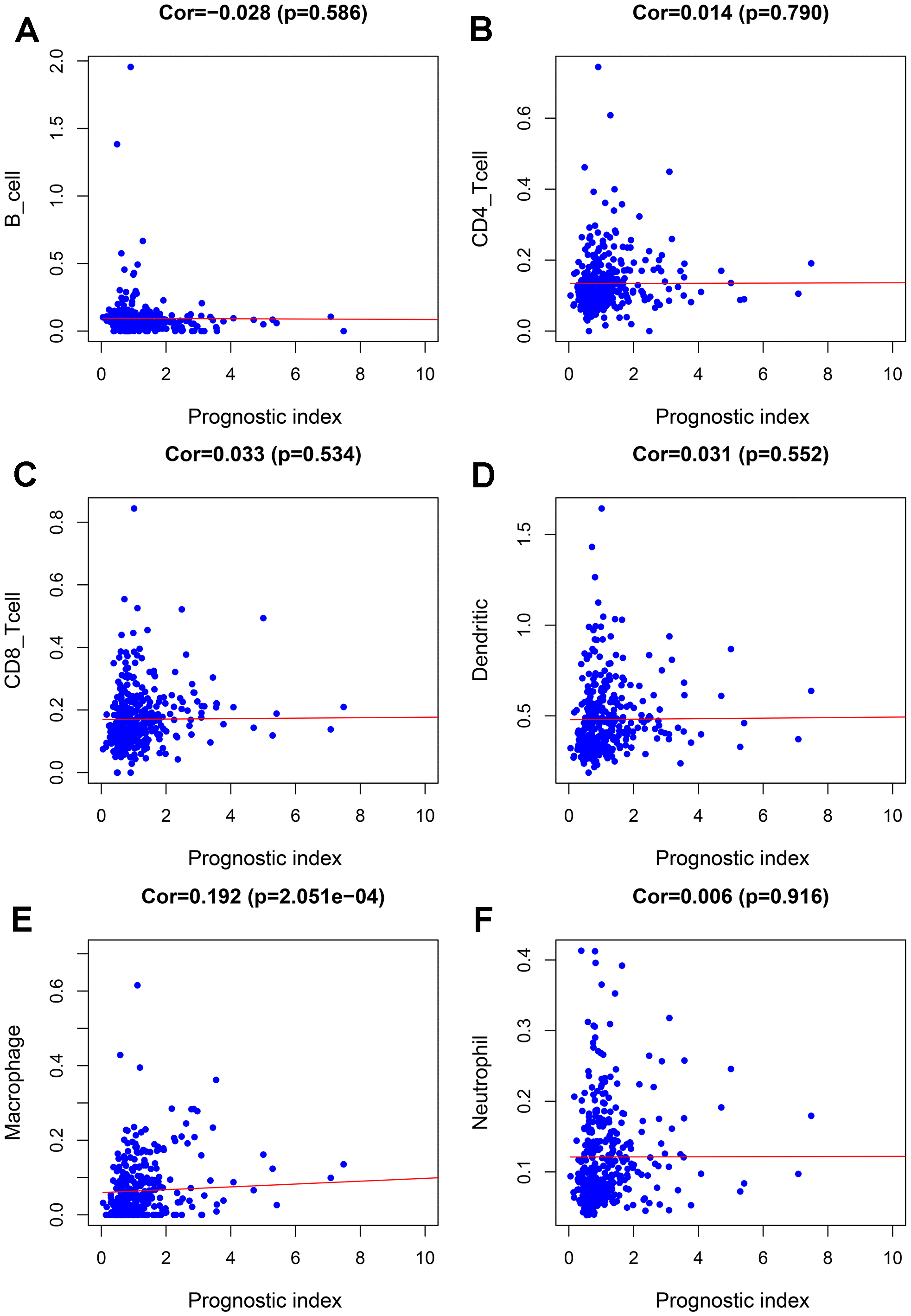

Figure 8.Relationships between the abundances of six types of immune cells and the immune-based prognostic index in patients with BLCA. (A) B cells; (B) CD4 T cells; (C) CD8 T cells; (D) dendritic cells; (E) macrophages; (F) neutrophils.
