Figure 4 — Prognostic potential of cardiac structural and functional parameters and N-terminal propeptide of type III procollagen in predicting cardiac fibrosis one year after myocardial infarction with preserved left ventricular ejection fraction

Research Paper|Volume 13, Issue 1|pp. 194–203

Prognostic potential of cardiac structural and functional parameters and N-terminal propeptide of type III procollagen in predicting cardiac fibrosis one year after myocardial infarction with preserved left ventricular ejection fraction

Back to articleFigure 4(4 of 5)

100%

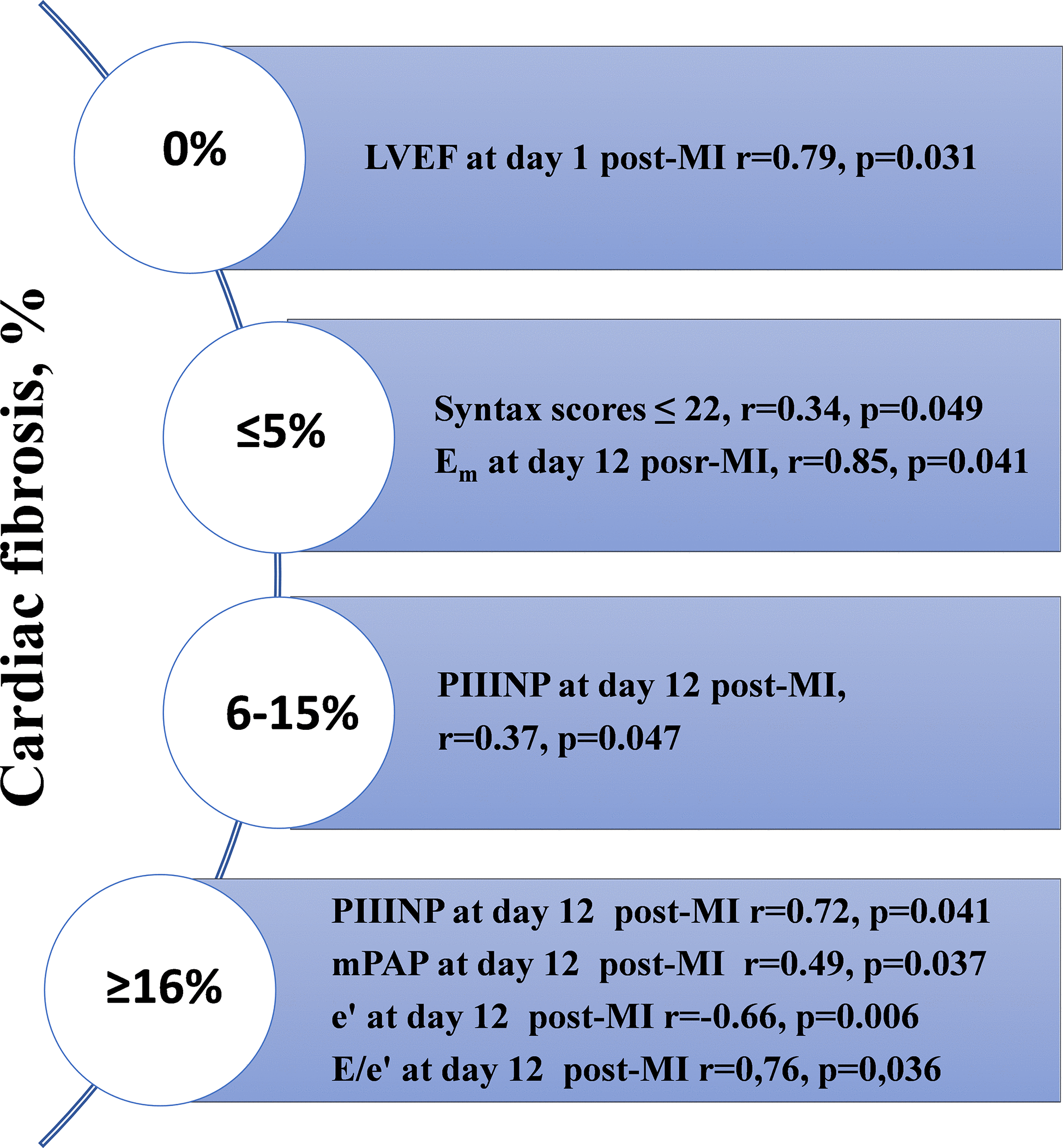

Figure 4.The results of the correlation analysis depending on the prevalence of cardiac fibrosis measured with MRI one year after STEMI with preserved LVEF. MRI, magnetic resonance imaging; LVEF, left ventricular ejection fraction; STEMI, ST-segment elevation myocardial infarction; MI, myocardial infarction; mPAP, mean pulmonary artery pressure.
