Figure 9 — Constructing a ceRNA-immunoregulatory network associated with the development and prognosis of human atherosclerosis through weighted gene co-expression network analysis

Research Paper|Volume 13, Issue 2|pp. 3080–3100

Constructing a ceRNA-immunoregulatory network associated with the development and prognosis of human atherosclerosis through weighted gene co-expression network analysis

Back to articleFigure 9(9 of 11)

100%

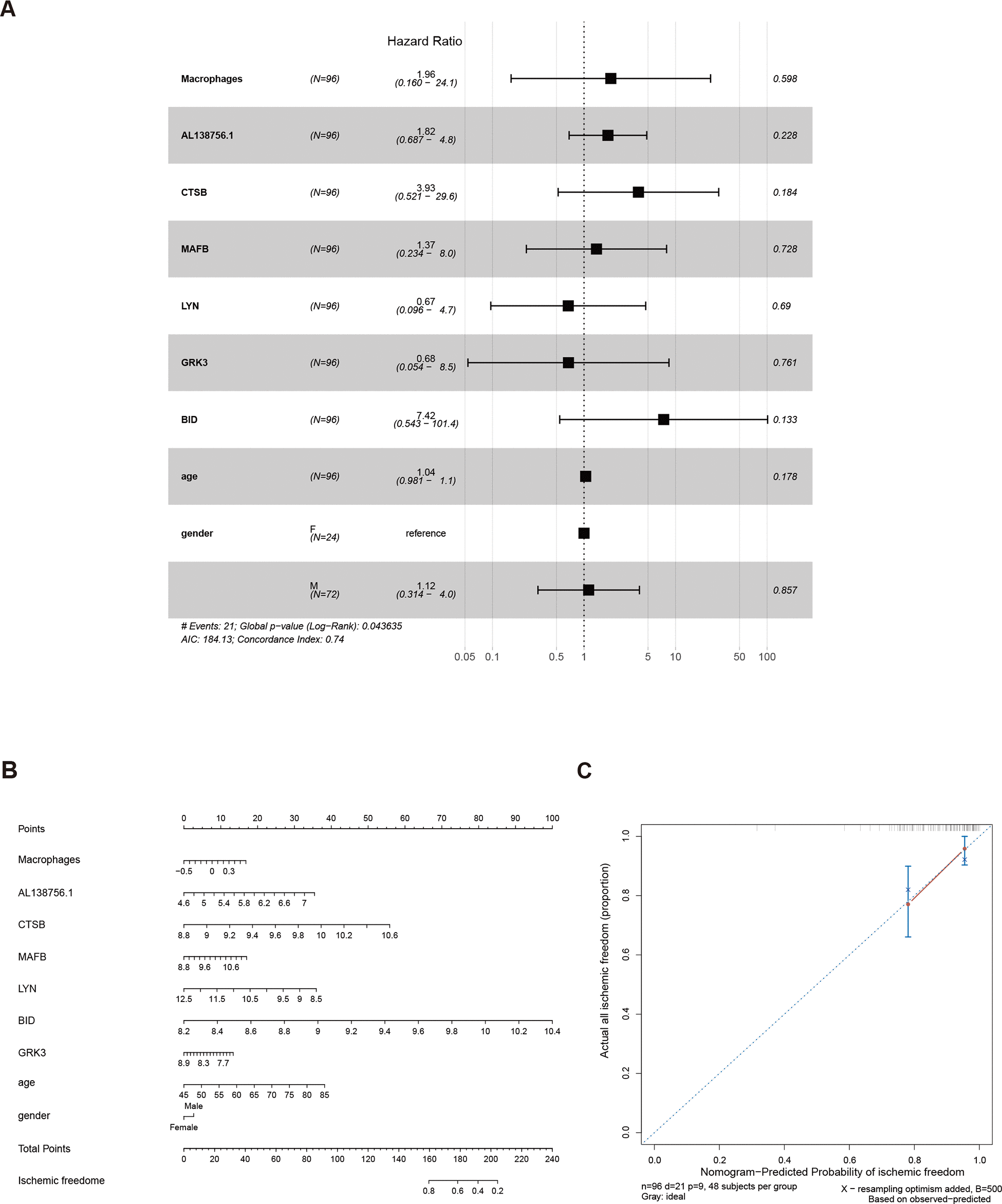

Figure 9.The results of the multivariate Cox regression (A), nomogram (B), and model diagnosis process of the calibration curve (C) constructed by the prognostic factors of the macrophage related ceRNA subnetwork (adjusted by age and gender).
