Figure 3 — The association of serum vitamin K2 levels with Parkinson's disease: from basic case-control study to big data mining analysis

Research Paper|Volume 12, Issue 16|pp. 16410–16419

The association of serum vitamin K2 levels with Parkinson's disease: from basic case-control study to big data mining analysis

Back to articleFigure 3(3 of 6)

100%

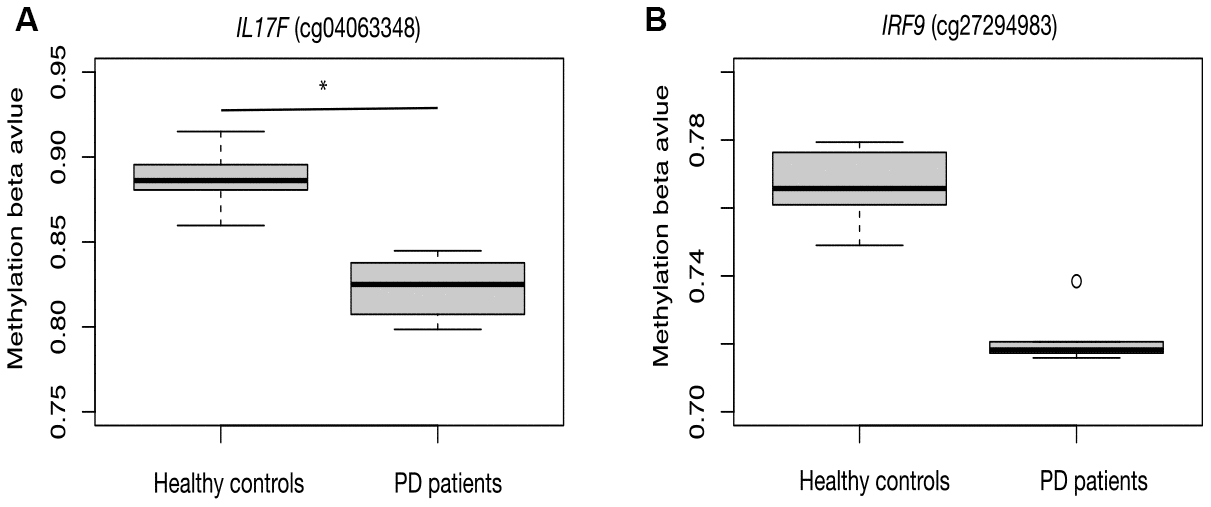

Figure 3.Hypomethylation of inflammation related genes in PD patients. CpG sites in the promoter region of IL17F (A) and IRF9 (B) are hypomethylated in PD patients.
