Research Paper Volume 12, Issue 11 pp 10194—10210
Influences of TP53 and the anti-aging DDR1 receptor in controlling Raf/MEK/ERK and PI3K/Akt expression and chemotherapeutic drug sensitivity in prostate cancer cell lines

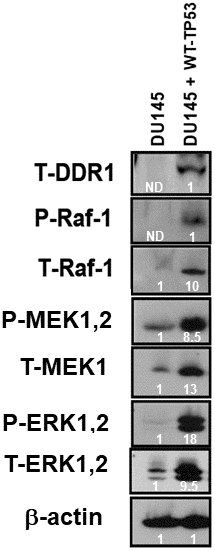

Figure 8. Effects of restoration of WT-TP53 on DDR1 and Raf/MEK/ERK protein levels in DU145 prostate cancer cells either lacking or containing functional WT-TP53. Western blot analysis was performed to determine the levels DDR1 and key members of the Raf/MEK/ERK pathway in response to restoration of WT-TP53. Levels of actin were determined as a protein loading control These experiments were repeated twice, and similar results were observed. The fold values shown in white numbers and letters are presented as averages of 3 densitometric readings. ND = not detected.
