Research Paper|Volume 12, Issue 12|pp. 11864–11877
Prognosis and regulation of an adenylyl cyclase network in acute myeloid leukemia
Back to articleFigure 6(6 of 7)
100%
Figure 6

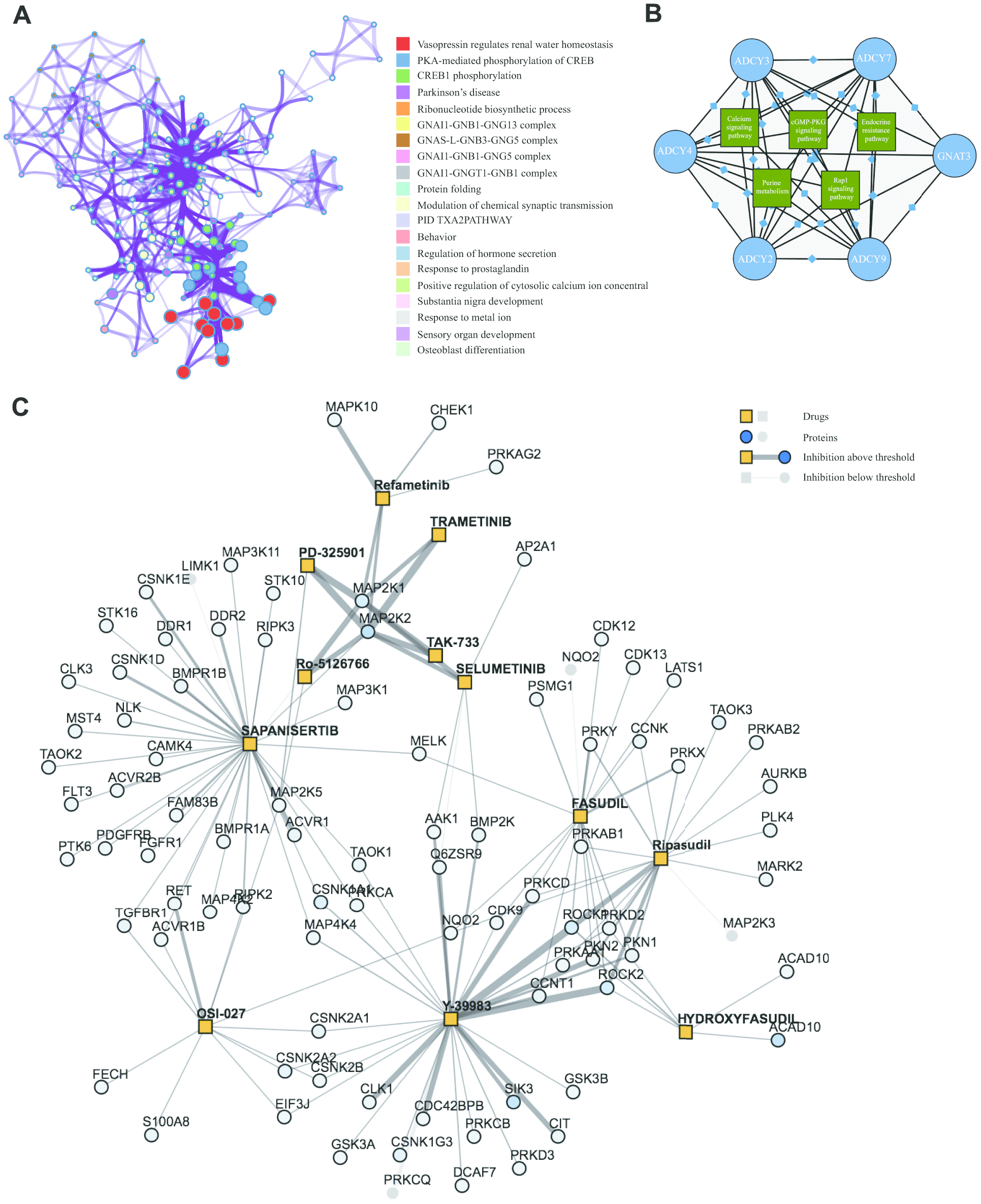

Figure 6.KEGG Enrichment and therapeutic targets of ADCYs in AML. (A) Significant terms among the gene memberships (Metascape). (B) KEGG analysis of FANGs in AML. (C) Protein-drug interaction map for inhibitors of the MAPK pathway in AML.
