Figure 12 — Melatonin-micronutrients Osteopenia Treatment Study (MOTS): a translational study assessing melatonin, strontium (citrate), vitamin D3 and vitamin K2 (MK7) on bone density, bone marker turnover and health related quality of life in postmenopausal osteopenic women following a one-year double-blind RCT and on osteoblast-osteoclast co-cultures

Research Paper|Volume 9, Issue 1|pp. 256–285

Melatonin-micronutrients Osteopenia Treatment Study (MOTS): a translational study assessing melatonin, strontium (citrate), vitamin D3 and vitamin K2 (MK7) on bone density, bone marker turnover and health related quality of life in postmenopausal osteopenic women following a one-year double-blind RCT and on osteoblast-osteoclast co-cultures

Back to articleFigure 12(16 of 16)

100%

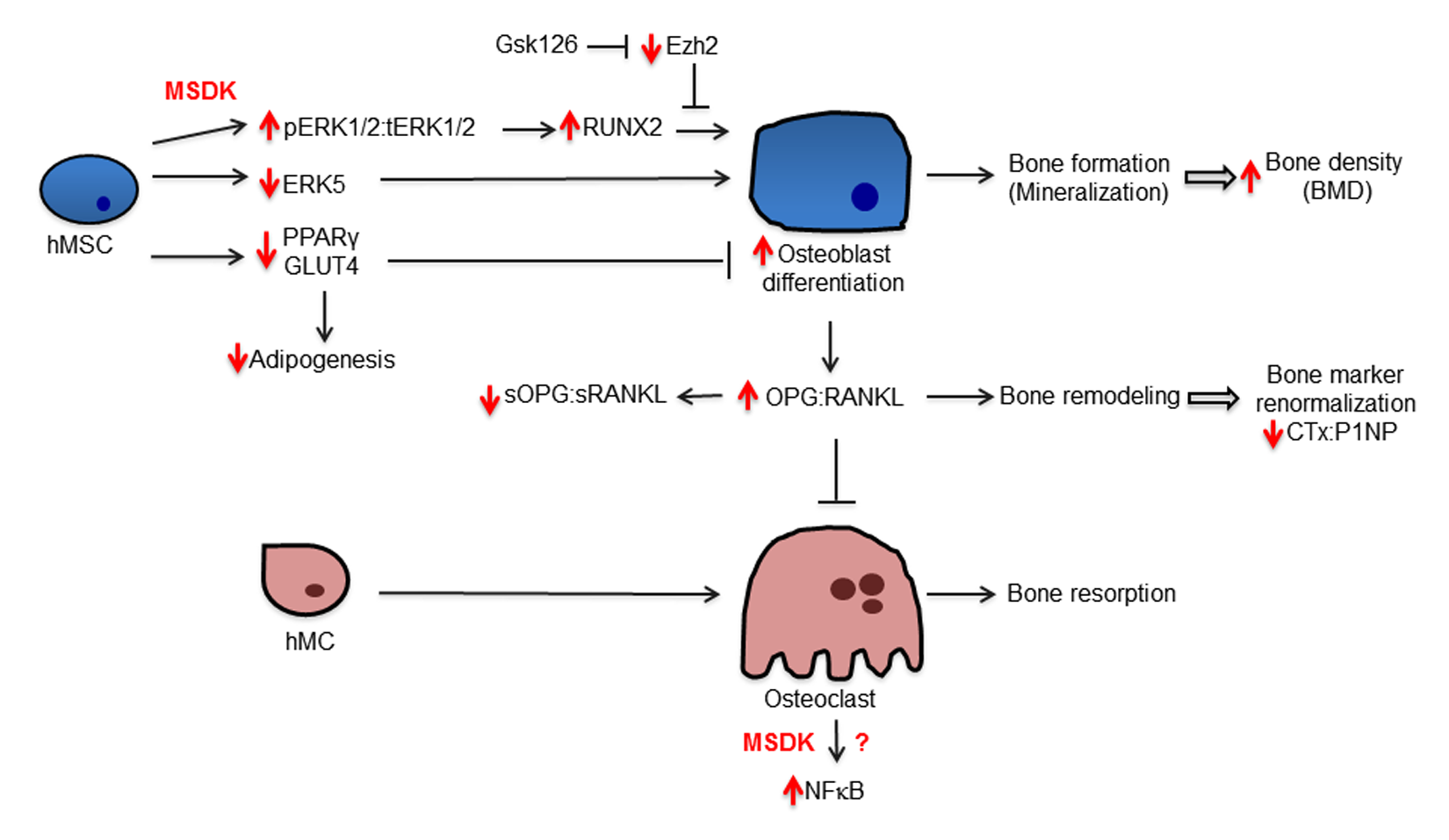

Figure 12.Potential mechanism underlying MSDK effects on bone formation. The diagram illustrates regulatory and biological relationships between the indicated proteins and treatments.
