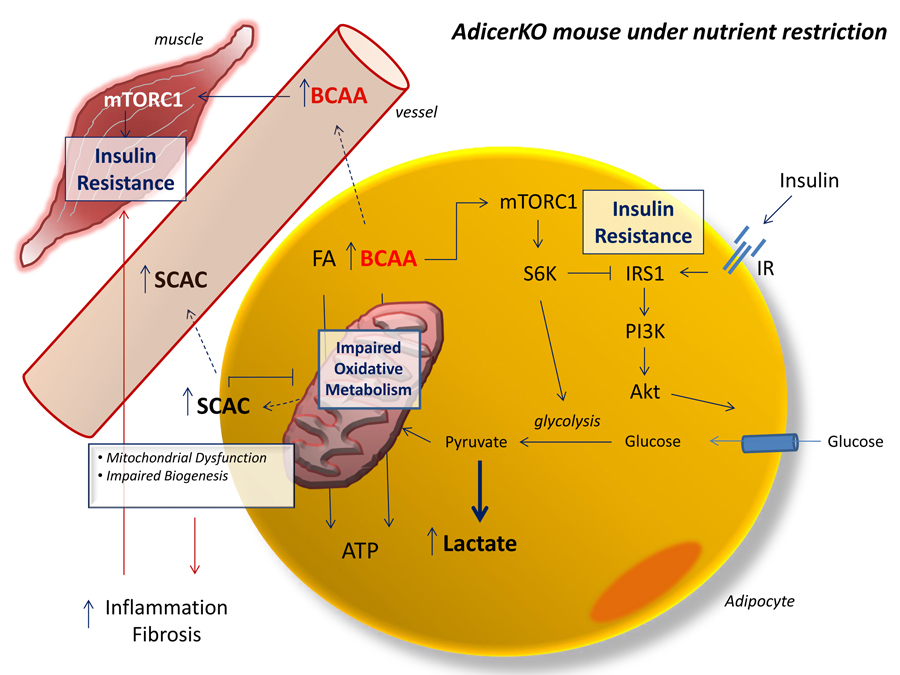

Figure 7.Metabolic dysfunction in AdicerKO mice under nutrient restrictionSchematic model of the metabolic consequences of fat-specific Dicer knockout in mice under nutrient restriction. FA, fatty acid. BCAA, branched-chain amino acid. SCAC, short-chain acylcarnitines. IR, insulin receptor. Solid arrows, activation. Dashed arrows, transport. T-bars, inhibition.
