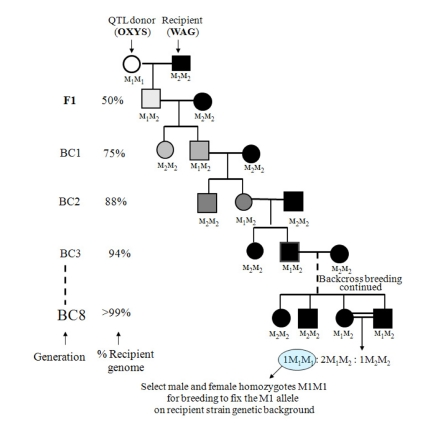

Figure 2. The breeding scheme for the construction of congenic strains. Selection is made at microsatellite marker locus M through a series of backcrosses such that the M₁ allele of a donor (OXYS) replaces the M₂ allele of a recipient (WAG). Rats are genotyped at M by PCR reaction using DNA obtained from tail tips. The genome of the donor strain is shown as an open symbol, and the genome of the recipient strain as a solid symbol. Increasing shades of gray from light to dark represent an increase in the percentage of genetic background of the recipient that occurs with each backcross (BC). The scheme is based on [26].
