In-depth transcriptomic analyses of LncRNA and mRNA expression in the hippocampus of APP/PS1 mice by Danggui-Shaoyao-San

Quality control of DSS freeze-drying powder

Five quality standards (ferulic acid, paeoniflorin, ligustilide, atractylenolide I, and alisol B 23-acetate) in DSS freeze-dried powder were identified by liquid chromatography-tandem mass spectrometry (LC-MS/MS). The chromatogram results showed that the retention time of ferulic acid, paeoniflorin, ligustilide, atractylenolide I, and alisol B 23-acetate were 0.889min, 5.562min, 11.004 min, 13.706 min, and 17.993 min, respectively (Figure 1A–1E). The quantitative results of the mass spectrometry showed that the content of ferulic acid, paeoniflorin, ligustilide, atractylenolide I, and alisol B 23-acetate in DSS were 148.2 mg/kg, 5320 mg/kg, 400.7 mg/kg, 7.2 mg/kg, and 26.7 mg/kg, respectively(Figure 1A–1E).

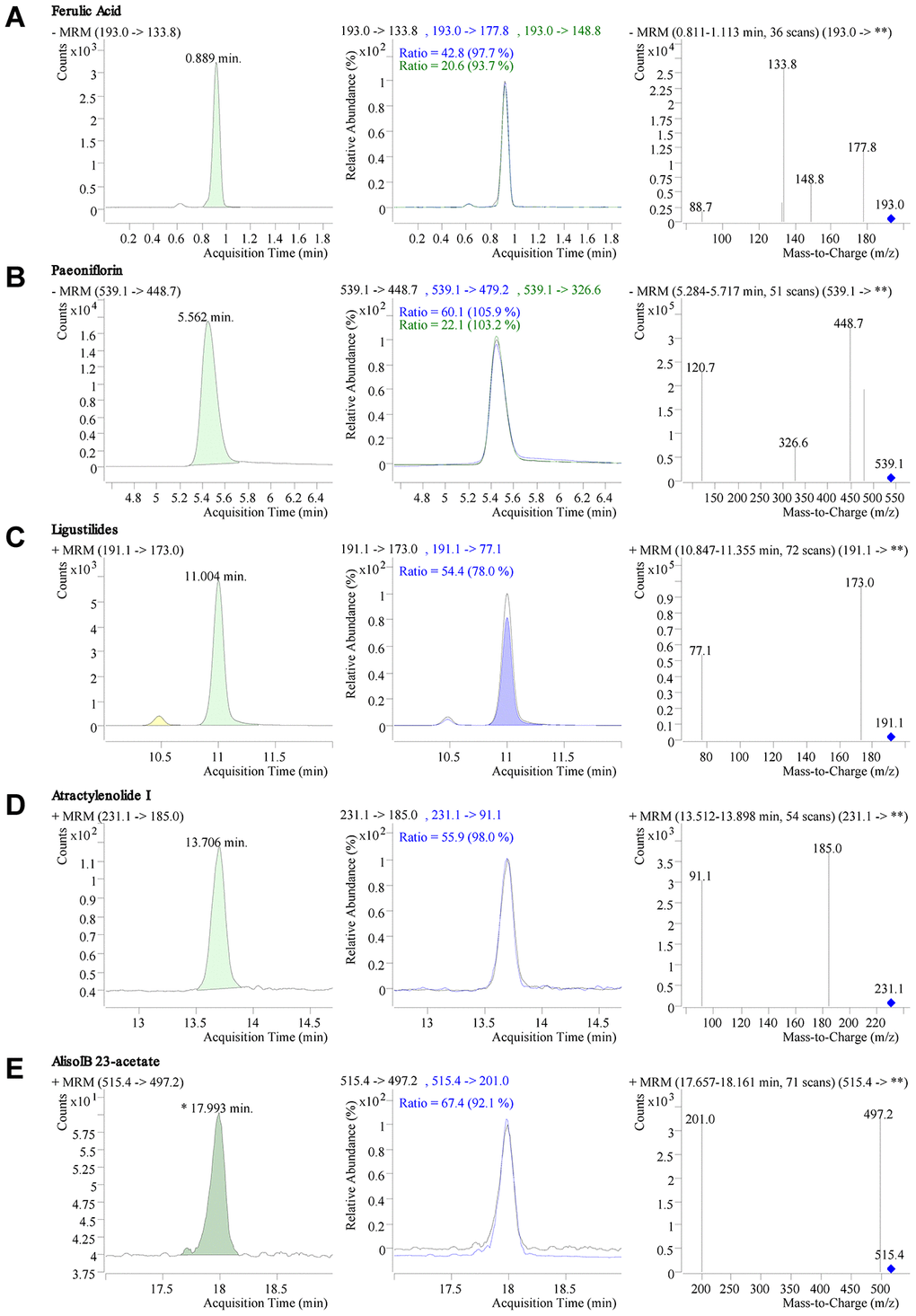

Figure 1. LC-MS/MS chromatogram and mass spectrometry of Danggui-Shaoyao-San (DSS). (A–E) Retention time, chromatogram, and mass spectrogram of ferulic acid (A), paeoniflorin (B), ligustilide (C), atractylenolide I, (D) and alisol B 23-acetate (E) in DSS.

Effect of DSS on learning and memory deficits in APP/PS1 mice

The offspring mice were weaned at the age of 3 weeks, and tail biopsies were collected for genotype identification on the second day after weaning. We used the gene-specific primer PS1 (608 bp) and reference gene primer GAPDH (283 bp) to detect mouse genotype, as shown in Figure 2A. The samples numbered 1, 4, 5, 6, and the positive control sample had a bright band at around 283 bp and 608 bp, respectively. Other specimens and the negative control sample had only one bright band at around 283 bp. APP/PS1 mice contain human transgenes for both APP bearing the Swedish mutation and PSEN1 containing an L166P mutation, both under the control of the Thy1 promoter [14]. Therefore, the samples of mice amplified with PS1 genes were thought to have been successfully transfected with APP and PS1. A Morris water maze test was conducted on mice at 7 months of age, as shown in Figure 2B–2D. Wild-type C57BL/6J mice (control) easily learned the hidden location during a 5-day trial, but APP/PS1 mice showed an inability to find the platform. Notably, the DSS-treated APP/PS1 mice showed significant improvement in learning and memory function compared with the untreated APP/PS1 mice, as evidenced by a reduction in the latency of avoidance (Figure 2B). Similar to the control mice, DSS-treated APP/PS1 mice crossed over the previous platform location more frequently than untreated APP/PS1 mice (Figure 2C). In the visible platform version of the Morris water maze test, DSS-treated and untreated APP/PS1 mice demonstrated similar behaviors (Figure 2D).

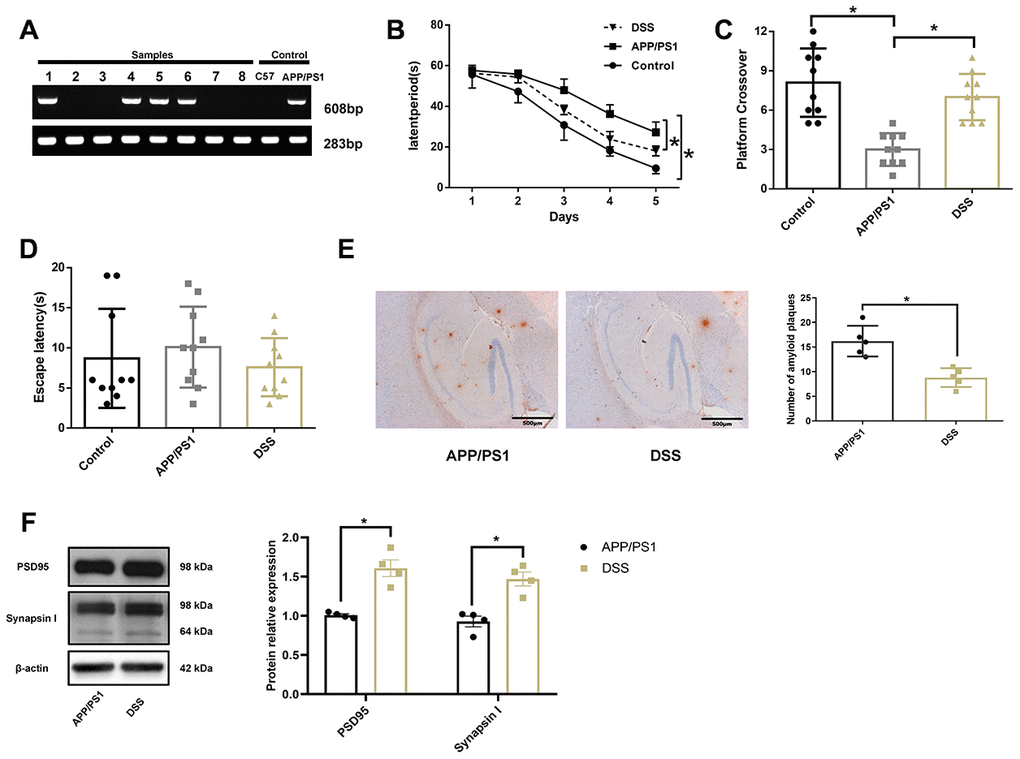

Figure 2. Danggui-Shaoyao-San rescued learning and memory deficits in APP/PS1 transgenic mice. (A) The genotype identification of APP/PS1 double transgenic mice; (B) Escape latency during the acquisition phase of the Morris water maze test; (C) The number of crossings over the previously hidden platform area in the Morris water maze test; (D) Escape latency during the visible platform phase of the Morris water maze test. N = 10 mice/group; Age = 7 months; Data are represented as mean ± standard deviation (SD), *, P< 0.05. (E) Immunohistochemistry of amyloid-β in the brain. N = 5 mice/group; Data are represented as mean ± SD, *, P< 0.05. (F) The protein expression of synaptic markers. N = 4 mice/group; Data are represented as mean ± SD, *, P< 0.05.

To further confirm the improvement of cognitive function in the APP/PS1 transgenic mice by DSS, immunohistochemistry was used to detect Aβ deposition in the hippocampal region of the mouse (Figure 2E). Consistent with other tests, immunohistochemical analysis showed that Aβ deposition in the hippocampus of DSS-treated APP/PS1 mice was significantly lower than that of APP/PS1 mice (P < 0.05). The synapse is the main part of neurons to transmit information, and the synaptic markers mainly include postsynaptic density protein 95 (PSD95) and synaptophysin. PSD95 is the most important and abundant scaffold protein on the postsynaptic membrane, which mainly exists in the mature excitatory glutamate synapses. PSD95 is necessary for the activity and stability of receptors on the postsynaptic membrane, which is involved in the regulation of the number of synapses during development and the promotion of the formation of synapses [15, 16]. synaptophysin is a calcium-binding protein that is specific to the synaptic vesicle membrane of presynaptic components and can indirectly reflect the number, distribution, and density of synapses [17, 18]. Western blotting results showed (Figure 2F) that the expression of PSD95 and synapsin Ι in hippocampus of APP/PS1 mice treated by DSS were significantly higher than those of APP/PS1 mice (P < 0.05). These results suggest that 7-month-old APP/PS1 transgenic mice develop AD spontaneously and that DSS improved the learning and memory deficits in APP/PS1 mice.

Differential expression analysis of mRNAs and LncRNAs

RNA sequencing was used to detect the LncRNA expression profile in two groups (DSS-treated APP/PS1 mice and APP/PS1 mice). The transcriptome analysis results showed that 285 differentially expressed LncRNAs were identified, of which 109 were upregulated and 176 were downregulated. 110 of the differentially expressed LncRNAs passed the False Discovery Rate (FDR) thresholds with the corrected P < 0.05, of which 47 were upregulated and 63 were downregulated. In addition, it was found that 137 mRNAs were differentially expressed, including 59 upregulated and 78 downregulated (Figure 3D). These differentially expressed LncRNAs and mRNAs were shown as a heatmap (Figure 3A, 3B). Principal component analysis (PCA) showed that there were significant differences in gene expression profile between after DSS - treated and untreated in APP/PS1 mice (Figure 3C). However, intra-group differences still exist, and we should focus on those genes that are relatively high in expression. So, in order to verify the transcriptome analysis results, we randomly selected four LncRNAs and four mRNAs from differentially expressed LncRNA and mRNA transcripts for determining their expression using qPCR (Figure 3E, 3F). By comparison, we found that the qPCR results were similar to the RNA sequencing results.

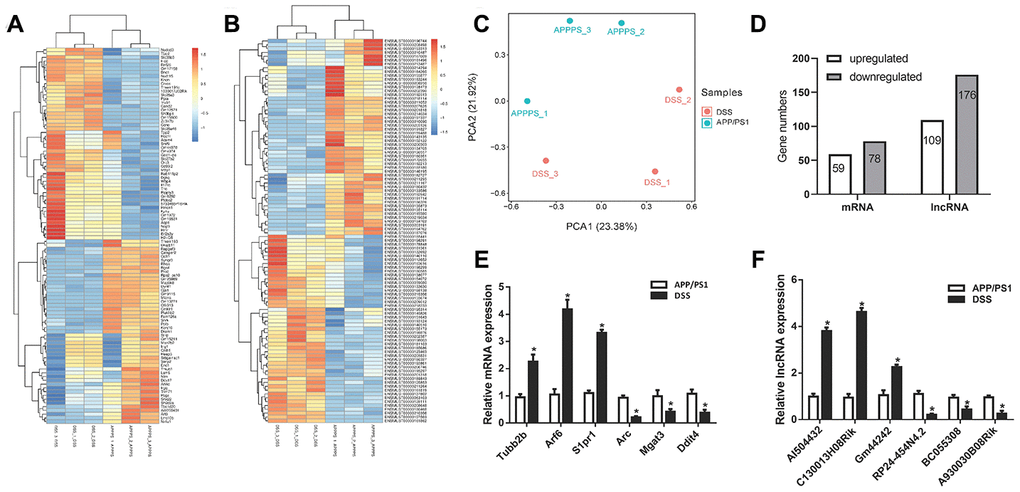

Figure 3. Differential expression analysis of messenger RNA (mRNAs) and long non-coding RNAs (LncRNAs) in Danggui-Shaoyao-San (DSS)-treated and untreated APP/PS1 double transgenic mice. (A) Heatmap analysis of differentially expressed mRNAs, DSS-treated VS. APP/PS1 mice; (B) Heatmap analysis of differentially expressed LncRNA, DSS-treated VS. APP/PS1 mice; (C) Principal component analysis (PCA), DSS-treated VS. APP/PS1 mice; (D) Differentially expressed LncRNAs and mRNAs; (E) qPCR for mRNAs; (F) qPCR for LncRNA. N = 5 mice/group; Data are represented as mean ± standard error of mean (SEM), *, P <0.05 vs. APP/PS1 mice group.

Co-expression network and functional analysis

To determine the function of differentially expressed LncRNAs, we investigated their correlation with each maladjusted mRNA. We identified 1528 co-expression relationships between 82 mRNAs and 242 LncRNAs (Figure 4). In addition, we also focused on the analysis of differentially expressed mRNAs related to AD (Table 1) and their co-expression relationship with LncRNA. The co-expression network is shown in Figure 5. Circular nodes represent mRNAs, the inverted triangle nodes represent LncRNAs, and the size of the node represent the degree of the node in the network. Usually, a high degree indicates an important node in the network; LncRNA:chr5:93080503-93084589, LncRNA A930030B08Rik, and LncRNA Firre showed the widest correlations (degree = 7), suggesting that they are involved in the regulation of multiple gene expressions. Similarly, mRNA Pou3f4 and mRNA Mgat3 were 34 and 30 degrees, respectively, indicating that their dysregulated expression profiles were associated with multiple LncRNAs.

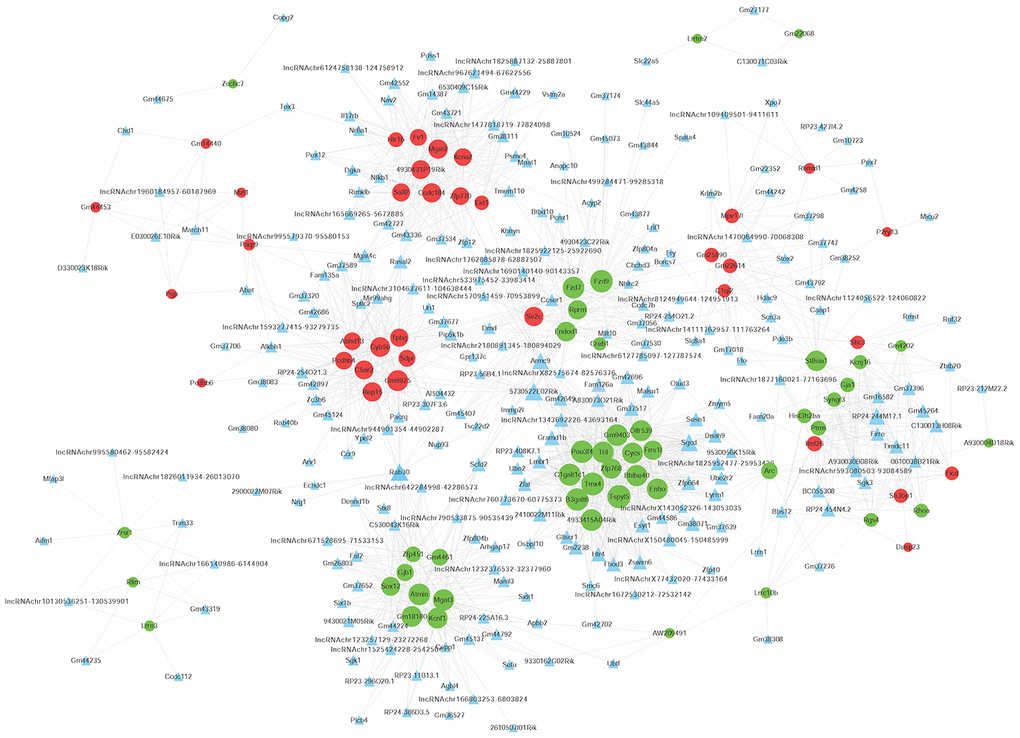

Figure 4. Co-expression network of differentially expressed long non-coding RNAs (LncRNAs) and differentially expressed messenger RNAs (mRNAs). The Pearson correlation coefficient between differentially expressed LncRNAs and mRNAs was calculated to construct the co-expression network, and the Pearson correlation coefficient ≥ 0.95 was selected. The circular nodes represent differentially expressed mRNAs (green: downregulated; red: upregulated). The triangular nodes represent differentially expressed LncRNAs. Connection line: co-expression between differentially expressed LncRNAs and mRNAs.

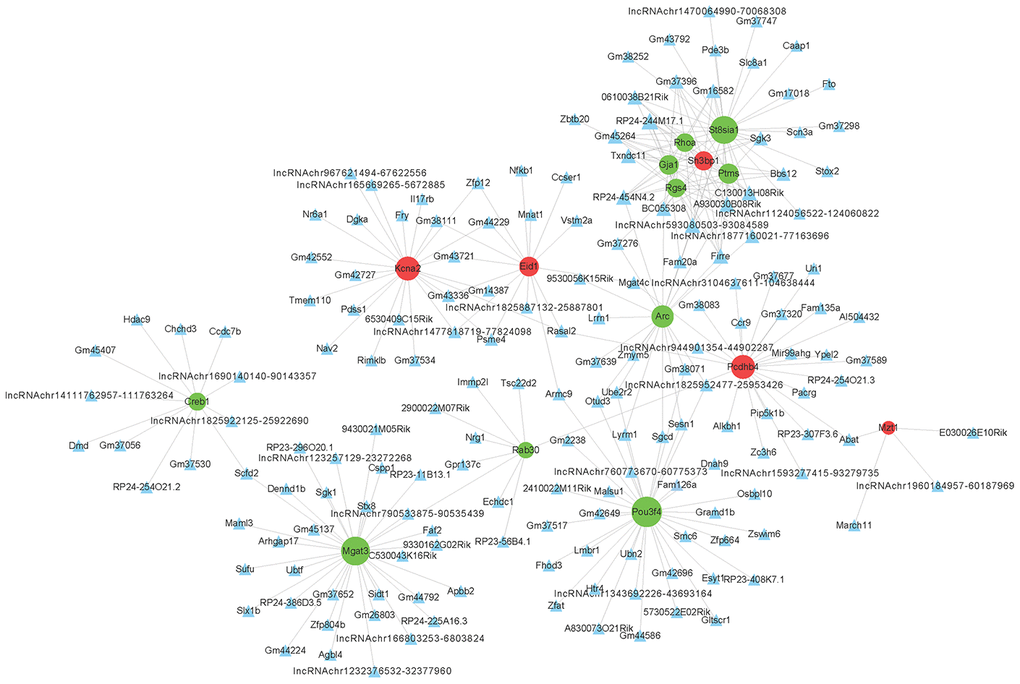

Figure 5. Co-expression network of differentially expressed long non-coding (LncRNAs) and messenger RNAs (mRNAs) related to Alzheimer’s disease. The construction method of the co-expression network is consistent with Figure 3.

We selected co-expressed genes for functional enrichment analysis to further explore the biological functions affected by the co-expression relationship of LncRNA and mRNA (Figure 6). The GO enrichment analysis results showed that the co-expressed genes were mainly involved in ion transport, protein ubiquitination, intracellular signal transduction, neuron migration, memory, learning, long-term synaptic potentiation, and regulation of glutamatergic synaptic transmission (Figure 6A). In addition, the pathway enrichment analysis results showed that the common enriched pathways related to co-expressed genes included the Wnt and Ras signaling pathways, glycerophospholipid metabolism, phosphatidylinositol signaling system, long-term depression, glutamatergic synapse, dopaminergic synapse, and cholinergic synapse (Figure 6B).

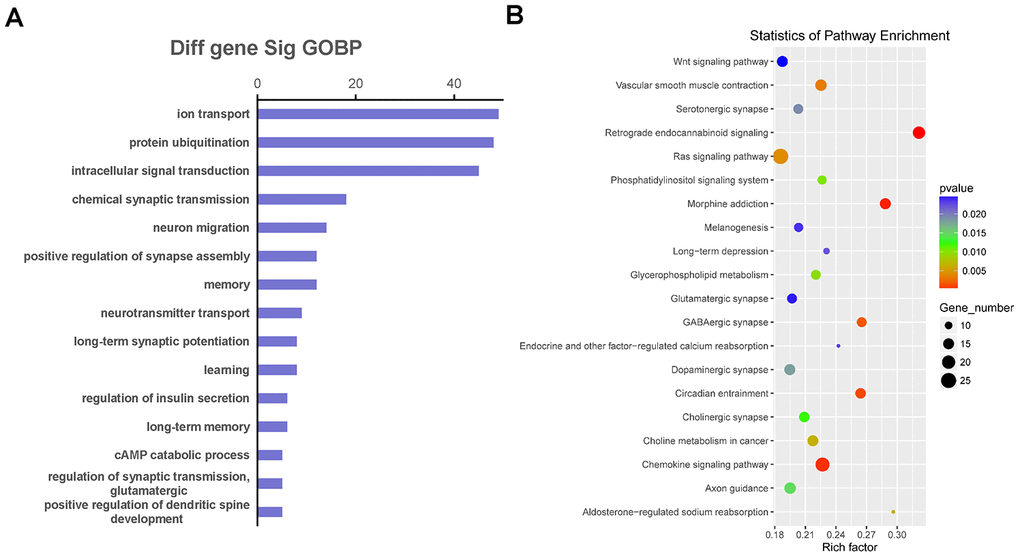

Figure 6. The function and pathway analysis of co-expressed genes. The gene ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses were performed on differentially expressed long non-coding RNA (LncRNA)-related genes to predict the potential biological processes and pathways affected by Danggui-Shaoyao-San-treated Alzheimer's disease mice. (A) The GO enrichment analysis (Biological Process) of differentially expressed genes co-expressed with differentially expressed LncRNAs; (B) The KEGG pathway enrichment analysis of differentially expressed genes co-expressed with differentially expressed LncRNAs.

Ethics statement

The Hunan University of Chinese Medicine (Changsha, China) institutional review committee provided approval for this research. This study was conducted in accordance with the ethical standards and the Declaration of Helsinki, as well as national and international guidelines.

Animals

APP/PS1 double transgenic mice (B6C3-Tg; APPswe, PSEN1dE9) 85Dbo/J were purchased from Nanjing Junke Biotechnology Corporation, Ltd. (Nan Jing City, Jiang Su Province, China). The experimental animal production license was No. SCXK (SU) 2017-0003. The animals were housed in a specific pathogen-free animal room of the Hunan University of Chinese Medicine. The breeding method was male hybrid APP/PS1 mice × female wild type C57BL/6J mice (+/-♂×-/-♀), and the feeding proportion was 1:2 (♂:♀). The genotypes of the mice were determined by PCR analysis of genomic DNA from tail biopsies with gene-specific primers. All animals were housed in separate cages (n=5 per cage) at a constant temperature of 25 °C and fed with a standard rodent diet and water with a 12h light/dark cycle. Degenerative neuropathy was evaluated in 7-month-old animals by the water maze test. Once behavioral changes were observed, APP/PS1 mice (n=5) were randomly selected for identification by immunochemistry. APP/PS1 mice were randomly divided into two groups (APP/PS1 group and DSS group) with 10 animals in each group. The DSS group was administered DSS at a dose of 150 mg/kg twice daily via the intragastric route, while the APP/PS1 mice group was administered isopycnic ddH₂O. The treatment duration was 8 weeks.

Drugs

DSS of AngelicaeSinensis Radix (120 g), Paeoniae Radix Alba (640 g), Poria Cocos (Schw.) Wolf.(160 g),AtractylodesmacrocephalaKoidz.(160 g), Alisma Orientale (Sam.) Juz. (320 g), and Chuanxiong Rhizoma(320 g) was approved by The First Affiliated Hospital of Hunan University of Chinese Medicine (Changsha, China). The six herbs of DSS were mixed and soaked eight times (v/w) in distilled water for 1.5 h, then boiled for 0.5 h, and simmered for 1 h. Then, the filtrate was collected, and the residue was extracted again following the steps described previously, except for rinsing only six times (v/w) in distilled water. The aqueous extract of DSS was concentrated by a rotating evaporator to a final concentration of 1g/ml (equivalent to the dry weight of raw materials).

Quality control of DSS

An Agilent 1290 Infinity HPLC coupled to an Agilent 6460 Tripe-Quadrupole mass spectrometer equipped with an electrospray ionization interface (Agilent Technologies, Inc. CA, USA) was used for liquid chromatography-tandem mass spectrometry analysis. Chromatographic separation was performed on an Agilent Poroshell 120 EC-C18 (100 × 2.1 mm, 2.7 μm particles) (Agilent Technologies, Inc. CA, USA). Chromatographic and mass spectrometry conditional protocols were performed in accordance with previously described methods [45]. Ferulic acid, paeoniflorin, ligustilide, atractylenolide I, and alisol B 23-acetate (SF8030, SP8030, SL8120, SA8650, Solarbio, China, and YZ-111846, National Institutes for Food and Drug Control, Beijing, China) were used for preparing quality control standards. Standards of 1 mg/ml were prepared and diluted to obtain a standard calibration solution. A total of 0.2 g DSS freeze-dried powder (accurate to 0.0001g) was accurately weighed, dissolved in 2.0 ml 50% methanol, and centrifuged at 10000 r/min for 5min. The supernatant was absorbed to prepare the DSS test solution. The DSS test solution and standards were filtered with a 0.25 μm-filter membrane and tested on the machine of Agilent liquid mass chromatograph. Instrument control, data acquisition, and quantification were performed using MassHunter Workstation software B. 04. 00 (Agilent Technologies, Inc. CA, USA).

Genotypes

Tail biopsies (5 ml) were collected, and genomic DNA was extracted using a TIANamp Genomic DNA Kit (DP304, TIANGEN Biotech, China), and Taq PCR Master Mix was prepared using a Taq DNA Mix Kit (KT201, TIANGEN Biotech, China). Genotypes for APP and PS1 repeats were determined by PCR as previously described [14]. In brief, PCR amplifications were performed using the PS1 primers, 5′-AATAGAGAACGGCAGGAGCA-3′ (forward) and 5′-GCCATGAGGGCACTAATCAT-3′ (reverse), under the following protocol: 3 min at 95 °C, followed by 35 cycles of 95 °C for 15 s, 60 °C for 30 s, 72 °C for 30 s, and 72 °C for 5 min. The amplified products were analyzed by the electrophoresis of agarose gel with an ethyl bromide ingot.

Morris water maze test

The Morris water maze test protocol was conducted as described previously [46]. Briefly, the Morris water maze consists of a circular pool filled with water. The ceiling of the room contained constant visual cues for direction. The collected spatial data included placing the mice facing the wall in the north, east, south, and west positions, and the escape platform was hidden in the middle of the northeast quadrant with water level less than 1 cm. In each test, the mouse was allowed to swim until it found the hidden platform, or until 60 s later, it was guided to the platform, where it remained for 10 s before being sent back to the cages with tissues to dry. The SMART 3.0 System (Panlab, Spain) recorded the escape latency and swim path length four times per day for 5 days. On the final day at the end of the acquisition phase, a test was performed by removing the platform and placing the mouse facing the north side. The time was recorded for the mouse looking for the previously correct quadrant in a 60-s test. Two hours later, the visible platform test was performed with the escape platform in the middle of the southeast quadrant 1 cm above the water level. A camera was added to the top of the escape platform to record the movements of the mice.

Immunochemistry

The immunohistochemical analysis protocols have been described previously [47]. Briefly, the mice were anesthetized with pentobarbital sodium and subsequently sacrificed by cervical dislocation. Brain tissue was quickly stripped off onto ice and then perfused with 4% paraformaldehyde. The fixed brain was cut into 50-μm sections using a vibratome (Leica Biosystems Inc., Germany). The primary antibody 6E10 was performed for Aβ deposition (SIG-39320, Covance Inc., USA). Immunohistochemical statistics were performed on five animals in each group; three slices were selected from each animal, and three fields were randomly selected from each slice to calculate the number of amyloid plaques under 4× objective. Immunoreactivity of Aβ in the hippocampus of the mouse brain was quantified using a histomorphometry system (Image-Pro Plus, Media Cybernetics, Rockville, MD).

LncRNA expression analysis

Total RNA was extracted and processed for the RNA sequencing (APP/PS1 group n=3 and DSS group n=3). Total RNA was extracted using Trizol reagent (Invitrogen, CA, USA) following the manufacturer’s procedure. The total RNA quantity and purity were analyzed by a Bioanalyzer 2100 and RNA 6000 Nano LabChip Kit (Agilent, CA, USA) with the RIN number >7.0. Approximately 10 μg of total RNA representing a specific adipose type was used to deplete ribosomal RNA according to the manuscript of the EpicentreRibo-Zero Gold Kit (Illumina, San Diego, USA). Following purification, the poly(A)- or poly(A)+ RNA fractions were fragmented into small pieces using divalent cations under elevated temperature. Then, the cleaved RNA fragments were reverse-transcribed to create the final cDNA library in accordance with the protocol for the mRNA-Seq sample preparation kit (Illumina, San Diego, USA). The average insert size for the paired-end libraries was 300 bp (±50 bp). LC-Bio (Hangzhou, China) performed the paired-end sequencing on an Illumina Hiseq 4000 following the vendor’s recommended protocol. LC-Bio (Hangzhou, China) performed all LncRNA expression analyses.

Differential expression analysis of mRNAs and LncRNAs

StringTie [48] was used to measure the expression levels of mRNAs and LncRNAs by calculating fragments per kilobase of exon model per million reads mapped. The differentially expressed mRNAs and LncRNAs were selected with a fold change ≥ 2 and statistical significance (P < 0.05) by the R package Ballgown [49].

Co-expression network of LncRNAs and mRNAs

The regulation network of LncRNA regulatory genes was analyzed according to the Pearson correlation coefficient of genes and LncRNAs. Then, the LncRNA-mRNA regulatory network was constructed using Cytoscape software V3.6.1 (San Diego, CA, USA).

GO and pathway analysis

GO and KEGG pathway analyses were performed to analyze the functions of the differentially expressed genes and LncRNAs, as previously described [50, 51]. In this study, GO term enrichment with P< 0.05 and false discovery rate (FDR) < 0.05 were employed. GO terms meeting this condition were defined as significantly enriched GO terms in the gene set. Pathway analysis was used to determine the significant pathway of the differential genes, according to KEGG. The calculated P value was determined through FDR correction, using FDR < 0.05 as the threshold. Pathways meeting this condition were defined as significantly enriched pathways in the given gene set.

qPCR

Total RNA was extracted using TRIzol Reagent (Invitrogen, CA, USA) and then reverse-transcribed into cDNA using a TaKaRaPrimeScript RT reagent Kit with gDNA Eraser (RR047A, Takara, Japan) according to the manufacturer’s procedure. Real-time PCR was performed with SYBR Premix Ex Taq II (RR820L, Takara, Japan) and a CFX96 real-time PCR System (Bio-Rad) according to the manufacturer’s instructions. The specific primers are listed in Table 2. The data represents the means of three experiments.

Western blotting

100mg hippocampal tissue was ground and crushed using liquid nitrogen. Total protein was extracted according to the RIPA kit instructions (Beyotime Biotechnology Co., Ltd., cat. P0013B, Shanghai, China). The protein concentration was determined using Pierce™ BCA Protein Assay Kit (Thermo Scientific Technology (China) Co., Ltd., cat. 23227, Shanghai, China). The 20μg total protein was separated by SDS-PAGE and transferred to 0.45 μm PVDF membranes (Millipore Sigma Inc., IPVH00010, Billerica, USA). The membranes were blocked with 5% skim milk and incubated overnight with primary antibodies (1:1000) at 4 °C. The membranes were then incubated with secondary antibodies (1:10000) for 1h at 37 °C. Then, ECL chemiluminescence was used in accordance with the instructions of the ECL Plus™ Western Blotting Substrate kit (Thermo Scientific Technology (China) Co. Ltd., cat. 32132, Shanghai, China), and the signals were collected using an imaging system (ChemiDoc™ XRS+, Bio-Rad, California, USA). The primary antibodies Anti-PSD95 (cat. ab18258) and Anti-Synapsin I (cat. ab64581) were purchased from Abcam (Shanghai, China). The primary antibody β-actin (cat. bs-0061R) were purchased from Bioss Biotechnology Co., Ltd. (Beijing, China). The goat anti-rabbit IgG antibody (cat. AP132P) was purchased from Sigma-Aldrich, Inc. (Billerica, USA).

Statistical analysis

Statistical analysis was performed using Statistical Product and Service Solutions (SPSS, Version21.0). The two groups were compared using the t-test, whereas repeated measurements were made using a one-way analysis of variance. The threshold was set to FC ≥ 2, and P< 0.05 was used for screening differentially expressed mRNAs and LncRNAs.
