Research Paper Volume 17, Issue 3 pp 610—629

Mitochondrial oxidative stress or decreased autophagy in osteoblast lineage cells is not sufficient to mimic the deleterious effects of aging on bone mechanoresponsiveness

class="figure-viewer-img"

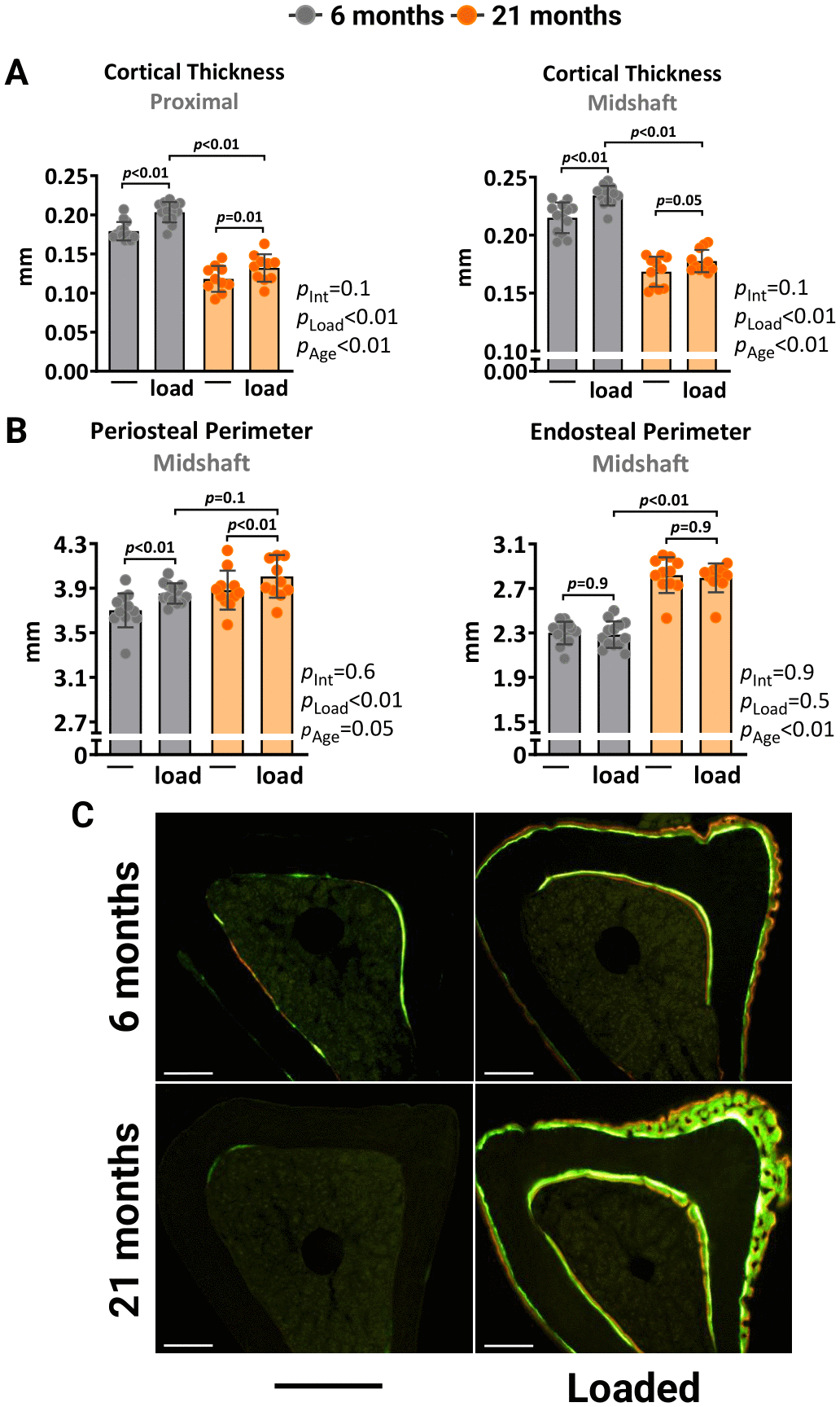

Figure 2. Higher mechanical strain leads to periosteal woven bone formation in old mice. Left tibia of young (6 mo) and old (21 mo) C57BL/6J female mice were loaded with -10N and -8.5N, respectively, to achieve +1500με peak strain at the midshaft. (A) Micro-CT measurements at 5 mm proximal to the tibiofibular junction and at the midshaft of the right (non-loaded) and left (loaded) tibiae from young (n=13) and old (n=11) female mice. (B) Endosteal and periosteal perimeters at the tibia midshaft. (C) Representative photomicrographic cross-section images of the proximal tibia shaft. Scale bar, 200 μm. Bars represent mean ± SD. Data analyzed using two-way mixed ANOVA; p-values adjusted by Holm-Sidak’s test. Int: Interaction.
